ResMed AirFit™ F20 Full Face CPAP Mask
$124.00
Designed to fit virtually everyone, the popular AirFit™ F20 Full Face CPAP mask by ResMed is compact yet effective at any airflow pressure and a range of sleeping positions.
ResMed AirFit™ F20 Full Face CPAP Mask Assembly Kit Overview
The adaptive ResMed AirFit™ F20 full face mask elements fit an astounding 97% of patients. The F20 features a high-performance spring frame and a flexible, ultrasoft InfinitySeal cushion. The F20 is perfect for those who need high-pressure sleep apnea treatment with a full face cushion for nose and mouth coverage, but don’t want to skimp on comfort or performance. The lightweight, flexible frame ensures a clear sightline for reading/watching TV, ideal for those who sometimes feel claustrophobic during therapy.
The soft, dual-wall InfinitySeal silicone cushion comfortably contours the face, ensuring a secure mask fit for a variety of facial shapes and sizes. Even the sensitive nose bridge and chin areas are softly contoured, minimizing the discomfort and red marks typical with many full-face CPAP mask cushions. The cushion seal remains robust and effective all night, even at strong CPAP therapy pressures.
Please note: headgear does not automatically come with the order. If you'd like your purchase the CPAP mask with headgear, please select your option. The plush headgear straps are designed in a way to minimize pressure points and pinching, and the absence of forehead support means that users have an open field of vision. The headgear features adjustable velcro tabs to find the perfect fit, as well as magnetic clips to guide it easily into place. The quick-release elbow allows users to quickly disconnect from CPAP machine without removing the entire mask.
To keep your AirFit™ F20 in good working order, and your sleep therapy effective, it’s important to replace individual parts when lost or worn out. You can individually purchase the ResMed AirFit™ F20 cushion, the AirFit™ headgear with clips, or the AirFit™ mask assembly kit without headgear, all without prescription.
Add an AirMini™ mask connector to your AirMini™ travel CPAP machine and the F20 becomes the ideal travel mask for sleep therapy on-the-go!
Per ResMed, please note the following about this mask’s magnetic contraindications:
Update to Contraindication
In an update to the previously contraindicated metallic aneurysm hemostatic clips in the head and metallic splinters in one or both eyes following a penetrating eye injury, ResMed is further contraindicating the use of its masks with magnets for patients where they, or anyone in close physical contact while using the mask (e.g., bed partner), have the following:
- Active medical implants that interact with magnets (i.e., pacemakers, implantable cardioverter defibrillators (ICD), neurostimulators, cerebrospinal fluid (CSF) shunts, insulin/infusion pumps)
- Metallic implants/objects containing ferromagnetic material (i.e., aneurysm clips/flow disruption devices, embolic coils, stents, valves, electrodes, implants to restore hearing or balance with implanted magnets, ocular implants, metallic splinters in the eye)
Update to Warning
The safe distance to the magnets has been increased from 2 inches (50 mm), and patients are now warned to keep the mask magnets at a safe distance of 6 inches (150 mm) away from implants or medical devices that may be adversely impacted by magnetic interference. This applies to patients, or anyone in close physical contact with the mask magnets.
Note, not all models or manufactured variants of medical devices listed in the contraindications are affected by external magnetic fields. Only those that interact with magnets or contain ferromagnetic materials present the potential for magnetic interference.
For more information: please reach out to ResMed directly; CPAPsupplies.com does not have any additional details on this update. Visit www.resmed.com/magnetupdate for more details and the appropriate contact information.
- InfinitySeal cushion maintains a tight seal that easily adapts to facial contours
- Quick-Release elbow allow the patient to easily detach from the tubing
- QuietAir vent minimizes noise
- Flexible mask frame and cushion sizes to fit up to 97% of patients
- Full face design with open sight line
- Appropriate for those with a high-pressure CPAP prescription
- Spring frame includes integrated padding
-
1 — AirFit™ F20 Mask Frame and Cushion (of selected size)
-
1 — QuietAir Elbow
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — AirFit™ F20 Headgear
-
2 — Magnetic Clips
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion

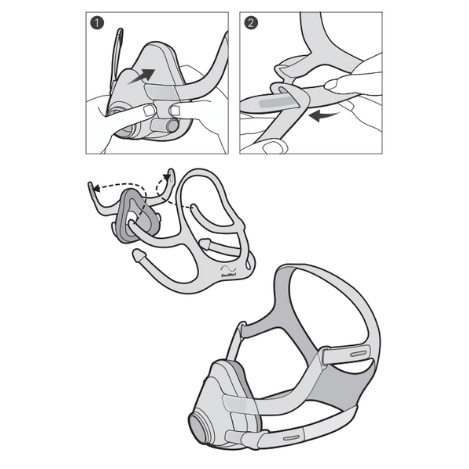

Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Attach the cushion to the frame by aligning the circular openings and
pushing together until retained. - With the ResMed logo on the headgear facing outside and upright,
thread the upper headgear straps into the frame slots from the inside.
Fold them over to secure.

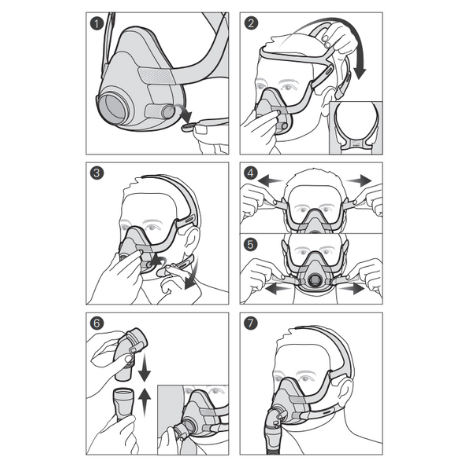

Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- Twist and pull both magnetic clips away from the frame.
- Ensure that the ResMed logo on the headgear is facing outwards and
is upright. With both lower headgear straps released, hold the mask
against your face and pull the headgear over your head. - Bring the lower straps below your ears, and attach the magnetic clip
to the frame. - Undo the fastening tabs on the upper headgear straps. Pull the straps
evenly until the mask is stable and positioned as shown in the
illustration. Reattach the fastening tabs. - Undo the fastening tabs on the lower headgear straps. Pull the straps
evenly until the mask is stable and sits comfortably on the chin.
Reattach the fastening tabs. - Connect the device air tubing to the elbow. Attach the elbow to the
mask by pressing the side buttons and pushing the elbow into the
mask, ensuring it clicks in on both sides. - Your mask and headgear should be positioned as shown in the
illustration.

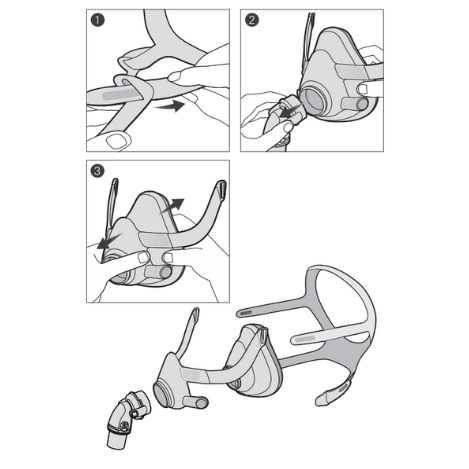

Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
If the mask is connected to your device, disconnect the device air tubing
from the elbow.
- Undo the fastening tabs on the upper headgear straps. Pull the straps
out of the frame.* - Remove the elbow from the mask by pressing the side buttons and
pulling the elbow away. - Hold the side of the frame between the upper and lower arms. Gently
pull the cushion away from the frame.
* Tip: Keep the magnetic clips attached to the lower headgear straps to
easily distinguish the upper and lower straps when reassembling.


Operating Therapy Pressure Range |
3 to 40 cm H²O |
Brand | ResMed |
---|---|
SKU | pb_AF-F20-FFM |
Model | pb_AF-F20-FFM |
UPC | 619498634514, 619498634521, 619498634538, 619498634002, 619498634019, 619498634026 |
Prescription Required | No |
Weight | 0.25 lbs |
Manufacturer's Warranty | 90-day limited manufacturer's warranty |
FSA/HSA Eligible | Yes |
Dimensions | Headgear* (Upper Straps): 6" (L); Headgear* (Lower Straps): 11.75" (L); Cushion (Large): 4.75" (L) x 3.25" (W) x 2.5" (H) |
Included | 63460, 63461, 63462, 63470, 63471, 63472 |
