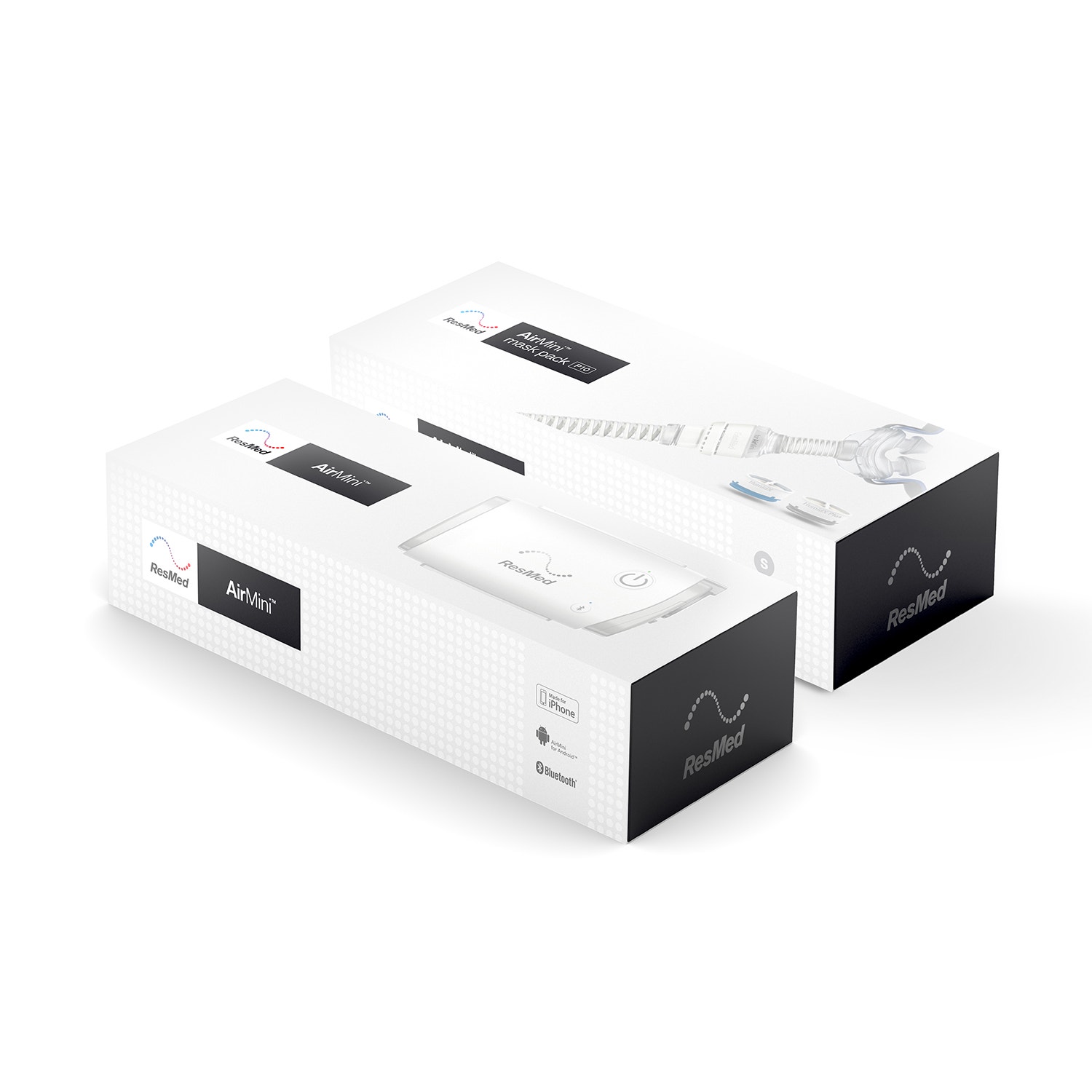

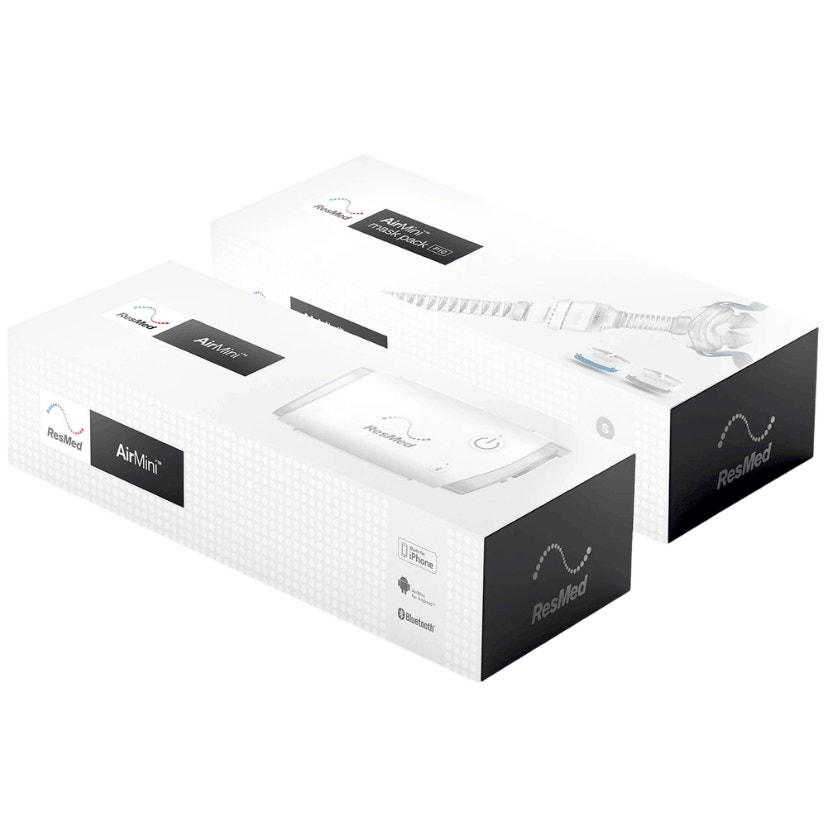

Resmed P10 AirMini™ Setup Pack With CPAP Mask

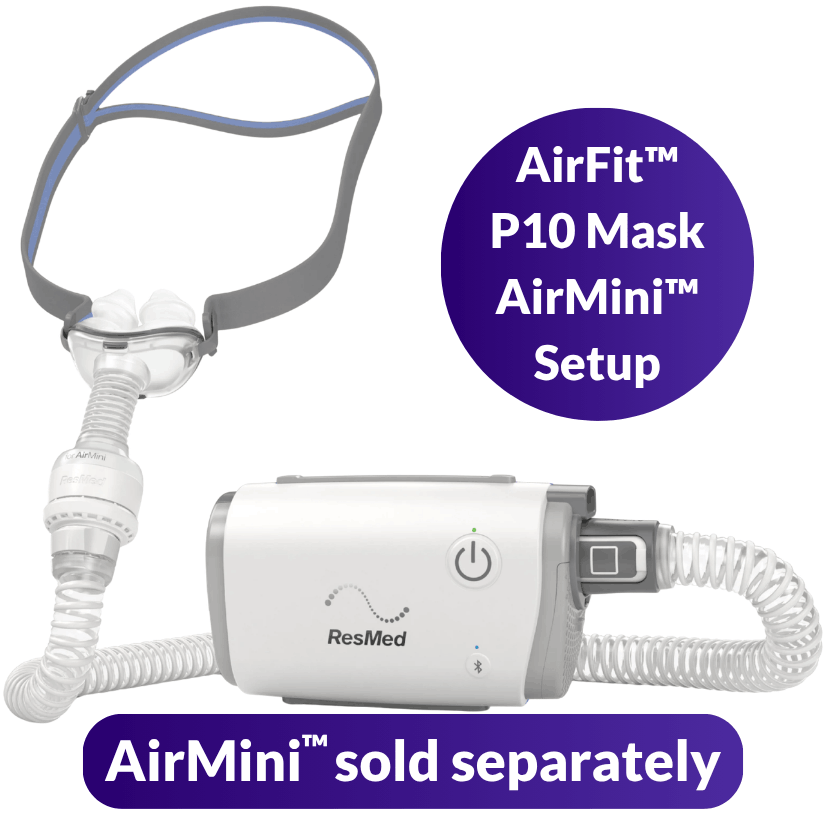

The P10 AirMini™ Setup Pack includes all the essential parts required to use the AirFit™ P10 nasal pillow mask with the AirMini™ travel CPAP machine for your sleep apnea treatment.
Resmed P10 AirMini™ Setup Pack With CPAP Mask Overview

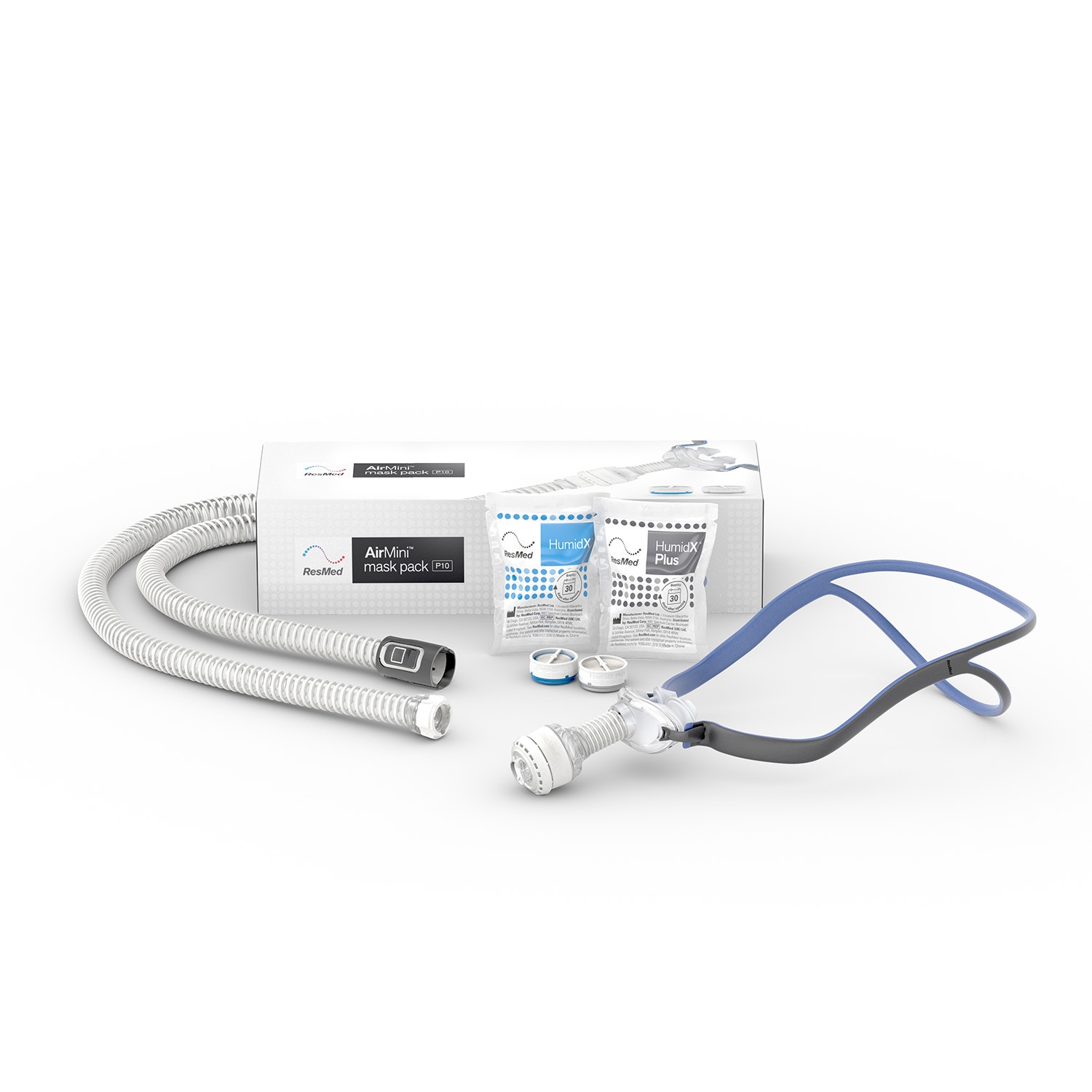

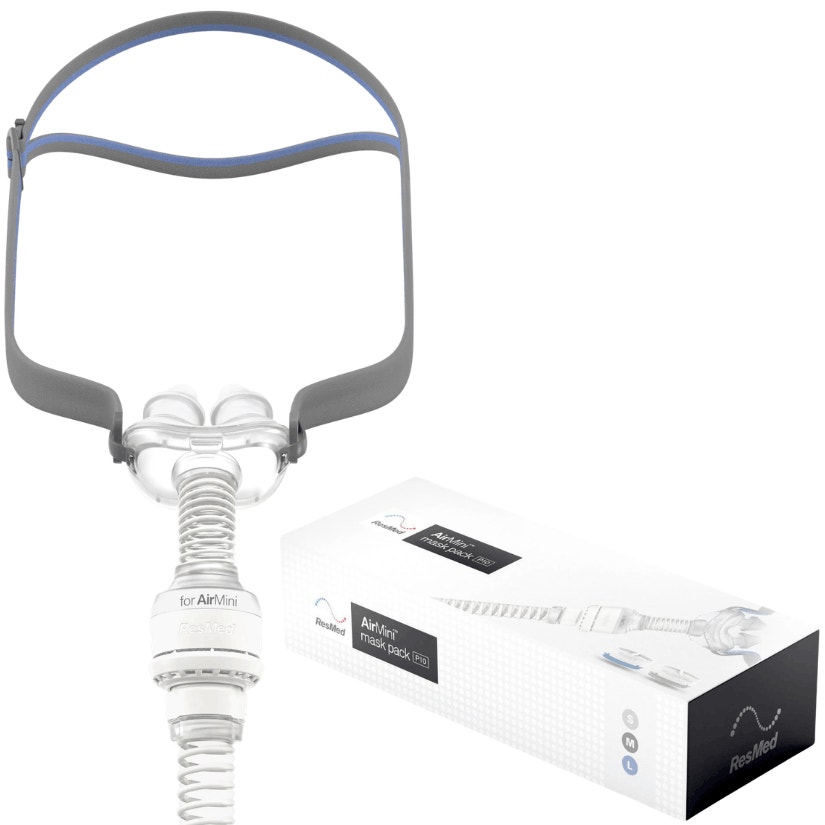

Featuring the AirFit™ P10 mask frame, 1 of each nasal pillow size (small, medium, and large), a P10 AirMini™ connector, an individual package of both the HumidX and HumidX Plus waterless humidification cartridges, and one hose for the AirMini™, the P10 AirMini™ Setup Pack has everything you need to start getting effective, reliable CPAP therapy with your AirFit™ P10 and AirMini™ by Resmed.

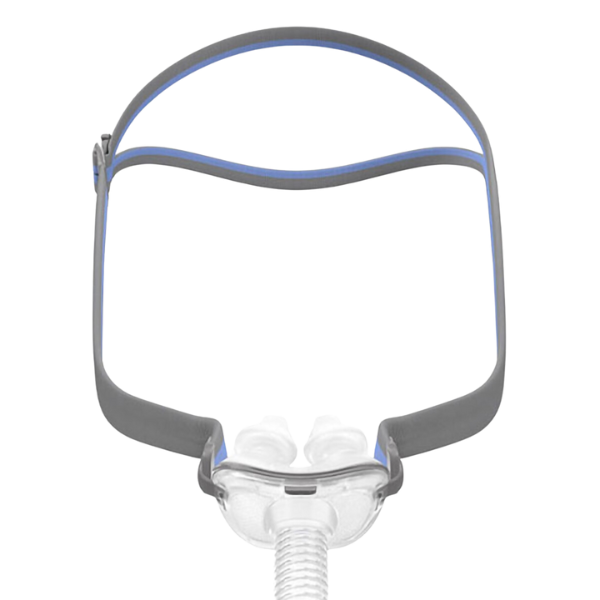

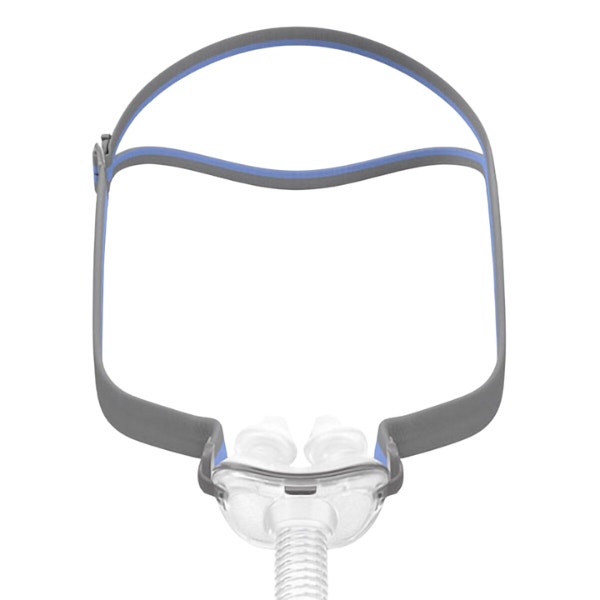

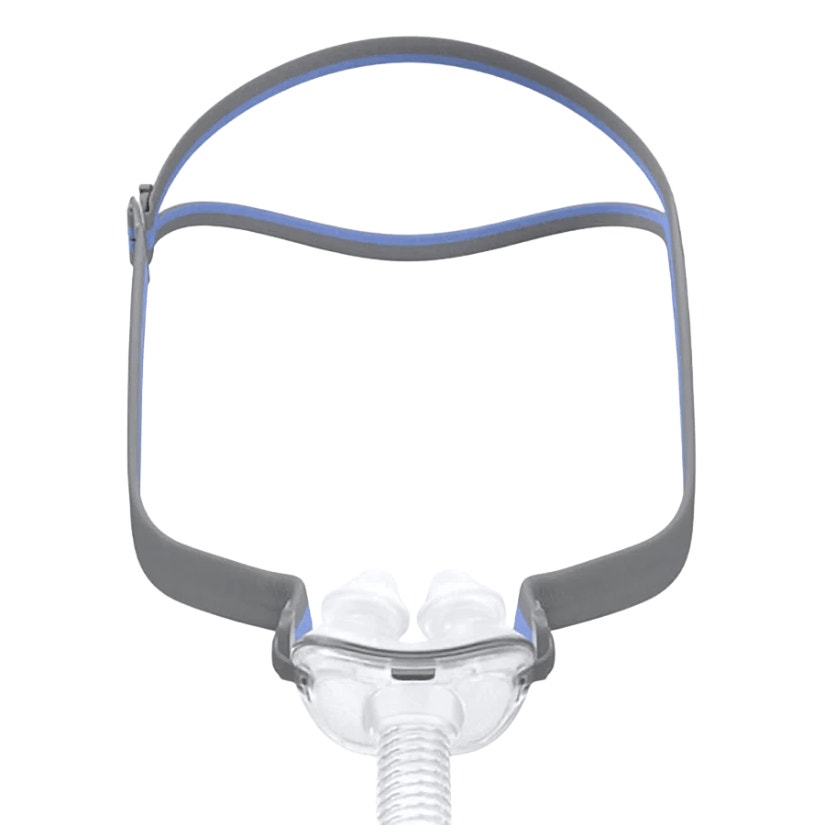

The lightweight AirFit™ P10 nasal pillow mask delivers high-level performance, comfort, and reliability, along with providing advanced air diffusion that is barely audible, significantly reducing disturbance for you and your bed partner.
The key-clip nasal pillows feature color-coded sizing and left/right orientation for fast and conveniently simple fitting. Easily put your mask on and take it off without making constant adjustments. The pillow cushion's trampoline action allows you to move around without breaking the seal of the mask.

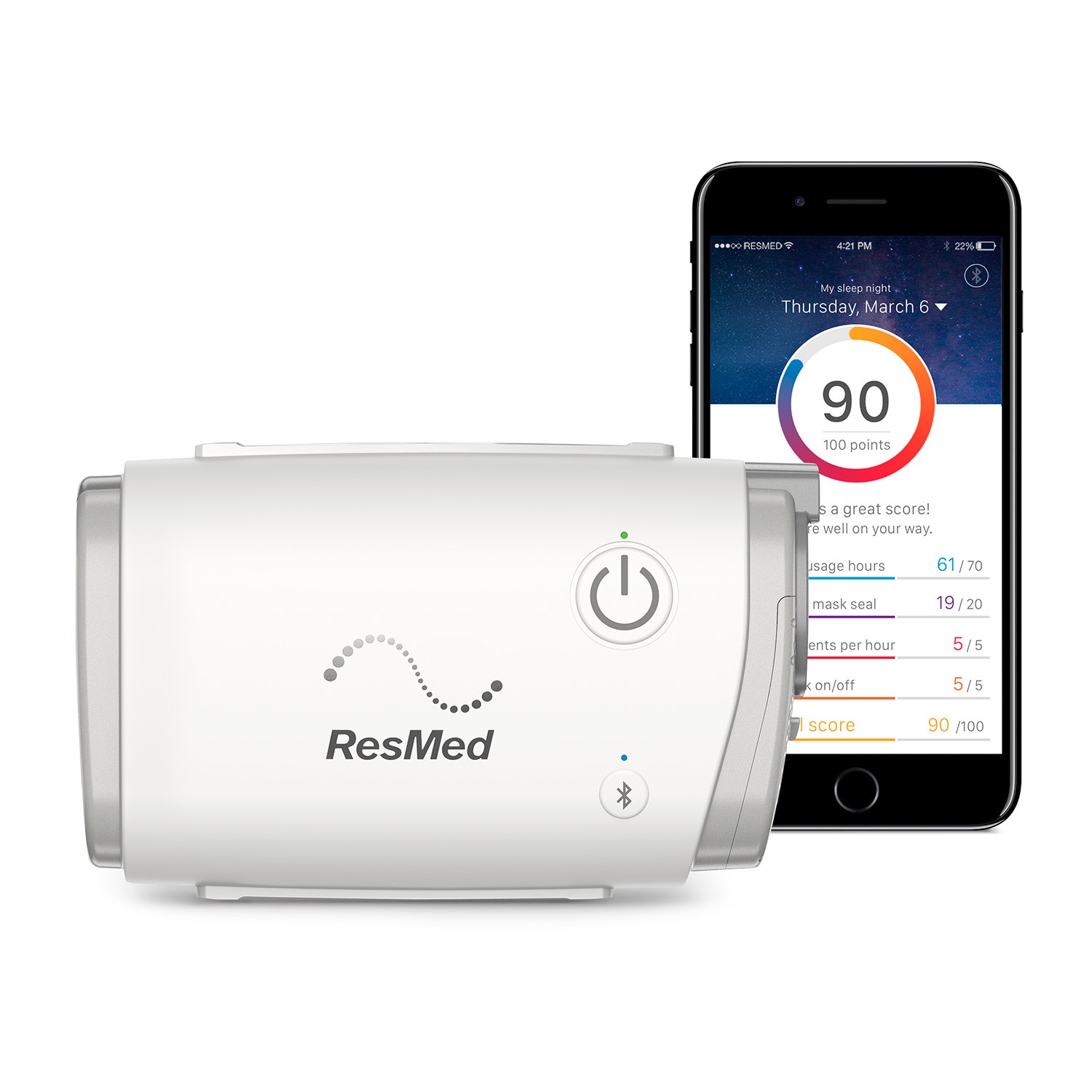

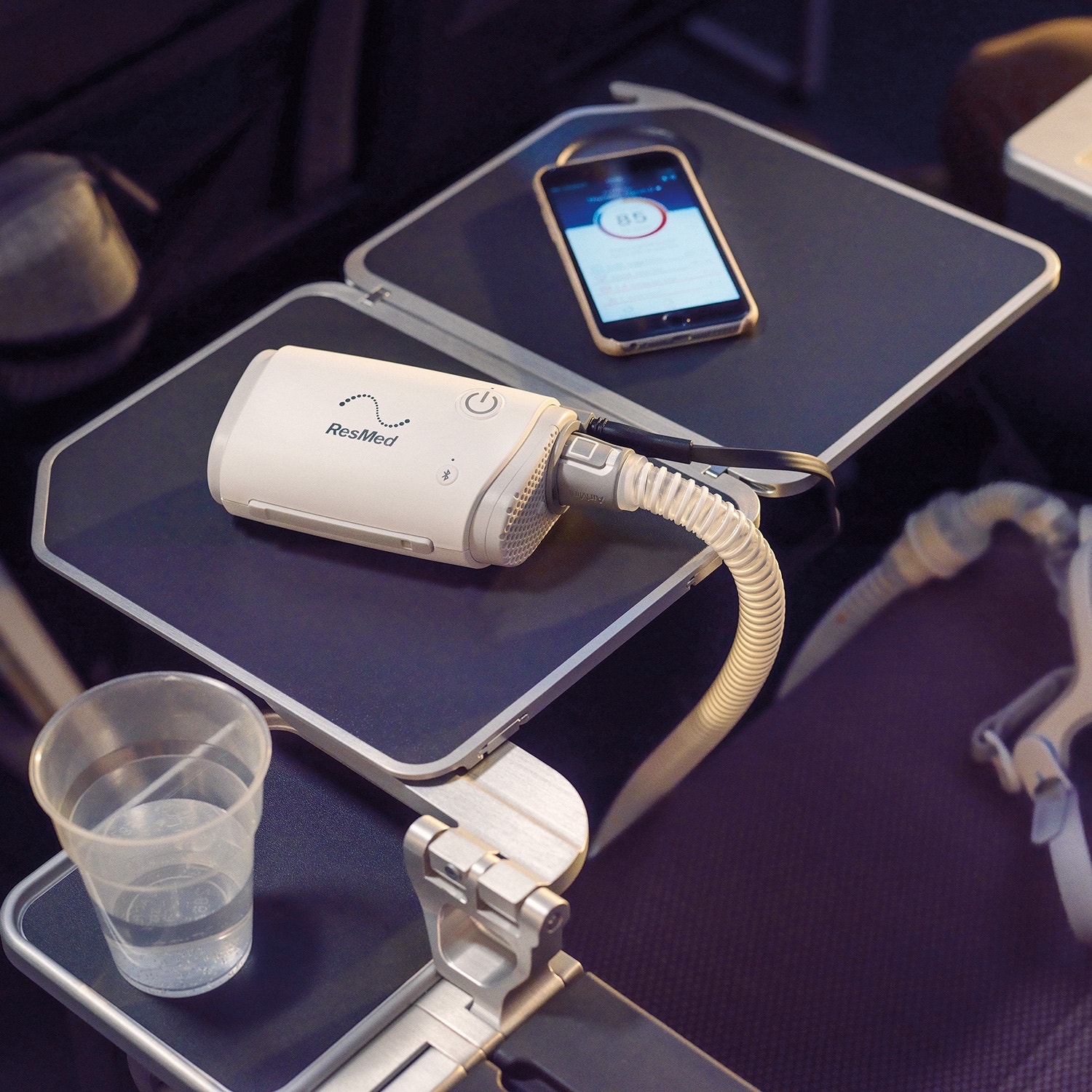

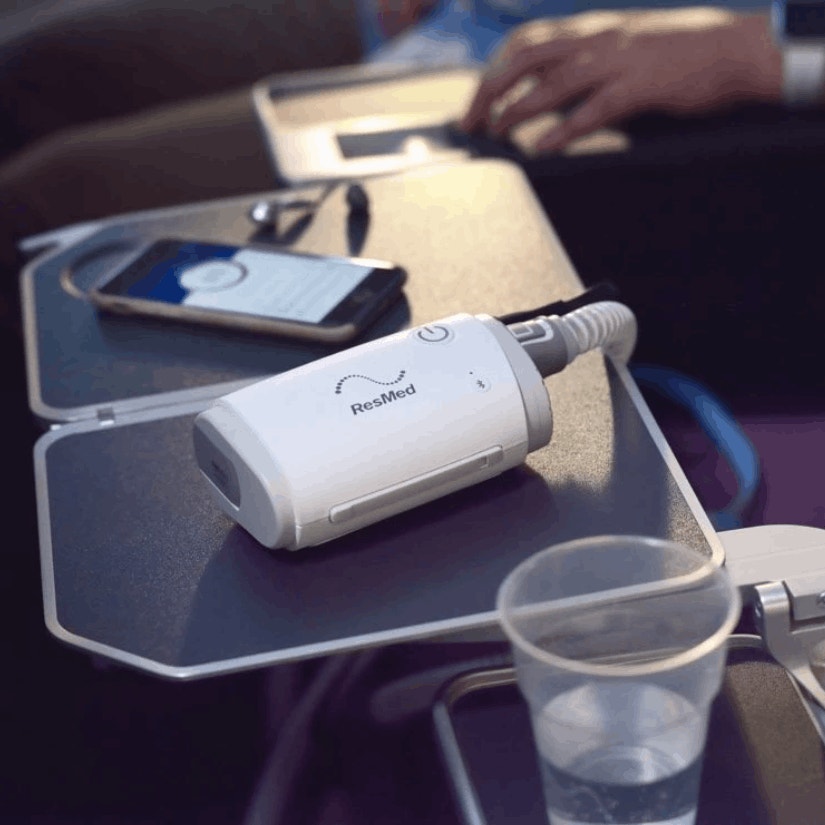

Discover more about the Resmed AirMini™ Travel CPAP Machine with our helpful blog: The Ultimate Resmed AirMini User Guide.
-

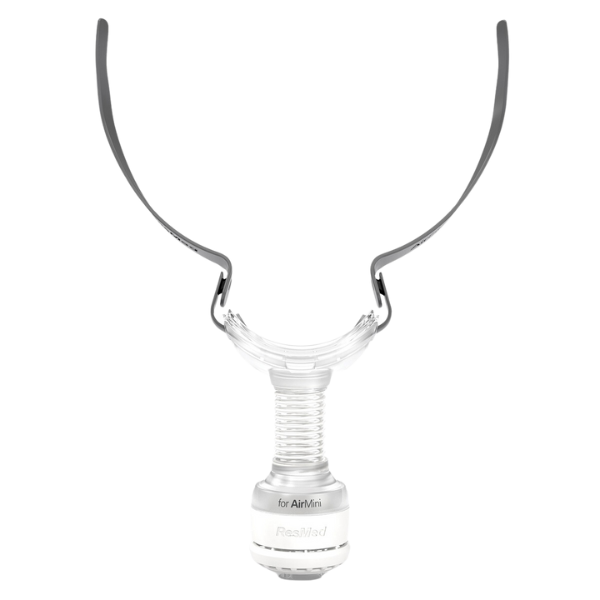

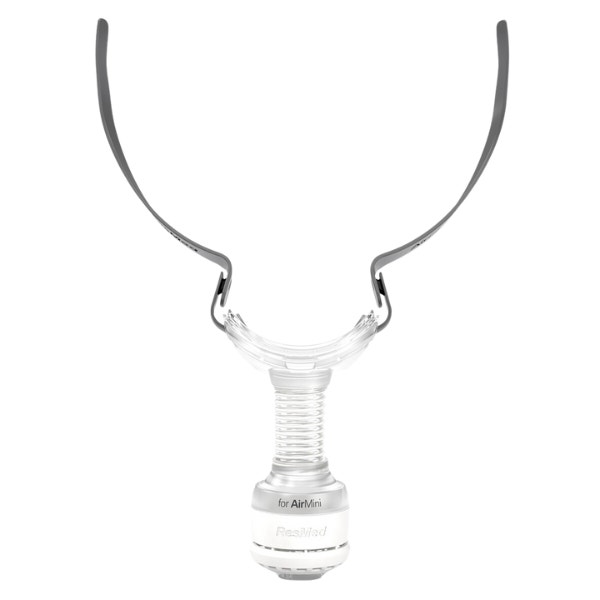

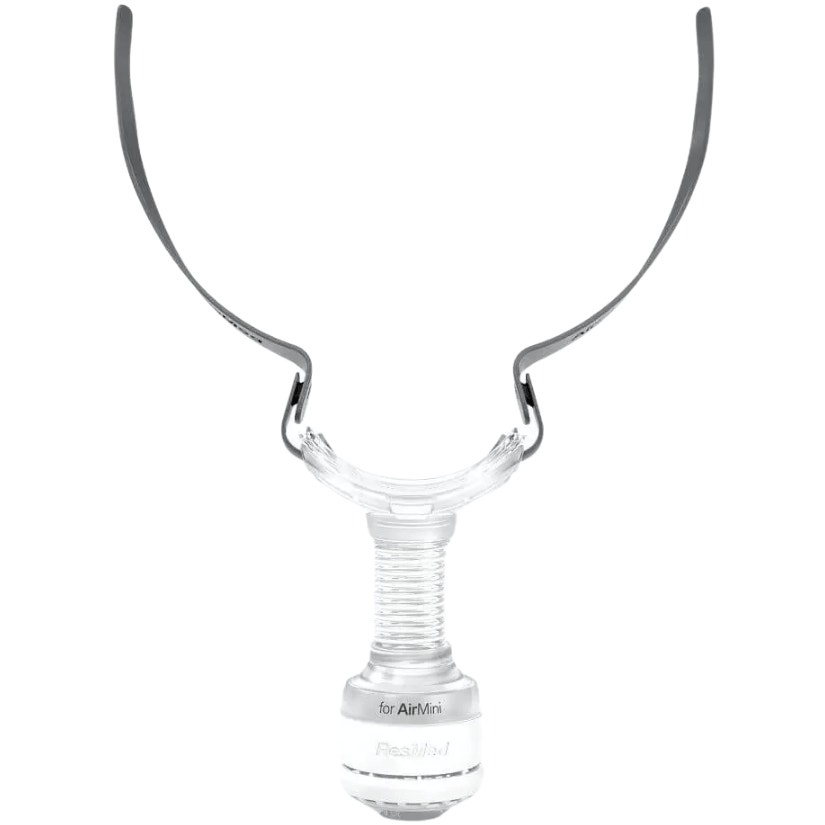

1 — AirFit™ P10 Nasal Pillow CPAP Mask Frame for AirMini™
-

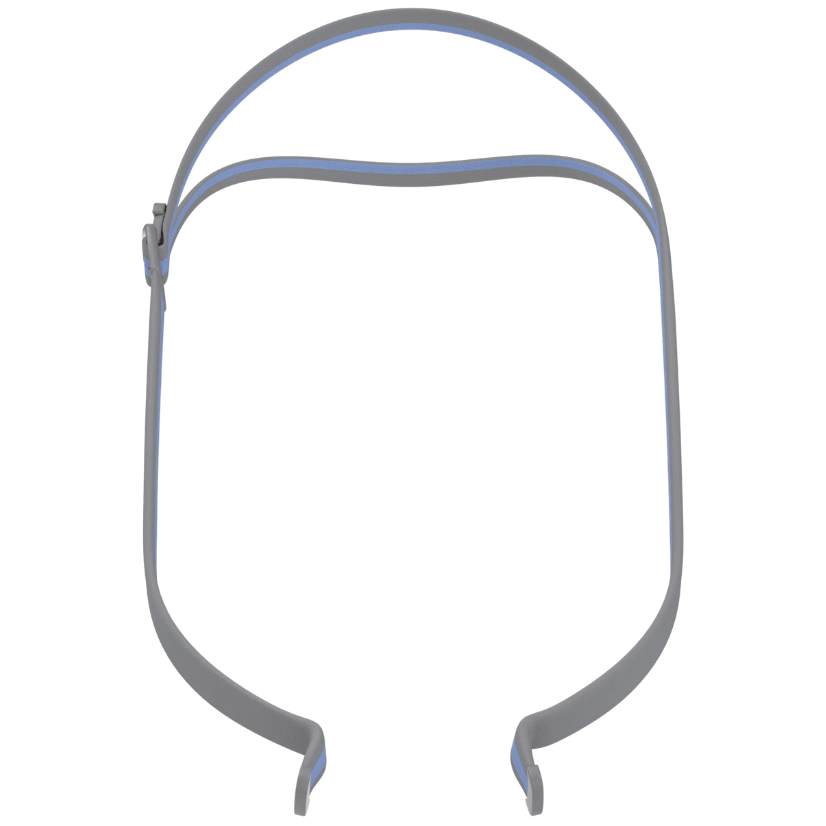

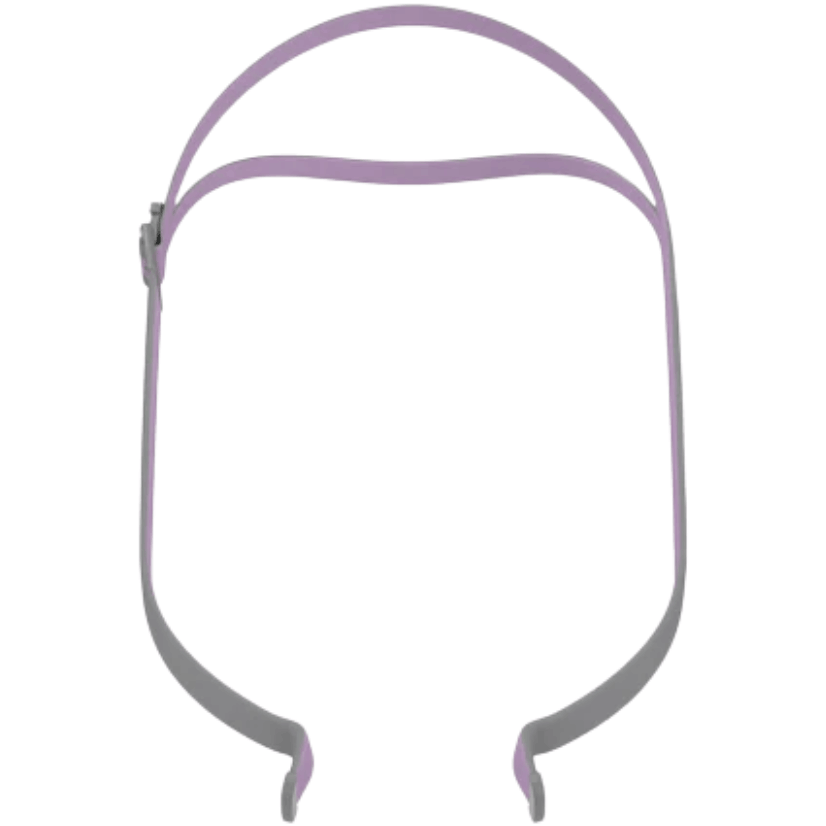

1 — QuickFit™ Elastic Headgear
-
1 — Pair of P10 Headgear Clips
-
3 — Nasal Pillows (1 - Small, 1 - Medium, 1 - Large)
-

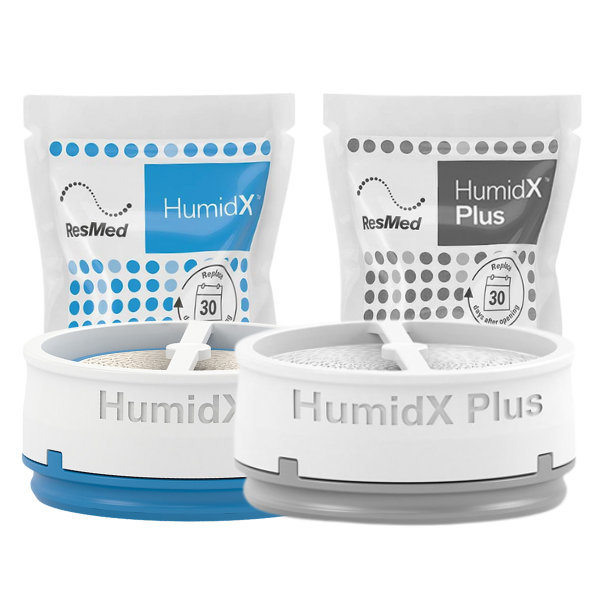

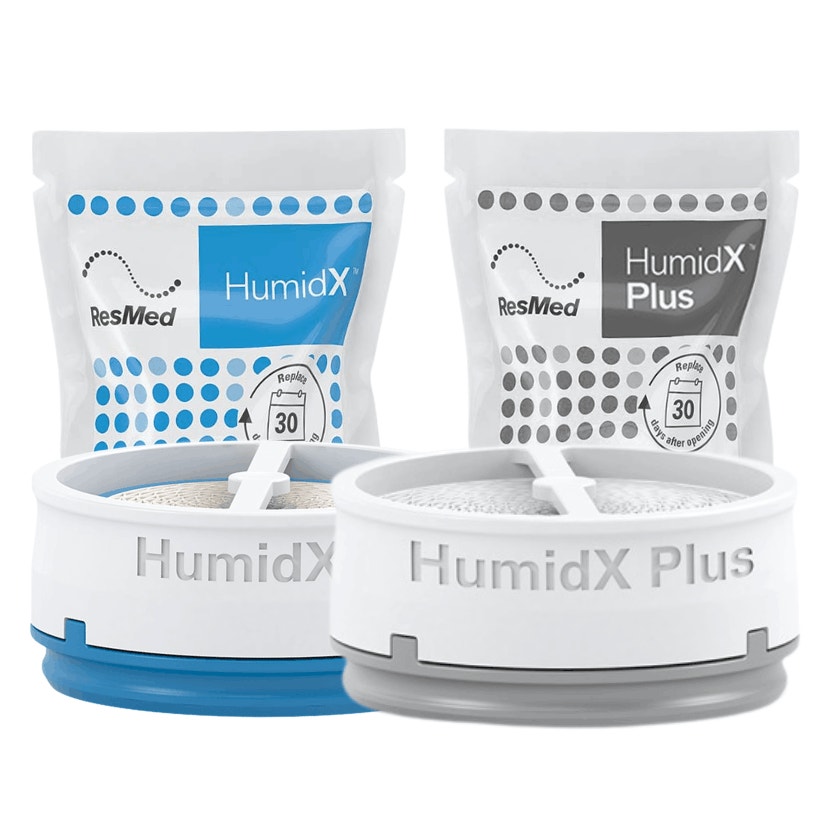

1 — HumidX Cartridge
-
1 — HumidX Plus Cartridge
-
1 — AirMini™ CPAP Tubing
Nasal Pillow CPAP Masks:
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
-
Stomach Sleepers
Additional Considerations:
-
Low to Mid Pressure Settings
-
Minimal Contact
-
Glasses Wearers
-
Claustrophobia
-
Facial Hair
-
Full Field of Vision for Readers or TV Watchers
- Tossing and Turning During Sleep

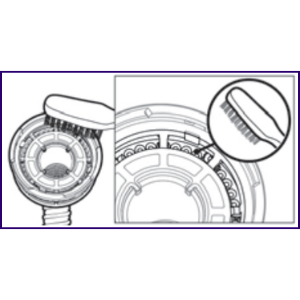

HumidX: Cleaning the vent module
-
Clean and check the vent module daily.
-
Wash in warm water using a mild liquid detergent.
-
Clean with a soft bristle brush paying particular attention to the vent holes.
-
Rinse well under running water. Shake to remove excess water and allow to air dry out of direct sunlight.
-
Check that there is no dirt or dust in the vent holes.
Note: Do not wash in a dishwasher or washing machine.
AitFit™ P10:
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- With the grey side facing out, insert each end of the headgear band over the stabilisers through the buttonholes. Secure in place by wrapping each band end up and around the nodes. Holding the split bands, pull the headgear from the stabiliser to ensure it is tightly secure around the nodes. Ensure the headgear band is not twisted.
- Attach the pillows to the mask frame by inserting the top and bottom clips into the correct slots (shorter clip into top slot, longer clip into bottom slot) on the mask frame. Your mask is now reassembled.
- Ensure the inner walls of the nasal pillows are not compressed or collapsed. If they are, squeeze each nasal pillow so they return to the correct shape.
Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- Hold the pillows away from your nose ensuring that the pillow size (eg, M) with the left (L) and right (R) indicators are correctly facing towards you then guide the nasal pillows into your nostrils (L into your left nostril, R into your right nostril). Pull the headgear over your head by holding the bottom band and stretching it around the back of your head. The top band should sit comfortably on top of your head.
Tip: There are raised logos on top of the frame so you can feel the correct way up when fitting in the dark. - Move the mask away from your face then place it back to get a comfortable fit. Ensure the nasal pillows fit securely into your nostrils with both pillows positioned upright.
- Finally, connect the end of the mask tubing into your device air tubing. Your mask is now fitted and ready to use. When the device is running, a light breeze should be felt through the vent. To inspect the vent place a finger close but not over the entire vent area.
Disassembling Your Mask:
If the mask is connected to your device, disconnect the device air tubing
from the short tube.
- Holding the top of the mask tubing, squeeze and pull the pillows away from the mask frame.
- Unhook the headgear from the stabiliser by pulling on the end cap to reveal the buttonhole.
- Slide the headgear off the end of the stabiliser.
| Operating Therapy Pressure Range |
| 4 - 20 cm H²O |
CPAPsupplies.com: ResMed AirFit™ P10 Nasal Pillow CPAP Mask
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Resmed AirMini™: How to use HumidX & HumidX Plus
AirFit™ P10: Fitting Guide
AirFit™ P10: Mask Pillows Sizing Guide
AirFit™ P10: Cleaning Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal pillows, headgear, and frame):
Part Cleaning Frequency Instructions Nasal Pillows
Daily
- Using a mild detergent* and warm, drinking-quality water, gently clean your nasal pillows to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
Chinstrap
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
| Brand | Resmed |
|---|---|
| Weight | 1.34 lbs |
| SKU | 15760 |
| Model | 38824 |
| HCPCS | CASH |
| UPC | 619498388240 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| Color | White |
| FSA/HSA Eligible | Yes |
| Dimensions | HumidX & HumidX Plus: 3.125" x 2.875" x 4.125"; P10 Headgear: 3" x 1.5" x 1.25"; P10 Tubing: 17 1/2" (L) x 3/4" (W); P10 Cushions: 2 1/4" (L) x 1 1/4" (W) x 1 3/4" (H) |
