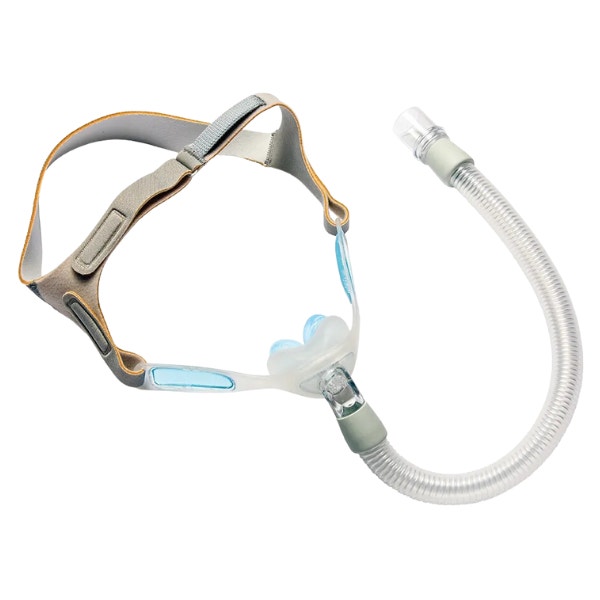

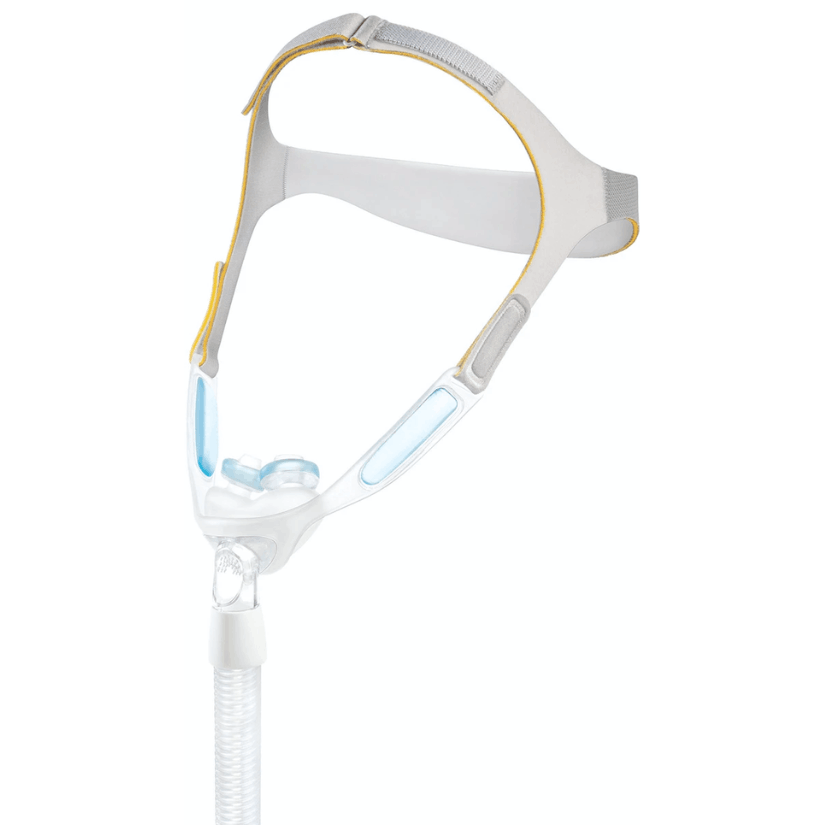

Philips Respironics Nuance Pro Gel Nasal Pillow CPAP Mask
$72.00
Nuance with gel frame is truly a new standard in nasal pillows masks. Enjoy a cooling, comfort experience with minimal assembly and fewer pieces than many other nasal pillow masks.
Philips Respironics Nuance Pro Gel Nasal Pillow CPAP Mask Overview
As the first and only gel pillows platform, the Respironics Nuance Pro is designed to help patients reach compliance by providing more comfortable therapy. With greater comfort and seal through gel pillows and choice of a fabric or gel frame, the Nuance is truly a new standard of a nasal pillows mask. Philips Respironics is the world leader in gel cushion technology, bringing the comfort and sealing power of gel to nasal pillows. As the latest in our groundbreaking new line of masks, Nuance gel pillows represents the new choice for better sleep therapy for clinicians, home care providers and patients.
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option.
-
Minimal facial contact
-
Allows a clear line of sight
-
Flexible tubing connection
-
Easy to clean
-

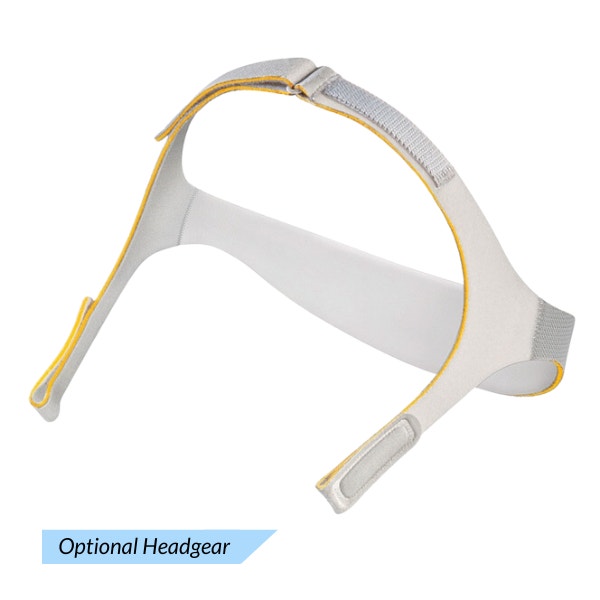

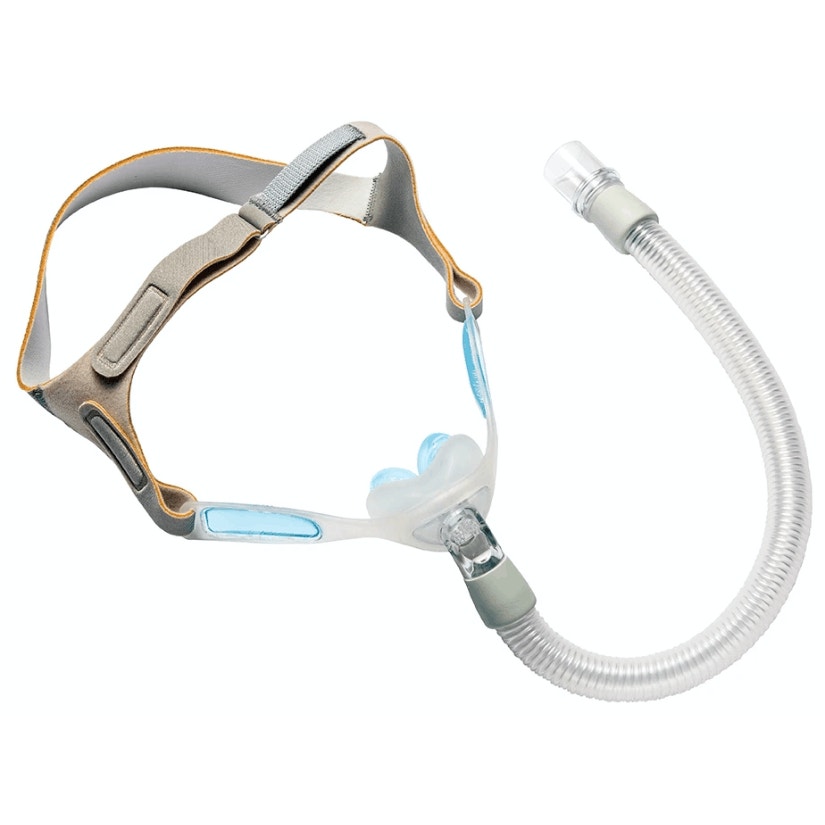

Open style, adjustable headgear option (not automatically included unless selected above)
-

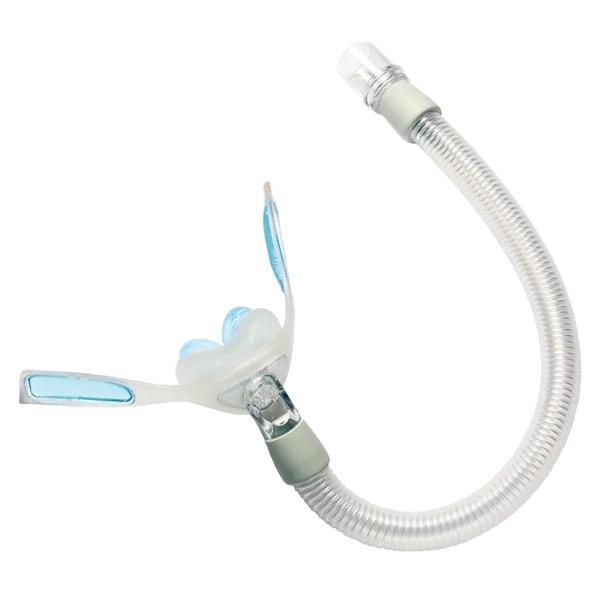

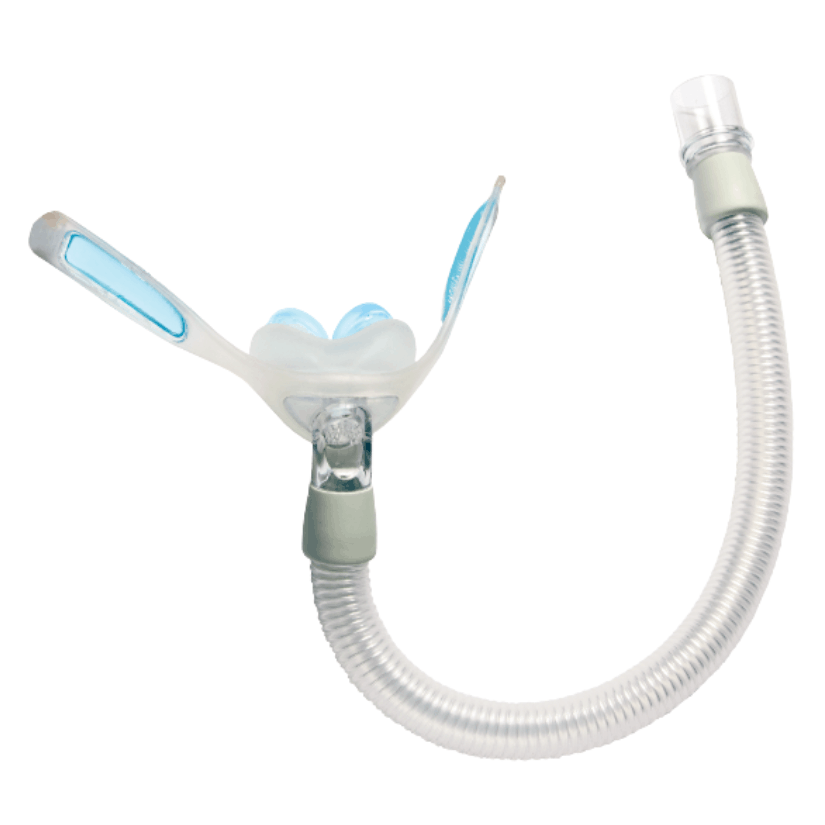

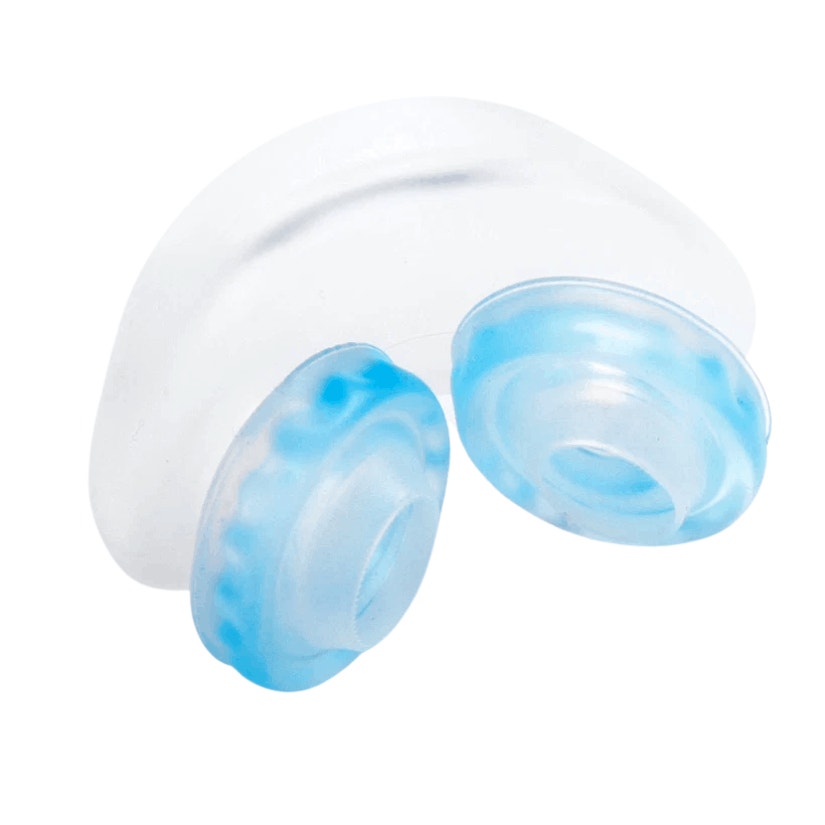

1 — Nuance Pro Gel Mask Frame and Pillow (of selected size option)
-
1 — Elbow
-
1 — Short Tube
-
1 — Swivel

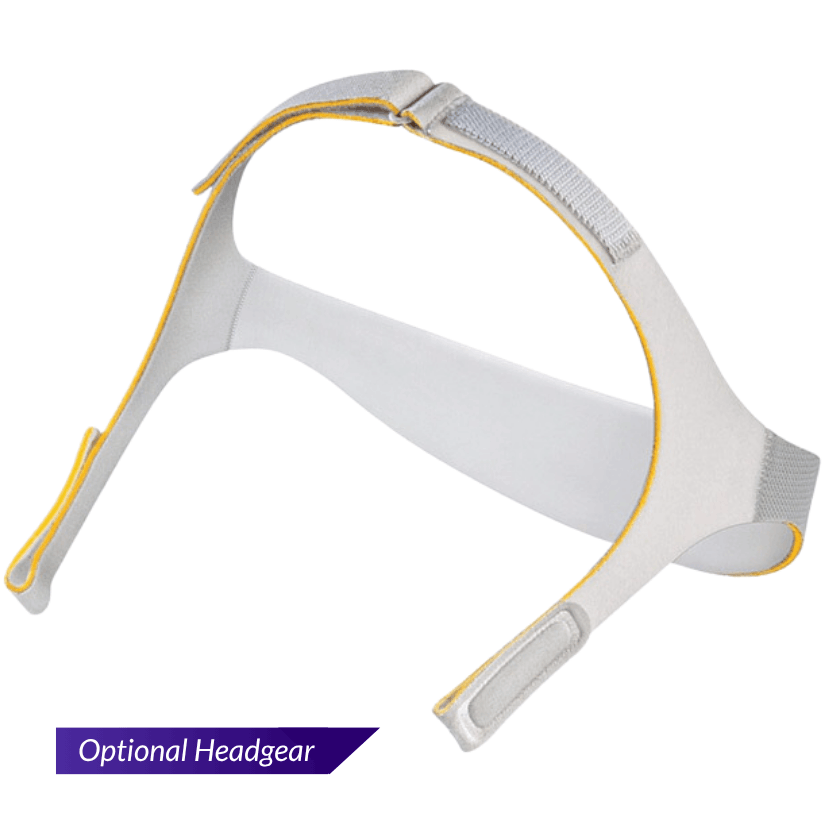

Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-

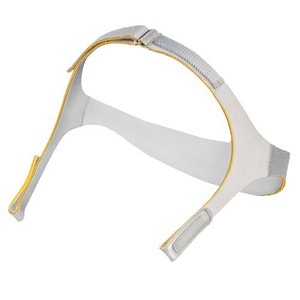

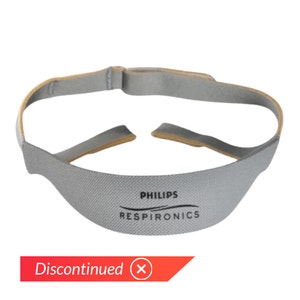

1 — Nuance Pro Headgear
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
-
Stomach Sleepers
Additional Considerations:
-
Low to Mid Pressure Settings
-
Minimal Contact
-
Glasses Wearers
-
Claustrophobia
-
Facial Hair
-
Full Field of Vision for Readers or TV Watchers
- Tossing and Turning During Sleep

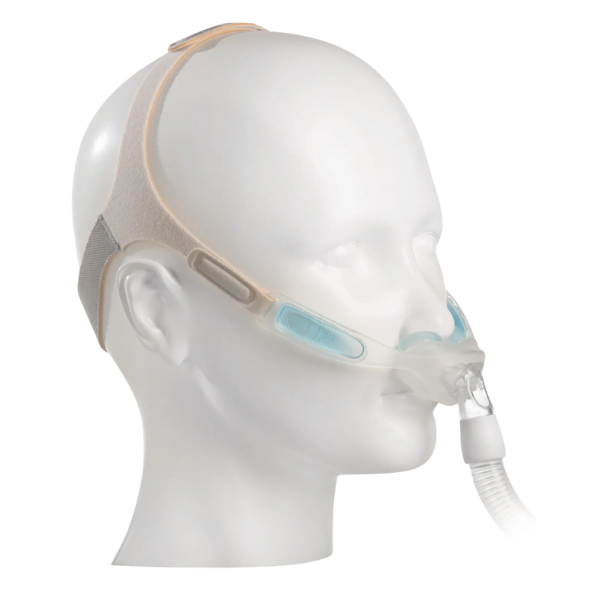

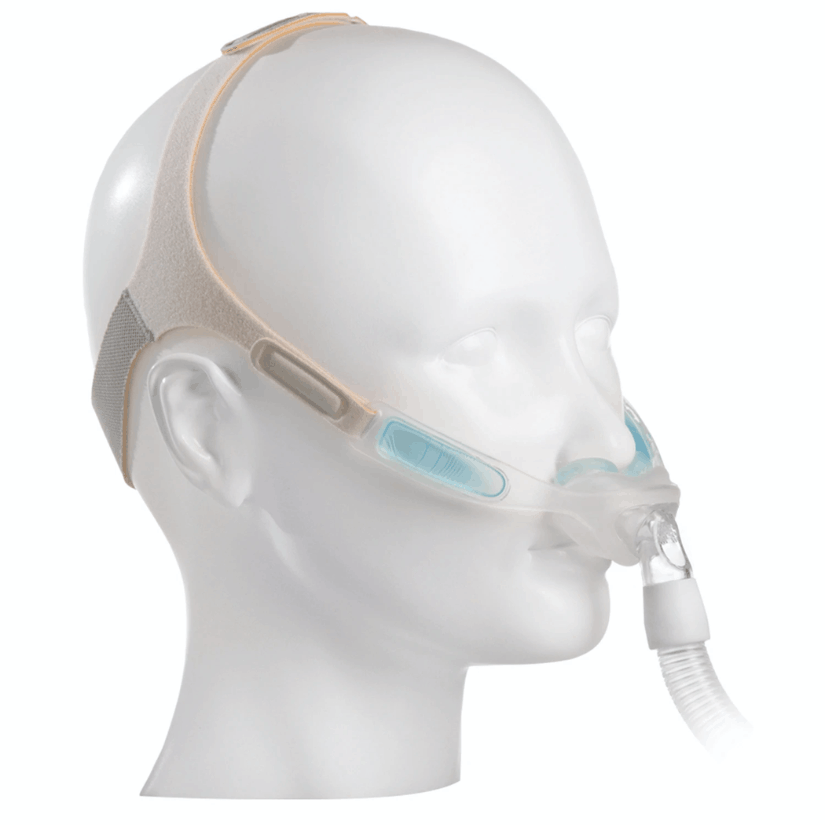

Fitting Your Mask:
Remove all packaging before using the mask.

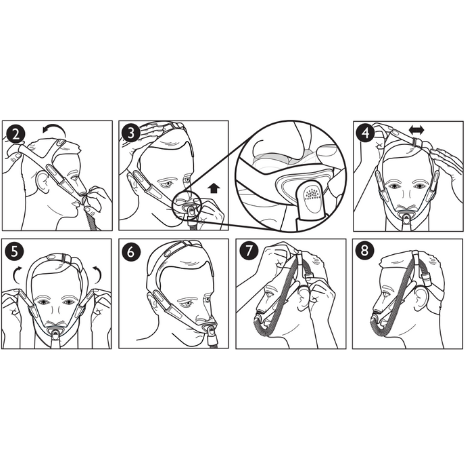

Refer to the fitting images of these instructions.
- Headgear: Pull the headgear on over your head.
- Pillows: Insert the pillows cushion tips into your nostrils.
Adjusting the Mask
- Headgear: Adjust the crown strap. The headgear should sit just above the ears similar to glasses.
Warning: The mask parts should be away from your eyes. Loosen the crown strap K to move the frame away from your eyes.
- Headgear: Peel the tabs away from the straps, adjust the length evenly, then press the tabs against the straps to reattach . The gel cheek pads will sit under the cheek bones. The mask should rest comfortably against your face.
Tube Management (Optional)
- Slip the mask tube through the headgear tube management loop.
- Position the mask tubing over your head and away from your eyes.
Using the Mask
- Connect the flexible tubing (included with your CPAP or bi-level device) to the swivel.
- Turn the therapy device on. Lie down. Breathe normally.
- Assume different sleeping positions. Move around until comfortable. If there are any excessive air leaks, make final adjustments. Some air leaking is normal.
Comfort Tips
- The most common mistake is overtightening. The mask should fit loose and comfortable. If your skin bulges around the mask or if you see red marks on your face, loosen the straps.
- Re-seat the mask by pulling it away from your face and gently setting back into place.
Assembly/Disassembling Your Mask:

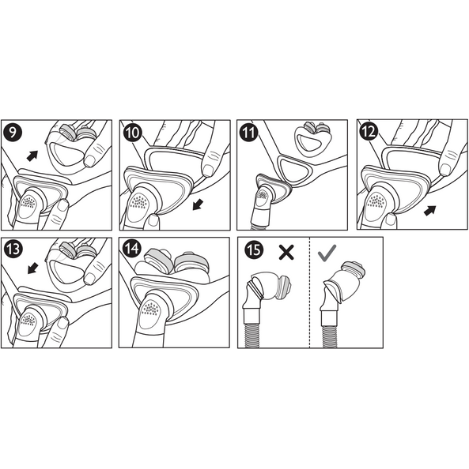

Refer to the assembly/disassembly diagrams in these instructions.
Disassembly

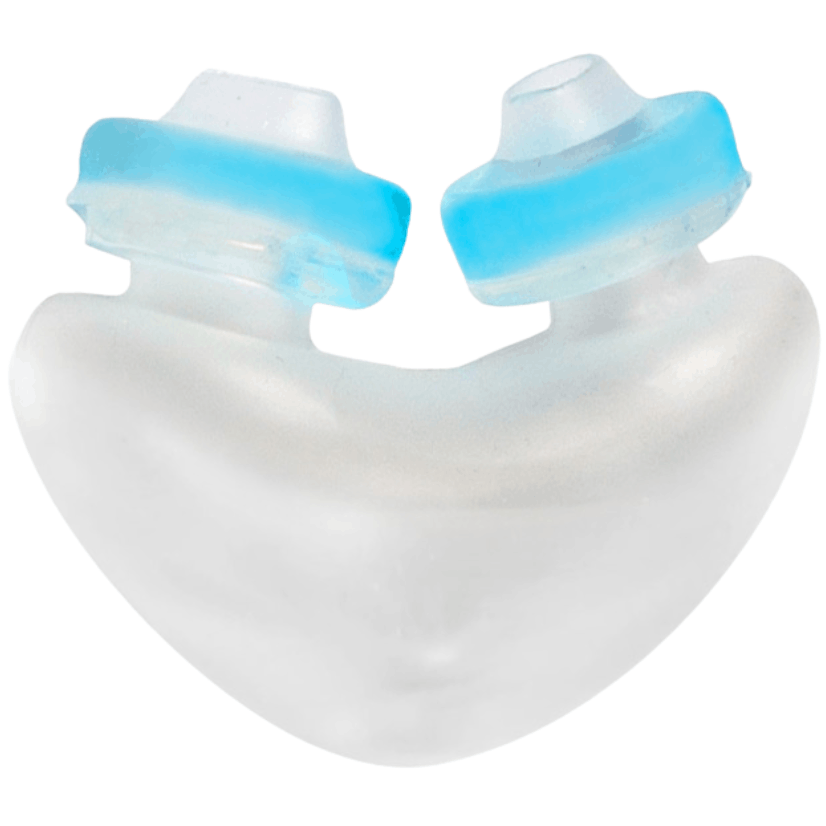

- Cushion: Grasp the pillows cushion platform C and peel from elbow.
Caution: Do not pull on the pillows cushion tips to remove from elbow. - Elbow: Pull from frame.
Caution: The elbow, tube, and swivel are permanently attached. Do not attempt to separate the elbow or swivel from the tube.
Caution: Do not pull on mask tube to separate from CPAP tubing. - Headgear: Undo the headgear tabs I and pull through the slots in the frame.
Assembly
Note: The correct position for the elbow, triangular opening, and cushion platform is to point down.
- Elbow: Press into the triangular opening until all sides are flush.
- Cushion: Push onto the back of the elbow.
Note: The elbow, frame and cushion will fit tightly together without any gaps . If there are gaps or the cushion angle is low remove the cushion and reattach. The cushion should fit securely on the elbow with the pillows at an angle towards the nose.
- Frame: Position the frame with the triangular opening pointing down.
- Headgear: Position the tube management loop on top. Slide the headgear tabs through the frame slots and fold backward.
Note: The Philips Respironics logo is on the outside of the headgear back strap when
correctly assembled.
| Operating Therapy Pressure Range |
| 4 to 30 cmH²O |

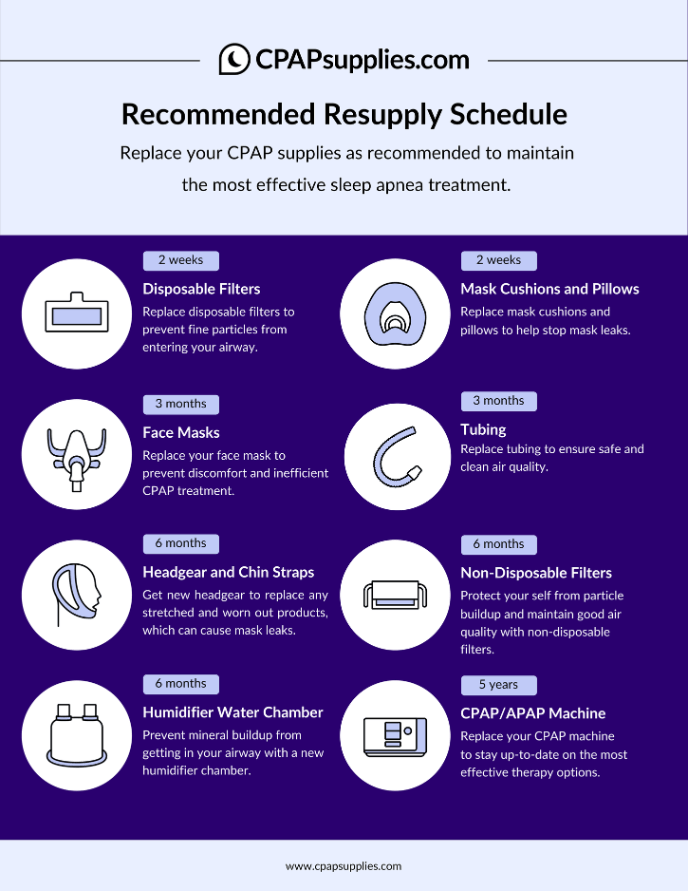

CPAPsupplies.com: CPAP Supplies Replacement Schedule
Nuance Pro: Introduction
Nuance Pro: Cleaning Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal pillows, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Pillows |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Philips Respironics |
|---|---|
| SKU | pb_nuancepro |
| Model | pb_nuancepro |
| UPC | 673681248018, 606959411692, 606959411708, 606959411715, 606959411777, 669799934295, 606959041912, 606959041929, 606959041936 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Short Swivel Tube: 13" (L) |
| Included | 1105170, 1105171, 1105172, 1105178 |
