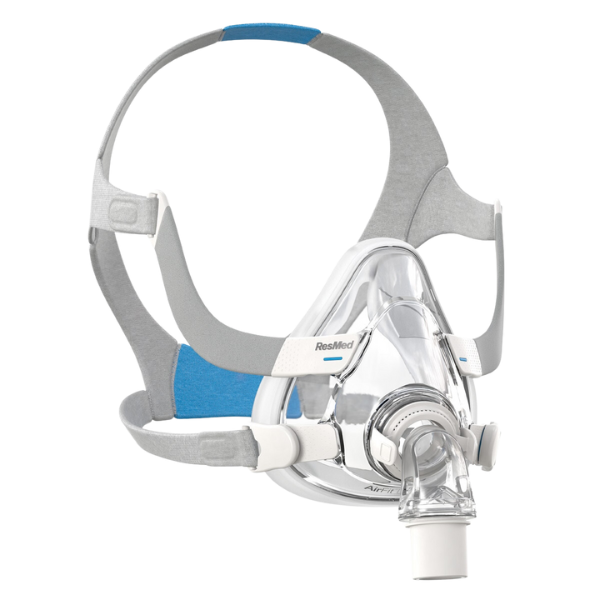

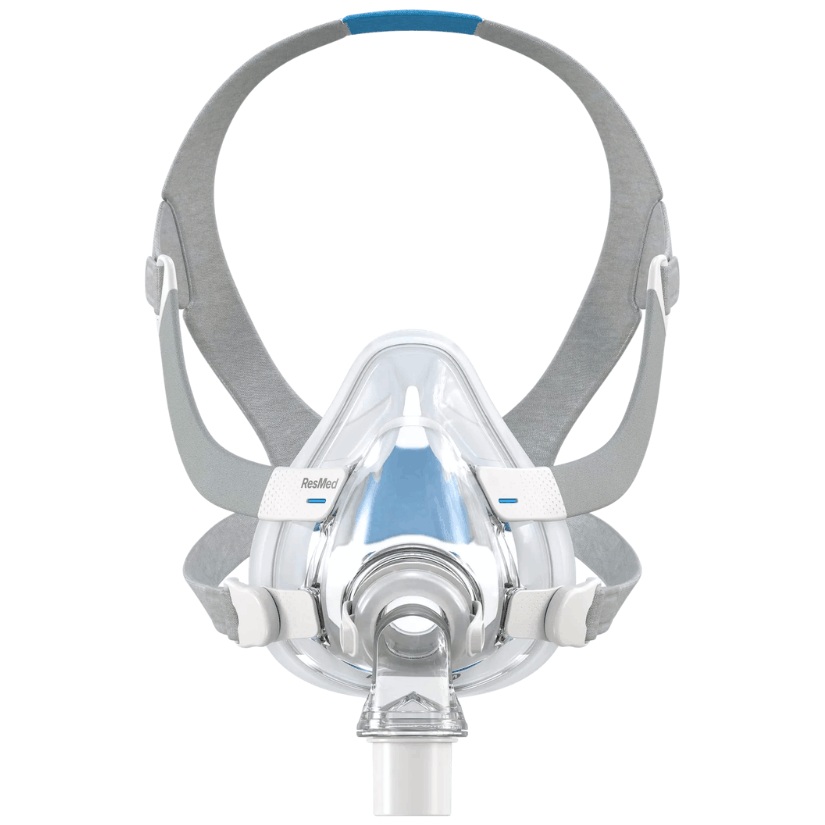

Resmed AirFit™ F20 Full Face CPAP Mask with Headgear
The AirFit™ F20 Full Face CPAP Mask by Resmed provides superior comfort and effectiveness for patients with sleep apnea. Featuring Resmed's InfinitySeal™ cushions that adapt to different sleeping positions, the AirFit™ F20 adapts to your facial profile to enhance comfort while preventing mask leaks.



Resmed AirFit™ F20 Full Face CPAP Mask with Headgear Overview
The Resmed AirFit™ F20 Full Face Mask is designed to fit nearly all patients. Specially designed mask and headgear elements fit an astounding 97% of patients. Headgear is soft for more comfortable therapy sessions. The quick release elbow and magnetic clips allow patients to easily start and stop treatment. The AirFit™ F20 fits nearly all patients regardless of their head shape or head size. Enjoy effective and comfortable treatment with the AirFit™ F20.
Per Resmed, please note the following about this mask’s magnetic contraindications:
Update to Contraindication
In an update to the previously contraindicated metallic aneurysm hemostatic clips in the head and metallic splinters in one or both eyes following a penetrating eye injury, Resmed is further contraindicating the use of its masks with magnets for patients where they, or anyone in close physical contact while using the mask (e.g., bed partner), have the following:
- Active medical implants that interact with magnets (i.e., pacemakers, implantable cardioverter defibrillators (ICD), neurostimulators, cerebrospinal fluid (CSF) shunts, insulin/infusion pumps)
- Metallic implants/objects containing ferromagnetic material (i.e., aneurysm clips/flow disruption devices, embolic coils, stents, valves, electrodes, implants to restore hearing or balance with implanted magnets, ocular implants, metallic splinters in the eye)
Update to Warning
The safe distance to the magnets has been increased from 2 inches (50 mm), and patients are now warned to keep the mask magnets at a safe distance of 6 inches (150 mm) away from implants or medical devices that may be adversely impacted by magnetic interference. This applies to patients, or anyone in close physical contact with the mask magnets.
Note, not all models or manufactured variants of medical devices listed in the contraindications are affected by external magnetic fields. Only those that interact with magnets or contain ferromagnetic materials present the potential for magnetic interference.
For more information: please reach out to Resmed directly; CPAPsupplies.com does not have any additional details on this update. Visit www.resmed.com/magnetupdate for more details and the appropriate contact information.
-

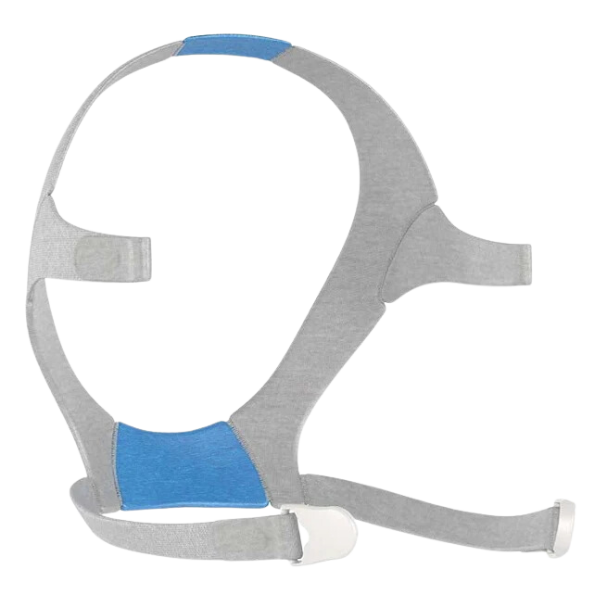

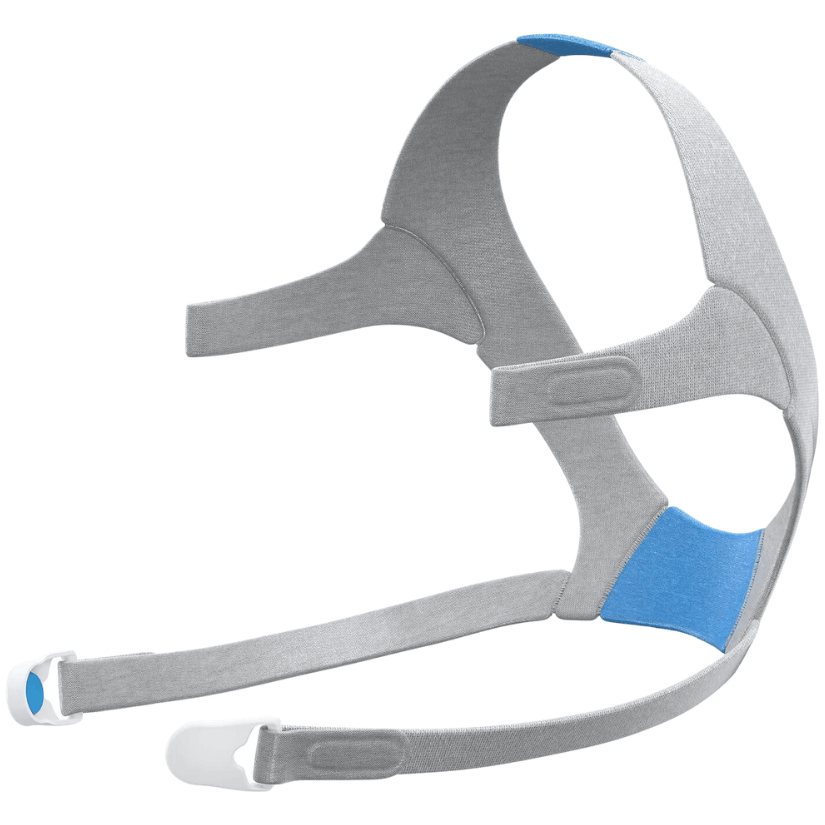

Plush Headgear is soft while maintaining mask stability
-

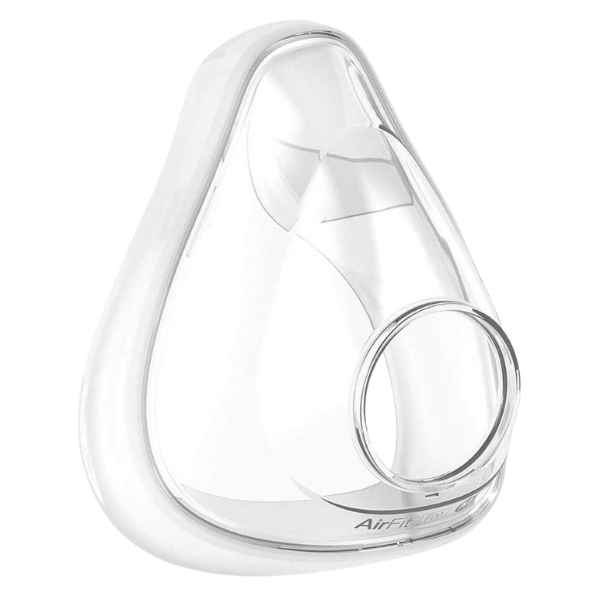

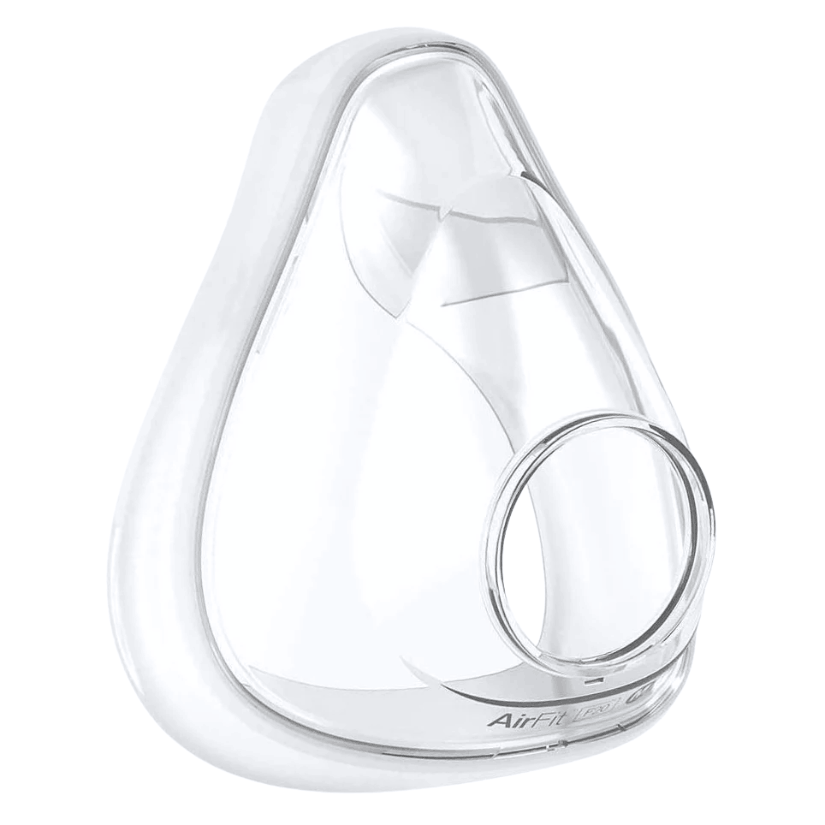

InfinitySeal Cushion maintains a tight seal no matter what therapy session a patient uses
-
Magnetic Clips make attaching the headgear to the mask simple
-
Quick-Release Elbow allow the patient to easily detach from the tubing
-
Diffused Vent diffuses air to minimize noise
-
Mask Frame is soft and flexible to adhere to any shaped face


-

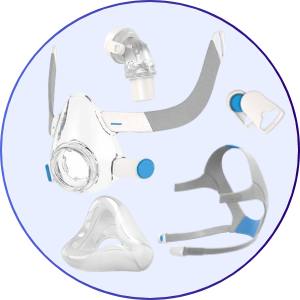

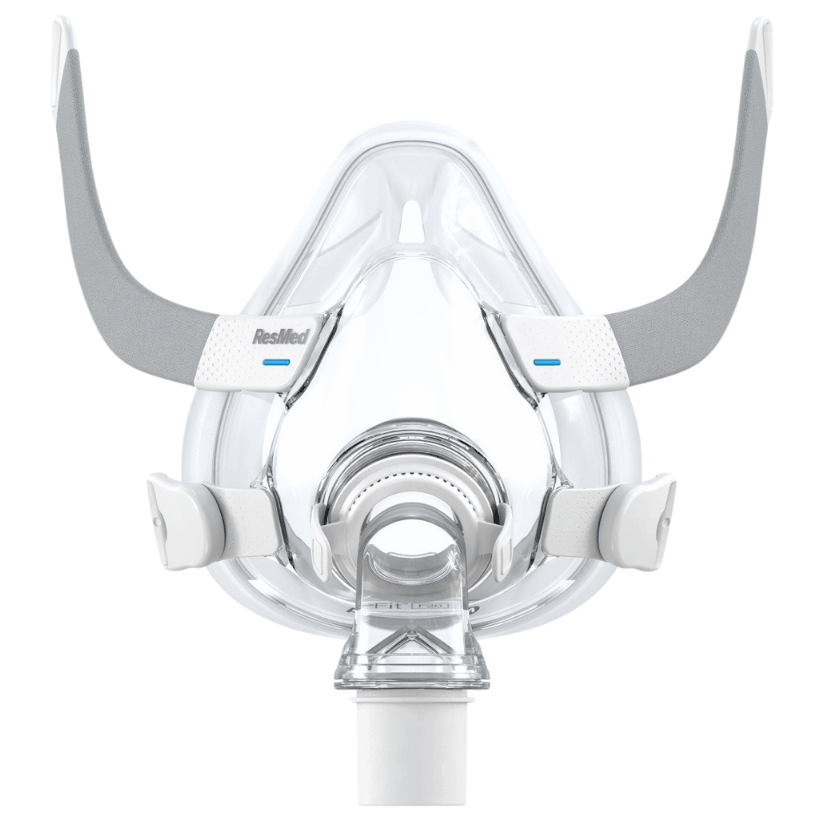

1 — AirFit™ F20 Mask Frame and Cushion (of selected size)
-
1 — QuietAir™ Elbow - Model # 63494
-
1 — AirFit™ F20 Headgear (Standard Size) - Model # 63471
-
2 — Magnetic Clips - Model # 63475
If you're looking to purchase the Resmed AirFit™ F20 Full Face CPAP Mask components without a prescription, you can find them here.
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Attach the cushion to the frame by aligning the circular openings and
pushing together until retained. - With the Resmed logo on the headgear facing outside and upright,
thread the upper headgear straps into the frame slots from the inside.
Fold them over to secure.


Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- Twist and pull both magnetic clips away from the frame.
- Ensure that the Resmed logo on the headgear is facing outwards and
is upright. With both lower headgear straps released, hold the mask
against your face and pull the headgear over your head. - Bring the lower straps below your ears, and attach the magnetic clip
to the frame. - Undo the fastening tabs on the upper headgear straps. Pull the straps
evenly until the mask is stable and positioned as shown in the
illustration. Reattach the fastening tabs. - Undo the fastening tabs on the lower headgear straps. Pull the straps
evenly until the mask is stable and sits comfortably on the chin.
Reattach the fastening tabs. - Connect the device air tubing to the elbow. Attach the elbow to the
mask by pressing the side buttons and pushing the elbow into the
mask, ensuring it clicks in on both sides. - Your mask and headgear should be positioned as shown in the
illustration.


Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
If the mask is connected to your device, disconnect the device air tubing
from the elbow.
- Undo the fastening tabs on the upper headgear straps. Pull the straps
out of the frame.* - Remove the elbow from the mask by pressing the side buttons and
pulling the elbow away. - Hold the side of the frame between the upper and lower arms. Gently
pull the cushion away from the frame.
* Tip: Keep the magnetic clips attached to the lower headgear straps to
easily distinguish the upper and lower straps when reassembling.


| Operating Therapy Pressure Range |
| 3 to 40 cm H²O |

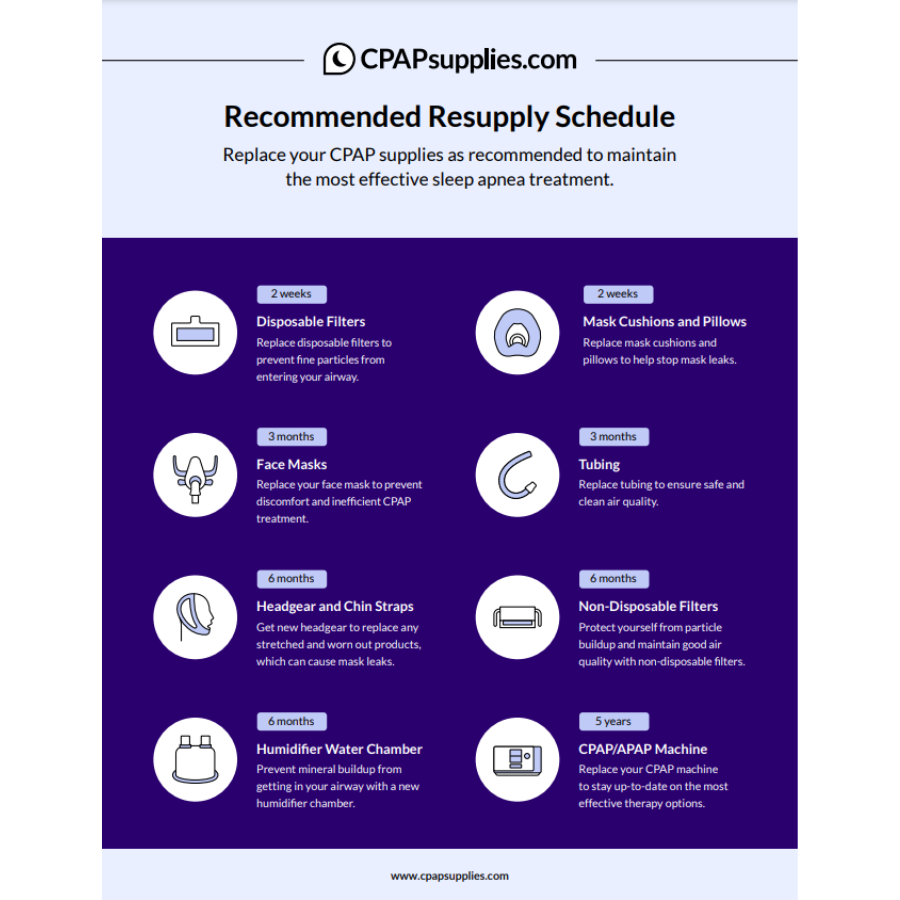

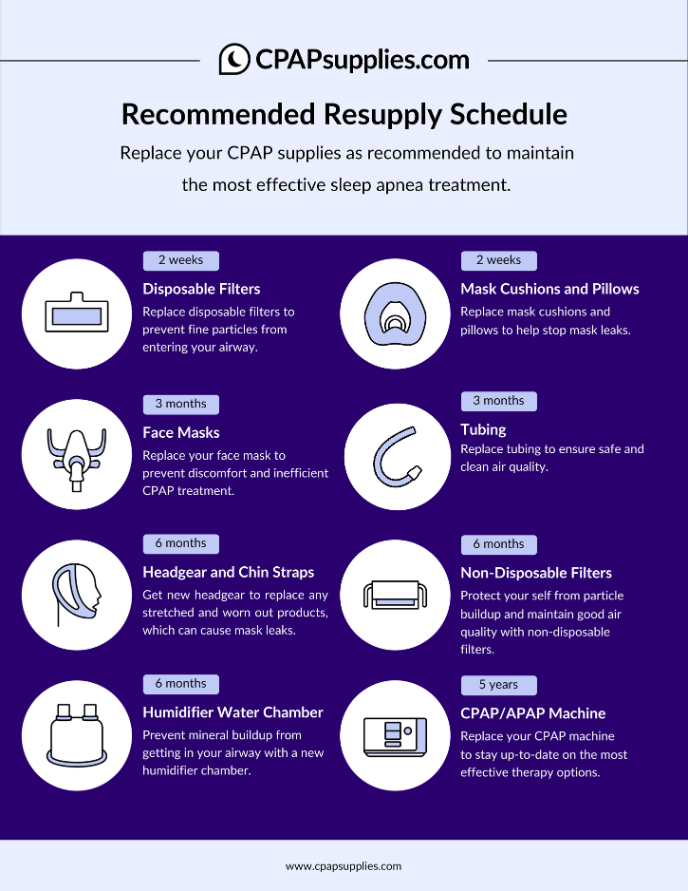

- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Mask Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | p_63400 |
| Model | p_63400 |
| UPC | 619498634002, 619498634019, 619498634026 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 63400, 63401, 63402 |
