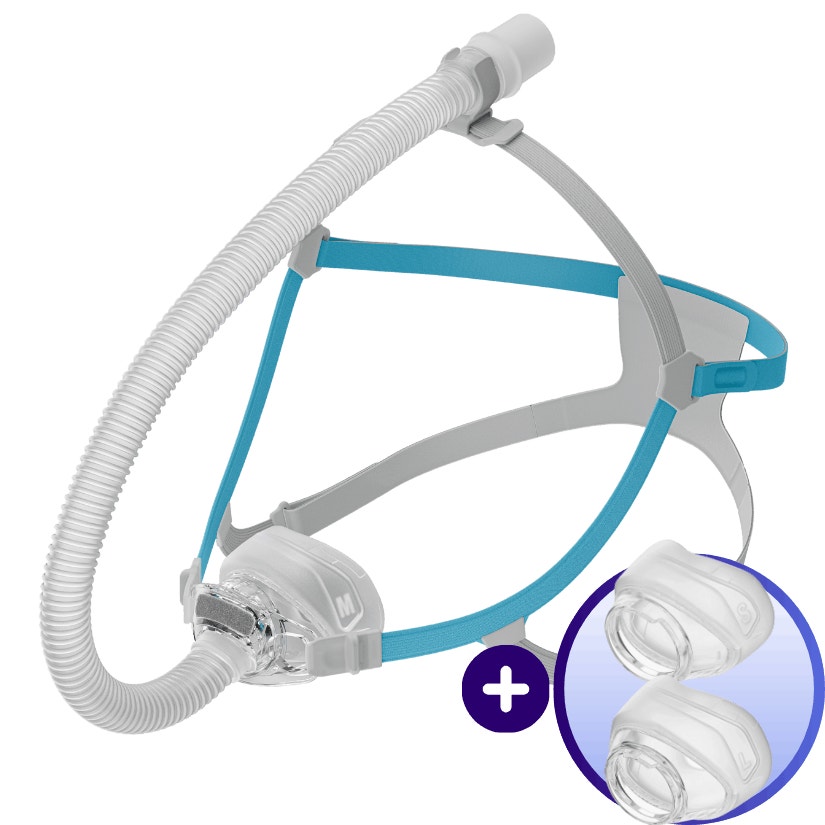

Fisher & Paykel Nova™ Nasal CPAP Mask Fit Pack
The Fit Pack for the Nova™ Nasal CPAP Mask by Fisher & Paykel conveniently includes all 3 sizes of the RollFit™ cushion so you don't have to worry about finding the right cushion size before making your purchase.
Fisher & Paykel Nova™ Nasal CPAP Mask Fit Pack Overview

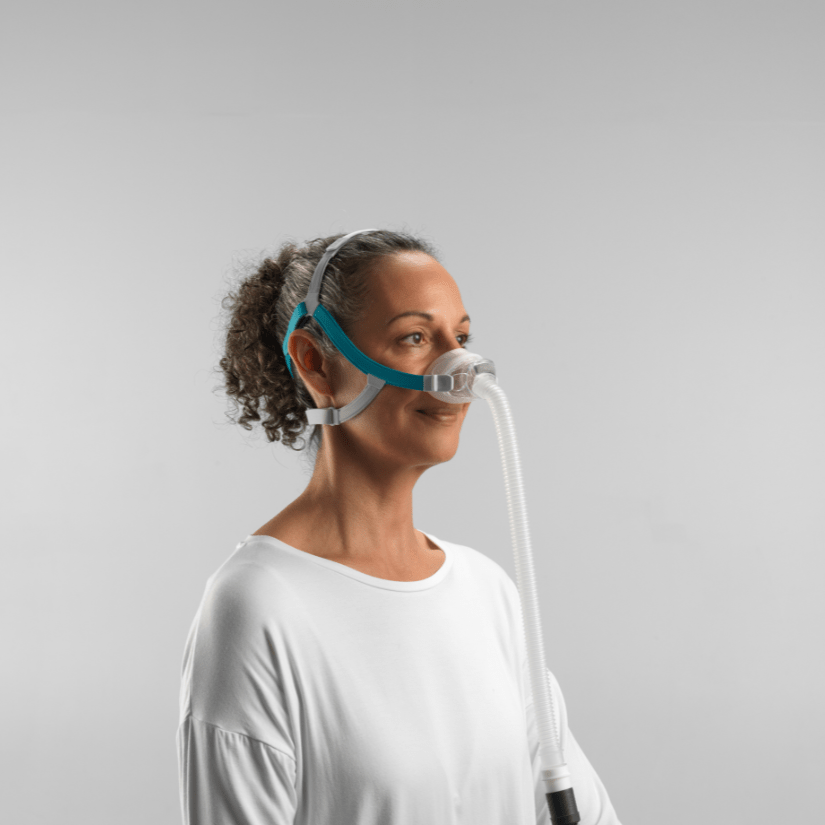

The Nova™ Nasal Mask by Fisher & Paykel is designed to help CPAP users overcome common difficulties of sleep apnea therapy such as finding the right mask fit, securing a good seal with no air leaks, and discomfort.
One of the Nova™ Nasal many key, innovative features is F&P's RollFit™ nasal cushions. Designed with pivoting clips that allow the cushion to conform to your nose, and roll with your sleep movements to help maintain a secure seal throughout the night and enables you to sleep in your preferred sleeping position without compromising performance or comfort.
The SwingFit™ headgear is designed with rigid side arms to provide a clear field of vision while enabling you to swing the headgear around your head without getting the air tubing tangled. Includes a unique tubing clip that allows you to attach your CPAP tube at the top of your head to reduce tubing pull and drag during sleep.
The conveniently washable mask diffuser helps to reduce noise and draft while providing maximum sleep comfort to you and your sleep companion.

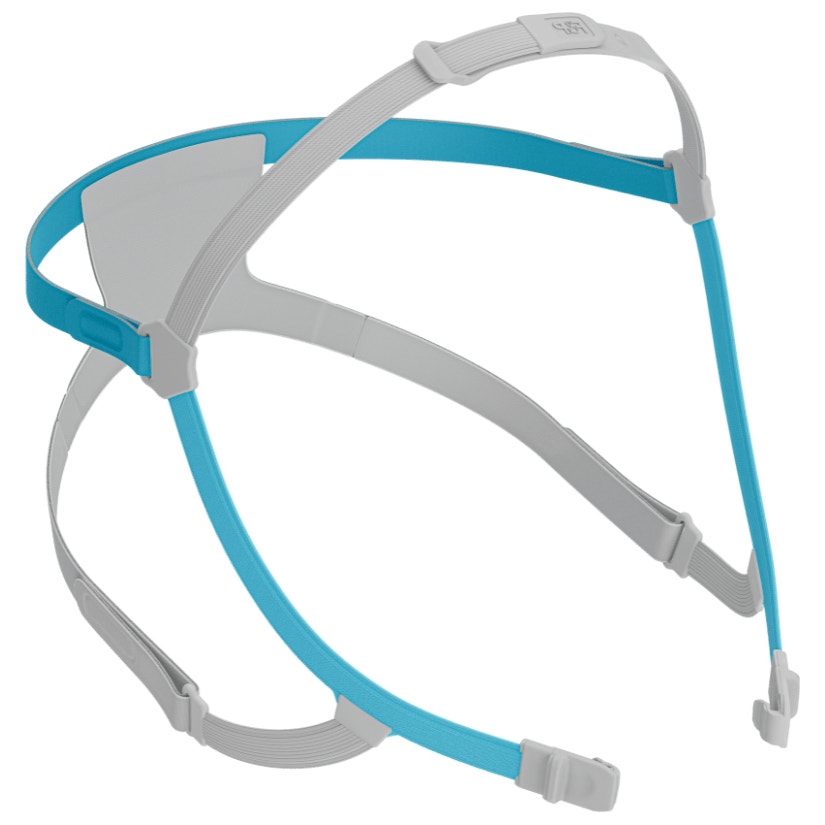

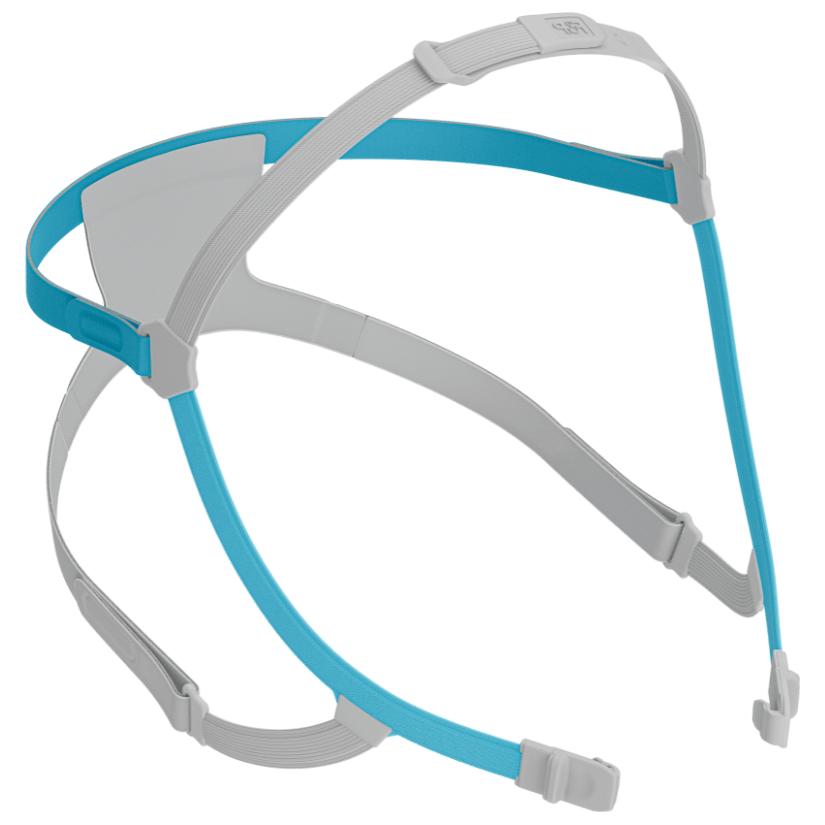

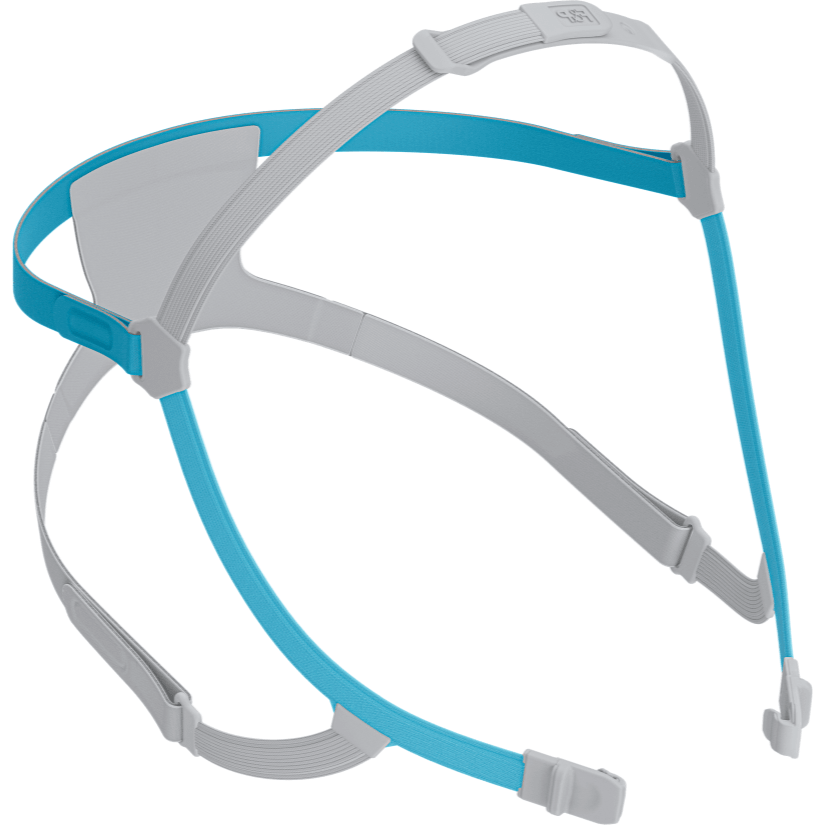

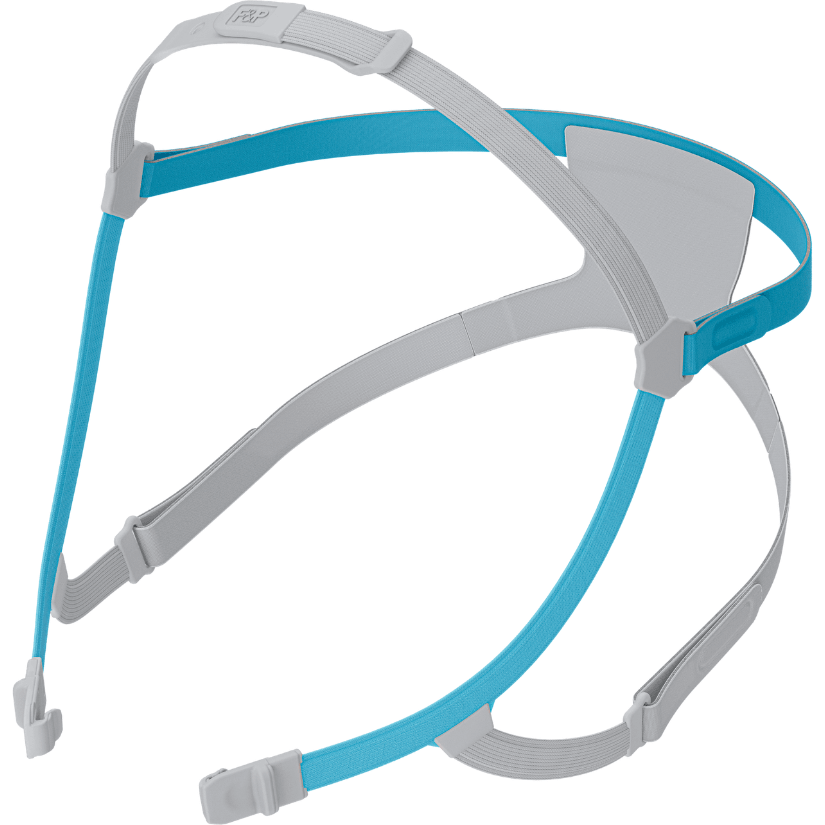

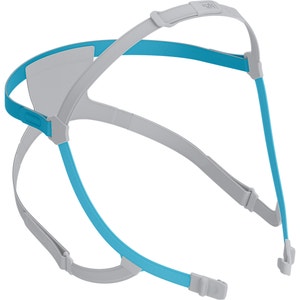

SwingFit™ Headgear
Designed with rigid side arms to allow you to swing your headgear around your head without tangling or having to overreach behind your head, the SwingFit™ Headgear offers enhanced freedom of movement, field of vision, and versatility.

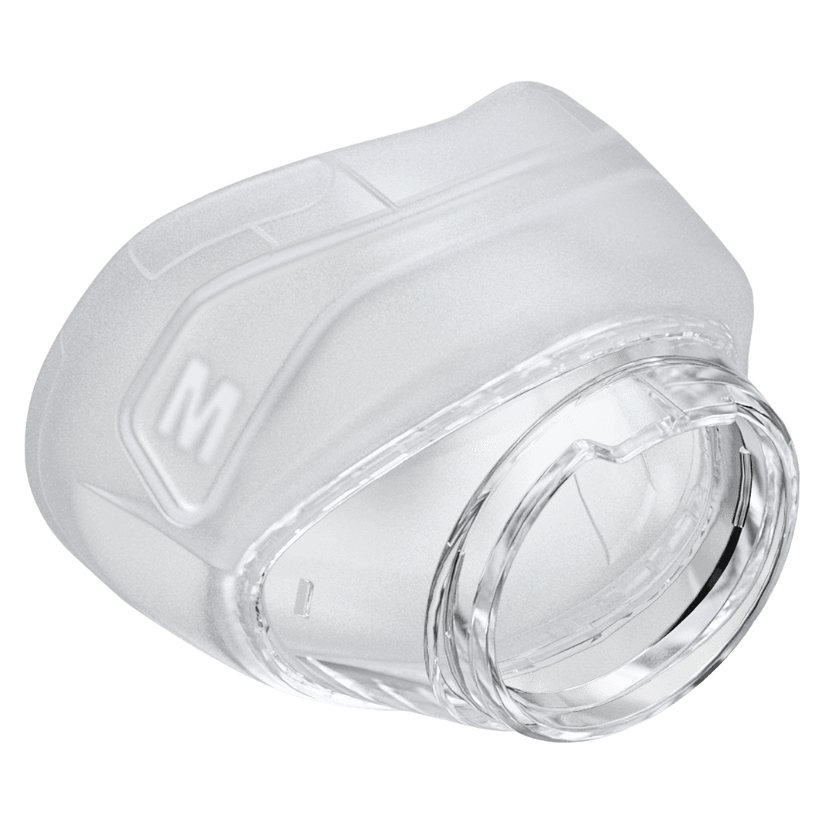

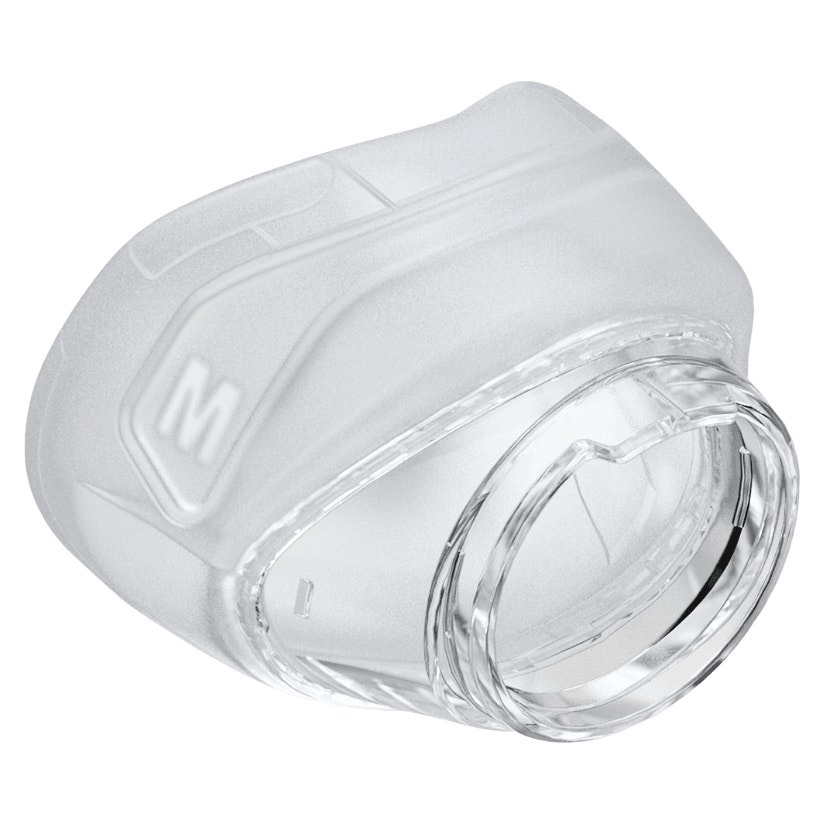

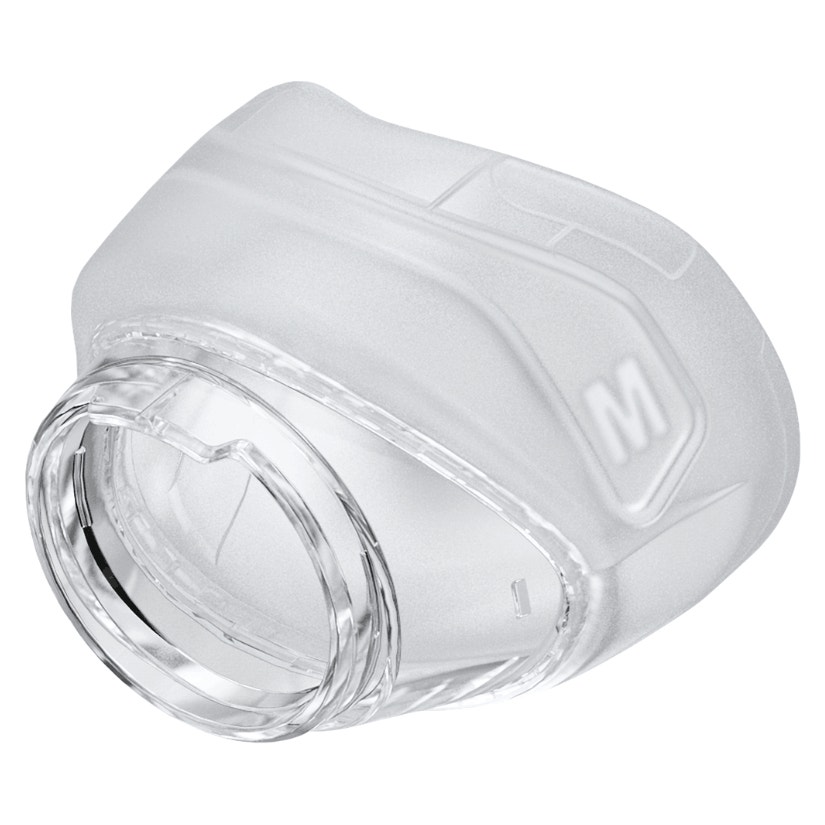

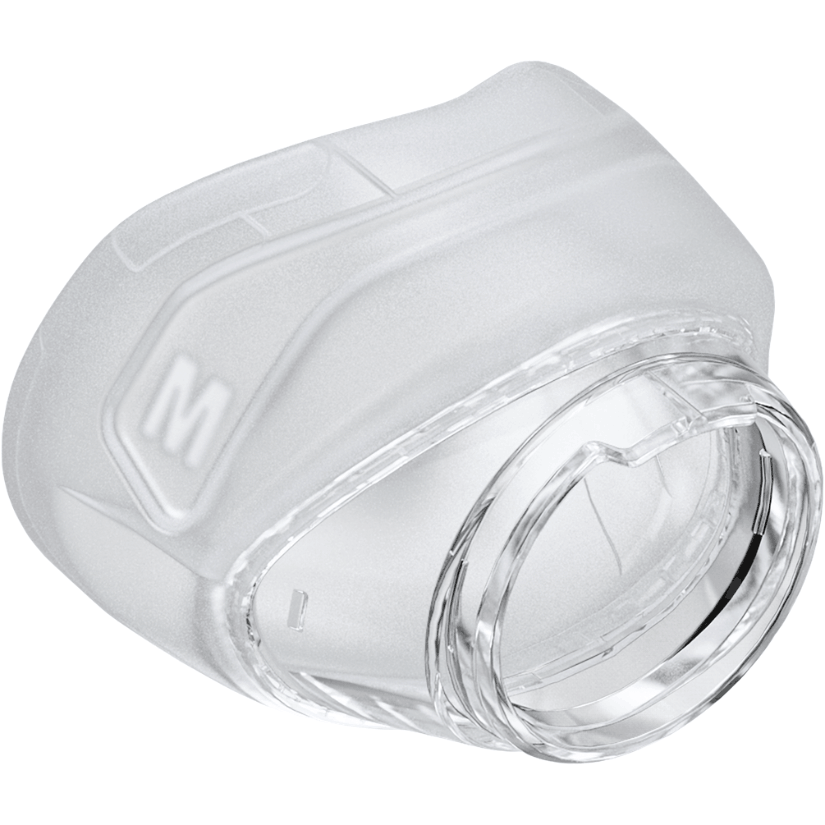

RollFit™ Technology
Provides a stable seal allowing you to sleep in your preferred sleeping positions without compromising cushion comfort or performance.
Washable Diffuser
Minimizes noise and draft and creates a positive sleep environment for both you and your sleep partner.

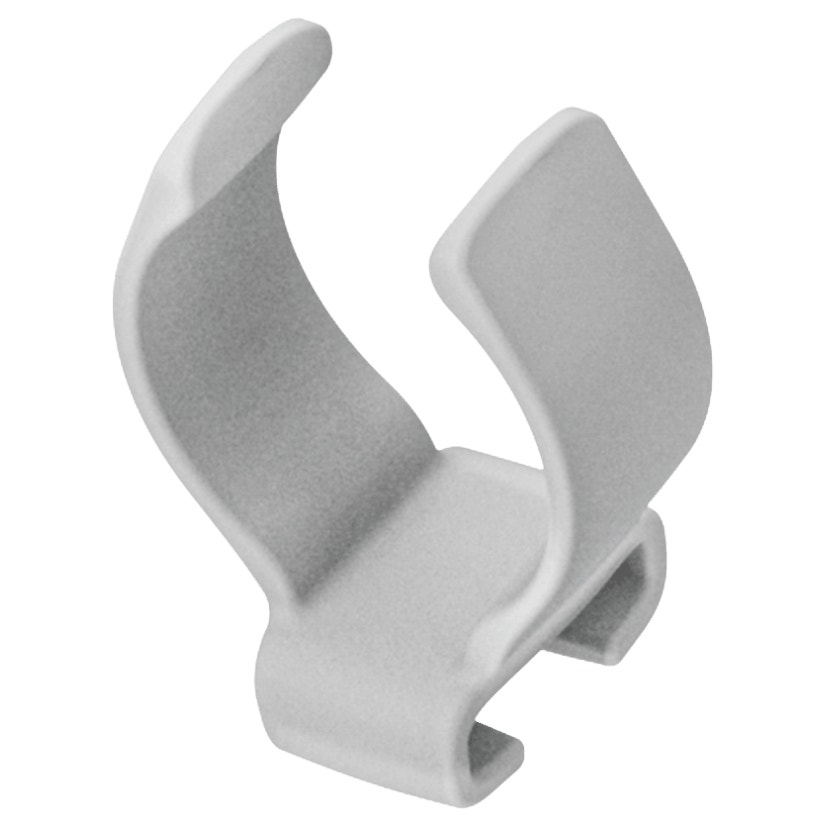

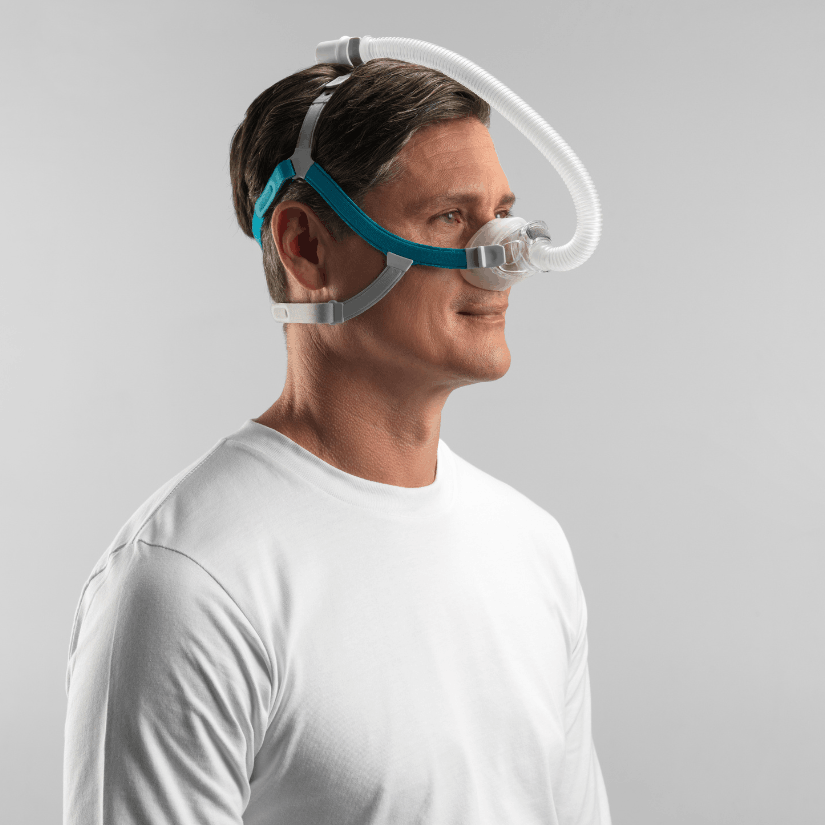

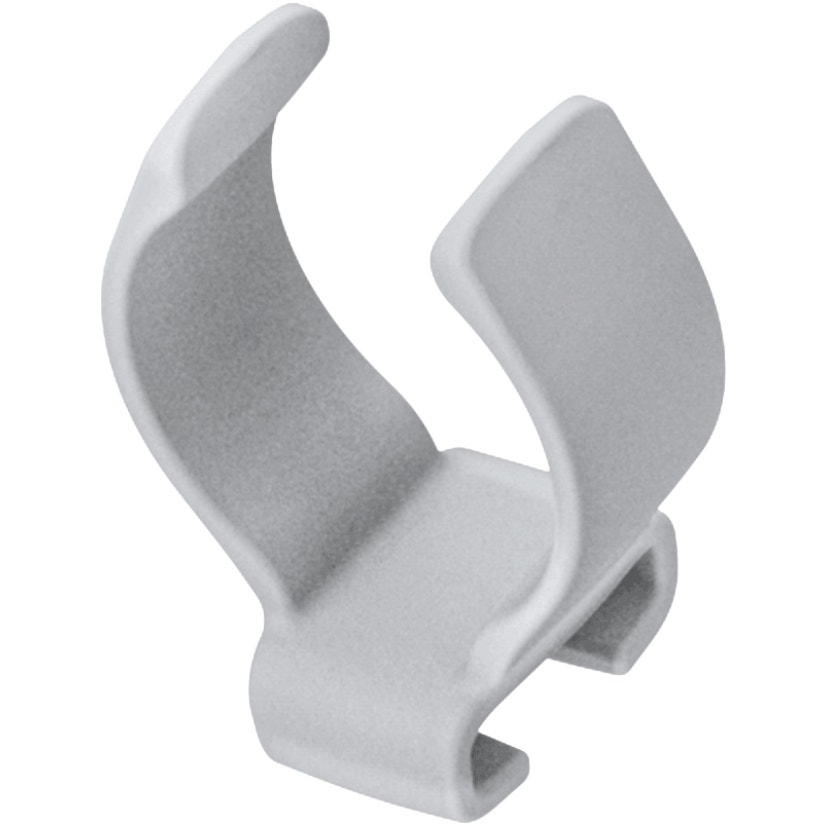

Optional Tube Clip
Allows you to attach your air tubing vertically across your face, connecting at the top of your head.
AirEdge™ Fabric
Provides optimal comfort by reducing red marks, and minimizing skin irritation and abrasion.
CPAP Mask Materials:
Component: Material: Headgear Acetal (POM), Nylon (PA), Polyether Block Amide
(PEBA), Polyurethane (PU)Cushion Silicone, Polycarbonate (PC) Frame Polycarbonate (PC) Diffuser Polycarbonate (PC), Polyethylene Terephthalate (PET) Tube Clip Acetal (POM) Tube Polycarbonate (PC), Polyurethane (PU) Swivel Nylon (PA) Headgear Pad Acrylic (PMMA), Polyethylene (PE)

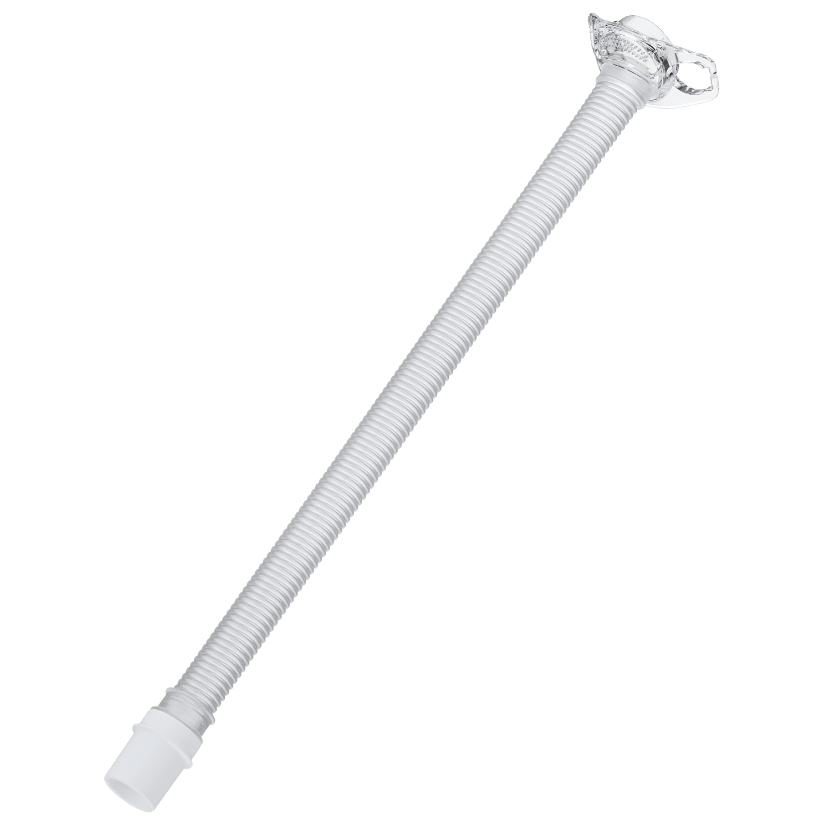

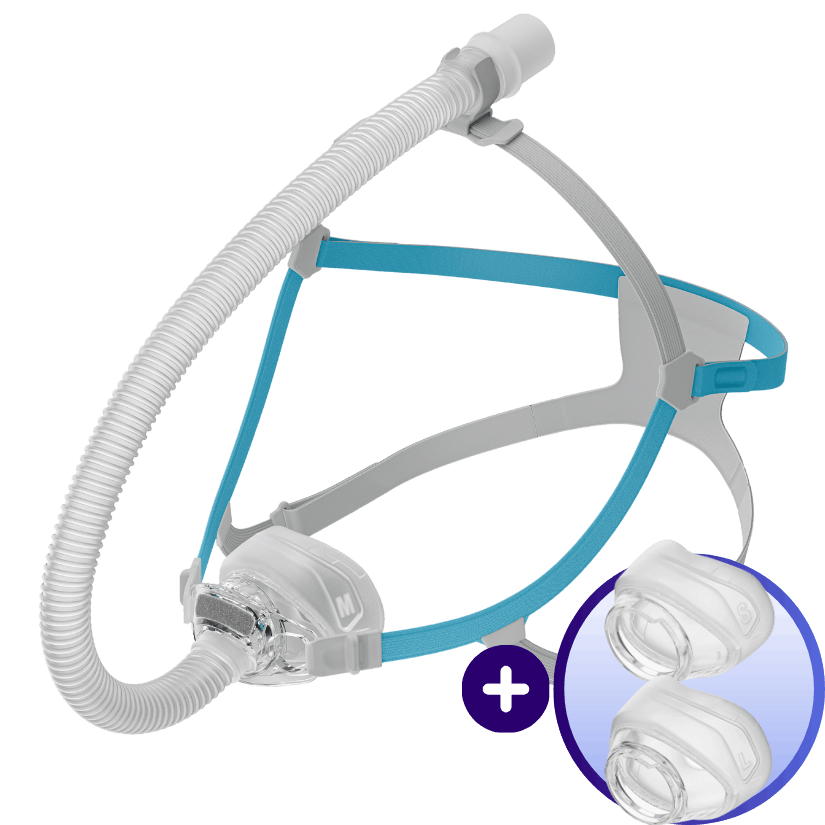

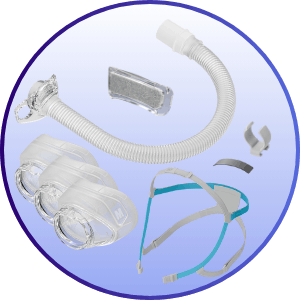

- 1 — Nova™ Nasal Mask Frame
- 3 — RollFit™ Cushions (1 - Small, 1 - Medium, 1 - Large)

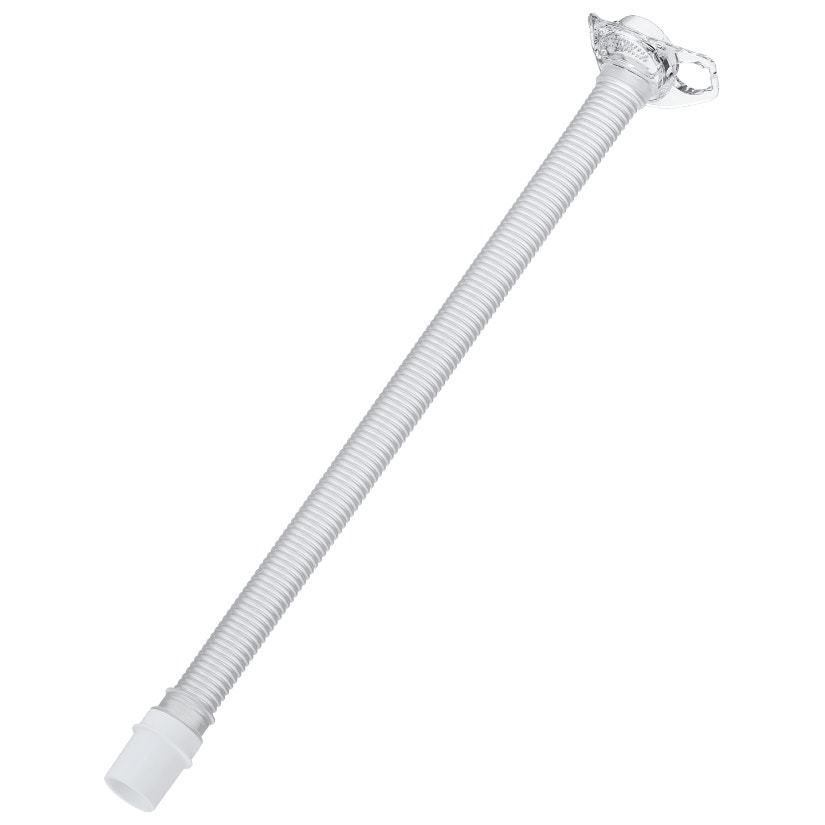

- 1 — Short Tube
- 1 — Swivel
- 1 — Diffuser
- 1 — SwingFit™ Headgear
- 2 — Headgear Clips
- 1 — Tube Clip

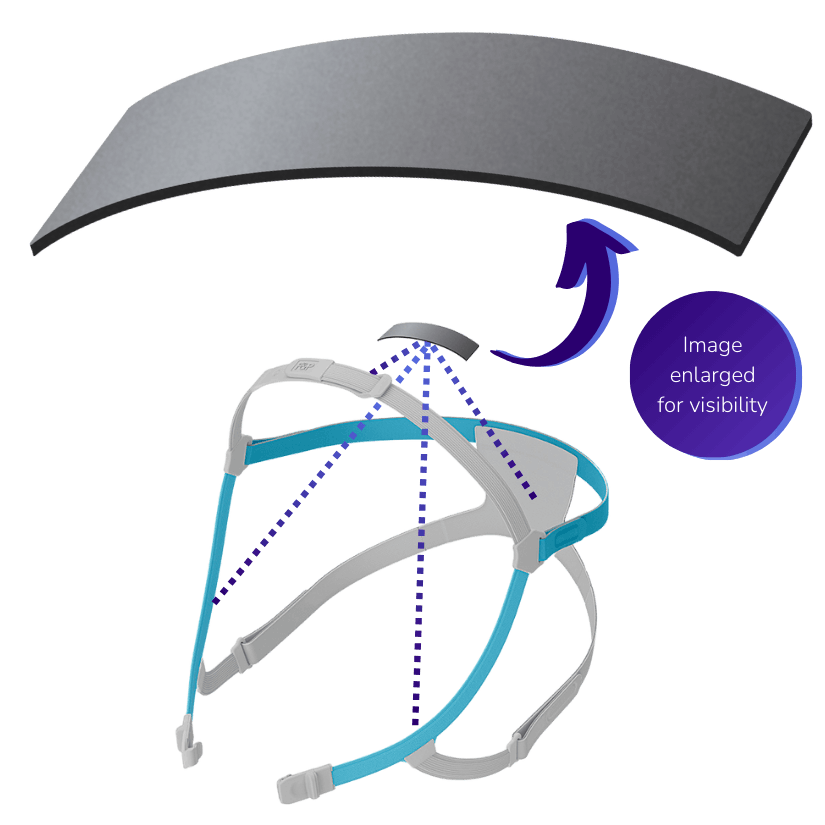

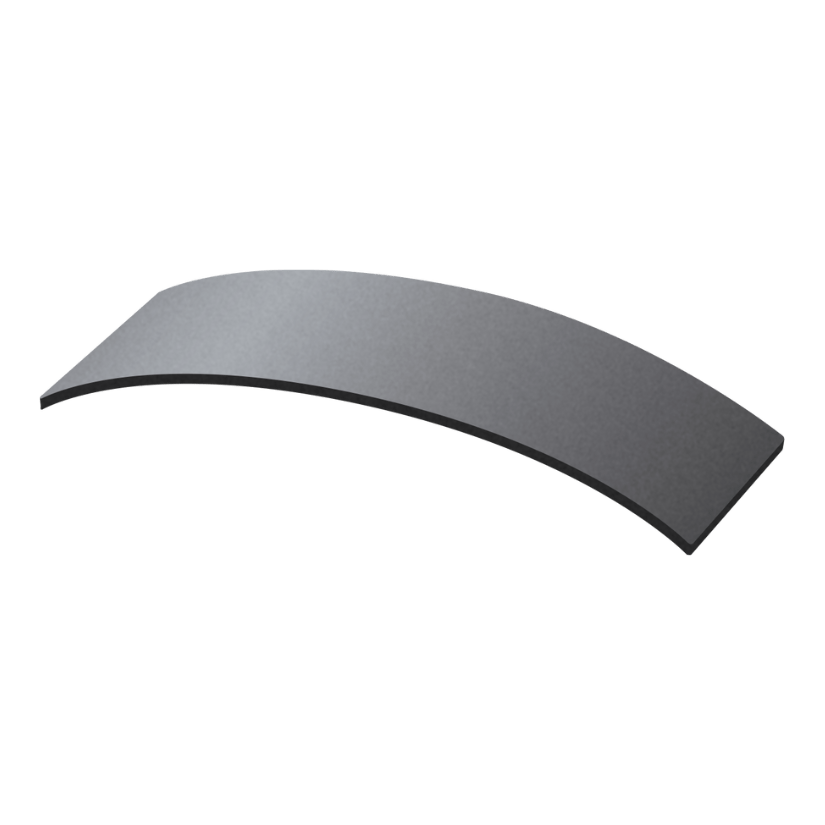

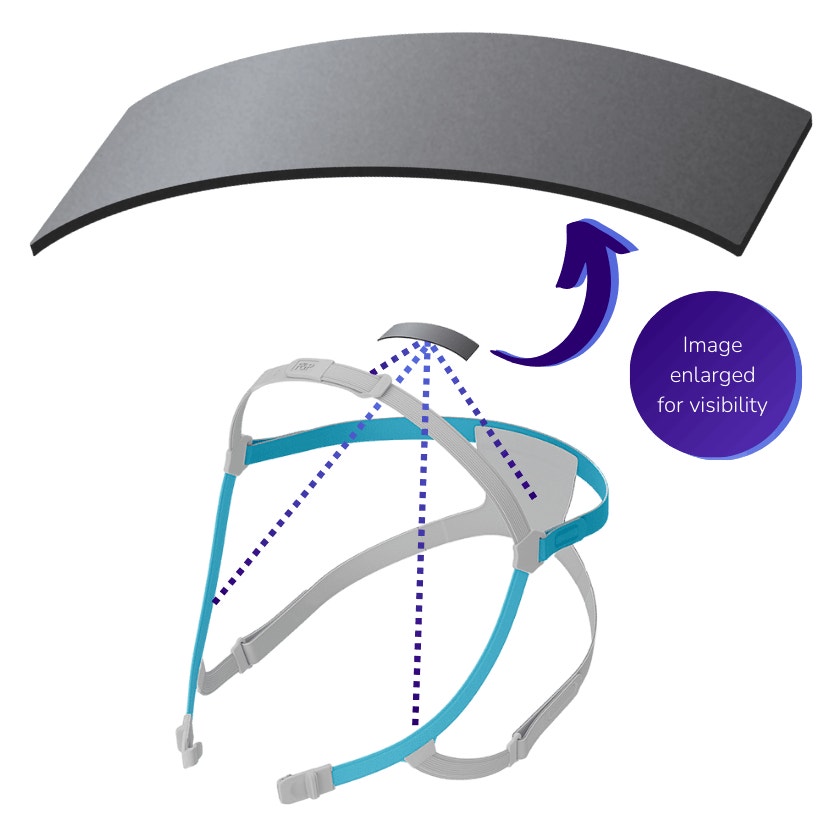

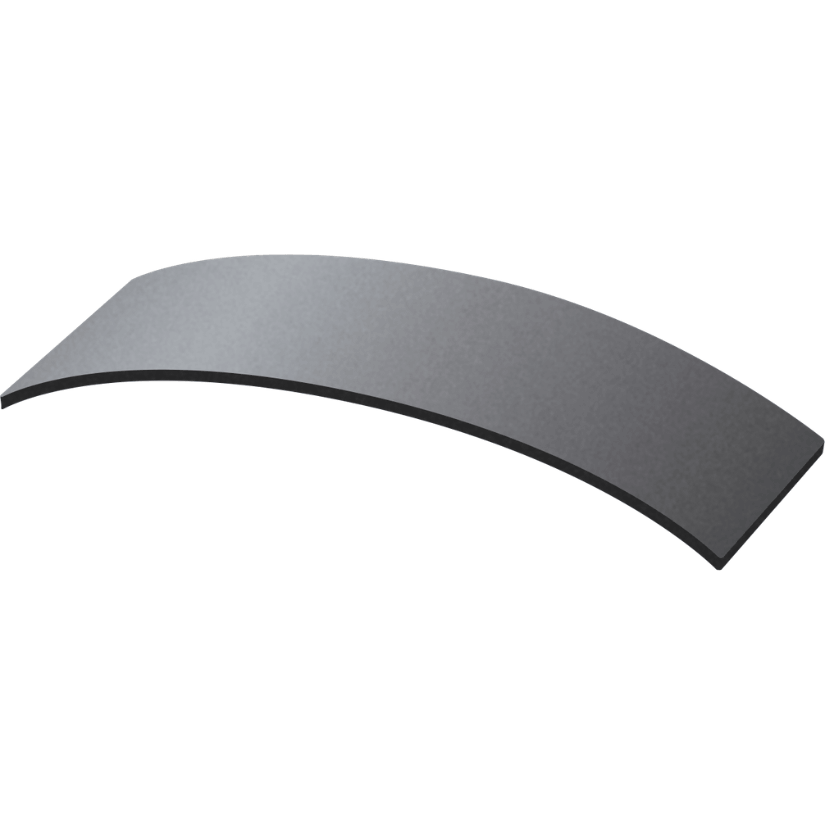

- 1 — Headgear Pad
- 1 — Instructions Manual
Nasal CPAP Masks:
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Attach the Cushion by pushing it onto the Frame. You should hear a click when connected properly.
- Attach the Headgear by aligning both Headgear Clips to the Frame and pulling back until you hear a click.
- Attach the other Headgear Clip by repeating step 2.
- If you need to reattach the Diffuser, align it with the recess in the Frame and push to connect.
Fitting Your CPAP Mask:
Refer to the fitting diagrams in these instructions.
- Connect the Top Strap to one of the holes in the Headgear.
- Unhook one of the Headgear Clips from the Frame.
- Place the Cushion on your nose and swing the unhooked Headgear Clip around your head.
- Connect the Headgear Clip to the Frame once the Headgear is positioned on your head. You should hear the Headgear Clip click into place.
- Gently adjust the Upper Straps.
- Gently adjust the Lower Straps.
Useful tips:
- The Headgear should not touch your ears. Adjust the Top Strap if required. You may need to take off the mask to do this.
- If you are experiencing mask leaks, you may need to lift the Cushion off your face and reposition it.
- For a comfortable fit, the mask should be worn as loose as possible, without excessive leak.
Warning: Do not overtighten the mask as this may result in facial deformation.
Caution: Failure to follow fitting instructions or using the incorrect mask size may result in pressure sores or excessive leak causing eye injury.

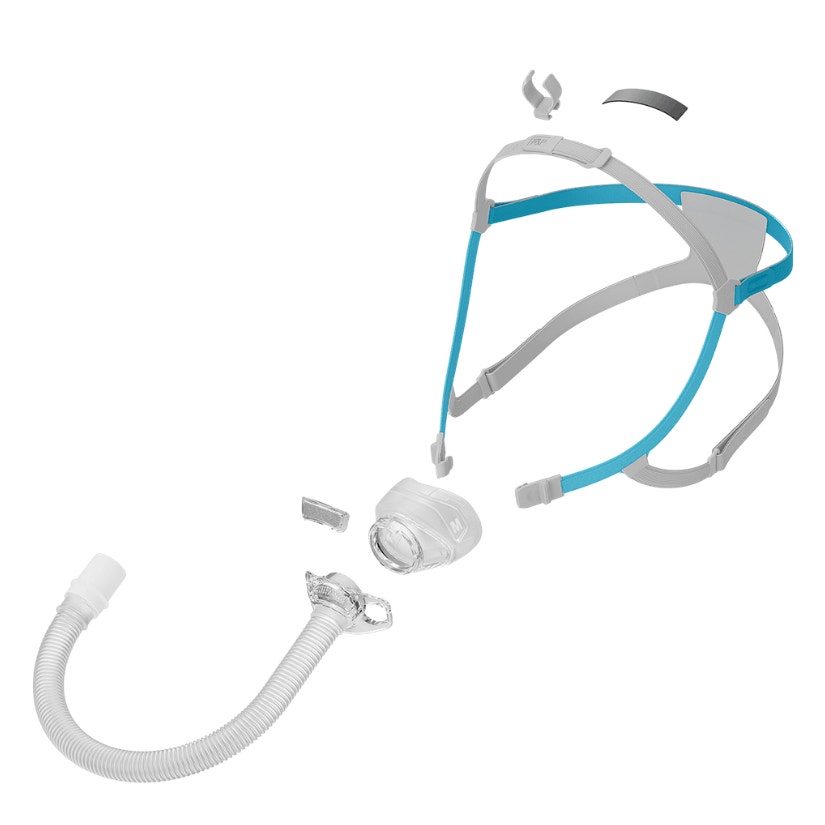

Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
- Remove the Cushion by pulling it away from the Frame.
- Remove the Headgear by pushing one of the Headgear Clips forward until it disconnects from the Frame.
- Remove the other Headgear Clip by repeating step 2.
- To remove the Diffuser, use your finger to rotate it off the Frame.
Caution: The Frame, Tube and Swivel components are permanently connected together and are not intended to be disassembled. Attempting to disassemble these components may compromise the function of the mask.
| Operating Therapy Pressure Range |
| 4 to 30 cmH²O |

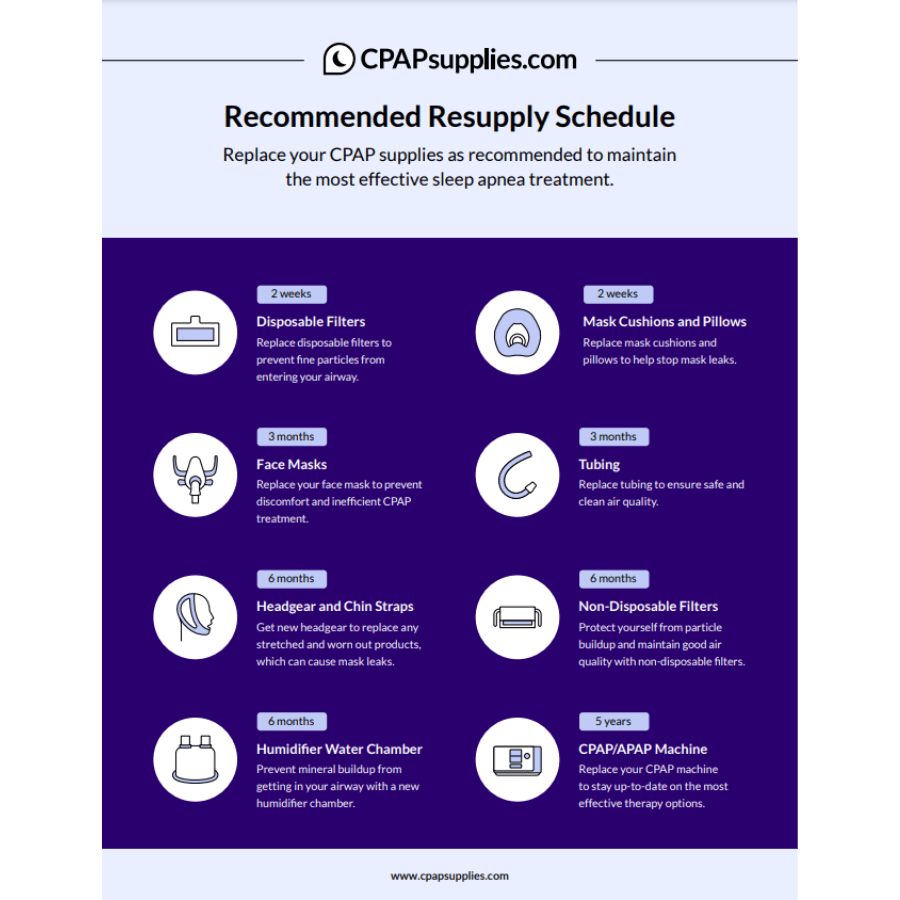

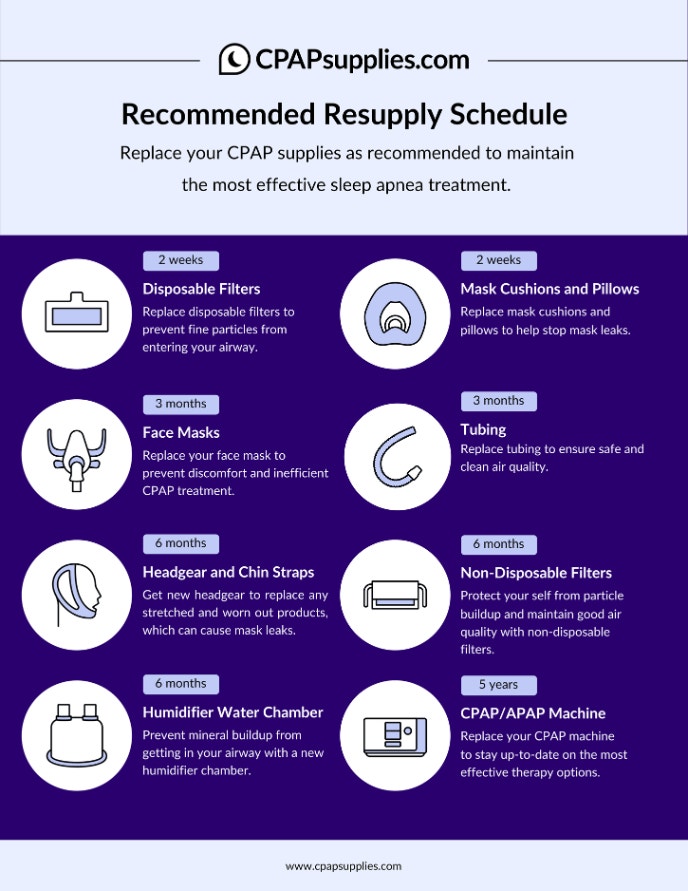

CPAPsupplies.com: CPAP Supplies Replacement Schedule
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
Part Cleaning Frequency Instructions Nasal Cushions
Daily
- Using a mild detergent* and warm, drinking-quality water, gently clean your nasal cushions to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
Chinstrap
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Fisher & Paykel |
|---|---|
| SKU | 29298 |
| Model | NVN1SMLA |
| HCPCS | A7034 |
| UPC | 09420012472243 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Size | Fit Pack |
