Fisher & Paykel Evora™ Nasal CPAP Mask
$62.00
Unlike any other mask, the F&P Evora™ Nasal CPAP Mask incorporates CapFit headgear that has been designed to be put on like a cap - a simple and intuitive movement that patients are familiar with.
Please note: headgear is not included in your order unless selected below.
Fisher & Paykel Evora™ Nasal CPAP Mask Overview
Introducing the Fisher & Paykel Evora™, the new minimal nasal CPAP mask from Fisher & Paykel featuring headgear that fits like a cap. (Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above.)
The Evora™ also features a unique compact cushion seal that keeps the mask comfortably in place during sleep as it sits comfortably under your nose to create a gentle fit.
-
Minimal headgear designed for comfort: With 64% less headgear contact on the face, the soft-knit material provides comfortable support during sleep and avoids leaving marks on the face once removed. The headgear comes in one size with three points of adjustment to give you an easy and comfortable fit.
-
Just like putting on a cap: Unlike any other mask, Evora incorporates the world's first CapFit headgear. With the unique design of Evora, getting started with your mask is as easy as putting on a cap.
-
Freedom of movement: The unique compact seal sits comfortably under the nose to create a gentle fit, while the flexible breathing tube keeps the mask in place.
-
Helping you to sleep quietly: Evora has been designed with exhaust holes to minimize noise and drafts. There are four seal sizes available: Small, Medium, Large, and Wide.
-
Laser-drilled exhaust holes are designed to minimize noise and draft.
-
Soft floating seal that sits comfortably under the nose to create an unobtrusive seal.
-
1 — Evora™ Nasal Mask Frame and Cushion (of selected size option)
-
1 — Short Tube
-
1 — Swivel
Please note: Evora™ CapFit™ headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — Evora™ CapFit™ Headgear
Nasal Mask Size Options:
-
Evora™ Mask System - without Headgear - Small - 400EVO131
-
Evora™ Mask System - without Headgear - Medium - 400EVO132
-
Evora™ Mask System - without Headgear - Large - 400EVO133
-
Evora™ Mask System - without Headgear - Wide - 400EVO134
Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
-
Evora™ Headgear - 400EVO121
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep

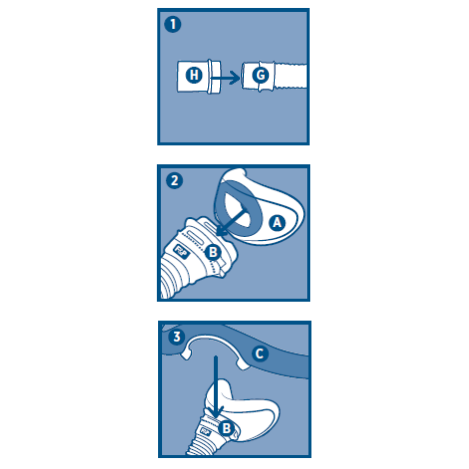

Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Push the Swivel onto the bottom of the Tube.
- Push the Seal firmly onto the Mask Frame to click into place.
- Push the Headgear down onto the Frame behind the Exhaust Holes to click into place.

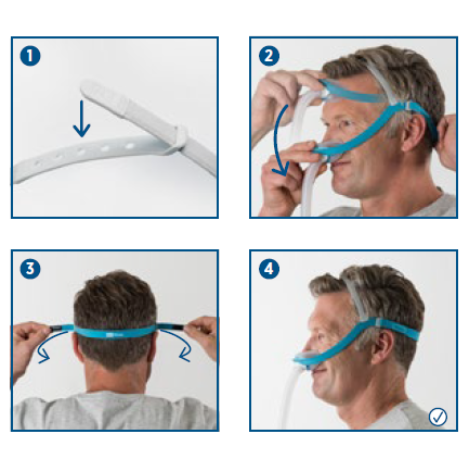

Fitting Your Mask:
Remove all packaging before using your mask. Refer to the mask diagram on the inside cover to identify the mask parts.
- Connect the Top Strap button to the middle position.
- Hold the front of the mask and pull the Back Strap over the back of your head. Pull the mask down to position the Seal under your nose.
- Adjust Back Strap to tighten or loosen the Seal against your face by pulling evenly on the tabs.
- Adjust the Top Strap button to tighten or loosen the Headgear so that it is sitting just above your ear without touching it. You may need to take the mask off to do this. The Top Strap should sit just forward of the middle of your head.
- Connect the Swivel to the CPAP hose and with the CPAP on, readjust the Back Strap until the mask seals and the Seal feels comfortable under your nose.

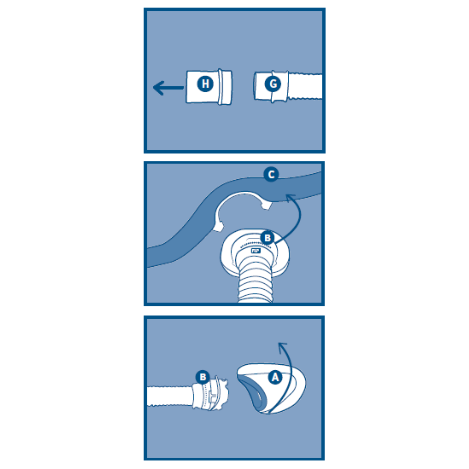

Disassembling Your Mask:
If the mask is connected to your device, disconnect the device air tubing
from the short tube.
- Pull the Swivel from the bottom of the Tube.
- Unclip the front of the Headgear from the Mask Frame located at the top of the Tube.
- Pull the bottom of the Seal to unclip from the Mask Frame.
| Operating Therapy Pressure Range |
| 4 to 25 cm H²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Evora™ Nasal: Introduction
Evora™ Nasal: Fitting Guide
Evora™ Nasal: Cleaning Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Fisher & Paykel |
|---|---|
| SKU | pb_Evora-NM-NoHG |
| Model | pb_Evora-NM-NoHG |
| UPC | 09420012456212, 09420012456229, 09420012456236, 09420012456243, 09420012456526 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 400evo131, 400EVO132, 400EVO133, 400EVO134, 400EVO121 |
