Philips Respironics DreamWear Nasal CPAP Mask
$72.00
The unique design of the DreamWear nasal CPAP mask feels almost like not wearing a mask! Featuring the innovative top-of-the-head connector and hollow frame design, the DreamWear offers greater freedom of movement than traditional nasal CPAP masks. A perfect mask for side sleepers or CPAP users who like to watch TV!
Philips Respironics DreamWear Nasal CPAP Mask Overview
If other CPAP masks have you feeling trapped, or you’ve ever found yourself tangled in CPAP tubing, the Philips Respironics DreamWear nasal CPAP mask is the answer! It’s minimal-contact design and hollow mask frame were made to feel like you’re barely wearing a CPAP mask at all!
The innovative design starts with the top-of-the-head connector, which keeps your tubing out of your face while you sleep. The swivel connector turns a full 360 degrees, giving you greater freedom of movement than traditional masks that connect at the face. This makes the DreamWear nasal CPAP mask an ideal choice for side sleepers or CPAP users who toss-and-turn!
Your airflow then follows through the hollow DreamWear frame, which is made of soft silicone to keep the mask light and comfortable. The mask frame is slip-resistant too, which helps to keep your mask in place no matter your sleeping position. And the silicone frame is the only contact with your face, since the headgear fabric wraps behind your head, and there’s no hard plastic anywhere!
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option.
Unlike most nasal mask designs, which feature an over-the-nose cushion, the curved cushion of the Respironics DreamWear nasal mask sits underneath your nose. This eliminates pressure on the nose bridge, and reduces red marks and skin irritation. The soft, silicone nasal cushion gently inflates for a secure and comfortable fit.
As an added bonus, this makes a slimmer profile, for a wider field of view that you’ll love if you like to watch TV or read before bed!
The DreamWear nasal mask is also compatible with the gel pillows of the DreamWear nasal pillow mask and the full face cushion for the DreamWear full face CPAP mask! This allows you to try out different mask styles without having to buy a whole new mask! (The full face mask requires different headgear for proper mask fit, but the frame is compatible with any DreamWear headgear.)
Features & Benefits:
- Minimal-contact design provides greater freedom of movement
- Top-of-the-head swivel connector turns 360 degrees to keep your tube out of your face
- The soft silicone frame and nasal cushion is all that touches your face
- Curved cushion cradles underneath your nose for a wide field of vision
- Also compatible with DreamWear gel pillows and DreamWear full face CPAP mask
CPAP Mask Materials:
Component: | Material: |
---|---|
Headgear | Nylon, Polyurethane Foam |
Headgear with Arms | Thermoplastic Elastomer, Polyurethane Foam, Nylon |
Frame | Silicone, Polycarbonate (PC) |
Fabric Wraps | Polyester |
Swivel | Polycarbonate (PC) |
-
1 — DreamWear Nasal Mask Frame
-
1 — Nasal Cushion (of selected size option)
-
1 — Swivel Connector Elbow
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — DreamWear Nasal CPAP Mask Headgear with Arms (Model # 1116751) OR 1 - DreamWear Nasal CPAP Mask Headgear (Model # 1116750 -- DISCONTINUED)
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep

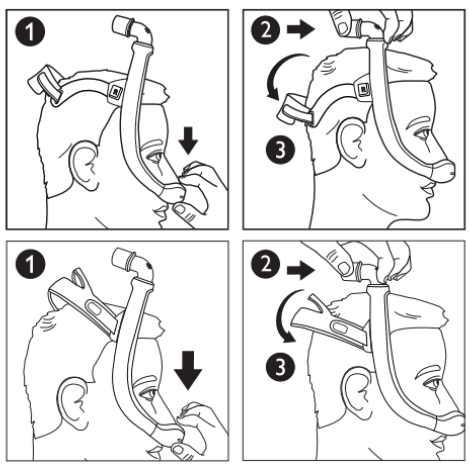

Fitting Your Mask:
- 1. With the mask assembled (see Assembly section), place the cushion under the nose.
- 2. Position the frame on the top of the head. Tip: For proper sizing, see Cushion sizing and Mask frame selection sections.
- 3. Pull the headgear over the back

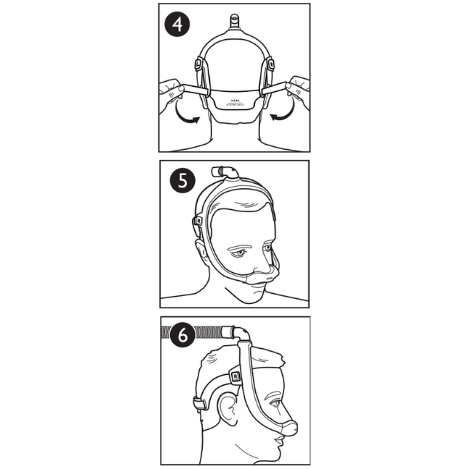

Adjusting Your Mask:
- 4. Peel the headgear tabs away from the fabric. Adjust the strap length. Press the tabs back against the fabric to reattach. Note: Do not overtighten the headgear. Signs of overtightening include redness, sores, or bulging skin around the edges of the mask.
- 5. Position the mask until it fits comfortably.
- 6. When finished the elbow should rest at the top of the head.

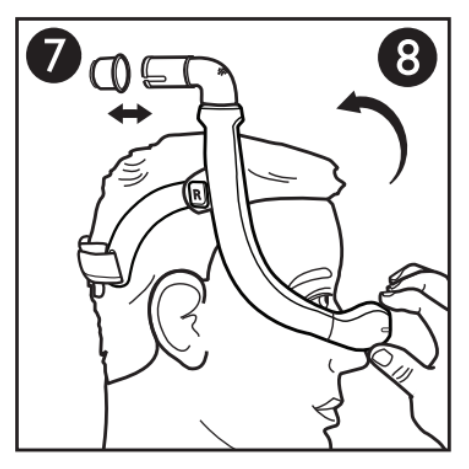

Removing Your Mask:
Tubing Quick Release
- 7. The elbow is equipped with a tubing quick release. Pull on the tubing quick release and it will disengage from the elbow and come loose with the tubing.
Removing the Mask
- 8. To keep your adjustments, remove the mask by grasping the cushion and pulling forward away from the nose. Then pull the cushion and mask up and off of the head.


Assembling Your Mask:
Align the triangles on the cushion and frame for proper assembly.

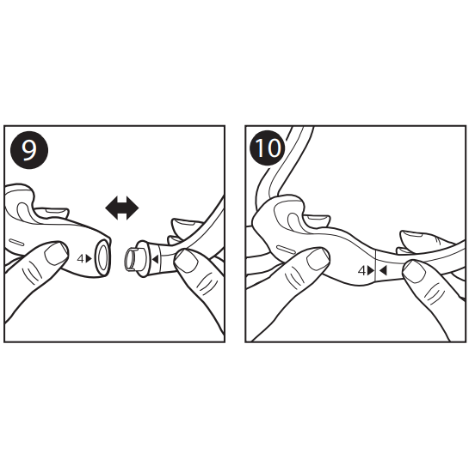

- Cushion: Press into the mask frame until the cushion clicks into place. (Fig. 9 & 10). Note: The end of the cushion and the opening in the mask frame are ‘D’ shaped. The cushion end should match the frame.
- Elbow: Insert into the top of the mask frame.
- Tubing quick release: Push the tubing quick release onto the elbow until it clicks into place.
- Fabric sleeves: Wrap the sleeves around the mask frame and press the strips together. Note: The sleeve seams should be on the outside of the frame.
- Headgear assembly: a. Headgear with arms: Push the headgear clip through the mask frame loop. Connect the second clip to the mask frame loop on the other side. Slide the tabs into the slots on the arms and fold backwards. Note: The headgear arms have “L” and “R” symbols to show which side of your head each arm should go on. Once the mask is on, the symbol should face outward with the “L” on the left side of your head and the “R” on the right side of your head.
- b. Headgear without arms: Slide the tabs into the slots on the mask frame and fold
backwards. Note: The Philips Respironics logo will be on the outside and facing up when correctly assembled.

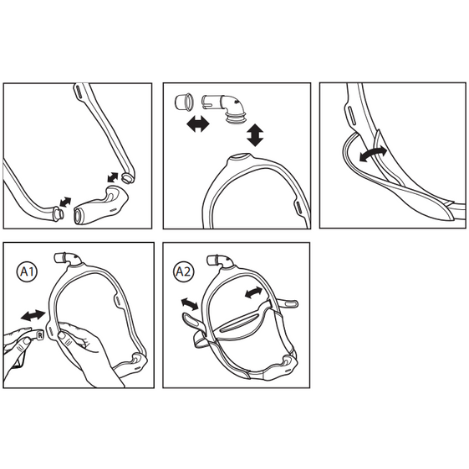

Disassembling Your Mask:
Headgear disassembly:
- a. Headgear with arms: Gently pull each headgear clip out of the mask frame loop.
- b. Headgear without Arms: Undo the headgear tabs and pull through the slots in the mask
frame. - Fabric sleeves: Undo the strips and remove from the mask frame.
- Tubing quick release: Pull the tubing quick release from the elbow.
- Elbow: Pull the elbow from the top of the frame.
- Cushion: Pull the cushion from the mask frame.


Operating Therapy Pressure Range |
4 to 30 cm H²O |
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal pillows, headgear, and frame):
Part | Cleaning Frequency | Instructions |
Nasal Pillows |
Daily |
|
Mask Frame |
Weekly |
|
Headgear |
Weekly |
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
Brand | Philips Respironics |
---|---|
SKU | pb_DWmask |
Model | pb_DWmask |
UPC | 00606959402003, 0060959402010, 0060959402034, 0060959402027, 00606959023765, 00606959023772, 00606959023789, 00606959023796, 00606959023802, 00606959023819, 00606959023826, 00606959023833, 00606959023840, 00606959023857, 00606959023864, 00606959023116 |
Prescription Required | No |
Manufacturer's Warranty | 90-day limited manufacturer's warranty |
FSA/HSA Eligible | Yes |
Dimensions | Small - 19"; Medium - 20"; Large - 22" |
Included | 1116710, 1116711, 1116712, 1116713, 1116705, 1116706, 1116708, 1116707, 1116715, 1116716, 1116718, 1116717, 1116751, 1116750 |
