Resmed N30 AirMini™ Setup Pack With CPAP Mask

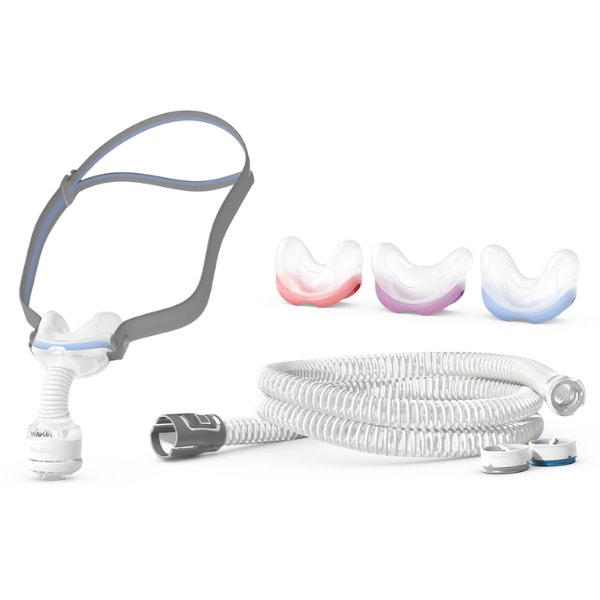

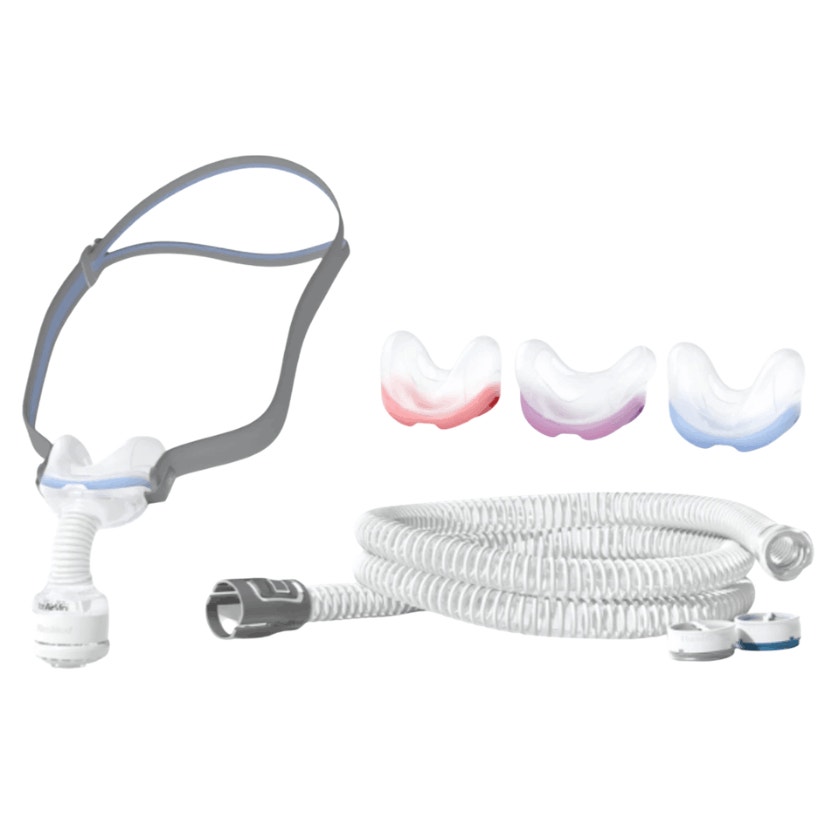

The AirFit™ N30 Nasal CPAP Mask Pack for the AirMini™ Auto-CPAP Machine by Resmed comes with everything you need to connect your AirFit™ N30 mask to your AirMini™ including the N30 mask frame, 3 silicone nasal cushions (Small, Medium and Small Wide), QuickFit™ elastic headgear, 2 cartridges (one HumidX and one HumidX Plus) and the AirMini™ tubing.
Resmed N30 AirMini™ Setup Pack With CPAP Mask Overview

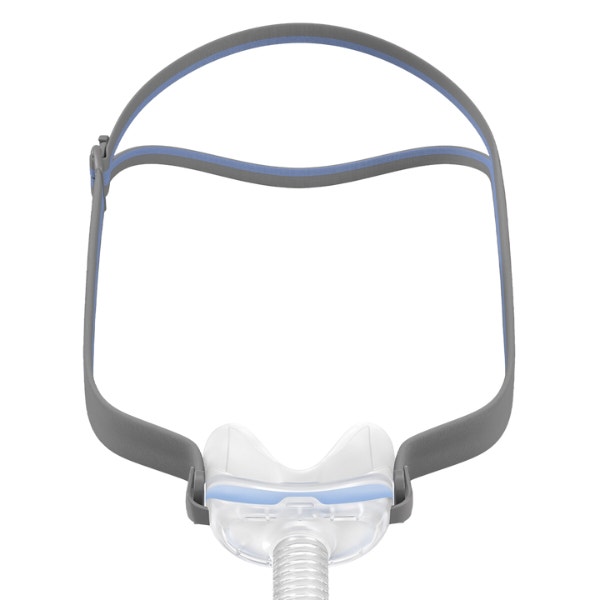

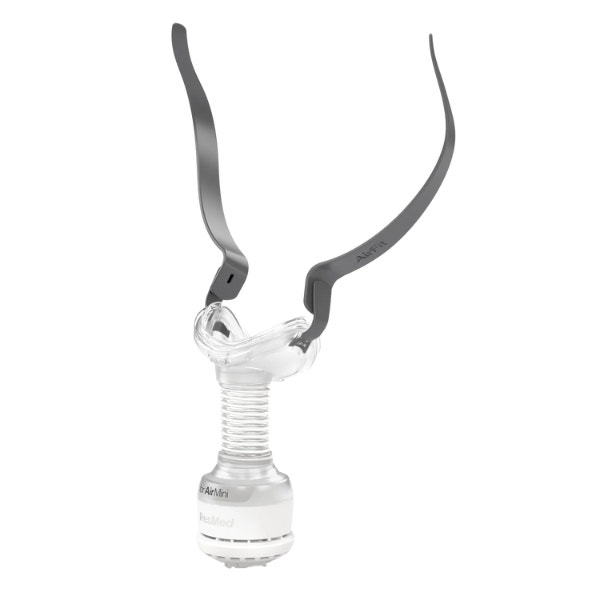

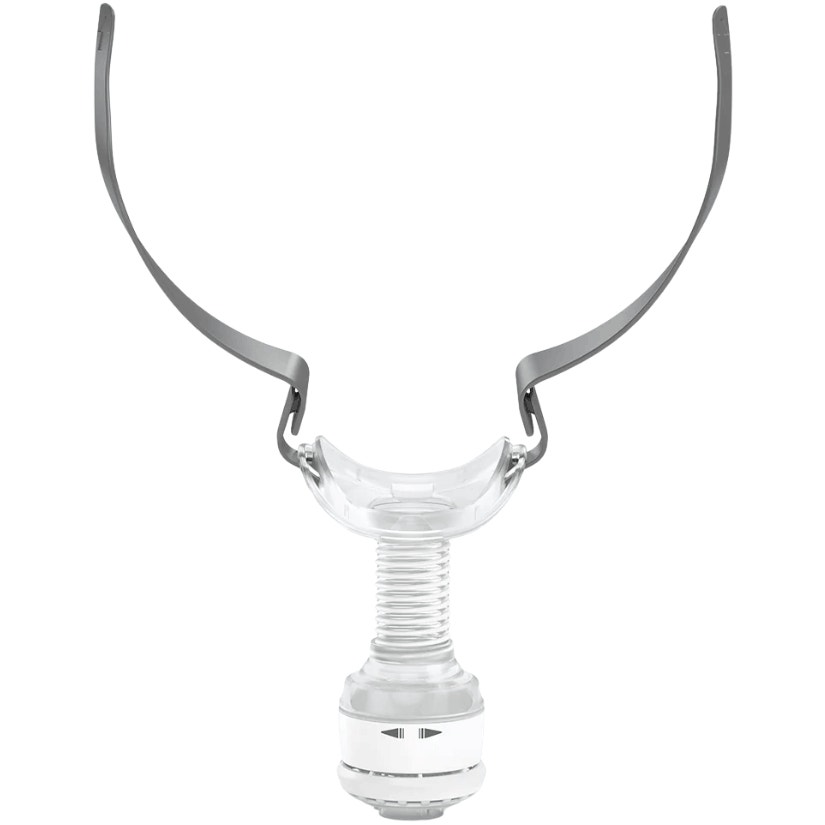

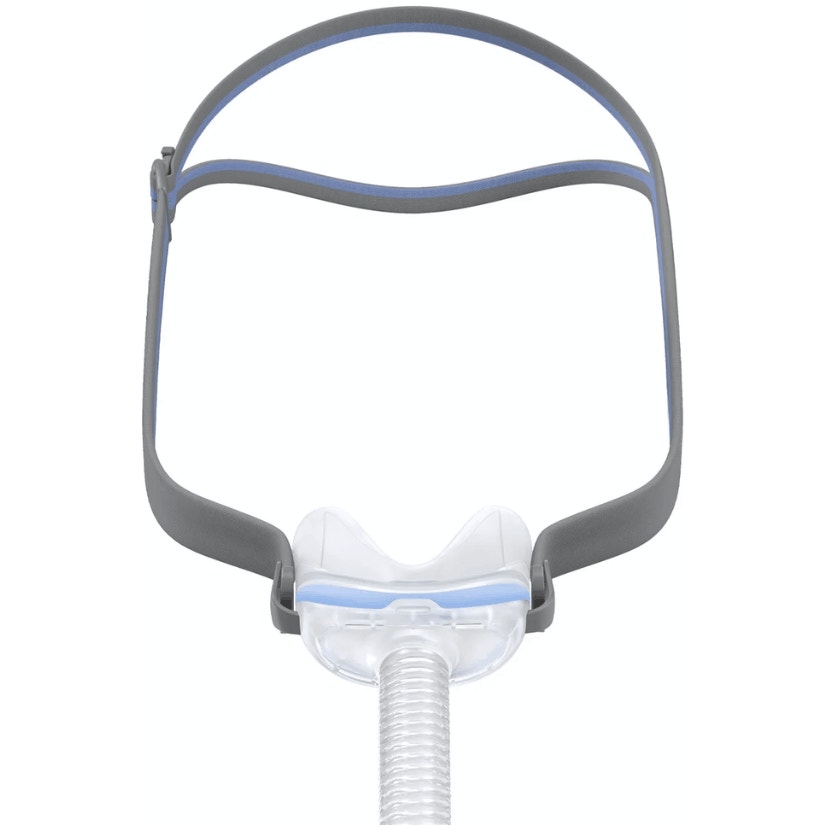

The AirFit™ N30 mask for the AirMini™ is one of Resmed's lightest mask and features a low-profile design with an under-the-nose curved nasal cradle cushion and front-end tubing. This mask is compatible with the Resmed HumidX and HumidX Plus cartridges and includes one of each with your purchase. The HumidX technology allows you to get the therapy you need without the use of distilled water.
Technical Specifications:
-
N30 Therapy Pressure: 4-20 cm H2O
-
N30 Sound - Pressure Level: 21 dBA
-
N30 Sound - Power Level: 28 dBA
Discover more about the Resmed AirMini™ Travel CPAP Machine with our helpful blog: The Ultimate Resmed AirMini User Guide.
-
1 — AirFit™ N30 Mask Frame
-

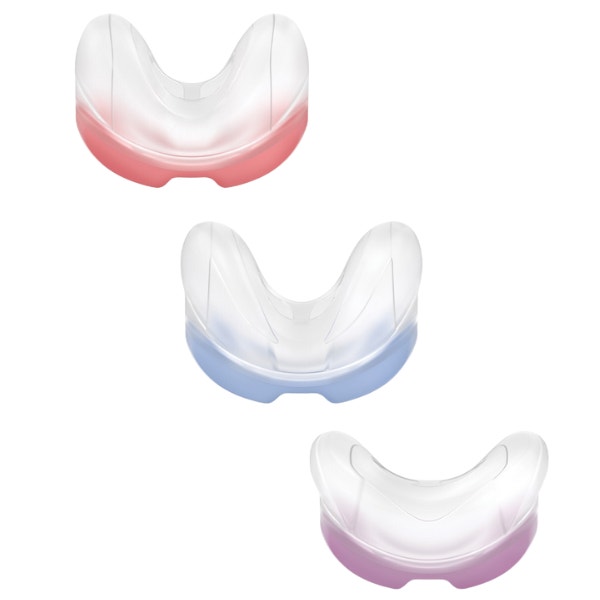

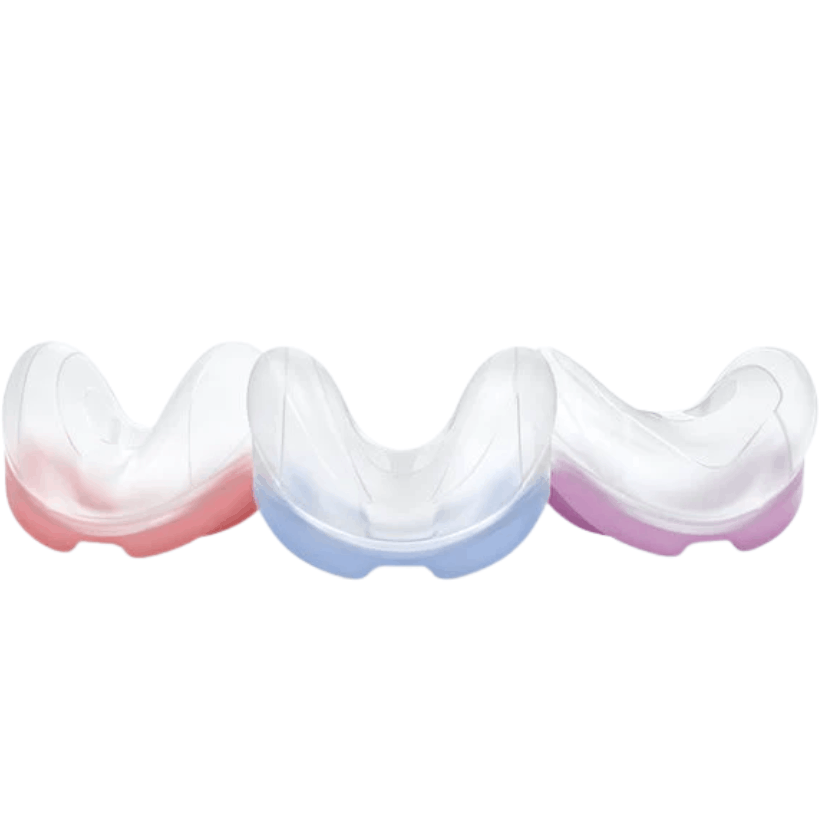

3 — AirFit™ N30 Silicone Nasal Cradle Cushions (1 - Small, 1 - Medium, 1 - Small Wide)
-
1 — AirFit™ N30 QuickFit™ elastic headgear
-

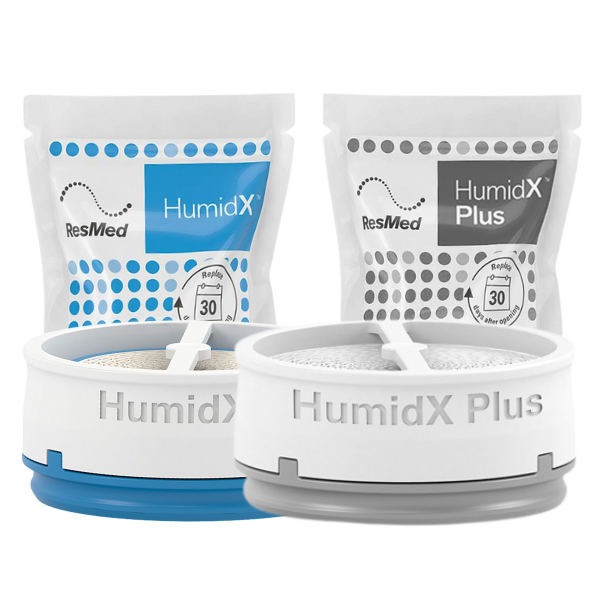

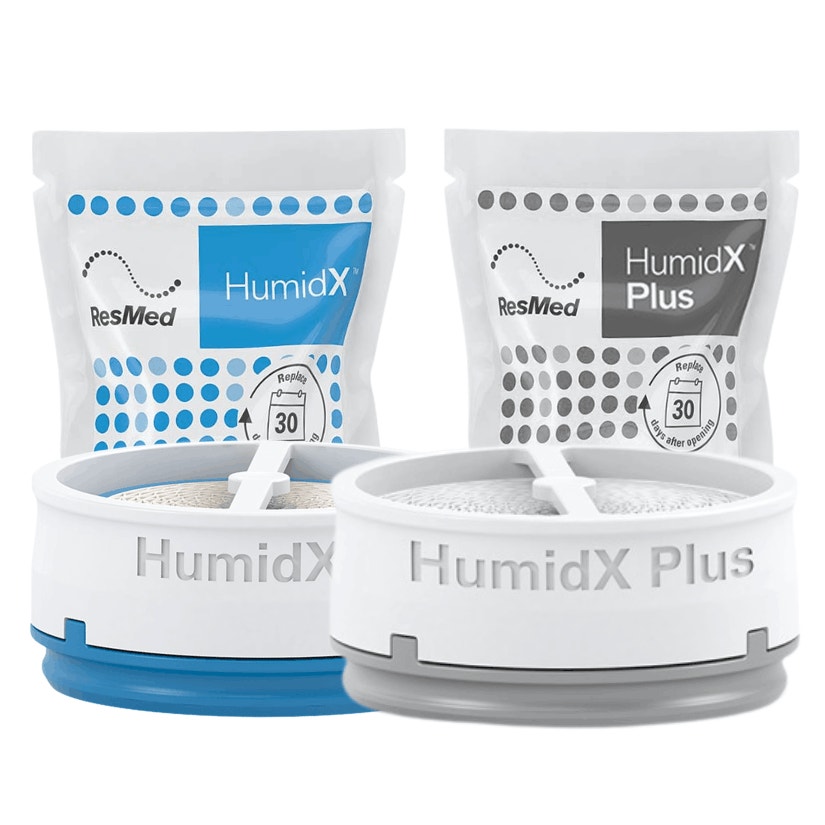

1 — HumidX Cartridge
-
1 — HumidX Plus Cartridge
-
1 — AirMini™ Tube
Nasal CPAP Masks:
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep

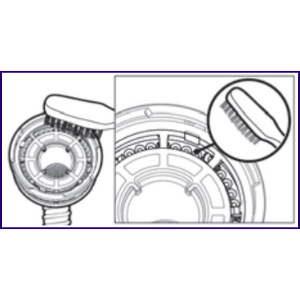

HumidX: Cleaning the vent module
-
Clean and check the vent module daily.
-
Wash in warm water using a mild liquid detergent.
-
Clean with a soft bristle brush paying particular attention to the vent holes.
-
Rinse well under running water. Shake to remove excess water and allow to air dry out of direct sunlight.
-
Check that there is no dirt or dust in the vent holes.
Note: Do not wash in a dishwasher or washing machine.
AirFit™ N30:
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- With the gray side of the headgear facing out, insert each end of the headgear band over the stabilizers through the buttonholes.
- Secure the headgear by pulling the buttonholes over the ends of the stabilizers.
- Holding the mask frame, stretch the headgear lightly to ensure it is securely attached. Ensure that the headgear band is not twisted.
- Align the notch in the cushion to the tab on the mask frame. Firmly push one side of the cushion onto the frame, then repeat on the other side. Push down all the edges of the cushion onto the frame to ensure that the edges are completely flat.
Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- While holding the cushion away from your nose, make sure that the cushion size, left (L) and right (R) indicators are facing towards you. Place the cushion under your nose.
- Pull the headgear bands over your head by holding the bottom band and stretching it around the back of your head. The top band should sit comfortably on the crown of your head.
- Briefly pull your mask away from your nose and place it back to ensure that the cushion fits comfortably.
Disassembling Your Mask:
If the mask is connected to your device, disconnect the air tubing
from the short tube.
- Firmly pinch one side of the cushion and pull away from the frame.
- Unhook the headgear from the stabilizer by pulling on the end cap to reveal the buttonhole.
- Slide the headgear off the end of the stabilizer.
| Operating Therapy Pressure Range |
| 4 - 25 cm H2O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Resmed AirMini™: How to use HumidX & HumidX Plus
AirFit™ N30: Fitting Guide
AirFit™ N30: Cushion Sizing Guide
AirFit™ N30: Cleaning Guide
AirFit™ N30: Assembly Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| Weight | 1.15 lbs |
| SKU | 27897 |
| Model | 38878 |
| HCPCS | CASH |
| UPC | 00619498388783 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| Color | White |
| FSA/HSA Eligible | Yes |
| Dimensions | N30 Mask: 5.9" (W) x 1.2" (D) x 23.2" (H); AirMini Tube: 0.6" Inner Diameter, 6'2" (L) |
