Resmed AirFit™ F30i Full Face CPAP Mask without Headgear
The Resmed AirFit™ F30i Full Face CPAP Mask features top-of-head tubing connection to provide you with more freedom of movement, allowing you to change positions while maintaining a reliable mask seal during your sleep therapy.



Resmed AirFit™ F30i Full Face CPAP Mask without Headgear Overview

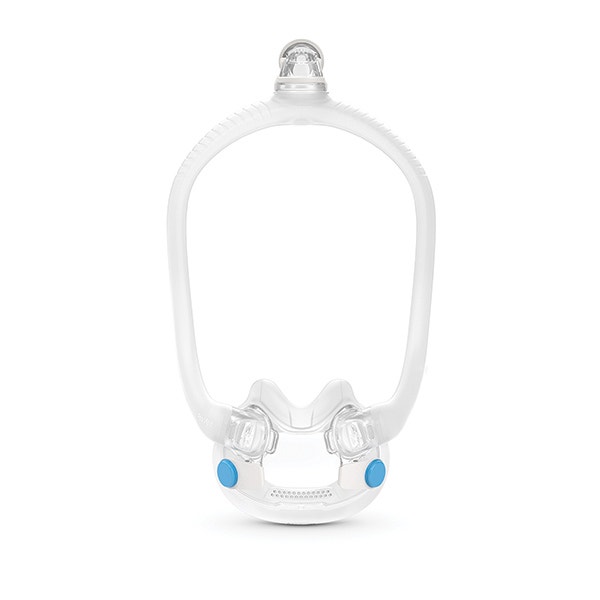

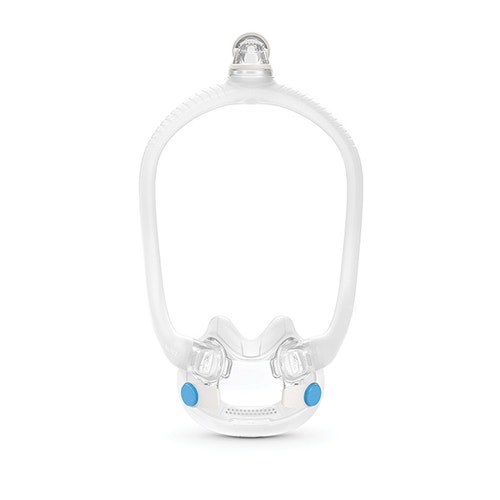

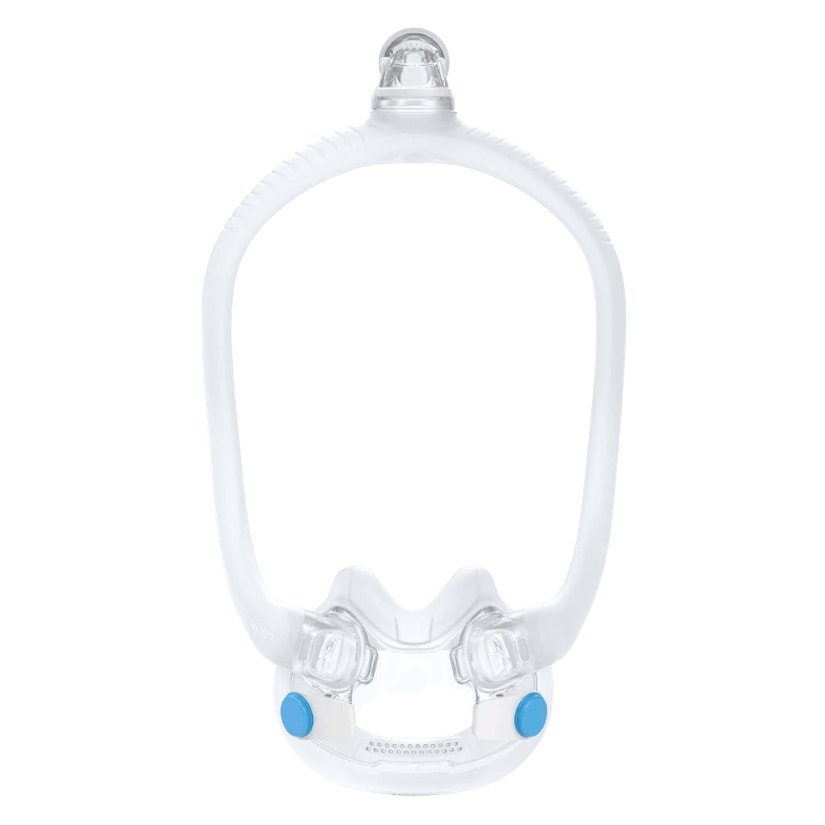

This is the frame system for the Resmed AirFit™ F30i Full Face Mask.
Per Resmed, please note the following about this mask’s magnetic contraindications:
Update to Contraindication
In an update to the previously contraindicated metallic aneurysm hemostatic clips in the head and metallic splinters in one or both eyes following a penetrating eye injury, Resmed is further contraindicating the use of its masks with magnets for patients where they, or anyone in close physical contact while using the mask (e.g., bed partner), have the following:
- Active medical implants that interact with magnets (i.e., pacemakers, implantable cardioverter defibrillators (ICD), neurostimulators, cerebrospinal fluid (CSF) shunts, insulin/infusion pumps)
- Metallic implants/objects containing ferromagnetic material (i.e., aneurysm clips/flow disruption devices, embolic coils, stents, valves, electrodes, implants to restore hearing or balance with implanted magnets, ocular implants, metallic splinters in the eye)
Update to Warning
The safe distance to the magnets has been increased from 2 inches (50 mm), and patients are now warned to keep the mask magnets at a safe distance of 6 inches (150 mm) away from implants or medical devices that may be adversely impacted by magnetic interference. This applies to patients, or anyone in close physical contact with the mask magnets.
Note, not all models or manufactured variants of medical devices listed in the contraindications are affected by external magnetic fields. Only those that interact with magnets or contain ferromagnetic materials present the potential for magnetic interference.
For more information: please reach out to Resmed directly; CPAPsupplies.com does not have any additional details on this update. Visit www.resmed.com/magnetupdate for more details and the appropriate contact information.


-

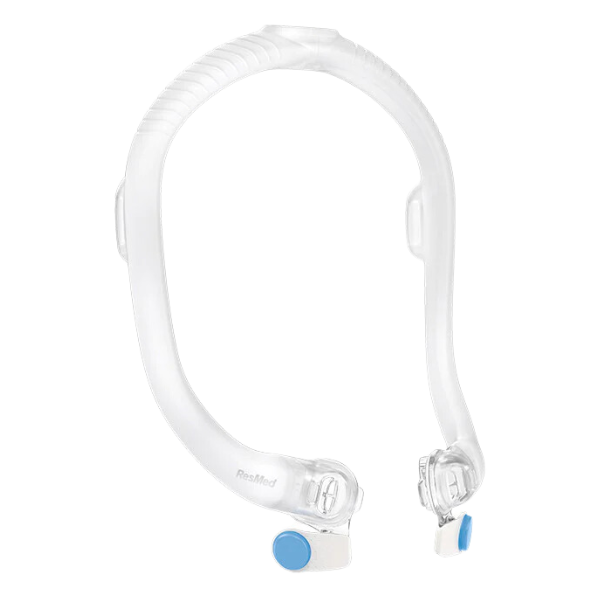

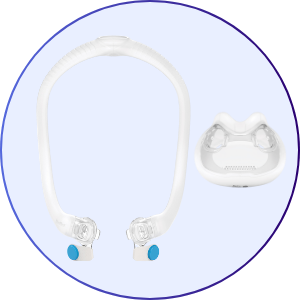

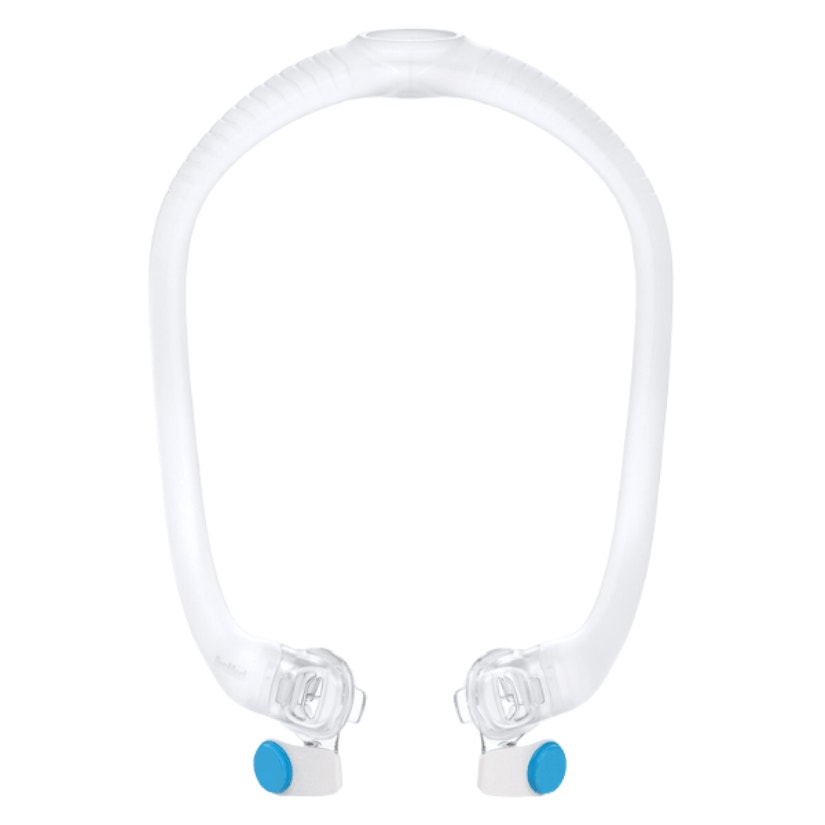

1 - AirFit™ F30i Mask Frame
-

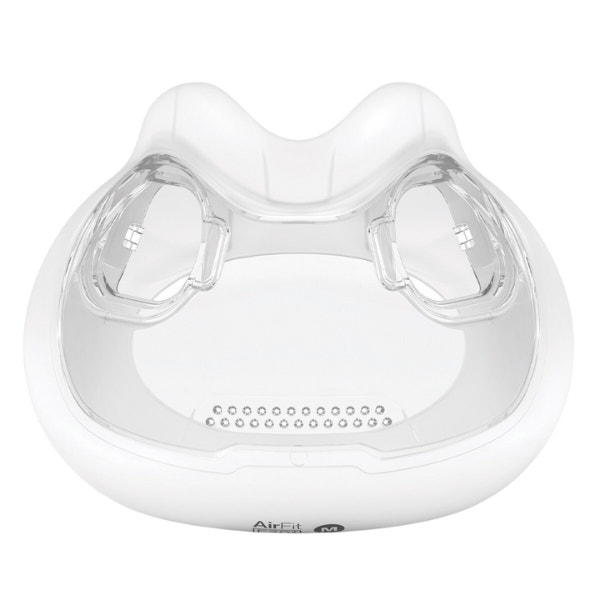

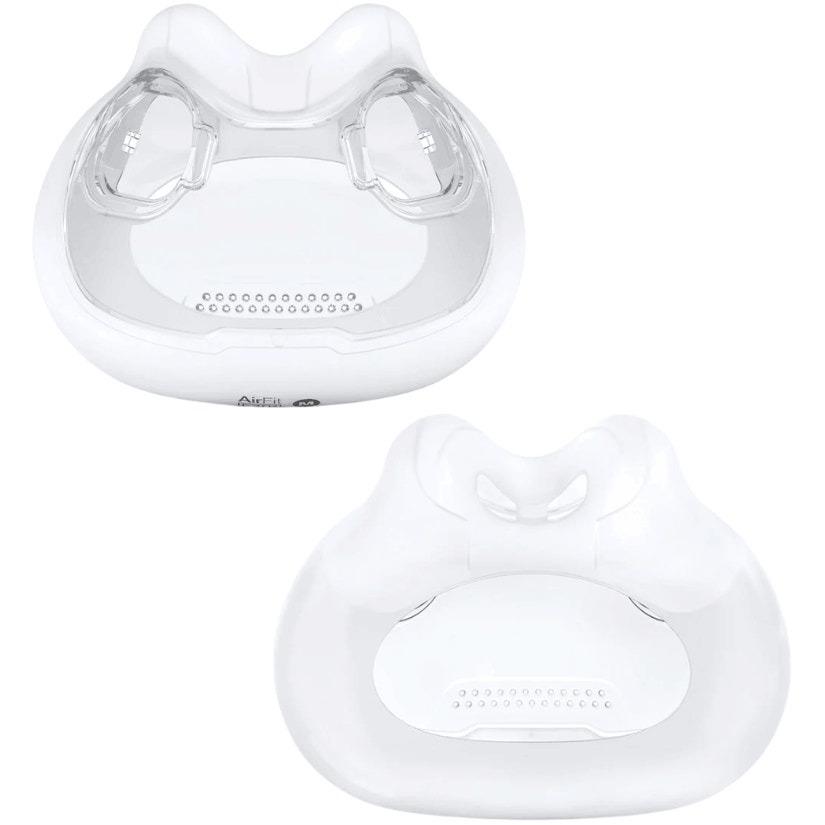

1 - AirFit™ F30i Mask Cushion
-
1 - Elbow
Please note: headgear is not included with this order. AirFit™ F30i Headgear can be purchased separately here.
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Align and insert the frame connector tab into the cushion slot and press down until it clicks. Repeat on the other side.
- Attach the elbow to the top of the frame until it clicks.
- With the Resmed logo facing outwards and up, insert the upper headgear straps into the frame from the inside and fold the fastening tabs over to secure.
Note: If the elbow ring detaches, re-insert into the top of the frame.


Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images inside the front cover of these instructions.
- Connect the air tubing from your device to the elbow.
- Squeeze the side buttons on the elbow and pull from the frame. Put the elbow and air tubing aside for now.
- Twist and pull both magnetic clips away from the frame connectors.
- Place the cushion under your nose and ensure it sits comfortably against your face. With the Resmed logo on the headgear facing up, pull the headgear and frame over your head.
- Bring the lower headgear straps under your ears and attach the magnetic clips to the frame connectors.
- Undo the fastening tabs on the upper headgear straps and pull evenly. Repeat with the lower headgear straps.
- Attach the elbow to the top of the frame. Your mask should now be positioned as shown.


Disassembling Your Mask:
If your mask is connected to a device, disconnect the device air tubing
from the mask elbow.
Refer to the disassembly diagrams in these instructions.
- Undo the fastening tabs on the upper headgear straps and pull from
the frame. Keep the magnetic clips attached to the lower headgear
straps. - Squeeze the side buttons on the elbow and detach from the frame.
- Grip the frame connector and lift to unclip from the cushion. Repeat
on the other side


| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |

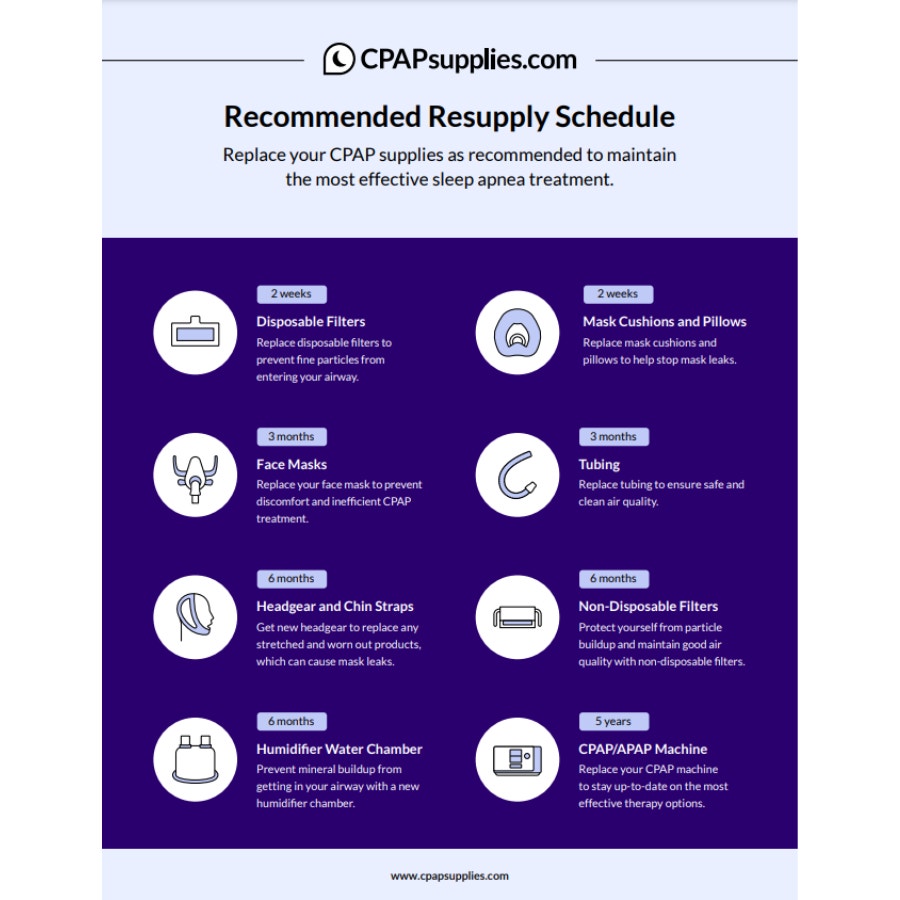

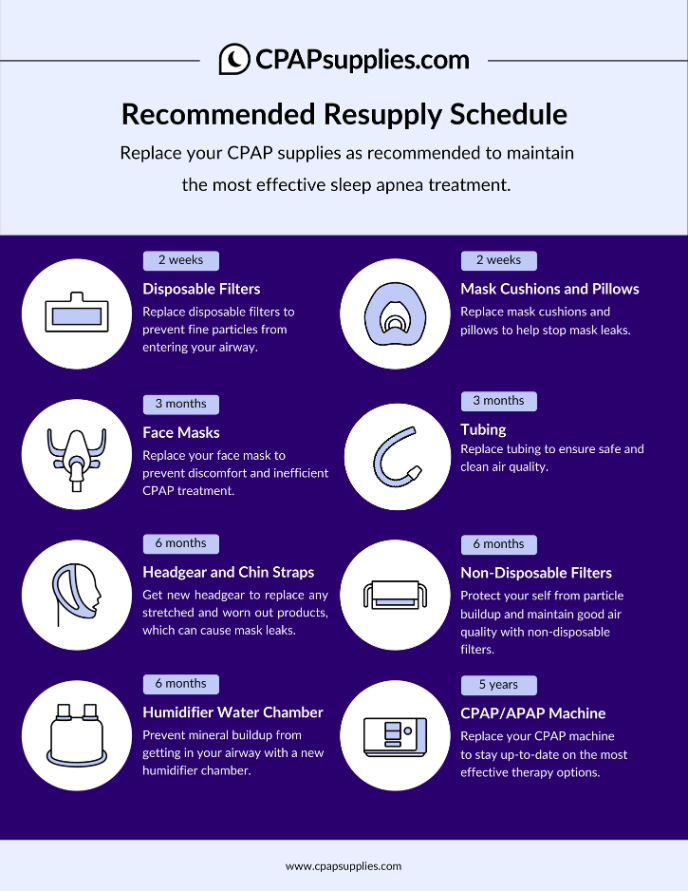

- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Mask Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | p_AirFit-F30i-Frame-System |
| Model | p_AirFit-F30i-Frame-System |
| HCPCS | A7030 |
| UPC | 619498633562, 619498633555, 619498633647, 619498633630, 619498633654, 619498633661, 619498633579, 619498633616, 619498633609, 619498633593, 619498633623 |
| Prescription Required | No |
| Weight | 0.30 lbs |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| Color | Clear & Blue |
| FSA/HSA Eligible | Yes |
| Dimensions | Mask Frame: 9 3/4" (W) x 4" (H) |
| Included | 63355, 63356, 63357, 63359, 63358, 63360, 63361, 63362, 63363, 63364, 63366, 63365 |
