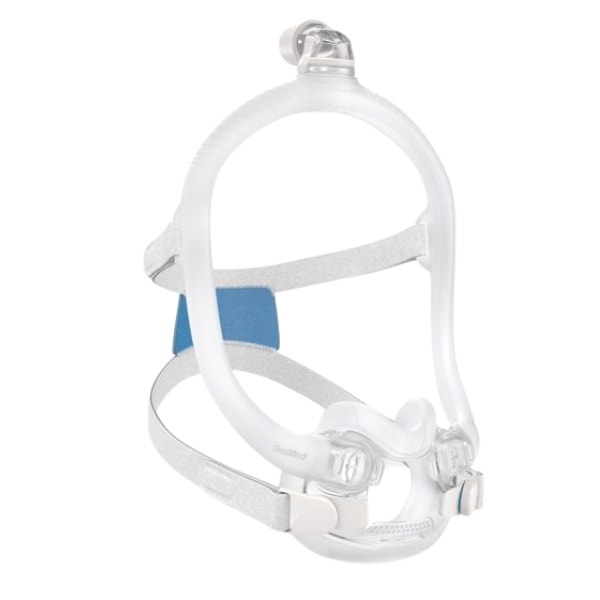

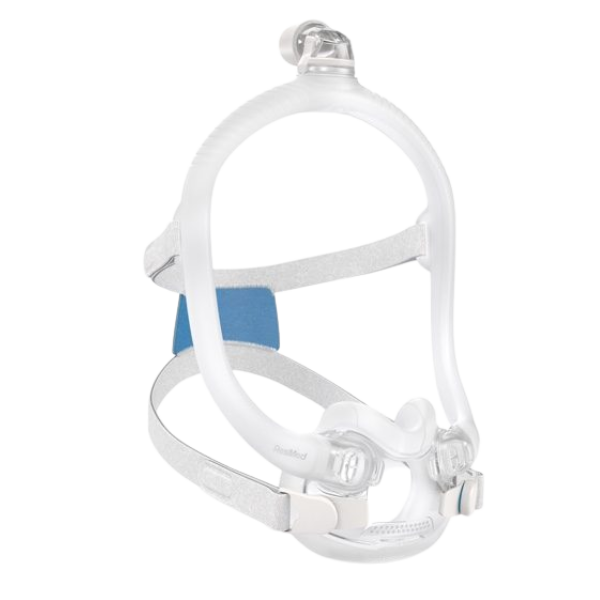

Resmed AirFit™ F30i Full Face CPAP Mask
$128.00
The AirFit™ F30i is designed to provide a full range of movement during sleep apnea treatment. Featuring a minimal contact full face mask design and top-of-head swivel connection, active sleepers won’t have to worry about getting tangled in tubing again!
Resmed AirFit™ F30i Full Face CPAP Mask Overview

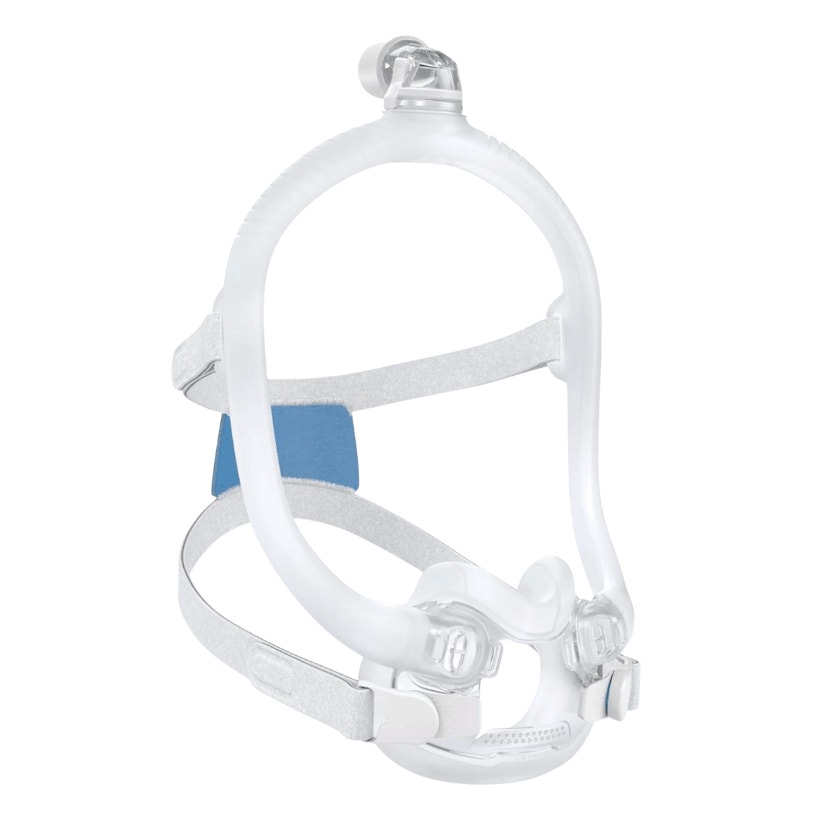

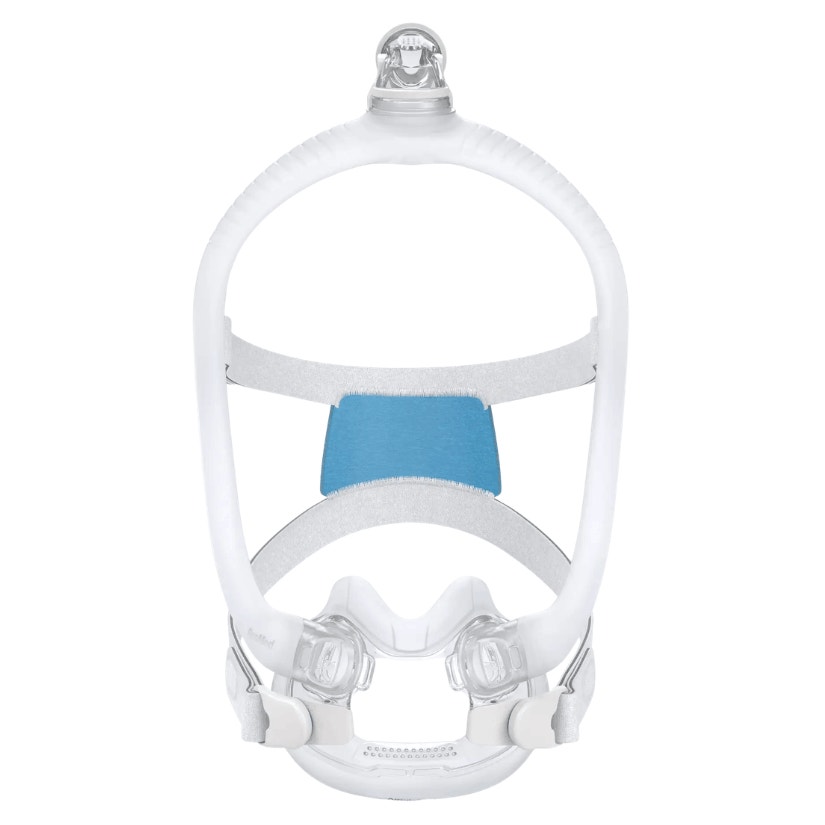

The Resmed AirFit™ F30i features a top-of-head swivel tubing connection, giving you more freedom to move while maintaining a reliable mask seal. This keeps your tubing out the way, allowing you to comfortably switch sleep positions during sleep therapy without tangling or crimping your CPAP hose. That’s what makes the AirFit™ F30i a popular choice for active sleepers.

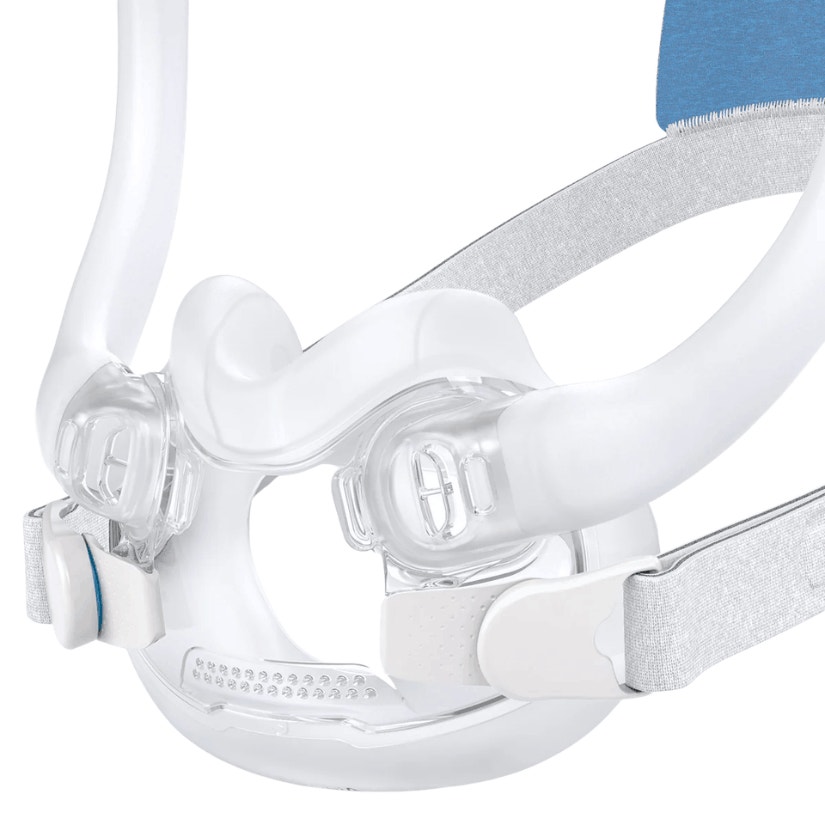

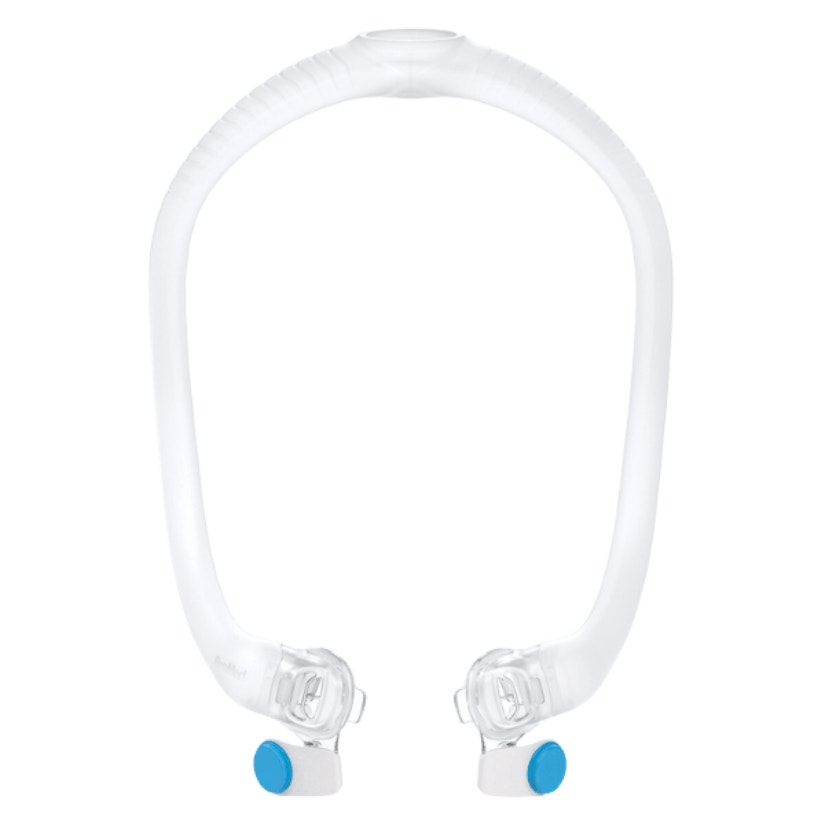

A hollow frame design keeps the mask fit light and comfortable, while allowing the pressurized airflow to pass freely to your mask cushion from the top of your head. If one side of the air tube becomes blocked, the air simply redirects through the other side of the frame!
The AirFit™ F30i features Resmed’s UltraCompact™ mask cushion sits below your nose, helping to prevent red marks and soreness on your nasal bridge that can be a common side effect for full face CPAP mask users. Ideal for those who may experience claustrophobia in other full face masks, the minimalist design of the AirFit™ F30i gives you a clear field of vision to read, use a phone, or watch TV in bed, even if you wear glasses.
Magnetic headgear clips secure the straps with two simple clicks, so it’s easy to put on your mask without having to make constant readjustments! And the quick-release elbow ensures that you can quickly detach and reattach without having to remove your mask.
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above.
Magnetic Contraindications
Per Resmed, please note the following about this mask’s magnetic contraindications:
Update to Contraindication
In an update to the previously contraindicated metallic aneurysm hemostatic clips in the head and metallic splinters in one or both eyes following a penetrating eye injury, Resmed is further contraindicating the use of its masks with magnets for patients where they, or anyone in close physical contact while using the mask (e.g., bed partner), have the following:- Active medical implants that interact with magnets (i.e., pacemakers, implantable cardioverter defibrillators (ICD), neurostimulators, cerebrospinal fluid (CSF) shunts, insulin/infusion pumps)
- Metallic implants/objects containing ferromagnetic material (i.e., aneurysm clips/flow disruption devices, embolic coils, stents, valves, electrodes, implants to restore hearing or balance with implanted magnets, ocular implants, metallic splinters in the eye)
Update to Warning
The safe distance to the magnets has been increased from 2 inches (50 mm), and patients are now warned to keep the mask magnets at a safe distance of 6 inches (150 mm) away from implants or medical devices that may be adversely impacted by magnetic interference. This applies to patients, or anyone in close physical contact with the mask magnets.Note, not all models or manufactured variants of medical devices listed in the contraindications are affected by external magnetic fields. Only those that interact with magnets or contain ferromagnetic materials present the potential for magnetic interference.
For more information: please reach out to Resmed directly; CPAPsupplies.com does not have any additional details on this update. Visit www.resmed.com/magnetupdate for more details and the appropriate contact information.
-
Top-of-head tube connection with 360° swivel, so hose won’t get kinked or tangled as you move.
-
Hollow frame design allows you to choose any sleep position.
-
Super quiet venting technology reduces noise levels for a more enjoyable sleep environment for you and your sleep partner.
-
Quick-release elbow and magnetic clips for quick detachment and reattachment from the CPAP machine.
-

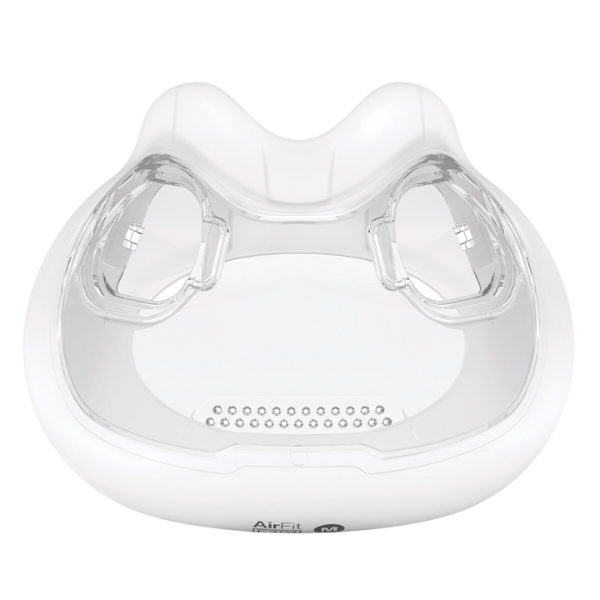

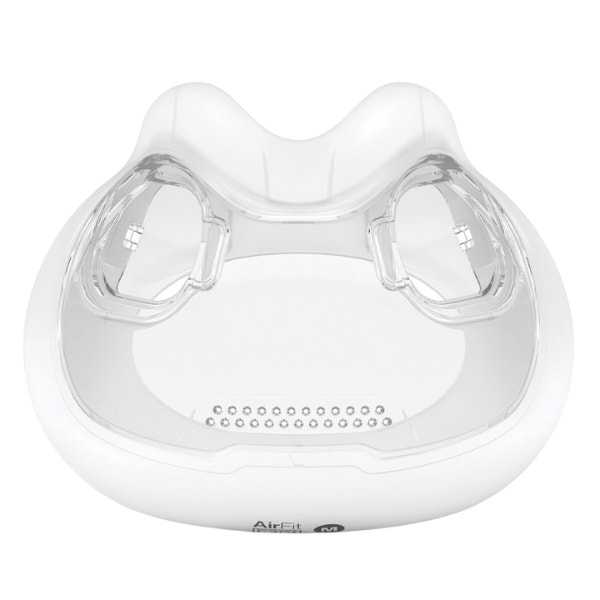

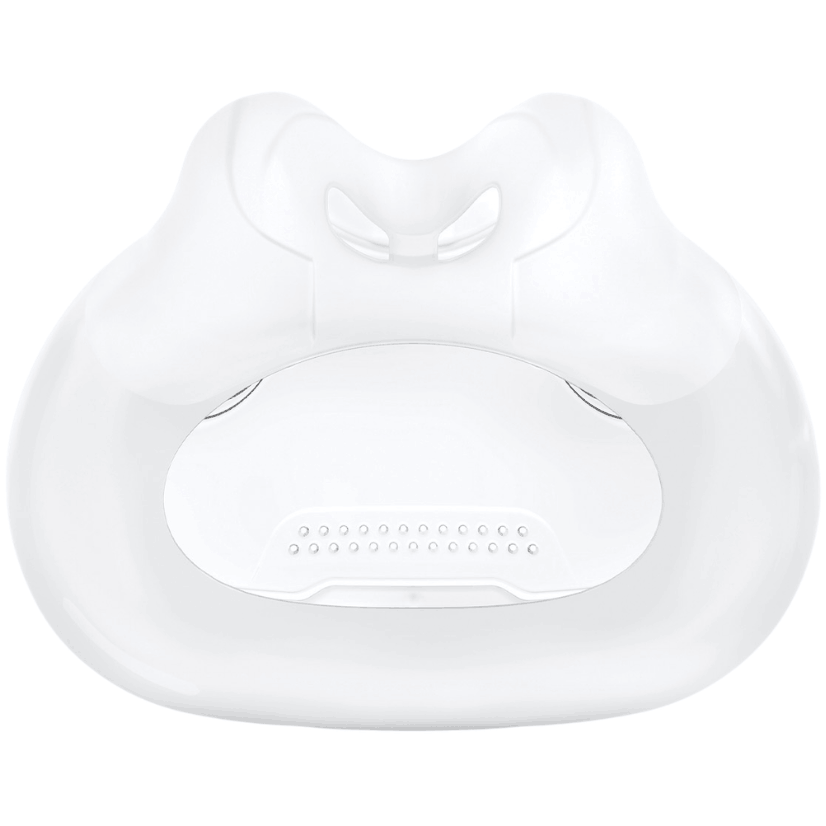

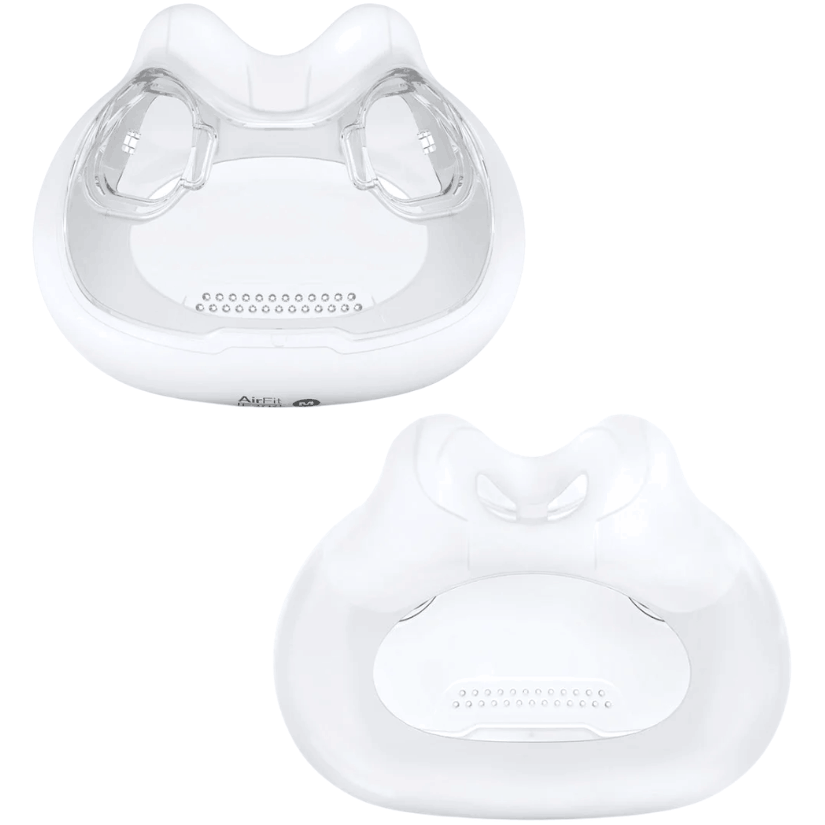

UltraCompact™ silicone cushion rests under your nose, rather than over the bridge of your nose.
-
Minimal contact with your face provides a clear field of view for you to read or watch TV even if you wear glasses.
-
No prescription required!
-

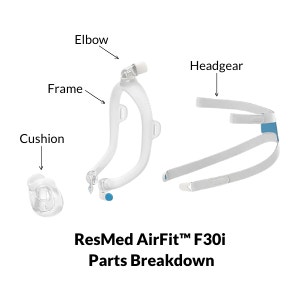

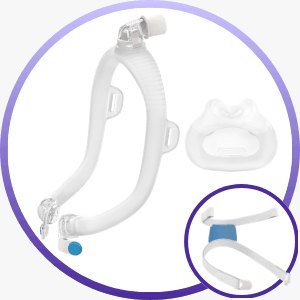

1 — AirFit™ F30i Frame (of selected size option)
- 1 — AirFit™ F30i Cushion (of selected size option)
-
1 — Elbow

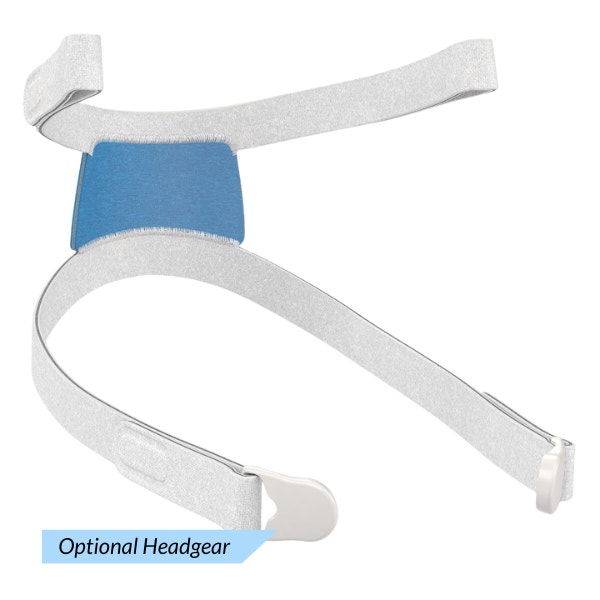

Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — AirFit™ F30i Headgear
-
2 — Magnetic Headgear Clips
Frame System Size Options:
-
Small Frame / Small Cushion - AirFit™ F30i Mask Assembly without Headgear - 63355
-
Small Frame / Medium Cushion - AirFit™ F30i Mask Assembly without Headgear - 63356
-
Small Frame / Small/Wide Cushion - AirFit™ F30i Mask Assembly without Headgear - 63357
-
Small Frame / Wide Cushion - AirFit™ F30i Mask Assembly without Headgear - 63358
-
Standard Frame / Small Cushion - AirFit™ F30i Mask Assembly without Headgear - 63359
-
Standard Frame / Medium Cushion - AirFit™ F30i Mask Assembly without Headgear - 63360
-
Standard Frame / Small/Wide Cushion - AirFit™ F30i Mask Assembly without Headgear - 63361
-
Standard Frame / Wide Cushion - AirFit™ F30i Mask Assembly without Headgear - 63362
-
Large Frame / Small Cushion - AirFit™ F30i Mask Assembly without Headgear - 63363
-
Large Frame / Medium Cushion - AirFit™ F30i Mask Assembly without Headgear - 63364
-
Large Frame / Small/Wide Cushion - AirFit™ F30i Mask Assembly without Headgear - 63365
-
Large Frame / Wide Cushion - AirFit™ F30i Mask Assembly without Headgear - 63366
Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
-
AirFit™/AirTouch™ F30i/X30i Headgear (One-size-fits all adjustable headgear) - 63372
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
- Active Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
- Minimal Contact

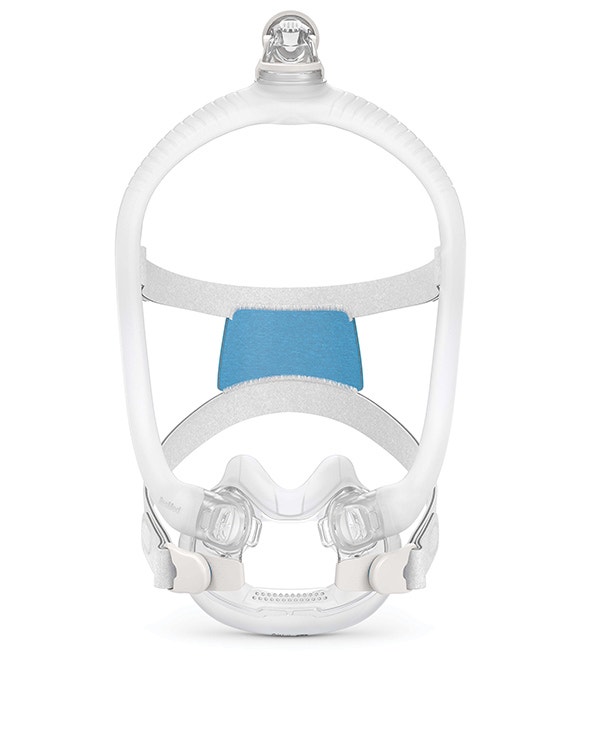

Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Align and insert the frame connector tab into the cushion slot and press down until it clicks. Repeat on the other side.
- Attach the elbow to the top of the frame until it clicks.
- With the Resmed logo facing outwards and up, insert the upper headgear straps into the frame from the inside and fold the fastening tabs over to secure.
Note: If the elbow ring detaches, re-insert into the top of the frame.
Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images inside the front cover of these instructions.
- Connect the air tubing from your device to the elbow.
- Squeeze the side buttons on the elbow and pull from the frame. Put the elbow and air tubing aside for now.
- Twist and pull both magnetic clips away from the frame connectors.
- Place the cushion under your nose and ensure it sits comfortably against your face. With the Resmed logo on the headgear facing up, pull the headgear and frame over your head.
- Bring the lower headgear straps under your ears and attach the magnetic clips to the frame connectors.
- Undo the fastening tabs on the upper headgear straps and pull evenly. Repeat with the lower headgear straps.
- Attach the elbow to the top of the frame. Your mask should now be positioned as shown.
Disassembling Your Mask:
If your mask is connected to a device, disconnect the device air tubing
from the mask elbow.
Refer to the disassembly diagrams in these instructions.
- Undo the fastening tabs on the upper headgear straps and pull from
the frame. Keep the magnetic clips attached to the lower headgear
straps. - Squeeze the side buttons on the elbow and detach from the frame.
- Grip the frame connector and lift to unclip from the cushion. Repeat
on the other side
Note: After detaching the headgear, close the fastening tabs to prevent it from damaging the fabric sleeves when handling.
| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |
AirFit™ F30i Fitting Guide Video
AirFit™ F30i Mask Frame Sizing Guide Video
AirFit™ F30i Cushion Sizing Guide Video
AirFit™ F30i Cleaning Guide Video
CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
You can purchase AirFit™ F30i replacement parts here to ensure your sleep apnea treatment remains effective.
This replacement CPAP mask assembly for the Resmed AirFit™ F30i Full Face Mask includes one AirFit™ F30i Frame replacement and one AirFit™ F30i Cushion replacement of your selected size. AirFit™ F30i Headgear replacement is not included unless selected above.
When To Replace AirFit™ F30i Frame?
- Resupply Every 3 Months
When To Replace AirFit™ F30i Cushion?
-
Resupply Every 30 Days
When To Replace AirFit™ F30i Headgear?
-
Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Mask Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | pb_AFit-F30i-FFM |
| Model | pb_AFit-F30i-FFM |
| UPC | 00619498633555, 00619498633722, 00619498633302, 00619498633319, 00619498633326, 00619498633333, 00619498633340 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Mask: 9 3/4" (W) x 4" (H); Headgear: Upper Strap -- 19 1/2" (L) x 3/4" (W) / Lower Strap -- 25 1/4" (L) x 3/4" (W) |
| Included | 63355, 63356, 63357, 63358, 63359, 63360, 63361, 63362, 63363, 63364, 63365, 63366, 63372 |
