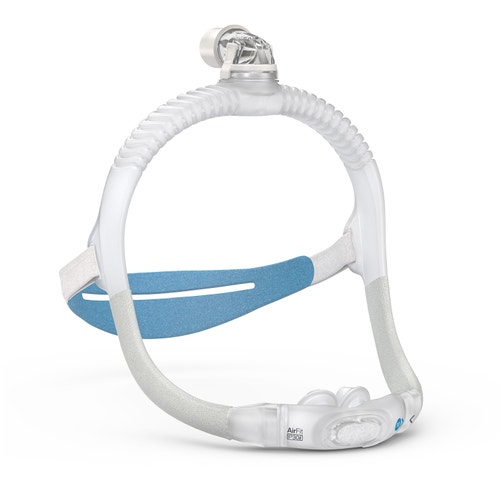

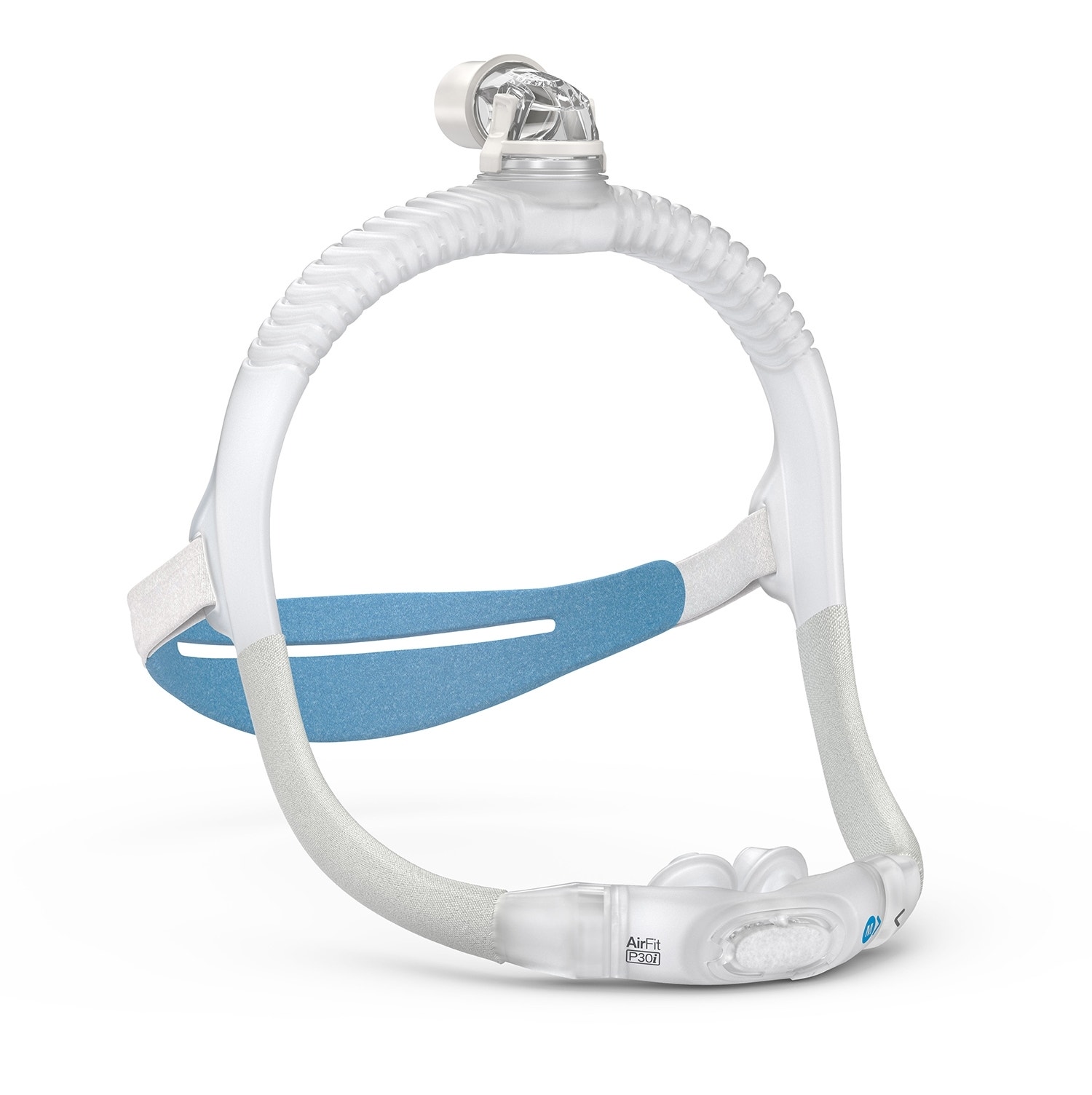

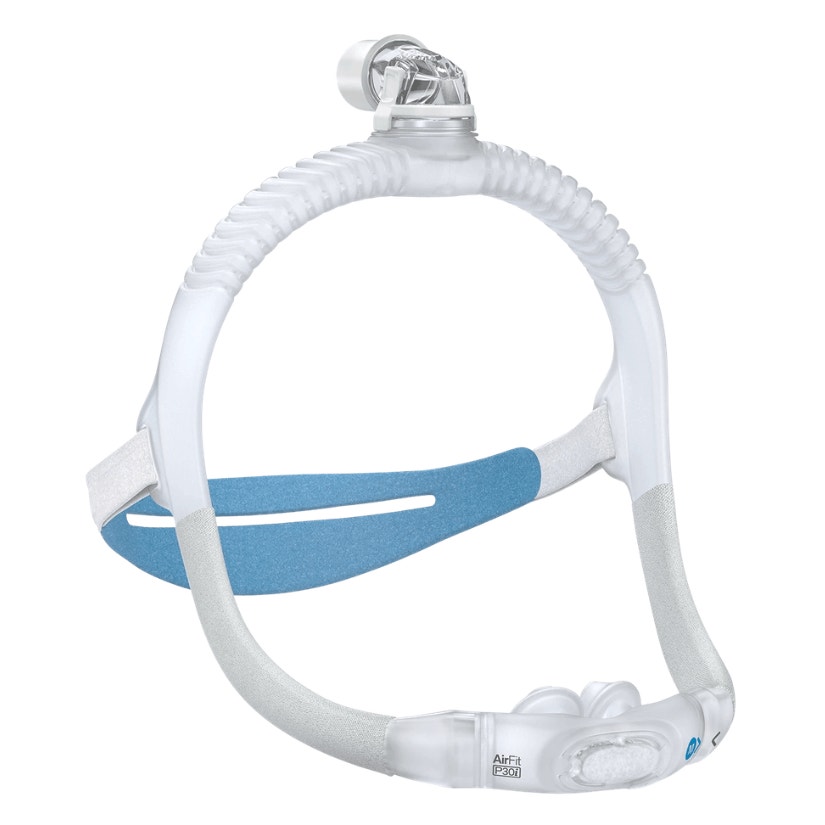

Resmed AirFit™ P30i Nasal Pillow CPAP Mask
$84.00
Calling all active sleepers, side sleepers, and any CPAP user who wants full freedom of movement during the night: we've got the ideal sleep apnea mask for you in Resmed's AirFit™ P30i, a nasal pillow mask with a top-of-the-head swivel hose connection that keeps your CPAP tubing out of your way so you can sleep in any position.
Resmed AirFit™ P30i Nasal Pillow CPAP Mask Overview
The AirFit™ P30i Nasal Pillow Mask is quieter than a soft whisper at just 21 decibels, thanks to Resmed’s QuietAir™ vent technology. Despite its compact size, the P30i nasal pillow provides a soft, secure seal for effective sleep apnea therapy and natural freedom of movement through the night.
The P30i Mask features a top-of-the-head connection, which keeps the air tubing from interfering with your natural sleep movements. You can switch into any sleeping position (stomach sleepers rejoice!) or cuddle up closer to your bed partner. The adaptable AirFit™ P30i's SpringFit frame comes equipped with a quick-release elbow that makes it easy to disconnect from your tubing and CPAP machine. No more fumbling around in the middle of the night.
The AirFit™ P30i Mask is specifically designed to slide quickly on and off to adapt to your natural bedtime routine. Feel free to read your favorite book, watch TV, or scroll through your phone as you settle into CPAP therapy!
Please note: AirFit™ P30i Headgear is available as an option but not included automatically. It is also not required. However, if you'd like your order to include headgear, please select your preferred option above.
-
Top-of-the-head tube design allows full freedom of movement.
-
Compact silicone nasal pillows cushion covers less of your face than a traditional full face mask or nasal mask.
-
SpringFit™ frame adapts for a stable, personalized fit.
-
Air flows through the mask frame for a soft, secure seal.
-
Minimalist design has no contact with the bridge of the nose for less irritation.
-
Allows for a wide open field of view.
-
The AirFit™ P30i nasal pillow has full compatibility with the AirFit™ N30i mask, easily interchange them for more options!
-

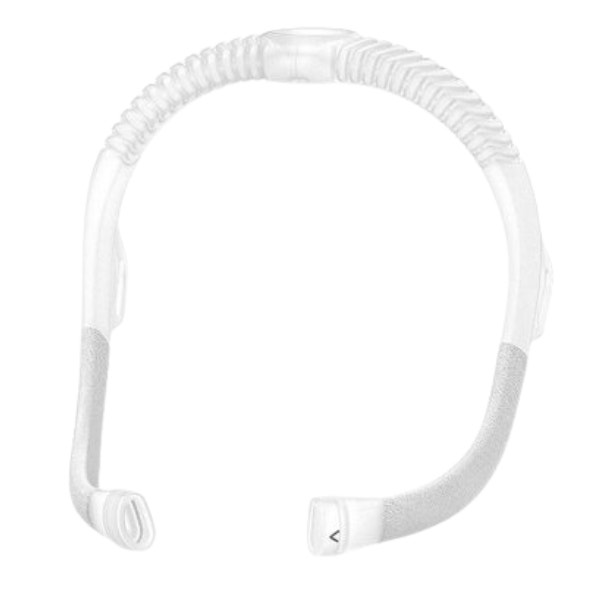

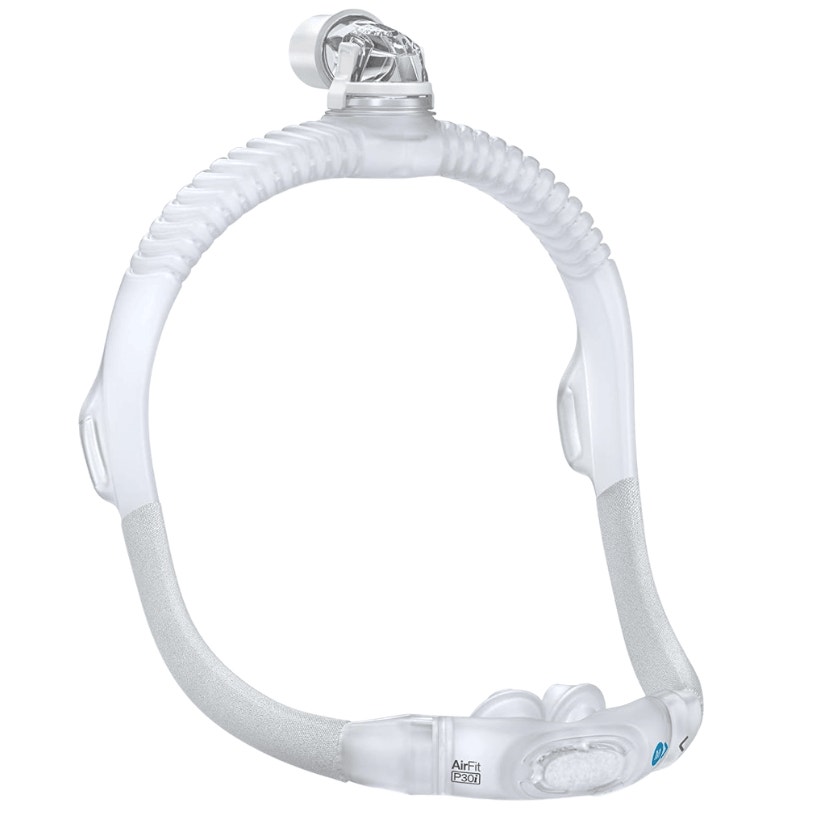

1 — AirFit™ P30i Mask Frame (of selected size)
-

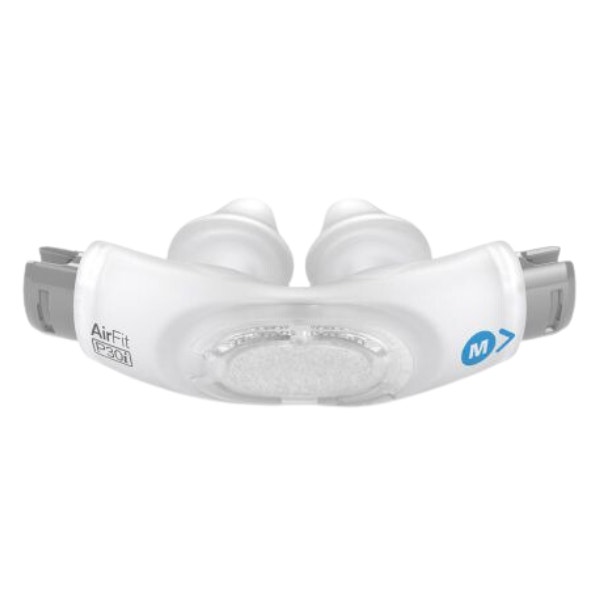

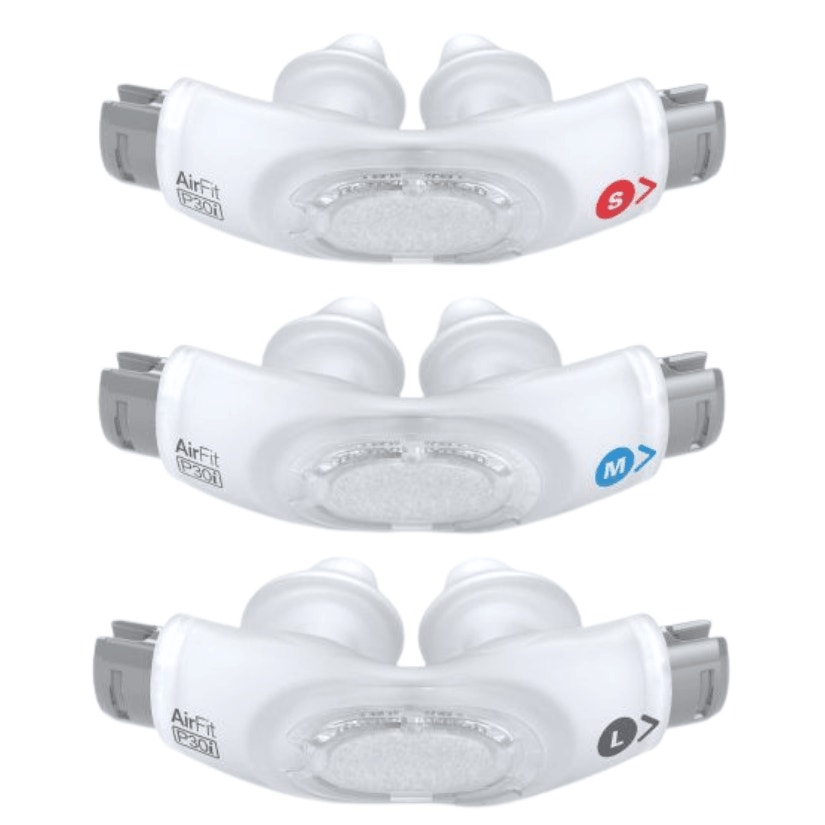

1 — AirFit™ P30i Nasal Pillow (of selected size)
-
1 — Elbow
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-

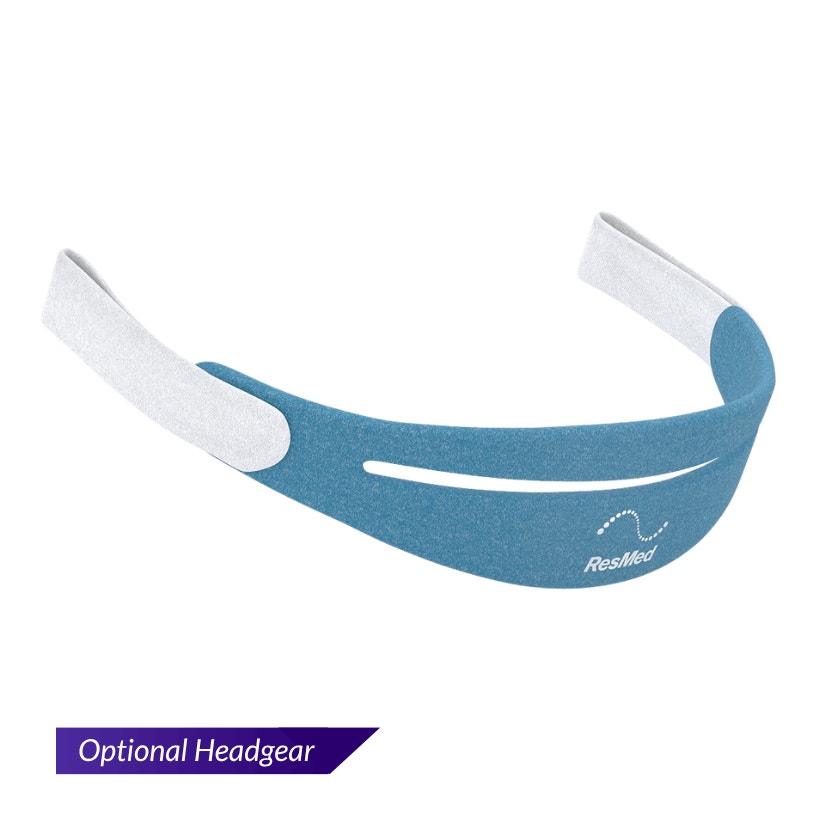

1 — AirFit™ P30i Headgear
What is the AirFit™ P30i Made Of?
Materials: Nylon (PA) Silicone Polypropylene (PP)
Frame Assembly Size Options:
-
Small Frame / Large Cushion - AirFit™ P30i Mask System without Headgear - 63853
-
Standard Frame / Medium Cushion - AirFit™ P30i Mask System without Headgear - 63854
-
Small Frame / Medium Cushion - AirFit™ P30i Mask System without Headgear - 63855
-
Standard Frame / Small Cushion - AirFit™ P30i Mask System without Headgear - 63856
-
Small Frame / Small Cushion - AirFit™ P30i Mask System without Headgear - 63857
-
Standard Frame / Large Cushion - AirFit™ P30i Mask System without Headgear - 63852

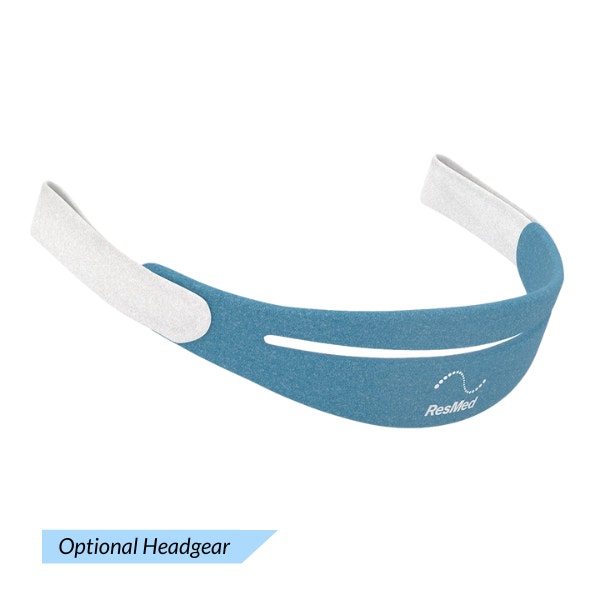

Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
-
Standard - AirFit™ P30i Headgear - 63814
Who is the AirFit™ P30i Ideal For?
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
-
Stomach Sleepers
Additional Considerations:
-
Low to Mid Pressure Settings
-
Minimal Contact
-
Glasses Wearers
-
Claustrophobia
-
Facial Hair
-
Full Field of Vision for Readers or TV Watchers
- Tossing and Turning During Sleep
Assembling Your Mask:
- Connect the elbow into the top of the frame until it clicks.
- Insert the headgear strap into the frame and fold the fastening tabs backwards.
- Insert the ends of the frame into the cushion, ensuring that the arrows on the cushion and frame are aligned. Note: If the elbow ring detaches, re-insert into the top of the frame.
Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- Pull the frame and headgear over your head until the elbow is positioned on top and the headgear is behind your head.
- Place the cushion under your nose. For the AirFit P30i mask, align the pillows into your nostrils.
- Tighten or loosen the headgear until the cushion fits comfortably under your nose.
- Squeeze the side buttons on the elbow and detach from the frame. Connect the air tubing from your device to the elbow, then reattach to the frame.
Disassembling Your Mask:
If your mask is connected to a device, disconnect the device air tubing
from the mask elbow.
Refer to the disassembly diagrams in these instructions.
- Pull the cushion from the frame.
- Undo the fastening tabs on the headgear strap and pull it from the frame.
- Squeeze the side buttons on the elbow and detach from the frame. Note: The QuietAir vent can be removed to allow inspection of the vent holes.
| Operating Therapy Pressure Range |
| 4 to 25 cm H²O |
AirFit™ P30i Fitting Guide Video
AirFit™ P30i Mask Frame Sizing Guide Video
AirFit™ P30i Cleaning Guide Video
AirFit™ P30i Assembly Guide Video
CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
This replacement CPAP mask assembly for the AirFit™ P30i Nasal Pillow CPAP Mask includes one AirFit™ P30i Frame replacement and one AirFit™ P30i replacement pillow of your selected size. AirFit™ P30i Headgear replacement is not included unless selected above.
-
How Often to Replace AirFit™ P30i Frame? Resupply Every 3 Months
-
How Often to Replace AirFit™ P30i Pillow? Resupply Every 2 Weeks
-
How Often to Replace AirFit™ P30i Headgear? Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
How to Clean the AirFit™ P30i
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal pillows, headgear, and frame):
Part Cleaning Frequency Instructions Nasal Pillows
Daily
- Using a mild detergent* and warm, drinking-quality water, gently clean your nasal pillows to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
Chinstrap
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
AirFit™ P30iNasal Pillow Mask Related Products:
| Brand | Resmed |
|---|---|
| SKU | pb_63851 |
| Model | pb_63851 |
| UPC | 619498638536, 619498638543, 619498638550, 619498638567, 619498638574, 619498638529, 619498638147 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Mask Frame: 19 3/4" (L) x 3/4" (W) x 1/4" (H) |
| Included | 63857, 63855, 63853, 63856, 63854, 63852, 63814 |
