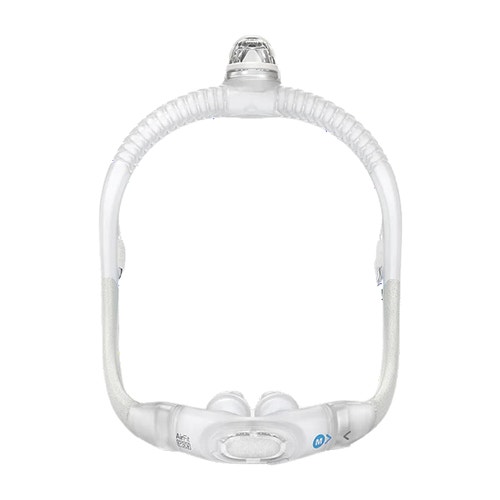

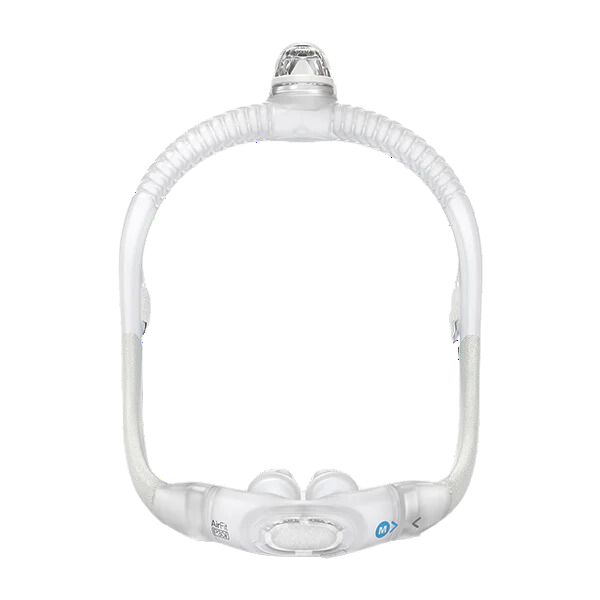

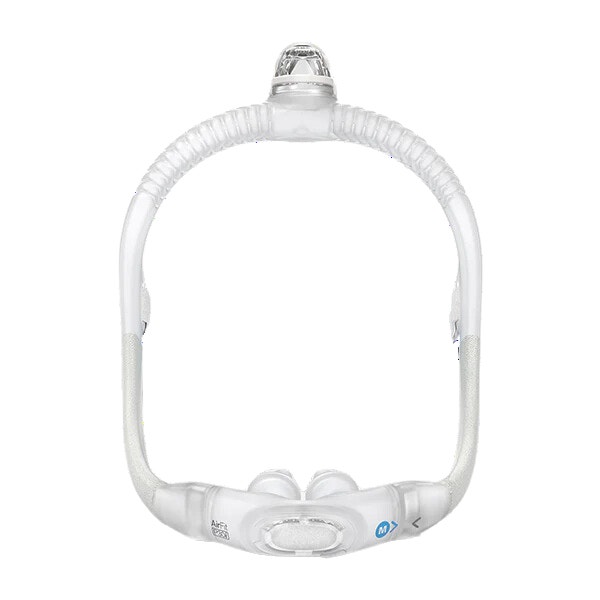

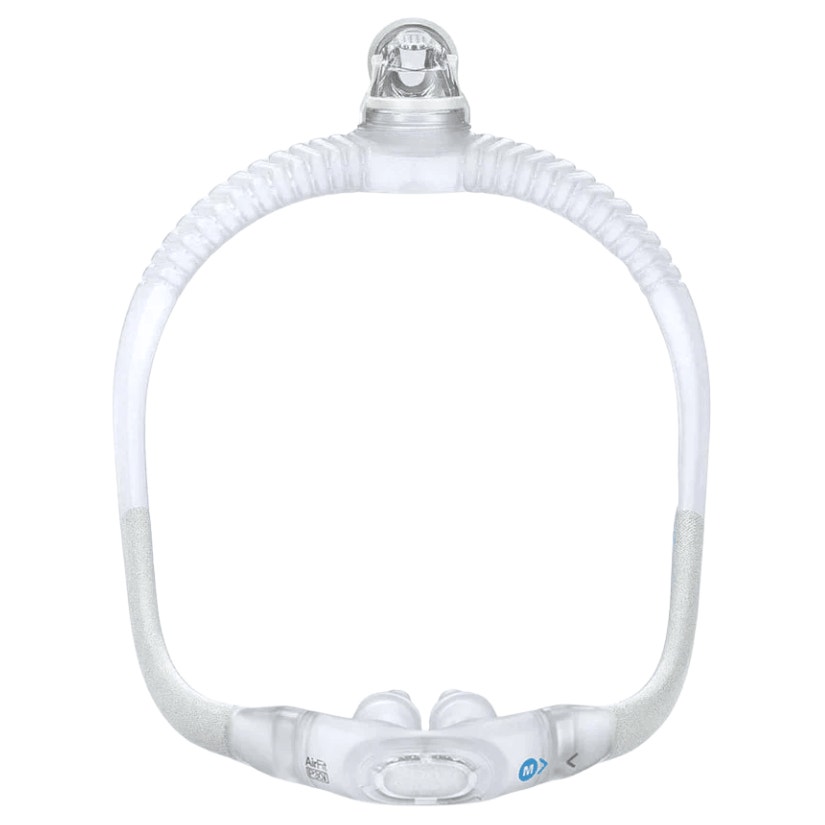

Resmed AirFit™ P30i Nasal Pillow CPAP Mask without Headgear
The AirFit™ P30i features a top-of-head tube connection, Resmed's QuietAir™ diffused venting and SpringFit™ frame, providing a high-performing nasal pillow mask for CPAP users looking for a minimalist design.
Resmed AirFit™ P30i Nasal Pillow CPAP Mask without Headgear Overview
Sleep the way you want with Resmed AirFit™ P30i. Featuring a top-of-the-head tube design and a nasal cradle cushion that sits comfortably under the nose, you can sleep in any position, including your side or stomach. No front-end tube also means the mask stays out of sight and out of the way, so you can sleep closer to your bed partner. The SpringFit™ frame adapts for a personalized fit and features a quick-release elbow that makes it easy to disconnect mask from tubing if you need to get up at night.
The Resmed AirFit™ P30i is not compatible with AirMini™
-
The mask is specifically designed to slide quickly on and off for an easy bedtime routine. The quick release elbow makes it easy to disconnect the mask from the tubing if you need to get up at night.
-
Top-of-the-head tube design gives you the freedom to sleep in many positions.
-
Curved nasal cradle cushion covers less of your face than a traditional nasal mask and sits discreetly under your nose, not in it.
-
SpringFit frame adapts for a stable, personalized fit.
-
Air flows through the frame for a soft yet secure cradle seal.
-
Minimalist design leaves your face clear so you can wear glasses to read or watch TV.
-

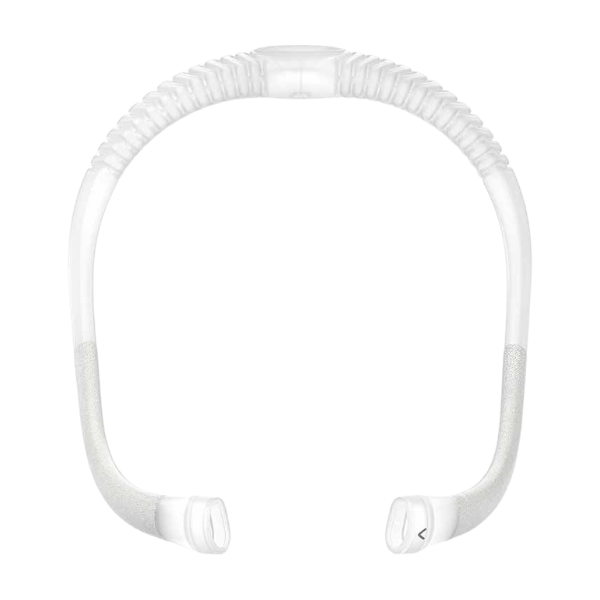

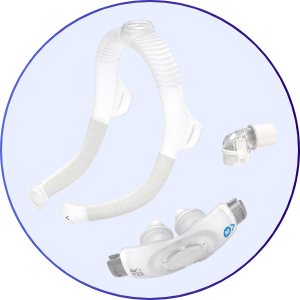

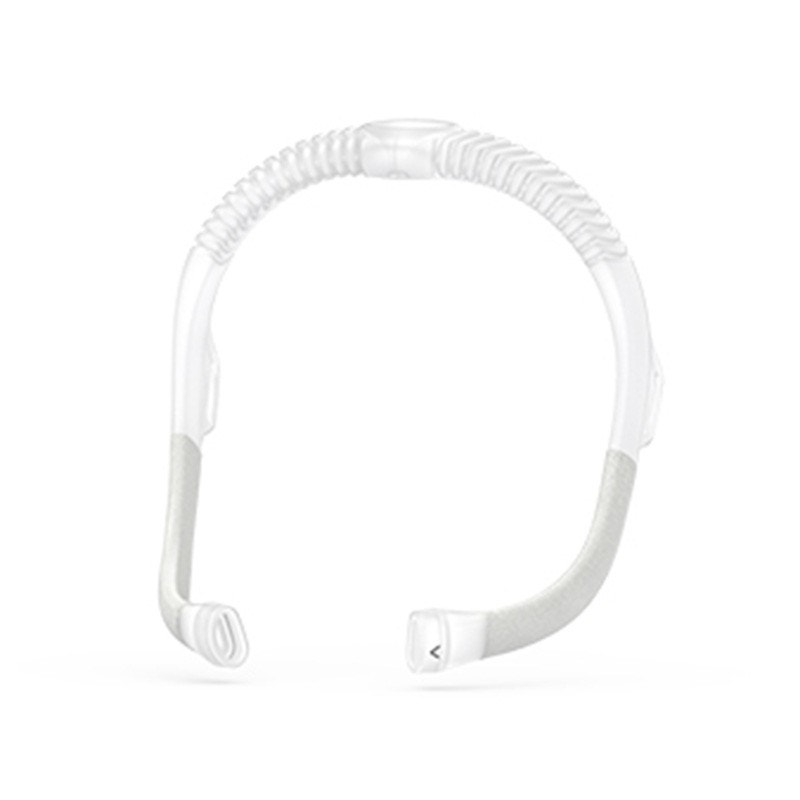

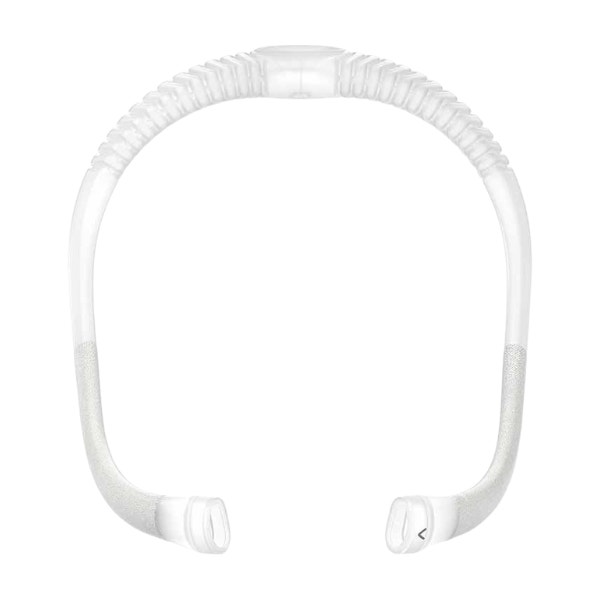

1 — AirFit™ P30i Mask Frame (of selected size)
-

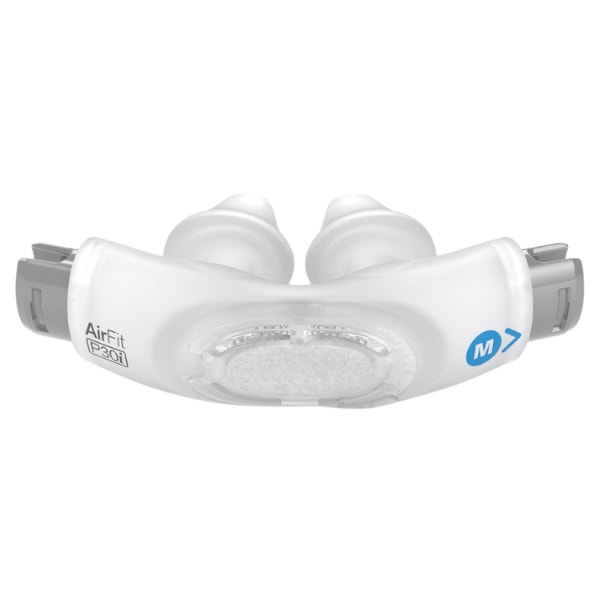

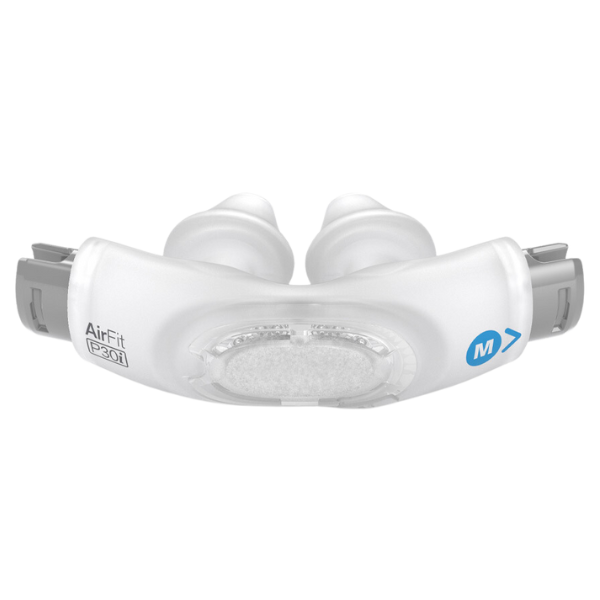

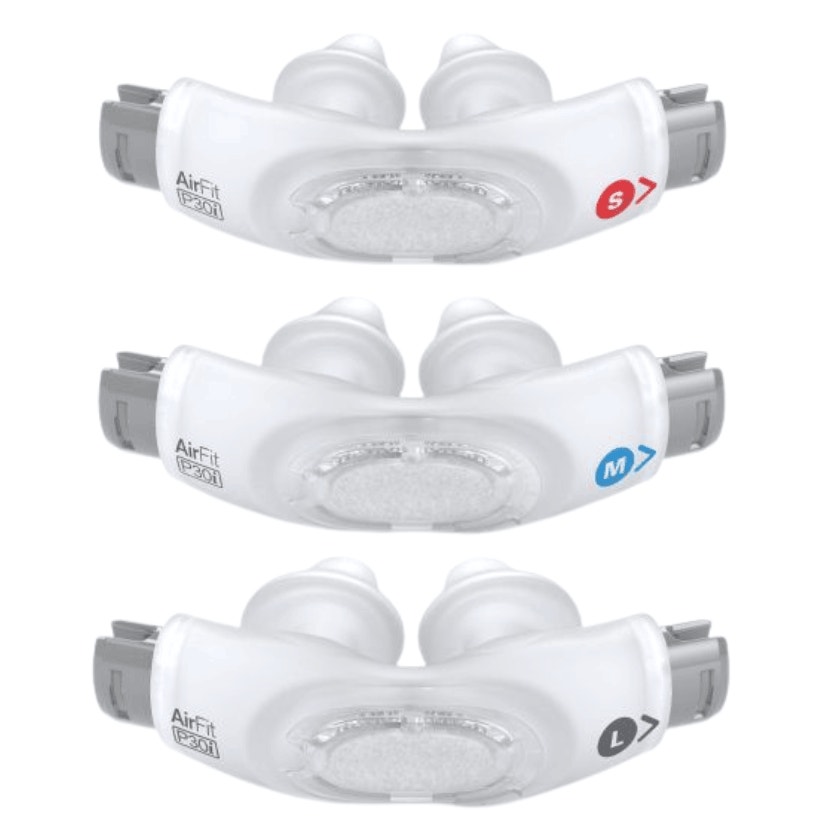

1 — AirFit™ P30i Mask Pillow (of selected size)
-
1 — Elbow
Please note: headgear is not included in this order.
| Materials: |
|---|
| Nylon (PA) |
| Silicone |
| Polypropylene (PP) |
-
Small Frame / Medium Pillow - AirFit™ P30i Mask System - without Headgear - 63855
-
Small Frame / Small Pillow - AirFit™ P30i Mask System - without Headgear - 63857
-
Small Frame / Large Pillow - AirFit™ P30i Mask System - without Headgear - 63853
-
Standard Frame / Medium Pillow - AirFit™ P30i Mask System - without Headgear - 63854
-
Standard Frame / Small Pillow - AirFit™ P30i Mask System - without Headgear - 63856
-
Standard Frame / Large Pillow - AirFit™ P30i Mask System - without Headgear - 63852
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
-
Stomach Sleepers
Additional Considerations:
-
Low to Mid Pressure Settings
-
Minimal Contact
-
Glasses Wearers
-
Claustrophobia
-
Facial Hair
-
Full Field of Vision for Readers or TV Watchers
- Tossing and Turning During Sleep
Assembling Your Mask:
- Connect the elbow into the top of the frame until it clicks.
- Insert the headgear strap into the frame and fold the fastening tabs backwards.
- Insert the ends of the frame into the cushion, ensuring that the arrows on the cushion and frame are aligned. Note: If the elbow ring detaches, re-insert into the top of the frame.
Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- Pull the frame and headgear over your head until the elbow is positioned on top and the headgear is behind your head.
- Place the cushion under your nose. For the AirFit P30i mask, align the pillows into your nostrils.
- Tighten or loosen the headgear until the cushion fits comfortably under your nose.
- Squeeze the side buttons on the elbow and detach from the frame. Connect the air tubing from your device to the elbow, then reattach to the frame.
Disassembling Your Mask:
If your mask is connected to a device, disconnect the device air tubing
from the mask elbow.
Refer to the disassembly diagrams in these instructions.
- Pull the cushion from the frame.
- Undo the fastening tabs on the headgear strap and pull it from the frame.
- Squeeze the side buttons on the elbow and detach from the frame. Note: The QuietAir vent can be removed to allow inspection of the vent holes.
| Operating Therapy Pressure Range |
| 4 to 25 cm H²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
AirFit™ P30i: Fitting Guide
AirFit™ P30i: Mask Frame Sizing Guide
AirFit™ P30i: Cleaning Guide
AirFit™ P30i: Assembly Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal pillows, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Pillows |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | p_P30i-Frame-Assembly |
| Model | p_P30i-Frame-Assembly |
| HCPCS | A7034 |
| UPC | 619498638574, 619498638550, 619498638536, 619498638567, 619498638543, 619498638529 |
| Prescription Required | No |
| Weight | 0.10 lbs |
| Manufacturer's Warranty | 30-day limited manufacturer's warranty |
| Color | Clear |
| FSA/HSA Eligible | Yes |
| Included | 63857, 63855, 63853, 63856, 63854, 63852 |
