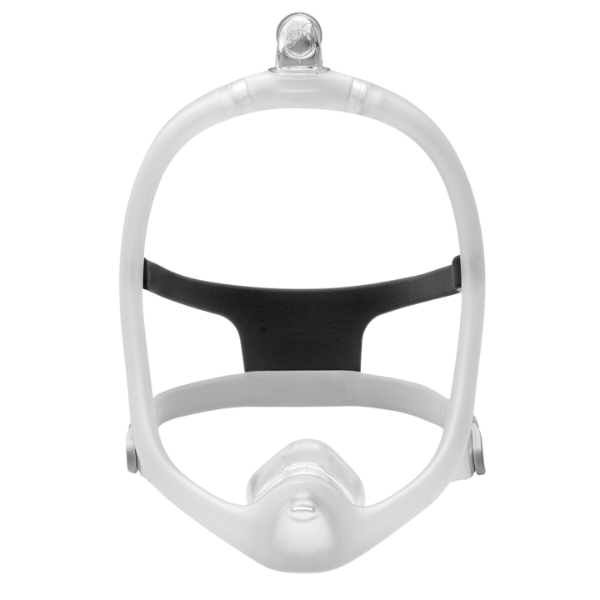

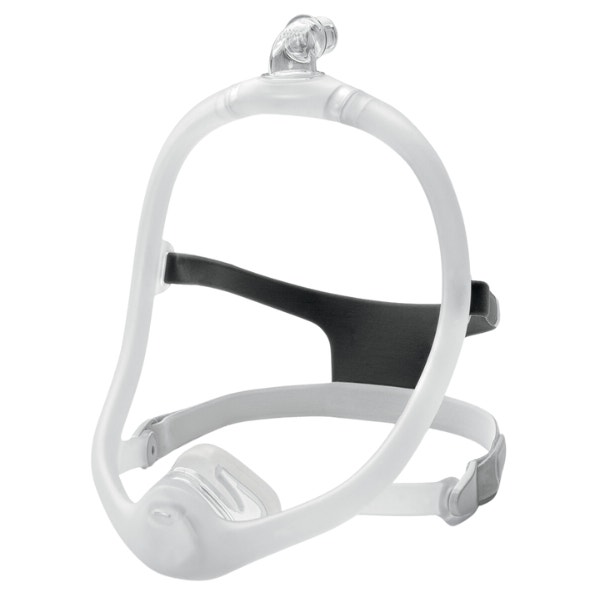

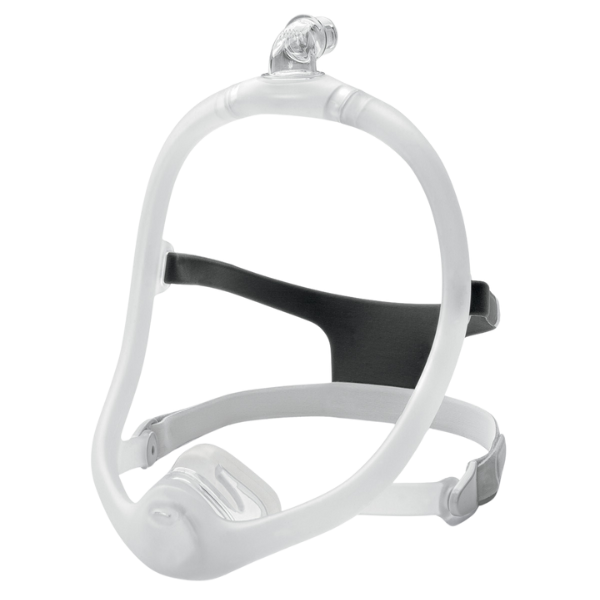

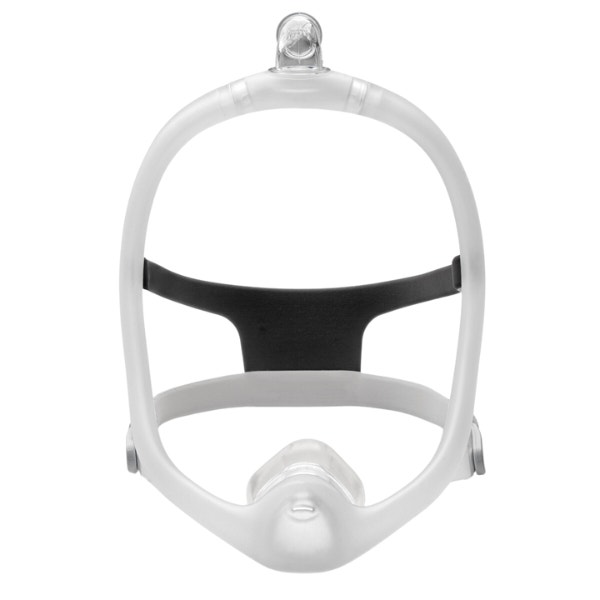

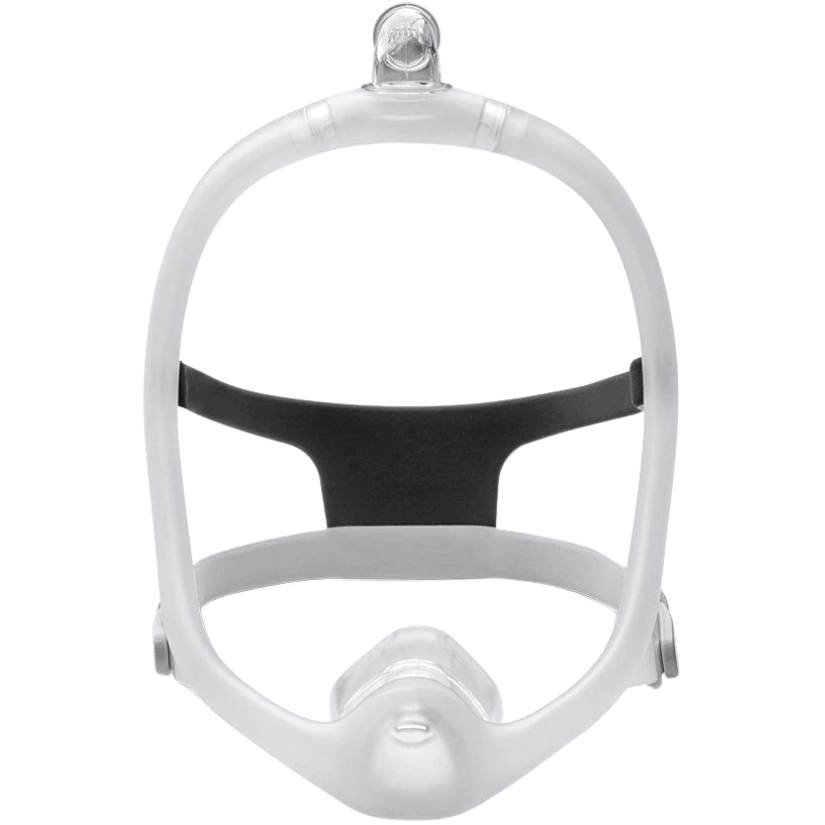

Philips Respironics DreamWisp Nasal CPAP Mask with Headgear
From its open frame design to the soft low profile nasal cushion, the DreamWisp's unique top hose location allows for a more comfortable nights sleep, especially for active sleepers who prefer a minimal design.
Philips Respironics DreamWisp Nasal CPAP Mask with Headgear Overview
Introducing DreamWisp minimal contact mask from Philips Respironics, the #1 sleep therapy* brand of U.S. sleep physicians. DreamWisp helps your patients sleep comfortably with every turn because it marries the freedom of DreamWear's revolutionary, top-of-the-head tube design with the seal of Wisp's minimal contact nasal cushion.
In September 2022 Philips Respironics voluntarily recalled this CPAP mask. After further evaluation by Philips Respironics, these masks were declared safe for continued use, according to the updated instructions and labeling if patients or people in close proximity to them do not have implanted metallic medical devices or metallic objects in the body. If you have any questions regarding this mask, please reach out to the manufacturer, Philips Respironics, directly for more information.
-

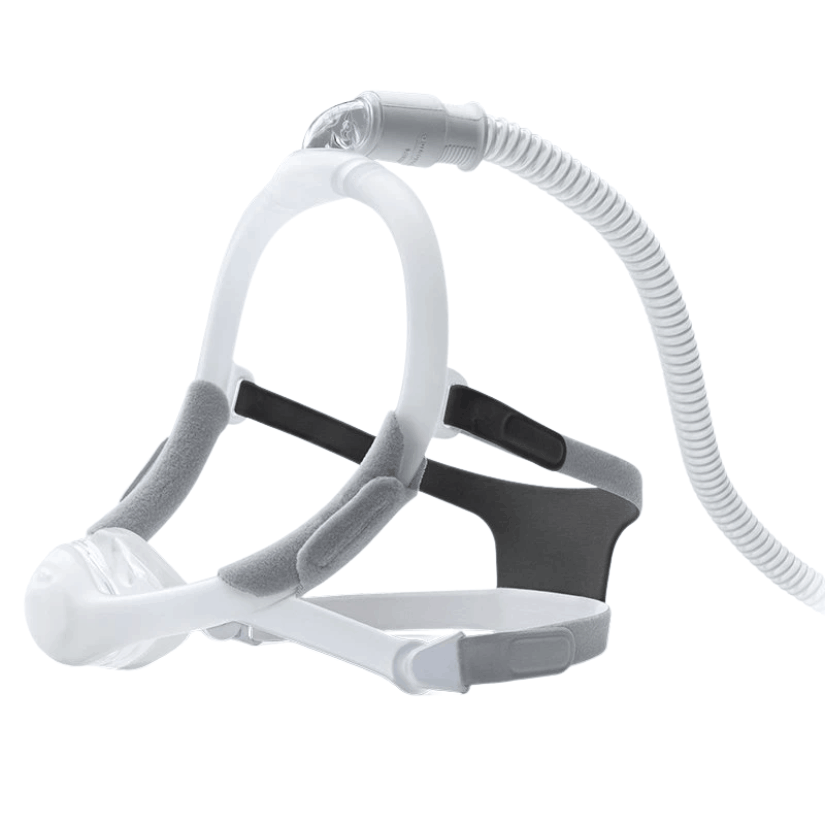

Tubing at the top of the head allows patients to sleep in any position they want.
-
Airflow through the mask frame allows patients to sleep comfortably
-

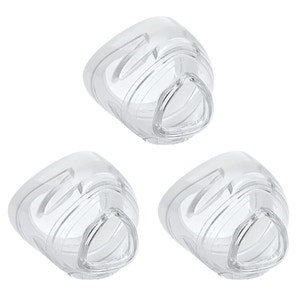

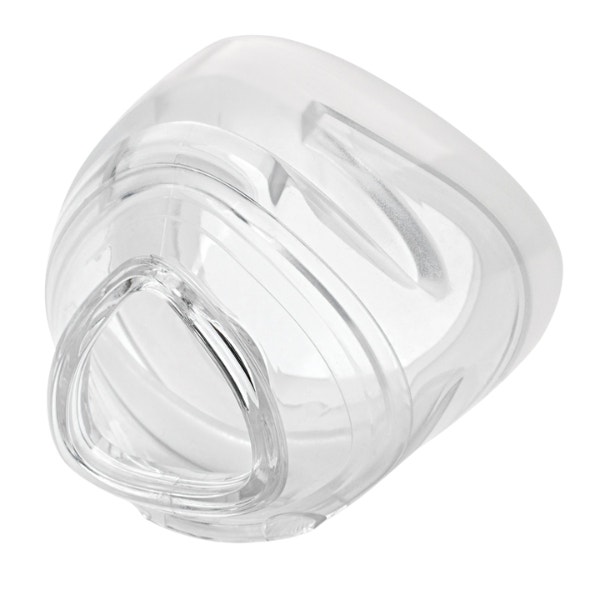

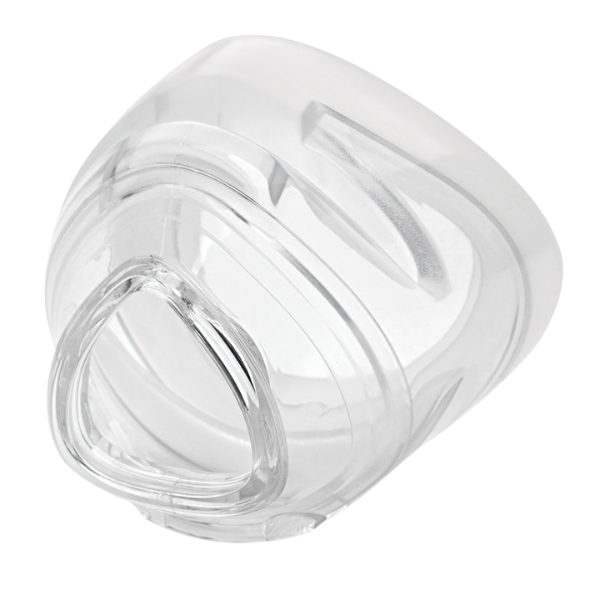

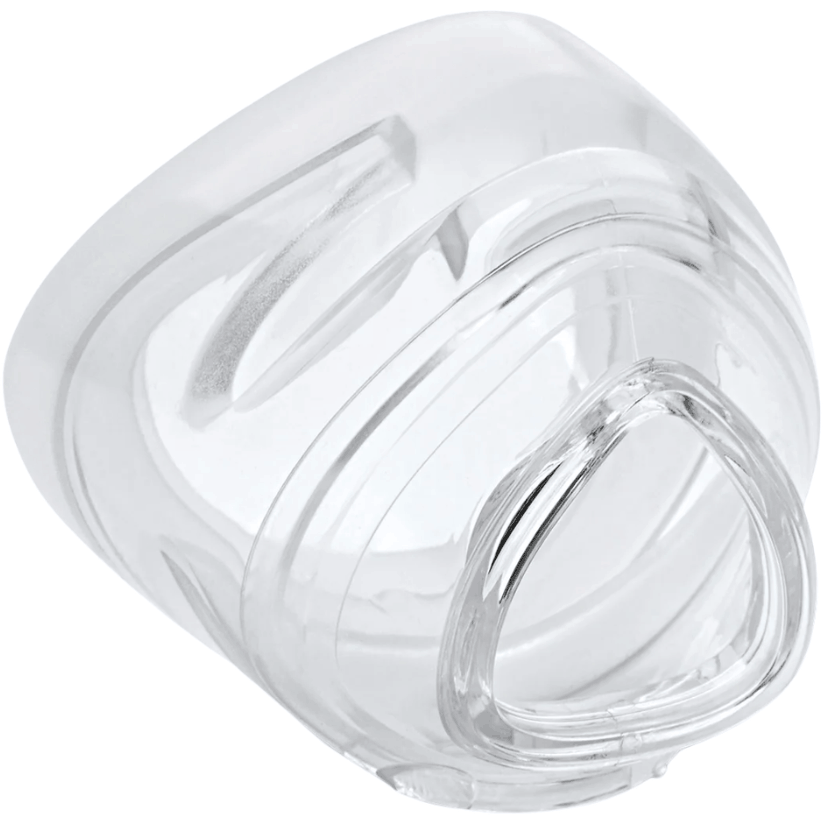

Minimal contact nasal cushion provides comfort and seal
-
Four point headgear provides stability
-

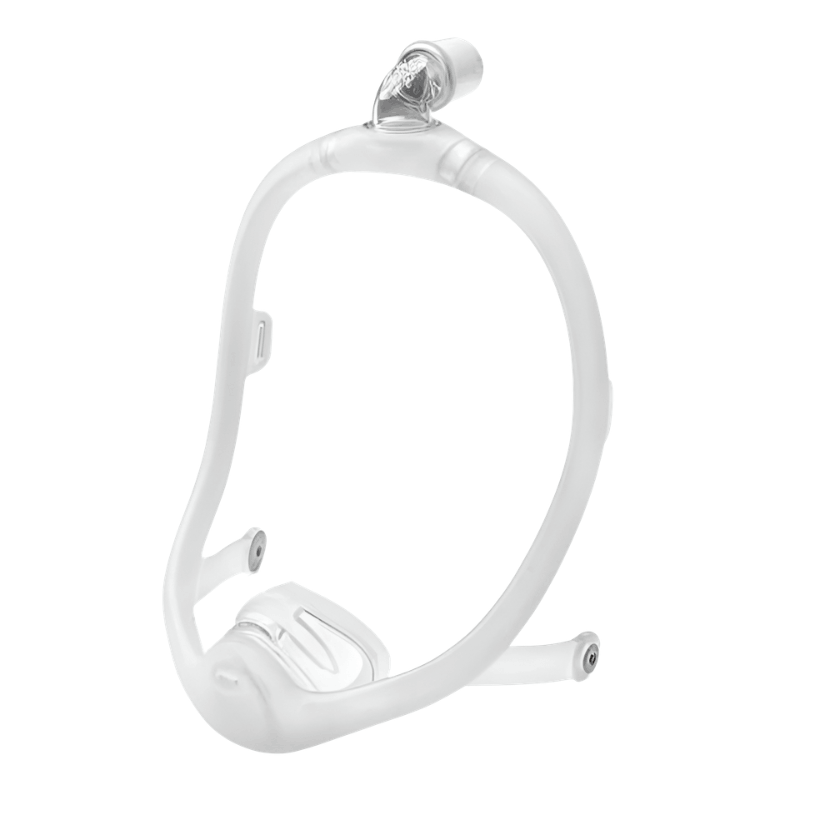

1 — DreamWisp Nasal Mask Frame and Cushion (of selected size option)
-
1 — Elbow & Tubing Quick Release
-

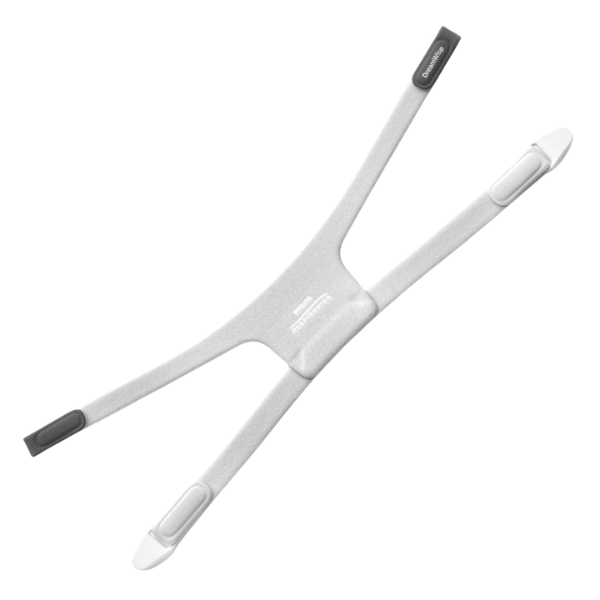

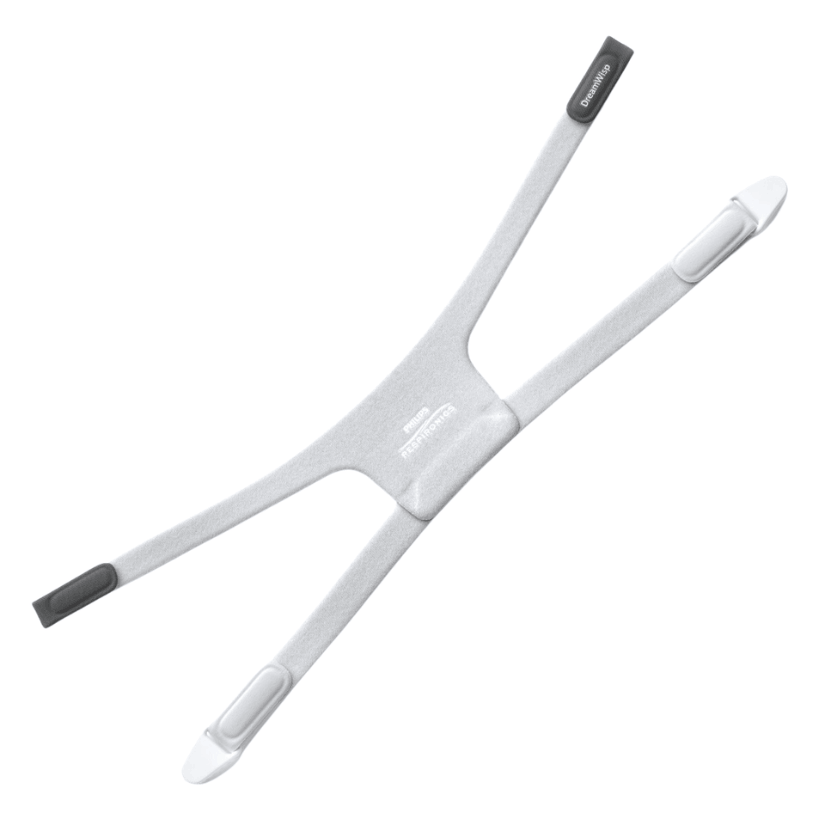

1 — DreamWisp Headgear (of selected size option)
-
1 — DreamWisp Mask Frame Connector (of selected size option)
-
1 — Pair of Soft Fabric Wraps
If you're looking to purchase the Philips Respironics DreamWisp Nasal CPAP Mask components without a prescription, you can find them here.
- Petite: Petite Cushion & Frame, Reduced Headgear - DreamWisp Nasal Mask - 1137932
-
Small: Small Cushion & Frame, Reduced Headgear - DreamWisp Nasal Mask - 1137933
-
Medium: Medium Cushion & Frame, Standard Headgear - DreamWisp Nasal Mask - 1137934
-
Large: Large Cushion & Frame, Large Headgear - DreamWisp Nasal Mask - 1137935
-
Extra Large: Extra Large Cushion & Frame, Large Headgear - DreamWisp Nasal Mask - 1137936
-
Fit Pack: Small, Medium, Large Cushion (1 of each), Medium Frame Connector, Standard Headgear - DreamWisp Nasal Mask Fit Pack - 1137916
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep

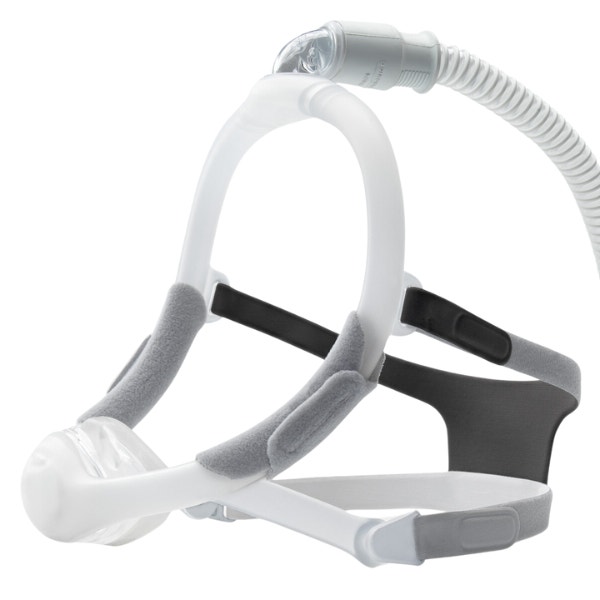

Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
Tip: Align the cushion and frame for proper assembly.
- Cushion: Press into the mask frame.
Note: The cushion and frame will fit tightly together without any gaps. If there are any gaps or leaks between the frame and cushion remove the cushion and reattach. The cushion should fit securely in the frame. - Sizing connector: Click the mask frame tubes into the sizing connector.
- Elbow: Insert into the top of the frame size connector.
- Tubing quick release: Push the tubing quick release onto the elbow until it clicks into place.
- Magnetic clips: Push the back circular end of the magnetic headgear clip into the mask frame bottom slot until it clicks into place. 15 Connect the front end of the magnetic clip to the back circular end. The clip will snap into place when the magnetic ends are connected.
- Headgear (top strap): Slide the tabs into the slots on the mask frame and fold backwards.
- Headgear (bottom strap): Slide the tabs into the slots on the magnetic clips and fold backwards.
- Fabric sleeves: Wrap the sleeves around the mask frame and press the strips together.
Note: The sleeve seams should be on the outside of the frame.
Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images of these instructions.
- Unclasp one or both of the magnetic clips from the magnetic clip receiver.
- Pull the headgear on over the top of your head.
- Place the cushion over your nose.
- Clasp one or both of the magnetic clips to the magnetic clip receiver.
Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
- Tubing quick release: Pull the tubing quick release from the elbow.
- Elbow: Pull the elbow from the top of the frame size connector.
- Fabric sleeves: Undo the strips and remove from the mask frame.
- Headgear (bottom strap): Undo the headgear tabs and pull through the slots in the magnetic clips.
- Headgear (top strap): Undo the headgear tabs and pull through the slots in the mask frame.
- Magnetic clips: Pull the front end of the magnetic clip away from the back circular end of the clip to disconnect the magnets. Push the circular end back and out of the mask frame bottom slot. You may need to flex the mask frame for easier removal.
- Sizing connector: Disconnect the mask frame tubes from the sizing connector.
- Cushion: Pull the cushion from the mask frame.
| Operating Therapy Pressure Range |
| 4 to 30 cmH²O |

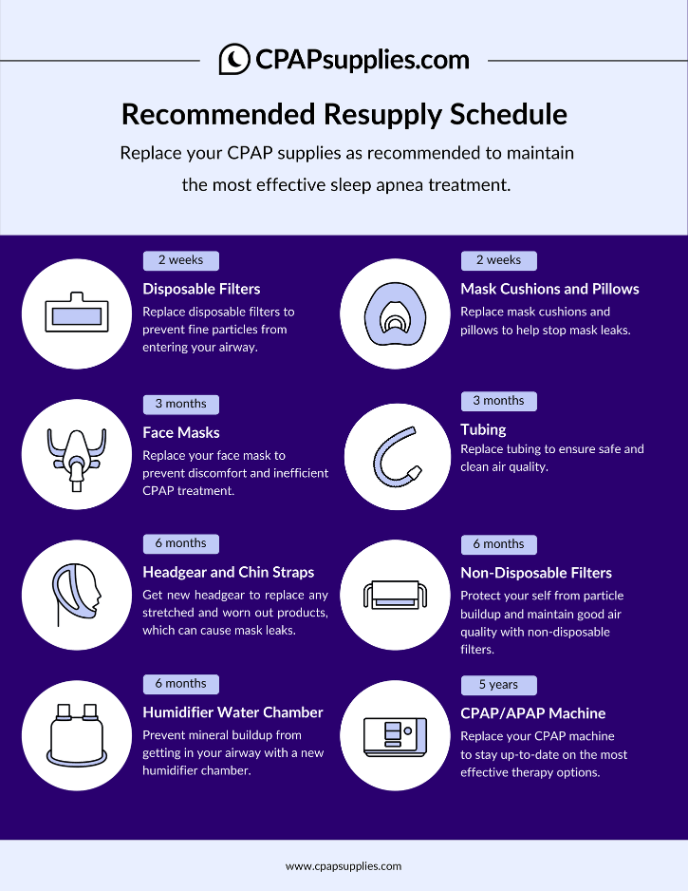

CPAPsupplies.com: CPAP Supplies Replacement Schedule
DreamWisp: Introduction
DreamWisp: Adjusting for Leaks
DreamWisp: Cleaning Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Philips Respironics |
|---|---|
| SKU | p_dreamwisp_headgear_and_mask |
| Model | p_dreamwisp_headgear_and_mask |
| UPC | 606959051058, 606959051065, 606959051072, 606959051089, 606959051096 |
| Prescription Required | Yes |
| Weight | 0.26 lbs |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| Color | Clear |
| FSA/HSA Eligible | Yes |
| Included | 1137932, 1137933, 1137934, 1137935, 1137936, 1137916 |
