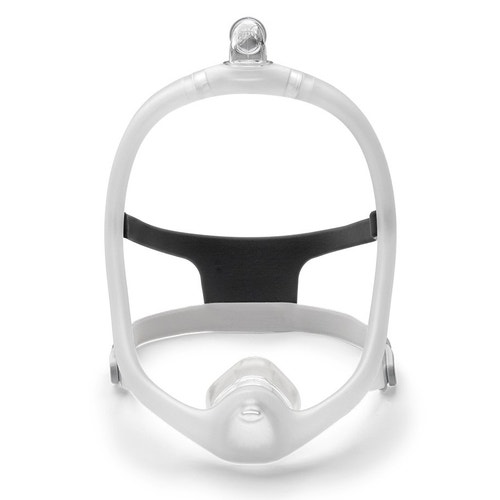

Philips Respironics DreamWisp Nasal CPAP Mask
$74.00
With features ranging from the open-frame design and soft silicone nasal cushions to multiple size options and quick-release magnetic clips, the DreamWisp Nasal CPAP Mask from Philips Respironics offers unprecedented access to maximizing your comfort during your sleep apnea treatment.

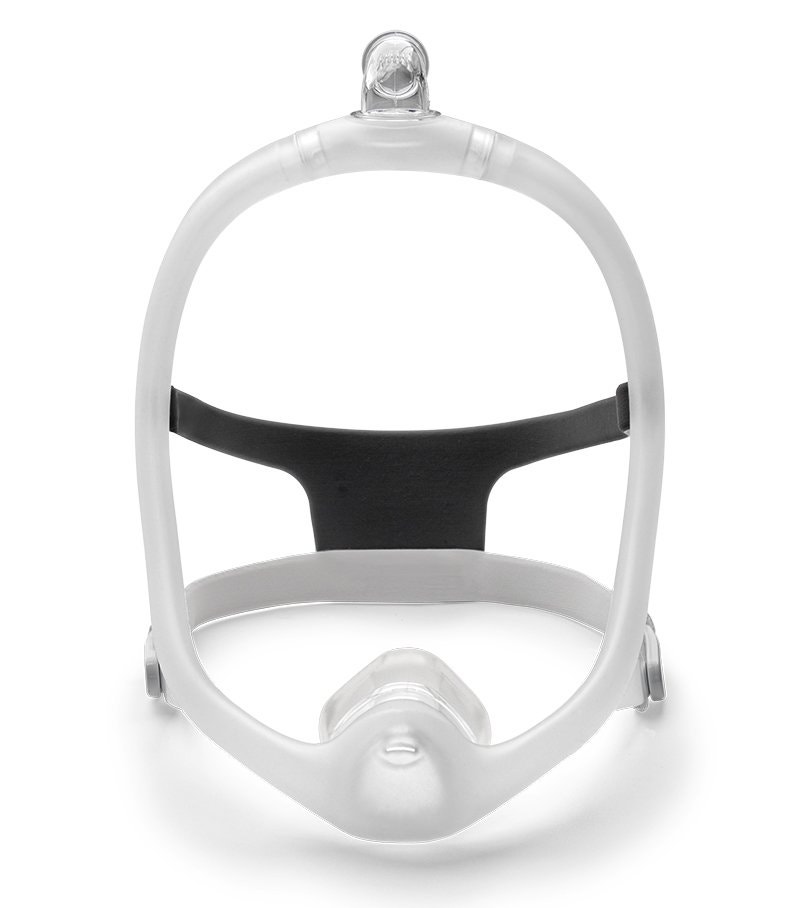

Philips Respironics DreamWisp Nasal CPAP Mask Overview

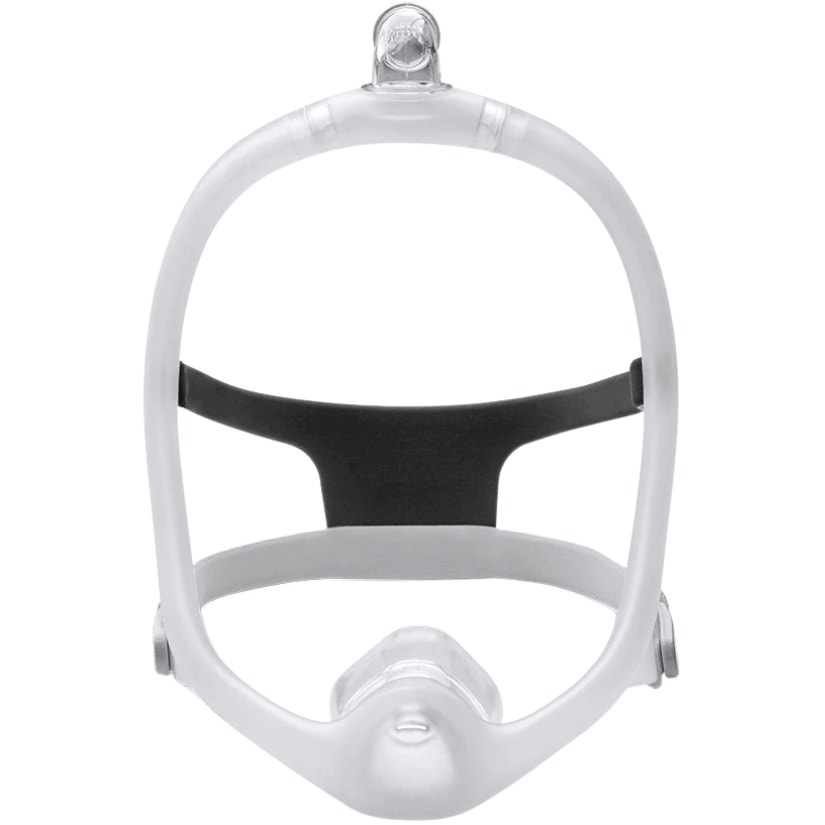

The DreamWisp minimal-contact mask from Philips Respironics helps you sleep comfortably and soundly through the night.

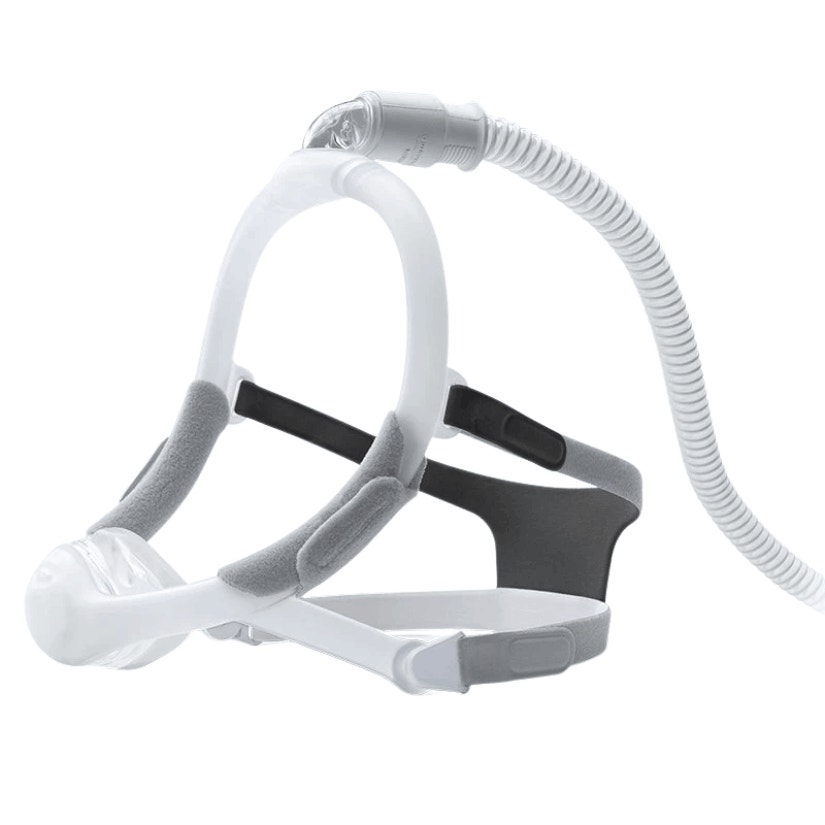

Its innovative top-of-the-head tube design means that air flows quietly through the hollow, lightweight mask frame, eliminating the feeling of being tethered to your BiPAP or CPAP machine by a face-connected tube that gets in your way as you move around. This makes the DreamWisp ideal for stomach and side sleepers who change positions frequently, as well as people who breathe through their nose, have facial hair, and prefer a more compact option than a full-face mask.
By delivering airflow within the mask frame, the DreamWisp ensures a clearer field of vision than traditional nasal and nasal pillow masks.

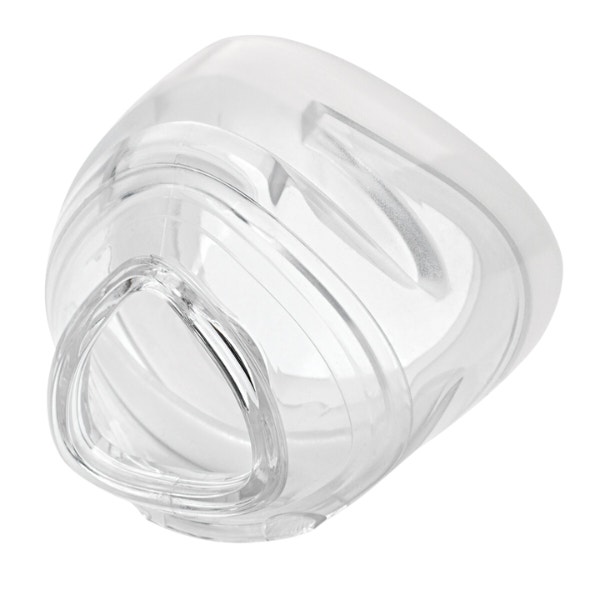

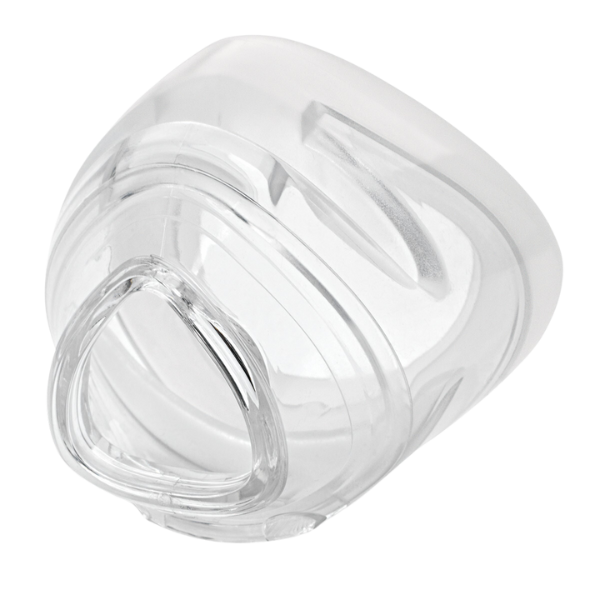

The DreamWisp nasal cushion softly conforms to your profile, creating an optimal seal and secure mask fit for effective CPAP therapy. DreamWisp cushions are available in petite, small, medium, large, and extra-large sizes.
Magnetic clips enable a quick release of the four-point, adjustable headgear, which can be especially useful for patients who have dexterity issues.
Please note: DreamWisp headgear is available as an option but not included automatically. If you'd like your order to include headgear, please select your preferred option above.
Magnetic Contraindications
In September 2022 Philips Respironics voluntarily recalled this CPAP mask. After further evaluation by Philips Respironics, these masks were declared safe for continued use, according to the updated instructions and labeling if patients or people in close proximity to them do not have implanted metallic medical devices or metallic objects in the body. If you have any questions regarding this mask, please reach out to the manufacturer, Philips Respironics, directly for more information.
-

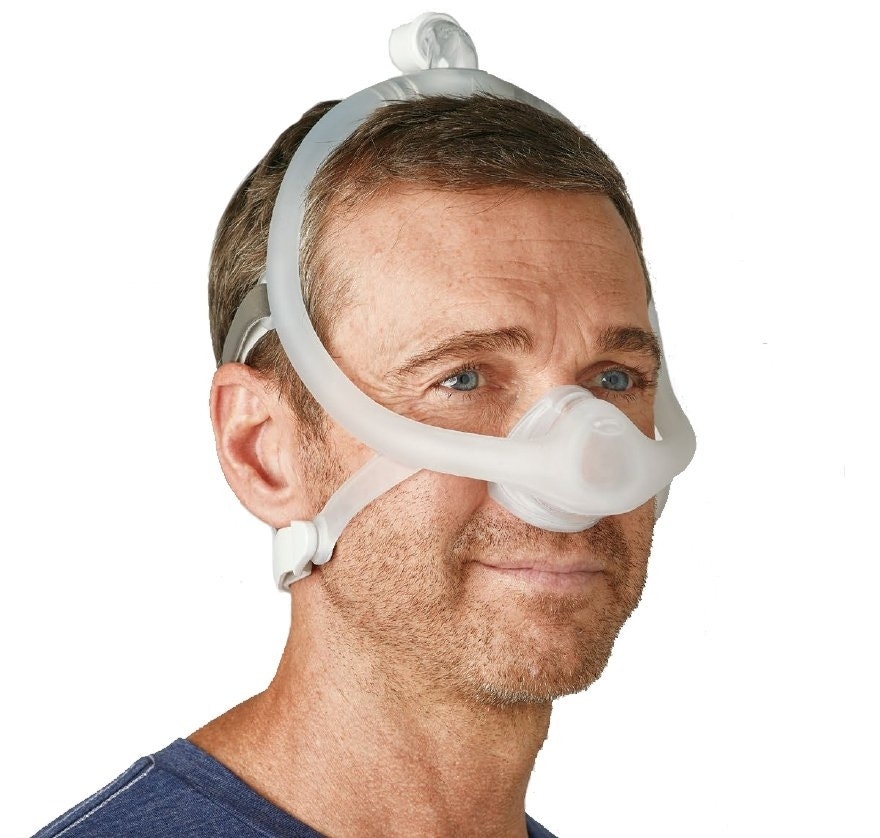

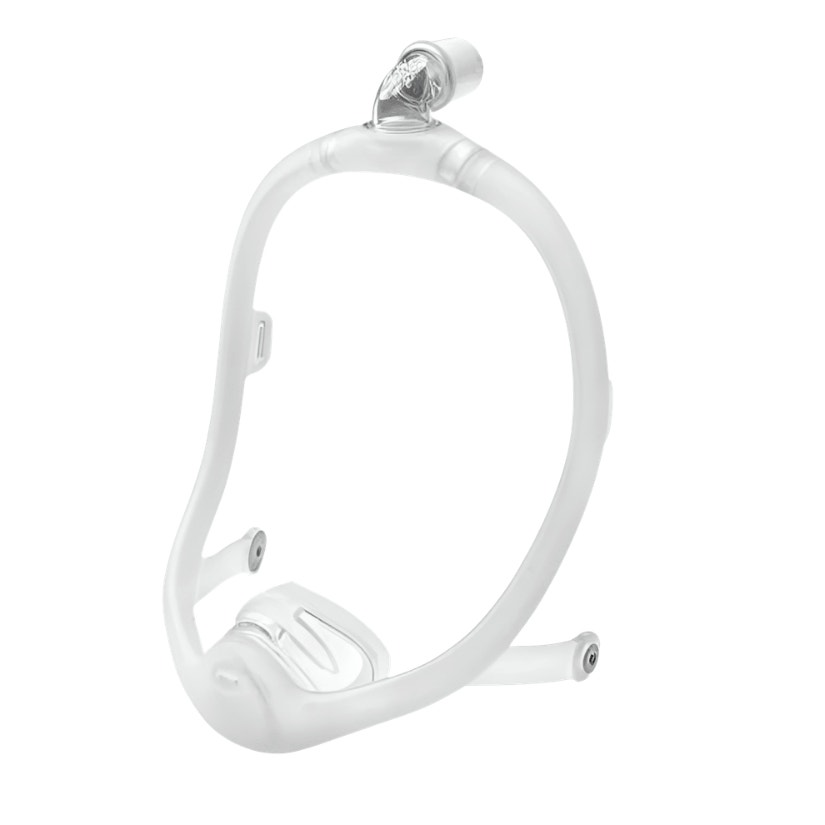

Top of the head tube connection and in-frame airflow provide more freedom of movement and field of vision.
-

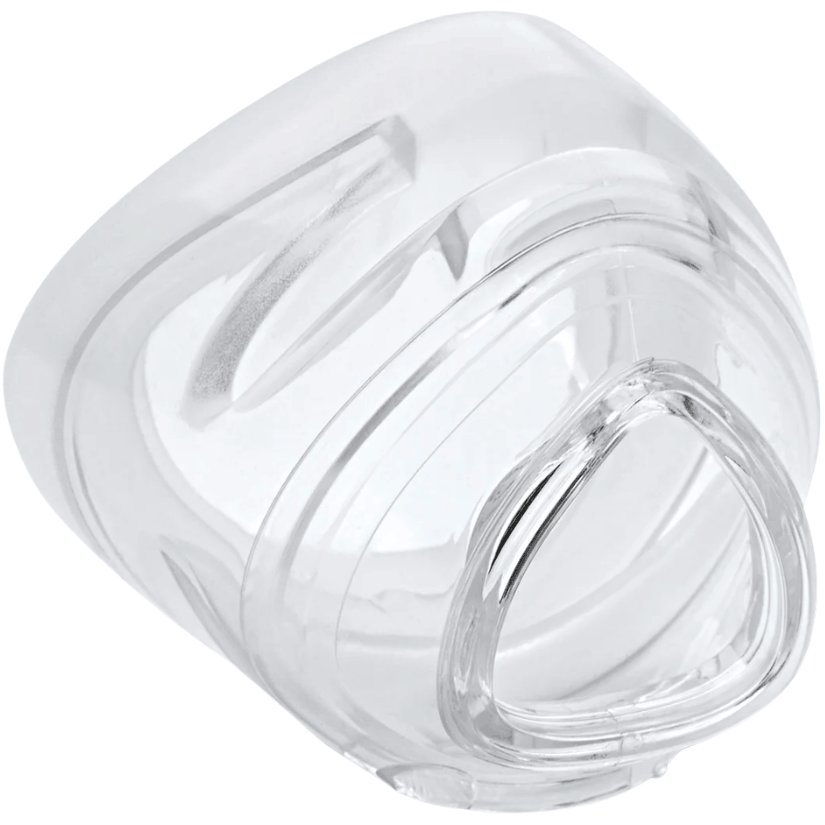

Minimal contact nasal cushion provides a secure seal.
-
Upward-facing exhalation port to funnel air away from you and your bed partner.
-
Magnetic headgear clips for easy on/off.
-

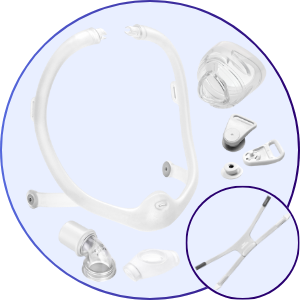

1 — DreamWisp Frame (of selected size option)
-
1 — DreamWisp Nasal Cushion (of selected size option)
-
1 — DreamWisp Frame Connector (of selected size)
-
1 — Elbow & Tubing Quick Release
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — DreamWisp Headgear
-
2 — Magnetic Headgear Clips
Mask Frame and Cushion Size Options:
-
Petite - DreamWisp Nasal CPAP Mask without Headgear - 1137922
-
Small - DreamWisp Nasal CPAP Mask without Headgear - 1137923 (This size has been DISCONTINUED by the manufacturer and supplies are limited)
-
Medium - DreamWisp Nasal CPAP Mask without Headgear - 1137924 (This size has been DISCONTINUED by the manufacturer and is no longer available)
-
Large - DreamWisp Nasal CPAP Mask without Headgear - 1137925
-
Extra Large - DreamWisp Nasal CPAP Mask without Headgear - 1137926 (This size has been DISCONTINUED by the manufacturer and is no longer available)

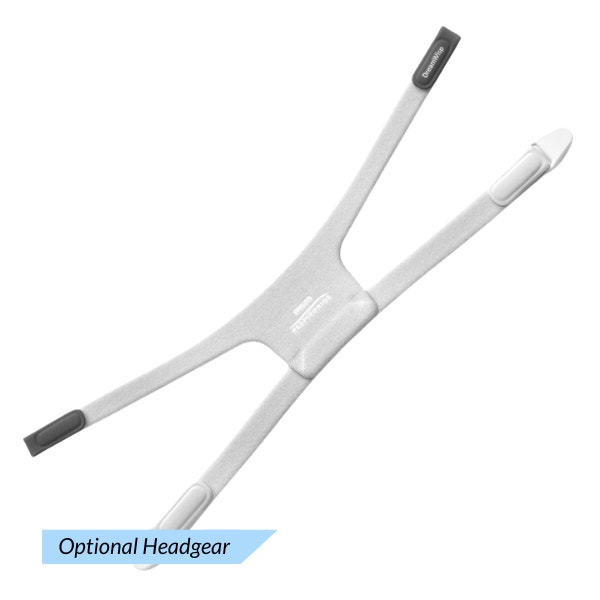

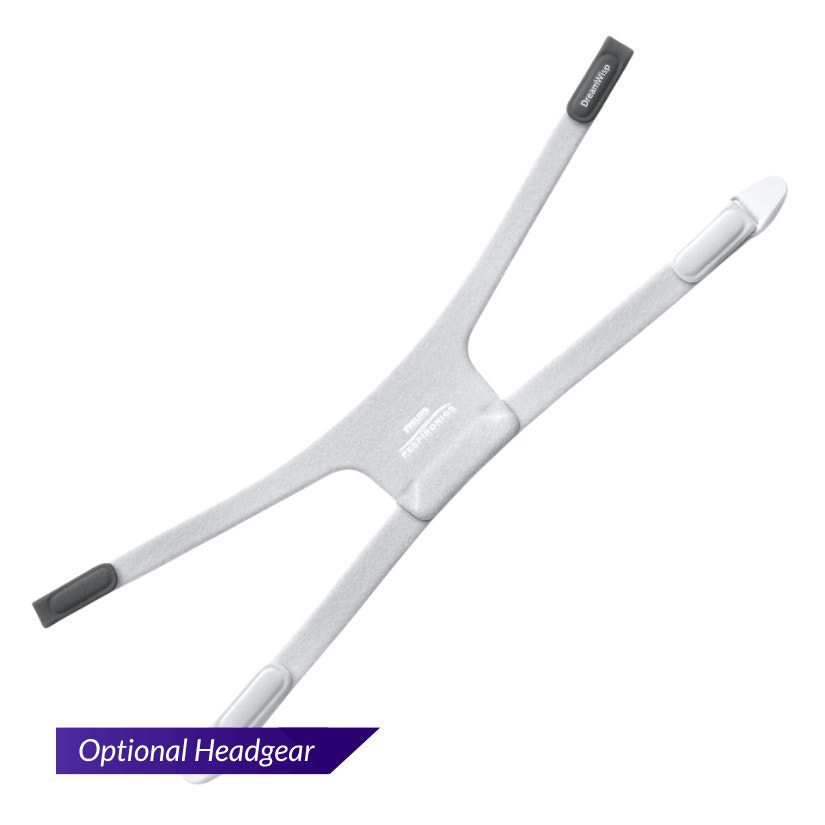

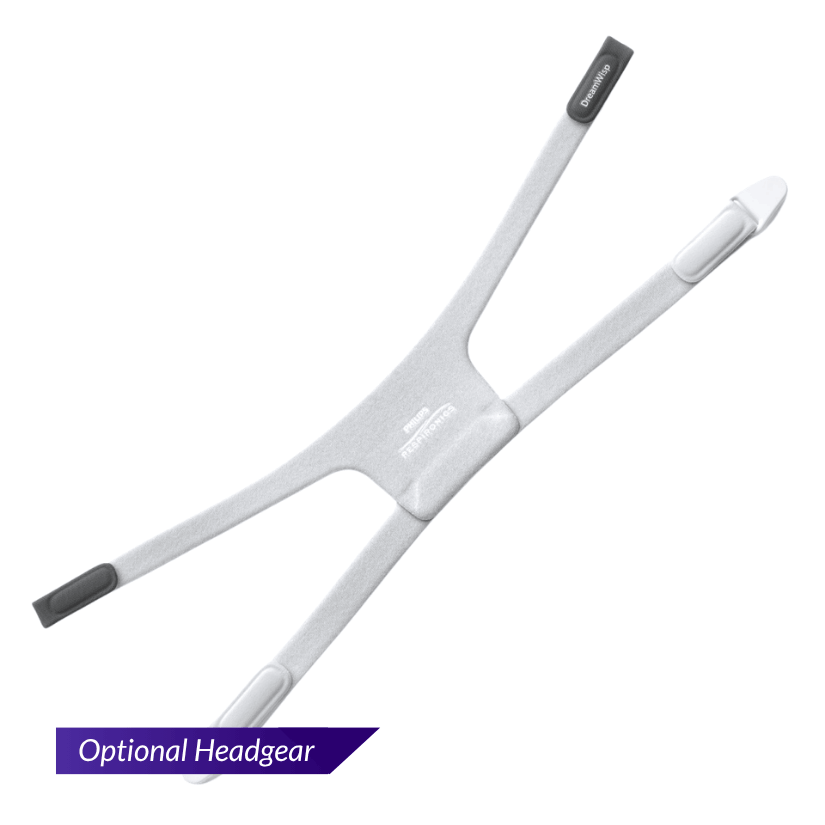

Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
-
Standard - DreamWisp Nasal CPAP Mask Headgear - 1137964
-
Large - DreamWisp Nasal CPAP Mask Headgear - 1137965
-
Reduced - DreamWisp Nasal CPAP Mask Headgear - 1137966
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep

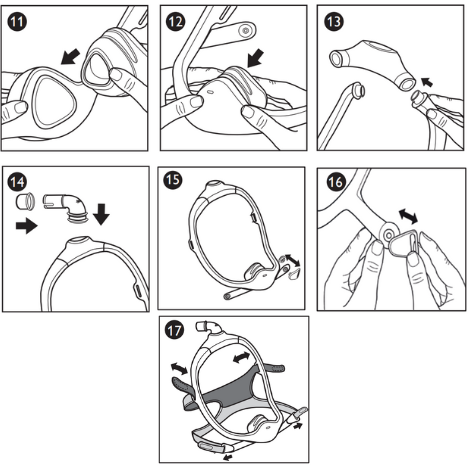

Assembling Your Mask
Refer to the assembly diagrams in these instructions.
Tip: Align the cushion and frame for proper assembly.
- Cushion: Press into the mask frame.
Note: The cushion and frame will fit tightly together without any gaps. If there are any gaps or leaks between the frame and cushion remove the cushion and reattach. The cushion should fit securely in the frame. - Sizing connector: Click the mask frame tubes into the sizing connector.
- Elbow: Insert into the top of the frame size connector.
- Tubing quick release: Push the tubing quick release onto the elbow until it clicks into place.
- Magnetic clips: Push the back circular end of the magnetic headgear clip into the mask frame bottom slot until it clicks into place. 15 Connect the front end of the magnetic clip to the back circular end. The clip will snap into place when the magnetic ends are connected.
- Headgear (top strap): Slide the tabs into the slots on the mask frame and fold backwards.
- Headgear (bottom strap): Slide the tabs into the slots on the magnetic clips and fold backwards.
- Fabric sleeves: Wrap the sleeves around the mask frame and press the strips together.
Note: The sleeve seams should be on the outside of the frame.
- Cushion: Press into the mask frame.

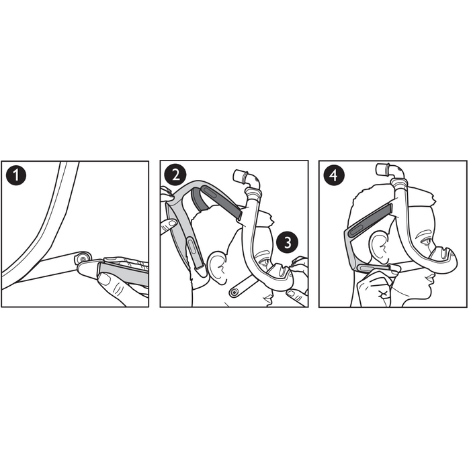

Fitting Your Mask
Remove all packaging before using the mask.
Refer to the fitting images of these instructions.
- Unclasp one or both of the magnetic clips from the magnetic clip receiver.
- Pull the headgear on over the top of your head.
- Place the cushion over your nose.
- Clasp one or both of the magnetic clips to the magnetic clip receiver.

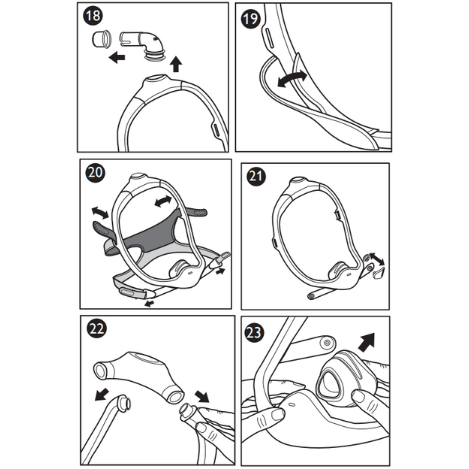

Disassembling Your Mask
Refer to the disassembly diagrams in these instructions.
- Tubing quick release: Pull the tubing quick release from the elbow.
- Elbow: Pull the elbow from the top of the frame size connector.
- Fabric sleeves: Undo the strips and remove from the mask frame.
- Headgear (bottom strap): Undo the headgear tabs and pull through the slots in the magnetic clips.
- Headgear (top strap): Undo the headgear tabs and pull through the slots in the mask frame.
- Magnetic clips: Pull the front end of the magnetic clip away from the back circular end of the clip to disconnect the magnets. Push the circular end back and out of the mask frame bottom slot. You may need to flex the mask frame for easier removal.
- Sizing connector: Disconnect the mask frame tubes from the sizing connector.
- Cushion: Pull the cushion from the mask frame.
| Operating Therapy Pressure Range |
| 4 to 30 cmH²O |

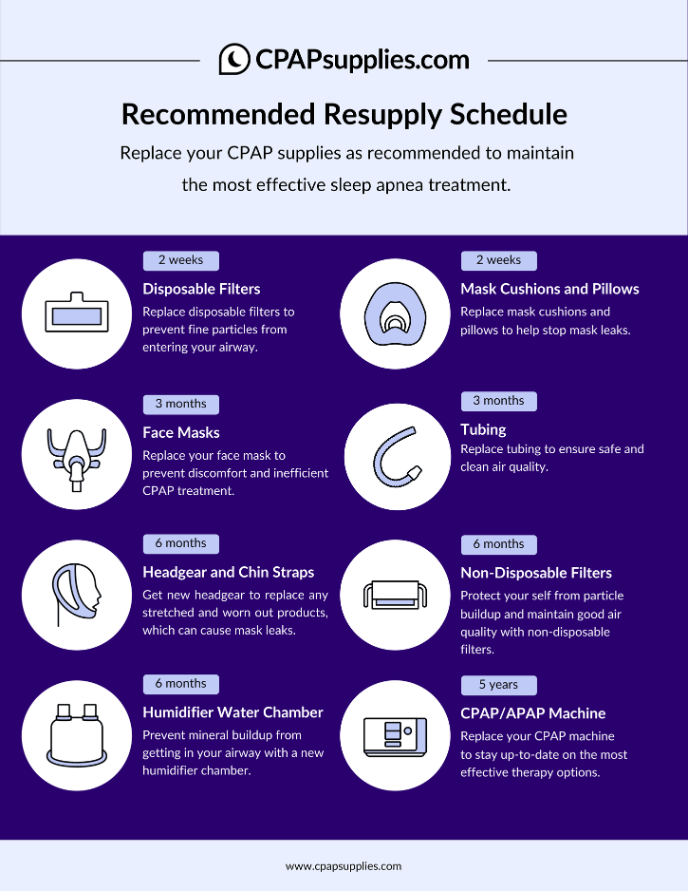

CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
DreamWisp Introduction Video
DreamWisp Adjusting for Leaks Video
DreamWisp Cleaning Guide Video
DreamWisp Replacement Parts
This replacement CPAP mask assembly for the DreamWisp Nasal Mask includes one DreamWisp frame replacement and one DreamWisp nasal cushion replacement of your selected size. DreamWisp Headgear replacement is not included unless selected above.
When To Replace DreamWisp Frame?
Replace your CPAP mask frame every 3 months.
When To Replace DreamWisp Nasal Cushion?
Replace your CPAP mask cushion every 2 weeks.
When To Replace DreamWisp Headgear?
Replace your CPAP mask headgear every 6 months.
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
Part Cleaning Frequency Instructions Nasal Cushions
Daily
- Using a mild detergent* and warm, drinking-quality water, gently clean your nasal cushions to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
Chinstrap
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
| Brand | Philips Respironics |
|---|---|
| SKU | pb_dreamwisp_headgear_and_mask |
| Model | pb_dreamwisp_headgear_and_mask |
| UPC | 606959416765, 606959416772, 606959416789, 606959416796, 606959416802 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 1137922, 1137923, 1137924, 1137925, 1137926, 1137918, 1137966, 1137964, 1137965 |
