Philips Respironics DreamWear Full Face CPAP Mask
$71.00
The innovative design of the Philips Respironics DreamWear Full Face CPAP mask combines the comfort and convenience of the popular DreamWear Nasal Pillows mask with full nose and mouth coverage.
Philips Respironics DreamWear Full Face CPAP Mask Overview
The Philips Respironics DreamWear Full Face Mask tube connection sits at the top of the head instead of at the nasal bridge, ensuring maximum freedom of movement in multiple sleeping positions. This innovative design offers a wide open field of vision, perfect for those who wear glasses or like to watch TV or read before bedtime. It’s also ideal for those who like the minimal contact that a nasal cushion provides, but need full nose and mouth coverage with no leakage.
Philips Respironics designed this soft silicone frame to be versatile as well; it’s compatible with both the DreamWear nasal mask and gel pillow mask in addition to the full face masks. This is great news for people who like to switch between a variety of styles.
With the DreamWear Philips Respironics to provide extreme comfort by eliminating the discomfort and hassle of having a tube connected to the nose bridge. This design prevents both irritation and red marks to make your sleep apnea treatment feel like a dream.
Please note: headgear is not included in your order unless selected above. It is also not required.
-
Hose attachment at top of the head instead of nose bridge for an open field of view
-
Lightweight in-frame airflow design
-
Minimal contact helps prevents red marks and irritation
-
Provides freedom of movement for stomach and side sleepers
-
Designed for a cozy, custom mask fit
-
1 — DreamWear Full Face Mask Frame and Cushion (of selected size)
-
1 — Elbow
-
1 — Tubing Quick Release
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — DreamWear Full Face Mask Headgear (Model # 1133450)
-
2 — Magnetic Clips
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion

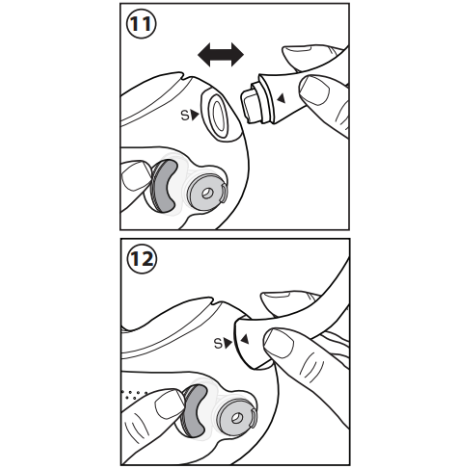

Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Press the Cushion into the Mask Frame until the Cushion clicks into place. (11) (12) (Note: The end of the Cushion and the opening in the Mask Frame are ‘D’ shaped. The Cushion end should match the Frame.)
- Insert the Mask Elbow into the top of the Mask Frame.
- Push the Tubing Quick Release onto the Elbow until it clicks into place.
- (Optional) Fabric Sleeves: Wrap the Sleeves around the Mask Frame and press the strips together. (Note: The Sleeve seams should be on the outside of the Frame)
- Slide the Headgear top strap tabs into the slots on the Mask Frame and fold backwards. Attach the Headgear Clips.
Note: The Philips Respironics logo will be on the outside and facing up when correctly assembled.

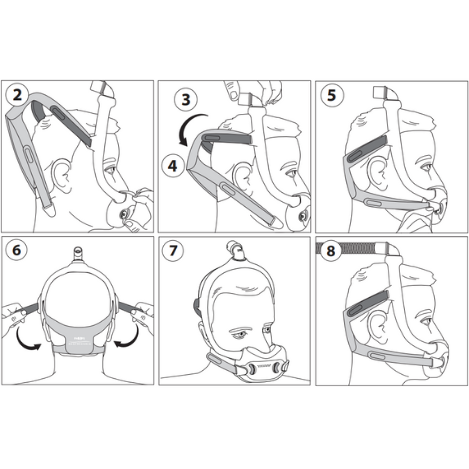

Fitting Your Mask:
Remove all packaging before using the mask.
- With the Mask assembled (see Assembly section), place the Cushion under your nose. (2)
- Position the Frame on the top of your head. (3)
- Pull the Headgear over the back of your head. (4)
- Attach the magnetic headgear clips to the mask cushion. (5)

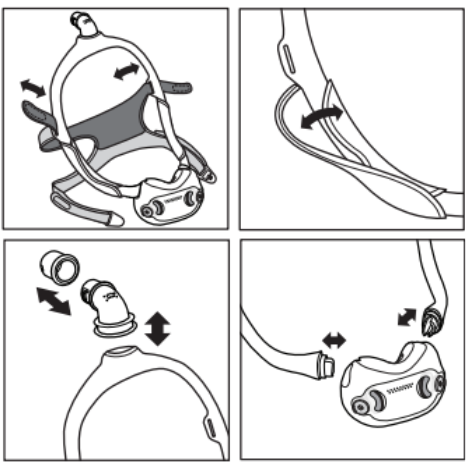

Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
- Headgear: Undo the Headgear tabs and pull through the slots in the Mask Frame. Turn the magnetic Headgear Clips away from the Mask Frame.
- Fabric sleeves: Undo the strips and remove from the Mask Frame.
- Tubing quick release: Pull the Tubing Quick Release from the Elbow.
- Elbow: Pull the Elbow from the top of the Frame.
- Cushion: Pull the Cushion away from the Mask Frame
| Operating Therapy Pressure Range |
| 3 to 30 cmH²O |
CPAPsupplies.com: ResMed AirFit™ F20 Full Face CPAP Mask
DreamWear Full Face Mask: Introduction
DreamWear Full Face Mask: Cleaning Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
| SKU | pb_FFM-Cush-Frame-DW |
|---|---|
| Model | pb_FFM-Cush-Frame-DW |
| UPC | 00606959046078, 00606959046085, 00606959046108, 00606959046092, 00606959046030, 00606959046047, 00606959046054, 00606959402041, 00606959402058, 00606959402065 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 1133405, 1133406, 1133407, 1133408, 1133410, 1133411, 1133412, 1133413, 1133415, 1133416, 1133417, 1133418, 1133450 |
