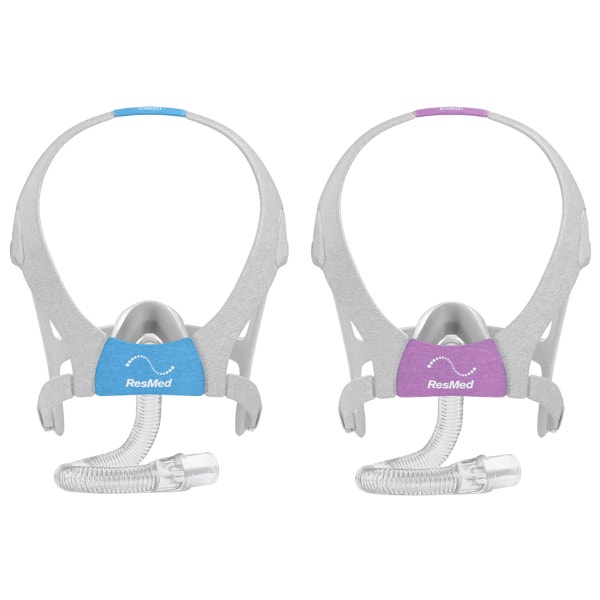

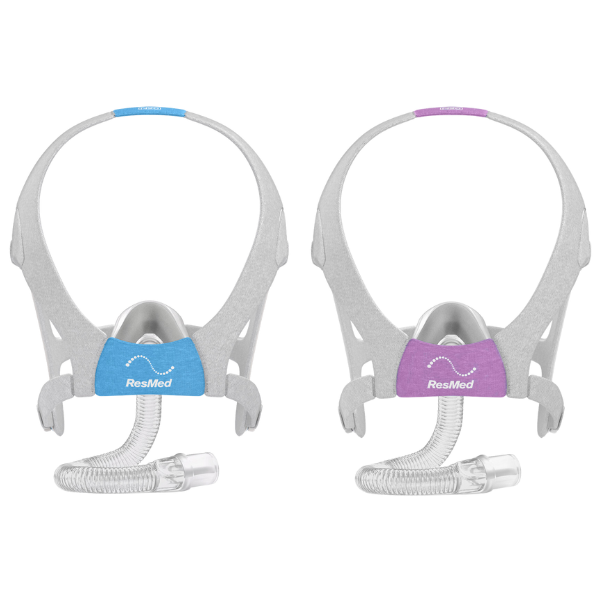

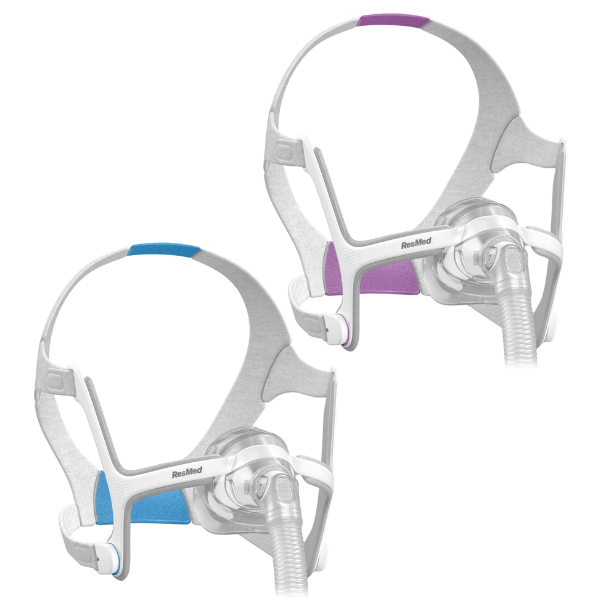

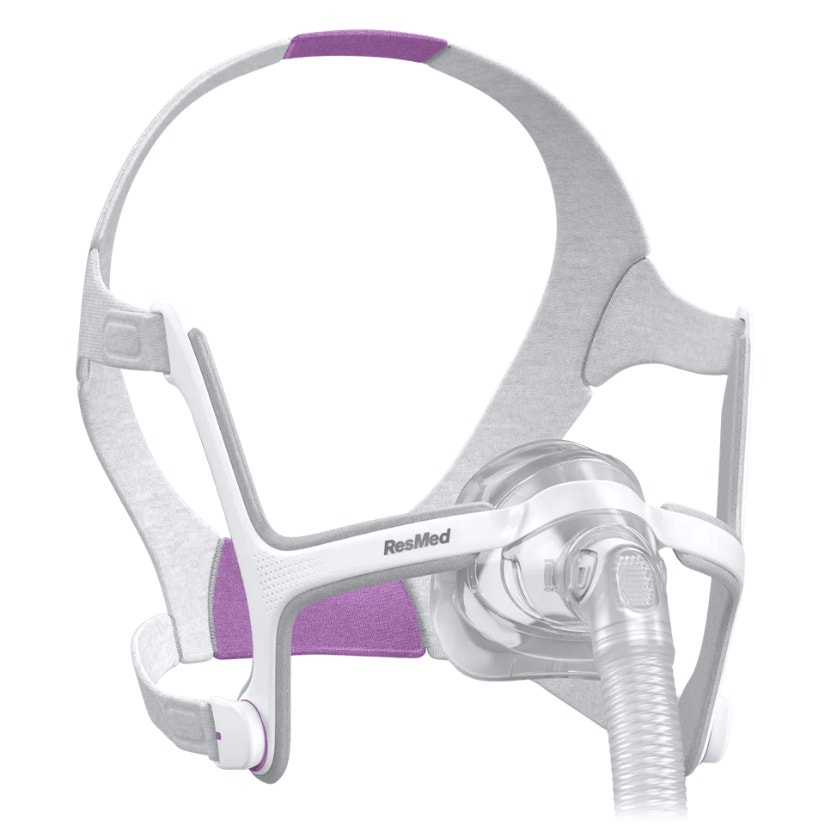

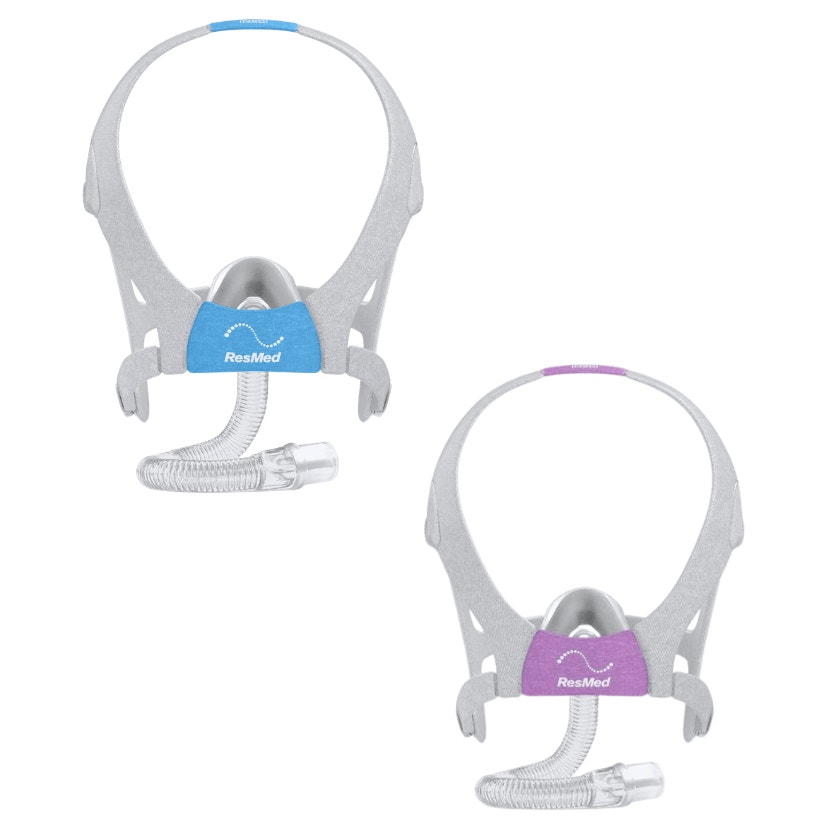

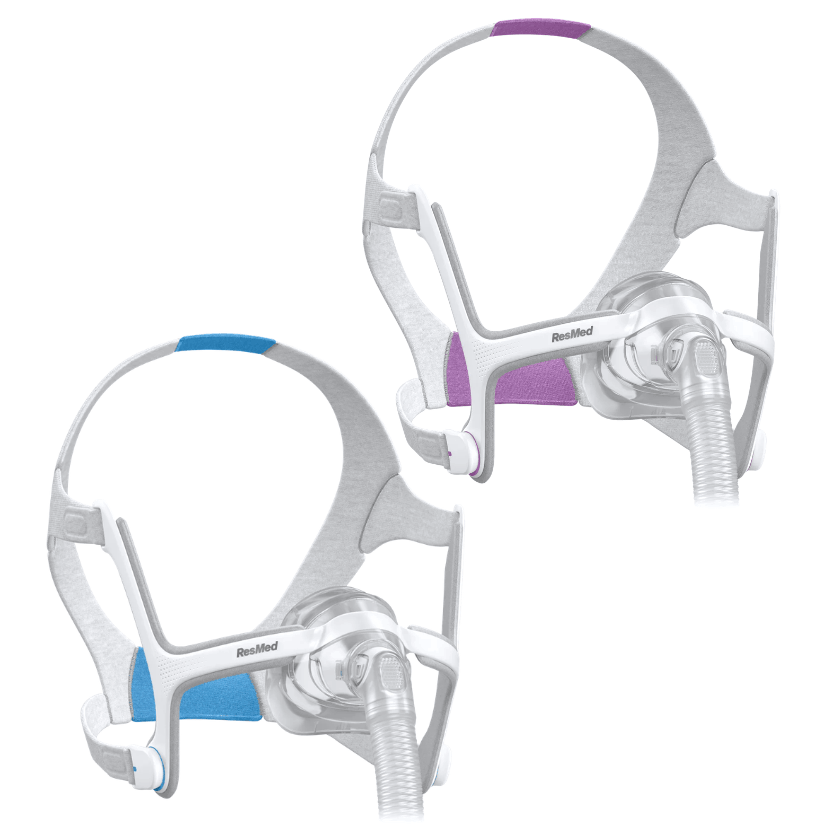

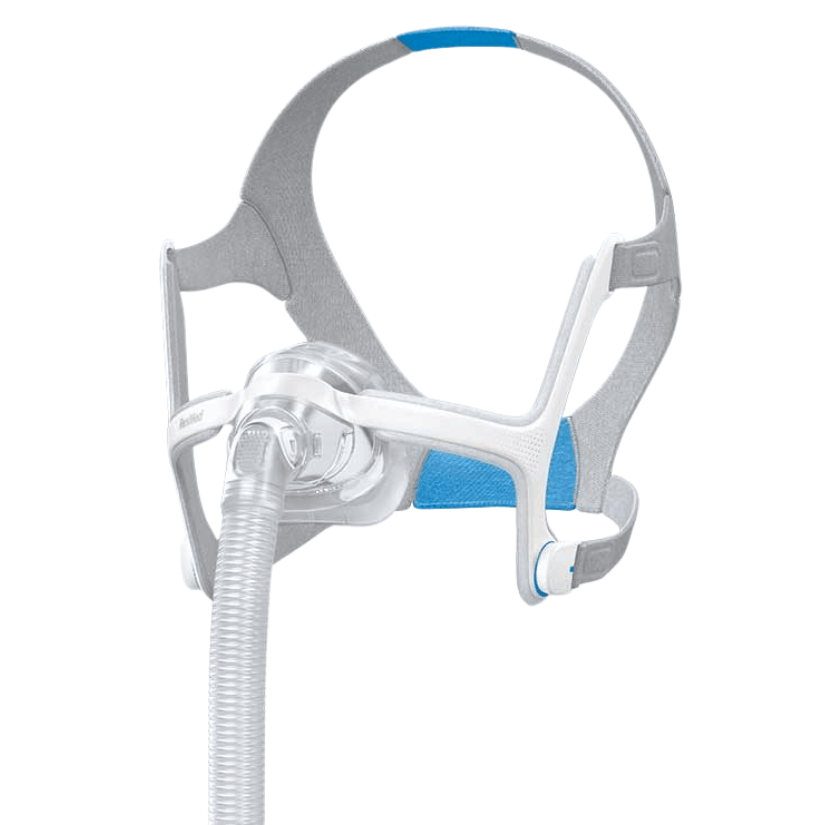

Resmed AirTouch™ N20 Nasal CPAP Mask with Headgear
The lightweight design of the Resmed AirTouch™ N20 combined with the soft, flexible headgear and UltraSoft™ foam cushion creates the perfect mixture of comfort and performance, even for light sleepers and those with sensitive skin.



Resmed AirTouch™ N20 Nasal CPAP Mask with Headgear

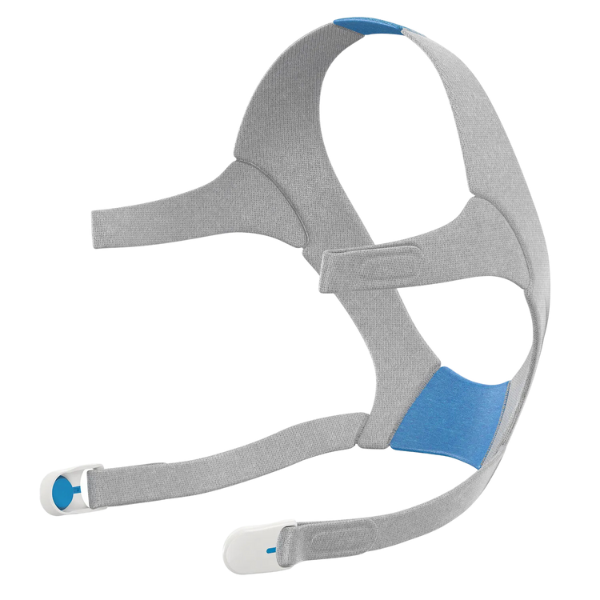

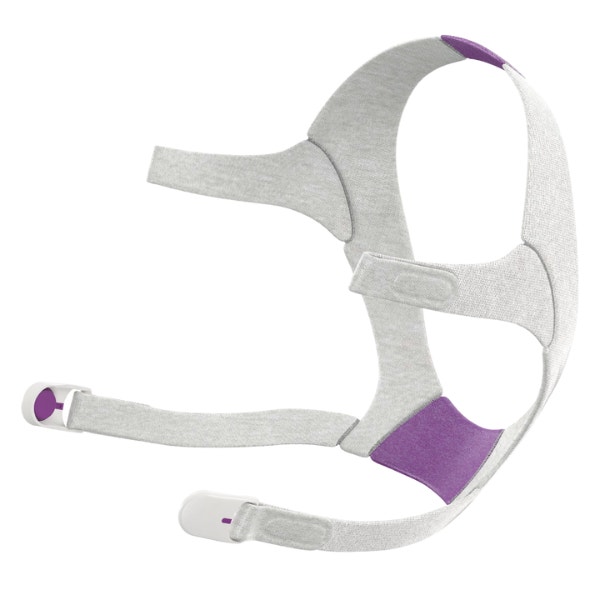

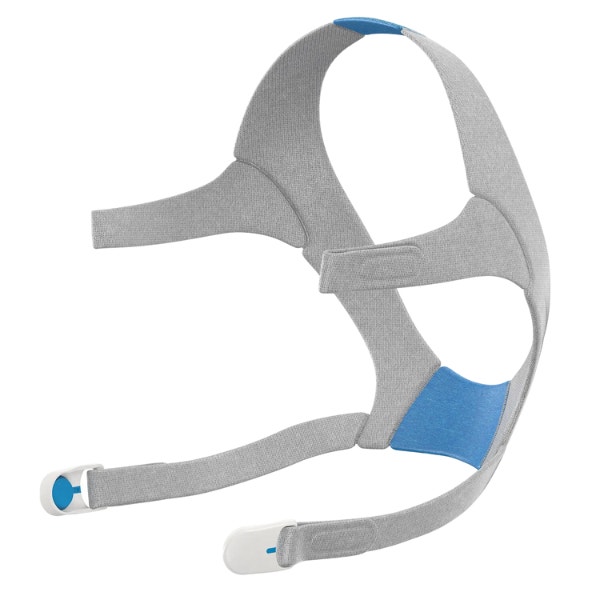

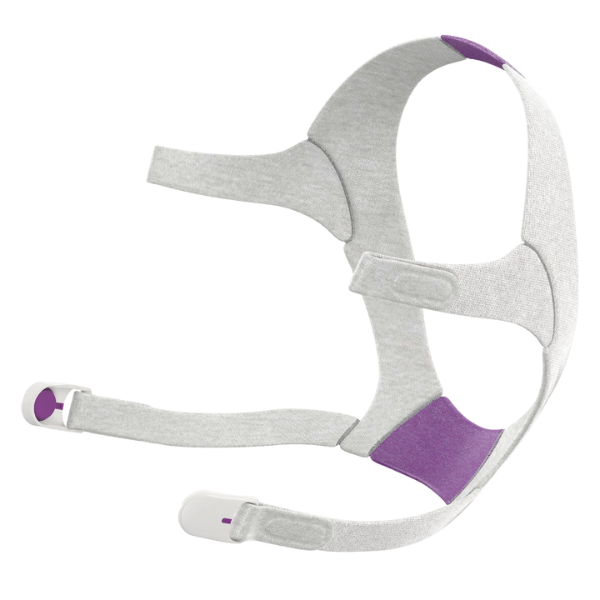

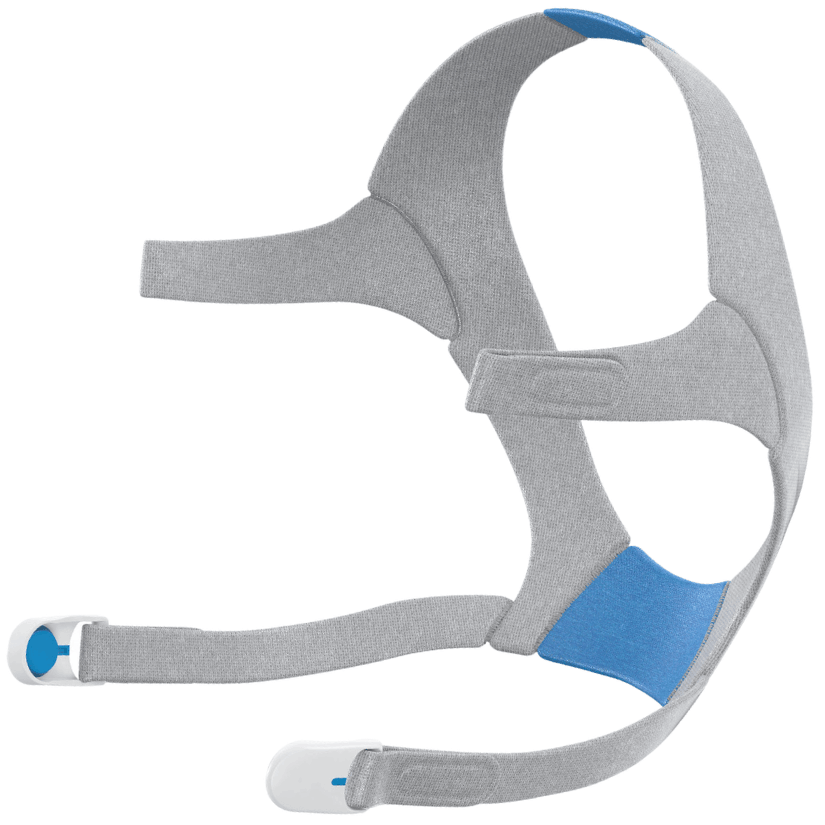

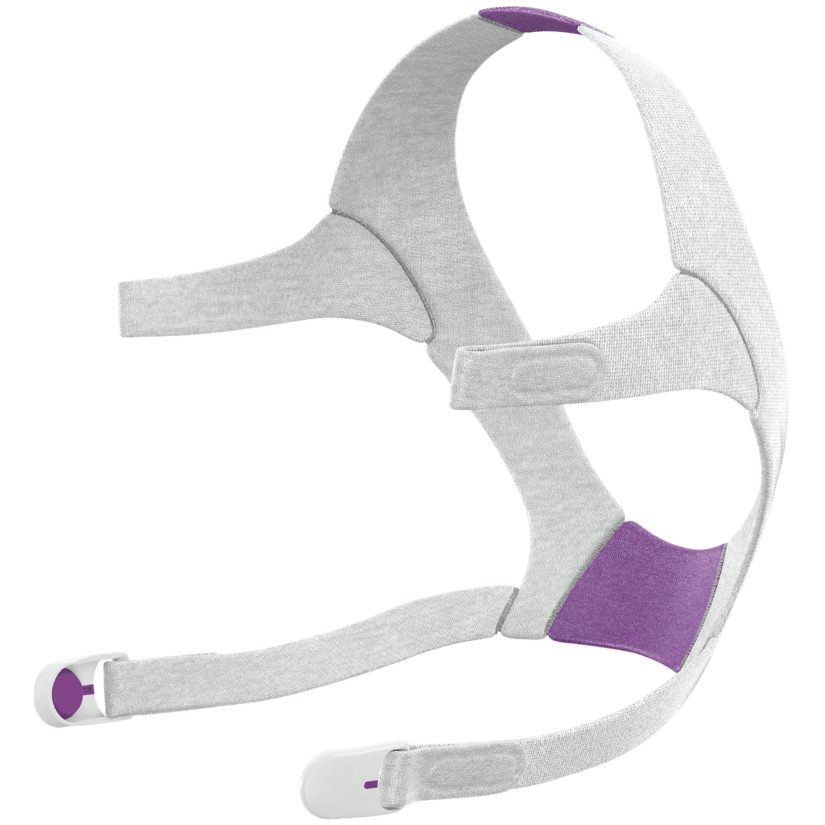

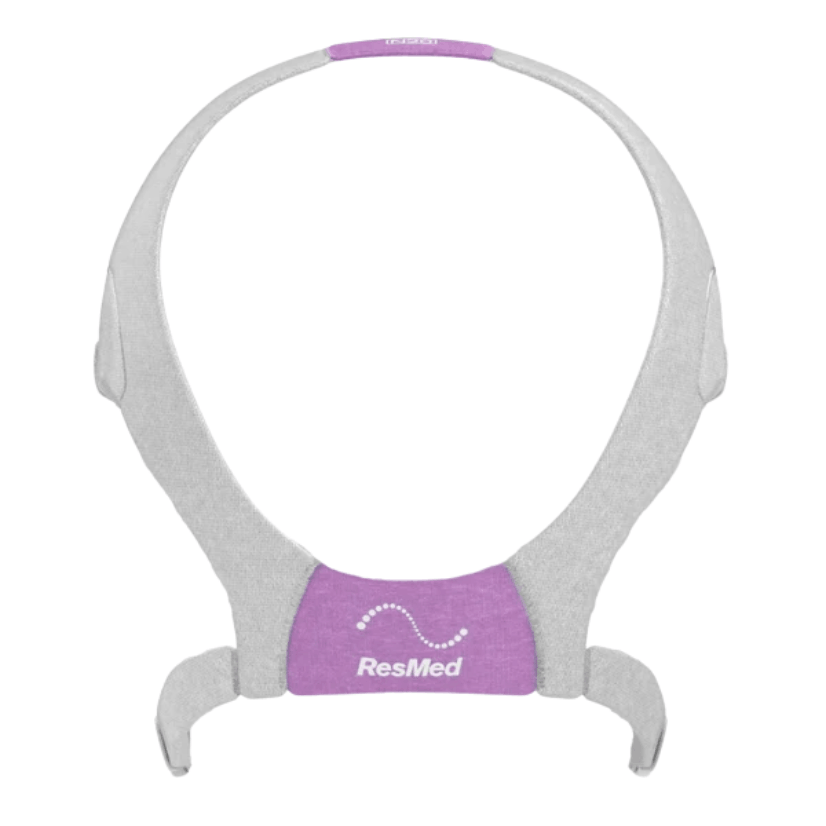

The Resmed AirTouch™ N20 nasal mask is their first nasal CPAP mask designed with a memory foam cushion that easily conforms to your dynamic facial contours. With it's lightweight design, the AirTouch™ N20 features a soft, flexibile headgear and the UltraSoft foam cushion that help both achieve comfort and performance during your sleep therapy. The AirTouch™ N20 padded headgear features four points of adjustment, allowing for a highly personalized and secure fit.
Per Resmed, please note the following about this mask’s magnetic contraindications:
Update to Contraindication
In an update to the previously contraindicated metallic aneurysm hemostatic clips in the head and metallic splinters in one or both eyes following a penetrating eye injury, Resmed is further contraindicating the use of its masks with magnets for patients where they, or anyone in close physical contact while using the mask (e.g., bed partner), have the following:
- Active medical implants that interact with magnets (i.e., pacemakers, implantable cardioverter defibrillators (ICD), neurostimulators, cerebrospinal fluid (CSF) shunts, insulin/infusion pumps)
- Metallic implants/objects containing ferromagnetic material (i.e., aneurysm clips/flow disruption devices, embolic coils, stents, valves, electrodes, implants to restore hearing or balance with implanted magnets, ocular implants, metallic splinters in the eye)
Update to Warning
The safe distance to the magnets has been increased from 2 inches (50 mm), and patients are now warned to keep the mask magnets at a safe distance of 6 inches (150 mm) away from implants or medical devices that may be adversely impacted by magnetic interference. This applies to patients, or anyone in close physical contact with the mask magnets.
Note, not all models or manufactured variants of medical devices listed in the contraindications are affected by external magnetic fields. Only those that interact with magnets or contain ferromagnetic materials present the potential for magnetic interference.
For more information: please reach out to Resmed directly; CPAPsupplies.com does not have any additional details on this update. Visit www.resmed.com/magnetupdate for more details and the appropriate contact information.
-
Quick-Release Elbow - The AirTouch™ N20 features a quick-release elbow that allows you to easily disconnect your tubing without removing your mask.
-
Magnetic Clips - The magnetic clips help you guide the headgear to connect to your mask frame for quick and easy attachment and detachment.
-

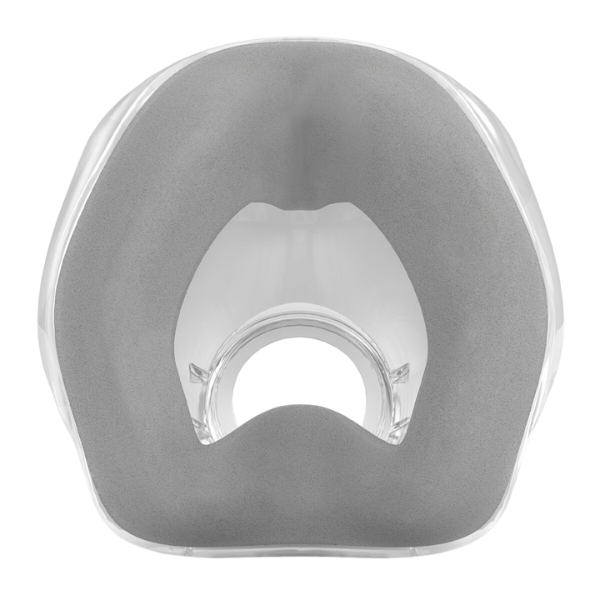

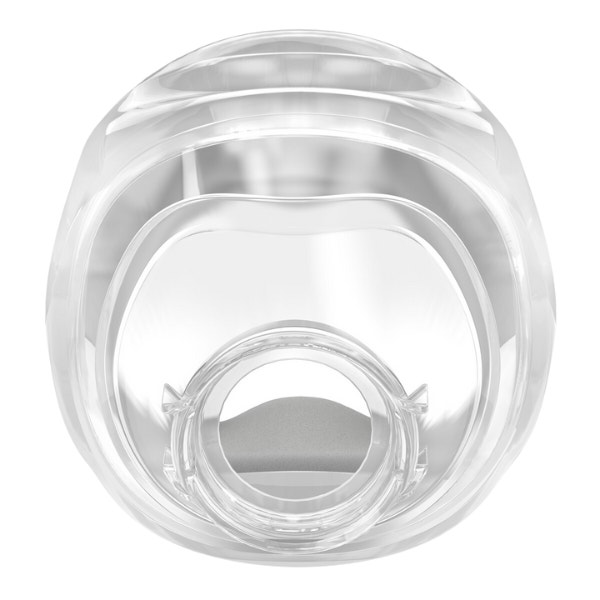

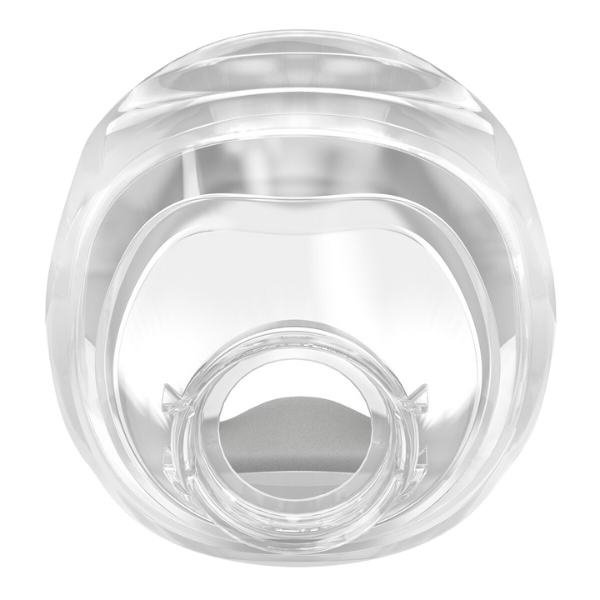

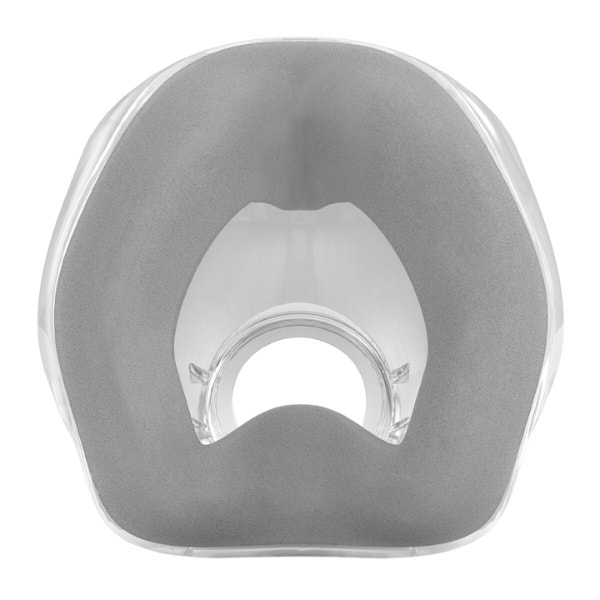

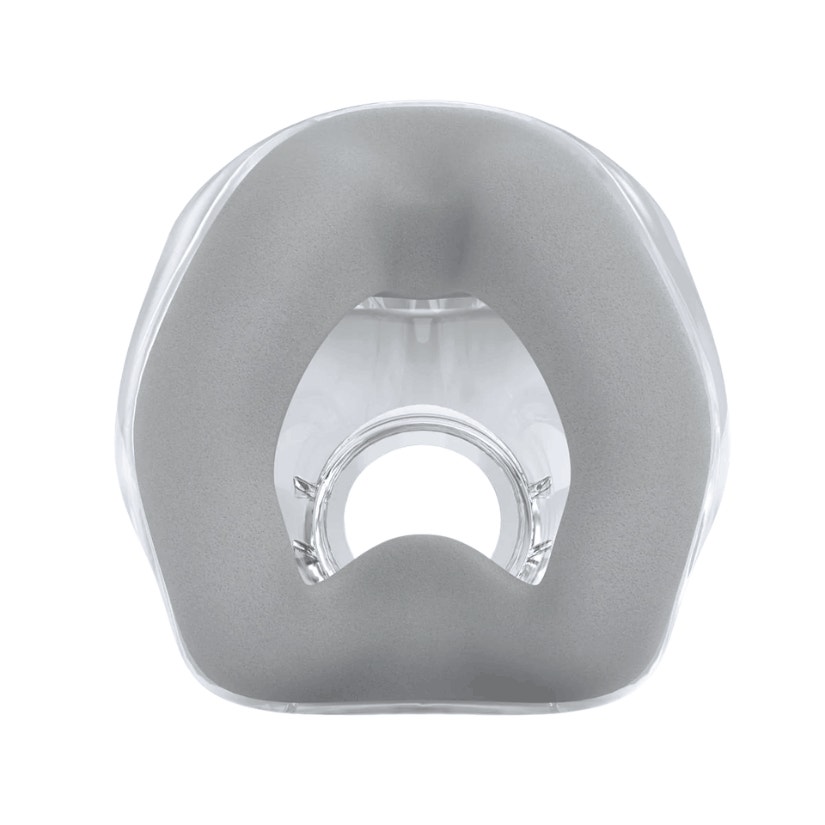

UltraSoft Cushions - The UltraSoft memory foam nasal cushions are designed to conform to your unique facial contours to provide a comfortable, secure seal.
-

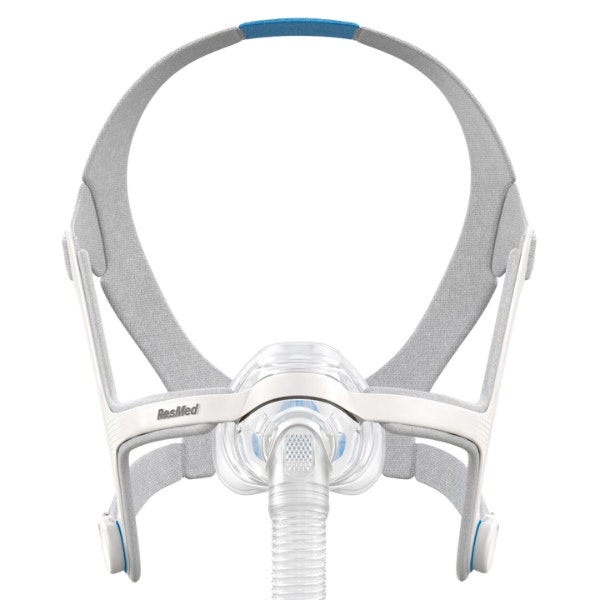

Compatibility - The AirTouch™ N20 is also compatible with the AirFit™ N20 silicone cushion for maximum versatility.


-

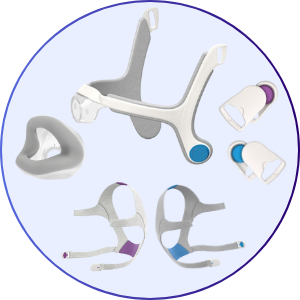

1 — AirTouch™ N20 Mask with Headgear (Standard Size)
-
1 — AirTouch™ N20 UltraSoft Nasal Cushion (of selected size)
-
1 — Short Tube
If you're looking to purchase the Resmed AirTouch™ N20 Nasal CPAP Mask components without a prescription, you can find them here.
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Push the cushion into the frame. The frame has a shape that allows you to insert the cushion only one way.
- With the Resmed logo on the headgear facing outside and upright, thread the upper headgear straps into the frame slots from the inside.
- Fold them over to secure.
Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- Twist and pull both magnetic clips away from the frame.
- With both lower headgear straps released, hold the mask against your face and pull the headgear over your head. Ensure that the Resmed logo on the headgear is facing outwards and is upright when the headgear is put on.
- Bring the lower straps below your ears, and attach the magnetic clip to the frame.
- Undo the fastening tabs on the upper headgear straps. Adjust the straps evenly until the mask sits comfortably just over the nose. Reattach the fastening tabs.
- Undo the fastening tabs on the lower headgear straps. Adjust the straps evenly until the mask is stable. Reattach the fastening tabs.
- Connect the device air tubing to the short tube. Attach the elbow to the mask by pressing the side buttons and pushing the elbow into the mask, ensuring it clicks in on both sides.
- Your mask and headgear should be positioned as shown in the illustration.


Disassembling Your Mask:
If the mask is connected to your device, disconnect the device air tubing
from the short tube.
- Undo the fastening tabs on the upper headgear straps and pull them from the frame. Keep the magnetic clips attached to the lower headgear straps.
- Remove the elbow from the mask by pressing the side button and pulling the elbow away.
- Hold the frame by placing your thumb over the side slot. Pull the cushion away from the frame.


| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | p_AT-N20-wHG |
| Model | p_AT-N20-wHG |
| UPC | 619498639007, 619498639014, 619498639021, 619498639038 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 63900, 63903, 63901, 63902 |
