ResMed AirFit™ N30i Nasal CPAP Mask
$84.00
The ResMed AirFit™ N30i Nasal Cradle CPAP Mask sports a revolutionary, freeing design with the tube connection at the top of the head and a nasal cradle that sits snugly under the nose as opposed to covering it.
ResMed AirFit™ N30i Nasal CPAP Mask Overview
An innovative curved silicone nasal cradle cushion doesn’t cover the whole nose like full face masks and standard nasal masks, yet it maintains a secure seal for effective airflow. It’s similar to a nasal pillow mask, but without the nasal pillows that are inserted into the nostrils, which makes it less obtrusive. The SpringFit™ frame is flexible and lightweight, and there’s no forehead support strap, allowing for a comfortable fit and an incredibly wide field of vision.
With an innovative head tube design equipped with a 360° swivel connection, active sleepers have more freedom of movement. Go to sleep with confidence that the AirFit™ N30i will move with you into virtually any sleeping position throughout the night. You can even snuggle up to your bed partner. The whisper quiet operation won’t disturb them, so you can both enjoy restful sleep!
With only three mask parts to assemble, the N30i nasal CPAP mask can be quickly taken apart for cleaning and put back together. The quick release elbow makes it fast and easy to take off for those middle-of-the-night trips to bathroom. A minimal design is perfect for reducing bulk and preventing claustrophobia. No more feeling tethered to your CPAP machine with a tube connected at the nose or mouth. Experience more freedom and effective sleep apnea therapy with the RedMed AirFit™ N30i nasal mask tonight!
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above.
-
Perfect for active sleepers and side sleepers
-
Tubing connects at the top of the head
-
Minimal mask cushion design with QuietAir™ vent technology
-
Lightweight, flexible frame
-
Quiet operation at only 24 dBA
-
1 — AirFit™ N30i SpringFit™ Mask Frame (of selected size)
-
1 — AirFit™ N30i Nasal Cushion (of selected size)
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — AirFit™ N30i Headgear
| Materials: |
|---|
| Nylon (PA) |
| Silicone |
| Polypropylene (PP) |
Frame Assembly Options:
-
AirFit™ N30i Frame Assembly without Headgear - Small Frame / Small Cushion - 63803
-
AirFit™ N30i Frame Assembly without Headgear - Small Frame / Medium Cushion - 63805
-
AirFit™ N30i Frame Assembly without Headgear - Small Frame / Wide Cushion - 63807
-
AirFit™ N30i Frame Assembly without Headgear - Small Frame / Small-Wide Cushion - 63809
-
AirFit™ N30i Frame Assembly without Headgear - Standard Frame / Small Cushion - 63802
-
AirFit™ N30i Frame Assembly without Headgear - Standard Frame / Medium Cushion - 63804
-
AirFit™ N30i Frame Assembly without Headgear - Standard Frame / Wide Cushion - 63806
-
AirFit™ N30i Frame Assembly without Headgear - Standard Frame / Small/Wide Cushion - 63808
Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
-
AirFit™ N30i/P30i Headgear - 63814
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Assembling Your Mask:
- Connect the elbow into the top of the frame until it clicks.
- Insert the headgear strap into the frame and fold the fastening tabs backwards.
- Insert the ends of the frame into the cushion, ensuring that the arrows on the cushion and frame are aligned. Note: If the elbow ring detaches, re-insert into the top of the frame.

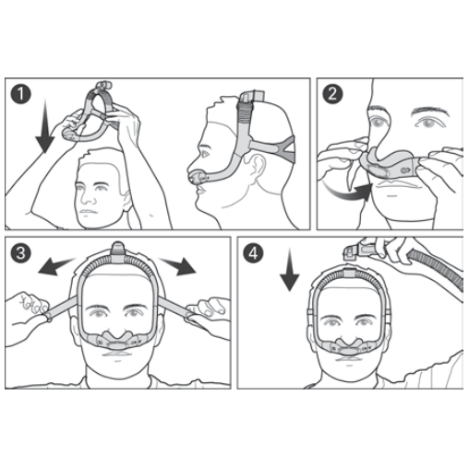

Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- Pull the frame and headgear over your head until the elbow is positioned on top and the headgear is behind your head.
- Place the cushion under your nose. For the AirFit P30i mask, align the pillows into your nostrils.
- Tighten or loosen the headgear until the cushion fits comfortably under your nose.
- Squeeze the side buttons on the elbow and detach from the frame. Connect the air tubing from your device to the elbow, then reattach to the frame.

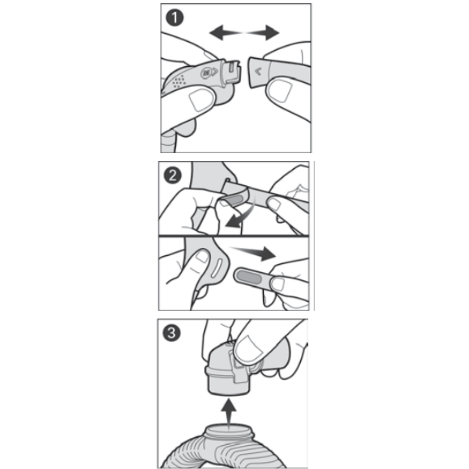

Disassembling Your Mask:
If your mask is connected to a device, disconnect the device air tubing
from the mask elbow.
Refer to the disassembly diagrams in these instructions.
- Pull the cushion from the frame.
- Undo the fastening tabs on the headgear strap and pull it from the frame.
- Squeeze the side buttons on the elbow and detach from the frame. Note: The QuietAir vent can be removed to allow inspection of the vent holes.
| Operating Therapy Pressure Range |
| 4 to 25 cm H²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
AirFit™ N30i: Fitting Guide
AirFit™ N30i: Mask Frame Sizing Guide
AirFit™ N30i: Cushion Sizing Guide
AirFit™ N30i: Assembly Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | ResMed |
|---|---|
| SKU | pb_N30i-HG-FA |
| Model | pb_N30i-HG-FA |
| UPC | 00619498638024, 00619498638031, 00619498638048, 00619498638055, 00619498638062, 00619498638079, 00619498638086, 00619498638093, 00619498638147 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Mask Frame: 5.83" (W) x 4.13" (H) |
| Included | 63805, 63807, 63809, 63802, 63804, 63806, 63808, 63803, 63814 |
