ResMed Quattro™ FX Full Face CPAP Mask

30 Day Mask Guarantee
Mask Satisfaction Guarantee
Free Shipping
Get free shipping on this mask
Loyalty Rewards Points
Earn 94 Loyalty Rewards Points

$94.00

4.40 12

This complete ResMed Quattro™ FX full face CPAP mask with dual wall cushion is a sleek, lightweight alternative to traditional full face masks.

MORE
Customize ResMed Quattro™ FX Full Face CPAP Mask
Tooltip Icon If you'd like your mask order to include headgear, please select an option from the dropdown.

* Required Fields

Your Customization
ResMed Quattro FX Full Face CPAP Mask ResMed Quattro FX Full Face CPAP Mask
ResMed Quattro™ FX Full Face CPAP Mask

In stock

Summary

    In stock

    ResMed Quattro™ FX Full Face Mask Overview

    The ResMed Quattro™ FX combines the coverage and stability of full face coverage with a feeling of openness and a clear line of sight. Back and side sleepers alike will find the Quattro™ mask fits comfortably and securely, even with user movement.

    This mask system features a compact and lightweight design and quiet ventilation thanks to a grid of ports located on the nasal bridge. This design helps efficiently disperse exhaled air over a greater area, venting it away from you and your bed partner.

    The spring frame and dual wall silicone SpringAir™ cushion together provide even air pressure all night long and no red marks, even on the bridge of your nose. CPAP users who are accustomed to a heavier mask with a forehead strap will appreciate full face cushion that’s been slimmed down for a more comfortable night’s sleep. It’s ideal for those who find traditional masks too bulky as well as people who have recently been diagnosed with sleep apnea or are new to CPAP machine therapy.

    Please note: headgear is not included in your order unless selected above.

    • Dual-wall SpringAir™ cushion is soft on skin while maintaining a secure seal

    • Fewer facial pressure points

    • No forehead support for a clear field of vision

    • Nasal bridge exhalation ports quietly vent air away from you and your bed partner

    • 360 degree rotating elbow to adjust to movements during sleep

    • 1 - Quattro™ FX Spring Frame and Mask Frame
    • 1 - Quattro™ FX Mask Cushion
    • 1 - Swivel
    • 1 - Elbow
    • 1 - Valve & Valve Clip
    • 1 - Ports Cap
    • 1 - Spring Frame Support

    Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:

    • 1 - Quattro™ FX Headgear
    • 2 - Headgear Clips

    Mask Frame Size Options:

    • Quattro™ FX Mask System - without Headgear - Small - 61724

    • Quattro™ FX Mask System - without Headgear - Medium - 61725

    • Quattro™ FX Mask System - without Headgear - Large - 61726

    Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):

    • Quattro™ FX Headgear (Small) - 61734

    • Quattro™ FX Headgear (Medium) - 61733

    • Quattro™ FX Headgear (Large) - 61738

    Breathing Style:

    • Mouth Breathers

    Sleeping Style:

    • Back Sleepers

    • Side Sleepers

    Additional Considerations:

    • High Pressure Settings

    • Chronic Allergies or Nasal Congestion

    Assembling Your Mask:

    Refer to the assembly diagrams in these instructions.

    1. Insert the valve into the clip.
    2. Push the valve clip onto the elbow and insert the swivel into the end of the elbow.
    3. Replace the ports cap.
    4. Fit the cushion into the channel of the frame. Fit the top section first, then work your way around, pushing the cushion into the frame. Ensure that the cushion is not twisted or distorted around the frame.
    5. Replace the soft sleeves onto the spring frame and align the spring frame with the frame.
    6. Starting at the top, gently push and click the spring frame into the frame.
    7. Gently push and click each side of the lower spring frame into the frame.
    8. Replace the elbow into the mask assembly.

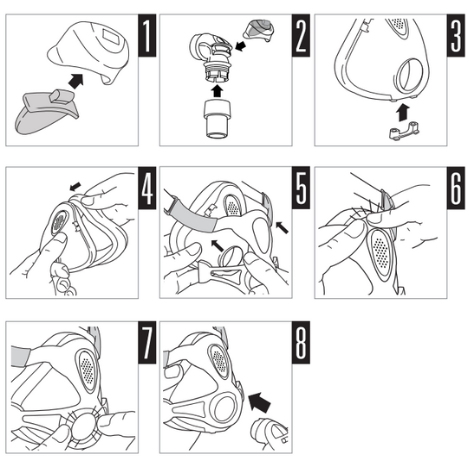

    ResMed Quattro FX Full Face CPAP Mask Assembly Guide DiagramResMed Quattro FX Full Face CPAP Mask Assembly Guide Diagram

    Fitting Your Mask:

    Prior to fitting your mask, remove the spring frame support from the rear of your mask and retain for future use. The Fitting illustrations section in this guide show the sequence for obtaining the best fit and comfort in using your mask.

    1. With both lower headgear clips released, position your mask at an angle against your face, ensuring that the top of the cushion contacts your nasal bridge first.
    2. Keeping the upper position of the mask in place, swing the lower half of the mask down against your face so that it rests halfway between your bottom lip and chin.
    3. Hold the mask firmly against your face and pull the headgear over your head.
    4. Bringing the lower straps below your ears, clip the headgear into the lower part of the spring frame.
    5. Unfasten the Velcro®, pull the upper headgear straps evenly until they are comfortable and firm, and reattach the Velcro.
    6. Repeat step 5 with the lower headgear straps.

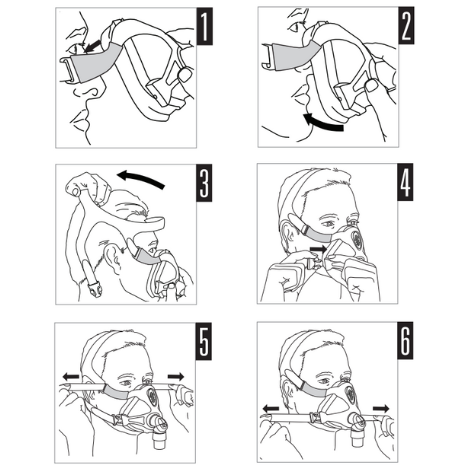

    ResMed Quattro FX Full Face CPAP Mask Fitting Guide DiagramResMed Quattro FX Full Face CPAP Mask Fitting Guide Diagram

    Disassembling Your Mask:

    Before disassembling your mask, detach the air tubing and unclip the lower
    headgear clips from the spring frame. Refer to the disassembly illustrations in
    this guide.

    1. Remove the elbow assembly from the mask.
    2. Gently pull the spring frame away from the frame. Remove the soft sleeves from the spring frame.
    3. Gently separate the cushion from the frame.
    4. Remove the ports cap.
    5. Remove the valve clip and detach the swivel from the elbow.
    6. Peel the valve away from the valve clip. Do not pull on the membrane to remove the valve.

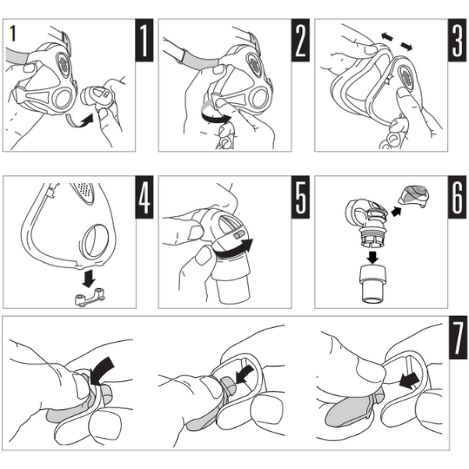

    ResMed Quattro FX Full Face CPAP Mask Disassembly Guide DiagramResMed Quattro FX Full Face CPAP Mask Disassembly Guide Diagram
    Operating Therapy Pressure Range
    4 to 30 cm H²O

    CPAPsupplies.com: CPAP Supplies Replacement Schedule

    • CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
    • CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
    • CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months

    CPAPsupplies.com: CPAP Supplies Replacement Schedule

    Specifications
    BrandResMed
    SKUpb_quattro_fx_complete
    Modelpb_quattro_fx_complete
    UPC619498617241, 619498617258, 619498617265, 00619498617340, 00619498617333, 00619498617388, 00837654800201, 00837654800218, 00837654800225, 00619498617210, 00619498617227, 00619498613533, 187293000372, 737709005691, 848530082147, 087052711641, 087052720667
    Prescription RequiredNo
    Manufacturer's Warranty90-day limited manufacturer's warranty
    FSA/HSA Eligible Yes
    DimensionsWithout Headgear - Small: 4.76“ (H) x 6.93“ (W) x 5.67“ (D); Medium: 5.12“ (H) x 6.93“ (W) x 5.67“ (D); Large: 5.51“ (H) x 6.93“ (W) x 5.67“ (D)
    Included61724, 61725, 61726, 61734, 61733, 61738
