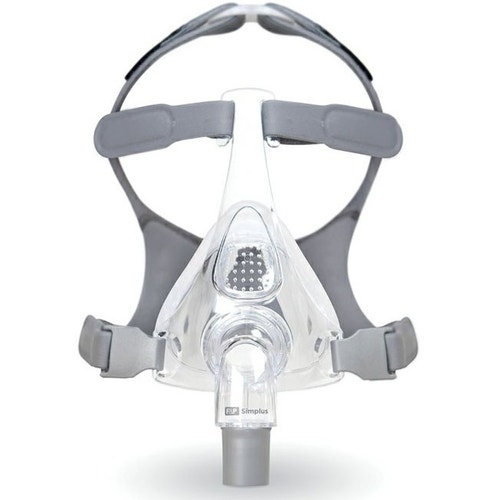

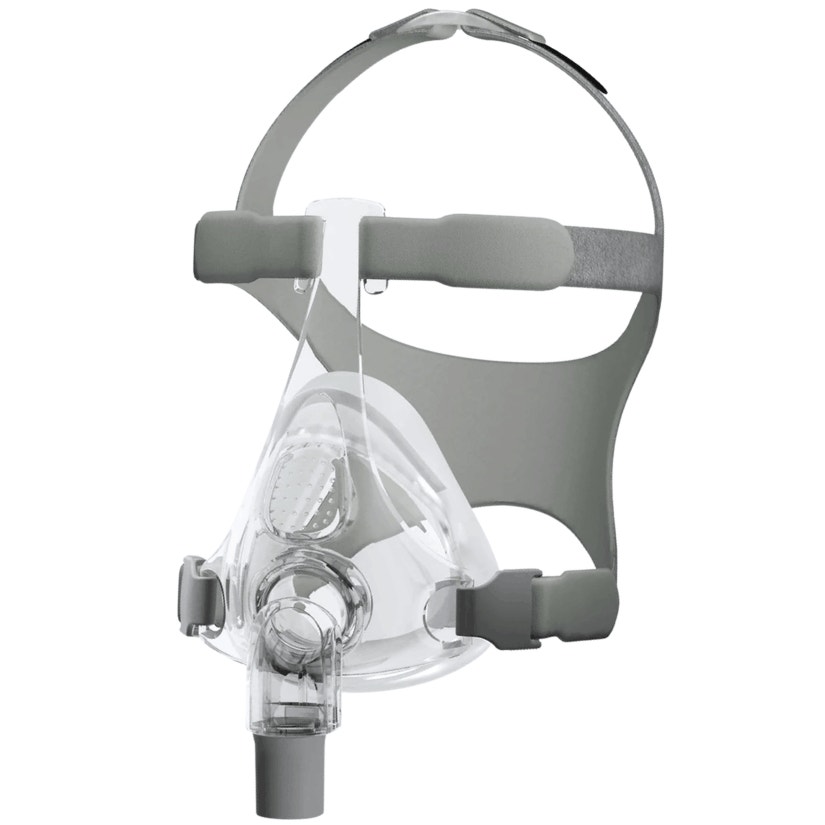

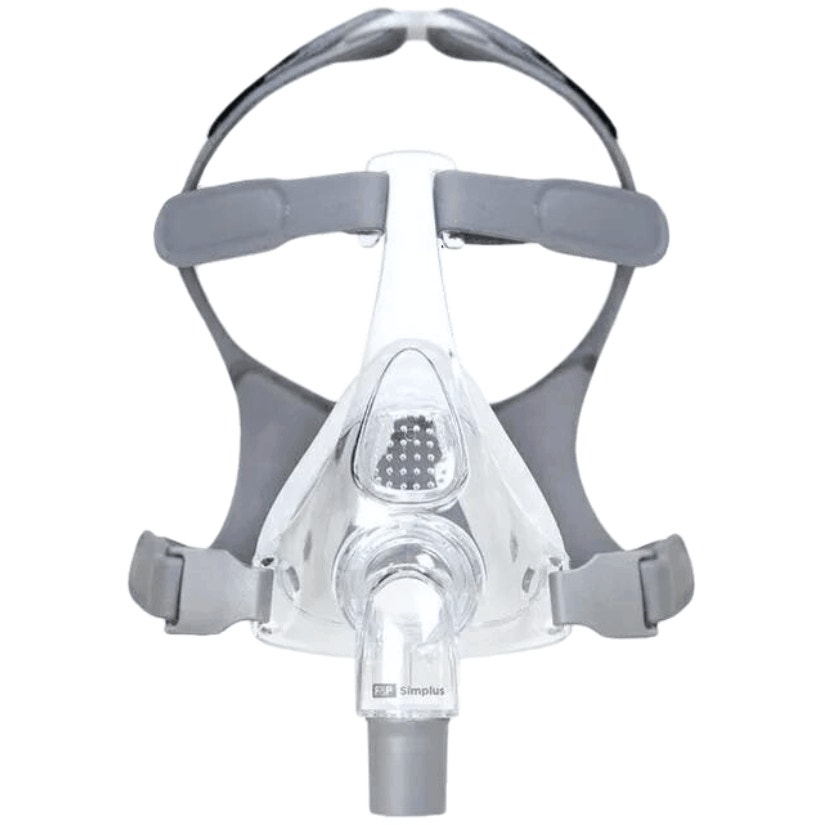

Fisher & Paykel Simplus™ Full Face CPAP Mask
$104.00
Engineered to revolutionize full face mask comfort, seal, and ease of use, the Simplus™ has three key components to accomplish this feat: the RollFit™ Seal, the ErgoForm™ Headgear, and the Easy Clip Frame. These three features work together to create an advanced CPAP therapy system that is simple to use.

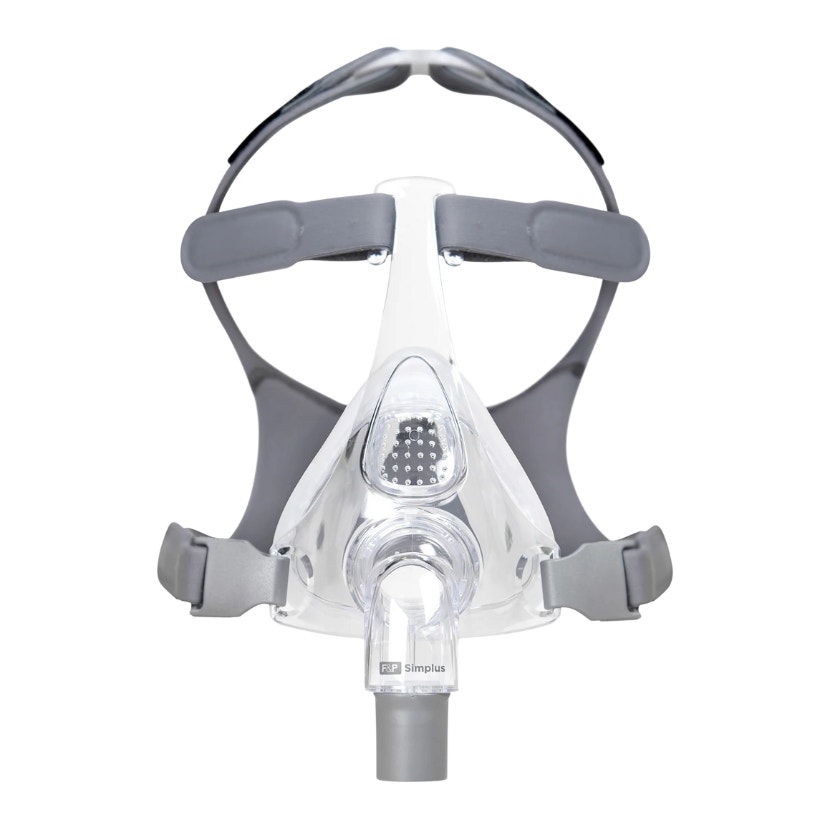

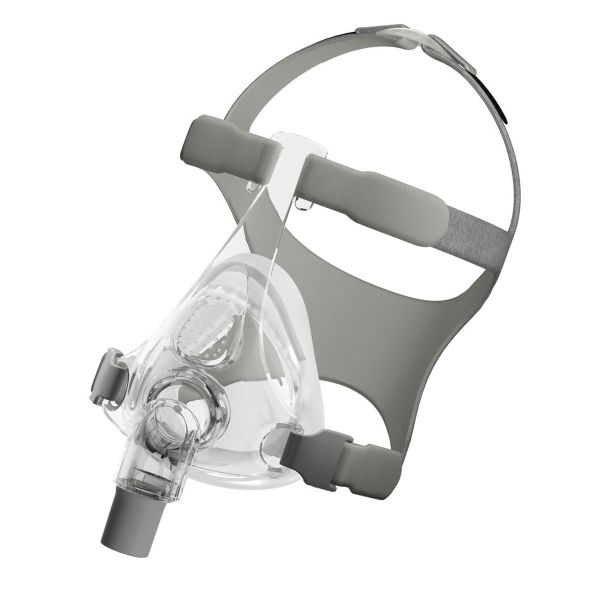

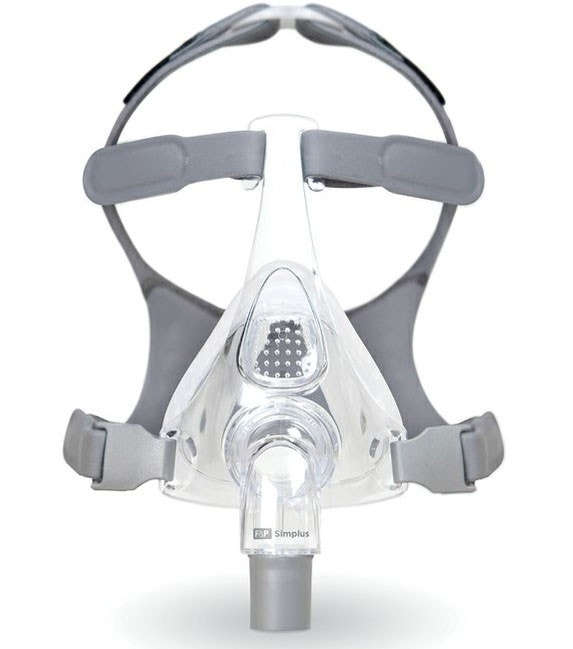

Fisher & Paykel Simplus™ Full Face CPAP Mask Overview
The Fisher & Paykel Simplus™ revolutionizes full face mask comfort, fit, and ease of use. The RollFit™ cushion rolls and flexes to reduce pressure and improve your mask seal during sleep. The low-profile, lightweight frame provides a clear line of sight, so you'll hardly know it's there. And the ErgoForm™ Headgear is designed to self-locate on the rear of your head to enhance your range of head movement, and comes equipped with embedded Velcro tabs and Easy-Clip hooks to allow for quick and simple fitting and removal.
The Simplus™ is the result of intensive research and development by Fisher & Paykel specialists after extensive consulting with sleep apnea patients, clinicians, and doctors. As a result, the Simplus™ full face mask won the Purple Pin prize at the 2014 Best Design Awards and the HME Business 2014 New Product Award.
- Please note: Simplus™ Headgear is available as an option but not included automatically. It is also not required. If you'd like your order to include headgear, please select your preferred option above.
- The frame for this system gives the patient a clear line of sight
- One-frame-fits-all benefit
- Easy-Clip Frame attachment makes assembly after cleaning the frame system effortless

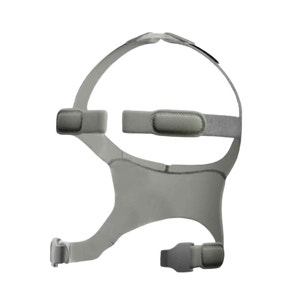

- Self-locating high on the head, the headgear is breathable and fits most head shapes

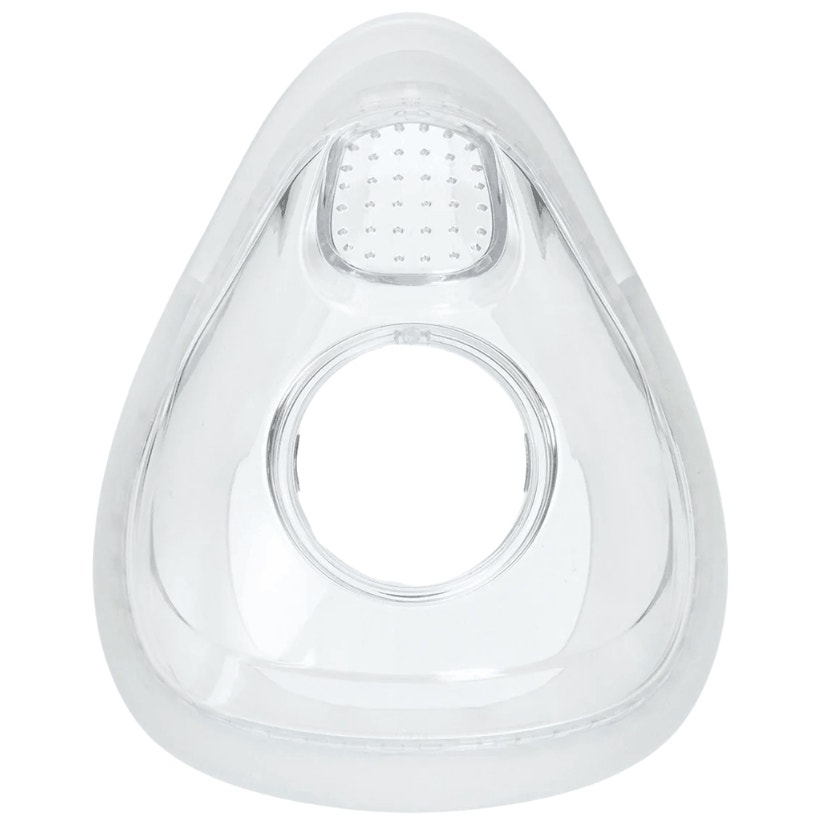

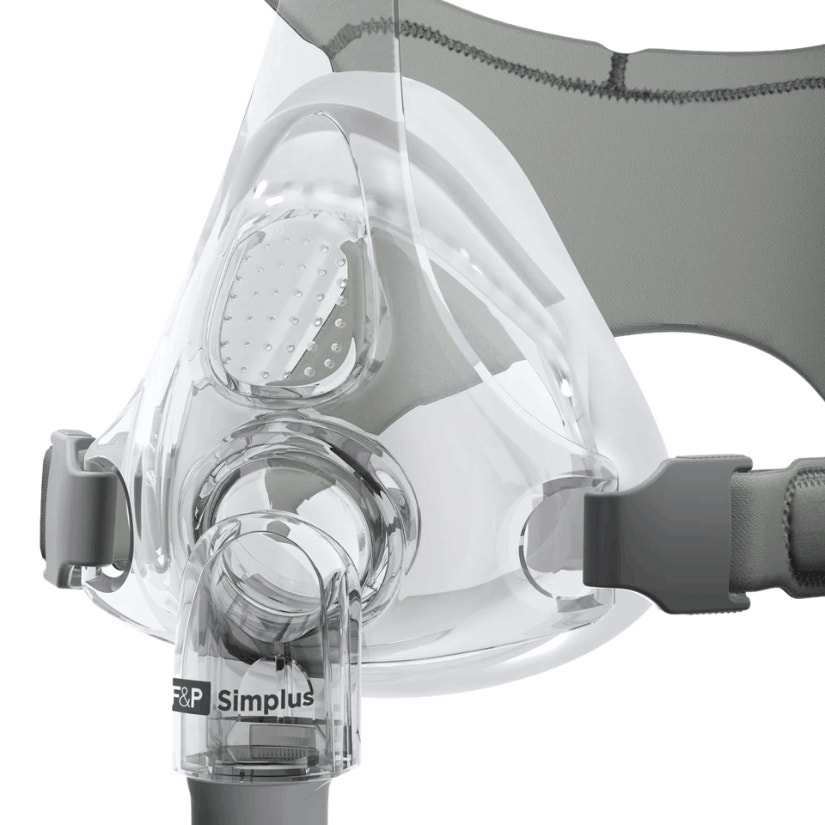

- RollFit™ Seal is a one-piece seal system that 'rolls' back and forth on the bridge of the nose. This feature minimizes pressure often felt on the nose while maintaining a tight seal
- Enjoy an air diffuser that minimizes noise and draft for added comfort
-
1 — Simplus™ Mask Frame (of selected size option)
-
1 — Simplus™ Mask Cushion (of selected size option)
-
1 — Elbow
-
1 — Swivel
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — Simplus™ Headgear
-
2 — Headgear Clips
-
1 — Headgear Buckle
Mask Frame Size Options:
- Small - Simplus™ Mask System - without Headgear - 400HC584
- Medium - Simplus™ Mask System - without Headgear - 400HC585
- Large - Simplus™ Mask System - without Headgear - 400HC586

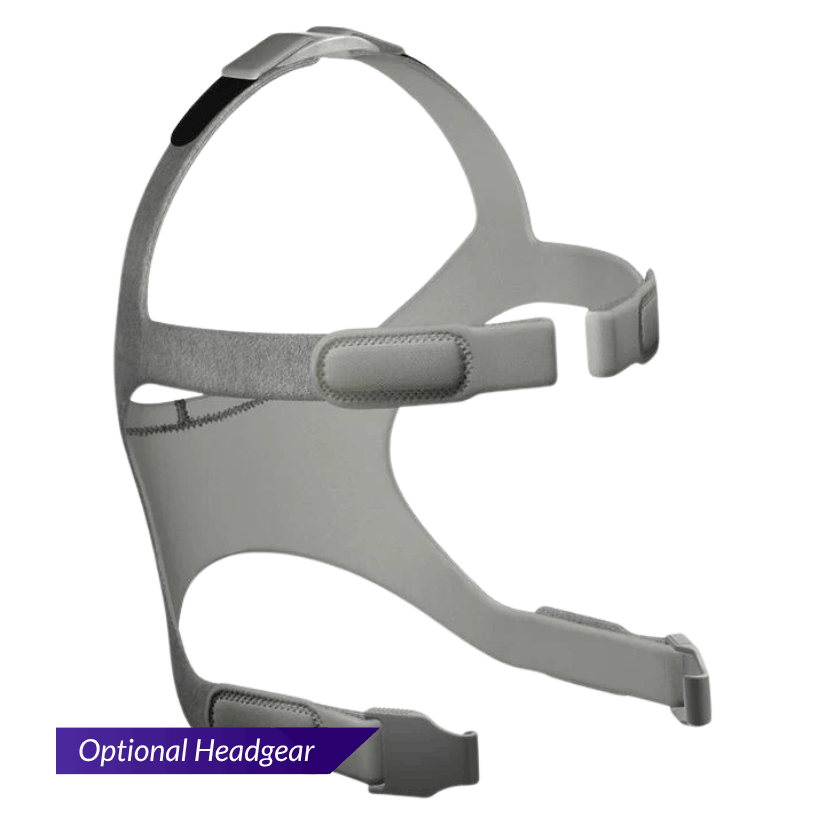

Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
- Small - Simplus™ Headgear - 400HC582
- Medium/Large - Simplus™ Headgear - 400HC583
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Push the Silicone Cushions onto the Mask Frame in the orientation shown until a confirmation click is heard.
- Slide the Forehead Loops of the Headgear into the slots of the Mask Frame. This can be done without undoing the Velcro tabs.
- Hook the Headgear Clips onto the Mask Frame.
- Push the Swivel onto the Elbow.
- Attach the assembled mask to the CPAP tube.
Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images inside the front cover of these instructions.
- Hold the Mask Frame with one hand and the Headgear in your other hand. One of the Headgear Clips should be hooked onto the Mask Frame.
- Place the Cushion Seal on your face and guide the Headgear over your head.
- Hook the unattached Headgear Clip onto the Mask Frame.
- Gently tighten the Headgear Straps in the correct order. Position the top Headgear Strap when first fitted and the middle and lower Headgear Straps when adjusting to avoid mask leaks.
Caution: Ensure the Headgear is not overtightened. The mask, when fitted correctly, should be able to be pulled away from your mouth without adjusting the Headgear straps or disconnecting the Headgear Clips.
Fitting Tips: Do not over-tighten any of the Headgear Straps. Forehead Straps should be resting horizontally on your forehead, just above your ears.
| Operating Therapy Pressure Range |
| 4 to 25 cm H²O |
Simplus™ Introduction Video
Simplus™ Fitting Guide Video
Simplus™ Cleaning Guide Video
Simplus™ Assembly Guide Video
CPAPsupplies.com CPAP Supplies Replacement Schedule Video

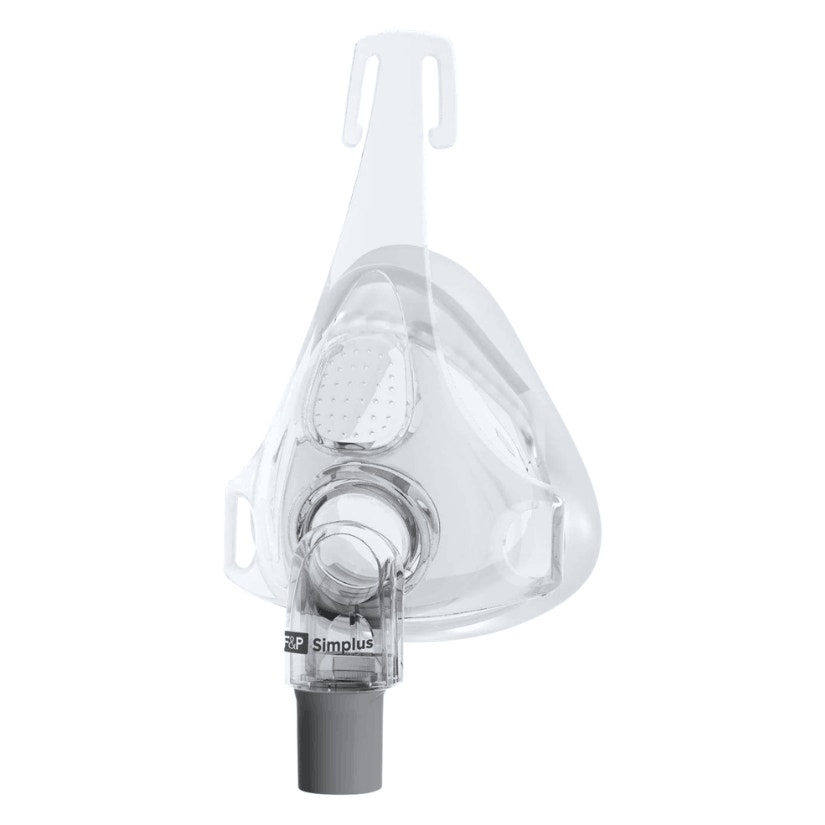

This replacement CPAP mask assembly for the Simplus™ Full Face Mask includes one Simplus™ Frame replacement and one Simplus™ Cushion replacement of your selected size. Simplus™ Headgear replacement is not included unless selected above.
When To Replace Simplus™ Frame?
- Resupply Every 3 Months
When To Replace Simplus™ Cushion?
-
Resupply Every 30 Days
When To Replace Simplus™ Headgear?
-
Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
Part Cleaning Frequency Instructions Mask Cushions
Daily
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask cushions to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
Chinstrap
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Fisher & Paykel |
|---|---|
| SKU | pb_simplus_mask |
| Model | pb_simplus_mask |
| UPC | 9420012426154, 9420012426161, 9420012426178, 9420012426215, 9420012426222, 9420012426239, 9420012426246, 9420012426253 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Headgear: 11" (L) × 9" (W) × 1" (H); Mask Frame: 3 3/4" (L) x 2 1/2" (W) x 7 1/2" (H); Cushions: Small -- 3 1/2" (L) x 2 1/2" (W) x 4" (H); Medium -- 3 1/2" (L) x 2 1/2" (W) x 4 1/4" (H); Large -- 3 1/2" (L) x 2 1/2" (W) x 4 1/2" (H) |
| Included | 400HC584, 400HC585, 400HC586, 400HC582, 400HC583 |
