ResMed Quattro™ Air Full Face CPAP Mask
$94.00
The Quattro™ Air Full Face CPAP Mask by ResMed offers excellent support and comfort through innovative technology. Featuring ResMed's SpringAir™ cushions, the Quattro™ Air is designed to reduce pressure points on your face, while maintaining an effective seal to prevent air leaks.
ResMed Quattro™ Air Full Face CPAP Mask Overview
The Quattro™ Air is the lightest full face masks on the market. It is lighter, sleeker, less bulky and builds on the proven reliability and performance of the Quattro™ Series for a more comfortable therapy experience. With four simple parts, assembly and cleaning are hassle-free. The SpringAir™ cushion reduces pressure often felt on the face with full face masks while maintaining a tight seal.
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above.
-
45% lighter than the Mirage Quattro™
-
Flex-wing forehead support is light and comfortable
-
Assembly and cleaning are made easy with four easy to disassemble pieces
-
One piece elbow with squeeze tabs make attaching and detaching easy
-
1 - Quattro™ Air Mask Frame and Cushion (of selected size option)
-
1 - Elbow
Please note: Headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 - Quattro™ Air SoftEdge™ Headgear
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion

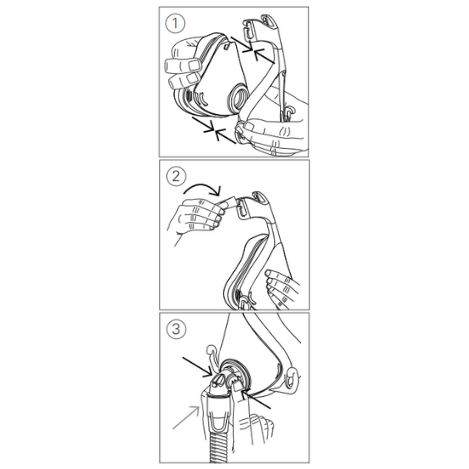

Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Press the frame onto the rest of the mask, ensuring it clicks into place at the top and at both bottom corners.
- Attach the top headgear straps to the frame by looping through each of the upper headgear hooks. Ensure that the ResMed logo on the headgear is facing outward and right side up.
- Attach the elbow to the air tubing. Attach the elbow and air tubing to the mask by pressing the side buttons and pushing the elbow into the mask. Pull on the elbow to check that it sits securely in the mask.

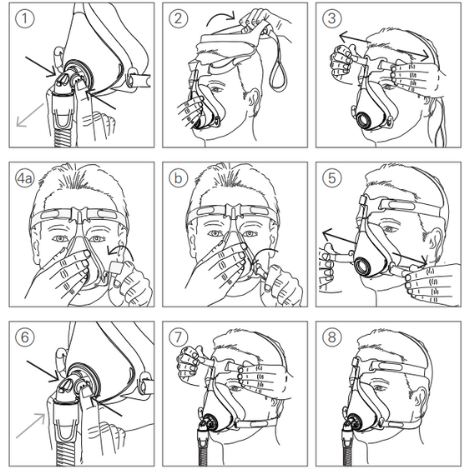

Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- Remove the elbow from the mask by pressing the side buttons and pulling the elbow away.
- With both lower headgear straps released, hold the mask against your face and pull the headgear over your head. Ensure that the label on the back of the headgear faces outwards when the headgear is put on.
- Undo the fastening tabs on the upper headgear straps. Pull the straps evenly until the mask is stable and positioned as shown in the illustrations. Reattach the fastening tabs.
- Bring the lower straps below your ears and loop the headgear into the lower hooks on the frame.
- Undo the fastening tabs on the lower headgear straps. Pull the straps evenly until the mask sits firmly on the chin and reattach the fastening tabs.
- Connect the air tubing from your device to the elbow. Attach the elbow to the mask by pressing the side buttons and pushing the elbow into the mask. Turn on your device so that it is blowing air.
- Undo the fastening tabs on the upper headgear straps. Readjust the straps evenly only enough that a seal is achieved and reattach the fastening tabs. Overtightening may cause leaks.
- Your mask and headgear should be positioned as shown.

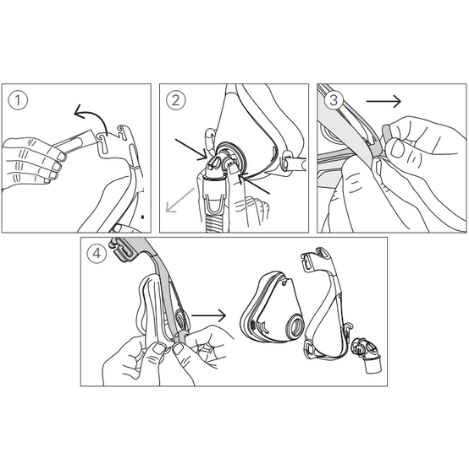

Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
- Unhook the upper headgear straps from the frame. There is no need to undo the fastening tabs.
- Remove the elbow from the mask by pressing the side buttons and pulling the elbow away. Remove the elbow from the air tubing.
- While holding the bottom of the hook, pull the corner of the frame slightly away from the side of the mask.
- Remove the frame from the rest of the mask.
| Operating Therapy Pressure Range |
| 3 to 40 cm H²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Quattro™ Air: Fitting Guide
Quattro™ Air: Cleaning Guide
Quattro™ Air: Tips & Tricks
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
| Brand | ResMed |
|---|---|
| SKU | pb_quattro_air_complete |
| Model | pb_quattro_air_complete |
| UPC | 702754065068 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 62752, 62753, 62754, 62755, 62757, 62756 |
