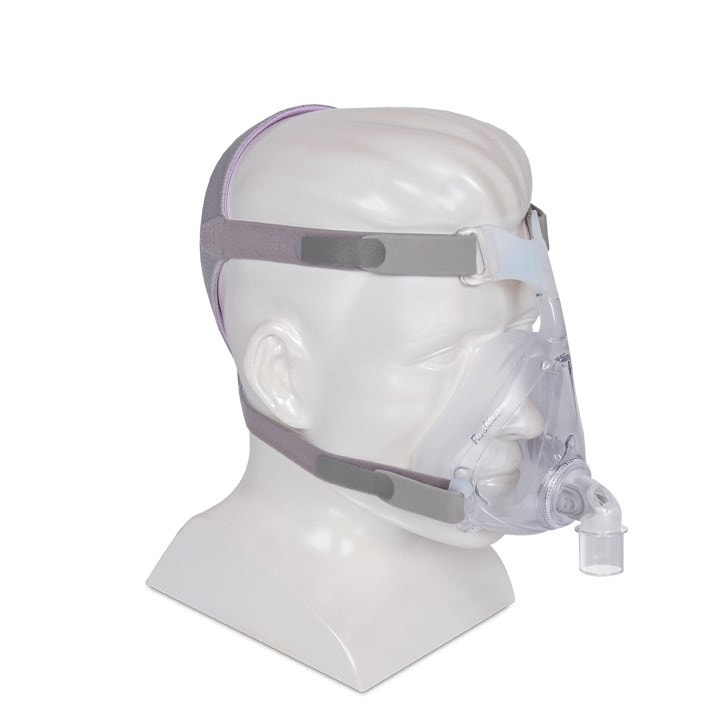

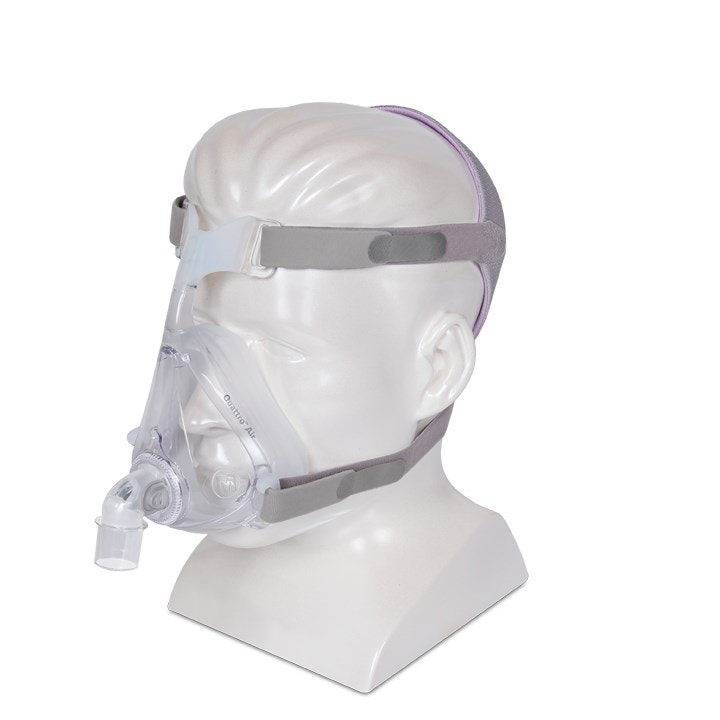

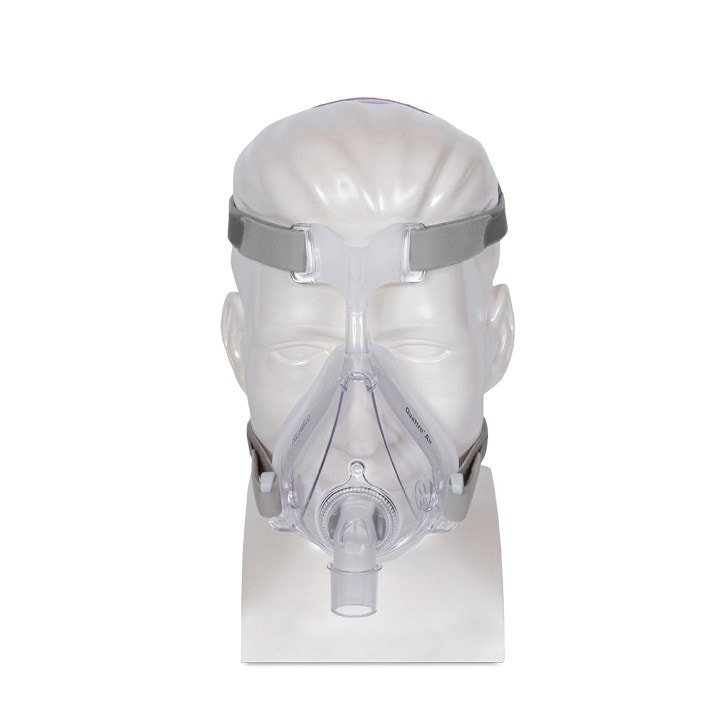

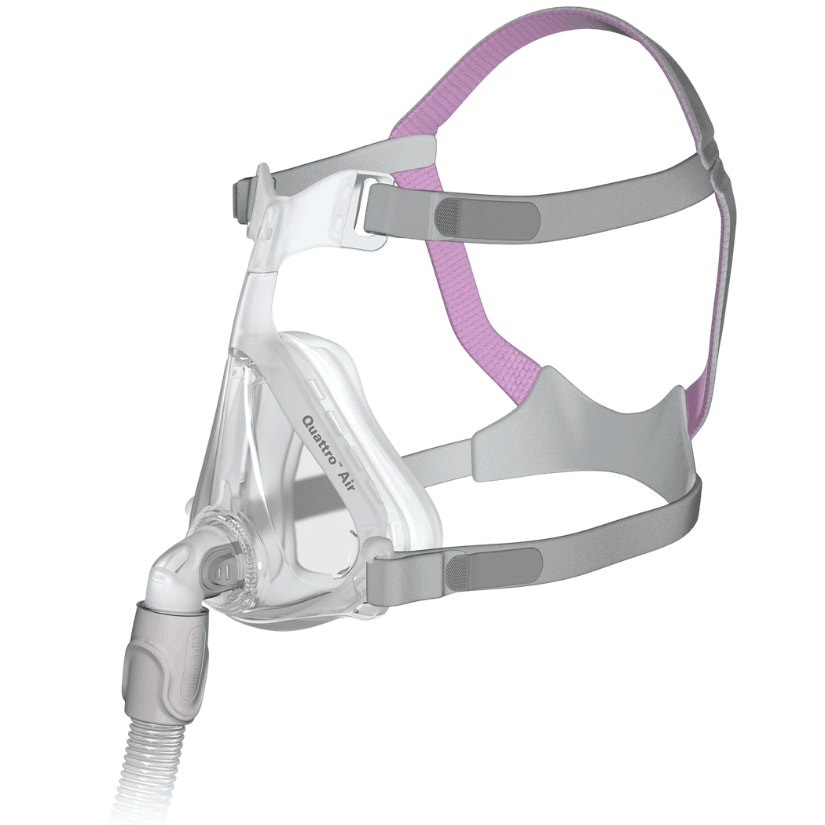

Resmed Quattro™ Air for Her Full Face CPAP Mask
$94.00
The Quattro™ Air for Her Full Face CPAP Mask is one of the lightest options available on the market. Featuring Resmed's SpringAir™ cushions, the Quattro™ Air is designed to reduce pressure on your face while maintaining a secure, high-performing mask seal.
Resmed Quattro™ Air for Her Full Face CPAP Mask Overview

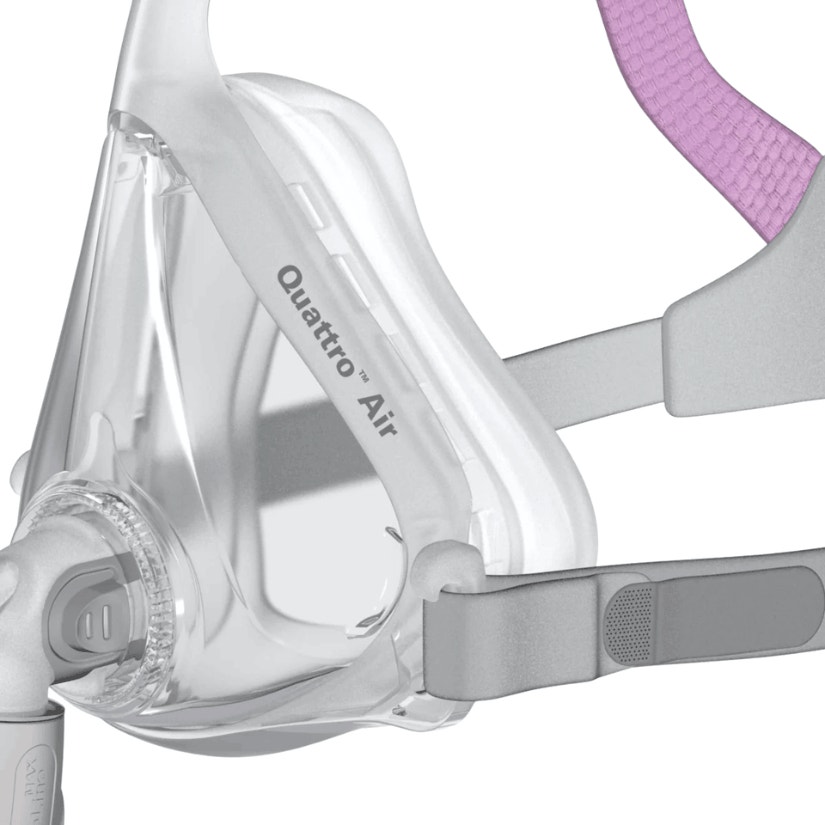

The Quattro™ Air for Her is a lighter, more petite version of the Quattro™ Air. This mask is specifically designed to fit a woman's face and offer proper support to minimize facial contact, creating a more comfortable therapy session. In addition, this mask is made of just four parts so cleaning and assembly are easy.

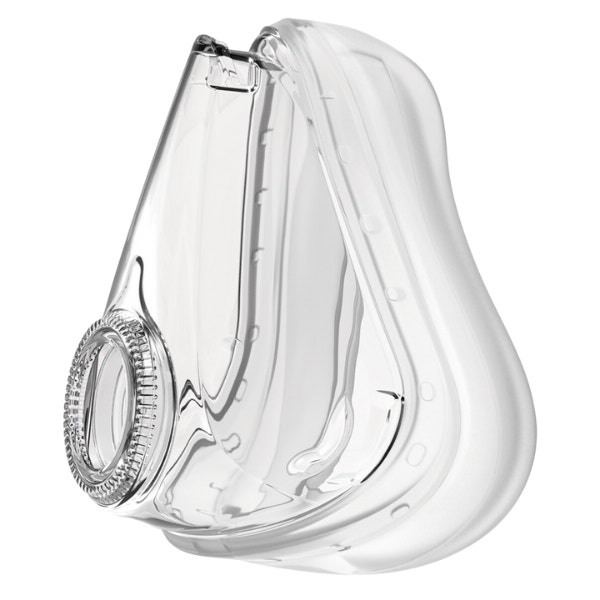

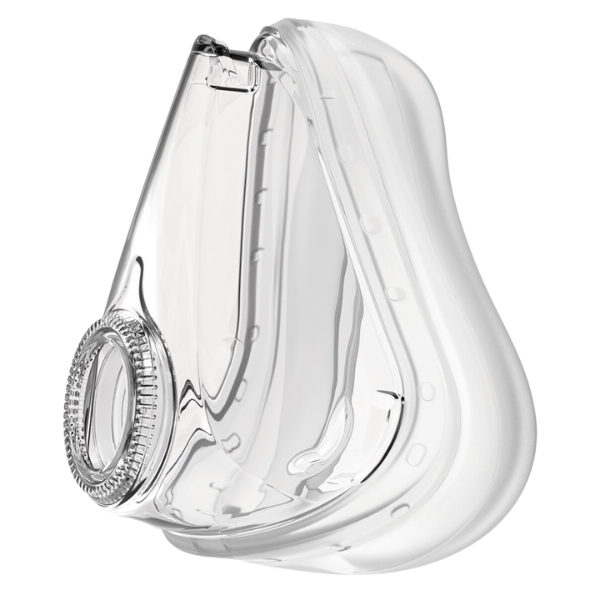

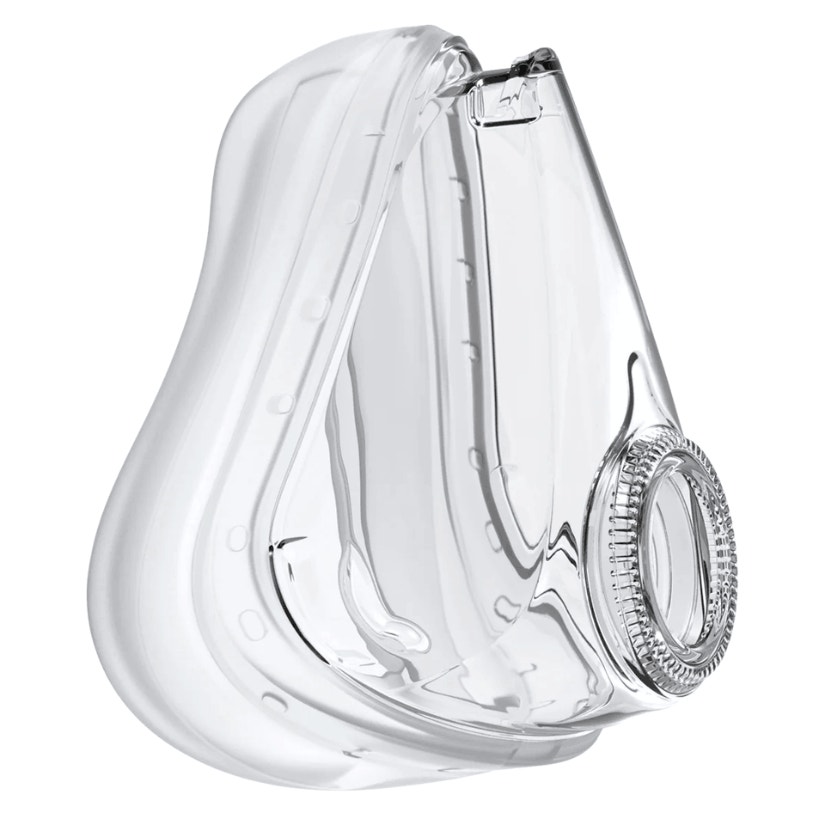

The SpringAir™ cushion reduces pressure commonly felt on the face when using full face masks while maintaining a tight seal.
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option.
-
Flex wing forehead support enables auto adjustments and eliminates forehead pads for greater comfort and lighter feel
-
SoftEdge headgear with premium rolled edge fabric reduces facial marks (Please note: headgear is available as an option but not included automatically. It is also not required. However, if you'd like your order to include headgear, please select your preferred option above).
-
Patented dual wall cushion with enhanced design at the nasal bridge delivers significantly better comfort
-
Circular diffused vents quietly direct air away from you and your bed partner
-
Improves patient usability with a streamlined and comfortable design
-

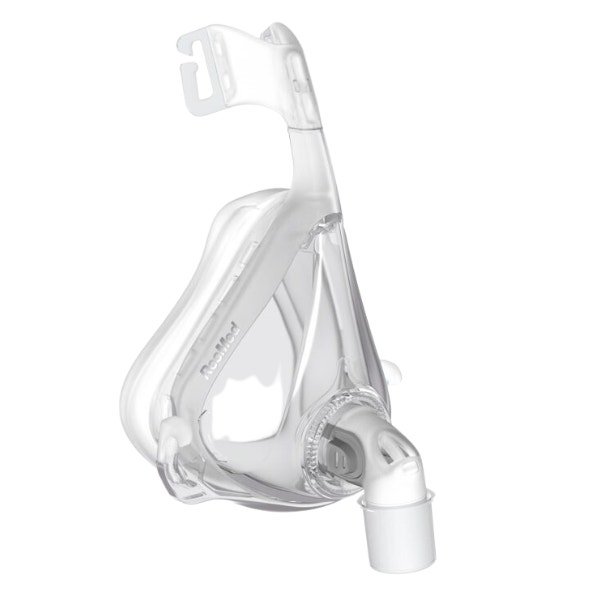

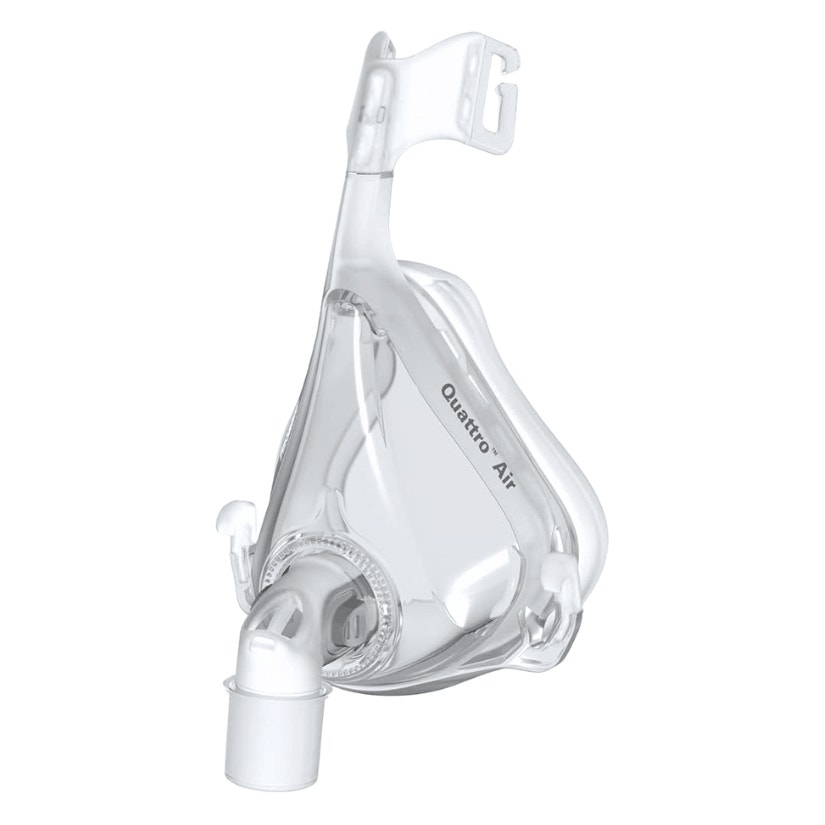

1 — Quattro™ Air for Her Mask Frame and Cushion (of selected size option)
-
1 — Elbow
Please note: Headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-

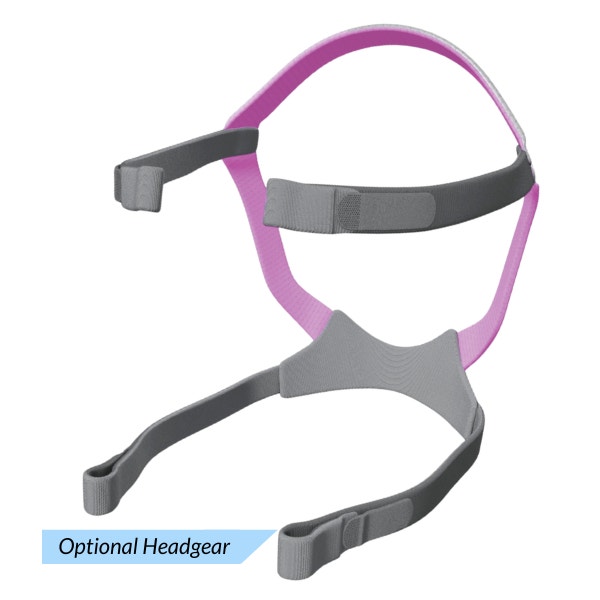

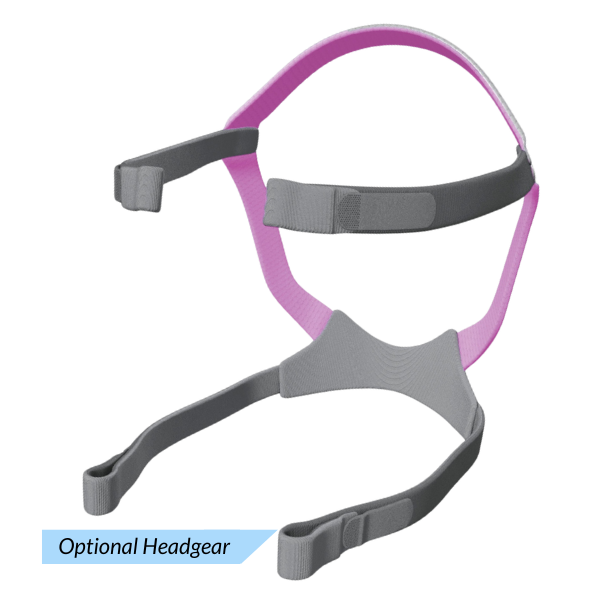

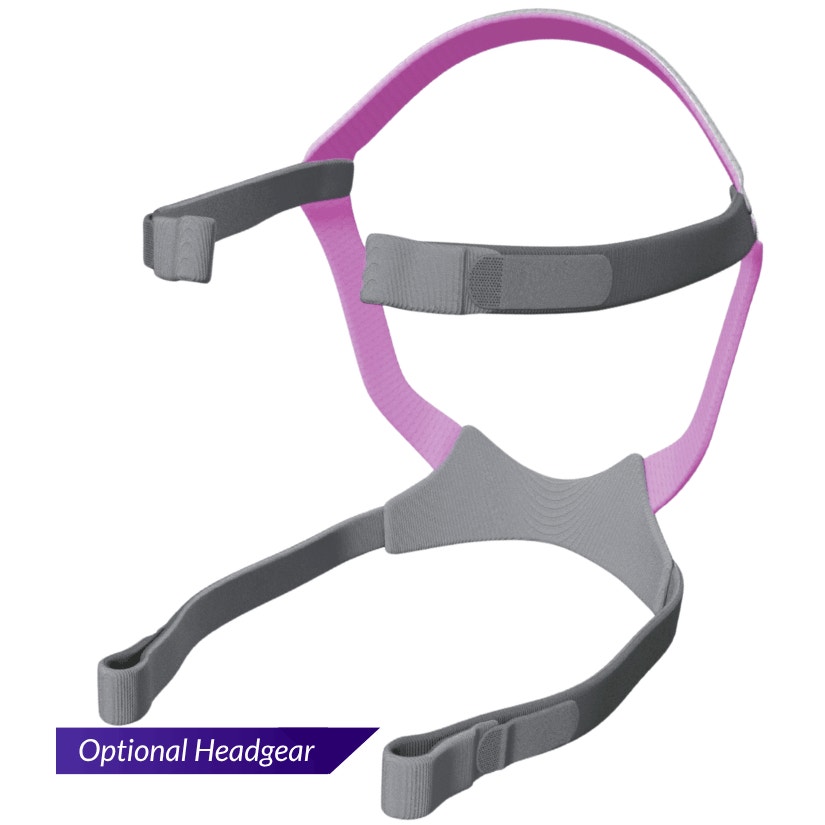

1 — Quattro™ Air for Her SoftEdge™ Headgear
Mask Frame Size Options:
-
Extra Small Quattro™ Air Mask System without Headgear - 62752
-
Small Quattro™ Air Mask System without Headgear - 62753
-
Medium Quattro™ Air Mask System without Headgear - 62754
-
Large Quattro™ Air Mask System without Headgear - 62755
Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
-
Small Quattro™ Air For Her Headgear Pink/Gray - 62758
-
Standard Quattro™ Air For Her Headgear Pink/Gray - 62759
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
Assembling Your Mask
Refer to the assembly diagrams in these instructions.
- Press the frame onto the rest of the mask, ensuring it clicks into place at the top and at both bottom corners.
- Attach the top headgear straps to the frame by looping through each of the upper headgear hooks. Ensure that the Resmed logo on the headgear is facing outward and right side up.
- Attach the elbow to the air tubing. Attach the elbow and air tubing to the mask by pressing the side buttons and pushing the elbow into the mask. Pull on the elbow to check that it sits securely in the mask.
Fitting Your Mask
Refer to the fitting diagrams in these instructions.
- Remove the elbow from the mask by pressing the side buttons and pulling the elbow away.
- With both lower headgear straps released, hold the mask against your face and pull the headgear over your head. Ensure that the label on the back of the headgear faces outwards when the headgear is put on.
- Undo the fastening tabs on the upper headgear straps. Pull the straps evenly until the mask is stable and positioned as shown in the illustrations. Reattach the fastening tabs.
- Bring the lower straps below your ears and loop the headgear into the lower hooks on the frame.
- Undo the fastening tabs on the lower headgear straps. Pull the straps evenly until the mask sits firmly on the chin and reattach the fastening tabs.
- Connect the air tubing from your device to the elbow. Attach the elbow to the mask by pressing the side buttons and pushing the elbow into the mask. Turn on your device so that it is blowing air.
- Undo the fastening tabs on the upper headgear straps. Readjust the straps evenly only enough that a seal is achieved and reattach the fastening tabs. Overtightening may cause leaks.
- Your mask and headgear should be positioned as shown.
Disassembling Your Mask
Refer to the disassembly diagrams in these instructions.
- Unhook the upper headgear straps from the frame. There is no need to undo the fastening tabs.
- Remove the elbow from the mask by pressing the side buttons and pulling the elbow away. Remove the elbow from the air tubing.
- While holding the bottom of the hook, pull the corner of the frame slightly away from the side of the mask.
- Remove the frame from the rest of the mask.
| Operating Therapy Pressure Range |
| 3 to 40 cm H²O |
Quattro™ Air Sizing and Fitting Guide Video
Quattro™ Air Cleaning Guide Video
Quattro™ Air Tips and Tricks Video
CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
Part Cleaning Frequency Instructions Mask Cushions
Daily
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask cushions to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
Chinstrap
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
| Brand | Resmed |
|---|---|
| SKU | pb_quattro_her |
| Model | pb_quattro_her |
| UPC | 702754079232 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 62752, 62753, 62754, 62755, 62758, 62759 |
