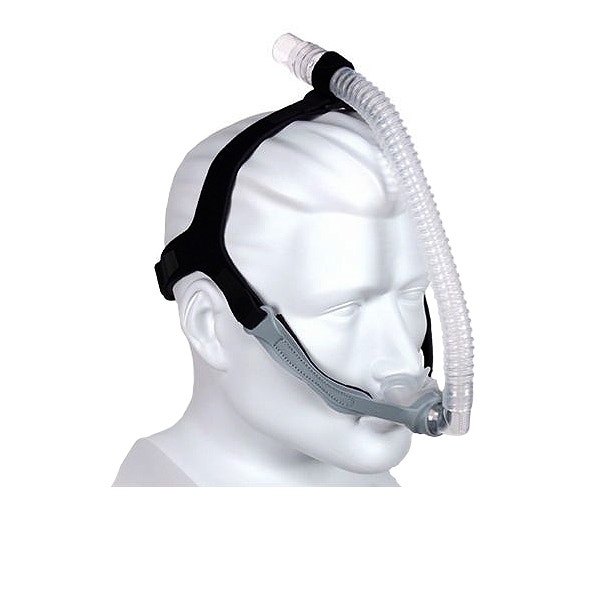

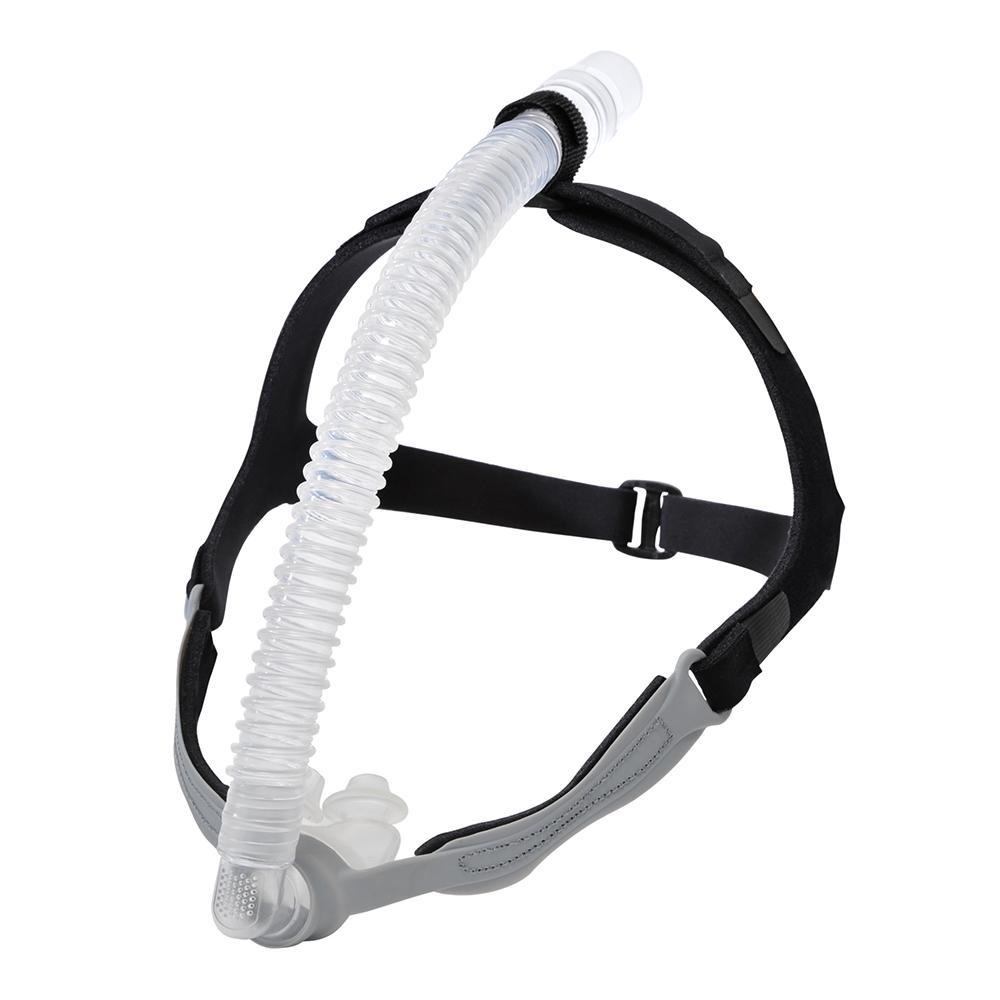

Fisher & Paykel Opus™ 360 Nasal Pillow CPAP Mask

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Mask Satisfaction Guarantee

Get free shipping on this mask

$39.99

The Opus™ 360 Nasal Pillow CPAP Mask has a slimline design that allows for almost any sleeping position without mask displacement. With its Silicone Pillows and facially Contoured Mask Frame for extra stability, patient comfort is paramount.

In stock

Overview

Fisher & Paykel Opus™ 360 Nasal Pillow CPAP Mask Overview

The redesigned Fisher & Paykel Opus™ 360 Nasal Pillows Mask provides an unprecedented level of comfort through the uniquely designed nasal pillow and headgear combination specially developed to contour to any face shape or size. The innovative 360° pivoting ball and socket elbow provides greater versatility. Anatomically shaped nasal pillows of this nasal interface CPAP mask have been refined to offer greater mobility and flexibility. The frame and headgear have also been revised to provide a better side sleeping experience, as well as a facially contoured design for a more comfortable fit. The mask comes with 3 nasal pillows in small, medium, and large for patient convenience and ease of use.

Please note: that headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option.

Fisher & Paykel CPAP Mask and CPAP Machine Compatibility

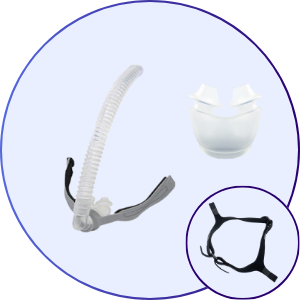

What's Included

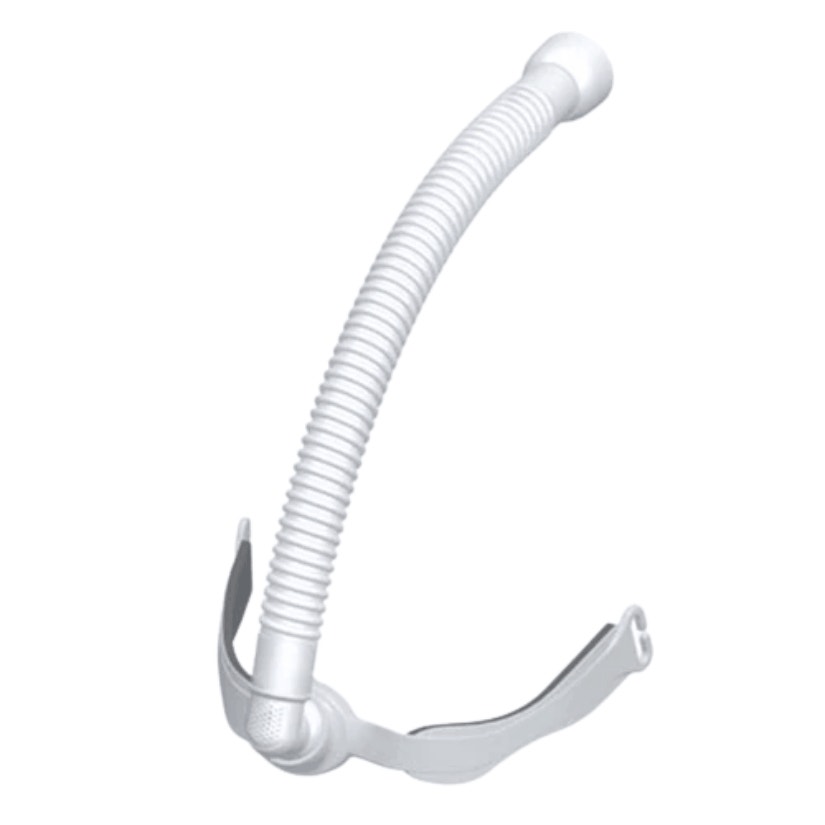

1 — Opus™ 360 Mask Frame

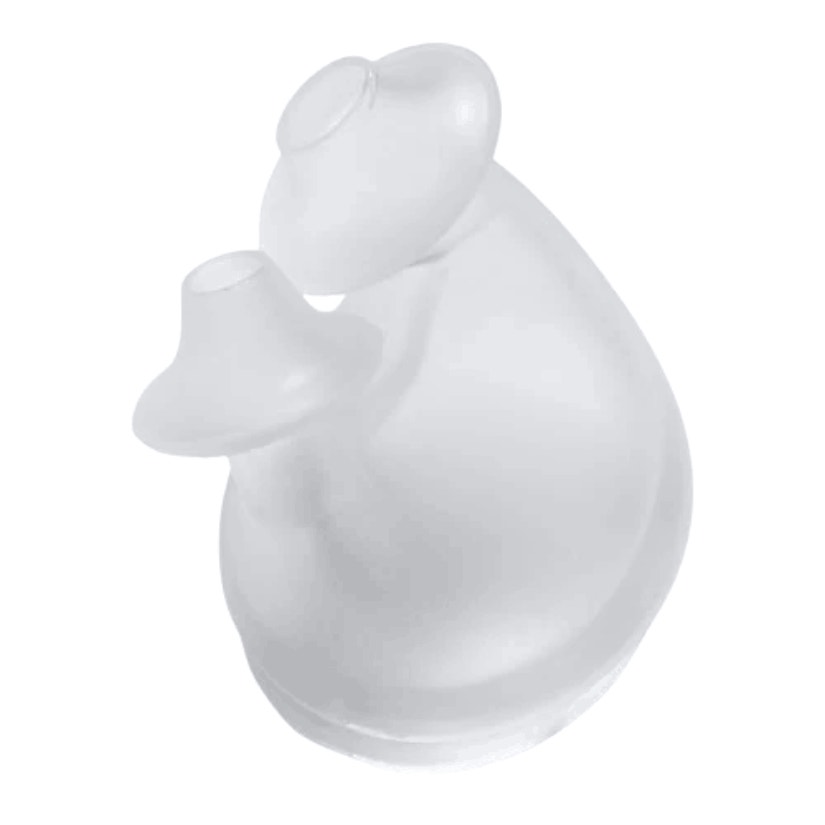

3 — Opus™ 360 Nasal Pillows (1 - Small, 1 - Medium, 1 - Large)
1 — Elbow
1 — Flexitube
1 — Swivel

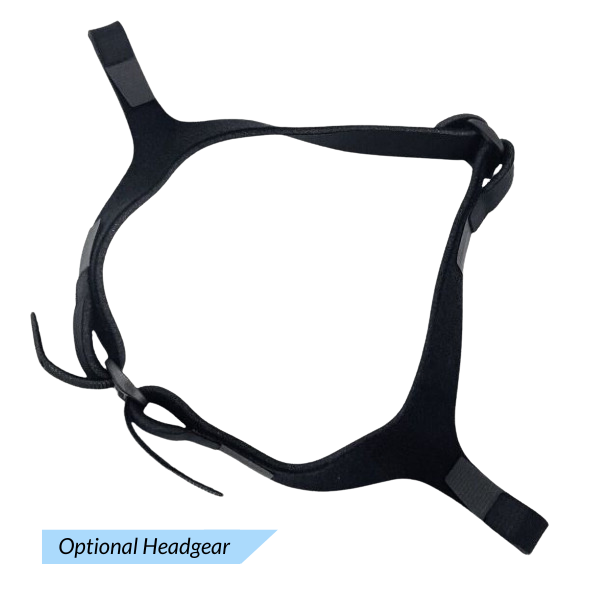

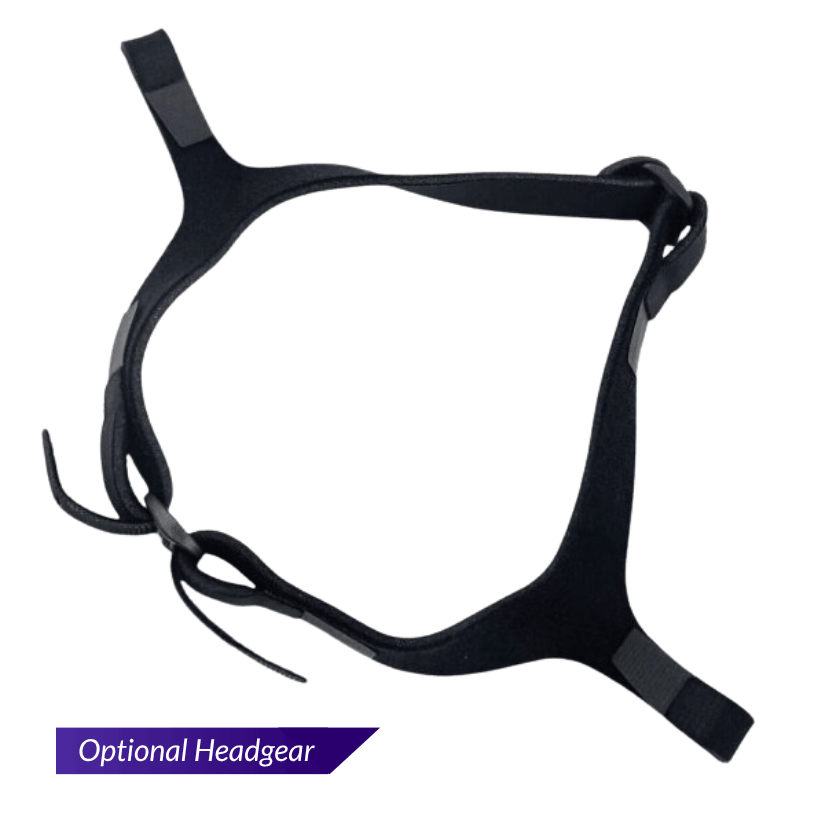

Please note: Headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:

1 — Opus™ 360 Headgear

Ideal For

Breathing Style:

Nasal Breathers
Mouth Breathers (when paired with a CPAP mask chinstrap)

Sleeping Style:

Back Sleepers
Side Sleepers
Active Sleepers
Stomach Sleepers

Additional Considerations:

Low to Mid Pressure Settings
Minimal Contact
Glasses Wearers
Claustrophobia
Facial Hair
Full Field of Vision for Readers or TV Watchers
Tossing and Turning During Sleep

Instructions For Use

Assembling Your Mask:

Refer to the assembly diagrams in these instructions.

Push the Male Swivel into the Female Swivel.
Push the Ball Elbow into the socket on the Mask Frame.
Note: For easiest insertion, ensure that the Ball Elbow is angled as shown.
Slip the Headgear Side Straps into the hooks on the Mask Frame.
Fix the Flexitube in your desired location:
• i) Top: Thread the Tube Anchoring Strap through the Top Buckle and
fasten around the Flexitube.
• ii) Left/Right: Wrap Tube Anchoring Strap around the Headgear Side Strap and the Flexitube and fasten.
Note: The Flexitube can also be left free.

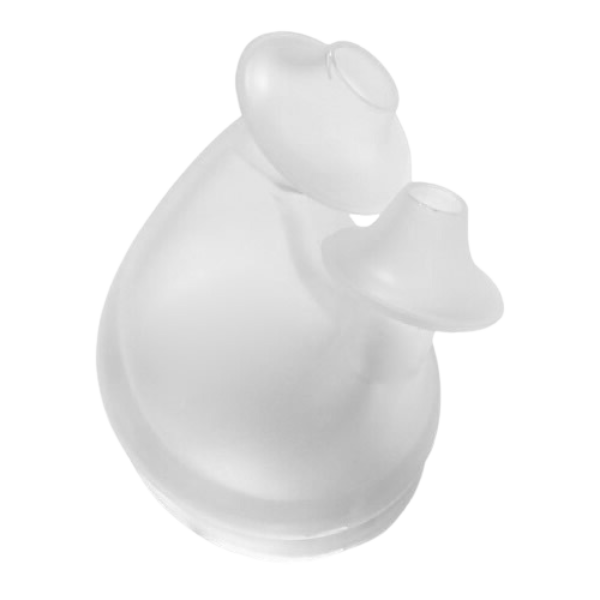

Push the Silicone Pillows into Mask Frame.

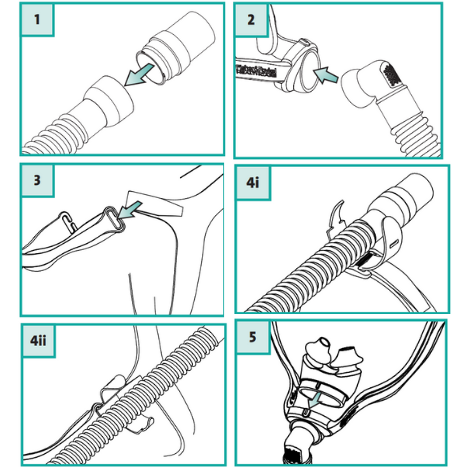

Fisher & Paykel Opus 360 Nasal Pillow CPAP Mask Assembly Guide Diagram

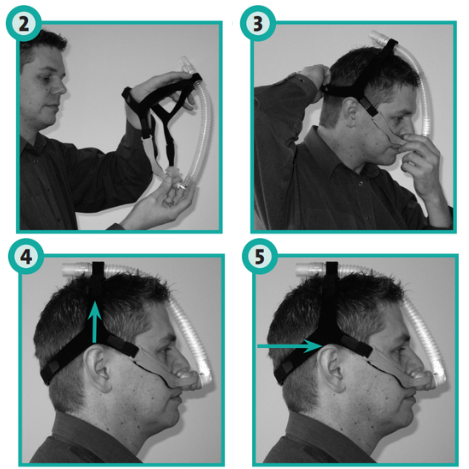

Fitting Your Mask:

Refer to the fitting images of these instructions.

Remove Plastic Cover from Silicone Pillows.
Hold the Mask Frame with one hand and the Back Strap with the other hand.
Insert the Silicone Pillows into your nostrils and slide the Headgear Straps over your head.
Adjust the Side Straps so that the Top Strap is directly above each ear.
Adjust the Back Straps and then the Top Straps so that the Headgear sits just above each ear. The Silicone Pillows should rest securely in your nostrils.
Connect the mask to the CPAP/Bi-Level machine set at the prescribed pressure.

FITTING TIPS

If leaks occur, try repositioning the Silicone Pillows in your nostrils to get a better seal. You may need to readjust the Headgear Straps. Do not over-tighten the headgear straps. If leaks still occur you may need a different Silicone Pillow size (Three sizes are provided).
The Flexitube can be fixed in three positions or left free, see Mask Assembly Item #4 in the corresponding image for details.

Fisher & Paykel Opus 360 Nasal Pillow CPAP Mask Fitting Guide Diagram

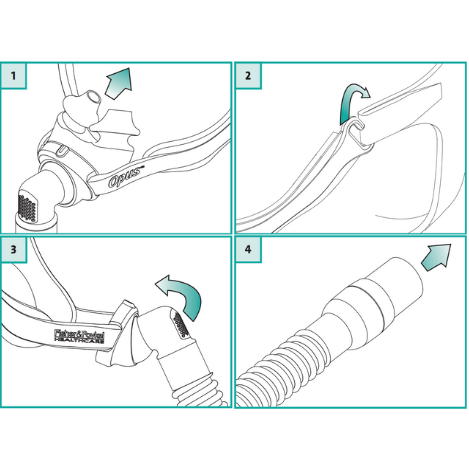

Disassembling Your Mask:

Refer to the disassembly diagrams in these instructions.

Remove Silicone Pillows from the Mask Frame.
Remove Headgear Assembly from the Mask Frame. This is done by slipping the Side Straps out of the hooks on the Mask Frame.
Remove the Ball Elbow from the Mask Frame.

Note: For easiest removal, use a rotating motion as shown.
Remove Male Swivel from Female Swivel.

Fisher & Paykel Opus 360 Nasal Pillow CPAP Mask Disassembly Guide Diagram

Operating Therapy Pressure Range

3 to 25 cmH²O

How-To Videos

CPAPsupplies: CPAP Supplies Replacement Schedule

Opus™ 360: Introduction

Opus™ 360: Fitting Guide

Opus™ 360: Cleaning Guide

User Guides & Manuals

Resupply Schedule

CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months

CPAPsupplies.com: CPAP Supplies Replacement Schedule

Cleaning Guide

Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.

Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal pillows, headgear, and frame):

Part	Cleaning Frequency	Instructions
Nasal Pillows	Daily	Using a mild detergent* and warm, drinking-quality water, gently clean your nasal pillows to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria. Rinse thoroughly. Allow to air dry, avoiding direct sunlight.
Mask Frame	Weekly	Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria. Rinse thoroughly. Allow to air dry, avoiding direct sunlight.
Headgear	Weekly	Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution. Rinse thoroughly. Hang dry, avoiding direct sunlight.
Chinstrap	Weekly	Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution. Rinse thoroughly. Hang dry, avoiding direct sunlight.
