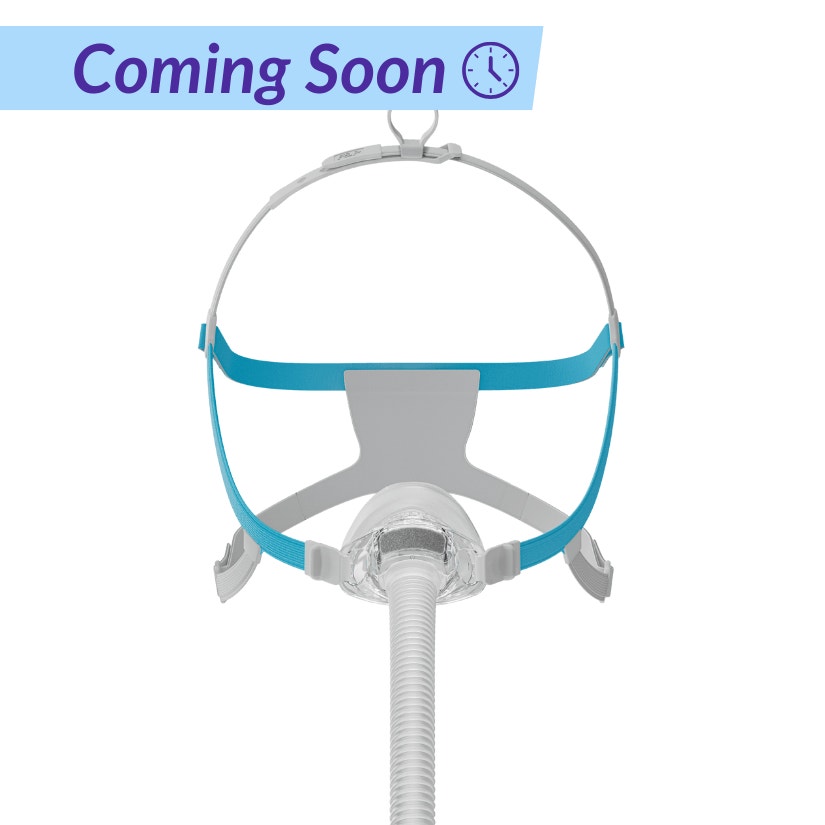

Fisher & Paykel Nova™ Nasal CPAP Mask *PREORDERS OPEN SOON!*
$69.00
*PREORDERS AVAILABLE SOON!* Sign up below to be notified when preorders open!
A sound sleep calls for a high-performing mask. Discover the Nova™ Nasal CPAP Mask from Fisher & Paykel. From ease of fitting and reliable seal, to minimal noise and draft, it’s performance defined.
Products are not guaranteed to come back in stock. Fisher & Paykel Nova™ Nasal CPAP Mask *PREORDERS AVAILABLE SOON!*
*PREORDERS AVAILABLE SOON!* Sign up below to be notified when preorders open!

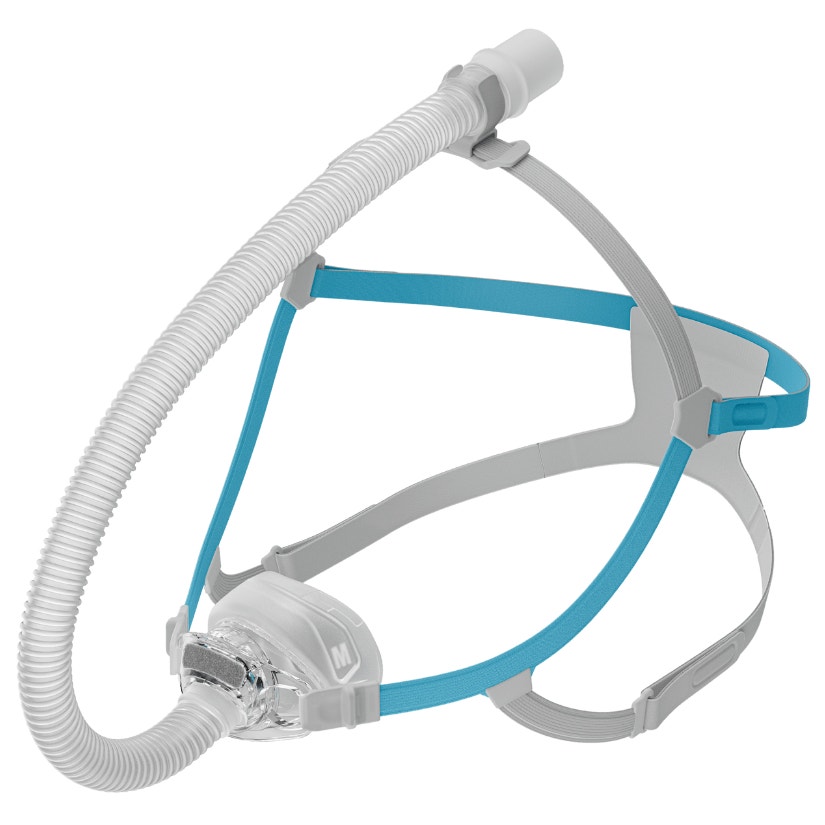

The Nova™ Nasal CPAP Mask was developed by Fisher & Paykel to overcome difficulties CPAP users often encounter with mask fitting, discomfort, and air leaks.

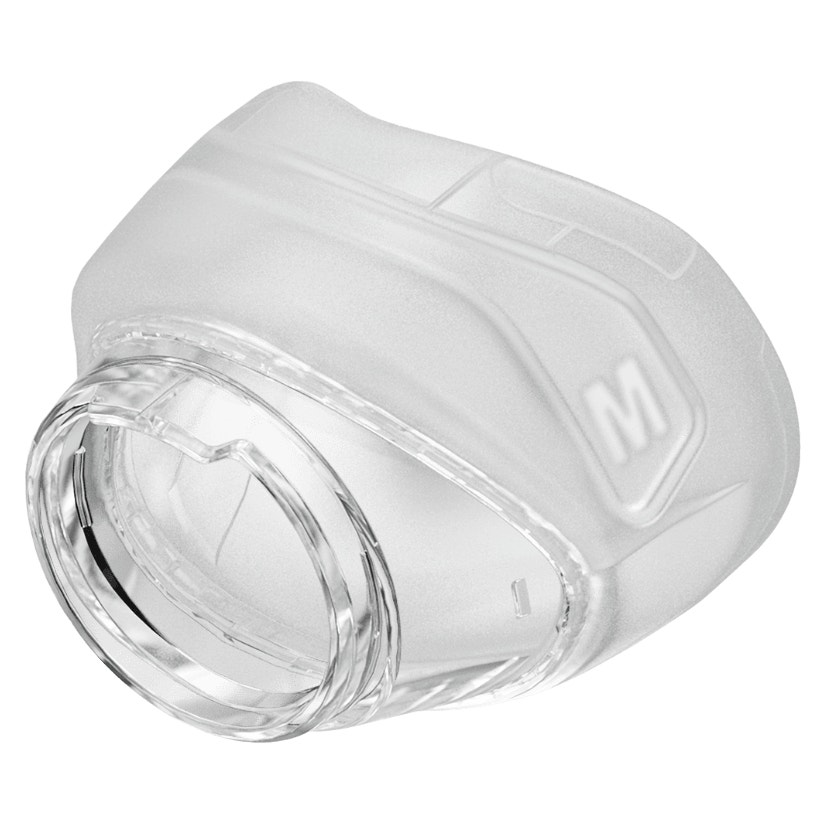

F&P's RollFit™ nasal cushion features pivoting clips that allow the cushion to conform to your nose, and roll with your sleep movements to help provide a stable seal that enables you to sleep in your preferred sleeping position without compromising on performance or comfort.
The conveniently washable diffuser minimizes noise and draft while providing optimal sleep comfort for you and your sleep partner.
The SpringFit™ headgear is designed with rigid side arms to provide a clear field of view, and enable you to swing the headgear around your head while preventing your air tubing from tangling. Includes a unique tubing clip that provides the option to attach your CPAP tube at the top of your head.
Please note: headgear is not included unless selected above.

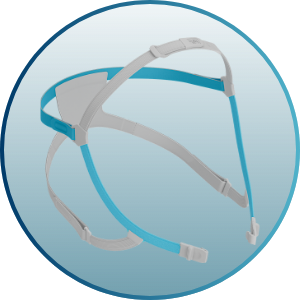

SwingFit™ Headgear
Designed with rigid side arms to allow you to swing your headgear around your head without tangling or having to overreach behind your head, the SwingFit™ Headgear offers enhanced freedom of movement, field of vision, and versatility.

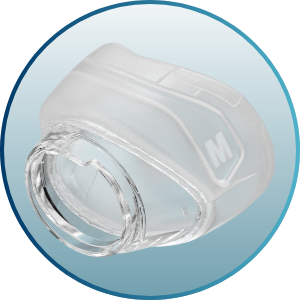

RollFit™ Technology
Provides a stable seal allowing you to sleep in your preferred sleeping positions without compromising cushion comfort or performance.

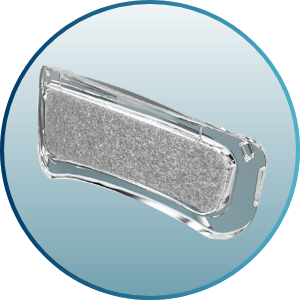

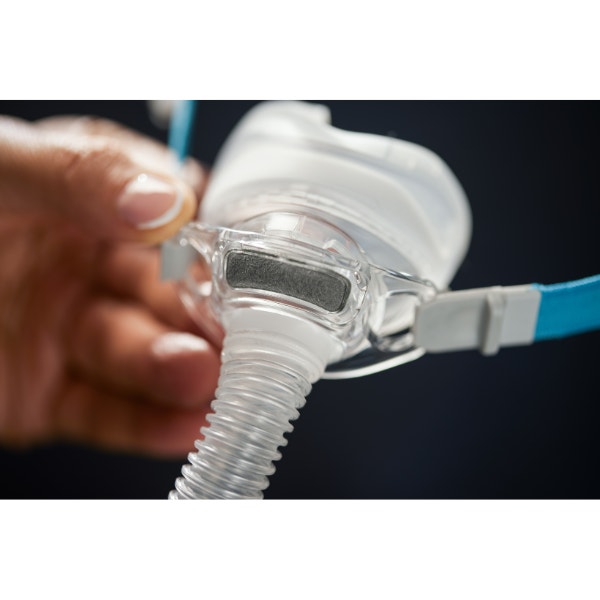

Washable Diffuser
Minimizes noise and draft and creates a positive sleep environment for both you and your sleep partner.

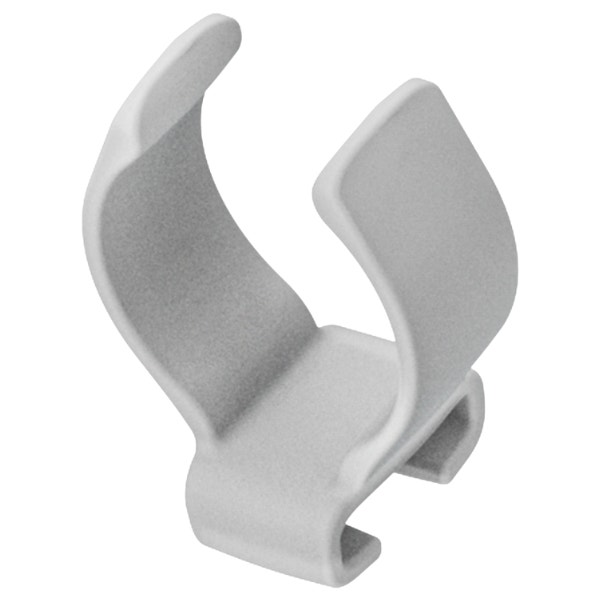

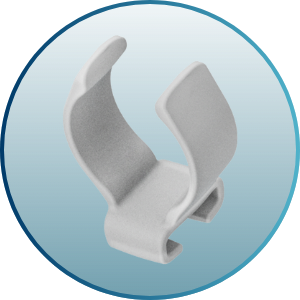

Optional Tube Clip
Allows you to attach your air tubing vertically across your face, connecting at the top of your head.

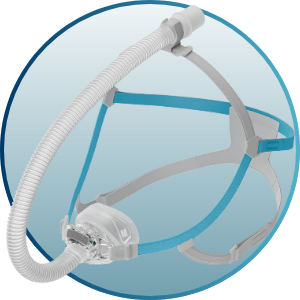

AirEdge™ Fabric
Provides optimal comfort by reducing red marks, and minimizing skin irritation and abrasion.
CPAP Mask Materials:
Component: Material: Headgear Acetal (POM), Nylon (PA), Polyether Block Amide
(PEBA), Polyurethane (PU)Cushion Silicone, Polycarbonate (PC) Frame Polycarbonate (PC) Diffuser Polycarbonate (PC), Polyethylene Terephthalate (PET) Tube Clip Acetal (POM) Tube Polycarbonate (PC), Polyurethane (PU) Swivel Nylon (PA) Headgear Pad Acrylic (PMMA), Polyethylene (PE)

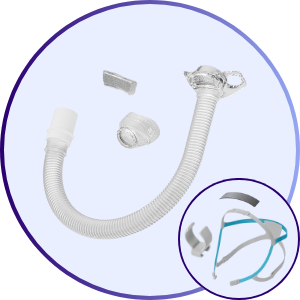

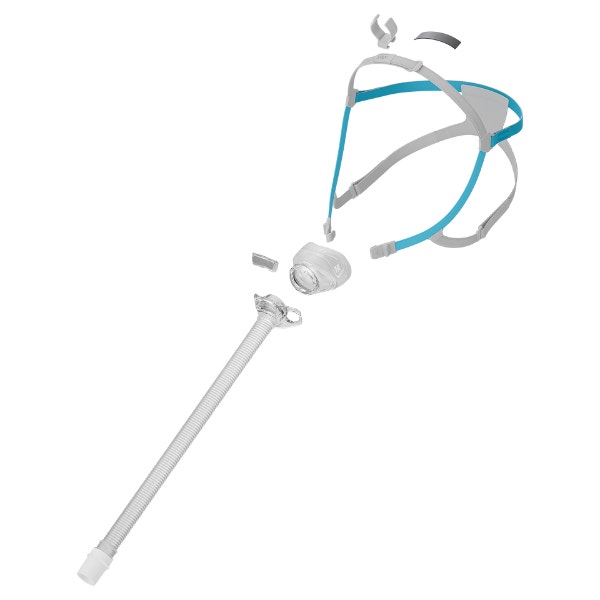

- 1 — Nova™ Nasal Mask Frame and RollFit™ Cushion (of selected size)
- 1 — Short Tube
- 1 — Swivel
- 1 — Diffuser
- 1 — Instructions Manual
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
- 1 — SwingFit™ Headgear
- 1 — Tube Clip
- 1 — Headgear Pad
- 2 — Headgear Clips
Available Frame Sizing Options:
- Small - Nova™ Nasal Mask System - without Headgear - 400NVN131
- Medium - Nova™ Nasal Mask System - without Headgear - 400NVN132
- Large - Nova™ Nasal Mask System - without Headgear - 400NVN133

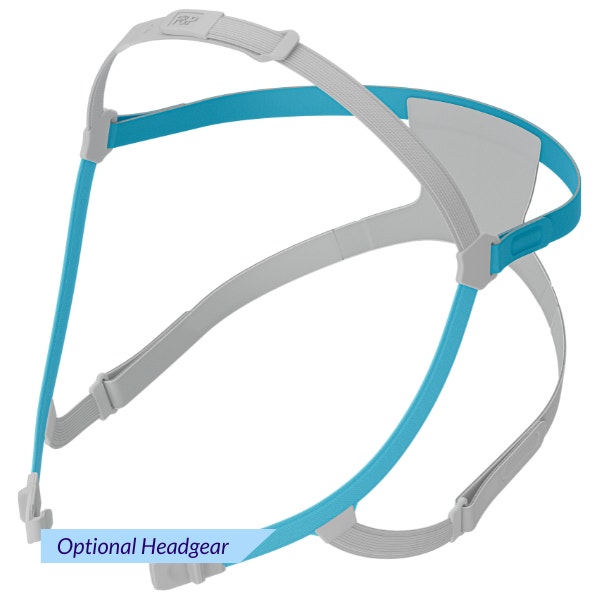

Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
- Standard - Nova™ Nasal Mask SpringFit™ Headgear - 400NVN125
- Large - Nova™ Nasal Mask SpringFit™ Headgear - 400NVN126
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Attach the Cushion by pushing it onto the Frame. You should hear a click when connected properly.
- Attach the Headgear by aligning both Headgear Clips to the Frame and pulling back until you hear a click.
- Attach the other Headgear Clip by repeating step 2.
- If you need to reattach the Diffuser, align it with the recess in the Frame and push to connect.

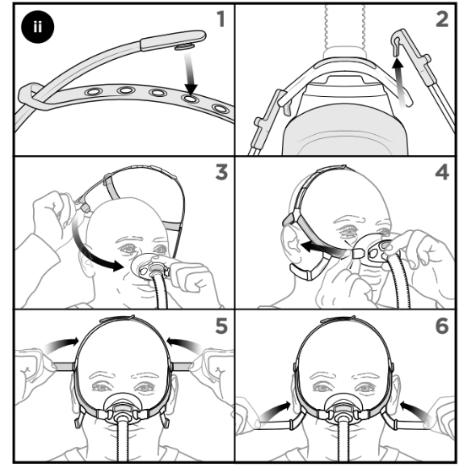

Fitting Your CPAP Mask:
Refer to the fitting diagrams in these instructions.
- Connect the Top Strap to one of the holes in the Headgear.
- Unhook one of the Headgear Clips from the Frame.
- Place the Cushion on your nose and swing the unhooked Headgear Clip around your head.
- Connect the Headgear Clip to the Frame once the Headgear is positioned on your head. You should hear the Headgear Clip click into place.
- Gently adjust the Upper Straps.
- Gently adjust the Lower Straps.
Useful tips:
- The Headgear should not touch your ears. Adjust the Top Strap if required. You may need to take off the mask to do this.
- If you are experiencing mask leaks, you may need to lift the Cushion off your face and reposition it.
- For a comfortable fit, the mask should be worn as loose as possible, without excessive leak.
Warning: Do not overtighten the mask as this may result in facial deformation.
Caution: Failure to follow fitting instructions or using the incorrect mask size may result in pressure sores or excessive leak causing eye injury.

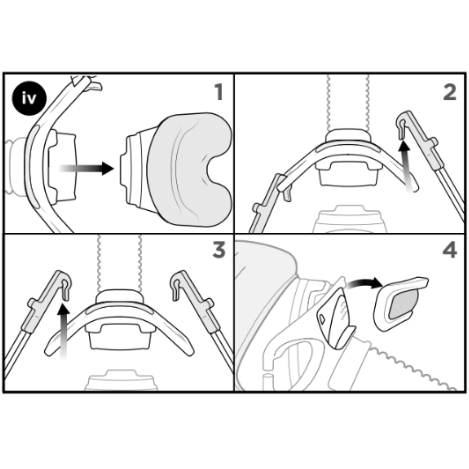

Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
- Remove the Cushion by pulling it away from the Frame.
- Remove the Headgear by pushing one of the Headgear Clips forward until it disconnects from the Frame.
- Remove the other Headgear Clip by repeating step 2.
- To remove the Diffuser, use your finger to rotate it off the Frame.

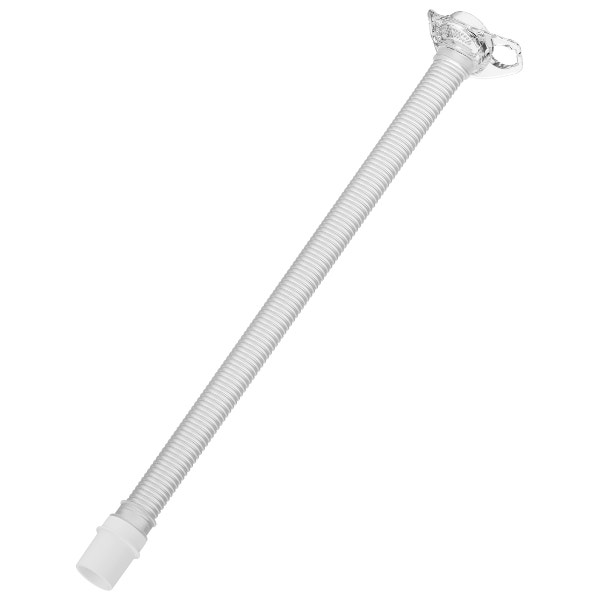

Caution: The Frame, Tube and Swivel components are permanently connected together and are not intended to be disassembled. Attempting to disassemble these components may compromise the function of the mask.
| Operating Therapy Pressure Range |
| 4 to 30 cmH²O |
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
Part Cleaning Frequency Instructions Nasal Cushions
Daily
- Using a mild detergent* and warm, drinking-quality water, gently clean your nasal cushions to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
Chinstrap
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| SKU | pb_FP-Nova-Nasal-1 |
|---|---|
| Model | pb_FP-Nova-Nasal |
| UPC | 09420012470836, 09420012470843, 09420012470850, 09420012473677, 09420012473691, 09420012478283, 09420012472168, 09420012472182 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 400NVN131 |
