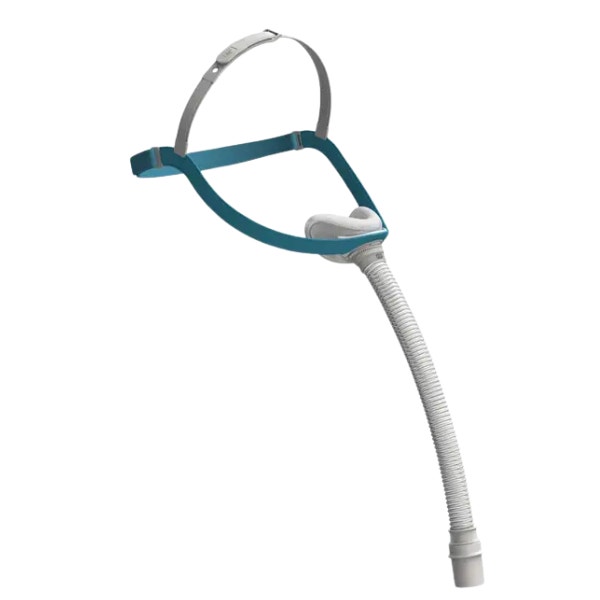

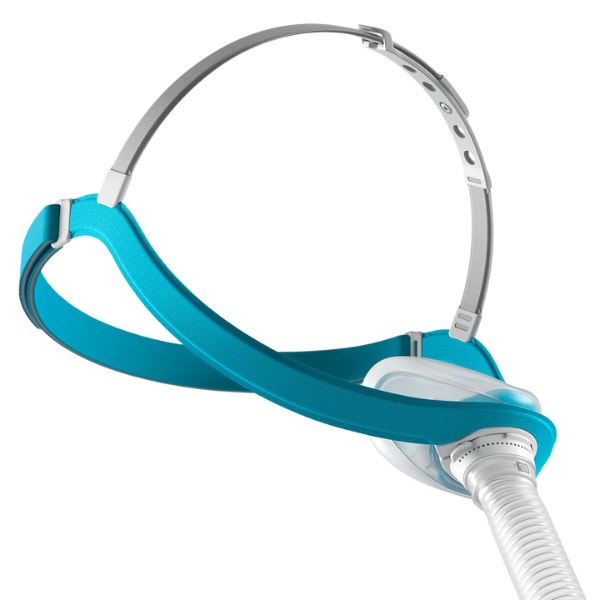

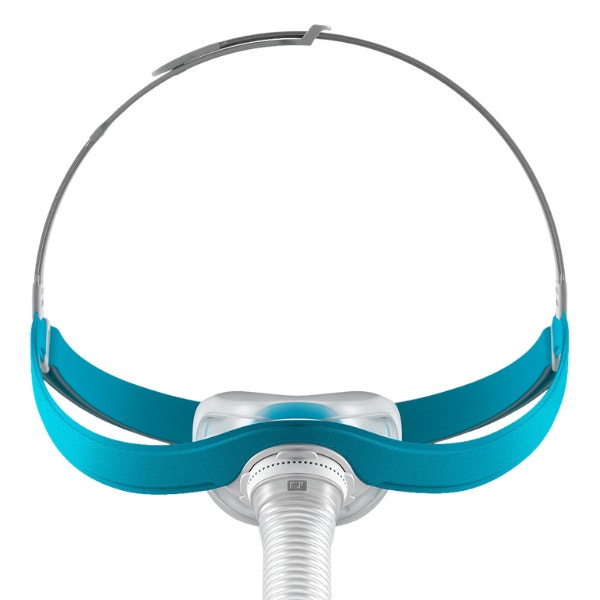

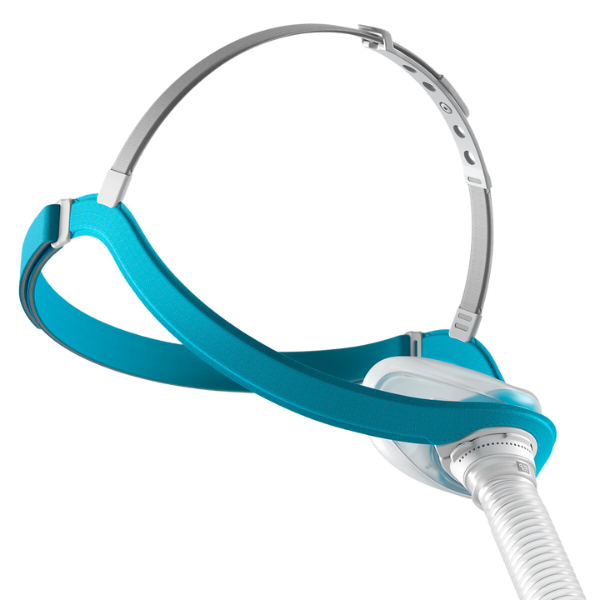

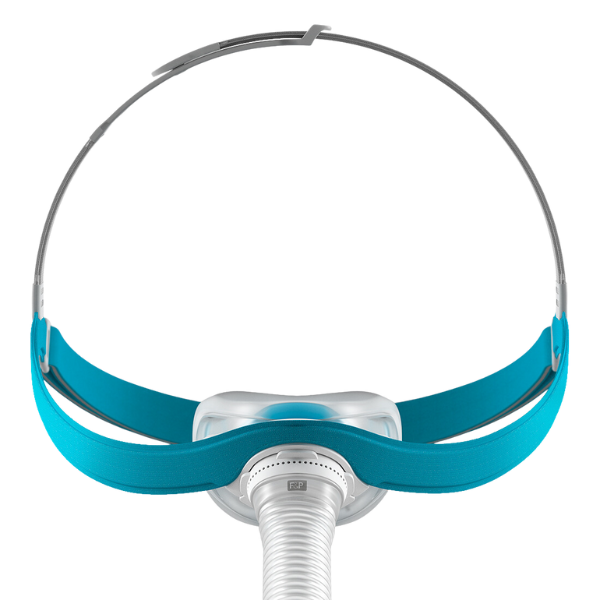

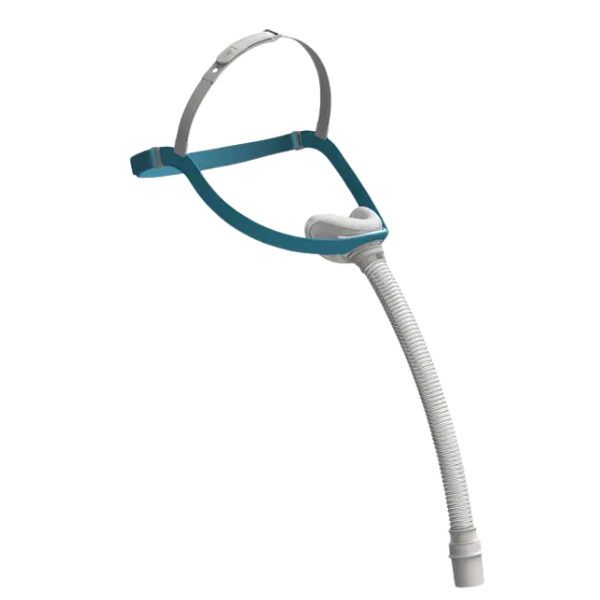

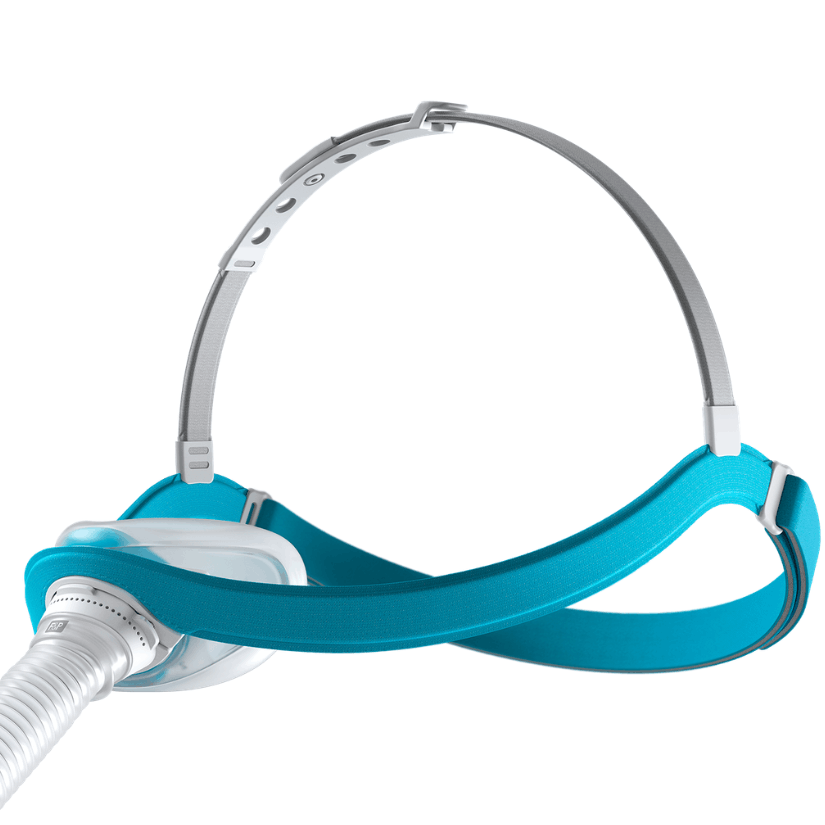

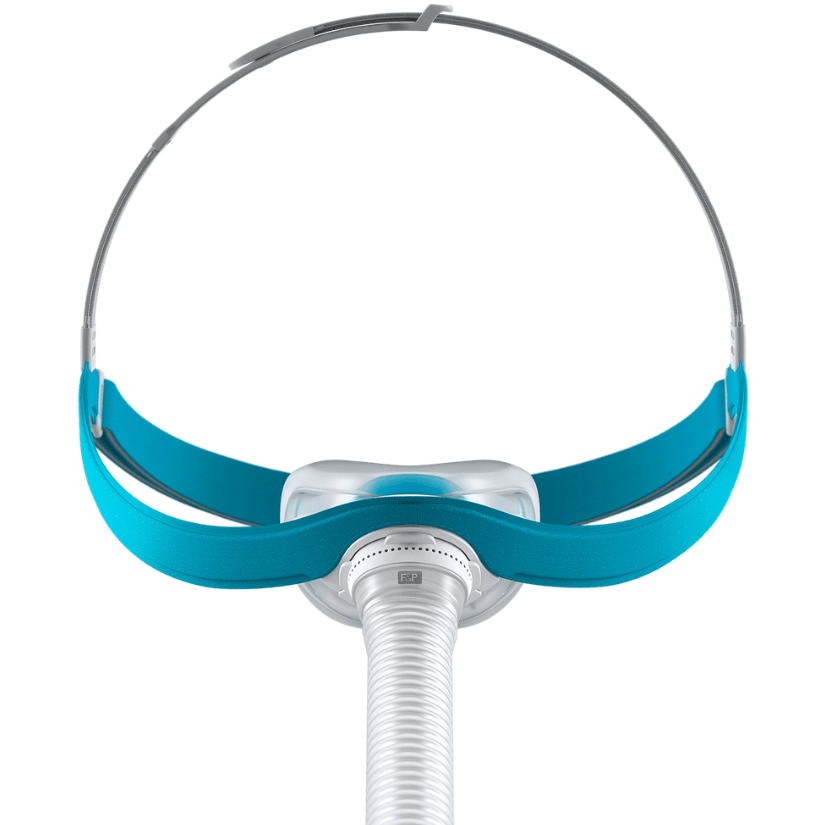

Fisher & Paykel Evora™ Nasal CPAP Mask with Headgear
Fully assembled with headgear, the F&P Evora™ is unlike any other mask, incorporating CapFit headgear that has been designed to be put on like a cap — a simple and intuitive movement for ease of use and the right mask seal every night.
Fisher & Paykel Evora™ Nasal CPAP Mask with Headgear Overview

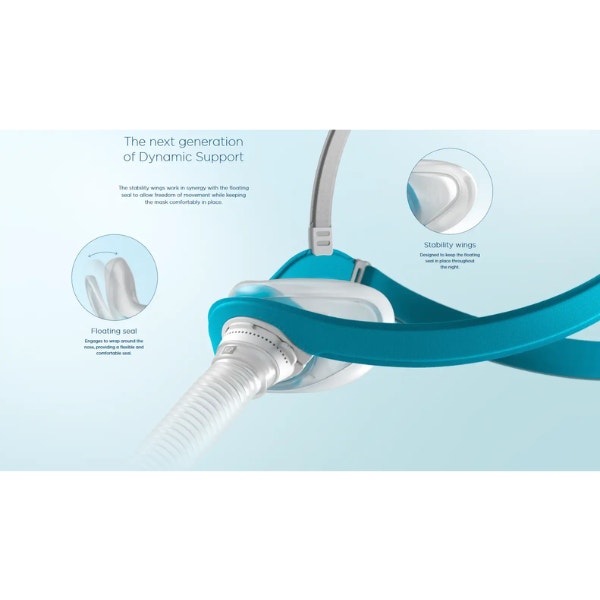

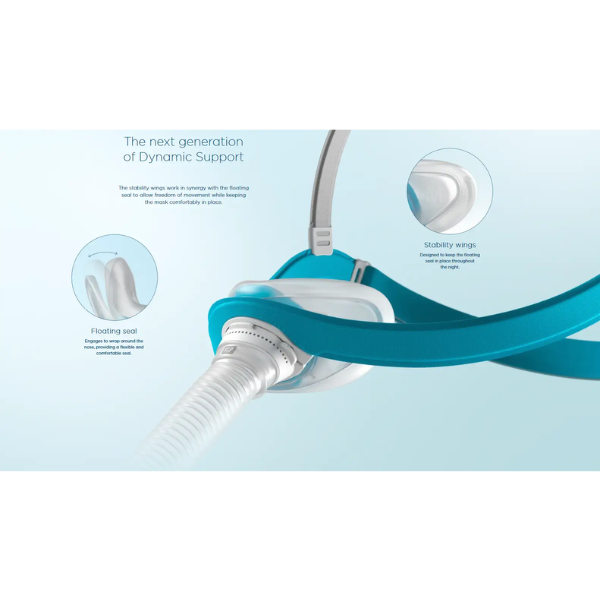

The Evora compact nasal mask uses an innovative soft and compact floating seal that’s designed to leverage the tension created by the mask’s soft knit fabric backstrap to surround your nose in a soft nasal cradle. The two-part design hugs your nose for a gentle fit while still giving you a leak-free and unobtrusive seal. With only a few extra parts, the CapFit design and cushion stability wings create the same seal you'd get from a regular nasal pillow mask but with more dynamic support that helps to prevent extra tugging from your headgear. To help reduce red marks for more successful sleep apnea therapy, the Evora uses soft stitching around the edges of the straps to ensure that the dynamic support also translates to comfortable support.
The Evora CPAP mask is engineered with comfortable headgear and a flexible breathing tube, but it was also designed with a quiet night's sleep in mind. The exhalation port vents air out and away in a circular pattern while reducing noise to only 25 decibels; pair the Evora mask with an equally silent CPAP machine for a whisper-quiet CPAP therapy experience.
-
Minimal, one-size CapFit headgear for a simple and intuitive fit. The CapFit design features F&P's AirEdges technology that helps to create a unique compact seal and avoid leaving marks on your face that cause skin irritation
-
Laser-drilled exhaust holes are designed to minimize noise and draft
-

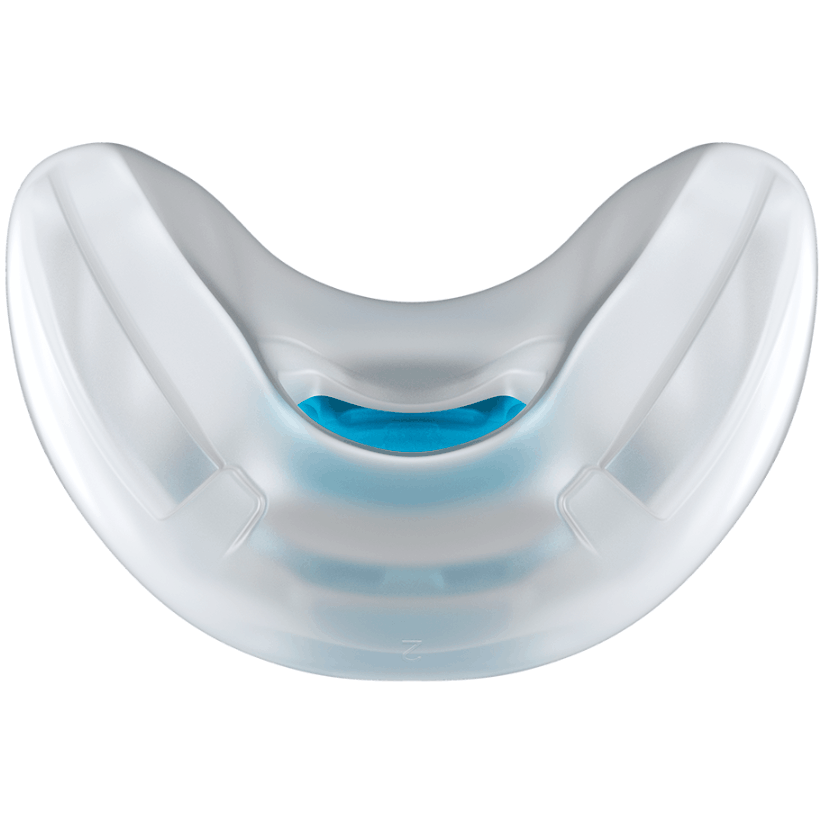

Soft floating seal that sits comfortably under the nose to create an unobtrusive seal
-
The nasal cushion adapts to your face shape
-
Whisper quiet circular exhalation port
-
Nasal mask design create an open line of sight
-
Short tube design
-

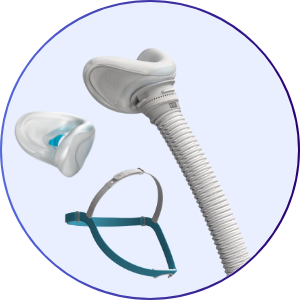

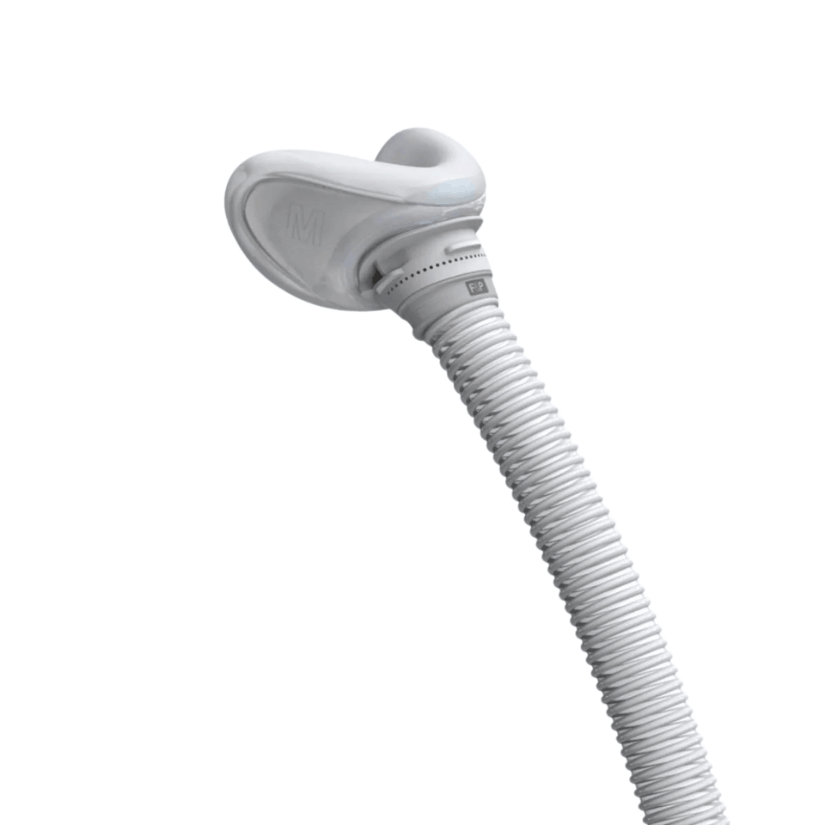

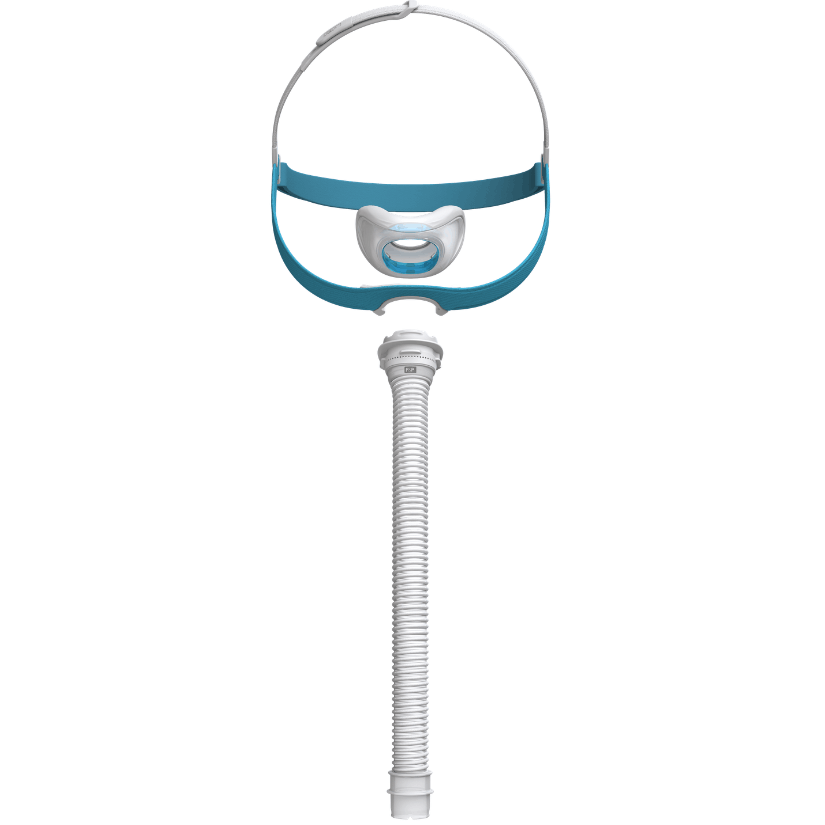

1 — Evora™ Nasal Mask Frame and Cushion (of selected size option)
-
1 — Short Tube
-
1 — Swivel
-
1 — Evora™ CapFit™ Headgear
If you're looking to purchase the Fisher & Paykel Evora™ Nasal CPAP Mask components without a prescription, you can find them here.
-
Small - EVO1SA
-
Medium - EVO1MA
-
Large - EVO1LA
-
Wide - EVO1WA
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Push the Swivel onto the bottom of the Tube.
- Push the Seal firmly onto the Mask Frame to click into place.
- Push the Headgear down onto the Frame behind the Exhaust Holes to click into place.
Fitting Your Mask:
Remove all packaging before using your mask. Refer to the mask diagram on the inside cover to identify the mask parts.
- Connect the Top Strap button to the middle position.
- Hold the front of the mask and pull the Back Strap over the back of your head. Pull the mask down to position the Seal under your nose.
- Adjust Back Strap to tighten or loosen the Seal against your face by pulling evenly on the tabs.
- Adjust the Top Strap button to tighten or loosen the Headgear so that it is sitting just above your ear without touching it. You may need to take the mask off to do this. The Top Strap should sit just forward of the middle of your head.
- Connect the Swivel to the CPAP hose and with the CPAP on, readjust the Back Strap until the mask seals and the Seal feels comfortable under your nose.
Disassembling Your Mask:
If the mask is connected to your device, disconnect the device air tubing
from the short tube.
- Pull the Swivel from the bottom of the Tube.
- Unclip the front of the Headgear from the Mask Frame located at the top of the Tube.
- Pull the bottom of the Seal to unclip from the Mask Frame.
| Operating Therapy Pressure Range |
| 4 to 25 cm H²O |

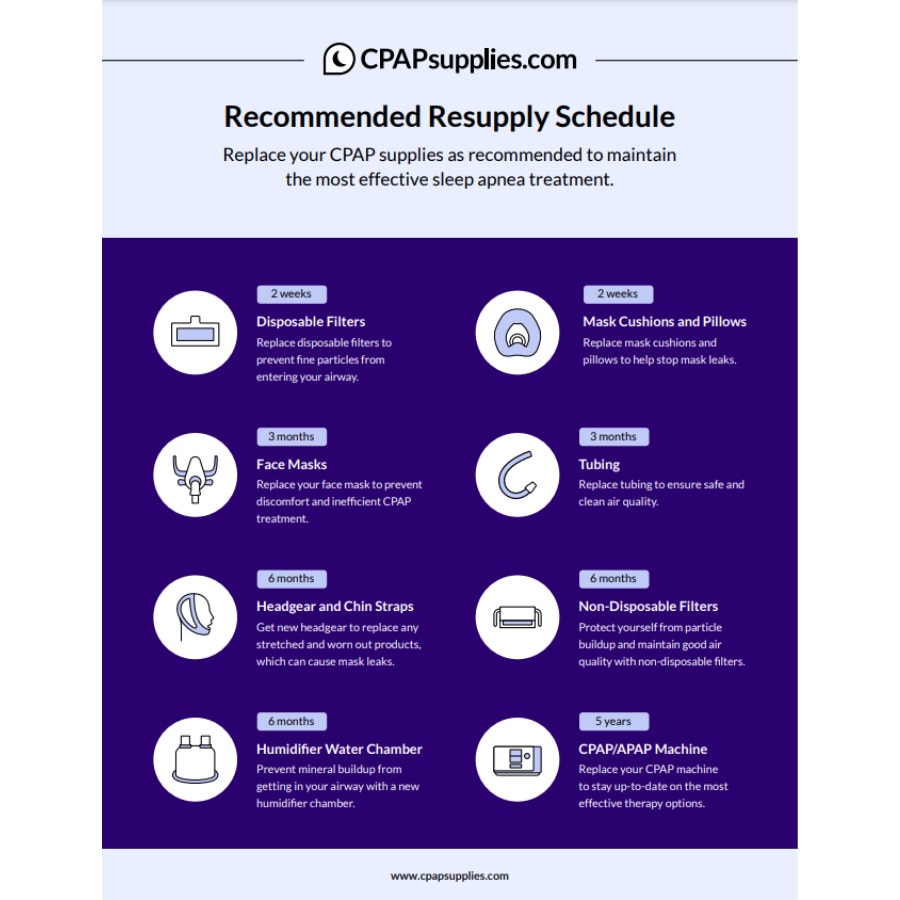

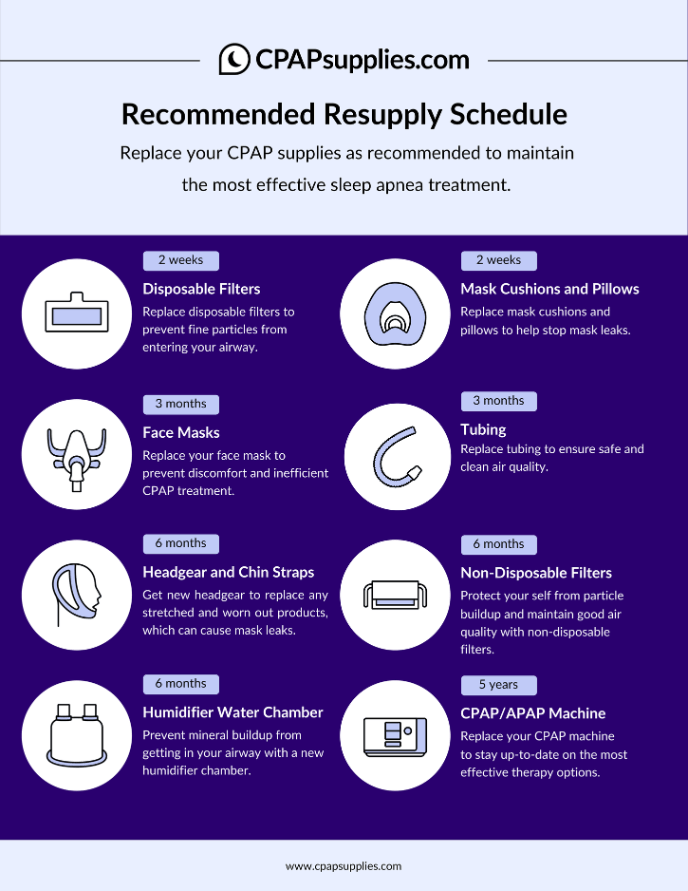

- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Fisher & Paykel |
|---|---|
| SKU | p_Evora-Nasal-Complete |
| Model | p_Evora-Nasal-Complete |
| UPC | 9420012456212, 9420012456229, 9420012456236, 9420012456243 |
| Prescription Required | Yes |
| Weight | 0.13 lbs |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| Color | Teal Gray |
| FSA/HSA Eligible | Yes |
| Included | EVO1SA, EVO1MA, EVO1LA, EVO1WA |
