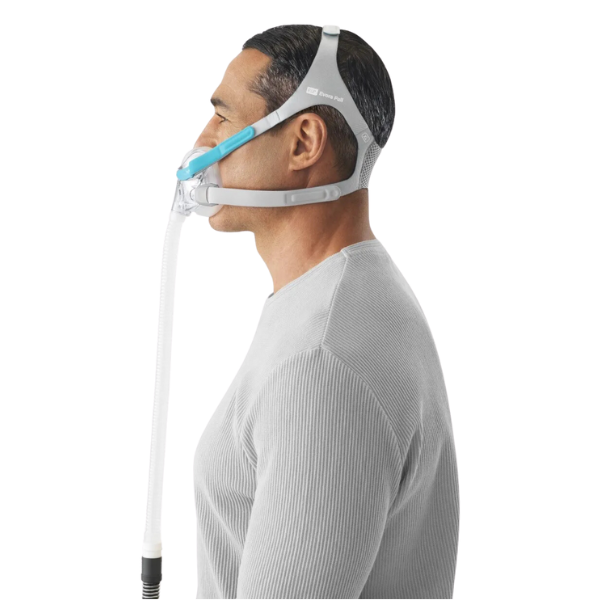

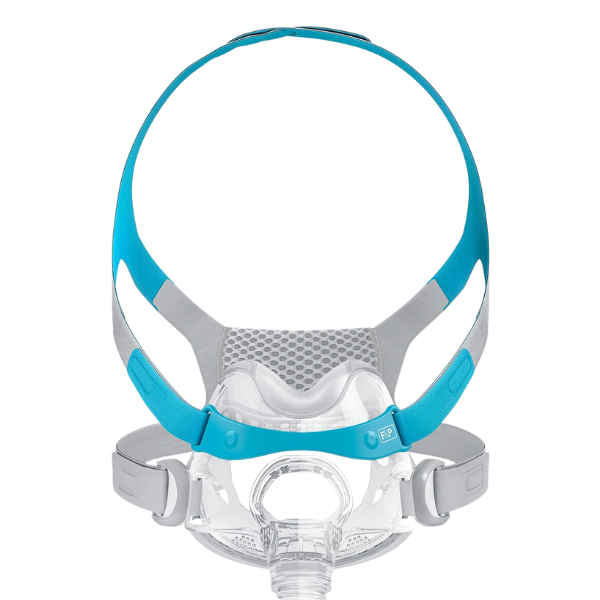

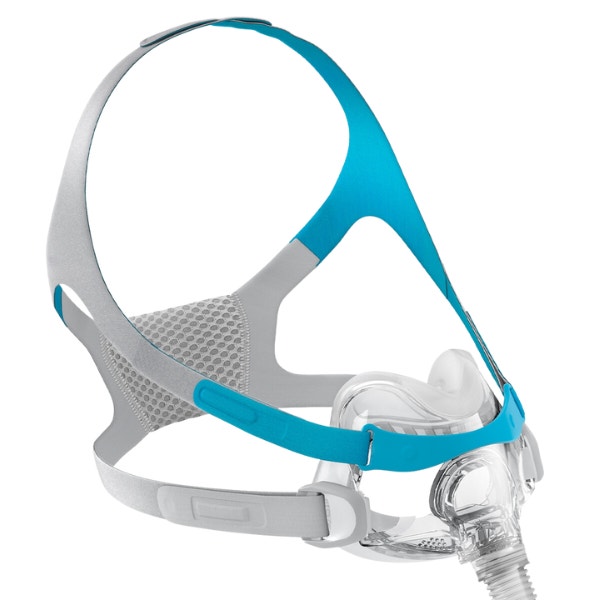

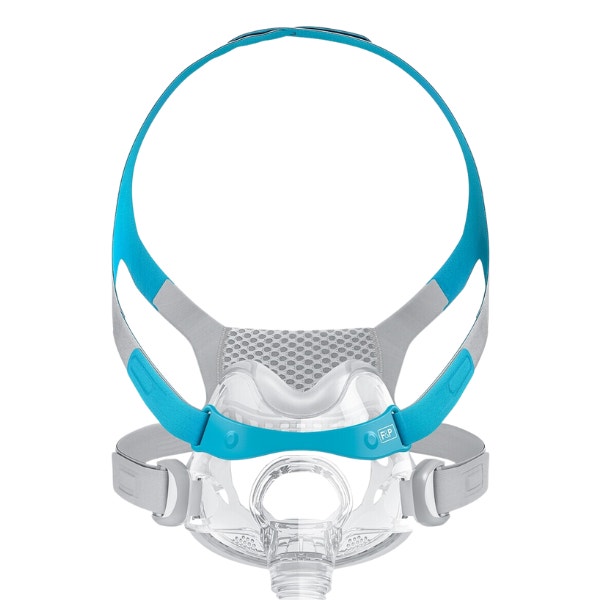

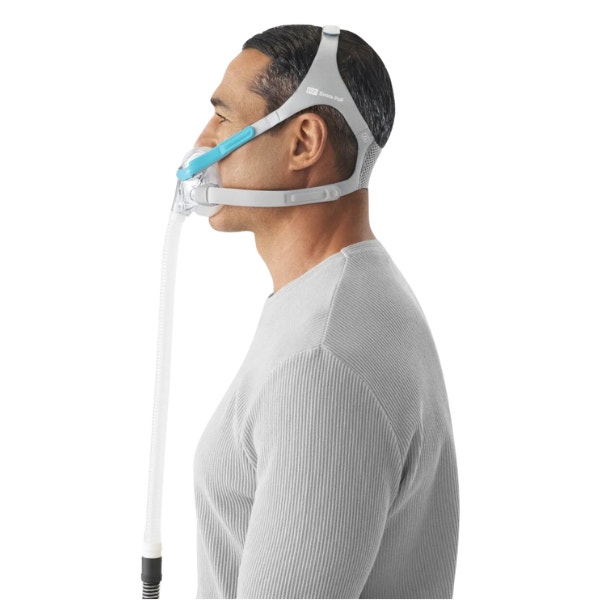

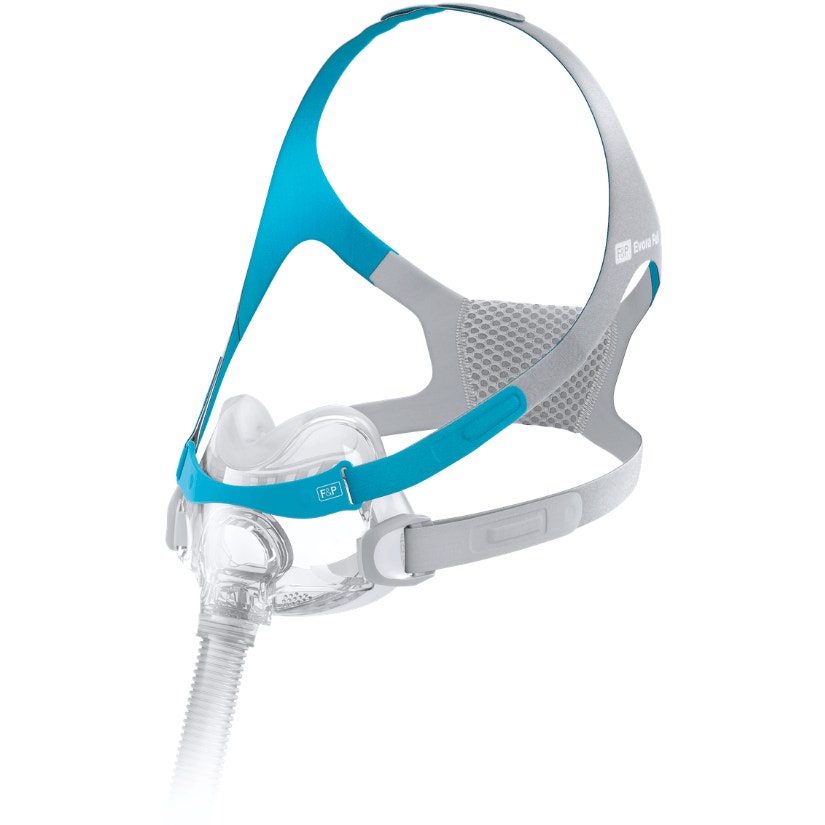

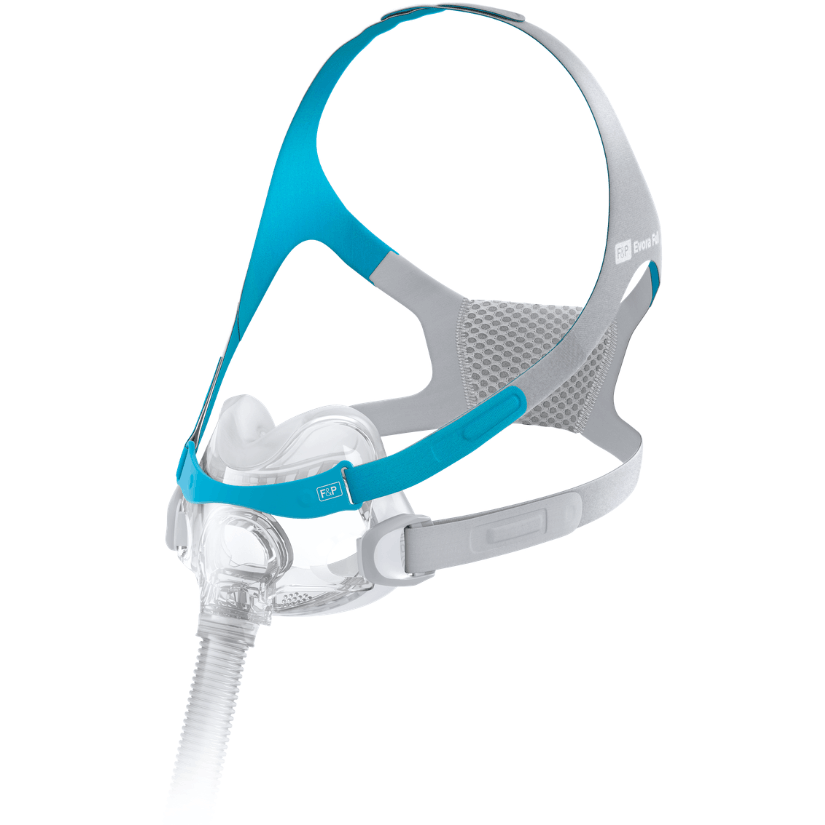

Fisher & Paykel Evora™ Full Face CPAP Mask with Headgear
The Evora™ Full Face Mask by Fisher & Paykel is a compact, minimal contact CPAP mask and the offers full performance with new technologies that work together to allow for freedom of movement while keeping your mask comfortably in place for a more relaxed sleep each night!
Fisher & Paykel Evora™ Full Face CPAP Mask with Headgear Overview

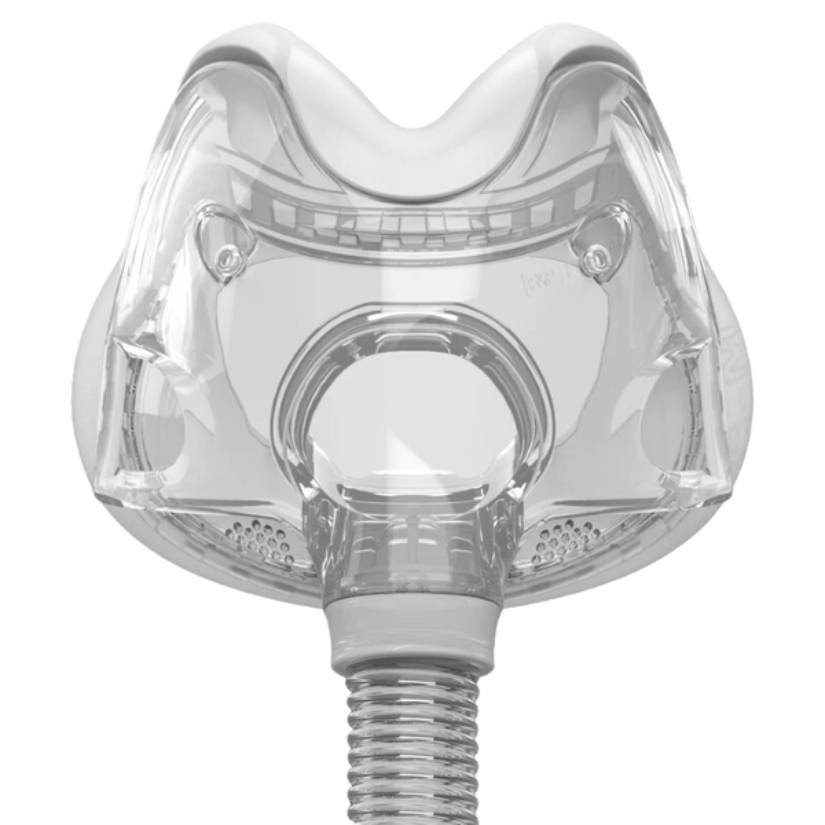

The Evora™ Full Face mask is a compact CPAP mask for obstructive sleep apnea from Fisher & Paykel.
The Evora™ Full delivers comfort with minimal contact, allowing you to move and sleep freely without compromise.
The mask has an under-the-nose cushion seal providing a clear line of sight, while the unique design keeps the mask comfortably in place.
-
Minimal Design: The under-the-nose seal provides a minimal design with a tclear line of sight.
-
Comfortable seal: The soft thin silicone seal sits comfortably under your nose to minimize pressure, while the structured frame provides a stable, comfortable seal.
-
Breathable comfort: The Evora™ Full's headgear features F&P's VentiCool™ technology, which allows heat and moisture to escape from the head for a comfortable night’s sleep.
-
Sleep quietly: Designed to minimize noise, helping your sleep apnea treatment.
-

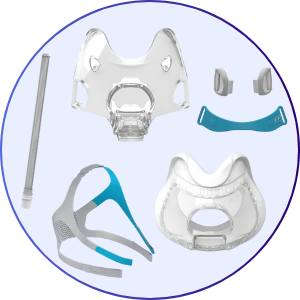

1 — Evora™ Full Face Mask Frame
-

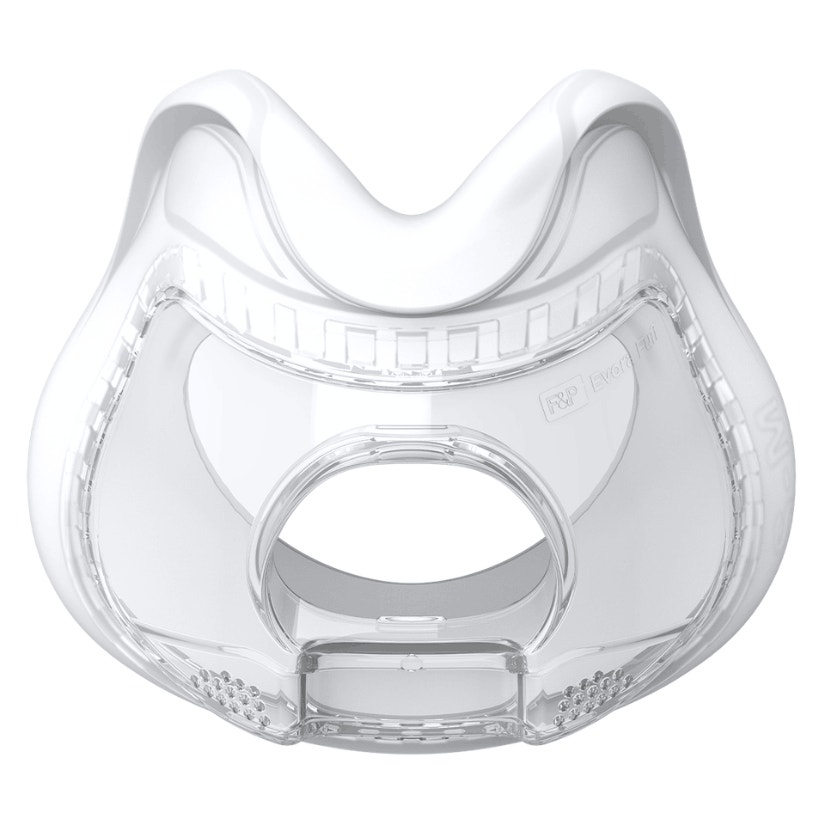

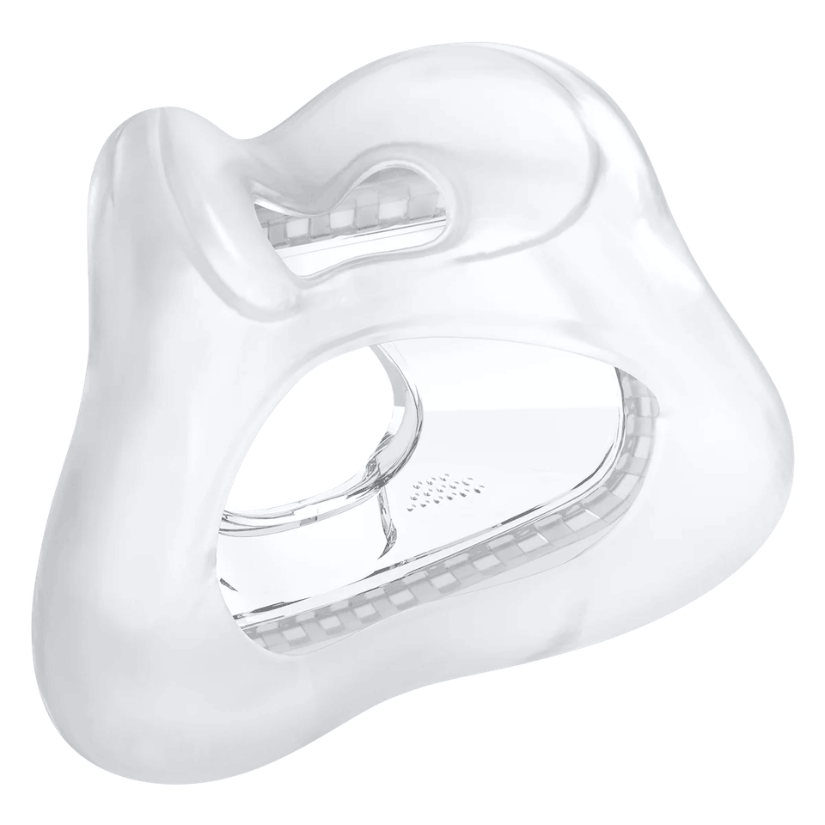

1 — Evora™ Full Face Mask Cushion (of selected size)
-
1 — Swivel
-
1 — Short Tube
-

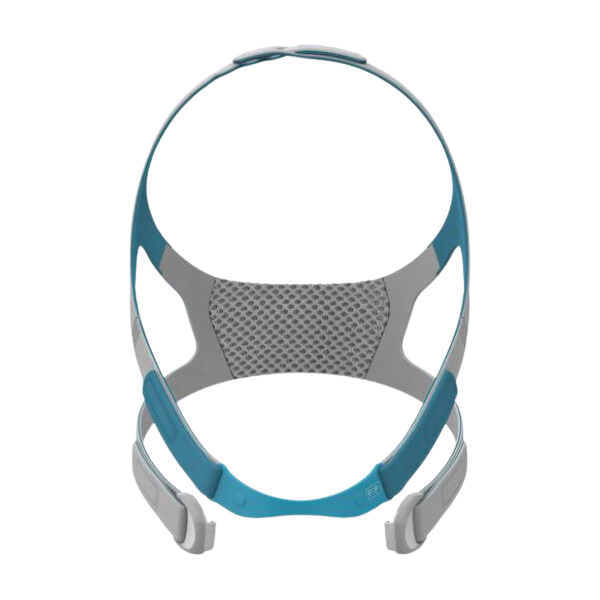

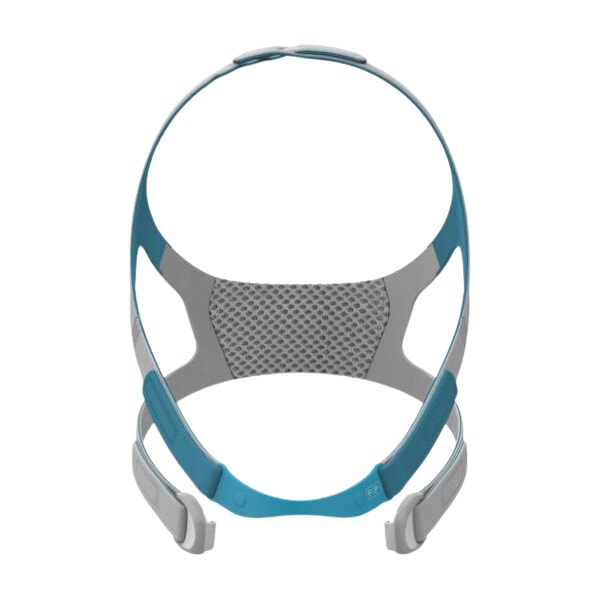

1 — Evora™ Full Face Headgear (Standard Size)
-
2 — Headgear Clips
If you're looking to purchase the Fisher & Paykel Evora™ Full Face CPAP Mask components without a prescription, you can find them here.
Evora™ Full Face Mask Materials:
| Component: | Material: |
|---|---|
| Headgear | Nylon/ Polyurethane |
| Cushion | Silicone/ Polycarbonate (PC) |
| Frame | Polycarbonate (PC)/ Silicone |
| Tube | Polypropylene (PP) |
| Swivel | Nylon (PA) |
| Headgear Clips | Polypropylene (PP) / Thermoplastic Elastomer (TPE) |
| Frame Clip | Polyether Block Amide (PEBA) |
-
Extra Small - Evora™ Mask System with Headgear - EVF1XA
-
Small / Medium - Evora™ Mask System with Headgear - EVF1MA
-
Large - Evora™ Mask System with Headgear - EVF1LA
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion

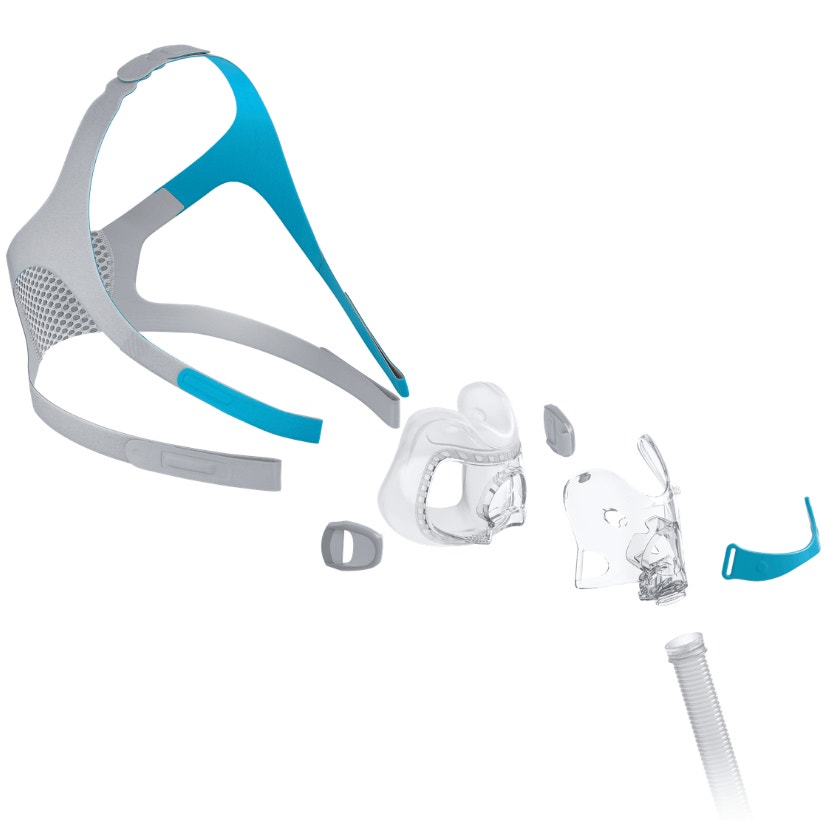

Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Push the Seal (A) firmly into place on the Frame (B) to click into place.
- Push the Tube (G) onto the Frame (B) to click into place.
- Push the Swivel (E) onto the Tube (G) to click into place.
- Connect the Frame Clip (F) to the Frame (B) to click into place.
- Hook the Headgear Clips (D) onto the Frame (B) to click into place.
Fitting Your Mask:
Refer to the disassembly diagrams in these instructions.
- Ensure that both Headgear Clips are unhooked from the Frame.
- Place the Seal onto your face and guide the Headgear over your head.
- Hook both Headgear Clips onto the Frame.
- Gently tighten the Headgear straps, starting with the blue upper straps, followed by loosely fitting the lower straps.
- Connect the Tube with the Swivel to the PAP tube. Turn on the PAP device. Repeat step 4 until the mask seals and the Seal feels comfortable on your face. If you are experiencing mask leaks, you may need to lift the Seal off your face and reposition it. If the Headgear touches the ear, adjust the straps on the top of your head.
Disassembling Your Mask:
Refer to the assembly diagram above in these instructions.
- Unhook both Headgear Clips (D) from the Frame (B).
- Pull the Frame Clip (F) from the Frame (B), but leave it attached to the Headgear (C).
- Pull the Seal (A) from the Frame (B).
- Pull the Tube (G) from the Frame (B).
- Pull the Swivel (E) from the Tube (G).
Useful Tip:
- Check the Swivel (E) is not stuck in the PAP tube
| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |

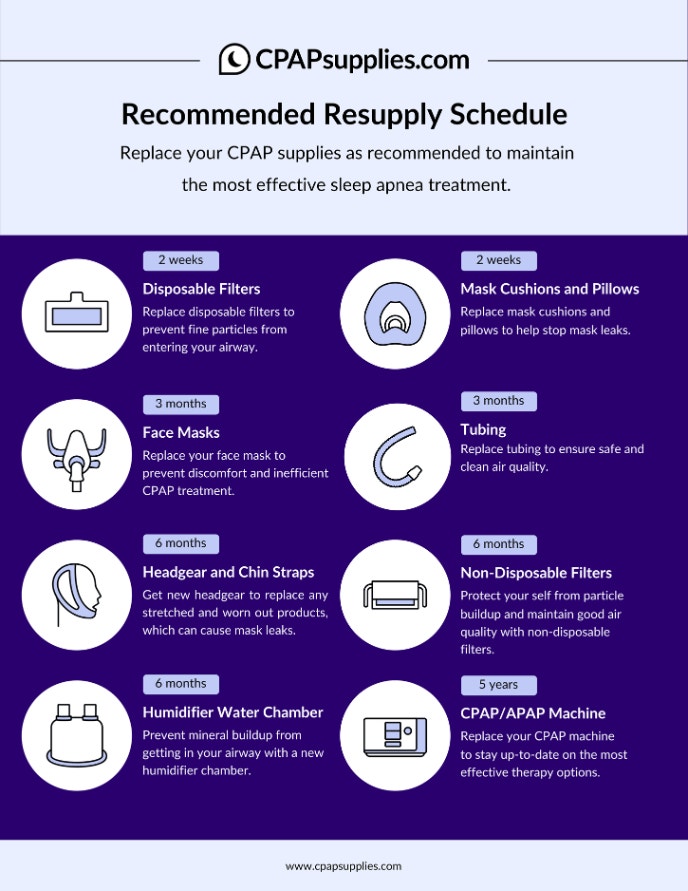

CPAPsupplies.com: CPAP Supplies Replacement Schedule
Evora™ Full: Introduction
Evora™ Full: Fitting Guide
Evora™ Full: Cleaning & Assembly Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Mask Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Fisher & Paykel |
|---|---|
| SKU | p_Evora-FFM-complete |
| Model | p_Evora-FFM-complete |
| UPC | 9420012461711, 9420012461735, 9420012461759 |
| Prescription Required | Yes |
| Weight | 0.28 lbs |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| Color | Gray & Turquoise |
| FSA/HSA Eligible | Yes |
| Included | EVF1XA, EVF1MA, EVF1LA |
