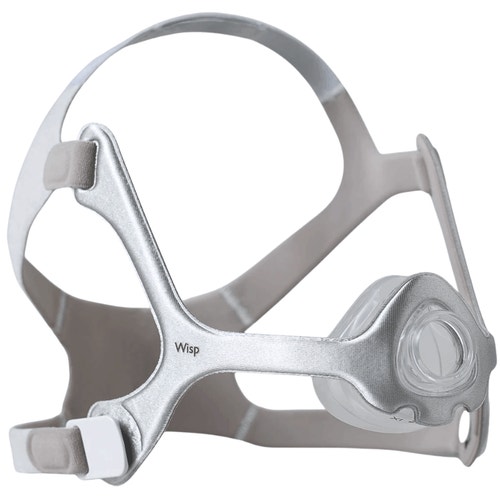

Philips Respironics Wisp Fabric Nasal CPAP Mask
$85.00
The Wisp Fabric Nasal CPAP Mask features a minimal cushion design for ultimate user comfort. This fabric nasal mask is small, lightweight, and reversible with two types of fabrics you can choose between. All four cushion sizes are available with each mask.
Philips Respironics Wisp Fabric Nasal CPAP Mask Overview

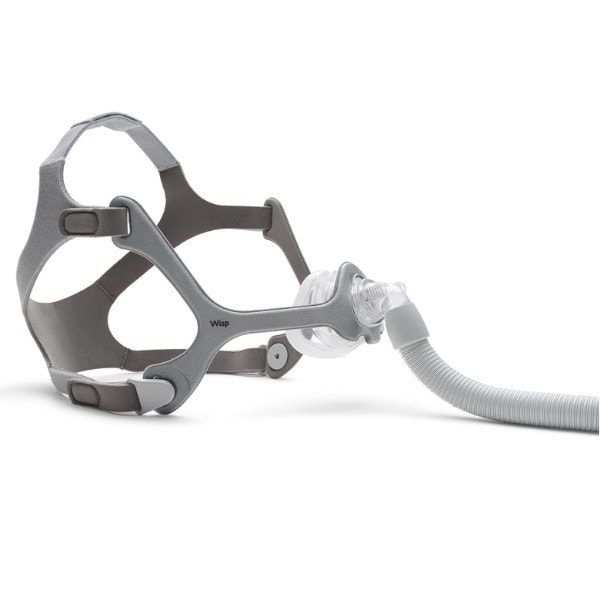

The Wisp Fabric Nasal Mask provides efficient CPAP treatment with minimal skin contact. This nasal mask frame is reversible with two different types of fabrics and provides a clear line of sight throughout therapy. The fabric frame is soft on the skin and patients who have experienced skin irritation as a result of their mask frame or who have sensitive skin may be more comfortable with a fabric frame.

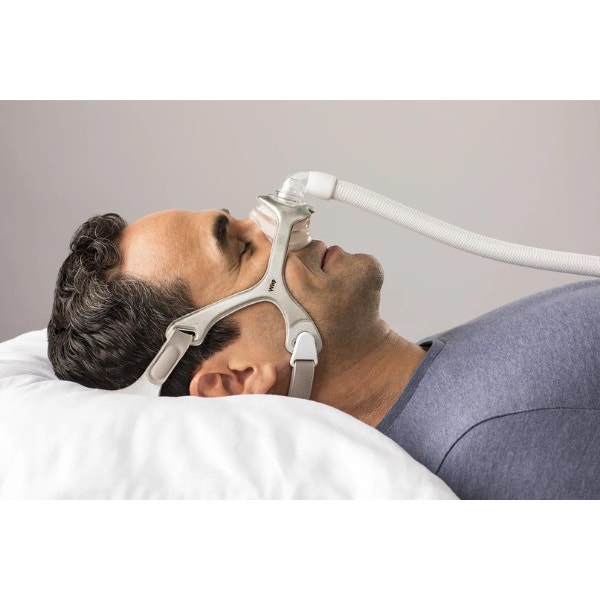

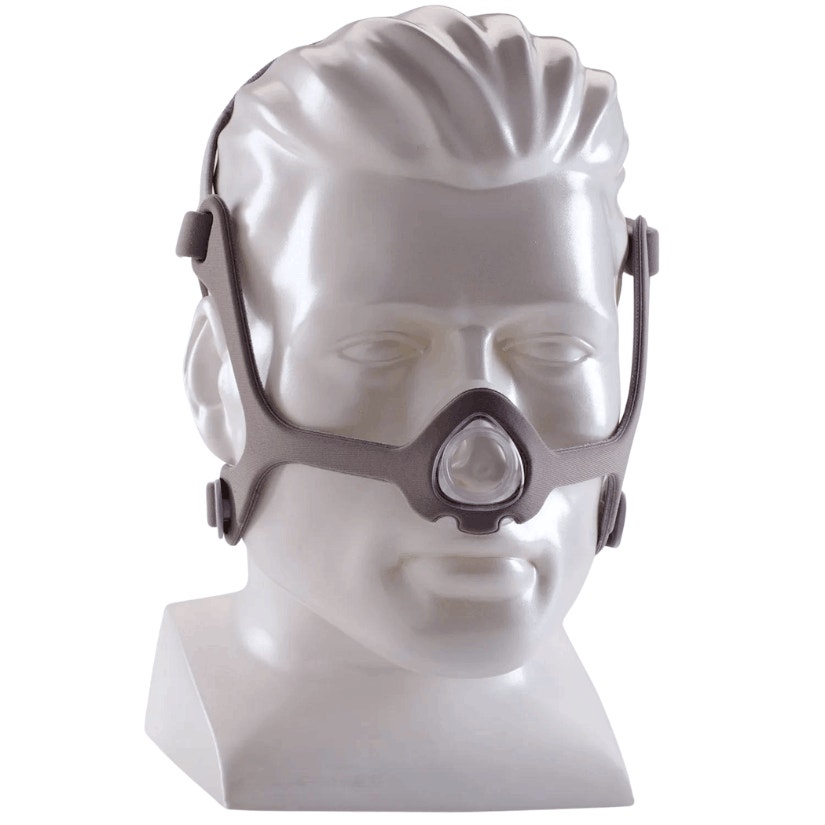

The small nasal mask minimizes contact with the skin to reduce skin discomfort and help patients feel more natural during treatment. The cushion is available in multiple sizes to accommodate for all patients. Because this nasal mask does not have a forehead cushion, patients enjoy a clear line of sight. They are able to watch TV or read while receiving sleep apnea therapy.

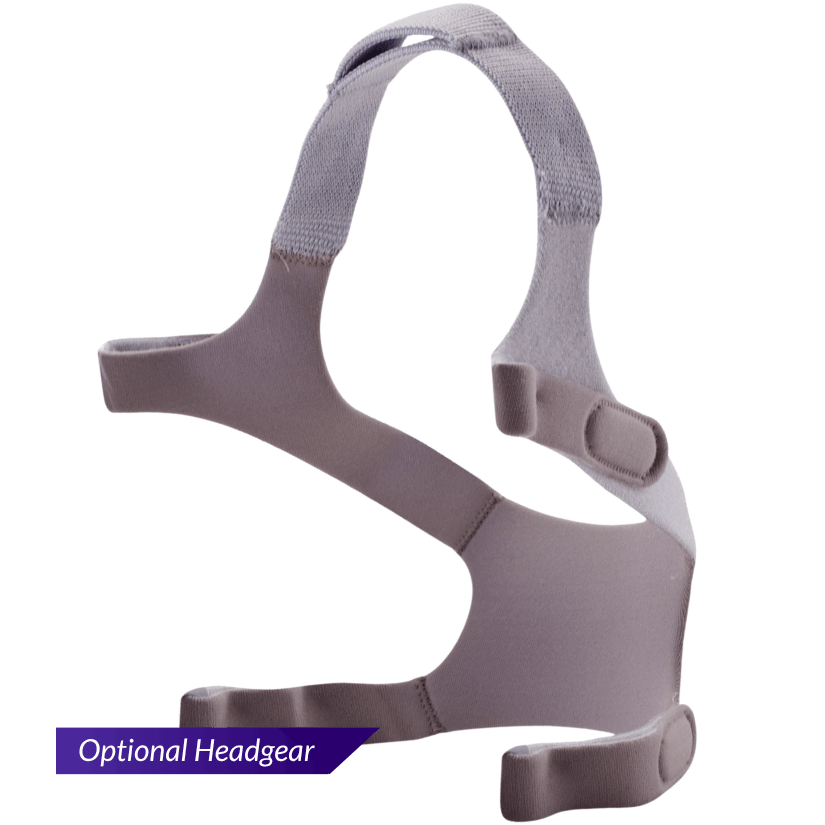

The headgear is easy to adjust and fit on the head regardless of the patient's head size and shape. Headgear is available is two different sizes.

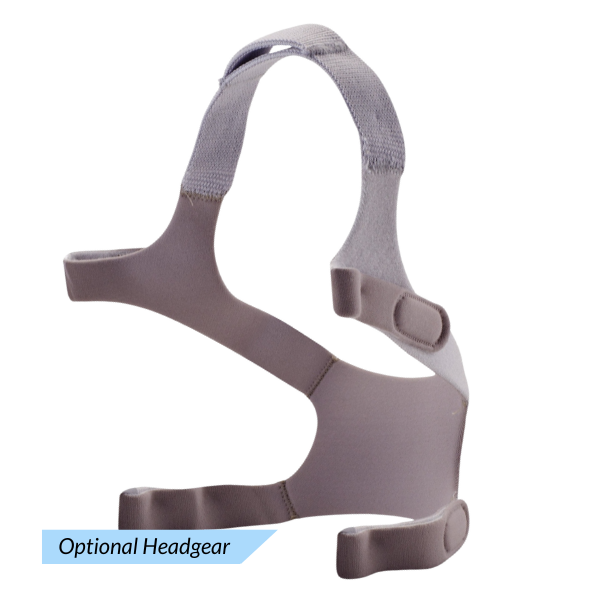

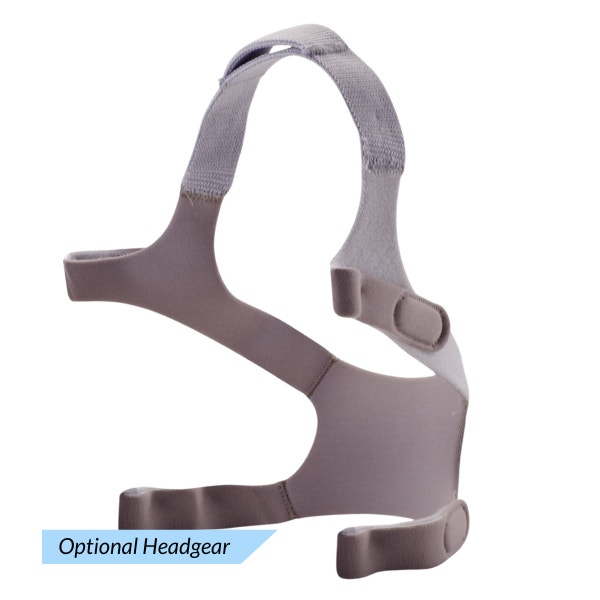

Please note: Headgear and Short Tube Assembly components are available as an option but not included automatically. It is also not required. However, if you'd like your order to include headgear and short tube assembly, please select your preferred option above.
-

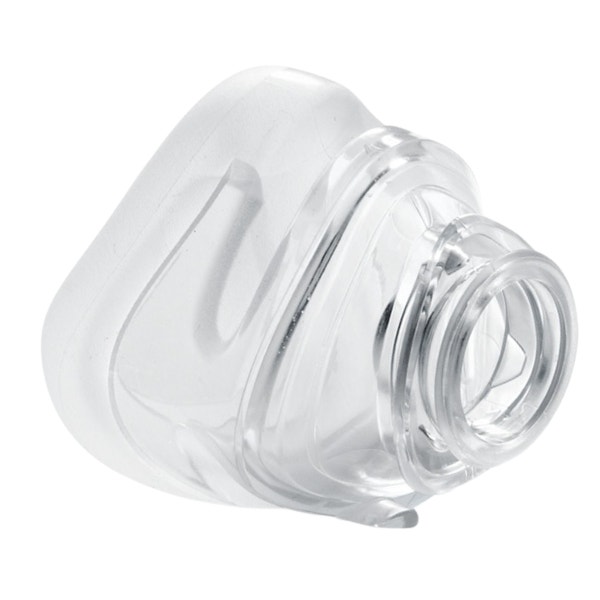

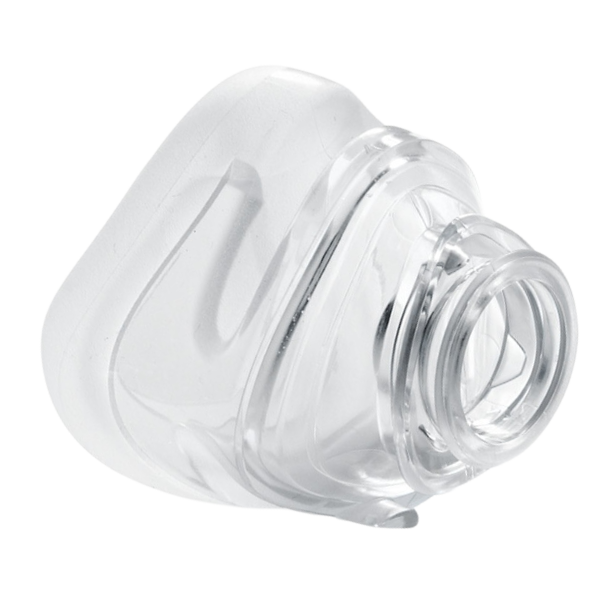

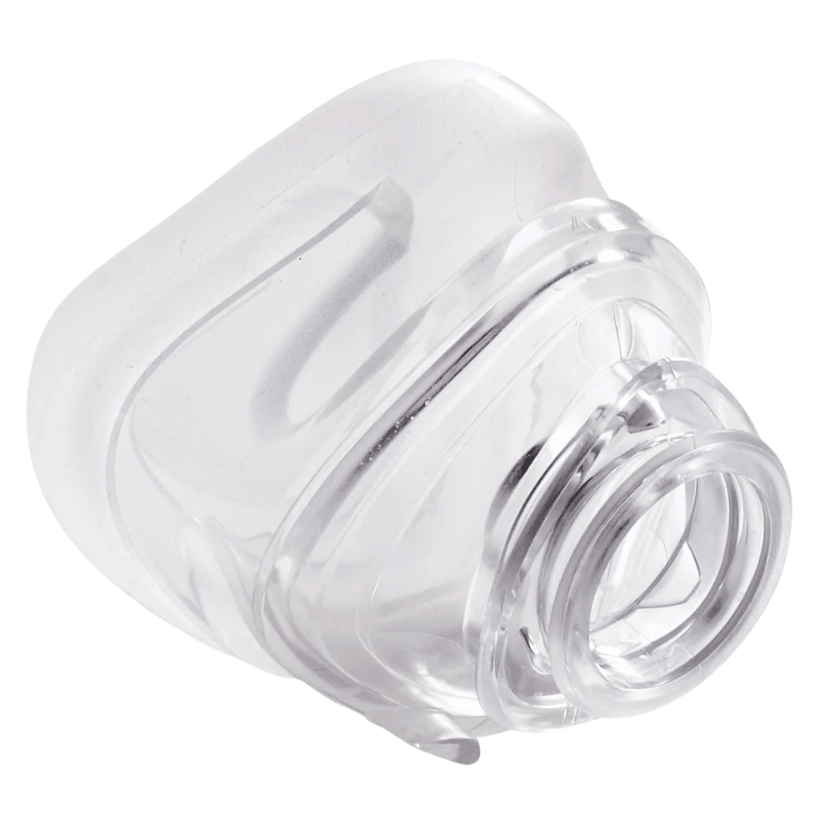

Small nasal cushion reduces skin-to-cushion contact
-
No forehead pad increasing patient visibility during therapy
-

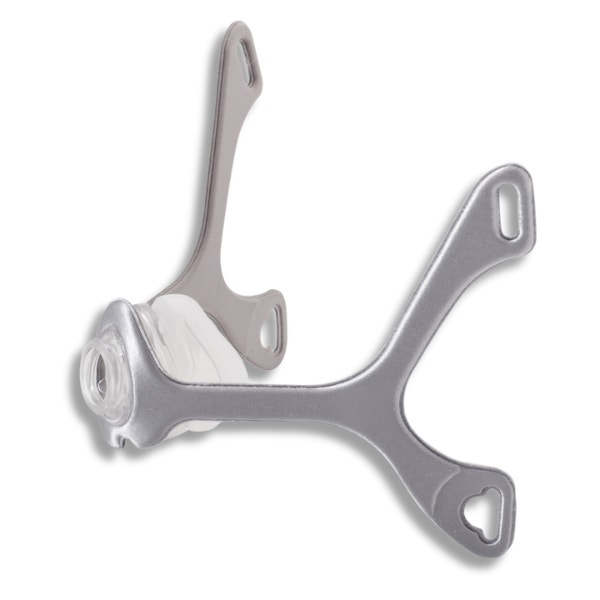

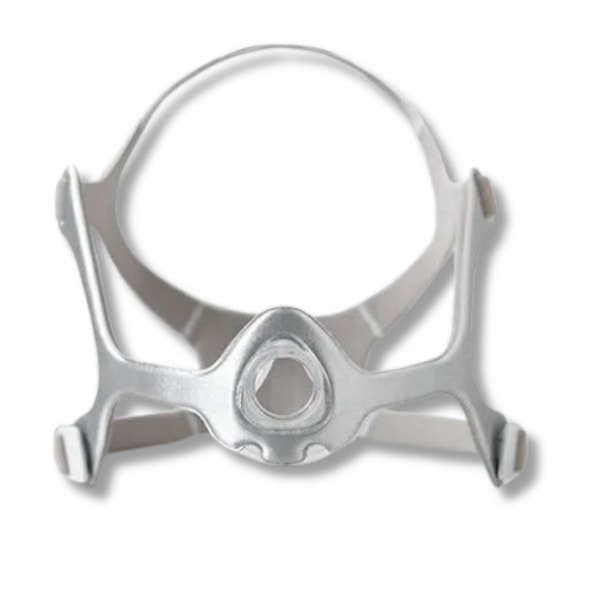

Nasal mask frame is available in two materials: clear plastic or fabric
-
Lightweight
-
Flexible
-

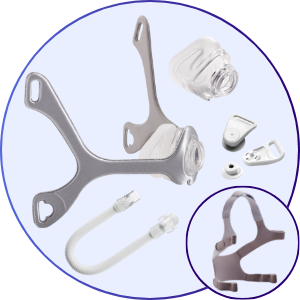

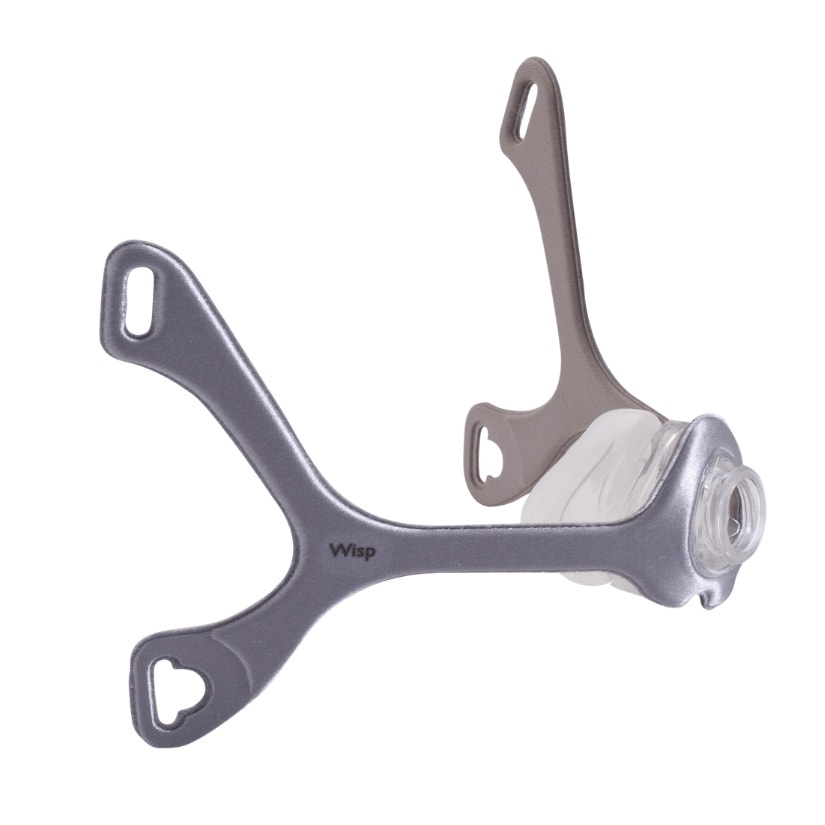

1 — Wisp Fabric Mask Frame and Cushion (of selected size option)
-
1 — Elbow
-
1 — Swivel

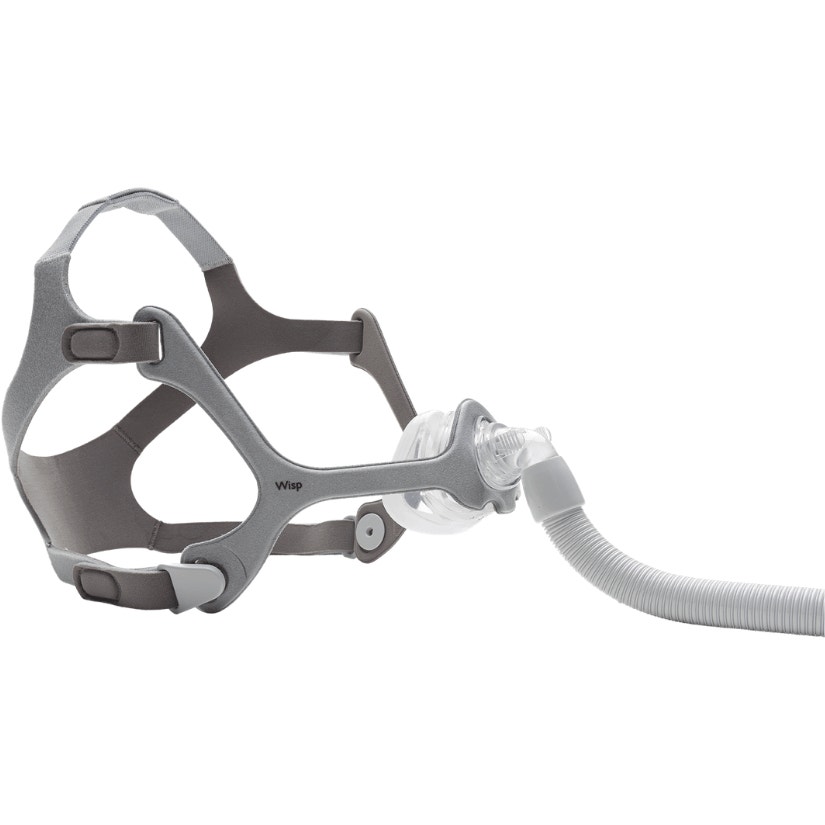

Please note: the Headgear and the Short Tube Assembly components do not automatically come with the order. If you'd like your purchase to include headgear and short tube assembly, please select your headgear and short tube assembly option above. If you select a headgear option, the following will be included:
-
1 — Headgear
-
2 — Headgear Clips
-
1 — Short Tube Assembly
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images of these instructions.
- Disconnect one, or both. Peel the headgear tabs away from the headgear strap and pull through slot in the mask frame or if using the clip twist outward.
- Pull headgear on over head.
- Place cushion over nose.
- Thread tab through slot in mask frame or press clip against the headgear slot to reattach.
- Peel the headgear tabs away from the headgear straps then press tabs against the headgear straps to reattach.
- Connect the side straps to the headgear tab located at the base of the crown strap.
- Connect the bottom strap tabs near the back of the headgear. - Adjust side straps evenly.
- Adjust bottom straps evenly.
- The mask should rest comfortably against your face.
Note: Do not overtighten the headgear.
Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
- Squeeze the Quick Release Tabs.
- Pull the elbow away from the cushion.
- Push the cushion backwards through the frame.
- Detach the headgear bottom clips from the frame or undo the bottom tabs and pull.
- Undo the headgear top tabs and pull the straps through the frame.
- Push the cushion into the frame towards the front and press into place.
- The bottom of the cushion will match the alignment cutouts of mask frame.
- Push the elbow into the cushion until the Quick Release Tabs click into place.
- Hold the crown strap upward.
- Make sure the wide strap marked with "Philips Respironics" is outward.
- Slide the headgear tabs into the longer frame arm slots.
- Connect the headgear clips to the frame or slide the tabs into the shorter frame arm slots if not using the headgear clips.
| Operating Therapy Pressure Range |
| 4 to 30 cmH²O |

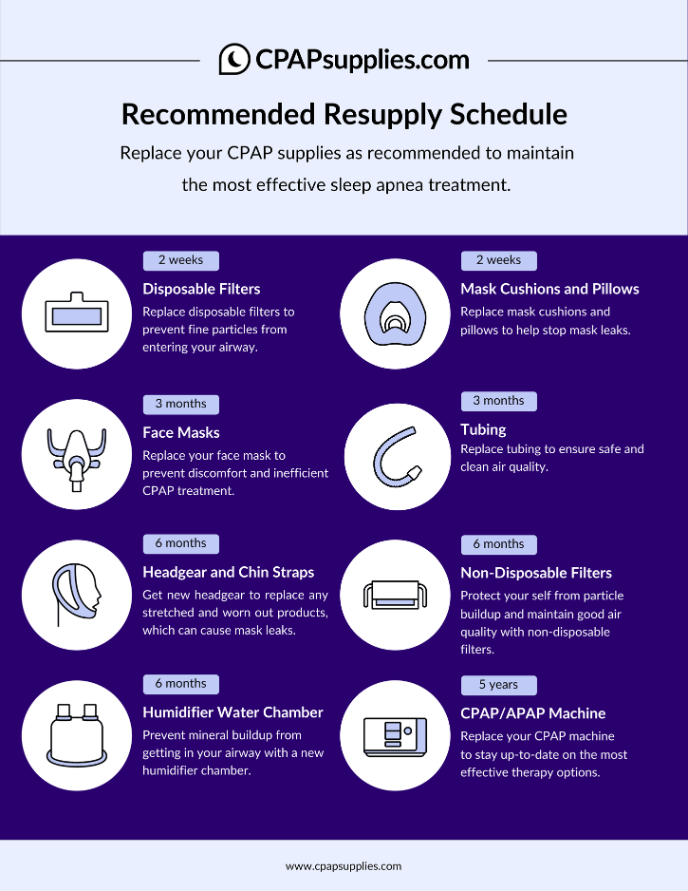

CPAPsupplies.com: CPAP Supplies Replacement Schedule
Wisp: Introduction
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| SKU | pb_wispnasal_fabric |
|---|---|
| Model | pb_wispnasal_fabric |
| UPC | 00606959407404, 00606959407411, 00606959407428, 00606959407602, 00606959407435, 00606959407367, 00606959407374 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Mask Frame: 11 1/4" (L) x 1/4" (W) x 4 1/2" (H); Cushions: Petite - 2" (L) x 2" (W) x 2" (H); Small/Medium - 2" (L) x 2 1/4" (W) x 2 1/4" (H); Large - 2 1/4" (L) x 2 1/2" (W) x 2 1/2" (H) |
| Included | 1101553, 1101554, 1101555, 1113958, 1094082, 1094078, 1105624 |
