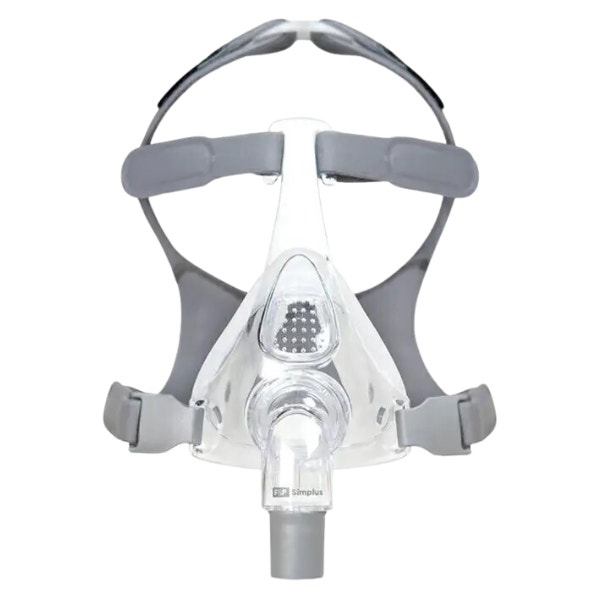

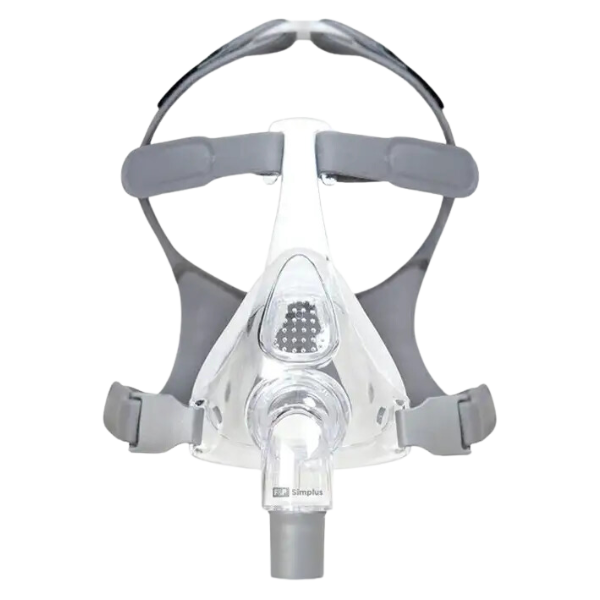

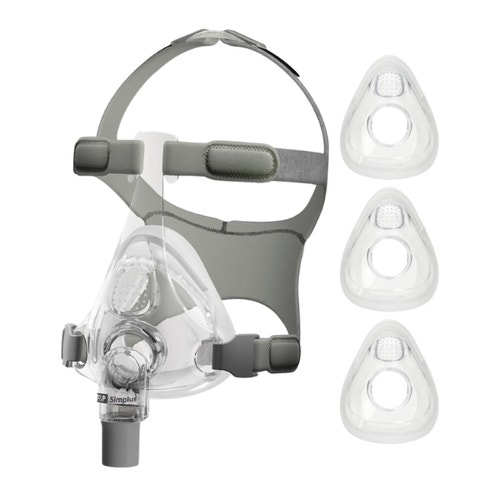

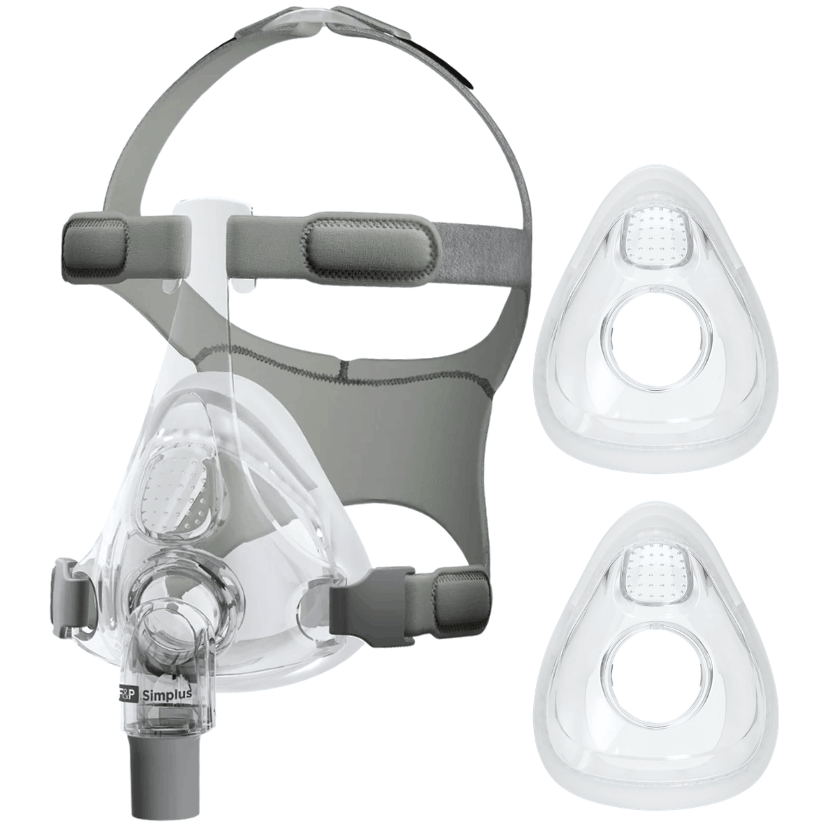

Fisher & Paykel Simplus™ Full Face CPAP Mask Fit Pack

Refer to the assembly diagrams in these instructions.

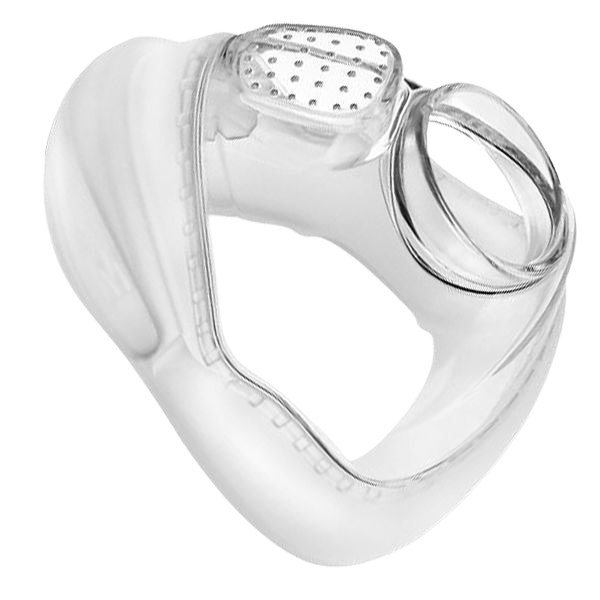

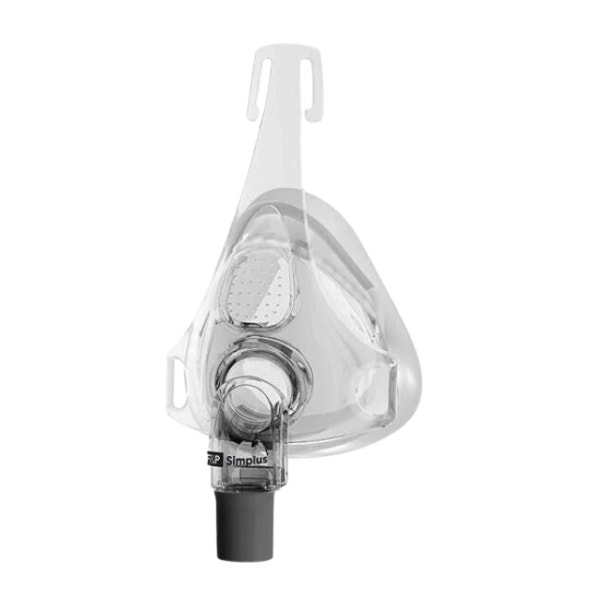

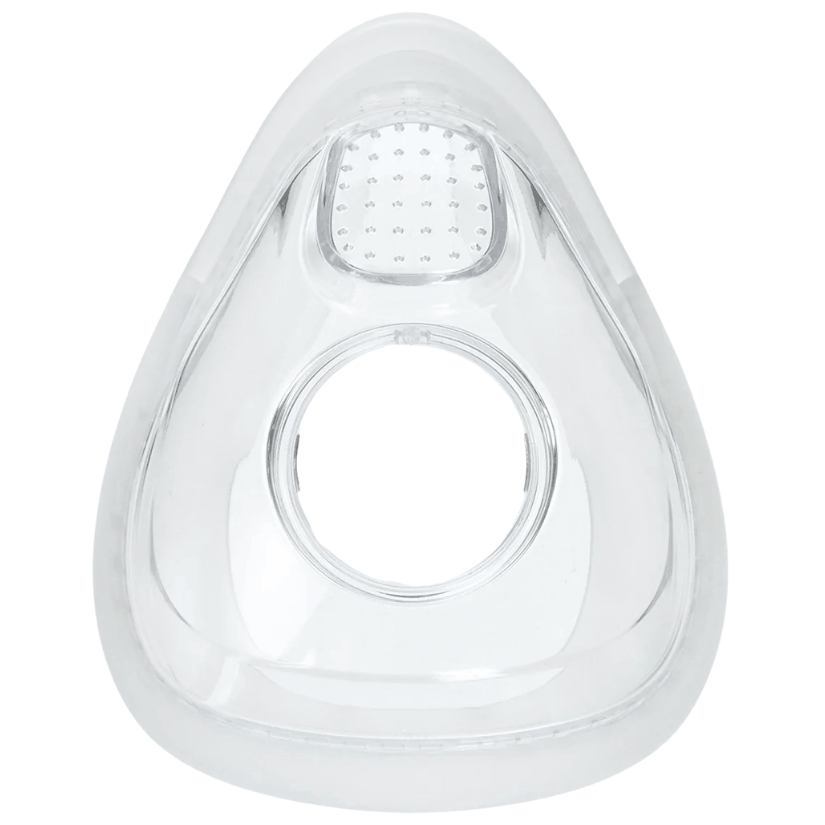

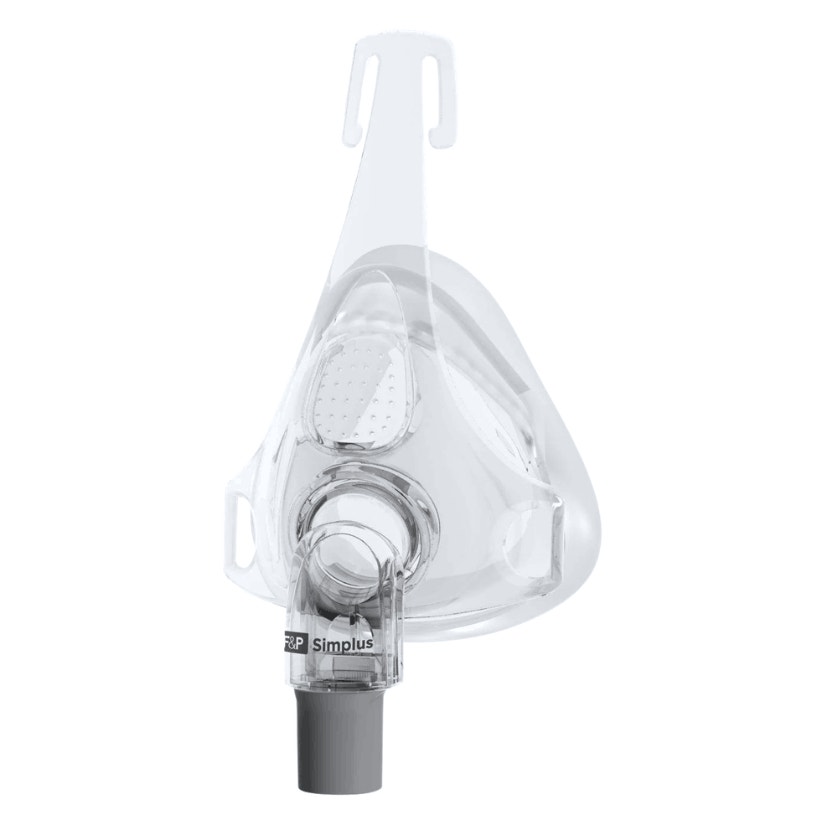

1. Push the Silicone Cushions onto the Mask Frame in the orientation shown until a confirmation click is heard.

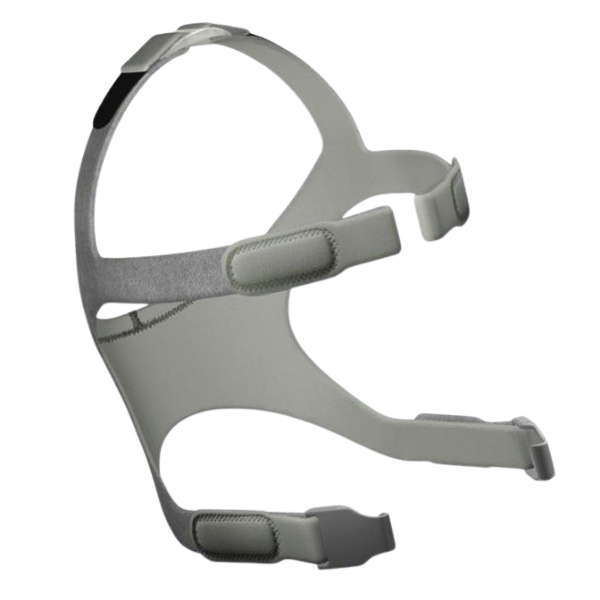

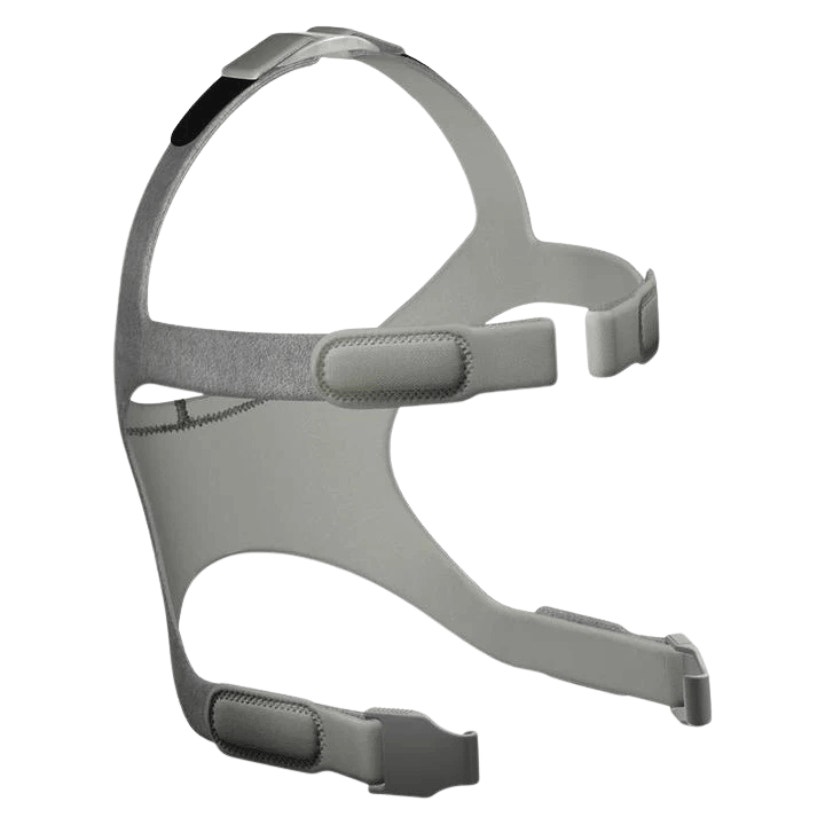

2. Slide the Forehead Loops of the Headgear into the slots of the Mask Frame. This can be done without undoing the Velcro tabs.
3. Hook the Headgear Clips onto the Mask Frame.
4. Push the Swivel onto the Elbow.
5. Attach the assembled mask to the CPAP tube.

Remove all packaging before using the mask.

Refer to the fitting images inside the front cover of these instructions.

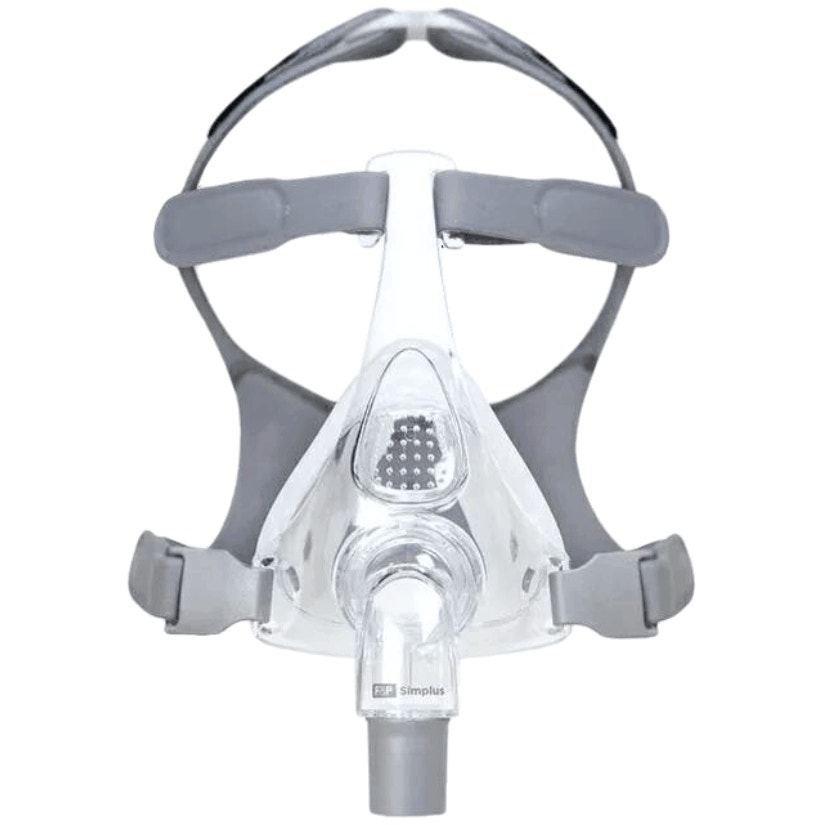

1. Hold the Mask Frame with one hand and the Headgear in your other hand. One of the Headgear Clips should be hooked onto the Mask Frame.
2. Place the Cushion Seal on your face and guide the Headgear over your head.
3. Hook the unattached Headgear Clip onto the Mask Frame.
4. Gently tighten the Headgear Straps in the correct order. Position the top Headgear Strap when first fitted and the middle and lower Headgear Straps when adjusting to avoid mask leaks.

Caution: Ensure the Headgear is not overtightened. The mask, when fitted correctly, should be able to be pulled away from your mouth without adjusting the Headgear straps or disconnecting the Headgear Clips.

Fitting Tips: Do not over-tighten any of the Headgear Straps. Forehead Straps should be resting horizontally on your forehead, just above your ears.
