Fisher & Paykel Simplus™ Full Face CPAP Mask
$104.00
The Fisher & Paykel Simplus™ revolutionizes full face mask comfort, fit, and ease of use. The RollFit™ cushion rolls and flexes to reduce pressure and improve your mask seal during sleep. The low-profile, lightweight frame provides a clear line of sight, so you'll hardly know it's there.
Fisher & Paykel Simplus™ Full Face CPAP Mask Overview
Engineered to create a mask that revolutionizes full face mask comfort, seal and ease of use, the Simplus™ has three key components: the RollFit™ Seal, ErgoForm™ Headgear and Easy Frame. These three components work together to create an advanced therapy system that is simple to use. Please note that headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option.
The Simplus™ is the result of intensive research and development by Fisher & Paykel specialists after doing extensive consulting with patients, clinicians and doctors. As a result, the Simplus™ full face mask won the Purple Pin prize awards at the 2014 Best Design Awards and the HME Business 2014 New Product Award.
-
Please note: Headgear is available as an option but not included automatically. It is also not required. However, if you'd like your order to include headgear, please select your preferred option above. We highly recommend it because ErgoForm™ Headgear uses stretch and non-stretch panels to ensure the patient has the flexibility to move during sleep while having peace of mind that their mask won't leak
- The frame for this system gives the patient a clear line of sight
- One-frame-fits-all benefit
- Easy-Clip Frame attachment makes assembly after cleaning the frame system effortless
- Self-locating high on the head, the headgear is breathable and fits most head shapes
- RollFit™ Seal is a one-piece seal system that 'rolls' back and forth on the bridge of the nose. This feature minimizes pressure often felt on the nose while maintaining a tight seal
- Enjoy an air diffuser that minimizes noise and draft for added comfort
-
1 — Simplus™ Mask Frame and Cushion (of selected size option)
-
1 — Elbow
-
1 — Swivel
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — Simplus™ Headgear
-
2 — Headgear Clips
-
1 — Headgear Buckle
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion

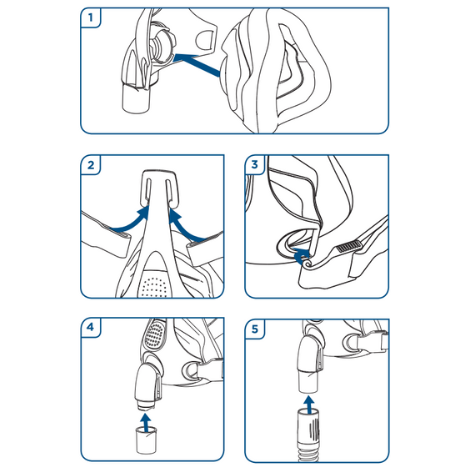

Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Push the Silicone Cushions onto the Mask Frame in the orientation shown until a confirmation click is heard.
- Slide the Forehead Loops of the Headgear into the slots of the Mask Frame. This can be done without undoing the Velcro tabs.
- Hook the Headgear Clips onto the Mask Frame.
- Push the Swivel onto the Elbow.
- Attach the assembled mask to the CPAP tube.

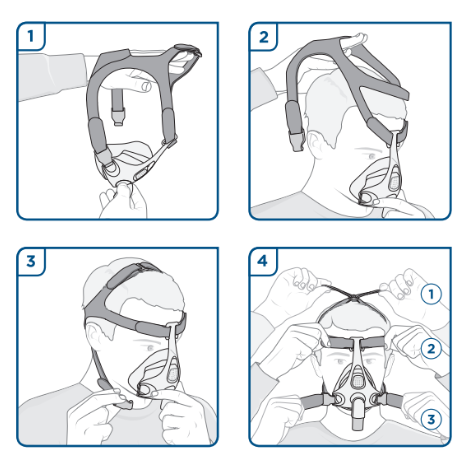

Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images inside the front cover of these instructions.
- Hold the Mask Frame with one hand and the Headgear in your other hand. One of the Headgear Clips should be hooked onto the Mask Frame.
- Place the Cushion Seal on your face and guide the Headgear over your head.
- Hook the unattached Headgear Clip onto the Mask Frame.
- Gently tighten the Headgear Straps in the correct order. Position the top Headgear Strap when first fitted and the middle and lower Headgear Straps when adjusting to avoid mask leaks.
Caution: Ensure the Headgear is not overtightened. The mask, when fitted correctly, should be able to be pulled away from your mouth without adjusting the Headgear straps or disconnecting the Headgear Clips.
Fitting Tips: Do not over-tighten any of the Headgear Straps. Forehead Straps should be resting horizontally on your forehead, just above your ears.
| Operating Therapy Pressure Range |
| 4 to 25 cm H²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Simplus™: Introduction
Simplus™: Fitting Guide
Simplus™: Cleaning Guide
Simplus™: Assembly Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
| Brand | Fisher & Paykel |
|---|---|
| SKU | pb_simplus_mask |
| Model | pb_simplus_mask |
| UPC | 9420012426154, 9420012426161, 9420012426178, 9420012426215, 9420012426222, 9420012426239, 9420012426246, 9420012426253 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Headgear: 11" (L) × 9" (W) × 1" (H); Mask Frame: 3 3/4" (L) x 2 1/2" (W) x 7 1/2" (H); Cushions: Small -- 3 1/2" (L) x 2 1/2" (W) x 4" (H); Medium -- 3 1/2" (L) x 2 1/2" (W) x 4 1/4" (H); Large -- 3 1/2" (L) x 2 1/2" (W) x 4 1/2" (H) |
| Included | 400HC584, 400HC585, 400HC586, 400HC582, 400HC583 |
