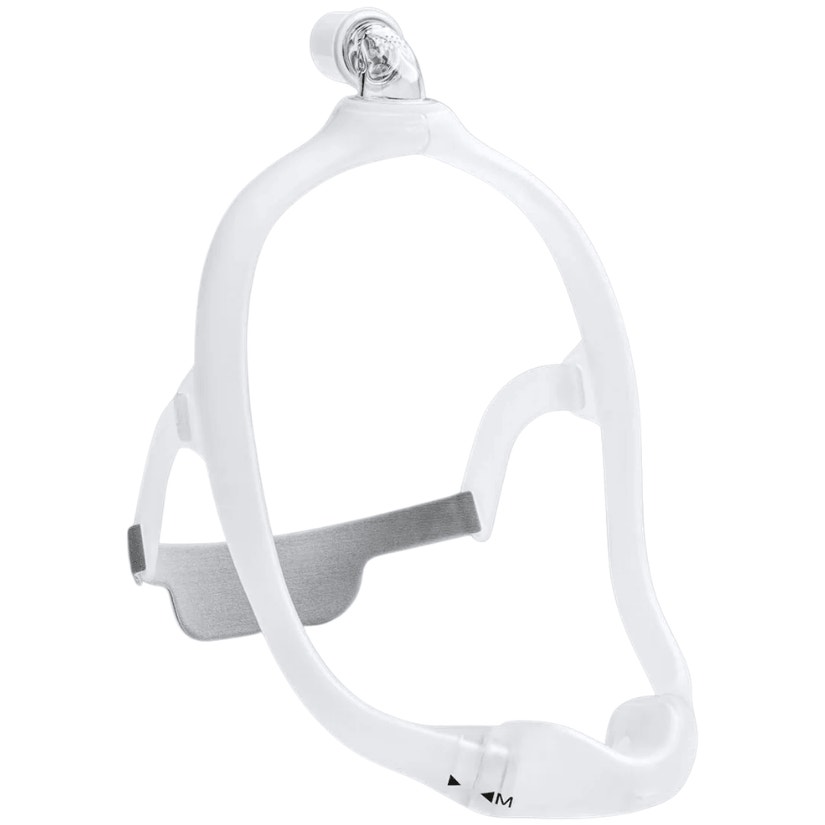

Philips Respironics DreamWear Nasal CPAP Mask with Headgear
Designed to feel like you’re not wearing a mask, the innovative design of the Philips Respironics DreamWear Nasal CPAP Mask directs airflow through the frame so you can sleep comfortably with more freedom of movement and an enhanced field of vision.
Philips Respironics DreamWear Nasal CPAP Mask with Headgear Overview
The Philips Respironics DreamWear Nasal is a unique under-the-nose CPAP mask with a revolutionary design that directs pressurized airflow through the mask frame to increase comfort, freedom of movement, and your field of vision during or before your sleep apnea therapy, making this the perfect minimal contact CPAP mask for active sleepers and reading or watching TV before bed.
Freedom of Movement:
-
Keeps tubing away from the face to offer freedom of movement during the night
-
Achieve any sleep position - stomach, side, or back
-
Clear line of sight to read or watch TV
-
Users rated DreamWear more stable, more comfortable, and more appealing than their prescribed mask
-
Minimal contact under the nose design
Comfort:
-
One mask offering the benefits of nasal pillow masks
-
Prevents red marks, discomfort or irritation in the nostrils or on the nose bridge
-
Soft, flexible silicone frame and fabric wraps provide a soft touch on the patient's cheek
-
Simple and comfortable headgear
-

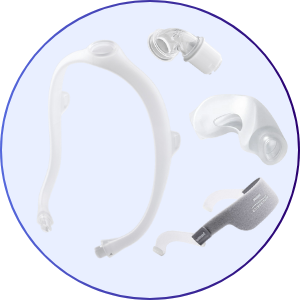

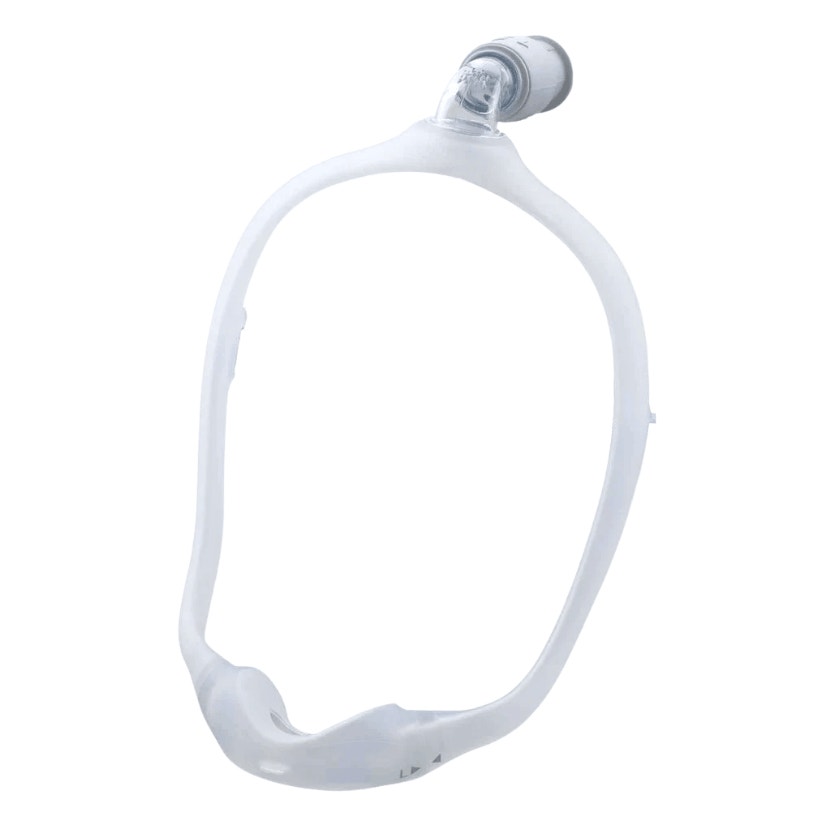

1 — DreamWear Nasal Mask Frame (of selected size)
-

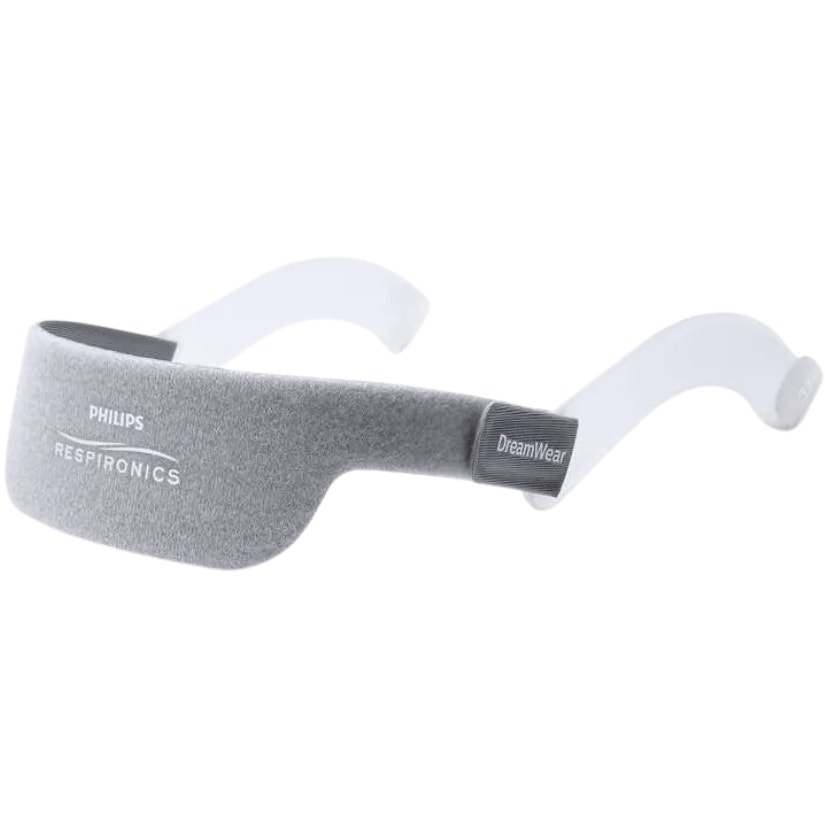

1 — DreamWear Nasal Mask Headgear
-

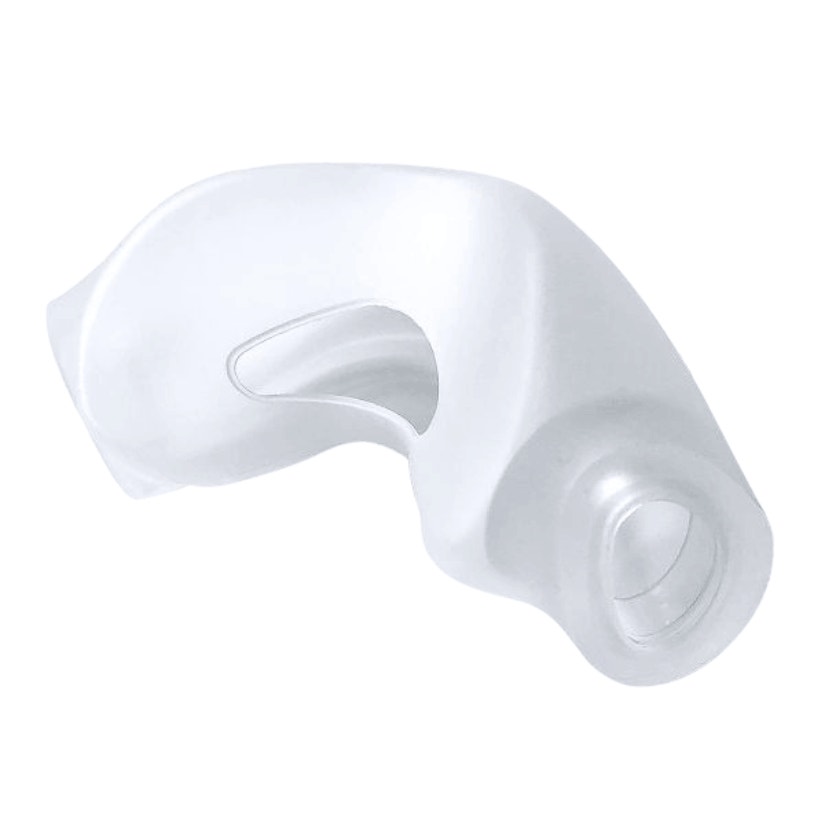

1 — DreanWear Nasal Mask Cushion (of selected size)
-
1 — Elbow
-
1 — Instructions Guide
Click here if you're looking to purchase the Philips Respironics DreamWear Nasal CPAP Mask components without a prescription.
Included with Fit Pack option only:
-
1 — DreamWear Nasal Mask Frame & Headgear (Medium)
-
4 — DreamWear Nasal Mask Cushions (1 of each -- Small, Medium, Medium/Wide & Large)
-
1 — Elbow
-
1 — Instructions Guide
-
Small Frame, Small Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116685
-
Small Frame, Medium Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116686
-
Small Frame, Medium/Wide Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116688
-
Small Frame, Large Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116687
-
Medium Frame, Small Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116680
-
Medium Frame, Medium Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116681
-
Medium Frame, Medium/Wide Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116683
-
Medium Frame, Large Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116682
-
Large Frame, Small Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116690
-
Large Frame, Medium Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116691
-
Large Frame, Medium/Wide Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116693
-
Large Frame, Large Cushion DreamWear Frame & Nasal Cushion with Headgear - 1116692
- DreamWear Fit Pack - Medium DreamWear Mask Frame, Headgear, and Small, Medium, Medium/Wide & Large Cushions - 1116700
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Fitting Your Mask
- 1. With the mask assembled (see Assembly section), place the cushion under the nose.
- 2. Position the frame on the top of the head. Tip: For proper sizing, see Cushion sizing and Mask frame selection sections.
- 3. Pull the headgear over the back
Adjusting Your Mask
- 4. Peel the headgear tabs away from the fabric. Adjust the strap length. Press the tabs back against the fabric to reattach. Note: Do not overtighten the headgear. Signs of overtightening include redness, sores, or bulging skin around the edges of the mask.
- 5. Position the mask until it fits comfortably.
- 6. When finished the elbow should rest at the top of the head.
Removing Your Mask
Tubing Quick Release
- 7. The elbow is equipped with a tubing quick release. Pull on the tubing quick release and it will disengage from the elbow and come loose with the tubing.
Removing the Mask
- 8. To keep your adjustments, remove the mask by grasping the cushion and pulling forward away from the nose. Then pull the cushion and mask up and off of the head.
Assembling Your Mask
Align the triangles on the cushion and frame for proper assembly.
- Cushion: Press into the mask frame until the cushion clicks into place. (Fig. 9 & 10). Note: The end of the cushion and the opening in the mask frame are ‘D’ shaped. The cushion end should match the frame.
- Elbow: Insert into the top of the mask frame.
- Tubing quick release: Push the tubing quick release onto the elbow until it clicks into place.
- Fabric sleeves: Wrap the sleeves around the mask frame and press the strips together. Note: The sleeve seams should be on the outside of the frame.
- Headgear assembly: a. Headgear with arms: Push the headgear clip through the mask frame loop. Connect the second clip to the mask frame loop on the other side. Slide the tabs into the slots on the arms and fold backwards. Note: The headgear arms have “L” and “R” symbols to show which side of your head each arm should go on. Once the mask is on, the symbol should face outward with the “L” on the left side of your head and the “R” on the right side of your head.
- b. Headgear without arms: Slide the tabs into the slots on the mask frame and fold
backwards. Note: The Philips Respironics logo will be on the outside and facing up when correctly assembled.

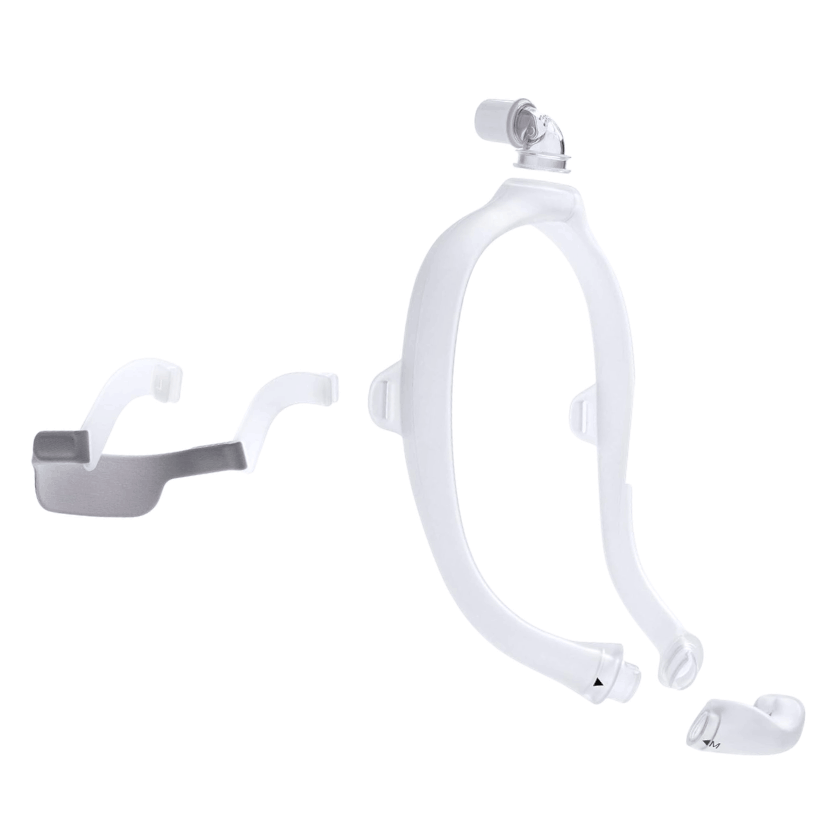

Disassembling Your Mask
Headgear disassembly:
- a. Headgear with arms: Gently pull each headgear clip out of the mask frame loop.
- b. Headgear without Arms: Undo the headgear tabs and pull through the slots in the mask
frame. - Fabric sleeves: Undo the strips and remove from the mask frame.
- Tubing quick release: Pull the tubing quick release from the elbow.
- Elbow: Pull the elbow from the top of the frame.
- Cushion: Pull the cushion from the mask frame.
| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |
DreamWear Nasal Wearing and Adjusting Guide Video
DreamWear Nasal Sizing and Assembly Guide Video
DreamWear Nasal Disassembly and Cleaning Guide Video
CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
Part Cleaning Frequency Instructions Nasal Cushions
Daily
- Using a mild detergent* and warm, drinking-quality water, gently clean your nasal cushions to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
Chinstrap
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
| Brand | Philips Respironics |
|---|---|
| SKU | p_DWmask |
| Model | p_DWmask |
| Prescription Required | Yes |
| Weight | 0.15 lbs |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 1116686, 1116683, 1116681, 1116692, 1116690, 1116687, 1116685, 1116682, 1116680, 1116693, 1116691, 1116688, 1116700 |
