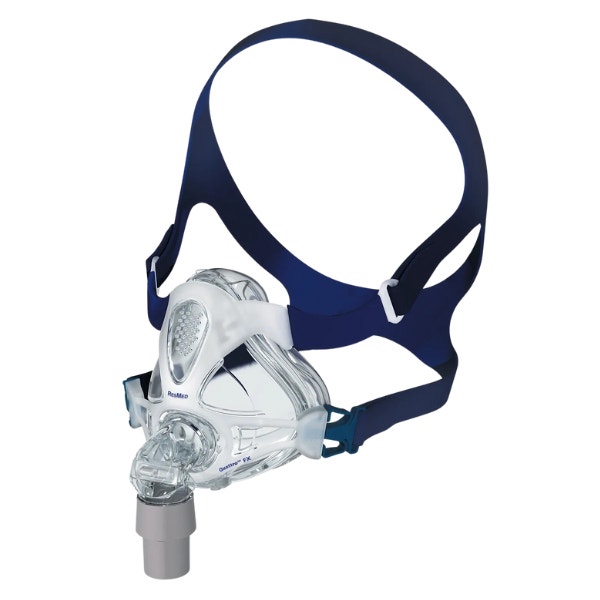

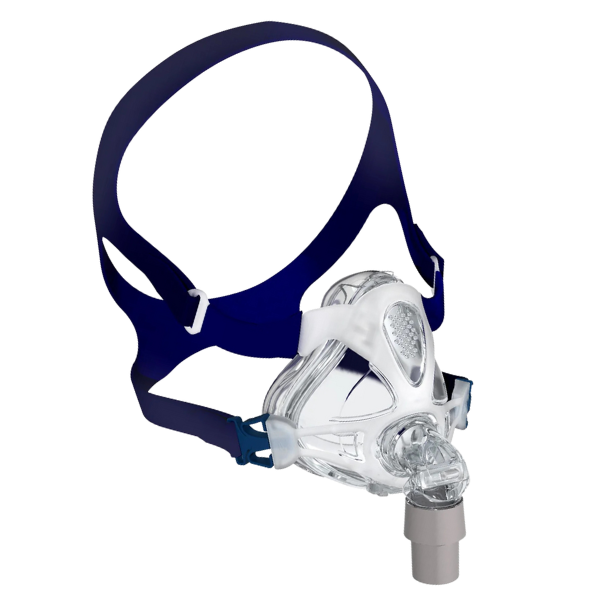

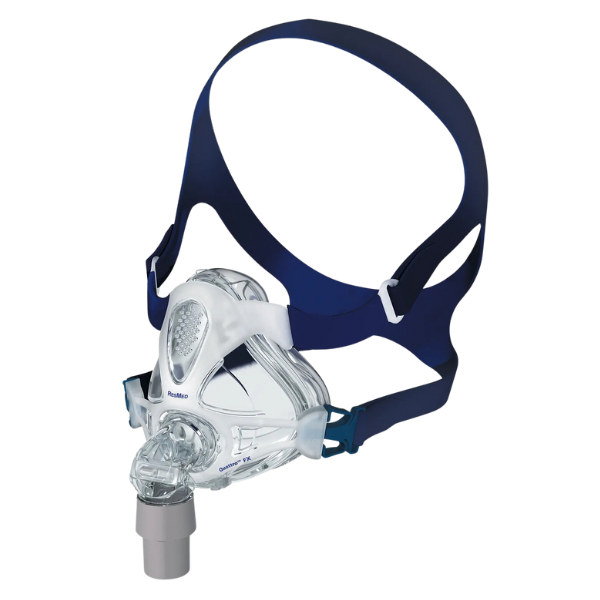

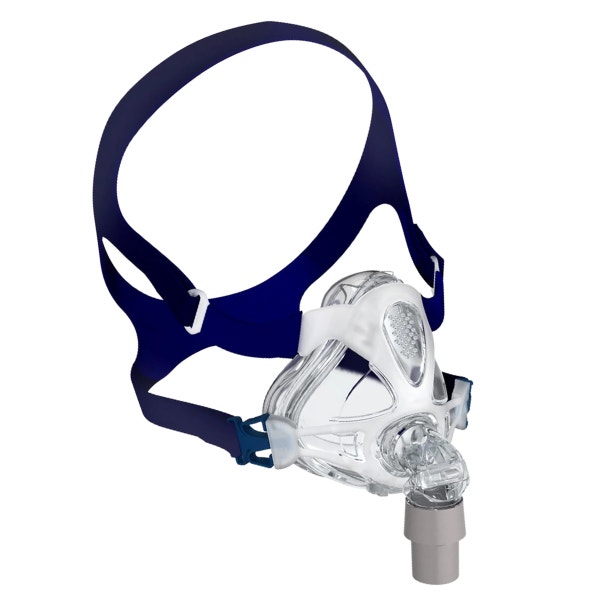

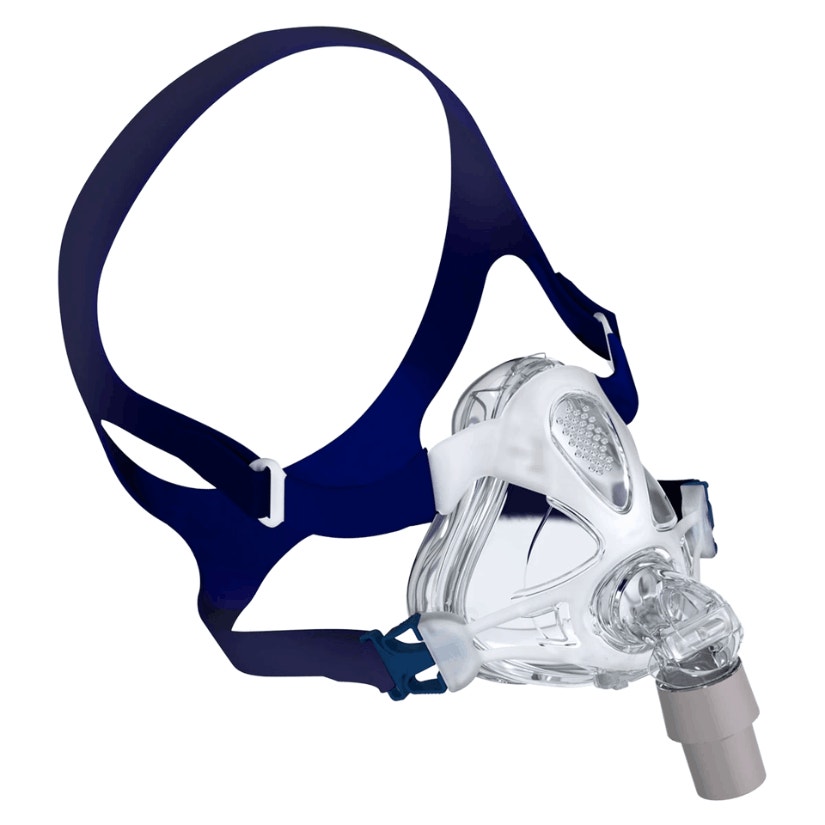

Resmed Quattro™ FX Full Face CPAP Mask with Headgear
The Quattro™ FX is a full face CPAP mask designed by Resmed to be a sleek alternative to traditionally bulky full face masks. The SpringFit™ mask frame eliminates the need for forehead support, providing a clear field of vision so you can comfortably read or watch TV before sleep therapy.
Resmed Quattro™ FX Full Face CPAP Mask with Headgear Overview
Combining the coverage and stability of a full-face CPAP mask, the Resmed Quattro™ FX delivers a less claustrophobic experience and a clear line of sight to provide added comfort and support for back and side sleepers alike.
The Quattro™ FX mask system features a compact, lightweight design with a grid of ports to provide quiet ventilation, perfect for keeping your sleep partner from having to manage a noisy sleep environment.
The SpringFit™ frame and dual-wall SpringAir™ cushions work to maintain an effective mask seal without the side effects of red marks, skin irritation, or overtightening.
-
Dual-wall SpringAir™ cushion is soft on skin while maintaining a secure seal
-
Fewer facial pressure points
-
Contoured mask headgear with no forehead support for a clear field of vision
-
Nasal bridge exhalation ports quietly vent air away from you and your bed partner
-
360° degree rotating elbow to adjust to movements during sleep
-

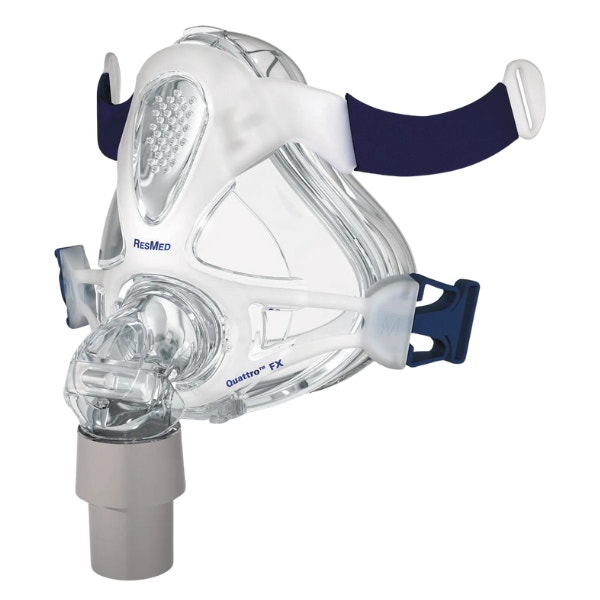

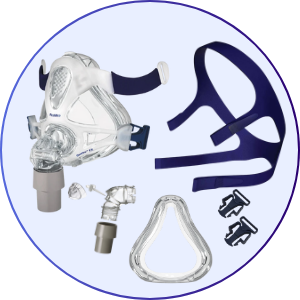

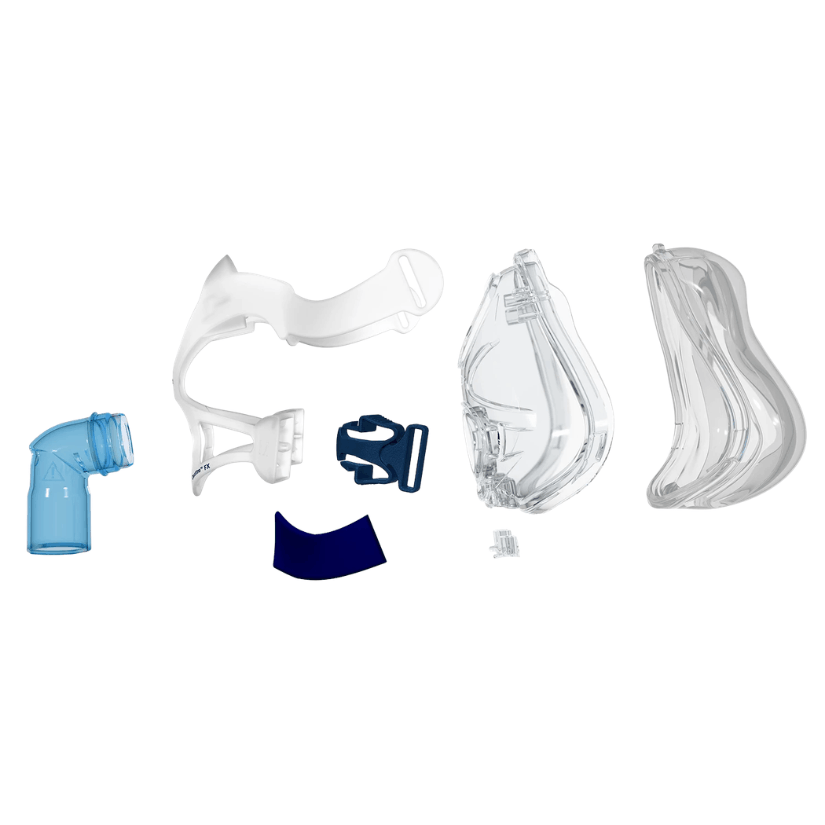

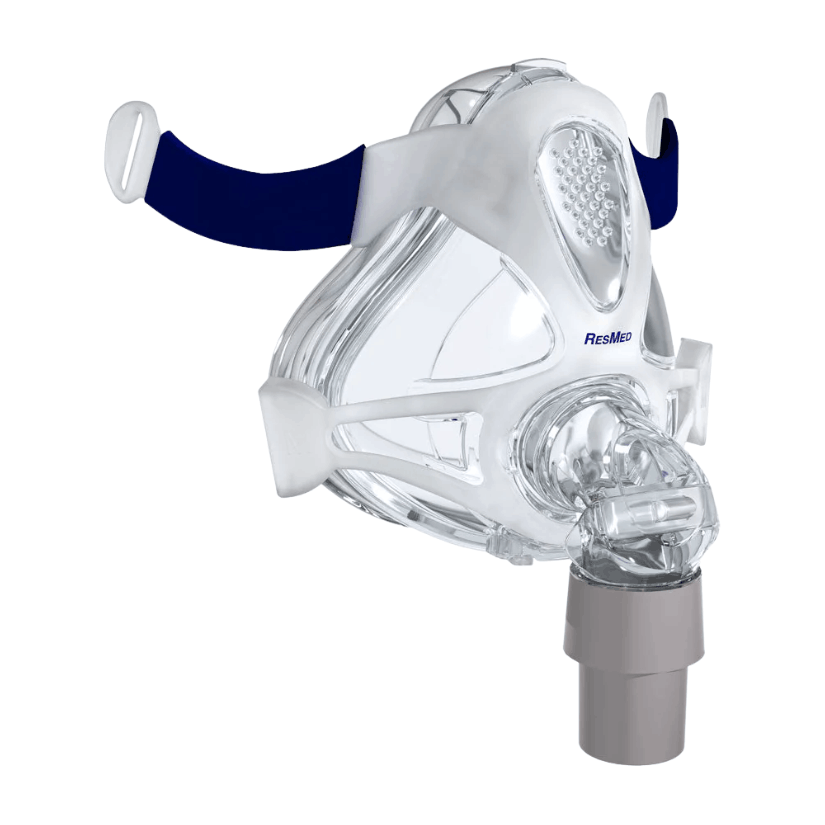

1 — Quattro™ FX SpringFit™ Frame
-

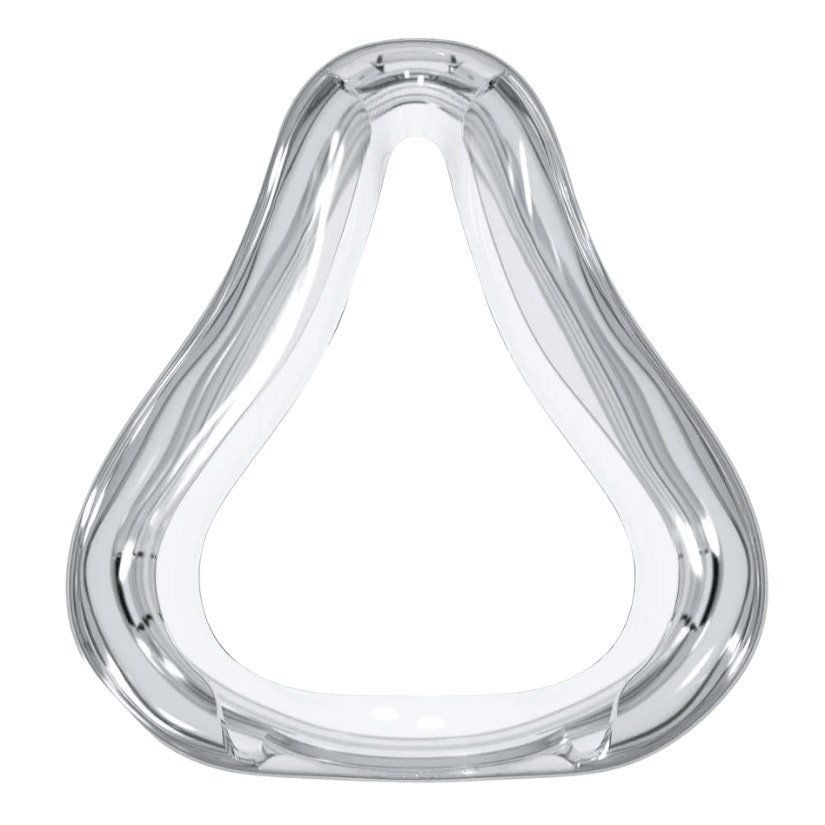

1 — Quattro™ FX Mask SpringAir™ Cushion
-
1 — Elbow & Swivel
-
1 — Valve & Valve Clip
-
1 — Ports Cap
-
1 — SpringFit™ Frame Support
-

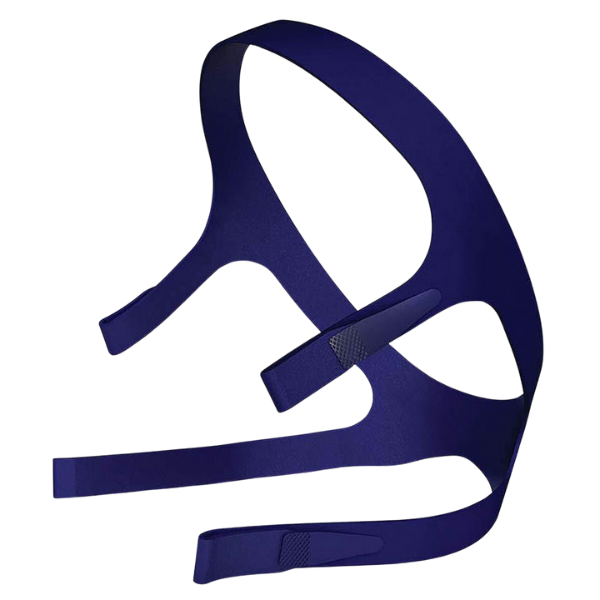

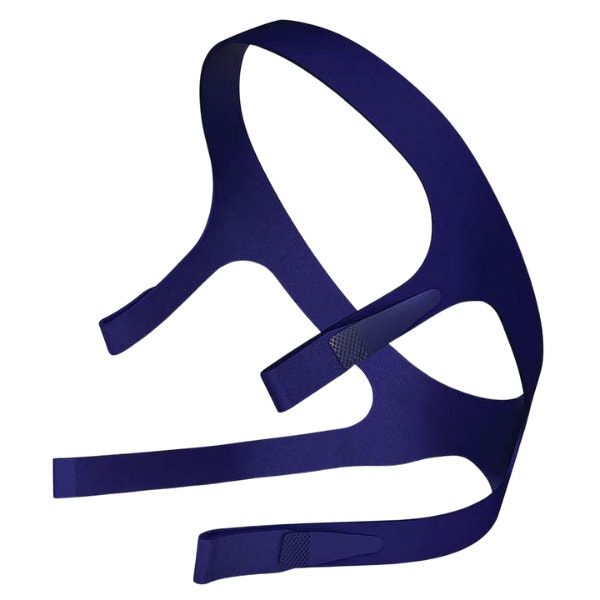

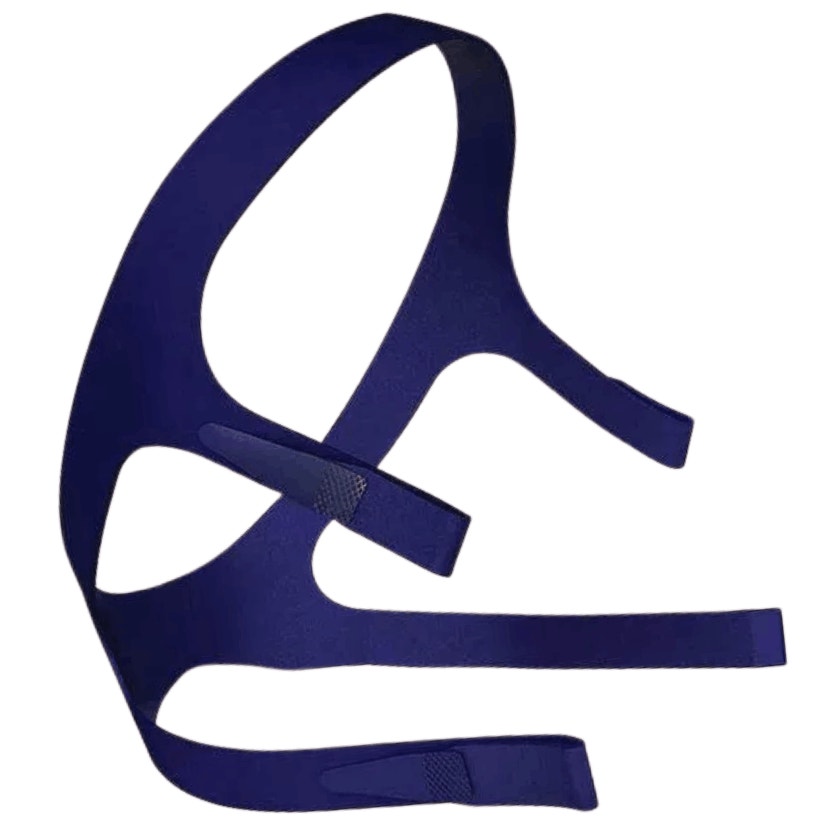

1 — Quattro™ FX Headgear
-
2 — Headgear Clips
Click here to purchase the Resmed Quattro™ FX Full Face CPAP Mask components without a prescription.

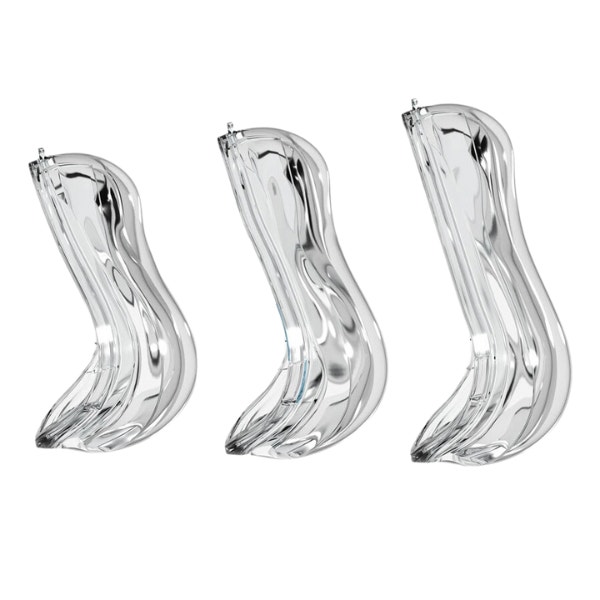

Available Sizing Options:
-
Small Quattro™ FX Mask with Headgear - 61700
-
Medium Quattro™ FX Mask with Headgear - 61701
-
Large Quattro™ FX Mask with Headgear - 61702
Available "for Her" Sizing Options:
-
Small Quattro™ FX for Her Mask with Headgear - 62501
-
Medium Quattro™ for Her FX Mask with Headgear - 62502
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
Assembling Your Mask
Refer to the assembly diagrams in these instructions.
- Insert the valve into the clip.
- Push the valve clip onto the elbow and insert the swivel into the end of the elbow.
- Replace the ports cap.
- Fit the cushion into the channel of the frame. Fit the top section first, then work your way around, pushing the cushion into the frame. Ensure that the cushion is not twisted or distorted around the frame.
- Replace the soft sleeves onto the spring frame and align the spring frame with the frame.
- Starting at the top, gently push and click the spring frame into the frame.
- Gently push and click each side of the lower spring frame into the frame.
- Replace the elbow into the mask assembly.
Fitting Your Mask
Prior to fitting your mask, remove the spring frame support from the rear of your mask and retain for future use. The Fitting illustrations section in this guide show the sequence for obtaining the best fit and comfort in using your mask.
- With both lower headgear clips released, position your mask at an angle against your face, ensuring that the top of the cushion contacts your nasal bridge first.
- Keeping the upper position of the mask in place, swing the lower half of the mask down against your face so that it rests halfway between your bottom lip and chin.
- Hold the mask firmly against your face and pull the headgear over your head.
- Bringing the lower straps below your ears, clip the headgear into the lower part of the spring frame.
- Unfasten the Velcro®, pull the upper headgear straps evenly until they are comfortable and firm, and reattach the Velcro.
- Repeat step 5 with the lower headgear straps.
Disassembling Your Mask
Before disassembling your mask, detach the air tubing and unclip the lower
headgear clips from the spring frame. Refer to the disassembly illustrations in
this guide.- Remove the elbow assembly from the mask.
- Gently pull the spring frame away from the frame. Remove the soft sleeves from the spring frame.
- Gently separate the cushion from the frame.
- Remove the ports cap.
- Remove the valve clip and detach the swivel from the elbow.
- Peel the valve away from the valve clip. Do not pull on the membrane to remove the valve.
| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |
Quattro™ FX Fitting and Sizing Guide Video
Quattro™ FX Cleaning Guide Video
Quattro™ FX Assembly Guide Video

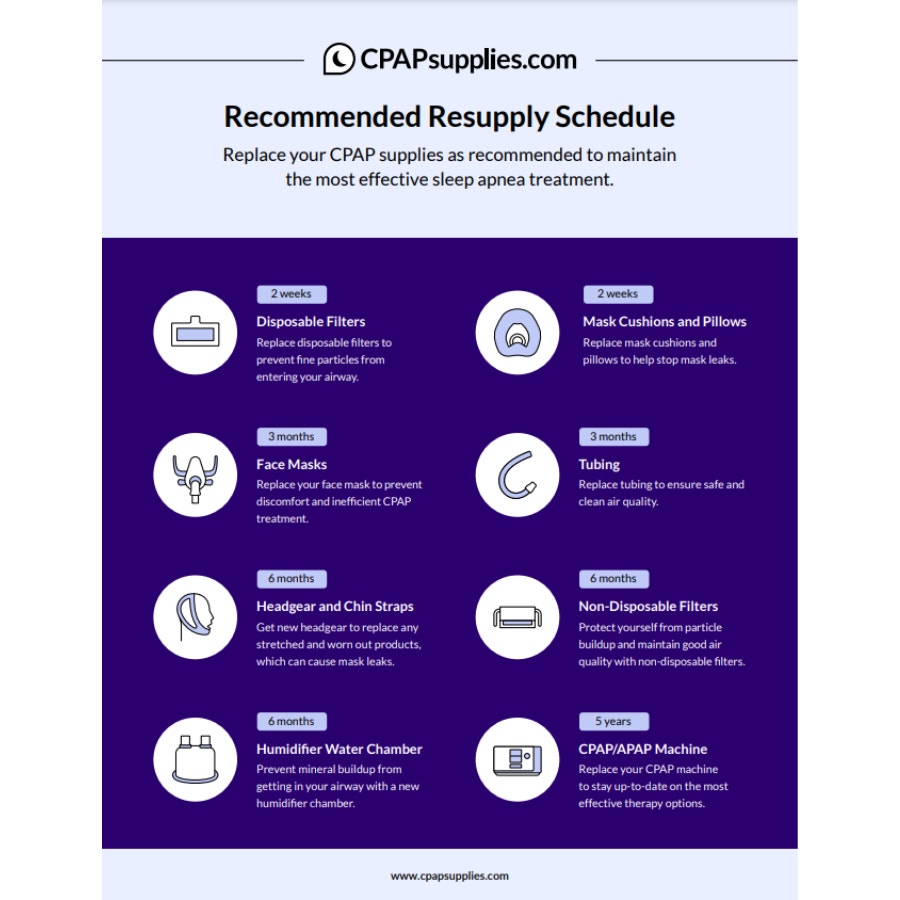

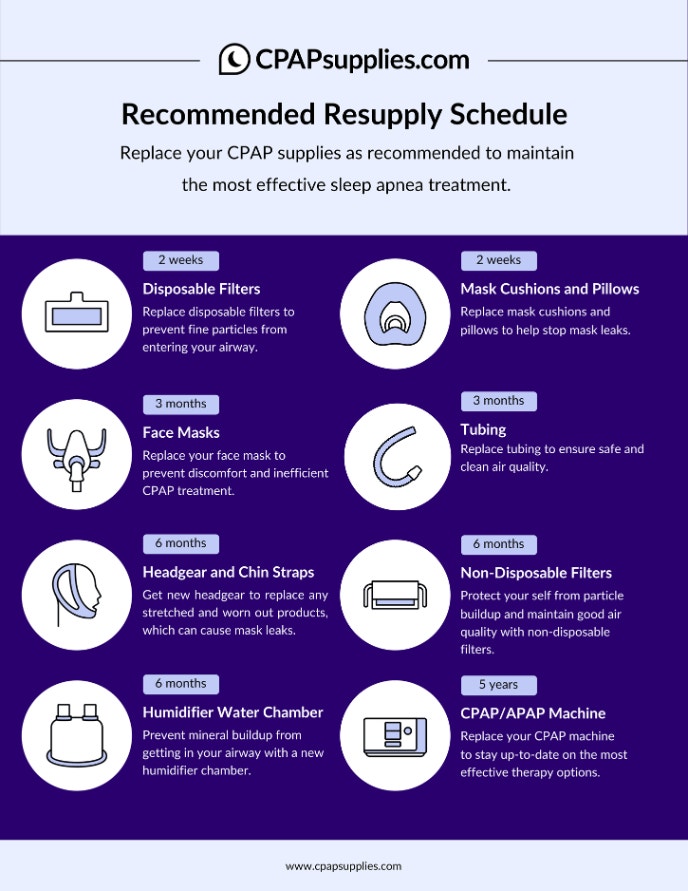

CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months

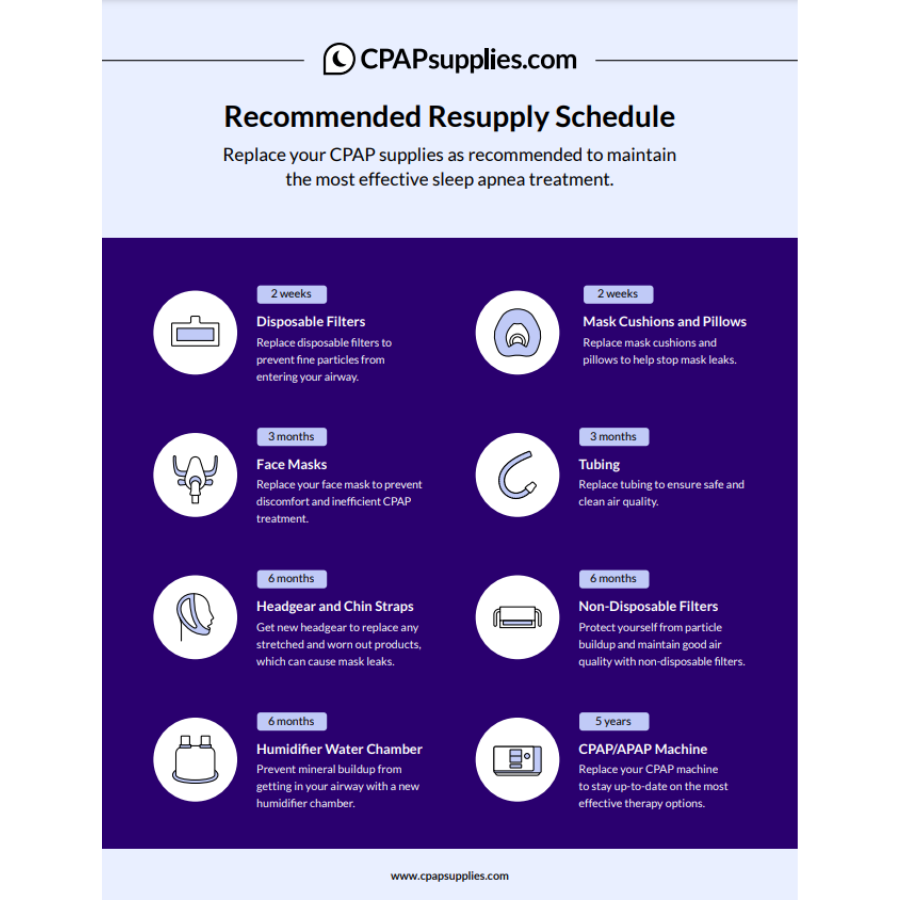

CPAPsupplies.com: CPAP Supplies Replacement Schedule Video
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
Part Cleaning Frequency Instructions Mask Cushions
Daily
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask cushions to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
Chinstrap
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
| Brand | Resmed |
|---|---|
| SKU | p_quattro_fx_complete |
| Model | p_quattro_fx_complete |
| UPC | 619498617005, 619498617012, 619498617029 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 61700, 61701, 61702, 62501, 62502 |
