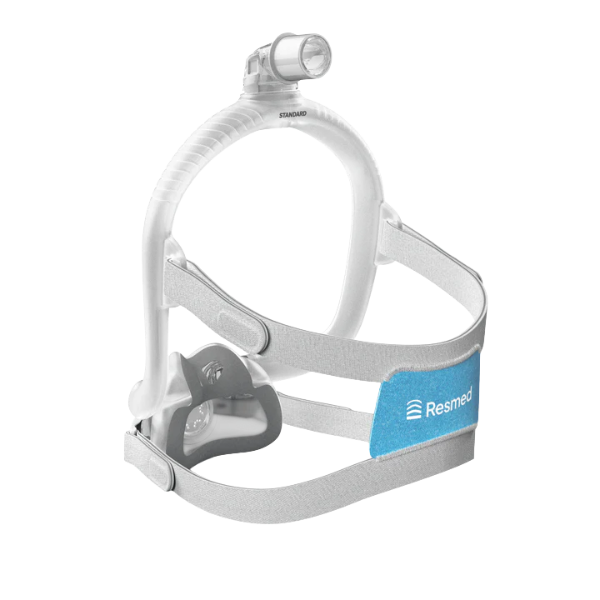

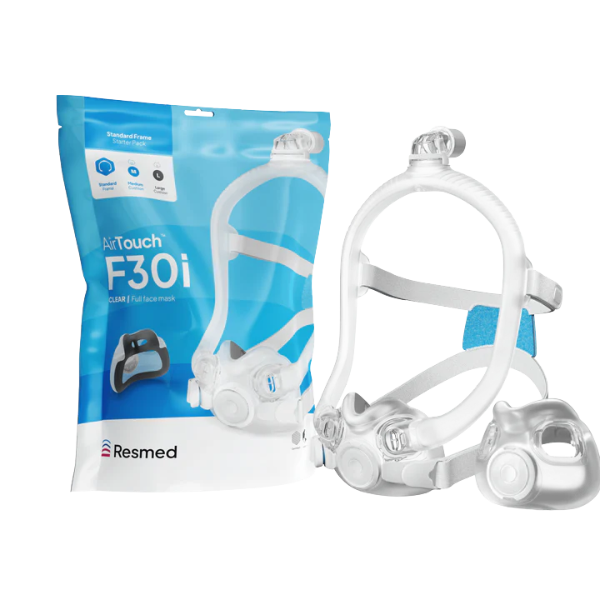

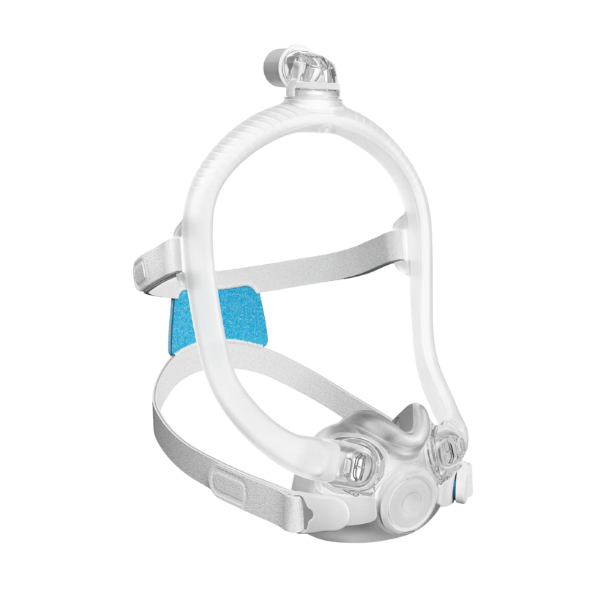

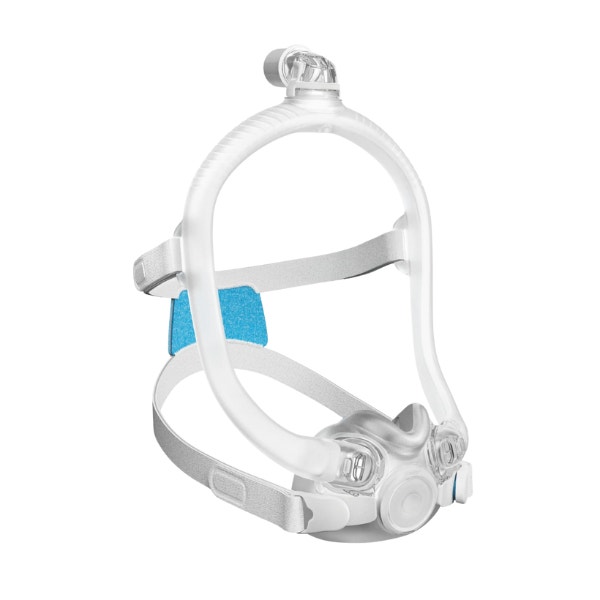

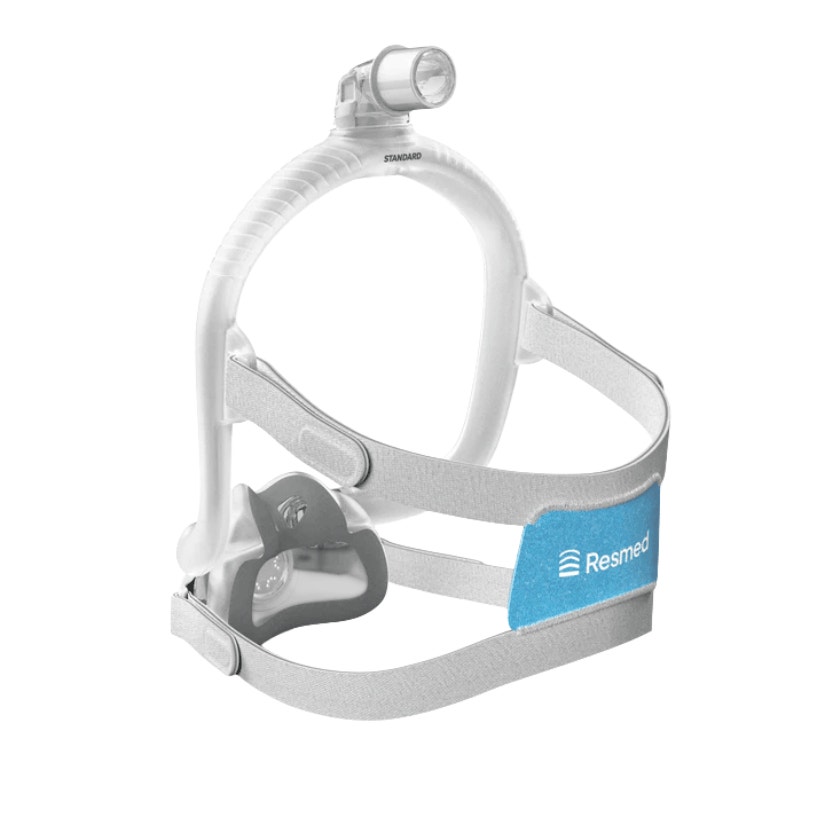

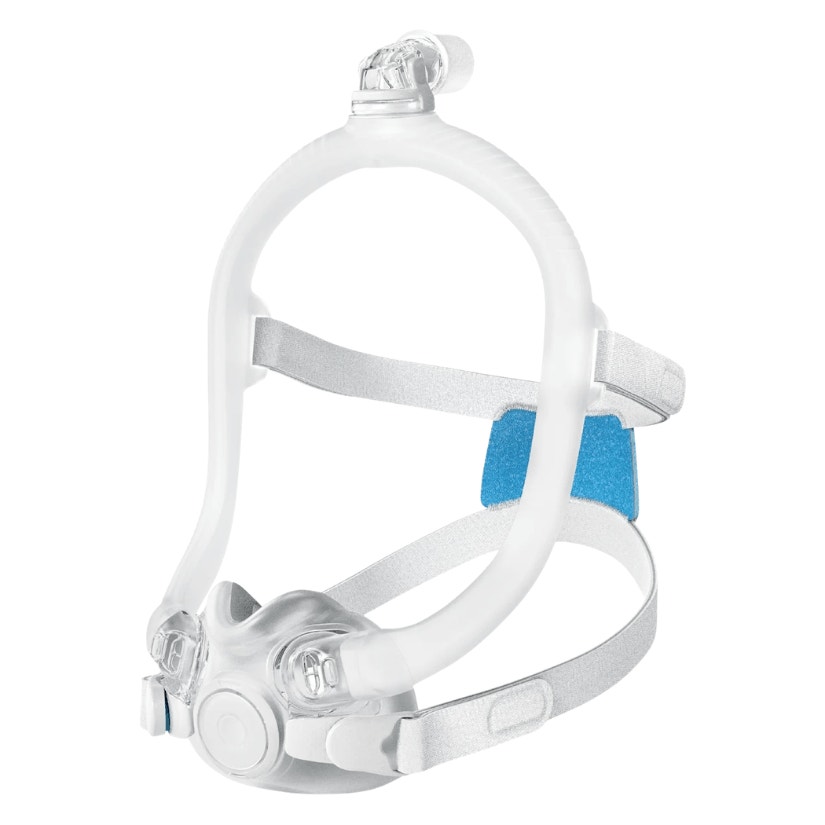

Resmed AirTouch™ F30i Clear Full Face CPAP Mask with Headgear
Resmed's AirTouch™ F30i Clear Full Face CPAP Mask combines reliability with extra comfort where it matters most. With a under-the-nose mask cushion and top-of-the-head tubing connection the AirTouch™ F30i provides enhanced freedom of movement in a minimalist design. Experience the added comfort of the ComfitSoft™ cushion with AdaptiSeal™ technology that adapts to your face as you move throughout the night.
Resmed AirTouch™ F30i Clear Full Face CPAP Mask with Headgear Overview
Designed to maintain a secure seal while providing an increased range of movement and consistent comfort in every sleep position, the Resmed AirTouch™ F30i helps even active sleepers get a restful night’s sleep without disruption.
The AirTouch™ F30i’s minimal contact design features an under-the-nose mask cushion and top-of-the-head tubing connection with 360° rotation, as well as the added comfort of the ComfiSoft™ cushion with AdaptiSeal™ technology that adapts to your face as you move throughout your sleep. The cushion is also made with a moisture-wicking silicone-coated fabric that helps to keep your nose and mouth area cooler and less sweaty for ultimate skin comfort.
The flexible, lightweight mask frame is made from a durable polymer structure that is engineered to reduce heat buildup and surface friction. Its unique design helps to distribute tension evenly across the frame to help improve seal security and reduce pressure points around your cheeks and nose.
The QuietAir™ venting gently diffuses air and minimizes disturbance making this the ideal mask not just for CPAP users looking for a comfortable, secure, minimalist design, but at just 20 dBA1 it’s also perfect for the co-sleeper that is sensitive to noise.
Per Resmed, please note the following about this mask’s magnetic contraindications:
Update to Contraindication
In an update to the previously contraindicated metallic aneurysm hemostatic clips in the head and metallic splinters in one or both eyes following a penetrating eye injury, Resmed is further contraindicating the use of its masks with magnets for patients where they, or anyone in close physical contact while using the mask (e.g., bed partner), have the following:
- Active medical implants that interact with magnets (i.e., pacemakers, implantable cardioverter defibrillators (ICD), neurostimulators, cerebrospinal fluid (CSF) shunts, insulin/infusion pumps)
- Metallic implants/objects containing ferromagnetic material (i.e., aneurysm clips/flow disruption devices, embolic coils, stents, valves, electrodes, implants to restore hearing or balance with implanted magnets, ocular implants, metallic splinters in the eye)
Update to Warning
The safe distance to the magnets has been increased from 2 inches (50 mm), and patients are now warned to keep the mask magnets at a safe distance of 6 inches (150 mm) away from implants or medical devices that may be adversely impacted by magnetic interference. This applies to patients, or anyone in close physical contact with the mask magnets.
Note, not all models or manufactured variants of medical devices listed in the contraindications are affected by external magnetic fields. Only those that interact with magnets or contain ferromagnetic materials present the potential for magnetic interference.
For more information: please reach out to Resmed directly; CPAPsupplies.com does not have any additional details on this update. Visit www.resmed.com/magnetupdate for more details and the appropriate contact information.
-
AdaptiSeal™ technology designed to adapt to your face as you move, offering active sleepers a secure seal without air leaks.
-
Top-of-the-head tubing connection paired with 360° elbow rotation prevents tubing drag, providing optimal freedom of movement.
-

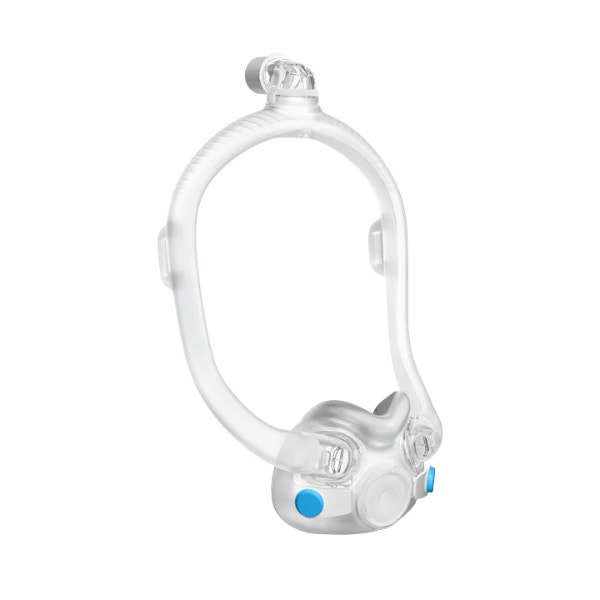

The flexible, clear mask frame adapts to your movement during CPAP therapy.
-

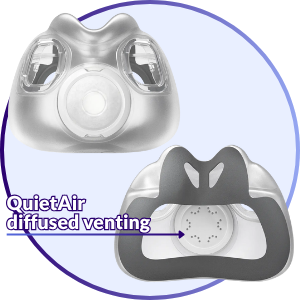

QuietAir™ diffused venting technology gently disperses airflow from the cushion, reducing noise levels to just 20 dBA1. Perfect for the light co-sleeper.
-

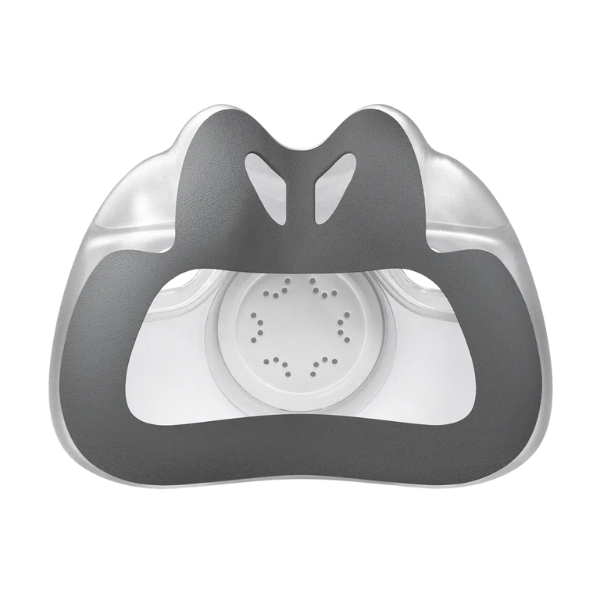

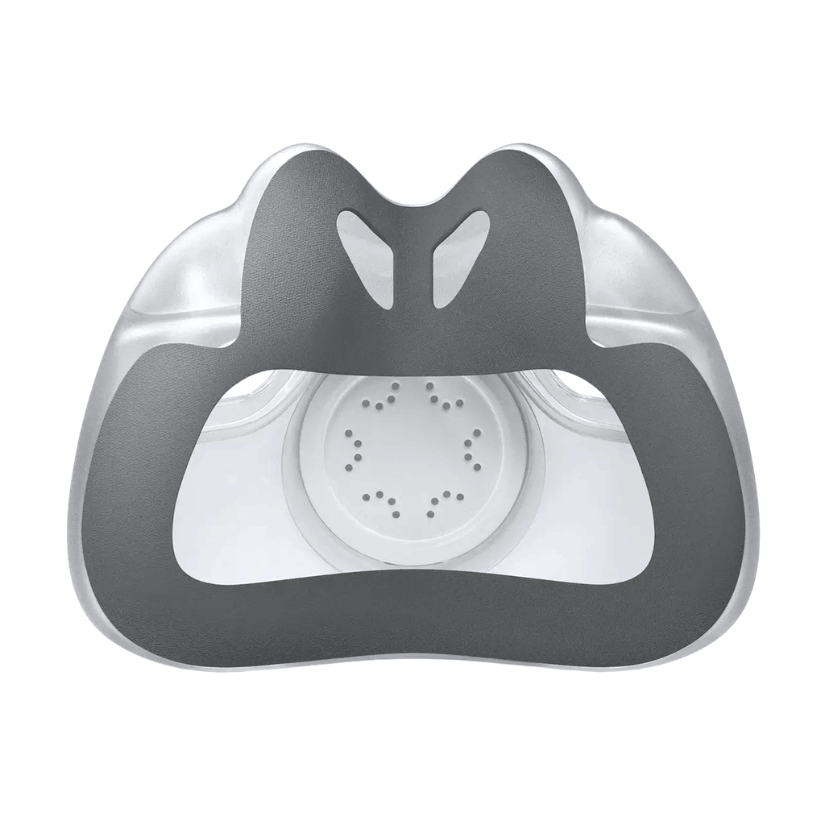

The UltraCompact ComfiSoft™ mask cushion features moisture-wicking fabric surrounding the oral contact point at the seal and rests gently under your nose to help reduce bulk, red marks and skin irritation.
-

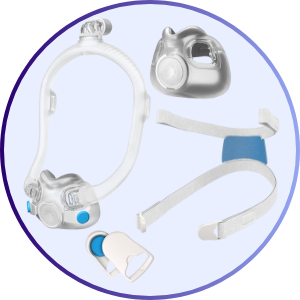

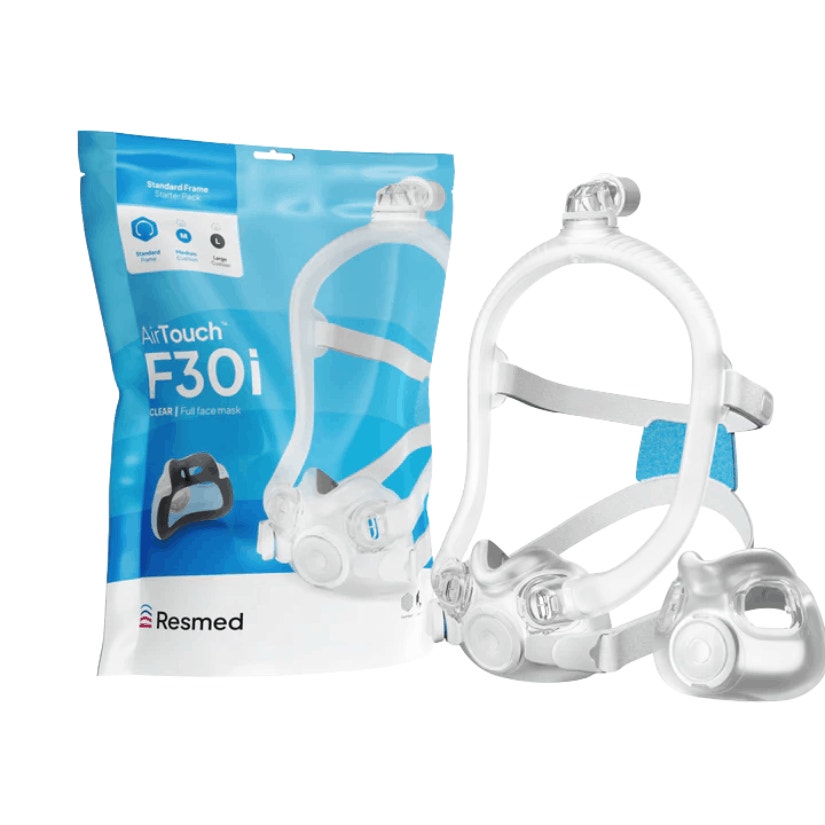

1 — AirTouch™ F30i Mask Frame (of selected size)
-
1 — AirTouch™ F30i Mask Cushion (of selected size)
-

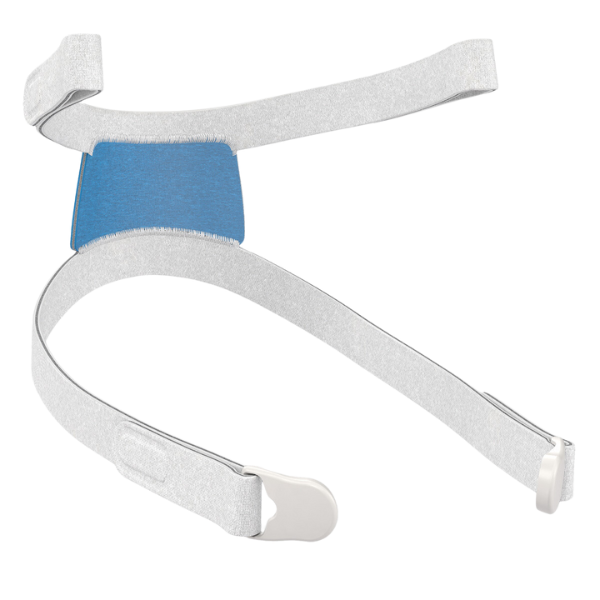

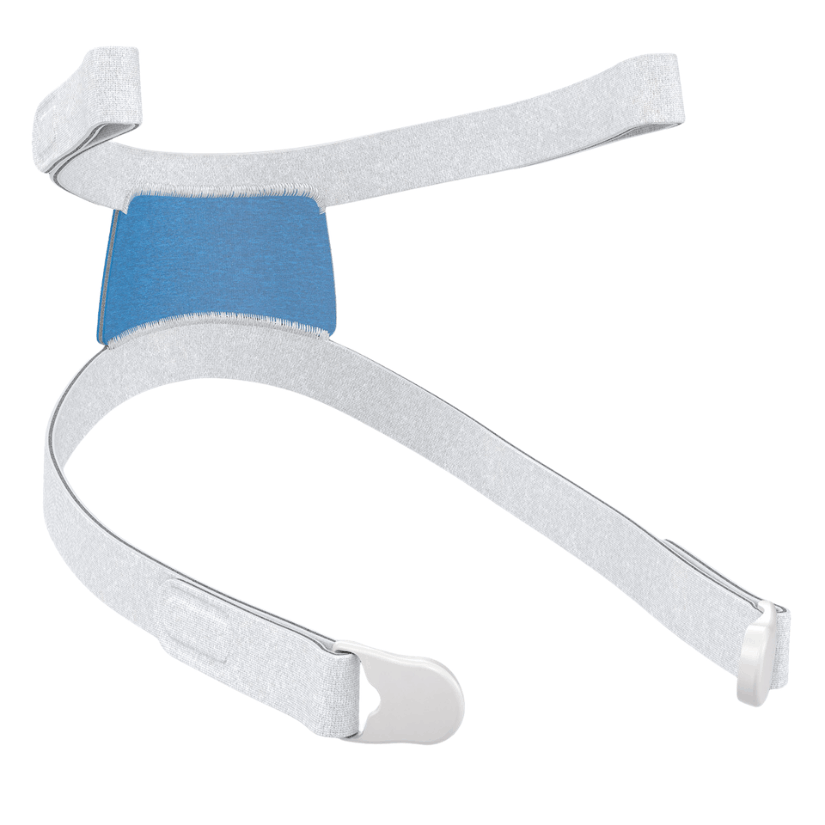

1 — AirTouch™/AirFit™ F30i/X30i Headgear
-
1 — Quick-release Elbow
-
2 — Magnetic Headgear Clips
-
1 — User Guide
If you're looking to purchase the Resmed AirTouch™ F30i Clear Full Face CPAP Mask components without a prescription, you can find them here.
-
Small Frame/Medium Cushion - AirTouch™ F30i Clear Mask Frame with Headgear - 62404
-
Standard Frame/Small-Wide Cushion - AirTouch™ F30i Clear Mask Frame with Headgear - 62405
-
Standard Frame/Medium Cushion - AirTouch™ F30i Clear Mask Frame with Headgear - 62406
-
Standard Frame/Large Cushion - AirTouch™ F30i Clear Mask Frame with Headgear - 62407
-
Large Frame/Medium Cushion - AirTouch™ F30i Clear Mask Frame with Headgear - 62408
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
- Active Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
-
Light Co-Sleepers
-
Sensitive Skin
- Minimal Contact
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Align and insert the frame connector tab into the cushion slot and press down until it clicks. Repeat on the other side.
- Attach the elbow to the top of the frame until it clicks.
- With the Resmed logo facing outwards and up, insert the upper headgear straps into the frame from the inside and fold the fastening tabs over to secure.
Note: If the elbow ring detaches, re-insert into the top of the frame.
Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images inside the front cover of these instructions.
- Connect the air tubing from your device to the elbow.
- Squeeze the side buttons on the elbow and pull from the frame. Put the elbow and air tubing aside for now.
- Twist and pull both magnetic clips away from the frame connectors.

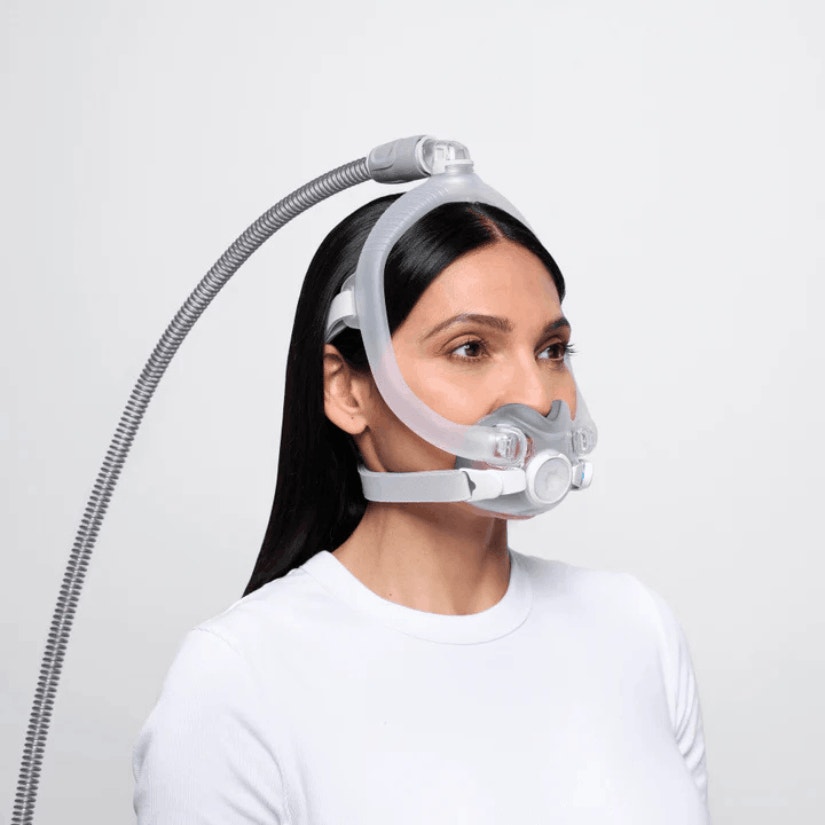

- Place the cushion under your nose and ensure it sits comfortably against your face. With the Resmed logo on the headgear facing up, pull the headgear and frame over your head.
- Bring the lower headgear straps under your ears and attach the magnetic clips to the frame connectors.
- Undo the fastening tabs on the upper headgear straps and pull evenly. Repeat with the lower headgear straps.
- Attach the elbow to the top of the frame. Your mask should now be positioned as shown.
Disassembling Your Mask:
If your mask is connected to a device, disconnect the device air tubing
from the mask elbow.
Refer to the disassembly diagrams in these instructions.
- Undo the fastening tabs on the upper headgear straps and pull from
the frame. Keep the magnetic clips attached to the lower headgear
straps. - Squeeze the side buttons on the elbow and detach from the frame.
- Grip the frame connector and lift to unclip from the cushion. Repeat
on the other side
Note: After detaching the headgear, close the fastening tabs to prevent it from damaging the fabric sleeves when handling.
| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
Part Cleaning Frequency Instructions Mask Cushions
Daily
- Using a mild detergent* and warm, drinking-quality water, gently hand wash your mask cushion to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Squeeze the fabric components with a clean towel to remove excess water.
- For the QuietAir™ vent, shake to remove any excess water.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame with a soft, non-metallic brush to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear with a soft, non-metallic brush to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | p_AT-F30i-wHG |
| Model | p_AT-F30i-wHG |
| UPC | 619498624041, 619498624058, 619498624065, 619498624072, 619498624089 |
| Prescription Required | Yes |
| Weight | 0.44 lbs |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 62404, 62405, 62406, 62407, 62408 |
