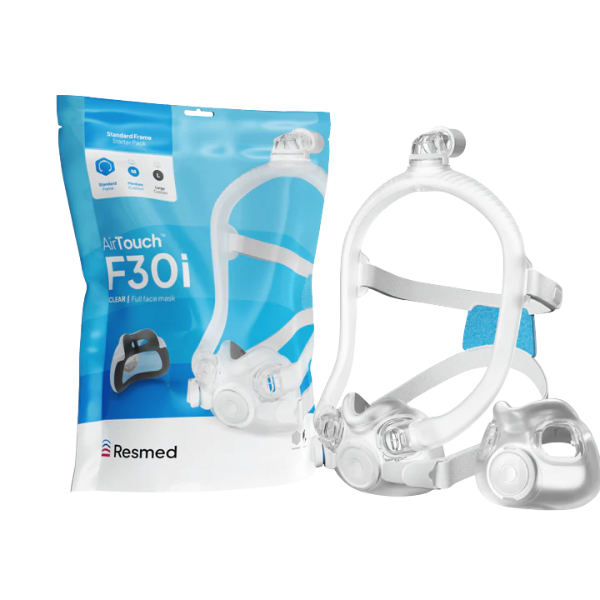

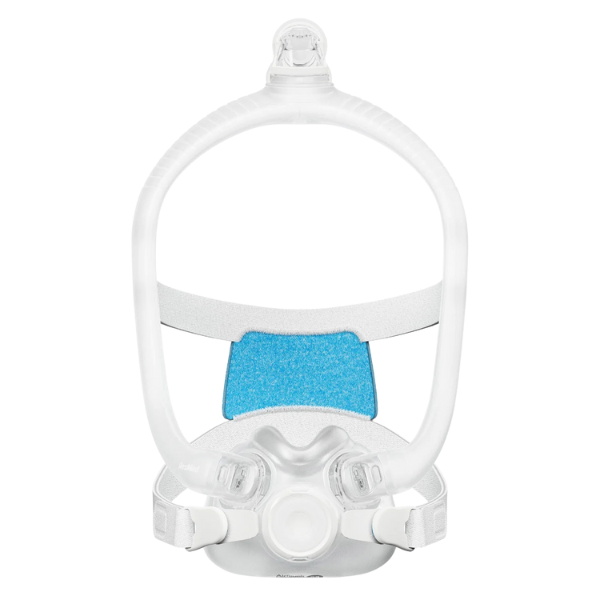

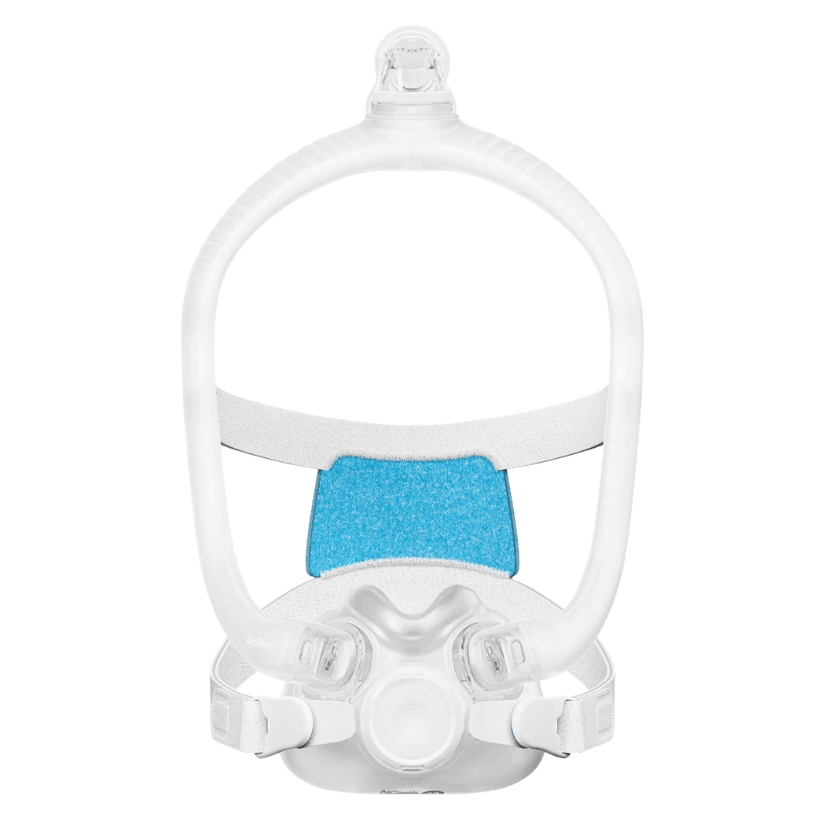

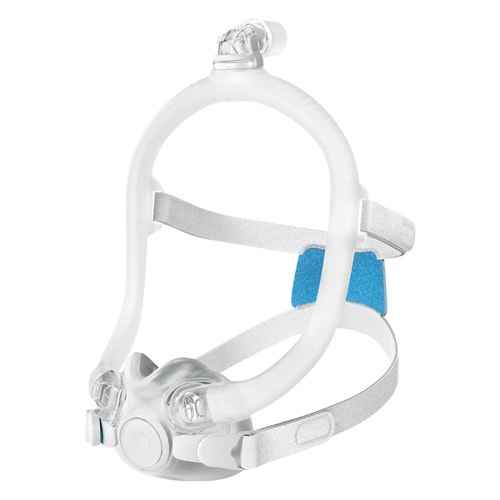

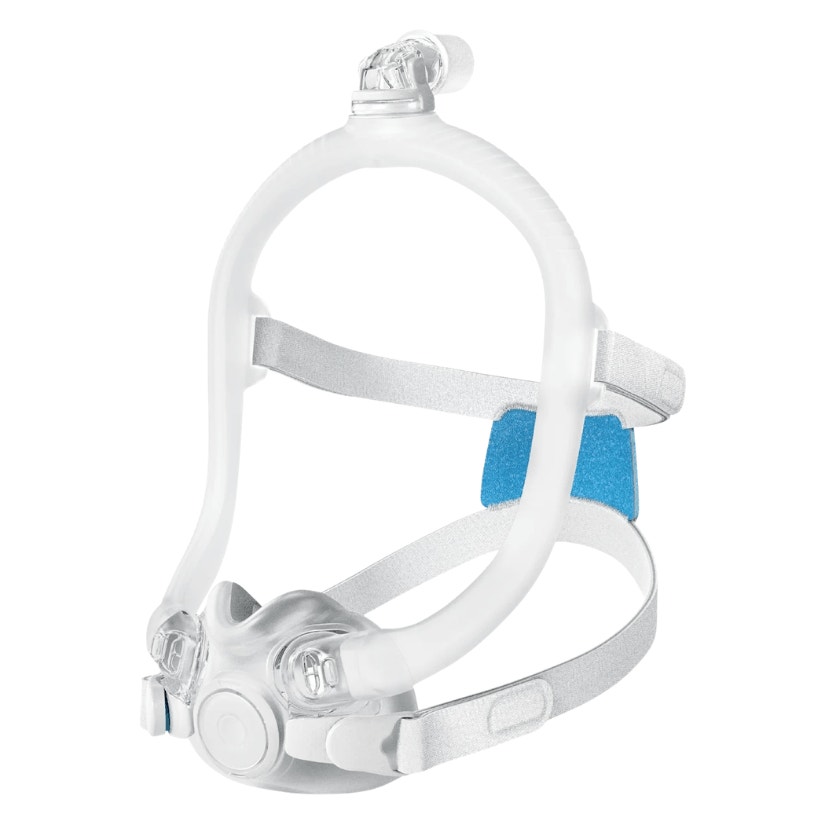

Resmed AirTouch™ F30i Clear Full Face CPAP Mask
$134.00
The AirTouch™ F30i Clear combines the familiar reliability of the AirFit™ F30i with extra comfort where it matters most. With a under-the-nose full face mask cushion and top-of-the-head tubing connection you'll get the same freedom of movement and minimal contact design you're used to with the added comfort of the ComfitSoft™ cushion that features Resmed's AdaptiSeal™ technology that adapts to your face as you move throughout the night.

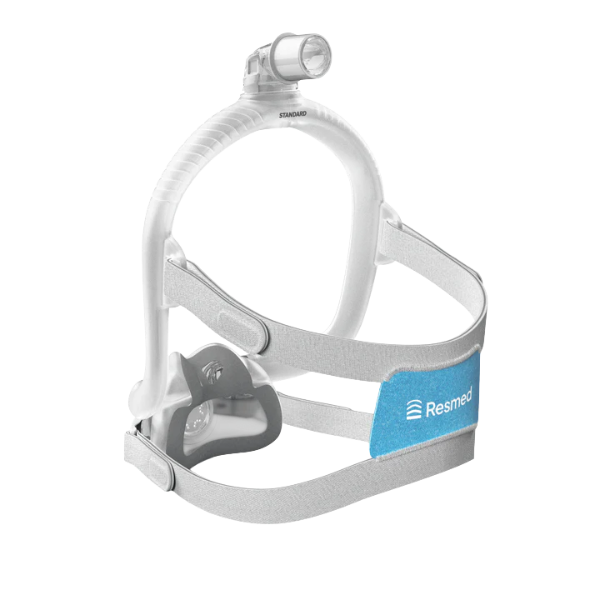

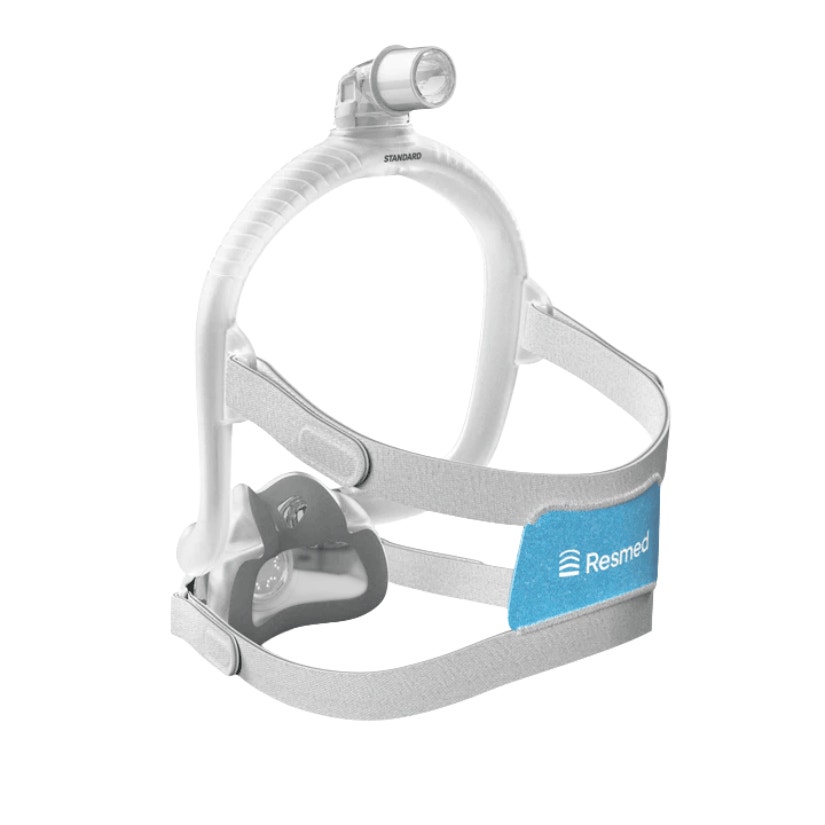

Resmed AirTouch™ F30i Clear Full Face CPAP Mask Overview
The Resmed AirTouch™ F30i is designed to maintain a secure seal while providing an increased range of movement and consistent comfort in every sleep position, helping even active sleepers get a restful night’s sleep without disruption.
The AirTouch™ F30i’s minimal contact design features the same under-the-nose full face mask cushion and top-of-the-head tubing connection with 360° rotation that users are familiar with in the AirFit™ F30i, as well as the added comfort of the ComfiSoft™ cushion.
The ComfiSoft™ cushion is designed with moisture-wicking, silicone-coated fabric that helps to keep your nose and mouth area cooler and less sweaty for ultimate skin comfort, as well as Resmed's AdaptiSeal™ technology that adapts to your unique facial contours as you move throughout the night.
The AirTouch™ F30i’s flexible, lightweight mask frame is made from a durable polymer structure that is engineered to reduce heat buildup and surface friction. Its unique design helps to distribute tension evenly across the frame to help improve seal security and reduce pressure points around your cheeks and nose.
The QuietAir™ venting gently diffuses air and minimizes disturbance making this the ideal mask not just for CPAP users looking for a comfortable, secure, minimalist design, but at just 20 dBA1 it’s also perfect for the co-sleeper that is sensitive to noise.
Please note: Headgear is available as an option but not included automatically. It is also not required. If you'd like your order to include headgear, please select your preferred option above.
Per Resmed, please note the following about this mask’s magnetic contraindications:
Update to Contraindication
In an update to the previously contraindicated metallic aneurysm hemostatic clips in the head and metallic splinters in one or both eyes following a penetrating eye injury, Resmed is further contraindicating the use of its masks with magnets for patients where they, or anyone in close physical contact while using the mask (e.g., bed partner), have the following:
- Active medical implants that interact with magnets (i.e., pacemakers, implantable cardioverter defibrillators (ICD), neurostimulators, cerebrospinal fluid (CSF) shunts, insulin/infusion pumps)
- Metallic implants/objects containing ferromagnetic material (i.e., aneurysm clips/flow disruption devices, embolic coils, stents, valves, electrodes, implants to restore hearing or balance with implanted magnets, ocular implants, metallic splinters in the eye)
Update to Warning
The safe distance to the magnets has been increased from 2 inches (50 mm), and patients are now warned to keep the mask magnets at a safe distance of 6 inches (150 mm) away from implants or medical devices that may be adversely impacted by magnetic interference. This applies to patients, or anyone in close physical contact with the mask magnets.
Note, not all models or manufactured variants of medical devices listed in the contraindications are affected by external magnetic fields. Only those that interact with magnets or contain ferromagnetic materials present the potential for magnetic interference.
For more information: please reach out to Resmed directly; CPAPsupplies.com does not have any additional details on this update. Visit www.resmed.com/magnetupdate for more details and the appropriate contact information.
-
Resmed’s AdaptiSeal™ technology is designed to adapt to your face as you move, providing active sleepers a secure seal with no leaks.
-

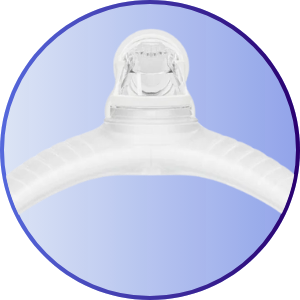

The top-of-the-head tubing connection and 360° elbow rotation prevents tubing pull, providing enhanced freedom of movement in the same familiar minimal contact design as the AirFit™ F30i.
-

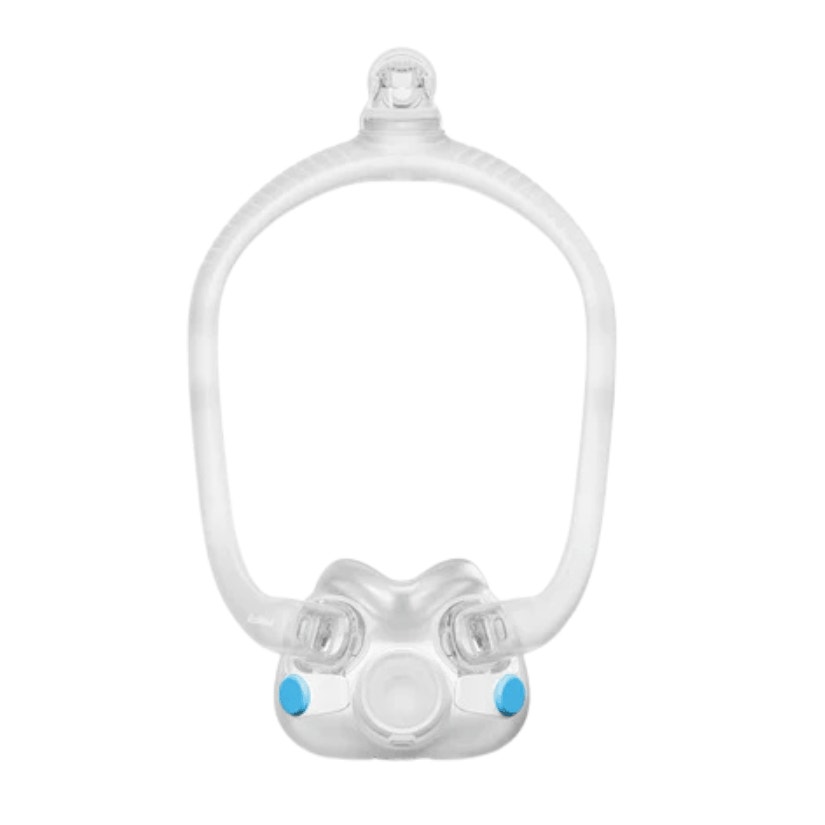

The flexible clear mask frame adapts to your movement during CPAP therapy.
-
QuietAir™ diffused venting technology disperses airflow gently, reducing noise to 20 dBA1. Perfect for the light co-sleeper.
-

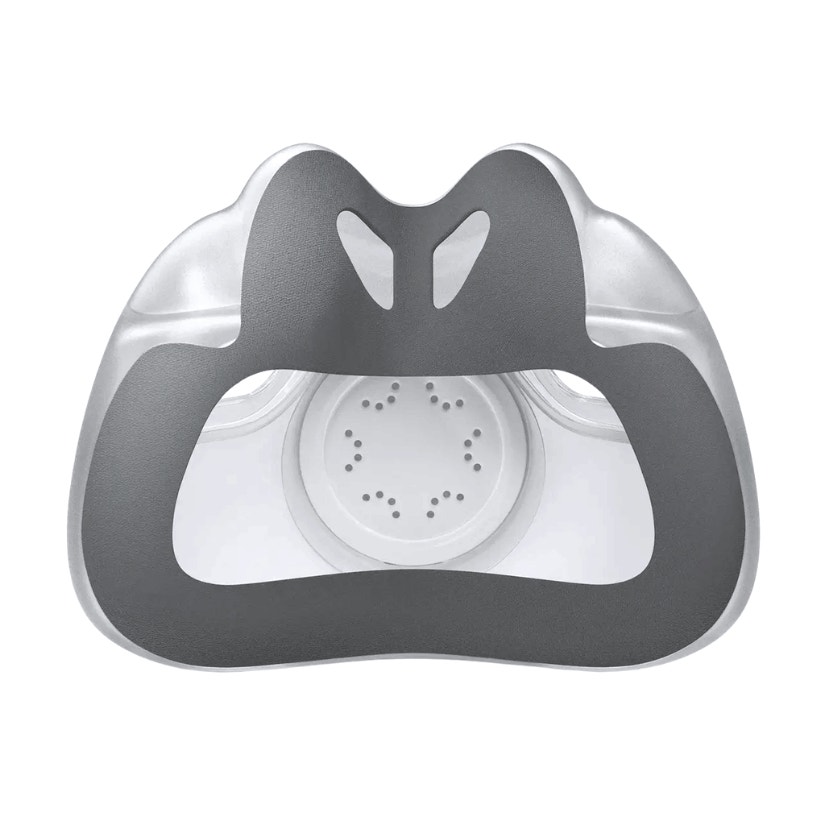

The AirTouch™ F30i’s UltraCompact ComfiSoft™ mask cushions feature moisture-wicking fabric surrounding the mouth at the seal and rest gently under your nose to help reduce bulk, red marks and skin irritation.
- The magnetic clips and quick-release elbow simplify the process of putting on and taking off your mask, without requiring unnecessary adjustments.
Please note: Headgear is not automatically included with this order unless selected in the 'Optional Headgear' dropdown above.
-
The AirTouch™ F30i’s flexible, lightweight mask frame is made from a durable polymer structure that is engineered to reduce heat buildup and surface friction. Its unique design helps to distribute tension evenly across the frame to help improve seal security and reduce pressure points around your cheeks and nose.
-
The AirTouch™ F30i mask cushion combines maximized comfort and the optimal performance of a reliable seal with Resmed's innovative ComfiSoft™ silicone-coated fabric cushion and their AdaptiSeal™ technology that contours to your unique facial shape without any rigid plastic. The unique nasal septum bridge deisgn is engineered to hold the shape of the cushion to create a comfortable and reliable seal.

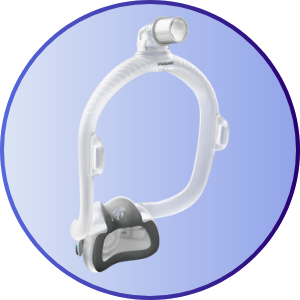

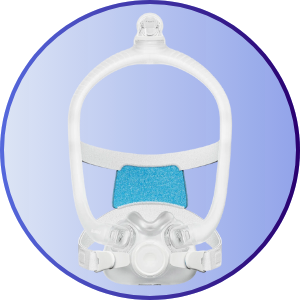

Flexible, Durable Mask Frame
-
The AirTouch™ F30i’s flexible, lightweight mask frame is made from a durable polymer structure that is engineered to reduce heat buildup and surface friction. Its unique design helps to distribute tension evenly across the frame to help improve seal security and reduce pressure points around your cheeks and nose.
AdaptiSeal™ Technology
-
Combines maximized comfort and the optimal performance of a reliable seal with Resmed's innovative ComfiSoft™ silicone-coated fabric cushion and their AdaptiSeal™ technology that contours to your unique facial shape without any rigid plastic. The design of the nasal septum bridge is engineered to hold the shape of the cushion to create a comfortable and reliable seal.
Minimal Contact Design
-
The top-of-the-head tubing connection and 360° elbow rotation prevents tubing pull, providing enhanced freedom of movement in the same familiar minimal contact design as the AirFit™ F30i.

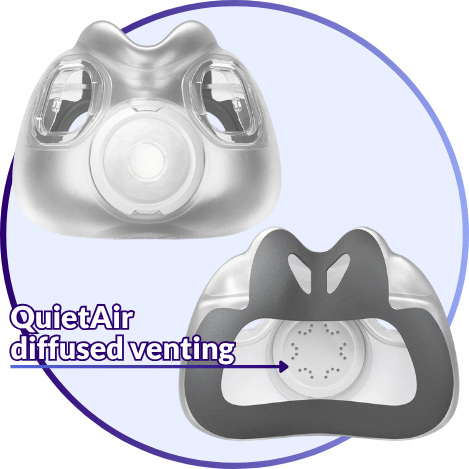

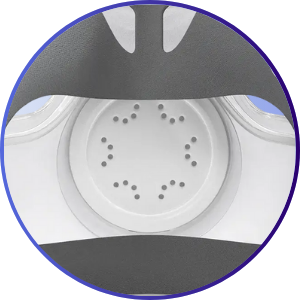

QuietAir™ Diffused Venting
-
The built-in QuietAir™ venting gently diffuses airflow to help make getting your sleep apnea treatment more peaceful for both you and your sleep partner.

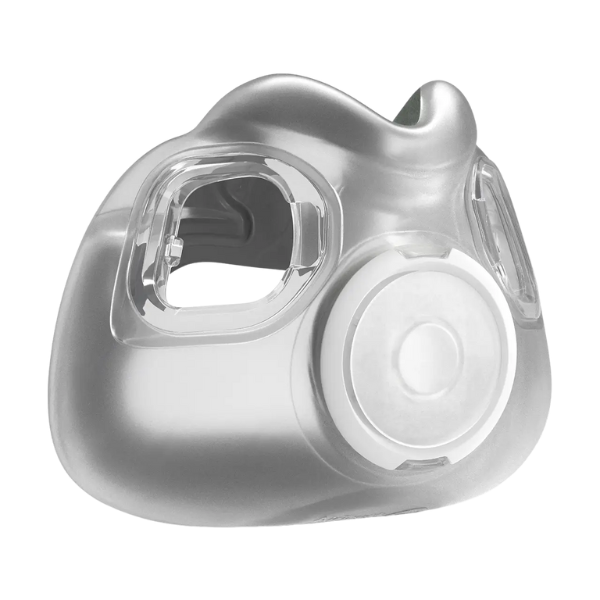

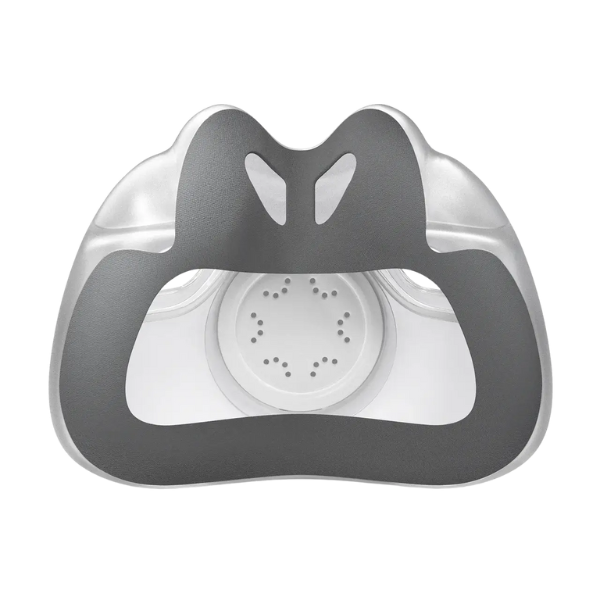

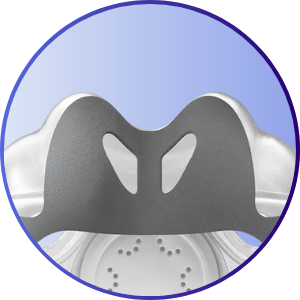

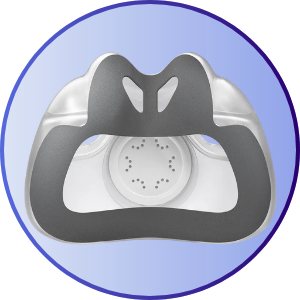

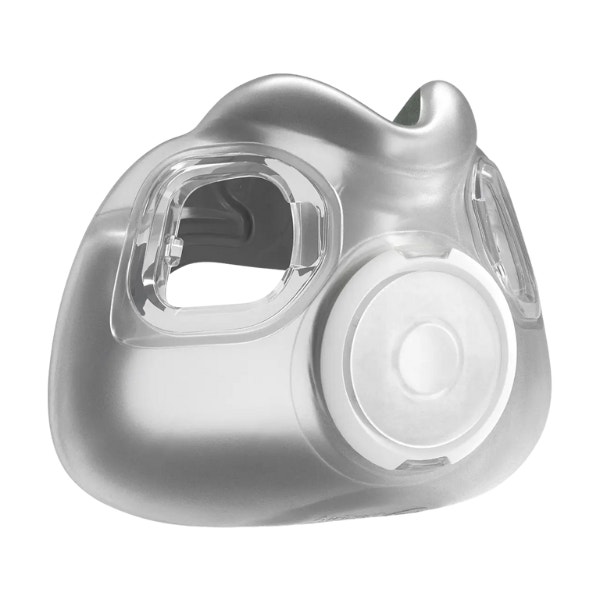

UltraCompact™ ComfiSoft™ Cushions
-
The F30i's ComfiSoft™ cushion features moisture-wicking silicone-coated fabric that helps to keep your nose and mouth area cooler and less sweaty, and Resmed's UltraCompact™ design offers a minimal contact feel.

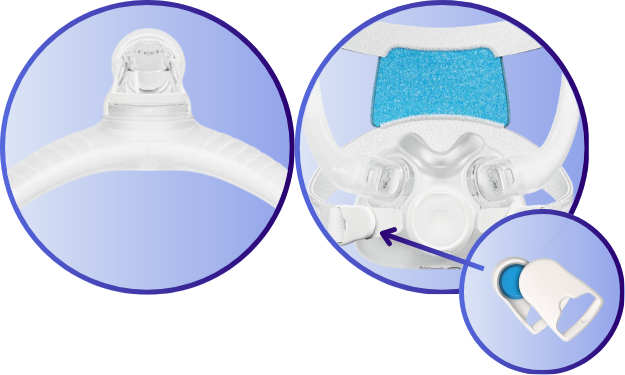

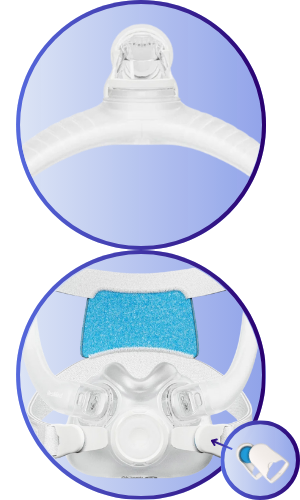

Magnetic Headgear Clips, Quick-Release Elbow
-
The magnetic clips and quick-release elbow simplify the process of putting on and taking off your mask, without requiring unnecessary adjustments.
Please note: Headgear is not automatically included with this order unless selected in the 'Optional Headgear' dropdown above.
-

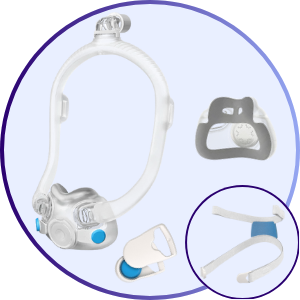

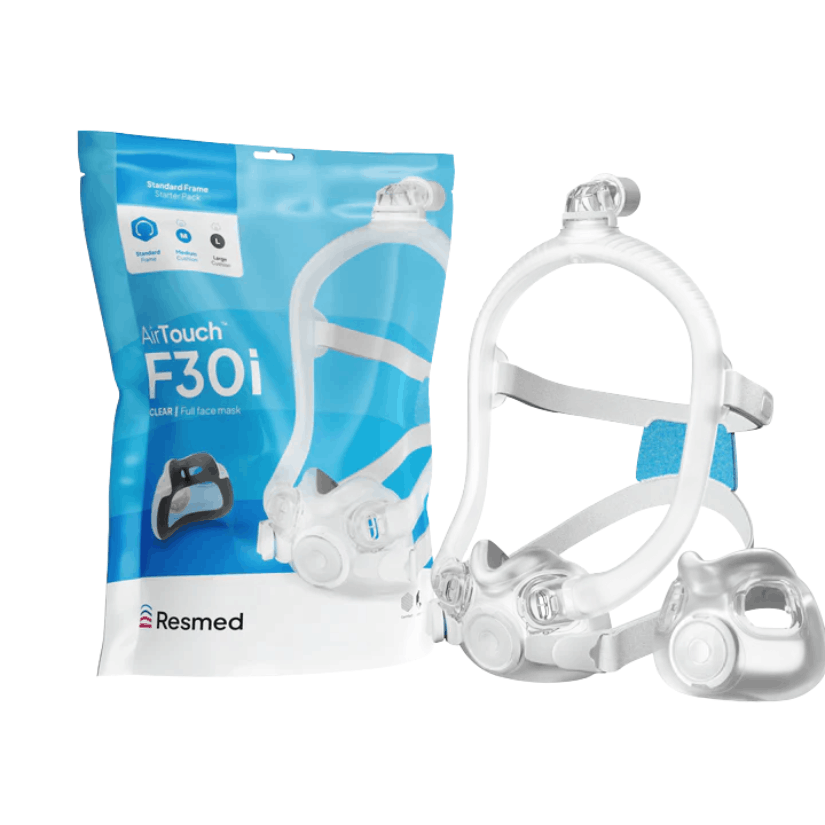

1 — AirTouch™ F30i Mask Frame (of selected size)
-
1 — AirTouch™ F30i Mask Cushion (of selected size)
-
1 — Quick-release Elbow
-
1 — User Guide
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:

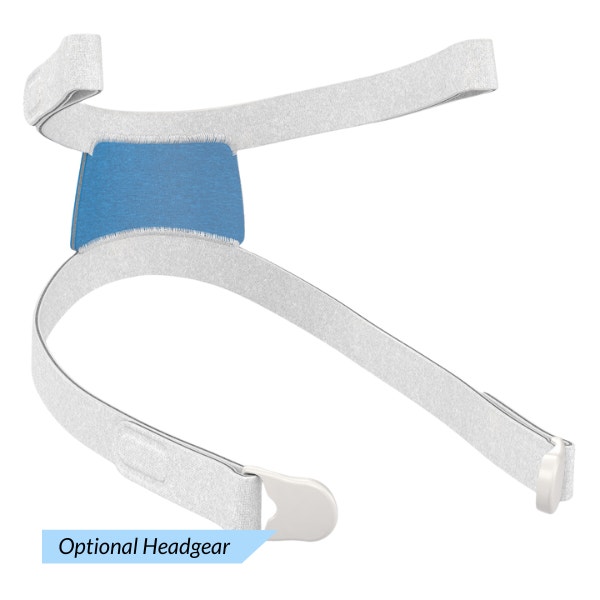

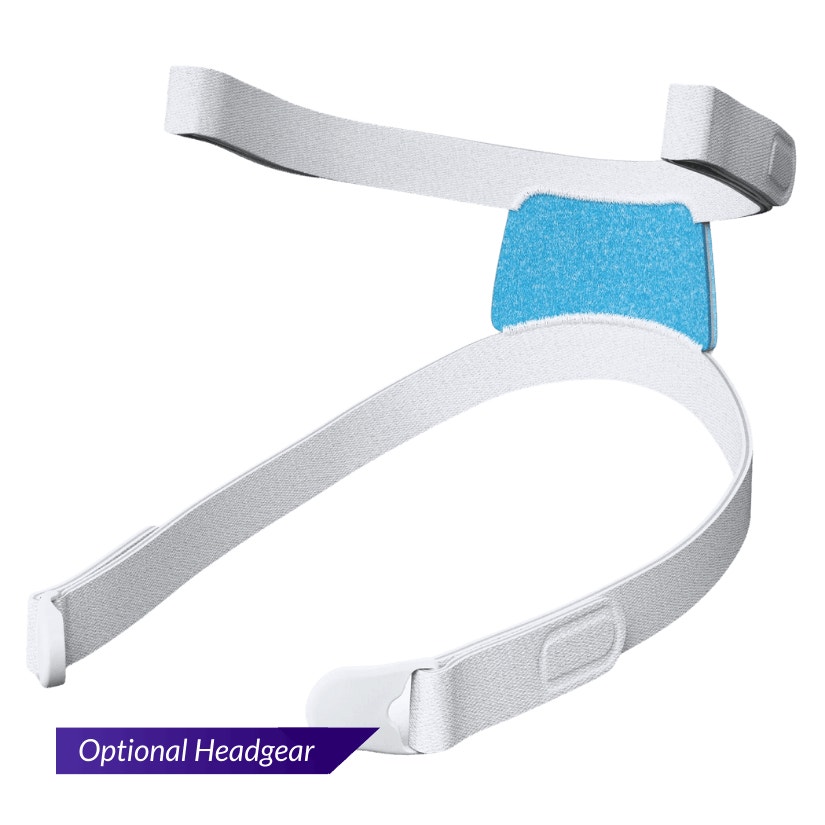

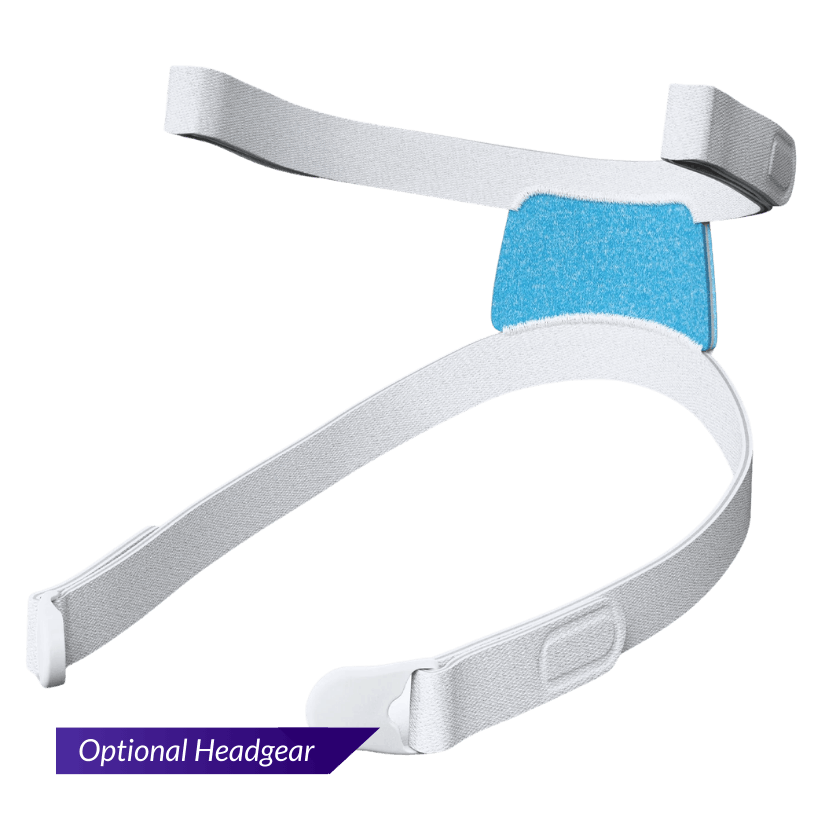

- 1 — AirTouch™/AirFit™ F30i/X30i Headgear
- 2 — Magnetic Headgear Clips
Frame System Size Options:
-
Small Frame/Small-Wide Cushion - AirTouch™ F30i Clear Mask Frame - without Headgear - 62477
-
Small Frame/Medium Cushion - AirTouch™ F30i Clear Mask Frame - without Headgear - 62478
-
Standard Frame/Small-Wide Cushion - AirTouch™ F30i Clear Mask Frame - without Headgear - 62480
-
Standard Frame/Medium Cushion - AirTouch™ F30i Clear Mask Frame - without Headgear - 62481
-
Standard Frame/Large Cushion - AirTouch™ F30i Clear Mask Frame - without Headgear - 62482
-
Large Frame/Medium Cushion - AirTouch™ F30i Clear Mask Frame - without Headgear - 62484
-
Large Frame/Large Cushion - AirTouch™ F30i Clear Mask Frame - without Headgear - 62485

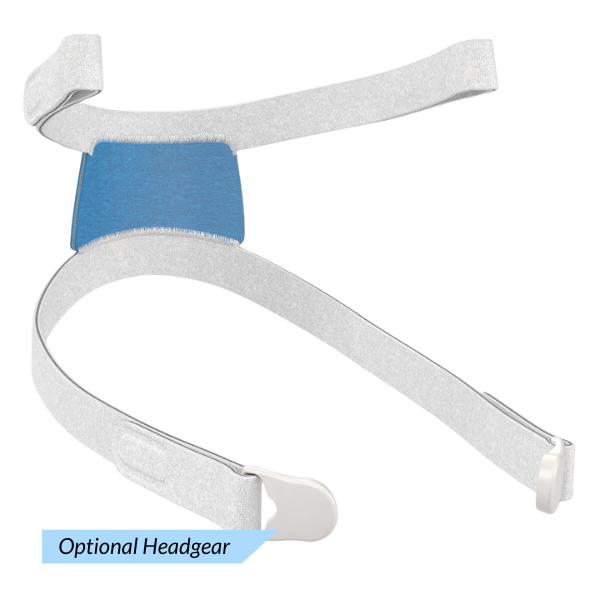

Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
- AirTouch™/AirFit™ F30i/X30i Headgear (One-size-fits all adjustable headgear) - 63372
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
- Active Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
-
Light Co-Sleepers
-
Sensitive Skin
- Minimal Contact

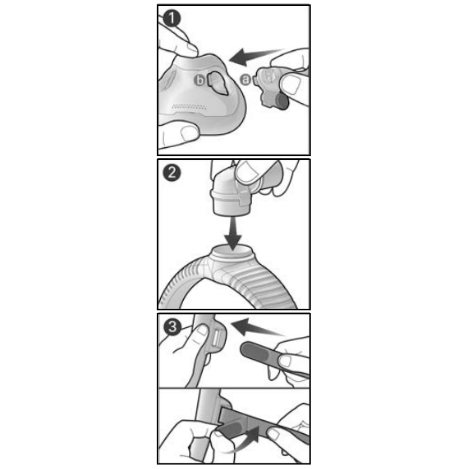

Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Align and insert the frame connector tab into the cushion slot and press down until it clicks. Repeat on the other side.
- Attach the elbow to the top of the frame until it clicks.
- With the Resmed logo facing outwards and up, insert the upper headgear straps into the frame from the inside and fold the fastening tabs over to secure.
Note: If the elbow ring detaches, re-insert into the top of the frame.
Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images inside the front cover of these instructions.
- Connect the air tubing from your device to the elbow.
- Squeeze the side buttons on the elbow and pull from the frame. Put the elbow and air tubing aside for now.
- Twist and pull both magnetic clips away from the frame connectors.
- Place the cushion under your nose and ensure it sits comfortably against your face. With the Resmed logo on the headgear facing up, pull the headgear and frame over your head.
- Bring the lower headgear straps under your ears and attach the magnetic clips to the frame connectors.
- Undo the fastening tabs on the upper headgear straps and pull evenly. Repeat with the lower headgear straps.
- Attach the elbow to the top of the frame. Your mask should now be positioned as shown.

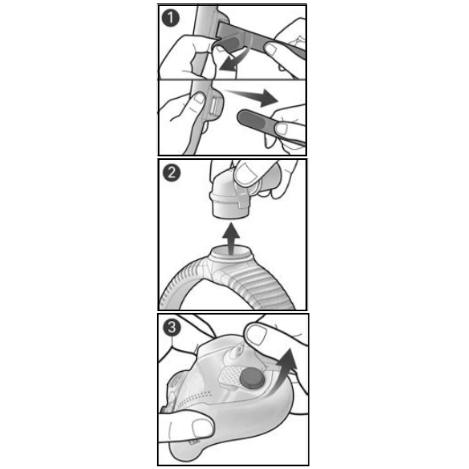

Disassembling Your Mask:
If your mask is connected to a device, disconnect the device air tubing
from the mask elbow.
Refer to the disassembly diagrams in these instructions.
- Undo the fastening tabs on the upper headgear straps and pull from
the frame. Keep the magnetic clips attached to the lower headgear
straps. - Squeeze the side buttons on the elbow and detach from the frame.
- Grip the frame connector and lift to unclip from the cushion. Repeat
on the other side
Note: After detaching the headgear, close the fastening tabs to prevent it from damaging the fabric sleeves when handling.
| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
Part Cleaning Frequency Instructions Mask Cushions
Daily
- Using a mild detergent* and warm, drinking-quality water, gently hand wash your mask cushion to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Squeeze the fabric components with a clean towel to remove excess water.
- For the QuietAir™ vent, shake to remove any excess water.
- Allow to air dry, avoiding direct sunlight.
Mask Frame
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame with a soft, non-metallic brush to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria.
- Rinse thoroughly.
- Allow to air dry, avoiding direct sunlight.
Headgear
Weekly
- Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear with a soft, non-metallic brush to remove any dirt, debris, and oils. Do not use a vinegar solution.
- Rinse thoroughly.
- Hang dry, avoiding direct sunlight.
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| SKU | pb_AT-F30i |
|---|---|
| Model | pb_AT-F30i |
| UPC | 619498624775, 619498624782, 619498624805, 619498624812, 619498624829, 619498624843, 619498624850, 619498633722 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Frame: 8.66" (L) x 11.81" (W) x 3.15" (H) | Cushion: 5.98" (L) x 9.45" (W) x 2.17" (H) | Headgear: 13" (L) x 8.25" (W) x 2" (H) |
| Included | 62477, 62478, 62480, 62481, 62482, 62484, 62485, 63372 |
