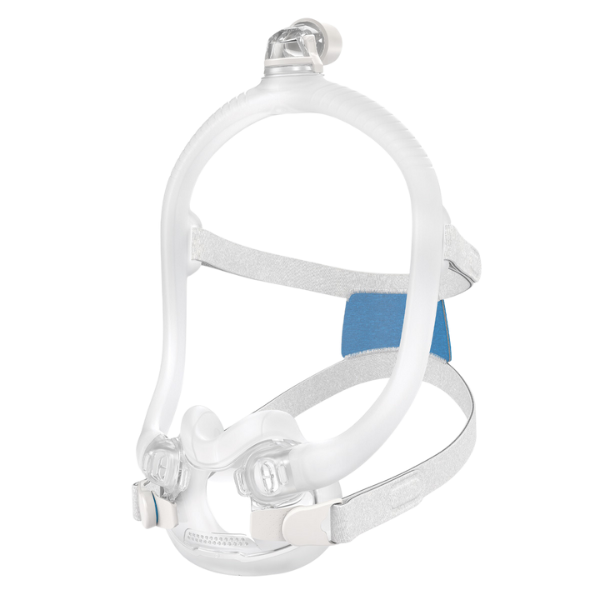

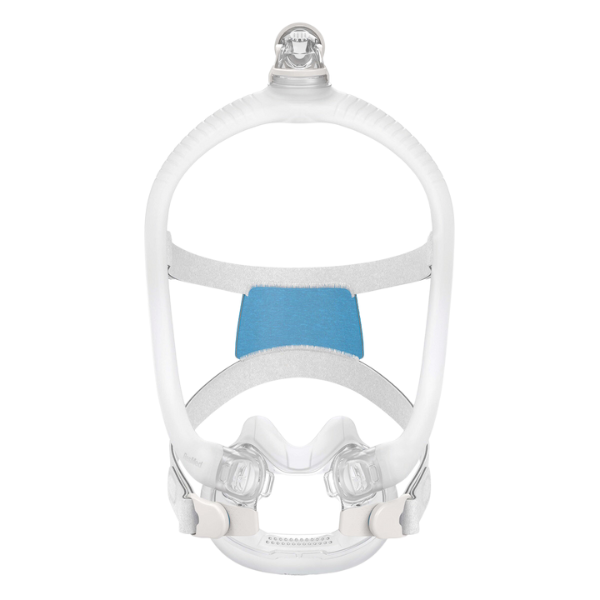

Resmed AirFit™ F30i Full Face CPAP Mask with Headgear
The Resmed AirFit™ F30i Full Face Mask features a top-of-head design to keep air tubing out of the way so you can sleep in any position while still getting a reliable seal.
Resmed AirFit™ F30i Full Face CPAP Mask with Headgear Overview

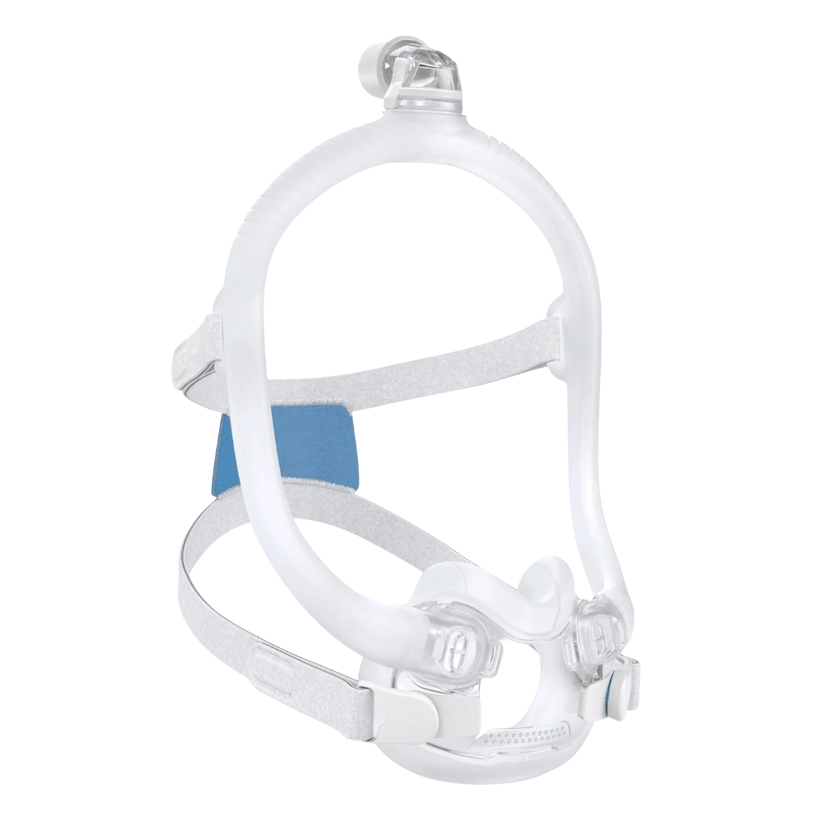

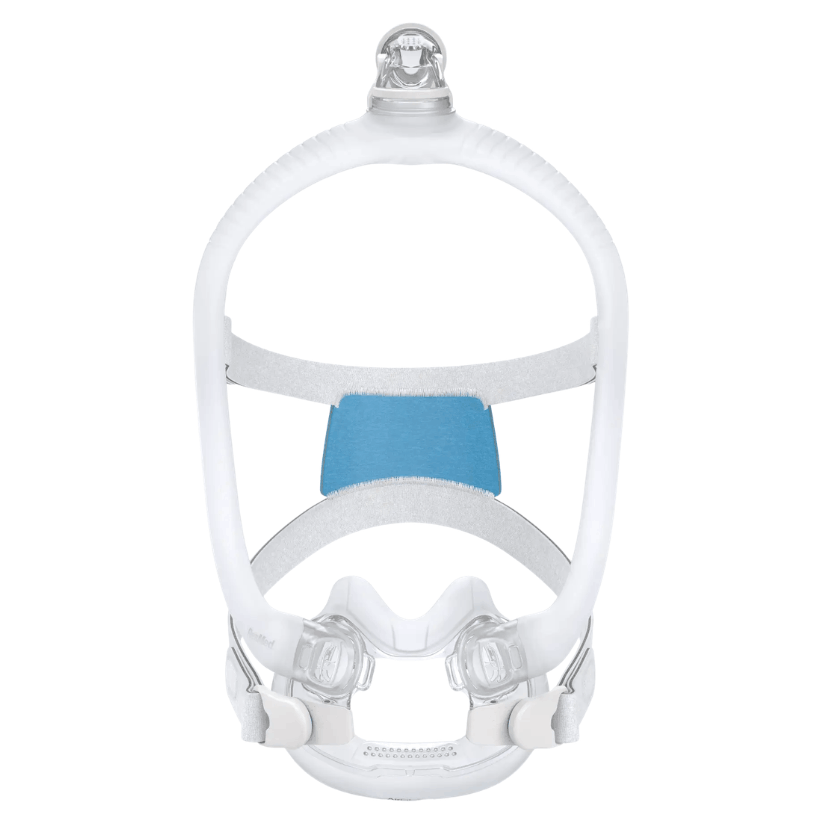

Resmed AirFit™ F30i is a full face mask featuring a top-of-head tube connection so you have the freedom to sleep in different positions while still getting a reliable seal. It's UltraCompact cushion is designed to avoid the top of your nose and prevent nasal bridge red marks.
-

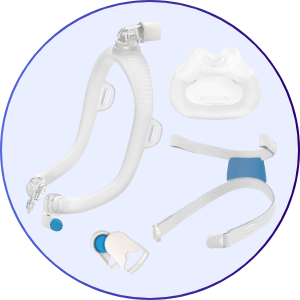

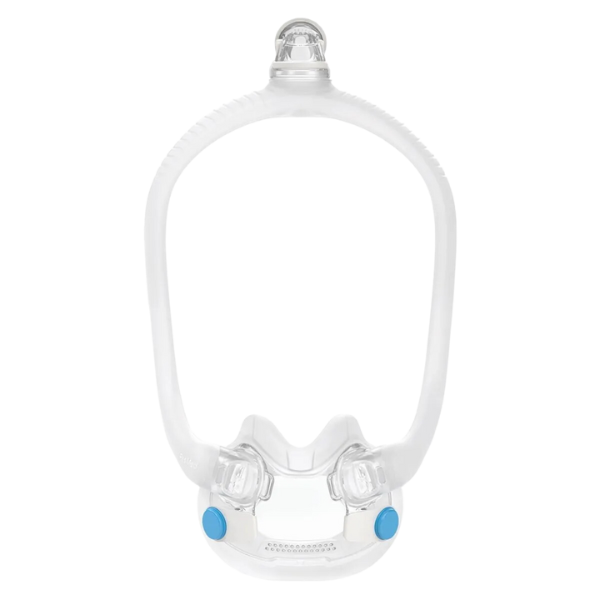

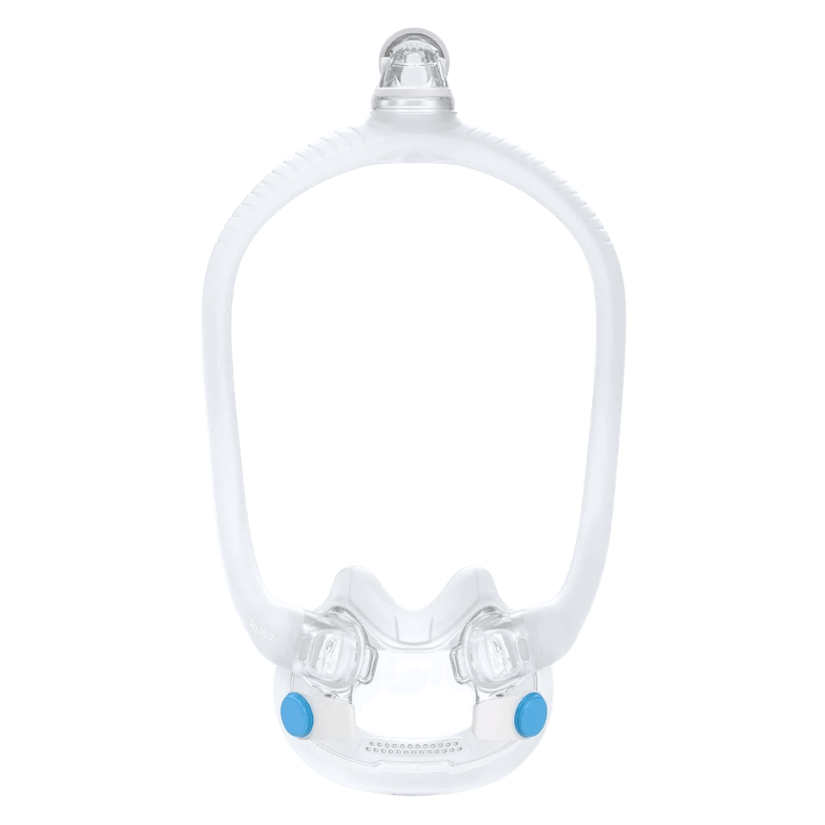

1 — AirFit™ F30i SpringFit™ Frame (of selected size)
-
1 — Elbow
-

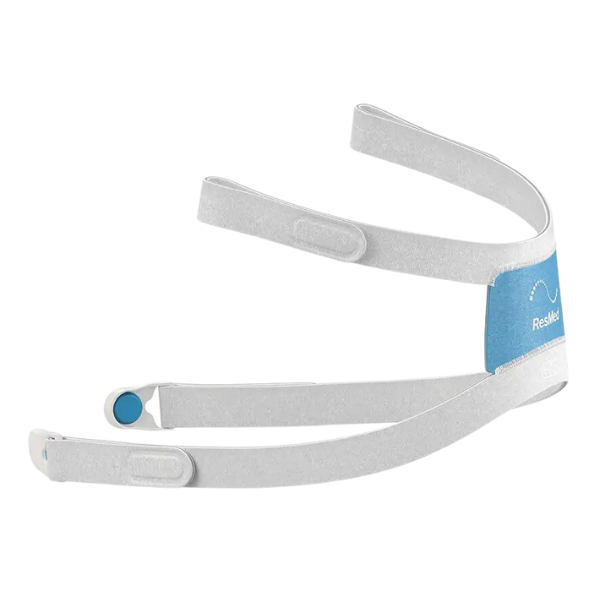

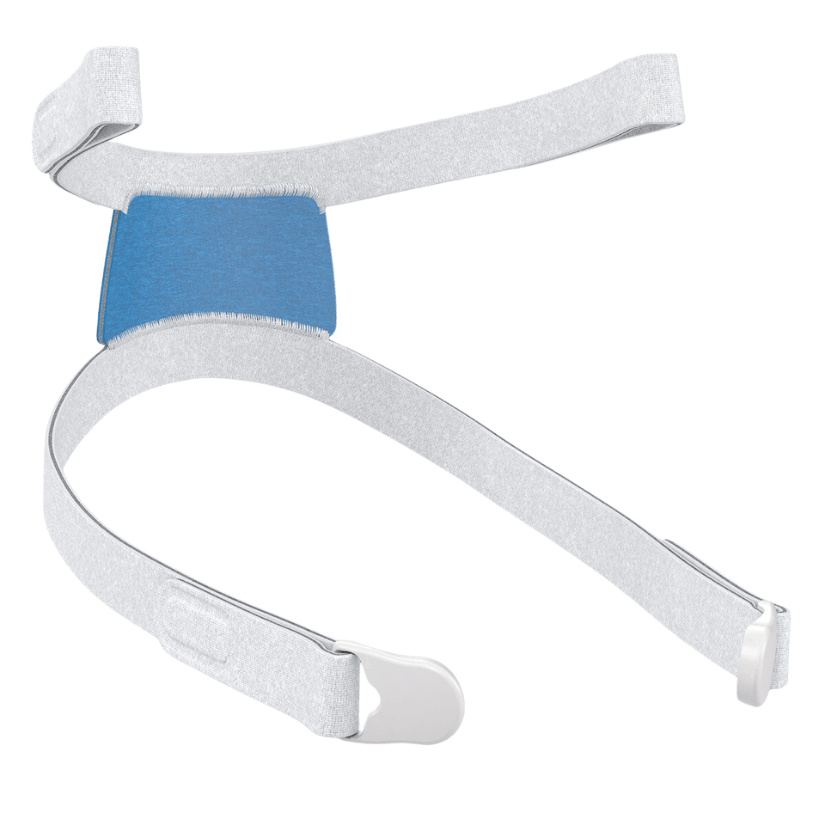

1 — AirFit™ F30i Headgear
-

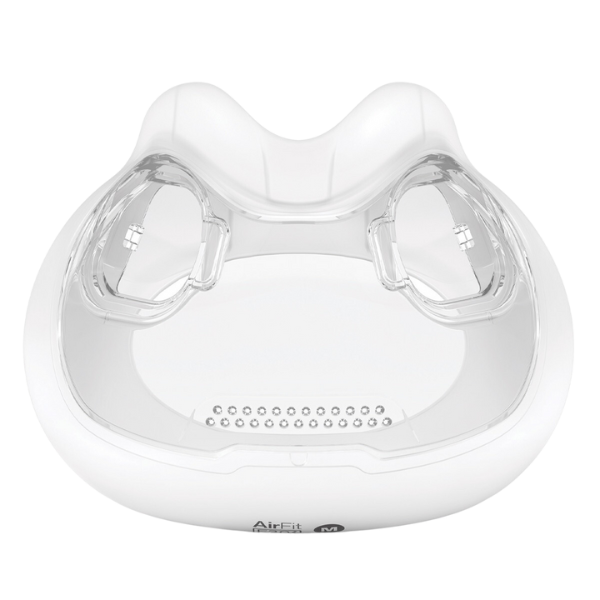

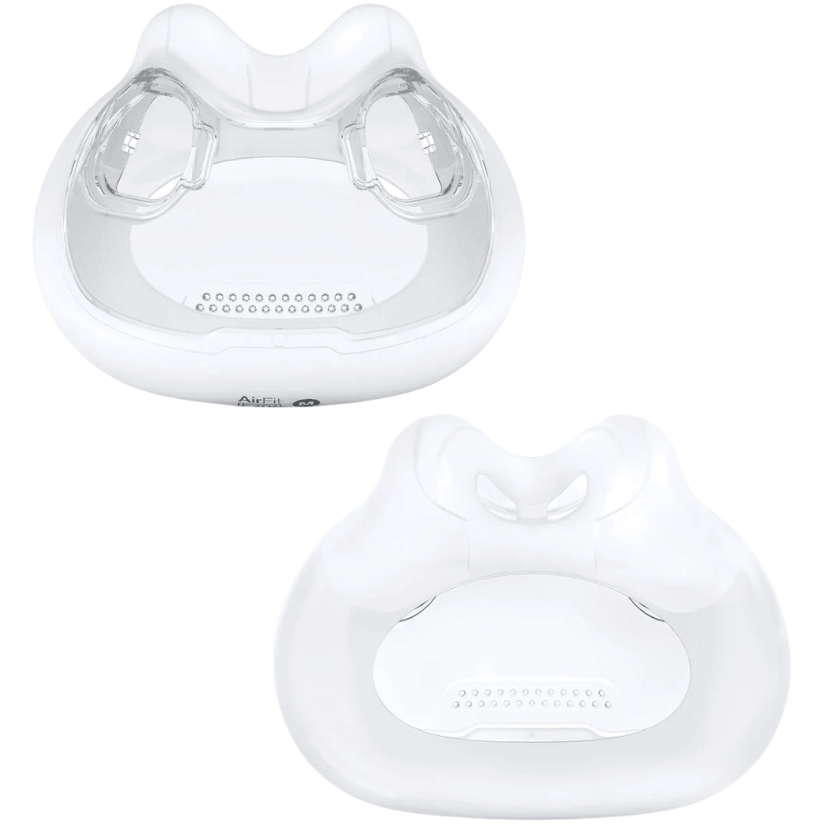

1 — AirFit™ F30i Mask Cushion (of selected size)
-
2 — Magnetic Clips
If you're looking to purchase the Resmed AirFit™ F30i Full Face CPAP Mask components without a prescription, you can find them here.
-
Small Frame, Small Cushion - AirFit™ F30i Mask with Headgear - 63330
-
Standard Frame, Small Cushion - AirFit™ F30i Mask with Headgear - 63331
-
Standard Frame, Medium Cushion - AirFit™ F30i Mask with Headgear - 63332
-
Standard Frame, Wide Cushion - AirFit™ F30i Mask with Headgear - 63333
-
Large Frame, Medium Cushion - AirFit™ F30i Mask with Headgear - 63334
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Align and insert the frame connector tab into the cushion slot and press down until it clicks. Repeat on the other side.
- Attach the elbow to the top of the frame until it clicks.
- With the Resmed logo facing outwards and up, insert the upper headgear straps into the frame from the inside and fold the fastening tabs over to secure.
Note: If the elbow ring detaches, re-insert into the top of the frame.
Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images inside the front cover of these instructions.
- Connect the air tubing from your device to the elbow.
- Squeeze the side buttons on the elbow and pull from the frame. Put the elbow and air tubing aside for now.
- Twist and pull both magnetic clips away from the frame connectors.
- Place the cushion under your nose and ensure it sits comfortably against your face. With the Resmed logo on the headgear facing up, pull the headgear and frame over your head.
- Bring the lower headgear straps under your ears and attach the magnetic clips to the frame connectors.
- Undo the fastening tabs on the upper headgear straps and pull evenly. Repeat with the lower headgear straps.
- Attach the elbow to the top of the frame. Your mask should now be positioned as shown.
Disassembling Your Mask:
If your mask is connected to a device, disconnect the device air tubing
from the mask elbow.
Refer to the disassembly diagrams in these instructions.
- Undo the fastening tabs on the upper headgear straps and pull from
the frame. Keep the magnetic clips attached to the lower headgear
straps. - Squeeze the side buttons on the elbow and detach from the frame.
- Grip the frame connector and lift to unclip from the cushion. Repeat
on the other side
| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
AirFit™ F30i: Fitting Guide
AirFit™ F30i: Mask Frame Sizing Guide
AirFit™ F30i: Cushion Sizing Guide
AirFit™ F30i: Cleaning Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Mask Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | p_63330 |
| Model | p_63330 |
| UPC | 619498633302, 619498633319, 619498633326, 619498633333, 619498633340 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 63330, 63331, 63332, 63334, 63333 |
