Putting on the Mask

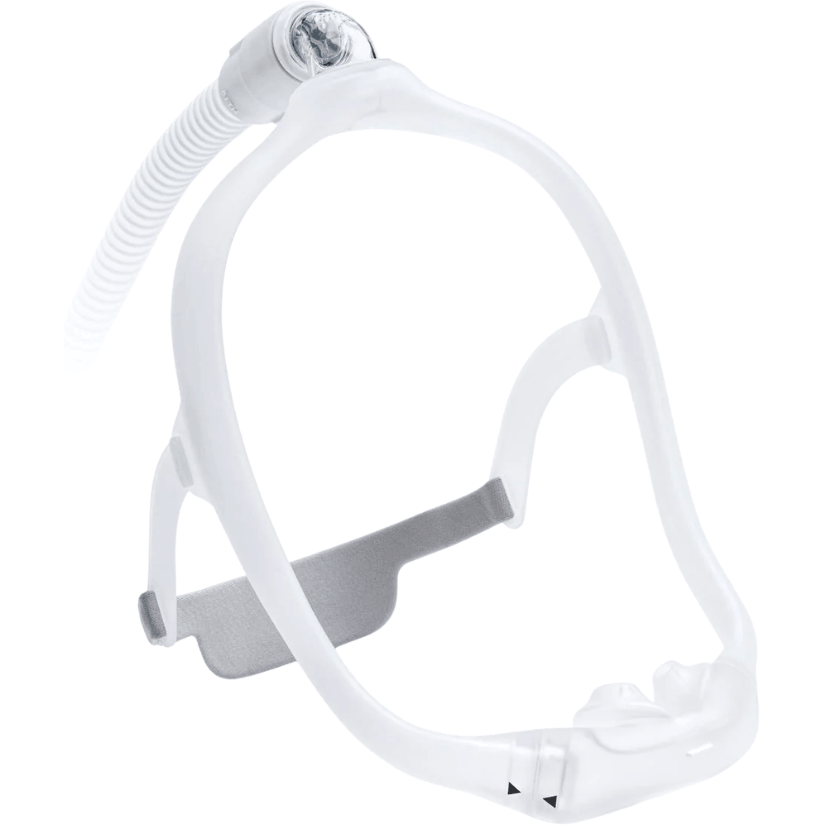

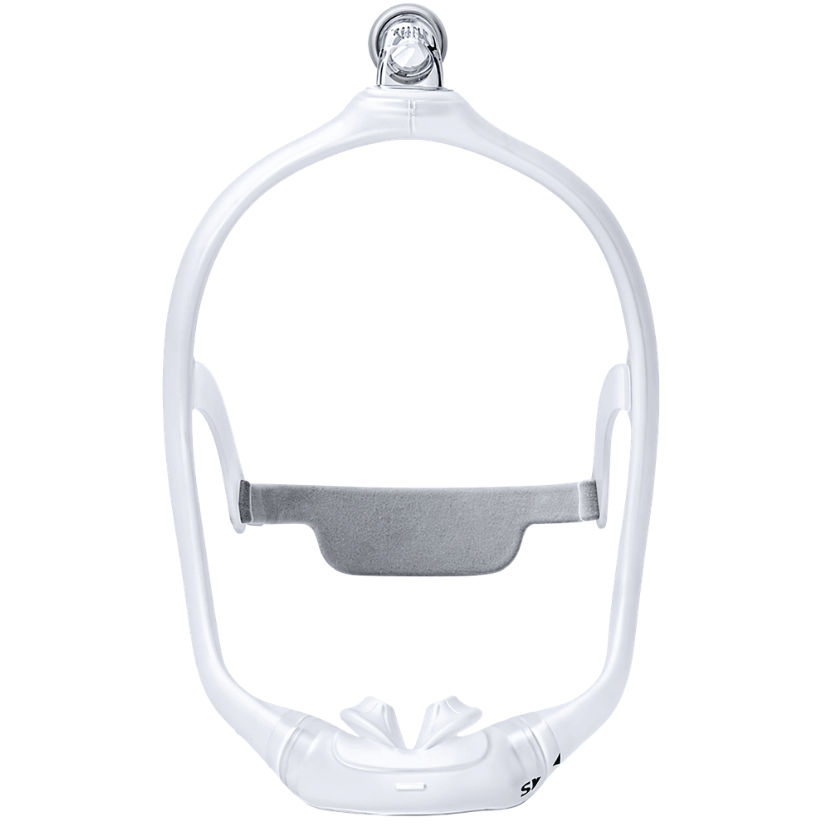

1. As shown in the figure below, with the mask assembled (see Assembly section), place  the cushion under your nose and insert the pillows cushion tips into your nostrils.
2. Position the frame on the top of your head.
   Tip: For proper sizing, see Cushion Sizing and Mask Frame Sizing sections.
3. Pull the headgear over the back of your head.

Adjusting the Mask

1. Peel the headgear tabs away from the fabric. Adjust the length of the straps.

   Press the tabs back against the fabric to reattach.

   Note: Do not overtighten the headgear. Signs of overtightening include redness, sores, or bulging skin around the edges of the mask.
2. Position the mask until it fits comfortably.
3. When the mask is worn correctly, the elbow should rest on the top of your head.

Refer to the assembly and disassembly diagrams in these instructions.

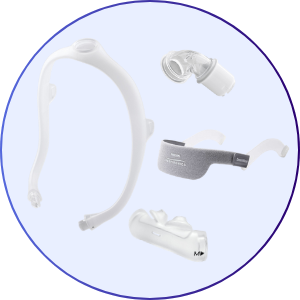

Assembly

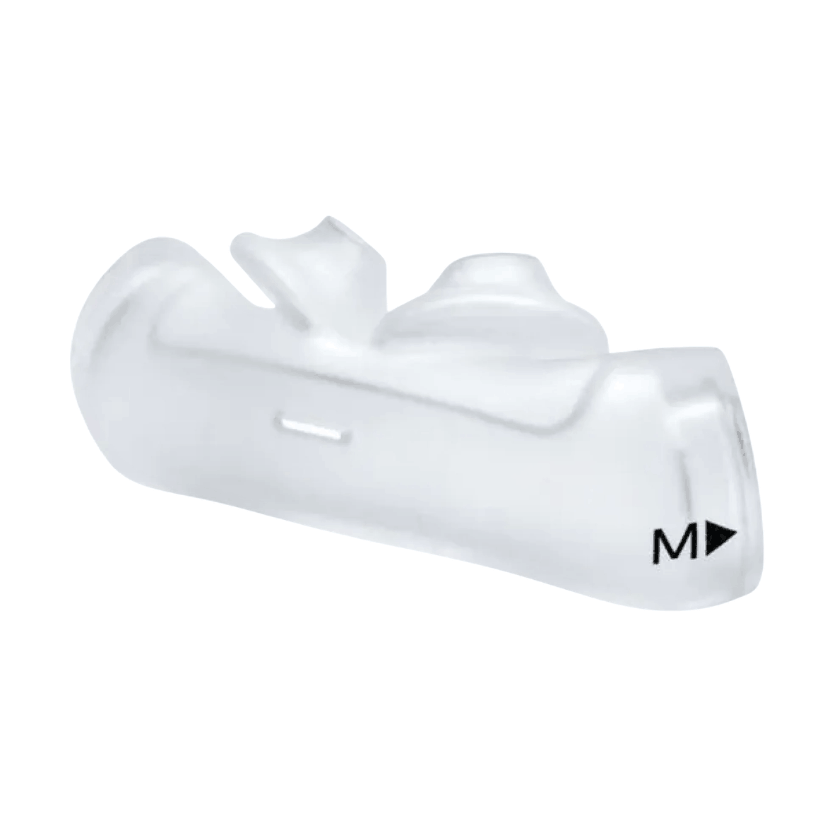

1. Align the triangles on the cushion and mask frame. Press the cushion into the frame until it clicks into place.

   Note: The end of the cushion and the opening in the mask frame are “D” shaped. The cushion end should match the frame.

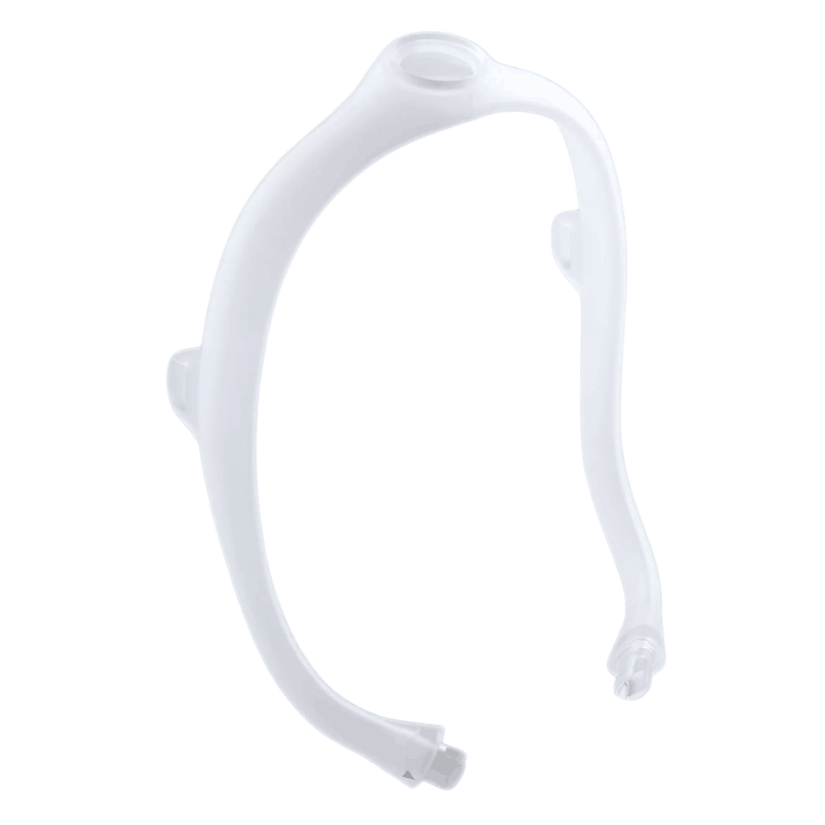

2. Insert the elbow into the top of the mask frame.
3. Push the tubing quick release onto the elbow until it clicks into place.
4. Wrap the fabric sleeves around the mask frame and press the strips together.

   Note: The sleeve seams should be on the outside of the frame.

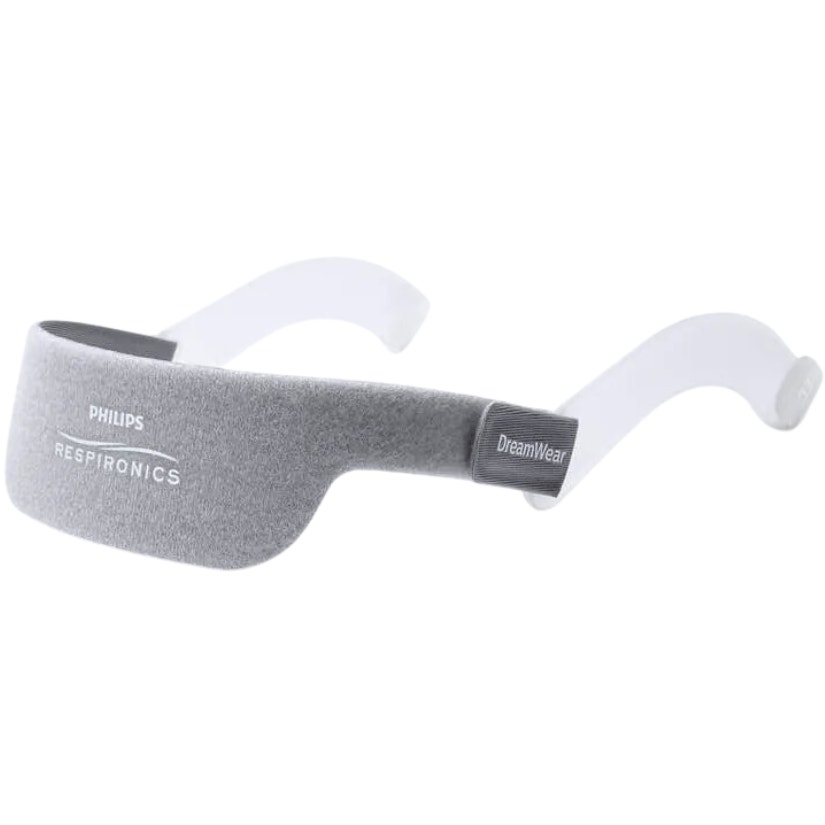

5. Headgear assembly:

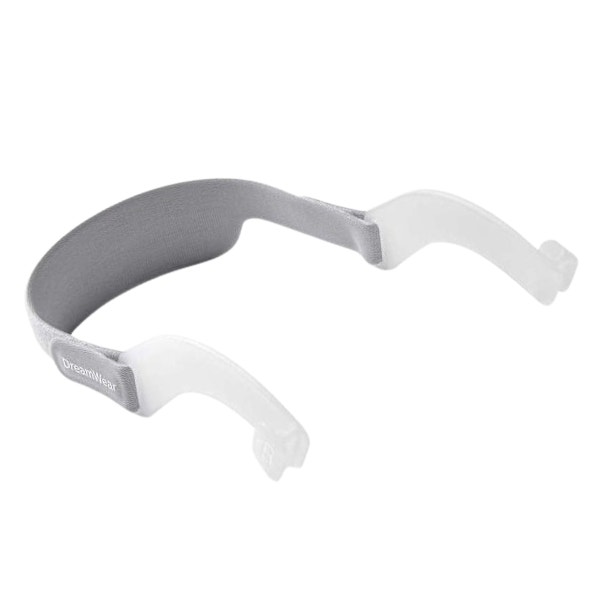

   • Headgear with arms A1:
   a. Push the end of the right headgear arm (marked with an “R”) through the right mask frame loop. Repeat on the left side with the left (“L) headgear arm and left frame loop.
   b. Slide the fabric tabs into the slots on the arms and fold backwards.

   Note: Once the mask is on, the letters should face outward with the “L” on the left side of your head and the “R” on the right side.

   • Headgear A2: Slide the tabs into the slots on the mask frame and fold backwards.
   Note: The Philips Respironics logo will be on the outside and facing up when correctly assembled.

Disassembly

1. Headgear disassembly:
   • Headgear with arms A1 : Gently pull each headgear arm out of the mask frame loop.
   • Headgear A2 : Undo the headgear tabs and pull through the slots in the mask frame.
2. Undo the strips on the fabric sleeves and remove from the mask frame.
3. Pull the tubing quick release from the elbow.
4. Pull the elbow from the top of the frame.
5. Pull the cushion from the mask frame.
