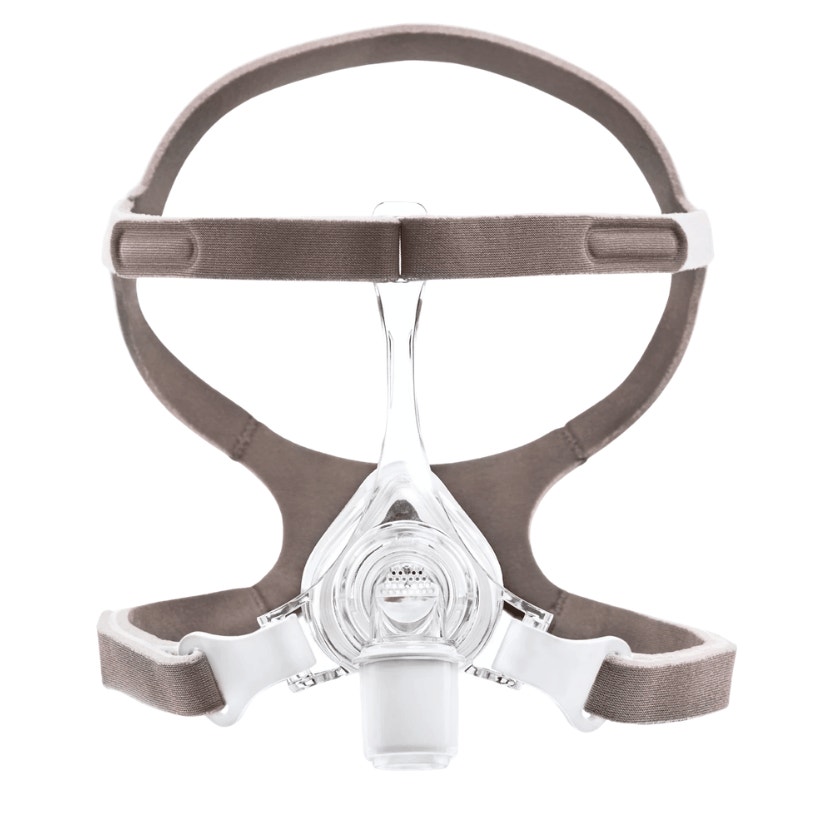

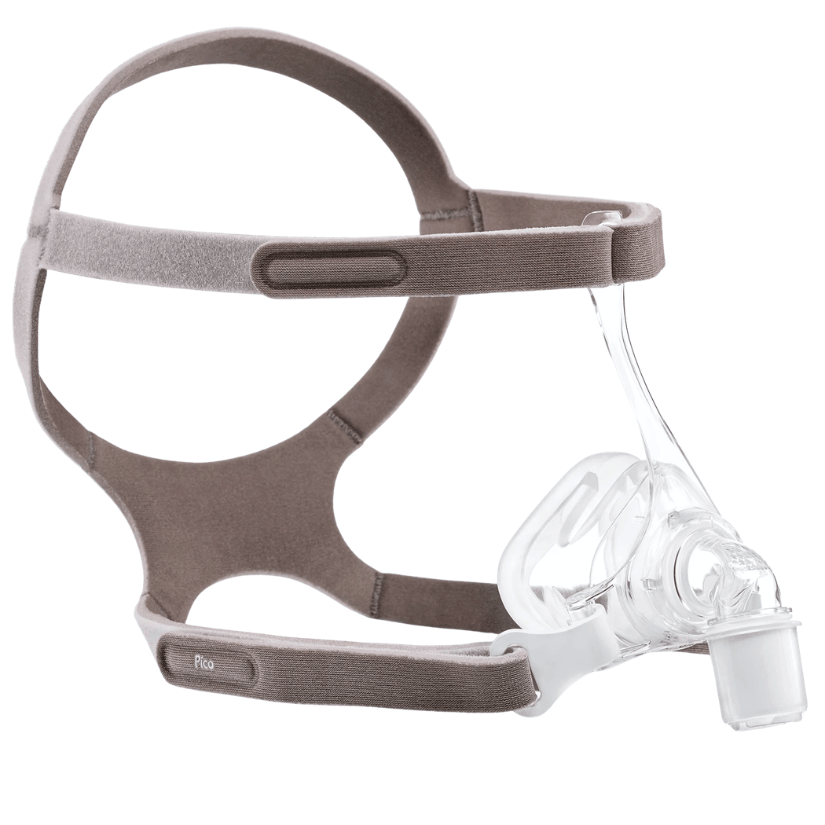

Philips Respironics Pico Nasal CPAP Mask with Headgear

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$109.00

The Pico Nasal Mask is simple to use and provides superior therapy through leak protection technology.

Mask Satisfaction Guarantee

Get free shipping on this mask

Overview

Philips Respironics Pico Nasal CPAP Mask with Headgear Overview

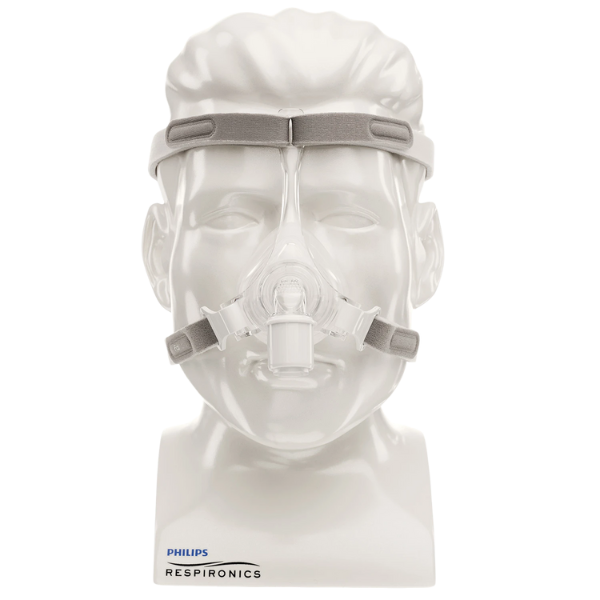

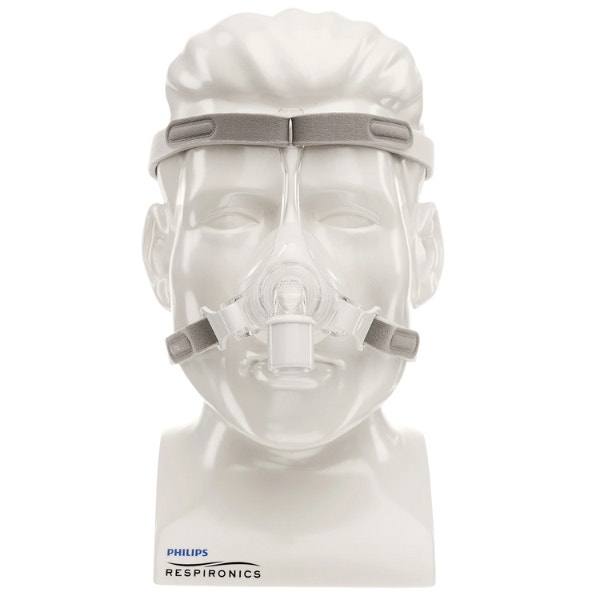

The Respironics Pico Nasal CPAP Mask with Headgear is a lightweight mask with user-friendly features. This nasal mask covers both nostrals with a dual wall cushion for improved leak protection. The small cushion and headgear design gives patients a clear line of sight while receiving therapy. Furthermore, the adjustable headgear allows patients to personalize their headgear to best fit their head shape and size. Patients can use the quick release headgear clips or the detachable swivel to remove the headgear during therapy. These two features allow the patient to take off and put on the headgear without having to re-adjust the headgear settings. The headgear is easily adjustable with velcro tabs.

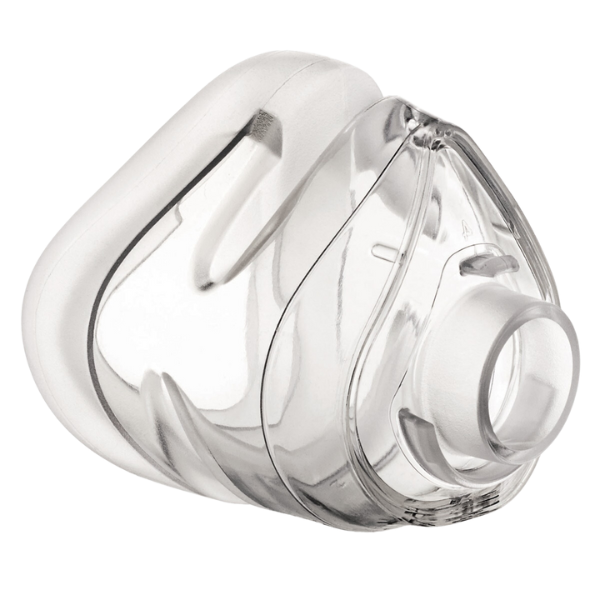

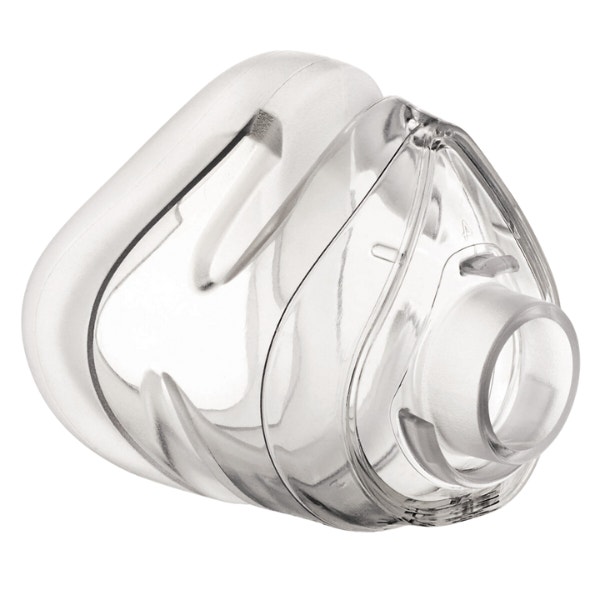

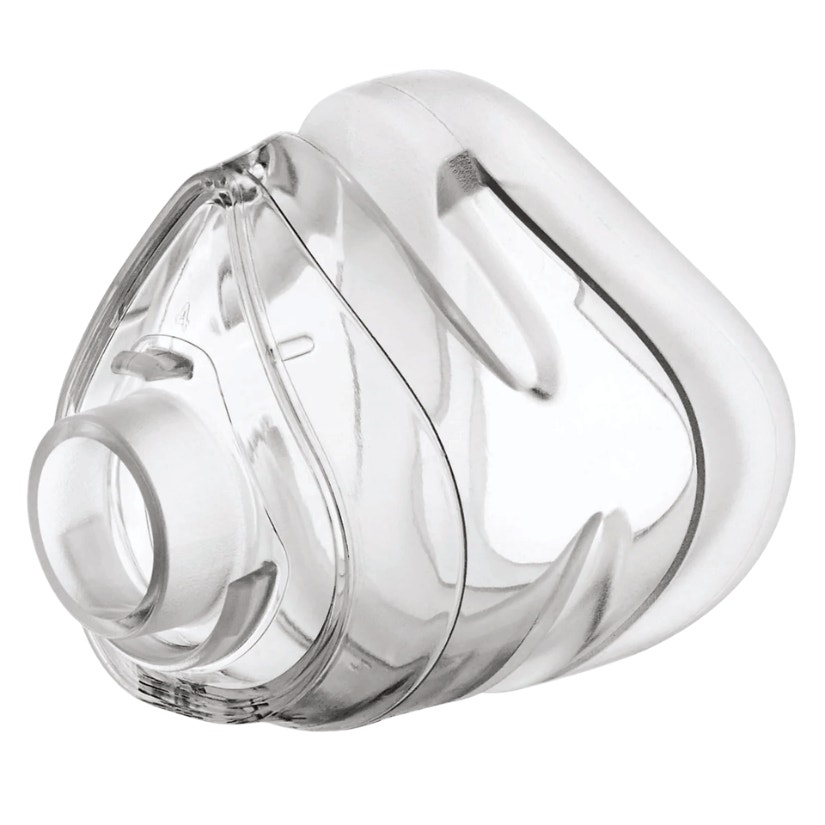

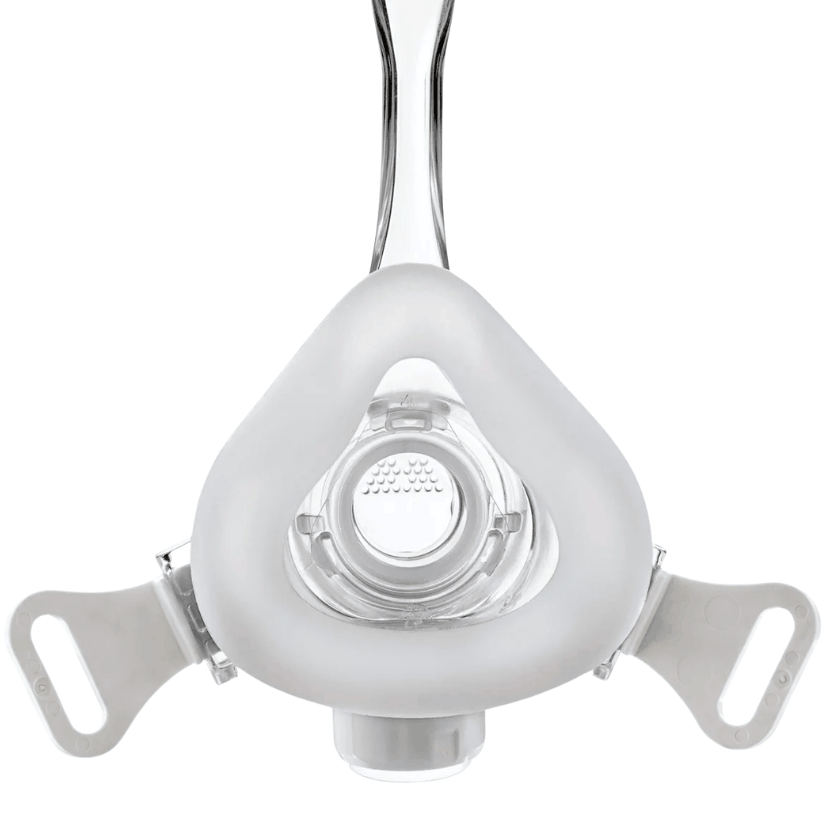

The Pico Nasal Mask uses a dual wall cushion to increase comfort and effectiveness. One layer of the cushion maintains a tight seal throughout treatment while the other layer secures the cushion firmly on the nose. The dual wall cushion can be removed from the frame for cleaning or replacement.

Product Specifications

Frame: Polycarbonate
Cushion: Silicone / Polycarbonate
Elbow: Polycarbonate
Headgear Clip: Thermoplastic Polyester Elastomer
Headgear: UBL / Urethane Foam / Nylon and Lycra
Swivel: Polycarbonate
Latex free
Natural Latex free

Features & Benefits

No forehead pad for increase visibility
Clear line-of-sight during treatment
Adjustable headgear with velcro tabs
Quick release headgear clips or detachable swivel allow the patient to take-off and put-on the mask without having to readjust the headgear
Dual-wall cushion improves comfort, stability and seal

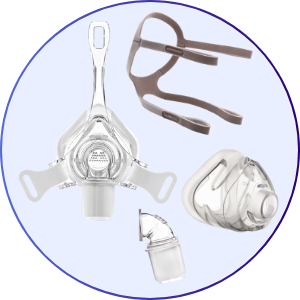

What's Included

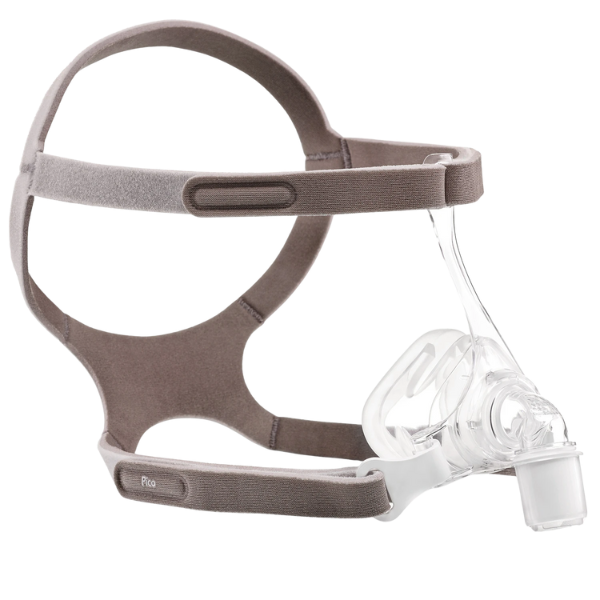

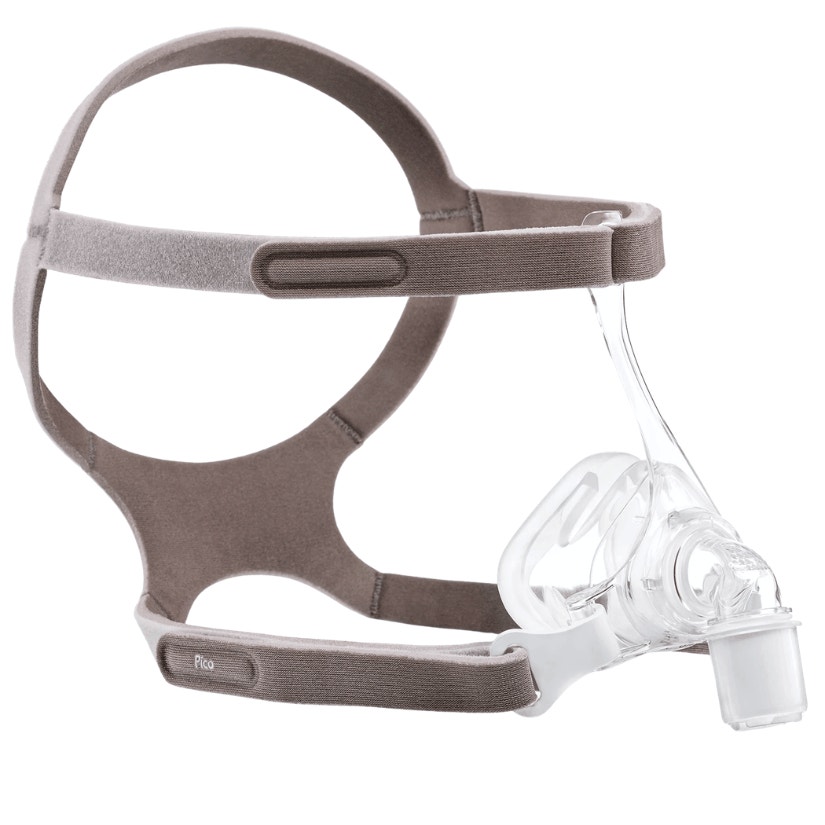

Philips Respironics Pico Nasal CPAP Mask with Headgear

1 — Pico Nasal Mask Frame & Cushion (of selected size option)

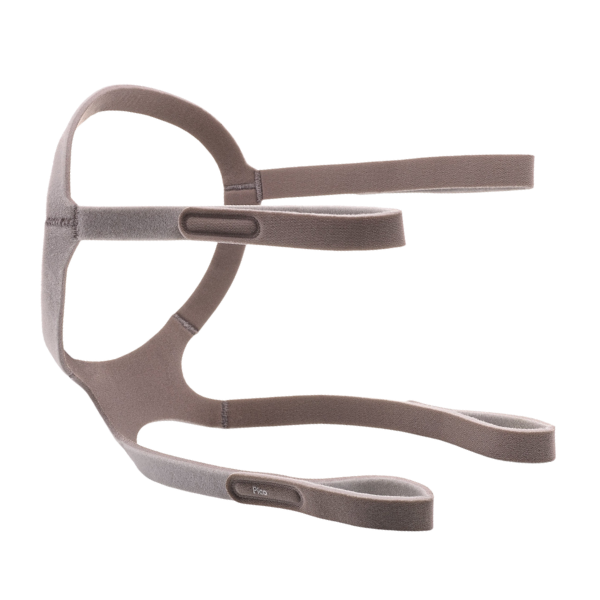

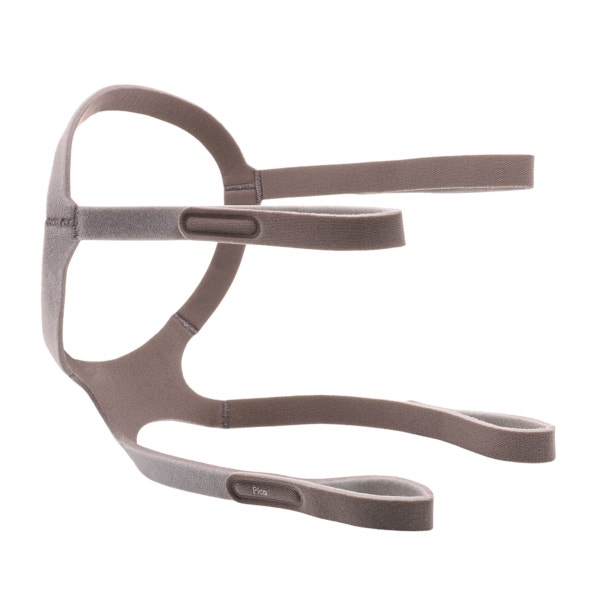

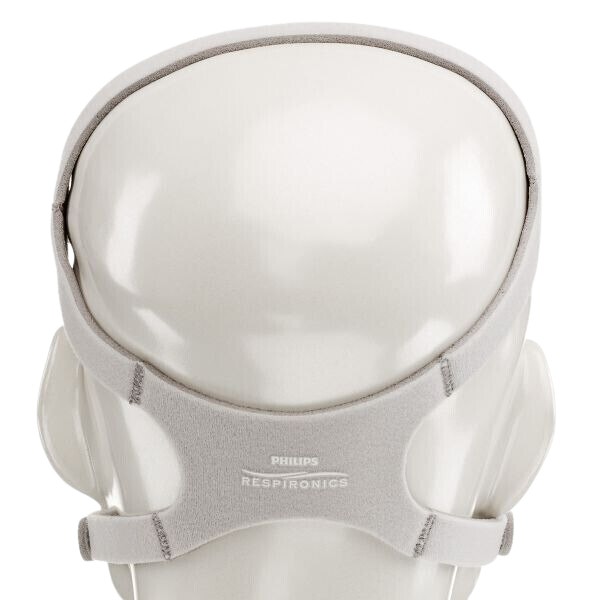

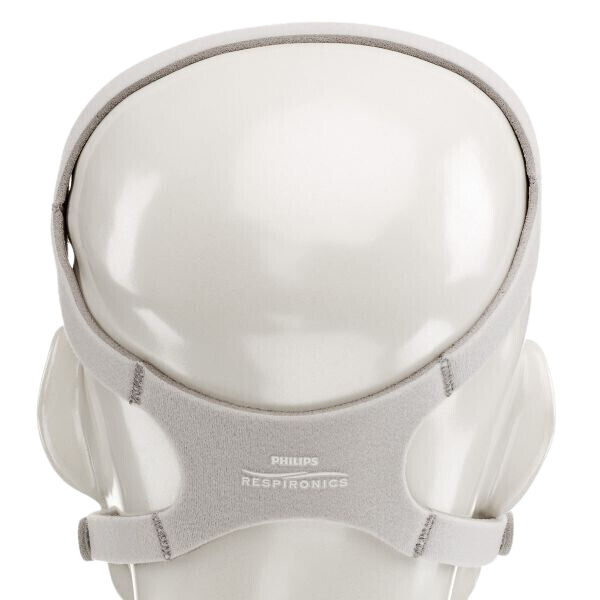

1 — Pico Mask Headgear
1 — Elbow & Swivel

If you're looking to purchase the Philips Respironics Pico Nasal CPAP Mask components without a prescription, you can find them here.

Size Options

Small/Medium - Pico Nasal Mask with Headgear - 1104915
Large - Pico Nasal Mask with Headgear - 1104916
Extra Large - Pico Nasal Mask with Headgear - 1104917

Ideal For

Breathing Style:

Nasal Breathers
Mouth Breathers (when paired with a CPAP mask chinstrap)

Sleeping Style:

Back Sleepers
Side Sleepers
Active Sleepers

Additional Considerations:

High Pressure Settings
Glasses Wearers
Claustrophobia
Facial Hair
Full Field of View for Reading or Watching TV Before Bed
Tossing and Turning During Sleep

Instructions For Use

Fitting Your Mask:

Remove all packaging before using the mask.

Before Putting on the Mask

Sizing: The cushion should fit the width of your nose without blocking your nostrils. The top of the cushion may sit between the bridge and tip of your nose.

Putting on the Mask

Clip: To disconnect turn like a key.
Headgear tab: To undo peel away from the headgear strap.
Headgear: Pull the headgear on over your head.
Cushion: Place the cushion over your nose.
Clip: To connect, press onto the mask frame.
Headgear tab: Press tab against the headgear strap to reattach.

Adjusting the Mask

Headgear: Adjust the top straps evenly.
Headgear: Adjust the bottom straps evenly.
Note: Do not overtighten the headgear. The location of the headgear crown strap may vary depending on head size. Position the strap so the mask sits comfortably.

Using the Mask

Connect the flexible tubing (included with CPAP or bi-level device) to the quick release swivel.
Turn the therapy device on. Lie down. Breathe normally.
Assume different sleeping positions. Move around until comfortable. If there are any excessive air leaks, make final adjustments. Some air leaking is normal.

Tubing Quick Release

The elbow is equipped with a tubing quick release for the CPAP tubing. Pull on the tubing quick release and it will disengage from the elbow and come loose with the tubing .

Comfort Tips

The most common mistake is overtightening the headgear. The headgear should fit loose and comfortable. If your skin bulges around the mask or if red marks appear on your face, loosen the headgear.
Re-seat the mask by pulling it directly away from your face and gently setting it back into place.

Philips Respironics Pico Nasal CPAP Mask Fitting Guide Diagram

Assembling/Disassembling Your Mask:

Refer to the assembly/disassembly diagrams in these instructions.

Removing the Headgear

Peel away the tabs and pull through the slots in the mask frame or clip.

Removing the Cushion

Pull cushion away from the frame.

Attaching the Cushion

Align the cushion size (S/M, L, XL) mark on the bottom of the cushion to the bottom edge of the frame.
Press cushion onto frame until it clicks into place.

Attaching the Headgear

With the crown strap upward hold the top straps together.
Note: The Philips Respironics logo is on the outside back of the headgear when correctly assembled.
Thread the top straps through the top slot in the mask frame.
Thread the bottom straps through the bottom slots in the mask frame or clips.
Fold the ends back and press the tabs onto the straps.

Philips Respironics Pico Nasal CPAP Mask Assembly/Disassembly Guide Diagram

Operating Therapy Pressure Range

4 to 30 cmH²O

How-To Videos

CPAPsupplies.com: CPAP Supplies Replacement Schedule

Pico: Fitting Guide

Pico: Cleaning Guide

Pico: Controlling Mask Leaks

User Guides & Manuals

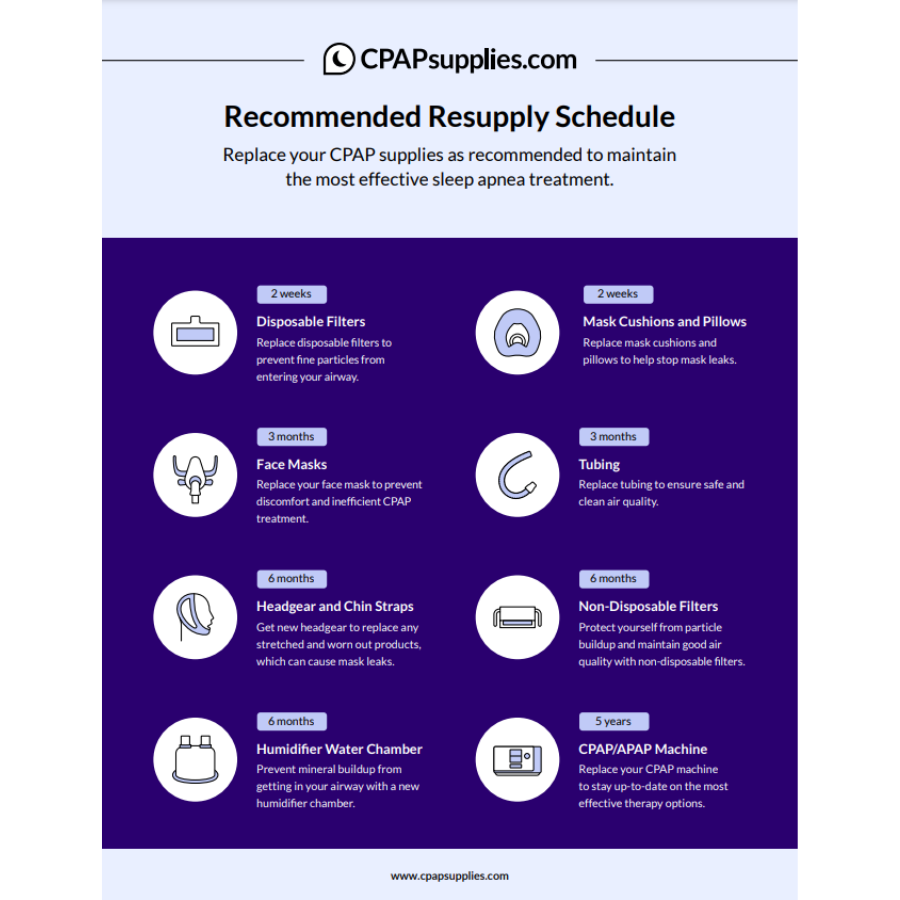

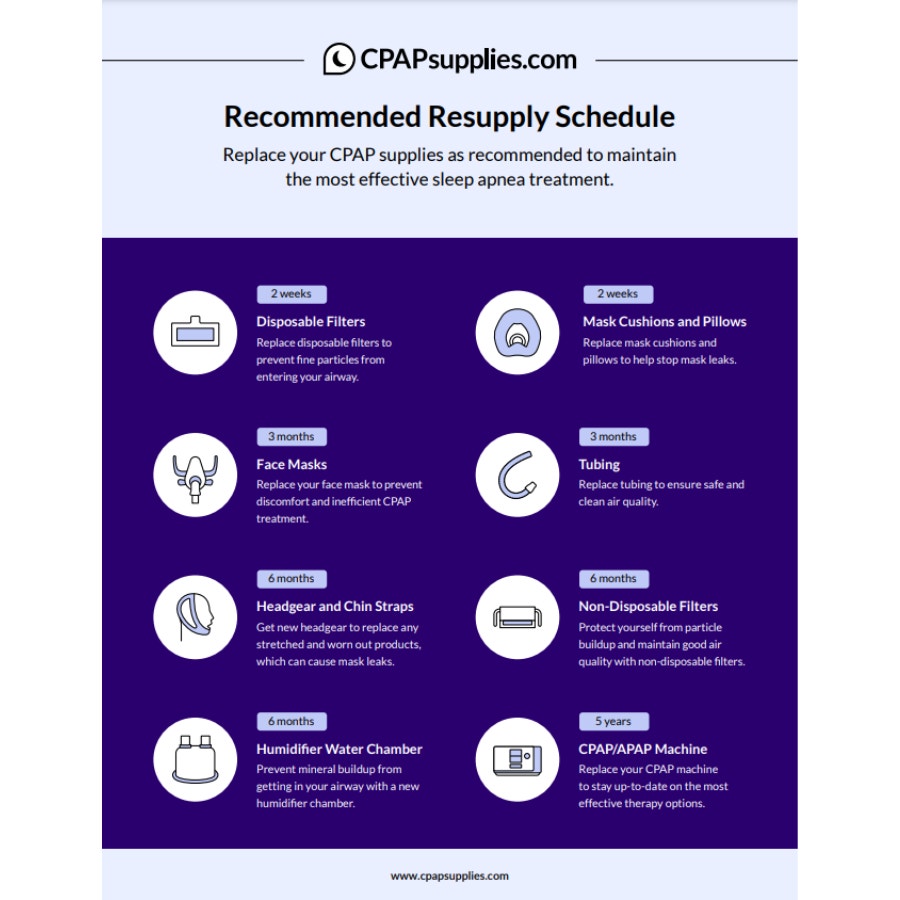

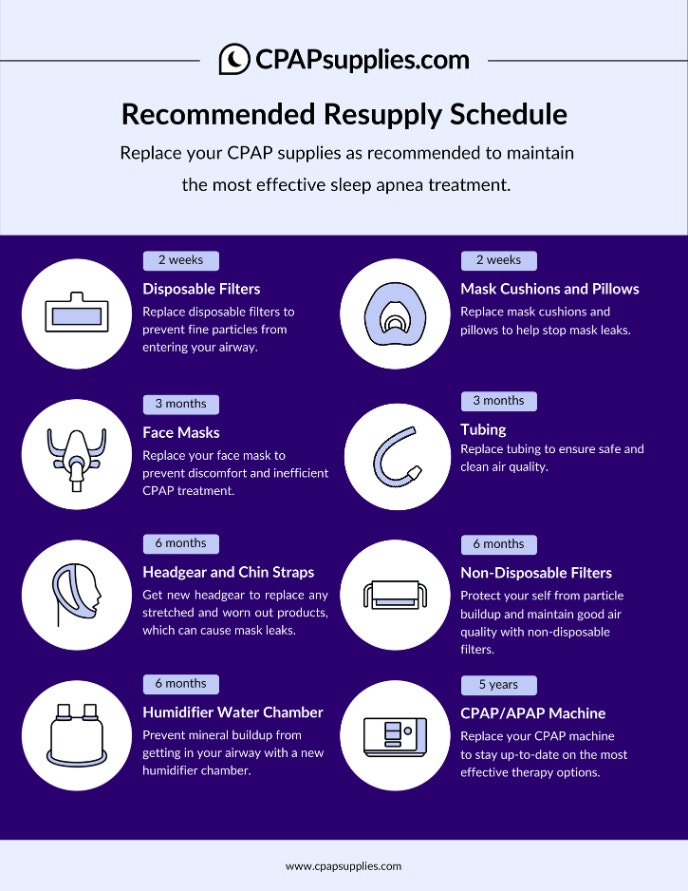

Resupply Schedule

CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months

CPAPsupplies.com: CPAP Supplies Replacement Schedule

Cleaning Guide

Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.

Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):

Part	Cleaning Frequency	Instructions
Nasal Cushions	Daily	Using a mild detergent* and warm, drinking-quality water, gently clean your nasal cushions to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria. Rinse thoroughly. Allow to air dry, avoiding direct sunlight.
Mask Frame	Weekly	Using a mild detergent* and warm, drinking-quality water, gently clean your mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria. Rinse thoroughly. Allow to air dry, avoiding direct sunlight.
Headgear	Weekly	Using a mild detergent* and warm, drinking-quality water, gently clean your mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution. Rinse thoroughly. Hang dry, avoiding direct sunlight.
Chinstrap	Weekly	Using a mild detergent* and warm, drinking-quality water, gently clean your mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution. Rinse thoroughly. Hang dry, avoiding direct sunlight.

*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.

You can find more useful information regarding CPAP cleaning with this blog:

The Best Ways to Clean Your CPAP

Brand	Philips Respironics
SKU	p_1104916
Model	p_1104916
UPC	606959035850, 606959009127, 606959035867
Prescription Required	Yes
Manufacturer's Warranty	90-day limited manufacturer's warranty
Color	Clear & Gray
FSA/HSA Eligible	Yes
Included	1104915, 1104916, 1104917
