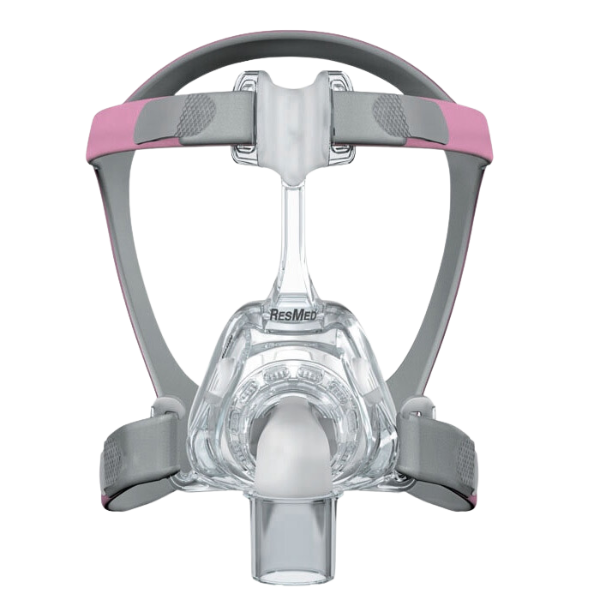

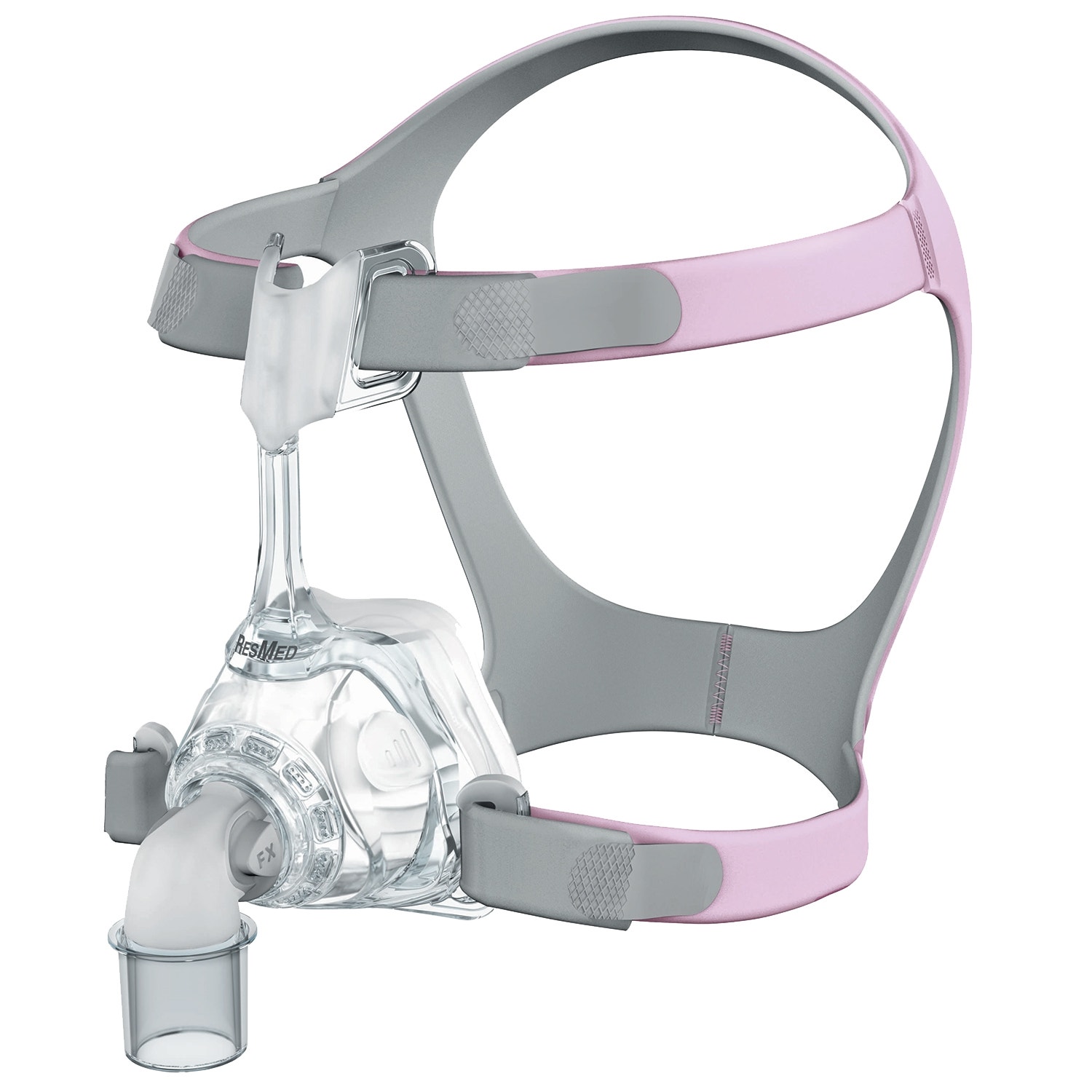

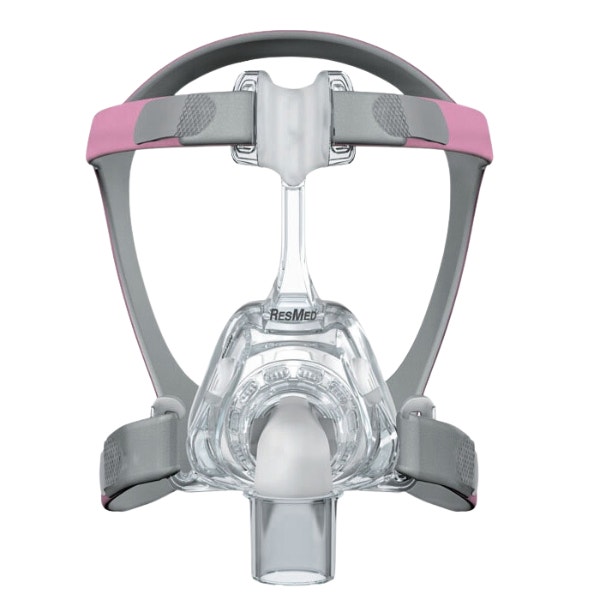

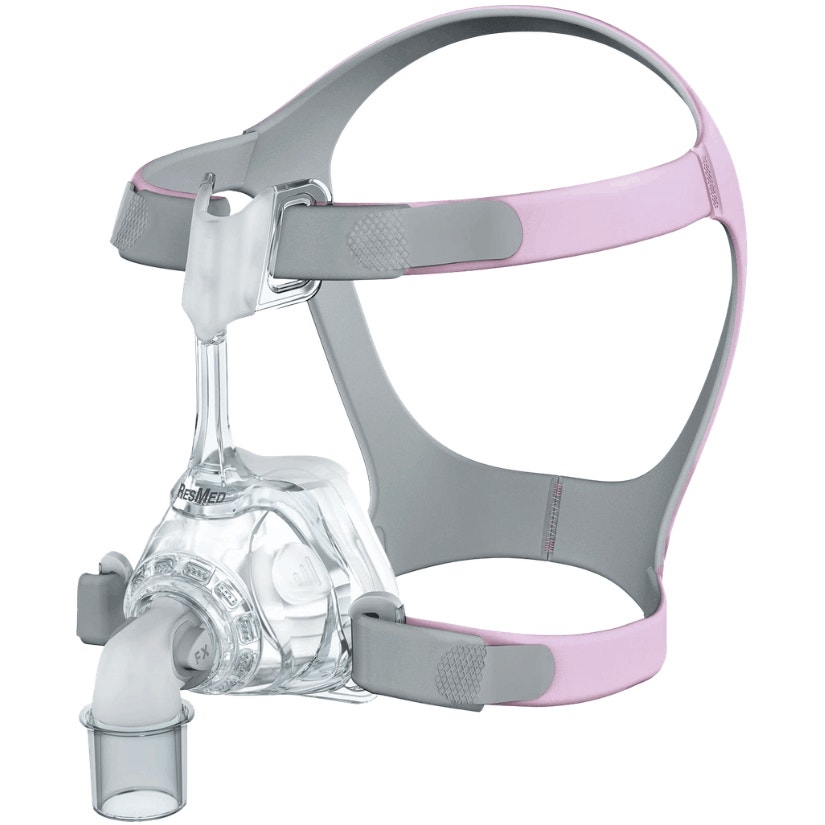

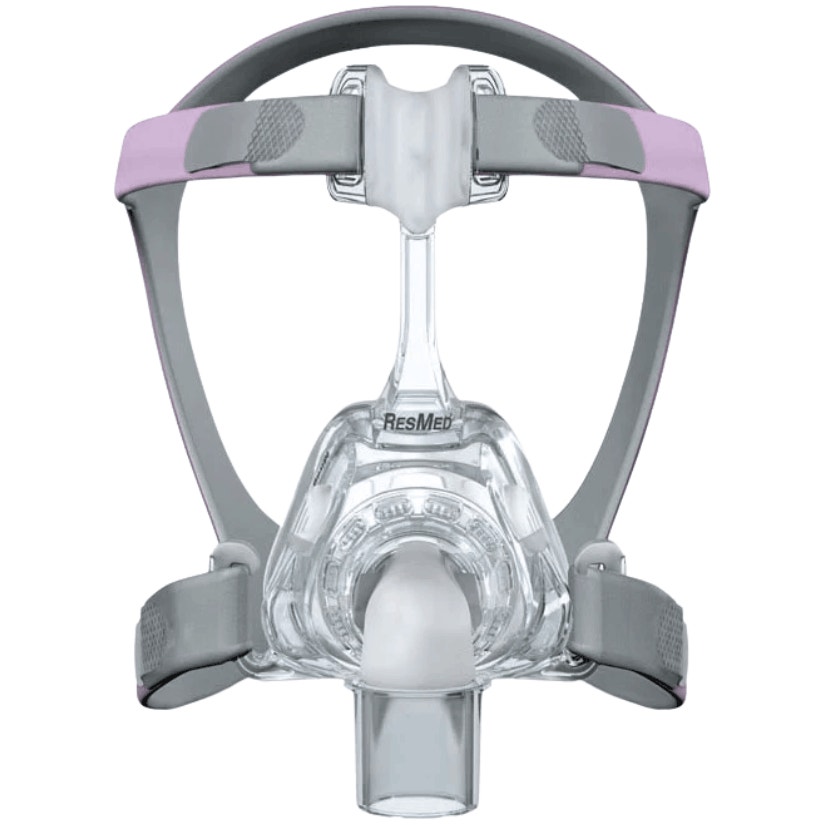

Resmed Mirage™ FX for Her Nasal CPAP Mask
$84.00
The perfect balance of lightweight comfort and simplicity the Mirage™ FX for Her combines innovative design with a stylish pink headgear and a fit range customized for women.
Resmed Mirage™ FX for Her Nasal CPAP Mask Overview
The Resmed Mirage™ FX for Her has instant patient appeal. With its compact, ultra lightweight frame, and contoured SoftEdge™ headgear, patients will love its openness and comfort.
The feminine new headgear lets her customize her therapy to suit her personal style for easier therapy acceptance, and better long term compliance. Features include the soft SpringAir™ cushion, forehead support and a gentle strap. Even more, it is easy to stop and start treatment with the quick-release elbow, making getting in and out of bed easy.
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option.
-

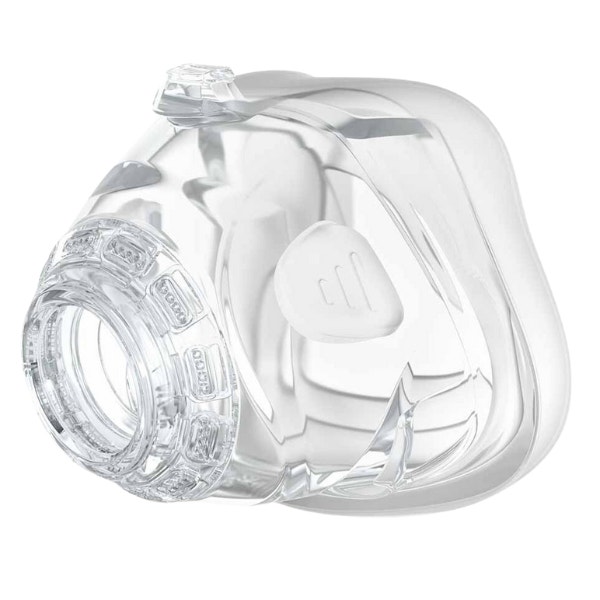

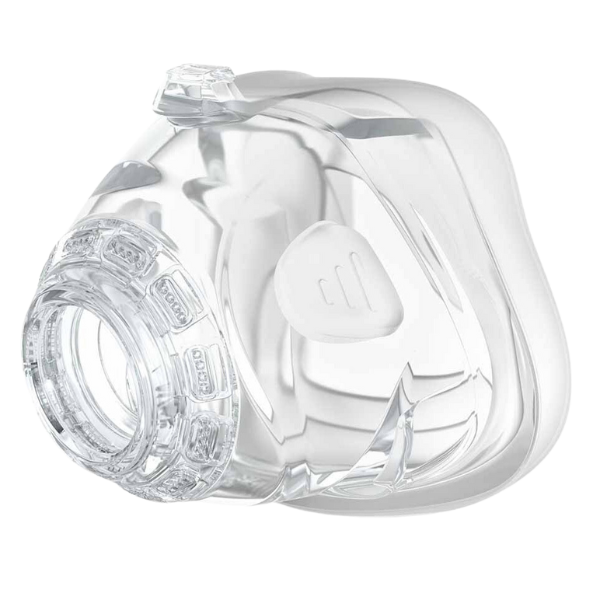

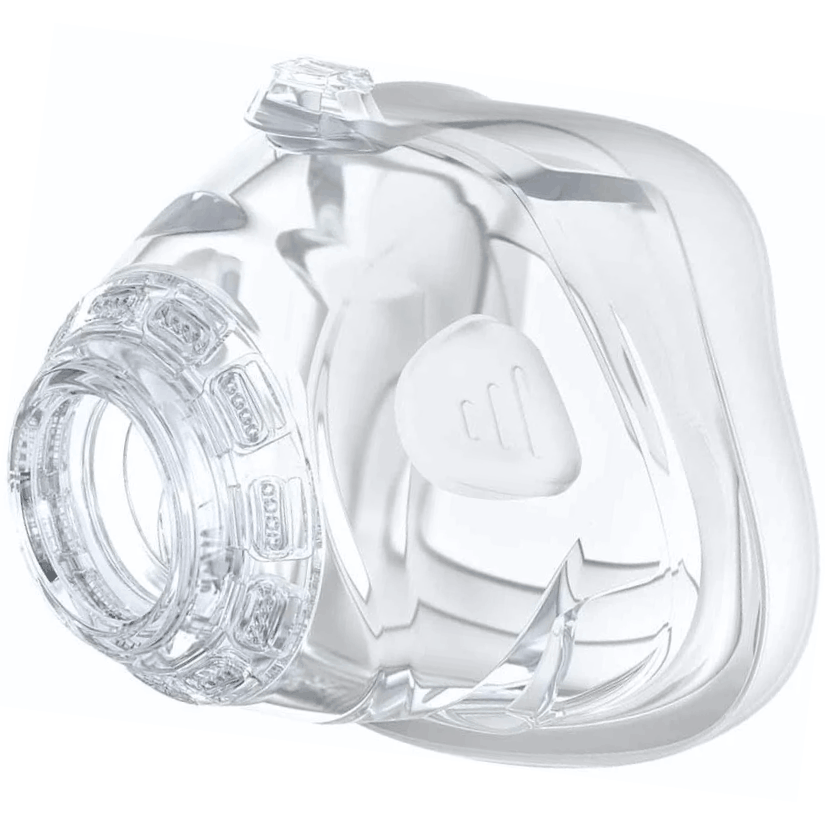

SpringAir™ cushion is very soft for ultimate comfort
-
SoftEdge™ adjustable forehead support is flexible and will meet the unique fit needs of users. Headgear is available as an option but not included automatically. It is also not required. However, if you'd like your order to include headgear, please select your preferred option above.
-
Cleaning and reassembly is effortless with this four-part mask
-
The Quick-Release elbow allows the user to stop and start treatment easily
-

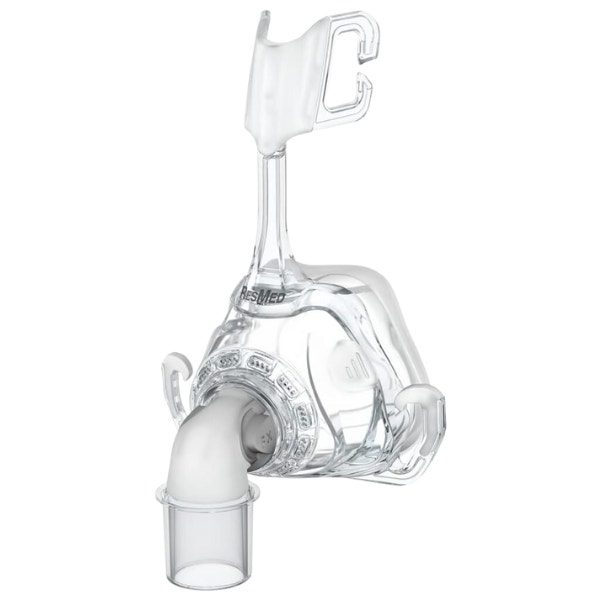

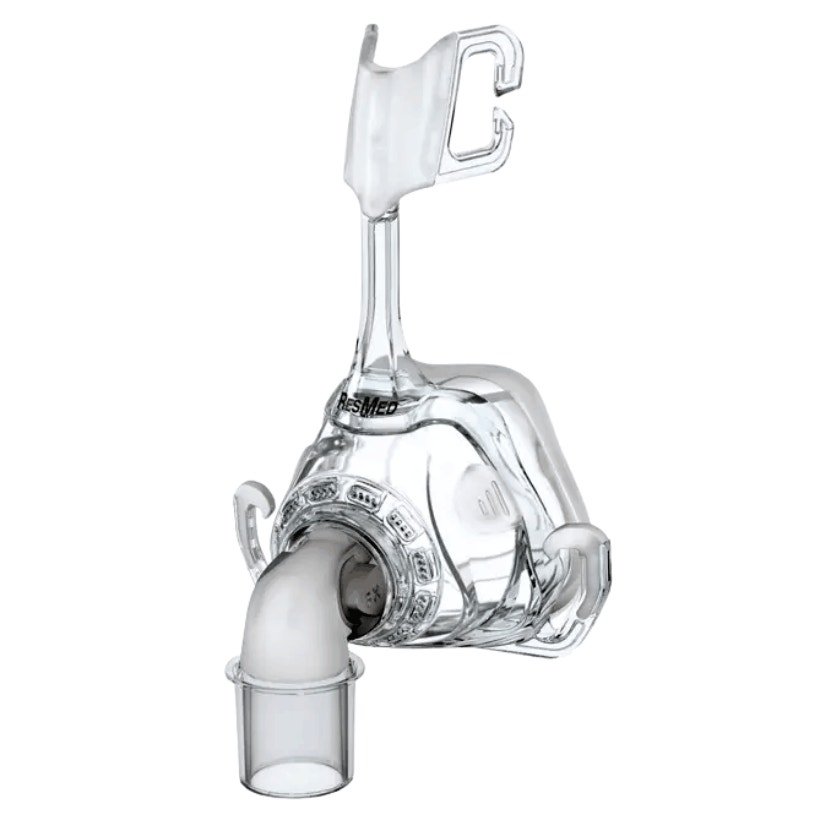

1 — Mirage™ FX for Her Frame and Cushion (of selected size option)
-
1 — Quick-release elbow
Please note: Headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-

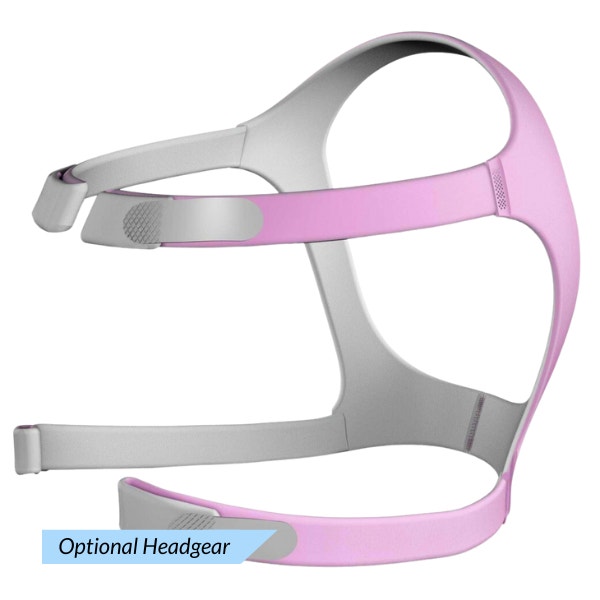

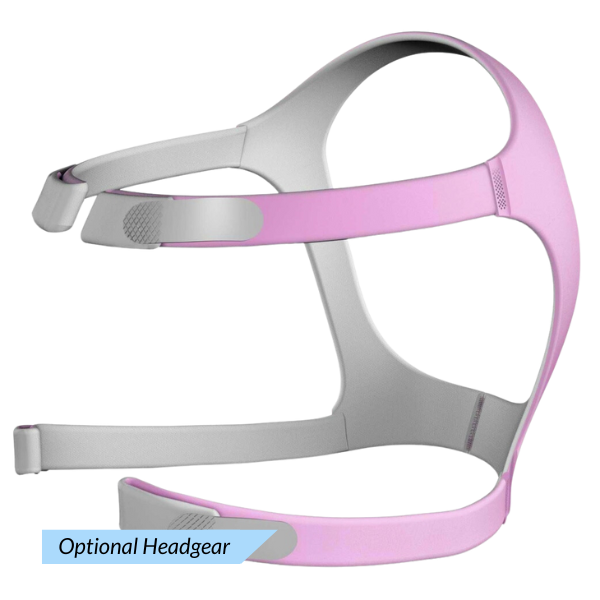

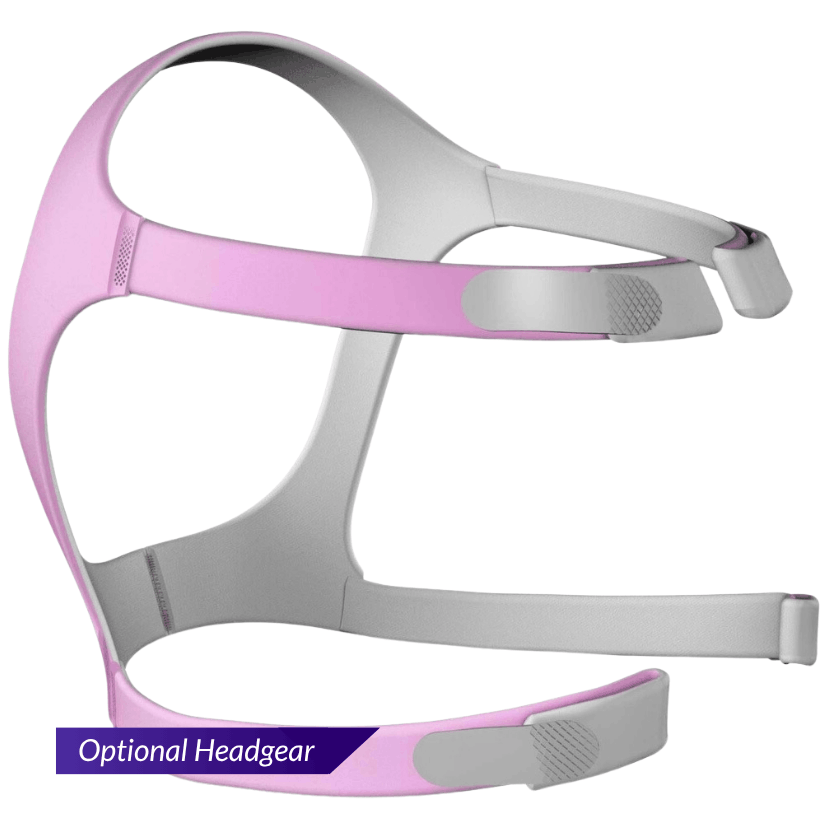

1 — Mirage™ FX Headgear
Mask Frame Size Options:
-
Wide - Mirage™ FX Mask System - without Headgear - 62126
-
Small - Mirage™ FX Mask System - without Headgear - 62137
-
Standard - Mirage™ FX Mask System - without Headgear - 62112
Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
-
Small - Mirage™ FX For Her Headgear - 62129
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Ensure the cushion is oriented correctly by aligning the top cushion tab with the recess in the top of the mask.
- Gently pull the cushion through the front of the mask frame until the cushion locks securely into the mask frame. The tabs on either side of the cushion should be sitting against the mask frame. Ensure the cushion is not twisted or distorted.
- Attach the top headgear straps to the mask frame by looping onto each of the upper headgear hooks.
- Replace the elbow assembly into the air tubing and attach the combined elbow assembly and air tubing to the mask by pressing the side-tabs and pushing into the mask.
Fitting Your Mask:
Prior to fitting your mask, remove the elbow from the mask by pressing the side tabs. Connect the elbow to your device air tubing.
- With both lower headgear straps released, hold the mask against your face and pull the headgear over your head.
- Bringing the lower straps below your ears, loop the headgear into the lower hooks on the mask frame.
- Unfasten the Velcro®, pull the upper headgear straps evenly until they are comfortable and reattach the Velcro. Do not overtighten.
- Repeat step 3 with the lower headgear straps.
- Attach the combined elbow assembly and air tubing to the mask by pressing the side-tabs and pushing into mask frame.
- Your mask and headgear should be positioned as shown. Ensure the headgear label is facing outwards.
Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
- Unhook the upper headgear straps from the mask frame, there is no need to undo the Velcro.
- Remove the combined elbow assembly and air tubing from the mask by pressing the side-tabs and pulling away from the mask frame. Remove the elbow assembly from the air tubing.
- Gently separate the cushion from the mask frame.
| Operating Therapy Pressure Range |
| 4 - 20 cm H²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Mirage™ FX: Fitting Guide
Mirage™ FX: Cleaning Guide
Mirage™ FX: Assembly Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | pb_mirage_fx_her_nasal_complete |
| Model | pb_mirage_fx_her_nasal_complete |
| UPC | 619498621262, 619498621378, 619498621125, 00619498621293, 848530082147, 187293000372, 00737709005691, 00737709005707, 00087052711641 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Mask Frame: 5.5" (W) x 6.89" (H) |
| Included | 62126, 62137, 62112, 62129 |
