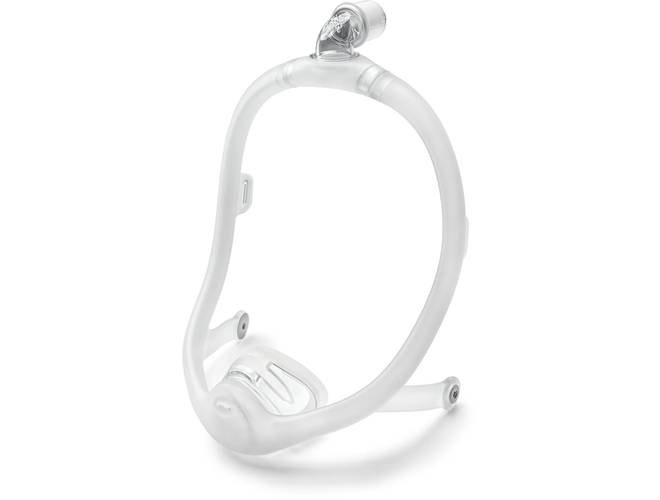

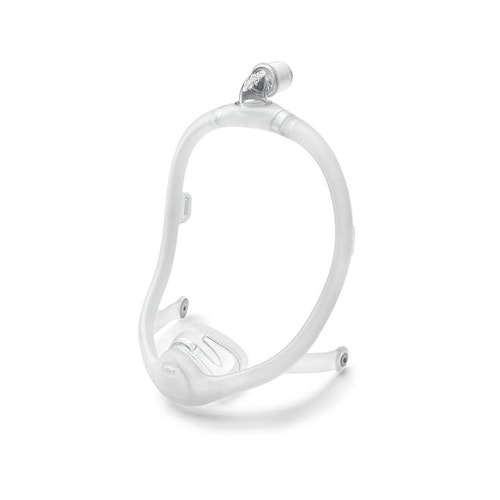

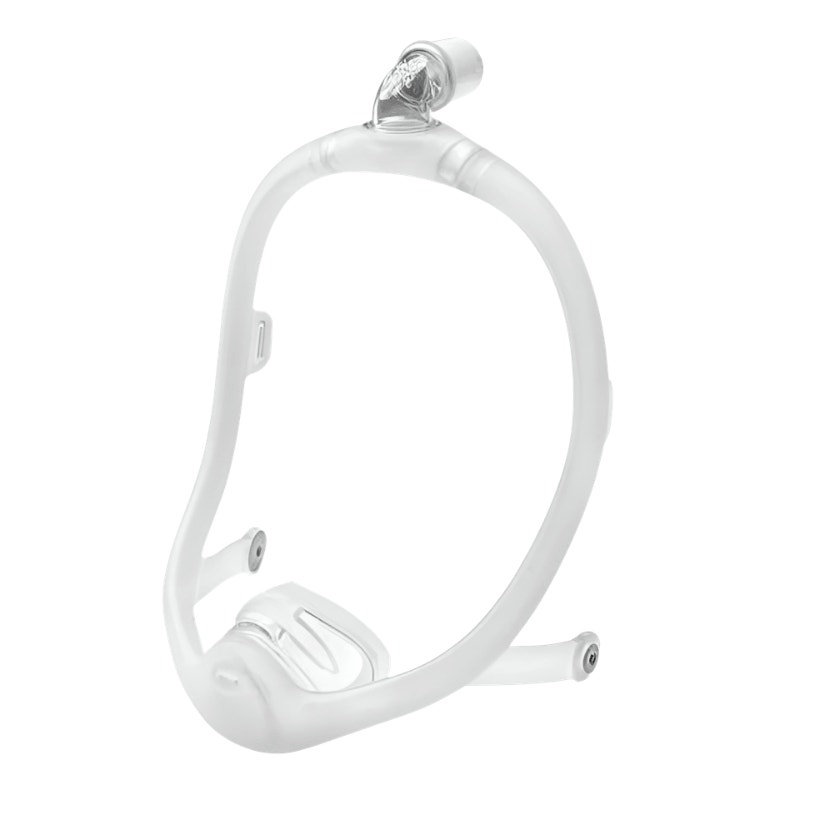

Philips Respironics DreamWisp Nasal CPAP Mask Fit Pack without Headgear
The Philips Respironics DreamWisp CPAP Mask offers exceptional comfort and is excellent for active sleepers. From its open frame design to the soft low profile nasal cushion, the DreamWisp's unique top hose location allows for a more comfortable nights sleep.
Philips Respironics DreamWisp Nasal CPAP Mask Fit Pack without Headgear (Model # 1137918) Overview
The Philips Respironics DreamWisp is a minimal contact nasal CPAP mask that helps you sleep comfortably with every turn because it marries the freedom of the DreamWear's revolutionary, top-of-the-head tube design with the seal of Wisp's minimal contact nasal cushion.

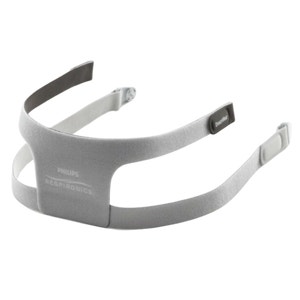

Please note: this order does not include headgear, but can be purchased separately here.
-
Tubing at the top of the head allows patients to sleep in any position they want
-

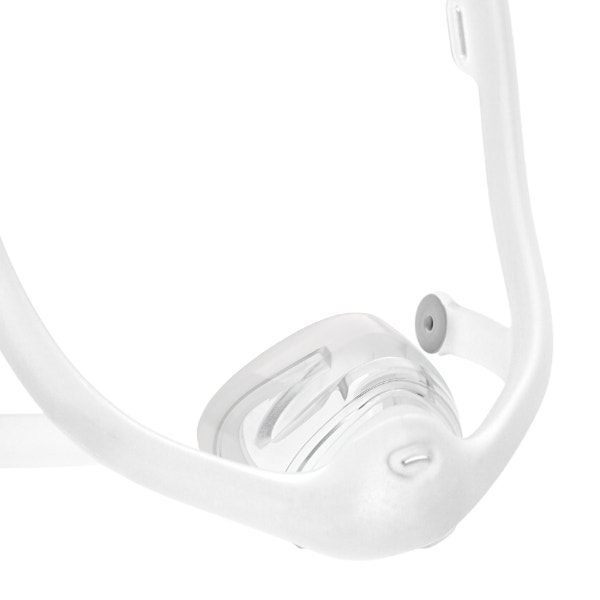

Airflow through the mask frame allows patients to sleep comfortably
-

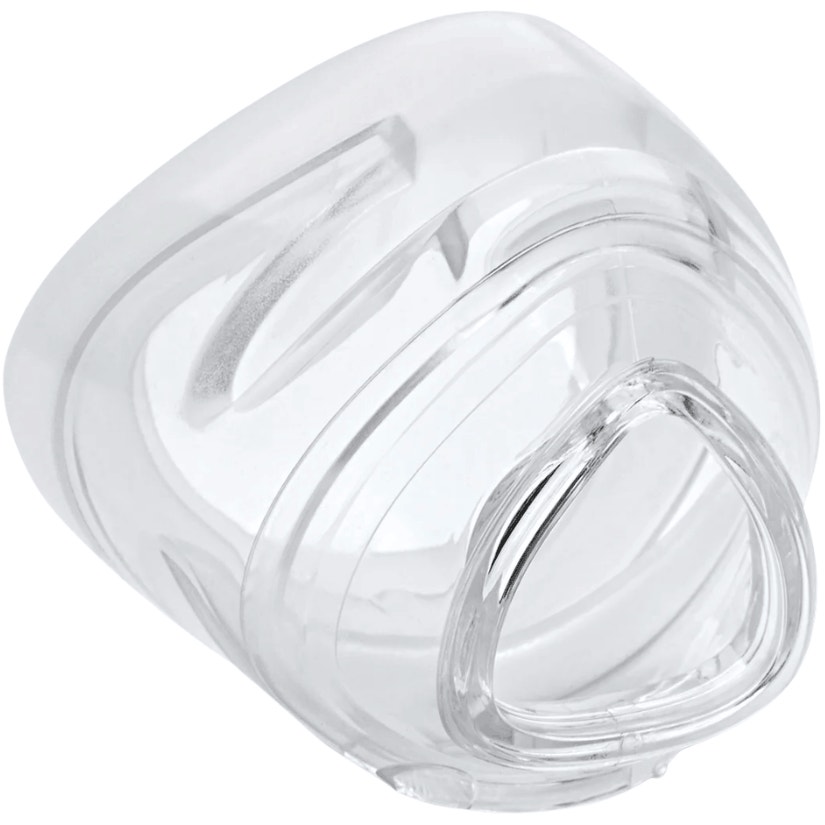

Minimal contact nasal cushion provides comfort and seal
-
Four point headgear provides stability
-

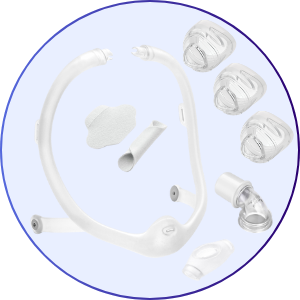

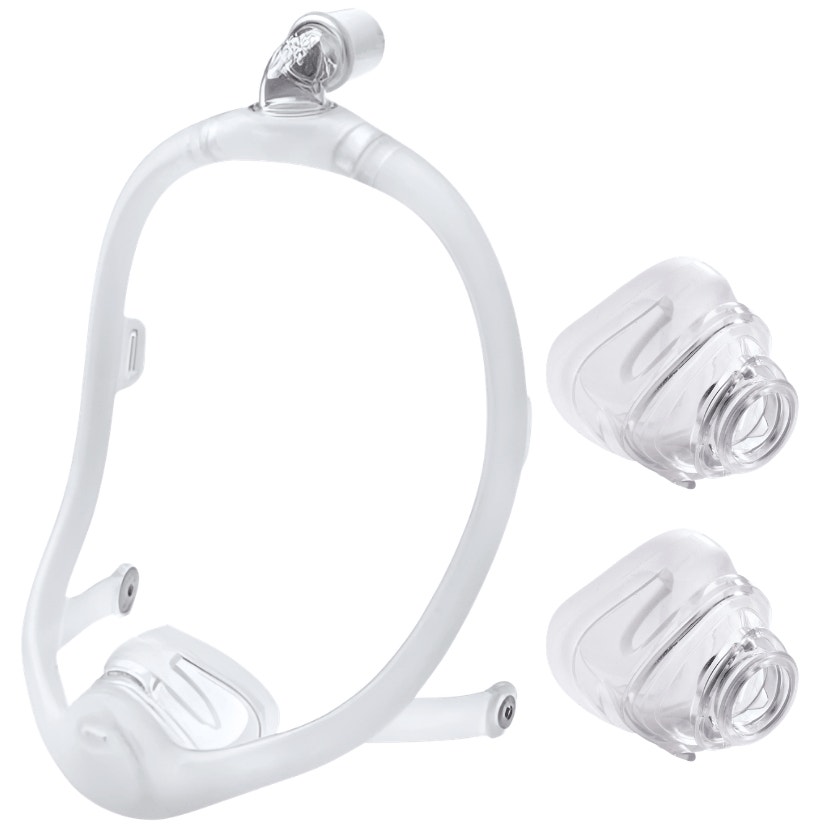

1 — Medium Frame Connector
-

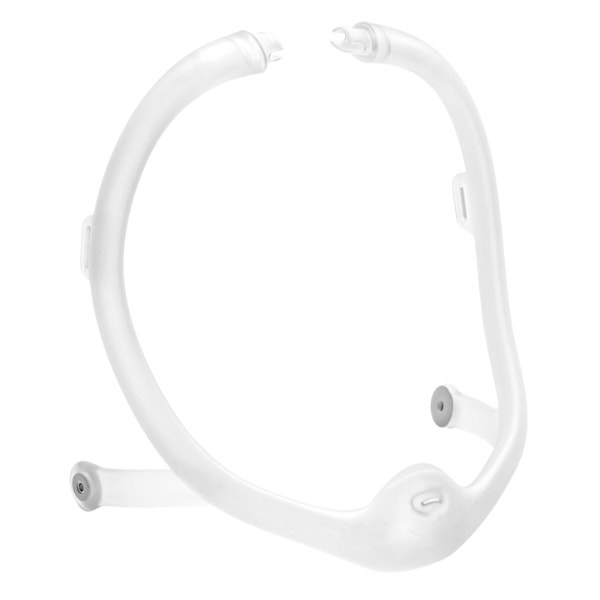

1 — Frame Faceplate
-

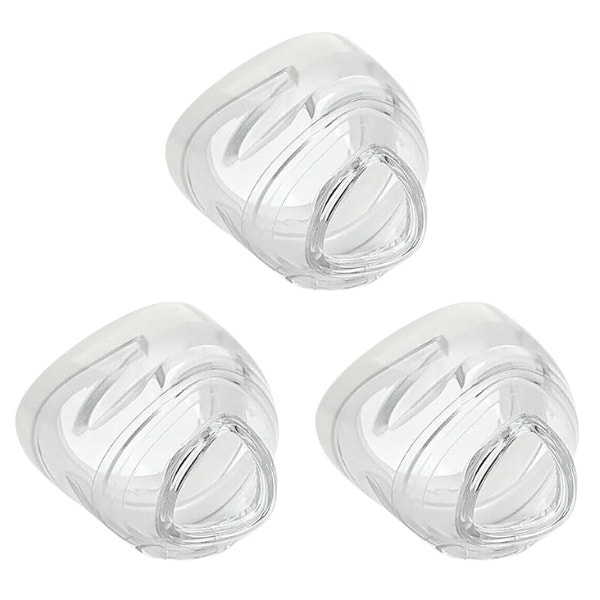

3 — Cushion (1 - Small, 1 - Medium, 1 - Large)
-
1 — Pair of Fabric Wraps
-
1 — Sizing Guide
-
1 — Instruction Manual
Please note: this order does not include headgear, but can be purchased separately here.
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
Tip: Align the cushion and frame for proper assembly.
- Cushion: Press into the mask frame.
Note: The cushion and frame will fit tightly together without any gaps. If there are any gaps or leaks between the frame and cushion remove the cushion and reattach. The cushion should fit securely in the frame. - Sizing connector: Click the mask frame tubes into the sizing connector.
- Elbow: Insert into the top of the frame size connector.
- Tubing quick release: Push the tubing quick release onto the elbow until it clicks into place.
- Magnetic clips: Push the back circular end of the magnetic headgear clip into the mask frame bottom slot until it clicks into place. 15 Connect the front end of the magnetic clip to the back circular end. The clip will snap into place when the magnetic ends are connected.
- Headgear (top strap): Slide the tabs into the slots on the mask frame and fold backwards.
- Headgear (bottom strap): Slide the tabs into the slots on the magnetic clips and fold backwards.
- Fabric sleeves: Wrap the sleeves around the mask frame and press the strips together.
Note: The sleeve seams should be on the outside of the frame.
Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images of these instructions.
- Unclasp one or both of the magnetic clips from the magnetic clip receiver.
- Pull the headgear on over the top of your head.
- Place the cushion over your nose.
- Clasp one or both of the magnetic clips to the magnetic clip receiver.
Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
- Tubing quick release: Pull the tubing quick release from the elbow.
- Elbow: Pull the elbow from the top of the frame size connector.
- Fabric sleeves: Undo the strips and remove from the mask frame.
- Headgear (bottom strap): Undo the headgear tabs and pull through the slots in the magnetic clips.
- Headgear (top strap): Undo the headgear tabs and pull through the slots in the mask frame.
- Magnetic clips: Pull the front end of the magnetic clip away from the back circular end of the clip to disconnect the magnets. Push the circular end back and out of the mask frame bottom slot. You may need to flex the mask frame for easier removal.
- Sizing connector: Disconnect the mask frame tubes from the sizing connector.
- Cushion: Pull the cushion from the mask frame.
| Operating Therapy Pressure Range |
| 4 to 30 cmH²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
DreamWisp: Introduction
DreamWisp: Adjusting for Leaks
DreamWisp: Cleaning Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Philips Respironics |
|---|---|
| Weight | 0.27 lbs |
| SKU | 19919 |
| Model | 1137918 |
| HCPCS | A7034 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| Color | Clear |
| FSA/HSA Eligible | Yes |
