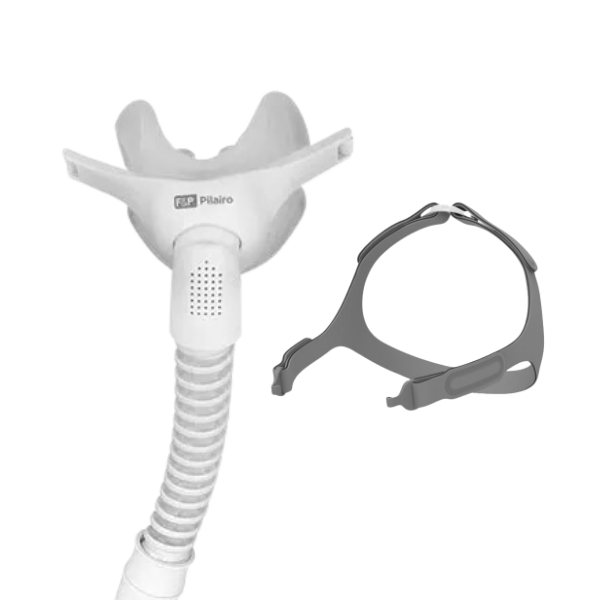

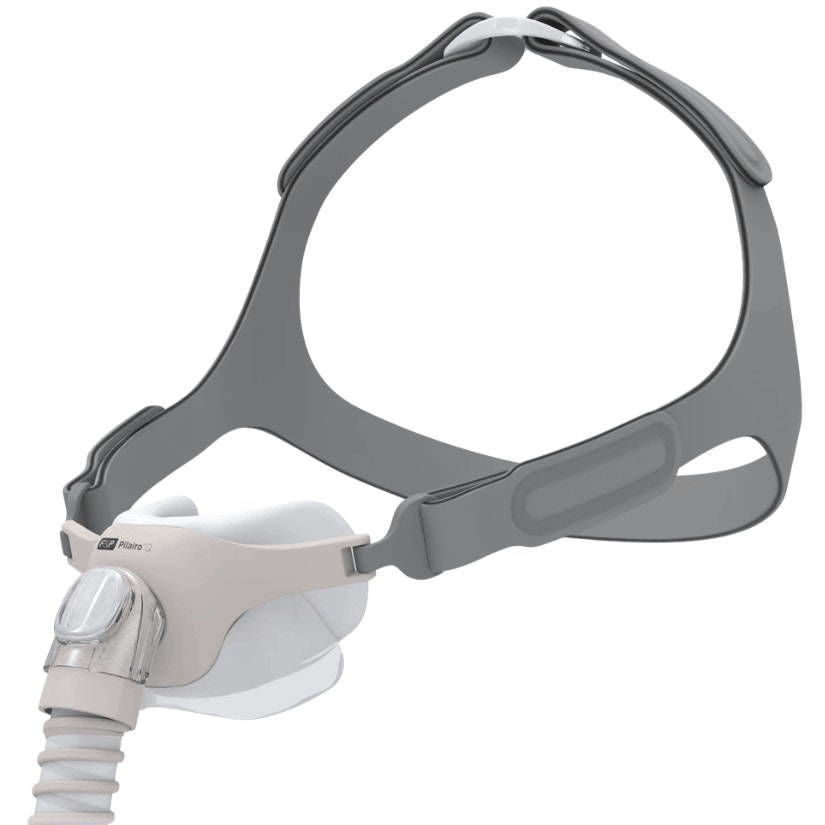

Fisher & Paykel Pilairo™ Q Nasal Pillow CPAP Mask
$64.00
The Pilairo™ Q Nasal Pillow CPAP Mask by Fisher & Paykel includes a one-size fits most mask frame and cushion. This frame system comes with the AirPillow Seal, Easy Frame and Q Cover parts.
Please note: headgear is not included in your order unless selected below.
Fisher & Paykel Pilairo™ Q Nasal Pillow CPAP Mask Overview
The Pilairo™ Q Nasal Pillow Mask by Fisher & Paykel is ultra lightweight and quiet providing supremely comfortable sleep therapy experience.
The AirPillow Seal, Easy Frame and Q Cover work in conjunction with the Pilairo™/Pilairo™ Q headgear to provide superior nasal pillow mask therapy.
Please note: headgear is not included in your order unless selected above.
-

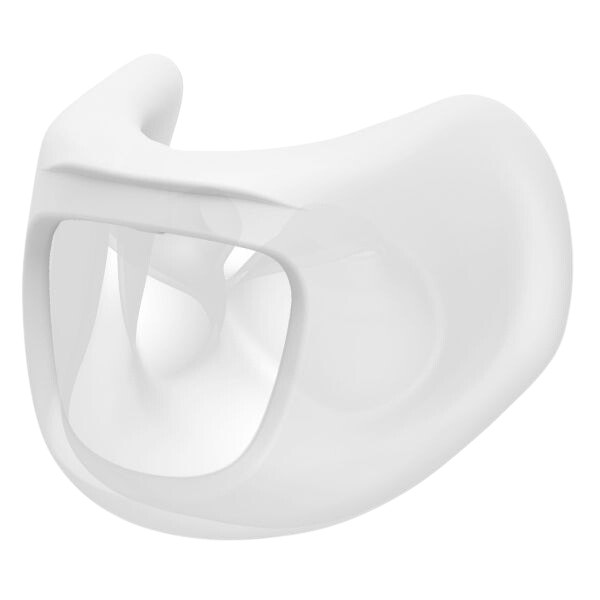

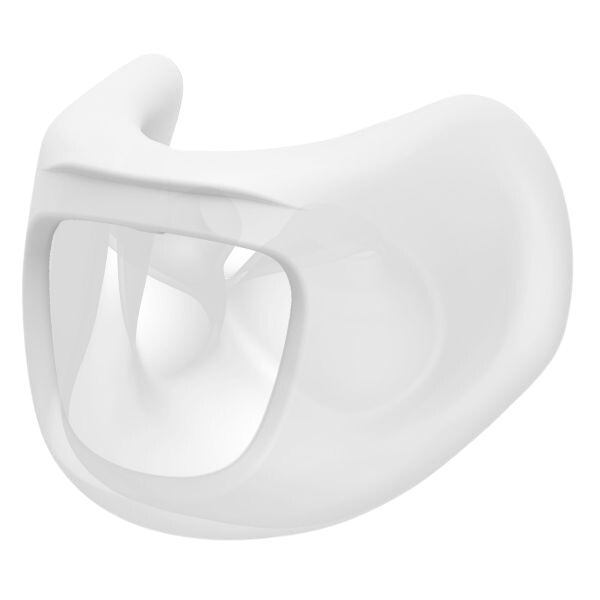

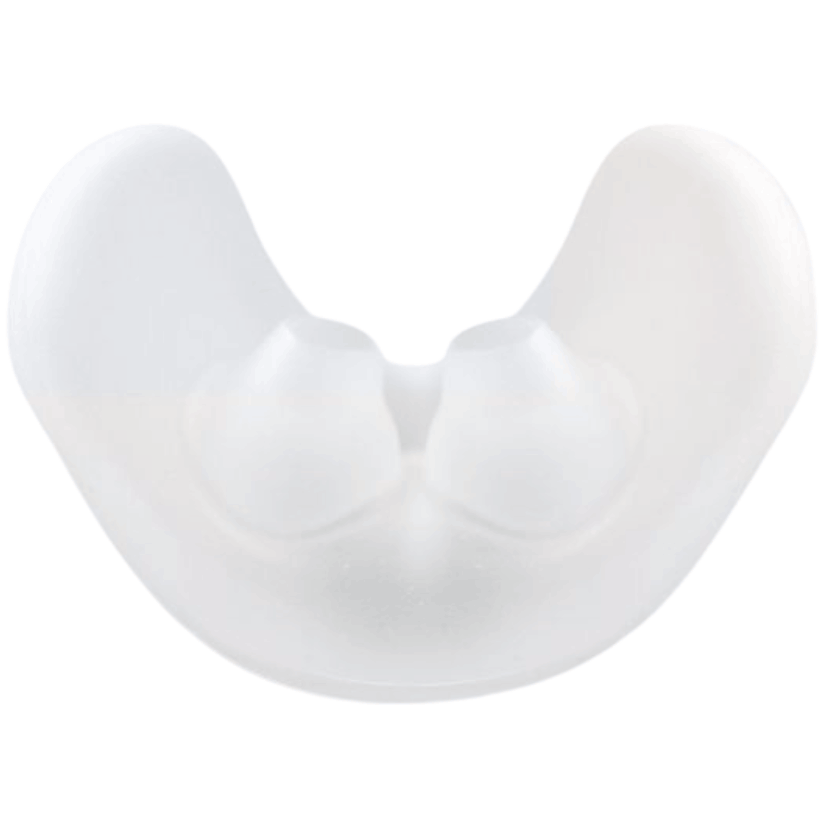

The AirPillow Seal uses CPAP pressure to inflate and create a double seal around the nasal pillows to further reduce leaks
-
The AirPillow Seal is flexible, allowing it to adjust to movements made by the patient throughout the night without compromising the seal
-
The small frame allows the patient to see clearing, wear glasses or watch TV during therapy
-
The light delivery tube is flexible, minimizing pressure and pull on the patient's face
-
The Q Cover ensures quiet treatment with minimal draft
-

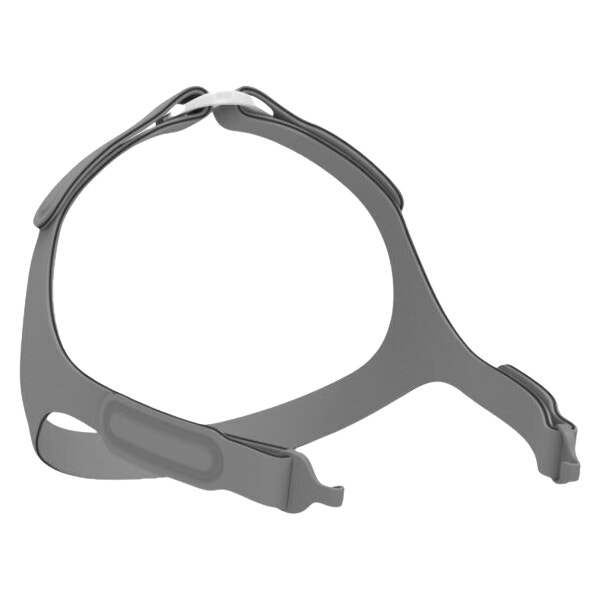

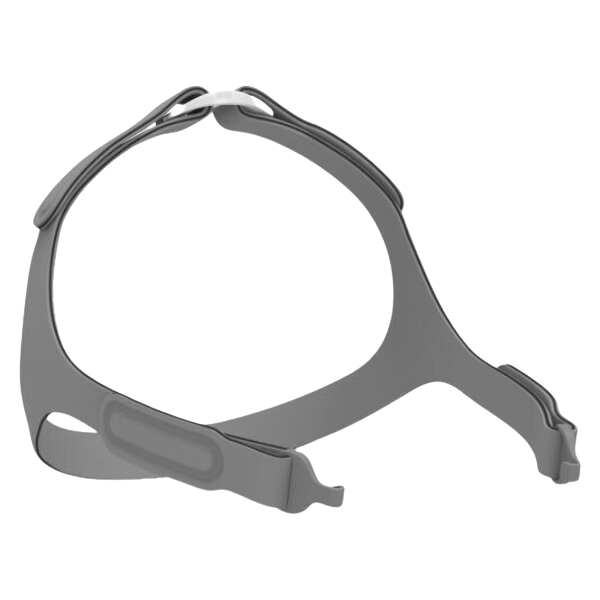

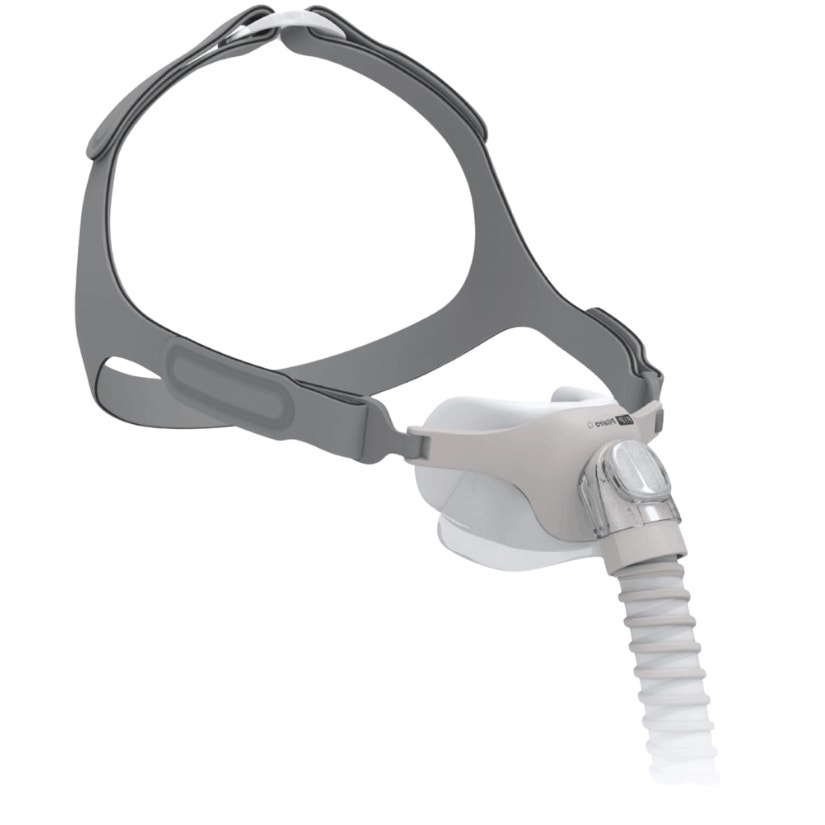

The Pilairo™/Pilairo™ Q Nasal Pillow headgear combines the adjustable and stretchwise headgear.
-

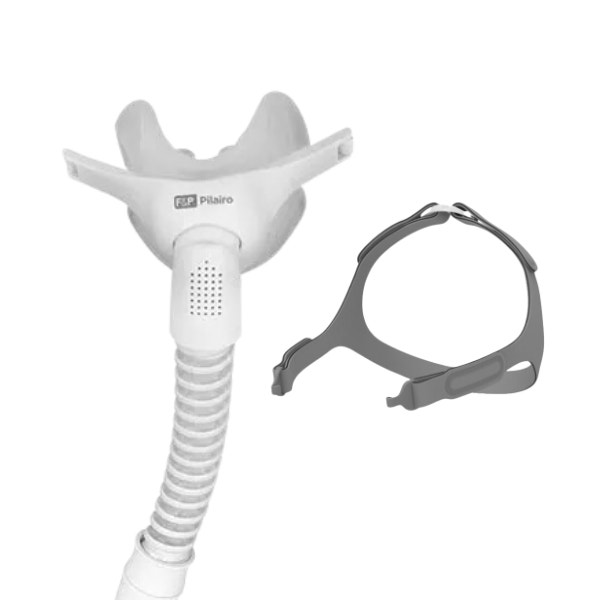

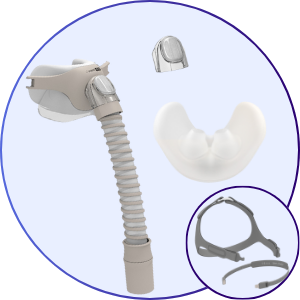

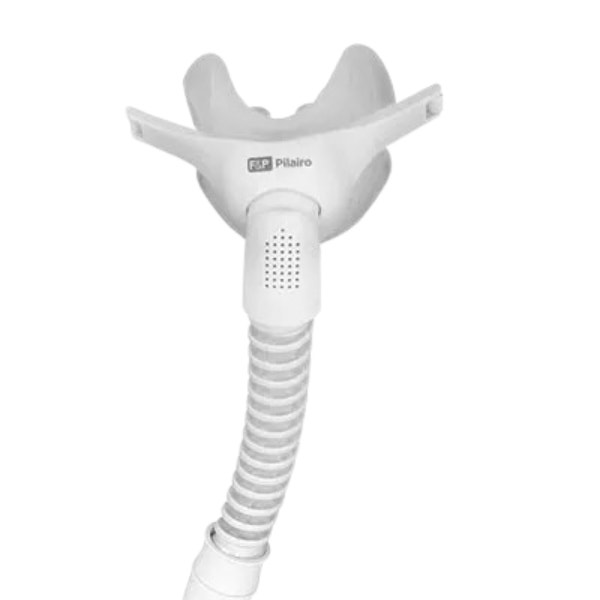

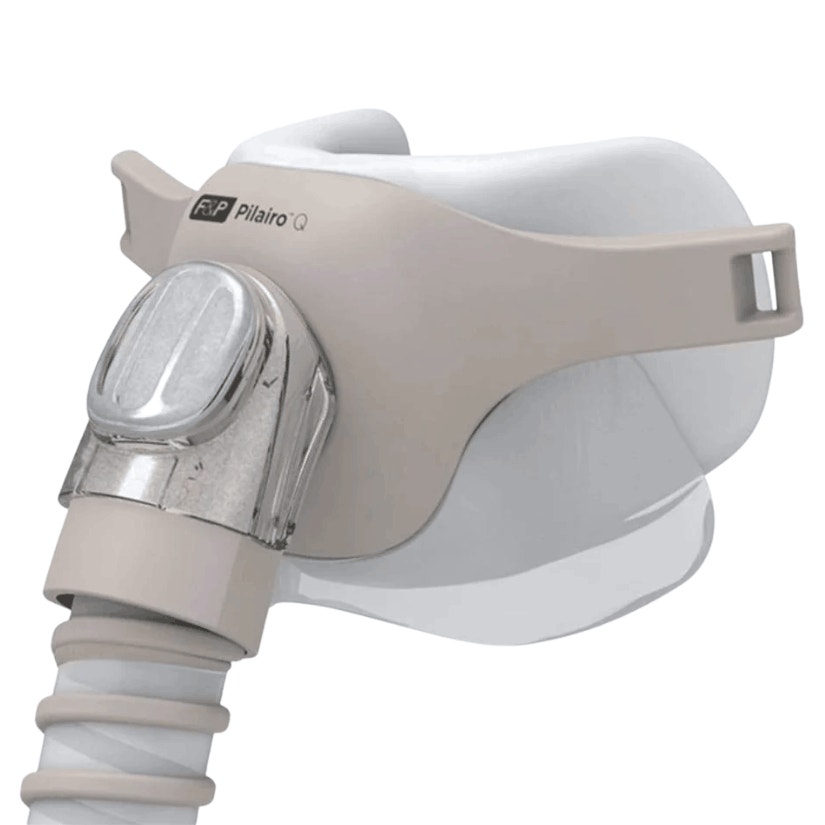

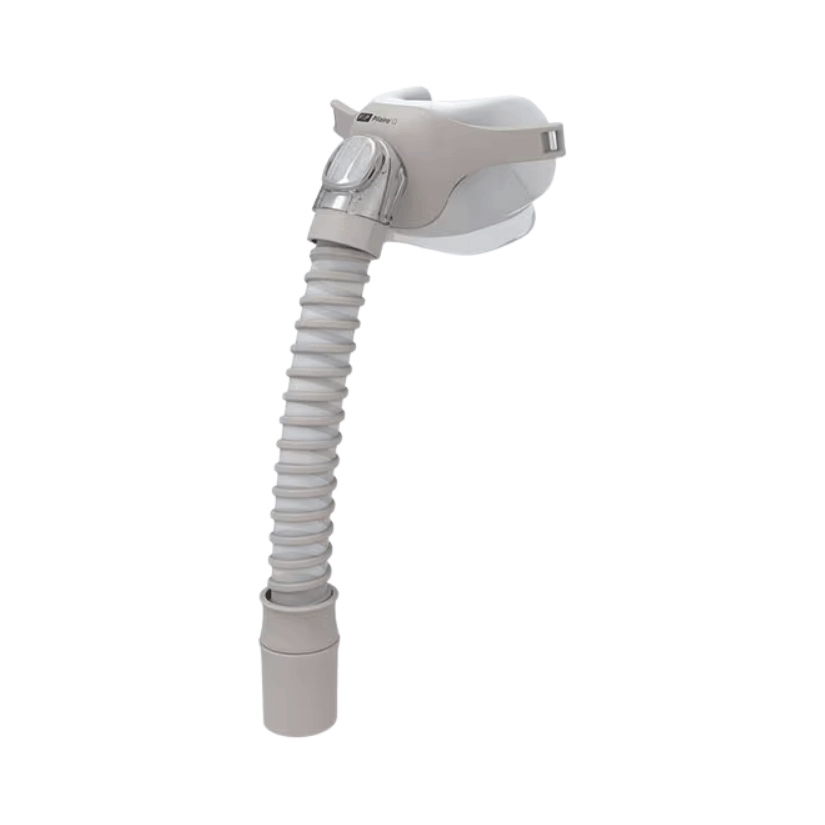

1 — Pilairo™ Q Nasal Pillow CPAP Mask Frame and Cushion (Model # 400HC565)
-
1 — Elbow
-
1 — Short Tube
-
1 — Diffuser

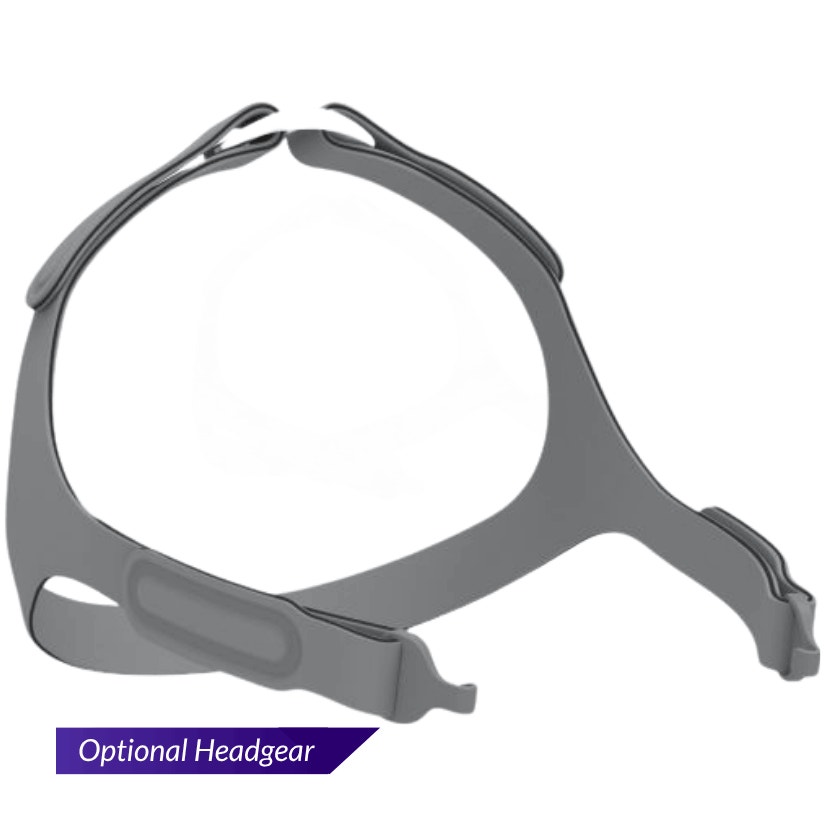

Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — Fisher & Paykel Pilairo™/Pilairo™ Q Nasal Pillow CPAP Mask Headgear (Model # 400HC328)
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
-
Stomach Sleepers
Additional Considerations:
-
Low to Mid Pressure Settings
-
Minimal Contact
-
Glasses Wearers
-
Claustrophobia
-
Facial Hair
-
Full Field of Vision for Readers or TV Watchers
- Tossing and Turning During Sleep

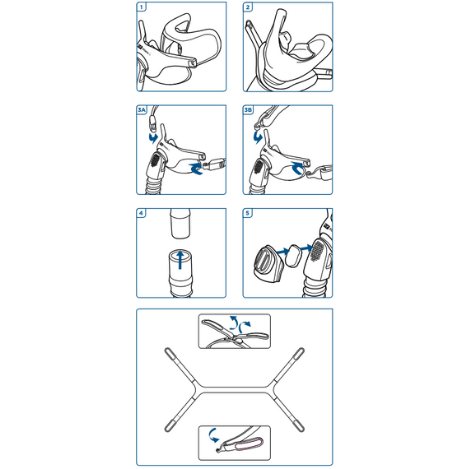

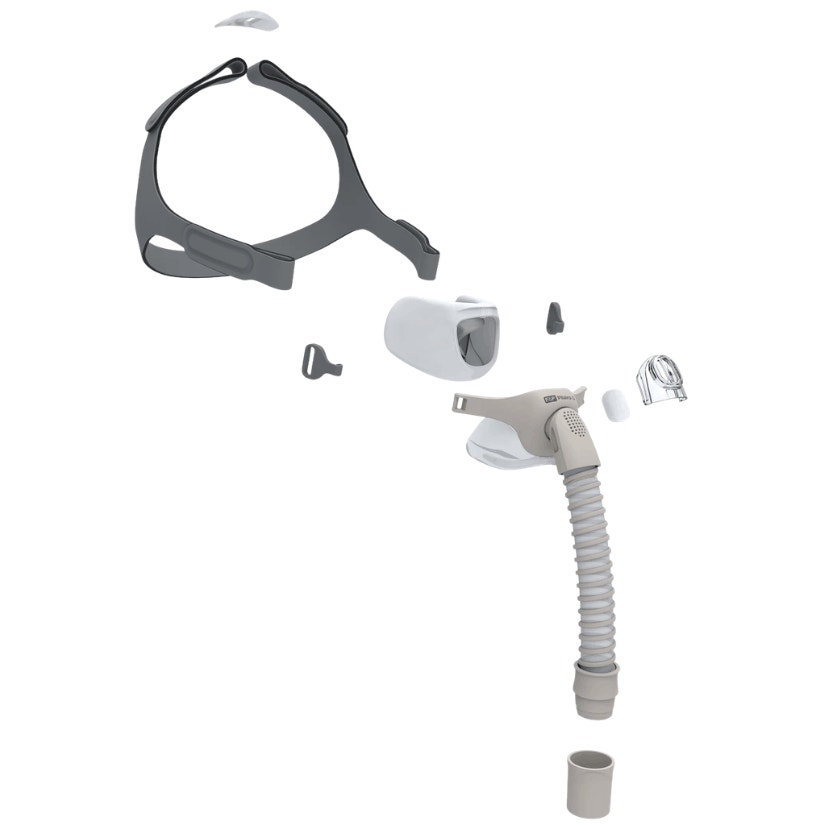

Assembling/Disassembling Your Mask:
Refer to the assembly/disassembly diagrams in these instructions.
- Insert the top edge of the Silicone Seal into the top of the channel in your Mask Frame. Take care to insert the key into the slot in the channel.
- Pull the bottom edge of the Silicone Seal over the edge of the bottom of the channel in your Mask Frame.

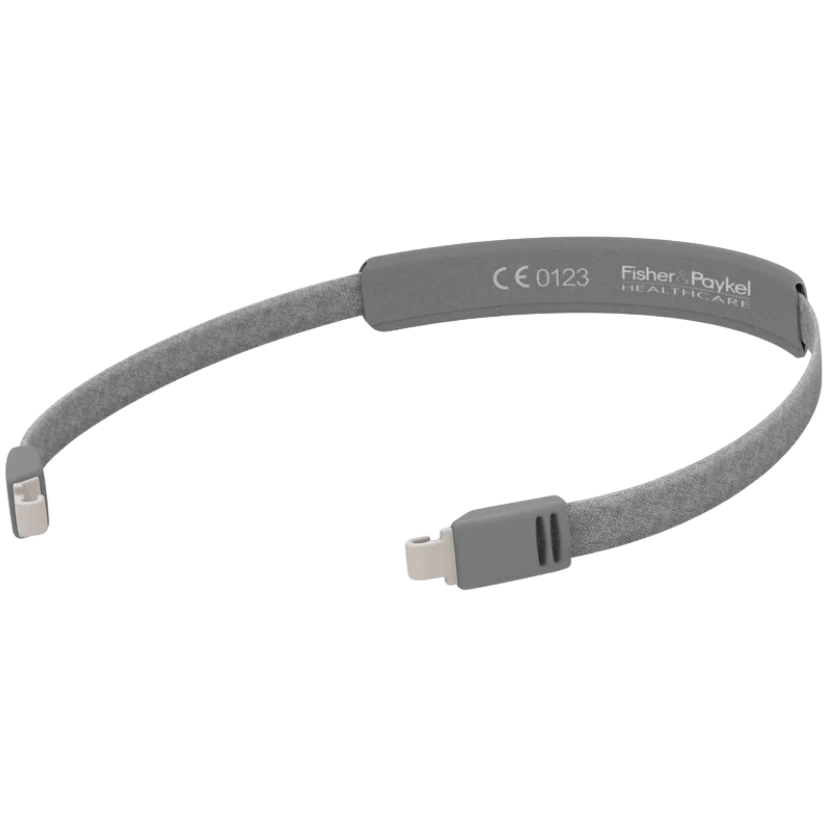

- Stretchwise Headgear: Fasten the Headgear Clips onto each of the posts located at the ends of the base of your Mask Frame.
- Adjustable Headgear: Connect the Adjustable Headgear using the Headgear Hooks onto each of the posts located at the ends of your Mask Frame. Make sure the Buckle is positioned at the top.
- Attach the assembled mask to the CPAP tube. Make sure that the Female Swivel is removed from the CPAP tube when disassembling.

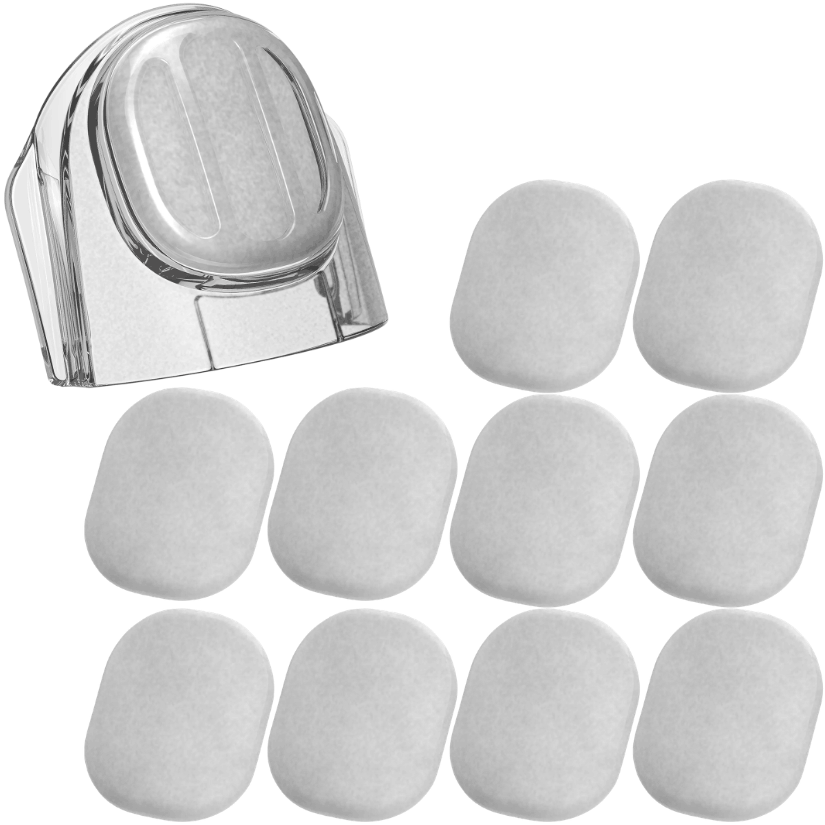

- To assemble the Diffuser System, place the Diffuser in the Diffuser Cover, then attach to the Elbow.
Adjustable Headgear Assembly/Disassembly:
Lay the Adjustable Headgear flat, with the label side facing up.
- Loop the Crown Straps of the Adjustable Headgear through the Buckle.
- Fold the side straps of the Adjustable Headgear back on itself.
- Loop the side straps of the Adjustable Headgear through the Headgear Hooks.

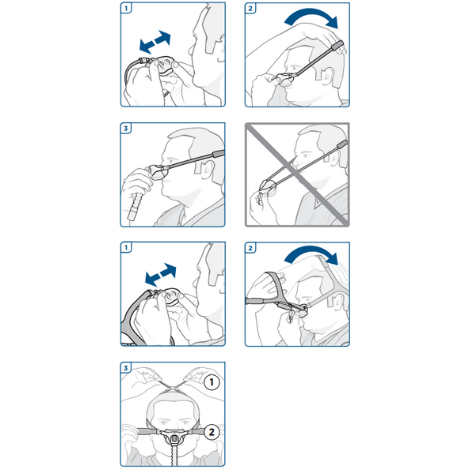

Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images of these instructions.
- Hold the Silicone Seal away from your nose, use your finger to carefully spread open the soft side wings of the Silicone Seal and then guide the two openings into your nostrils.
- Hold your Mask Frame with one hand and position your Adjustable Headgear by pulling the bottom strap down over your head until secure. Ensure the Buckle is positioned at the top.
- Adjust the crown strap so that the crown straps are directly above each ear. Then adjust the side straps so that the headgear sits just above each ear.
| Operating Therapy Pressure Range |
| 4 to 25 cmH²O |

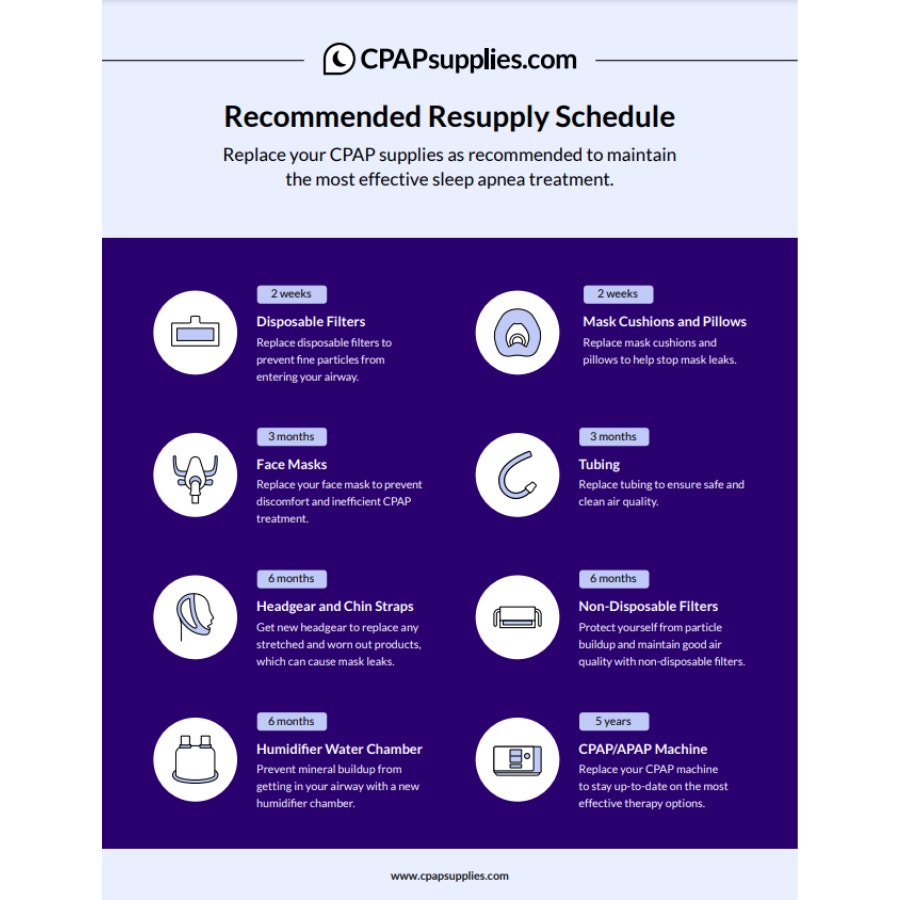

CPAPsupplies.com: CPAP Supplies Replacement Schedule
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months

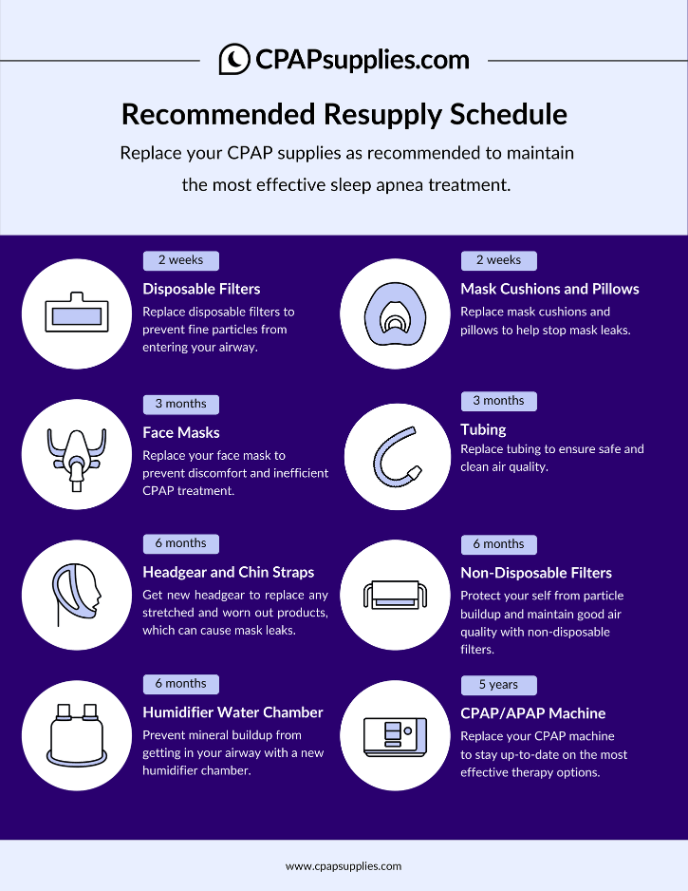

CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal pillows, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Pillows |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Fisher & Paykel |
|---|---|
| SKU | pb_400421 |
| Model | pb_400421 |
| UPC | 09420012425065 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 400HC565, 400HC328 |
