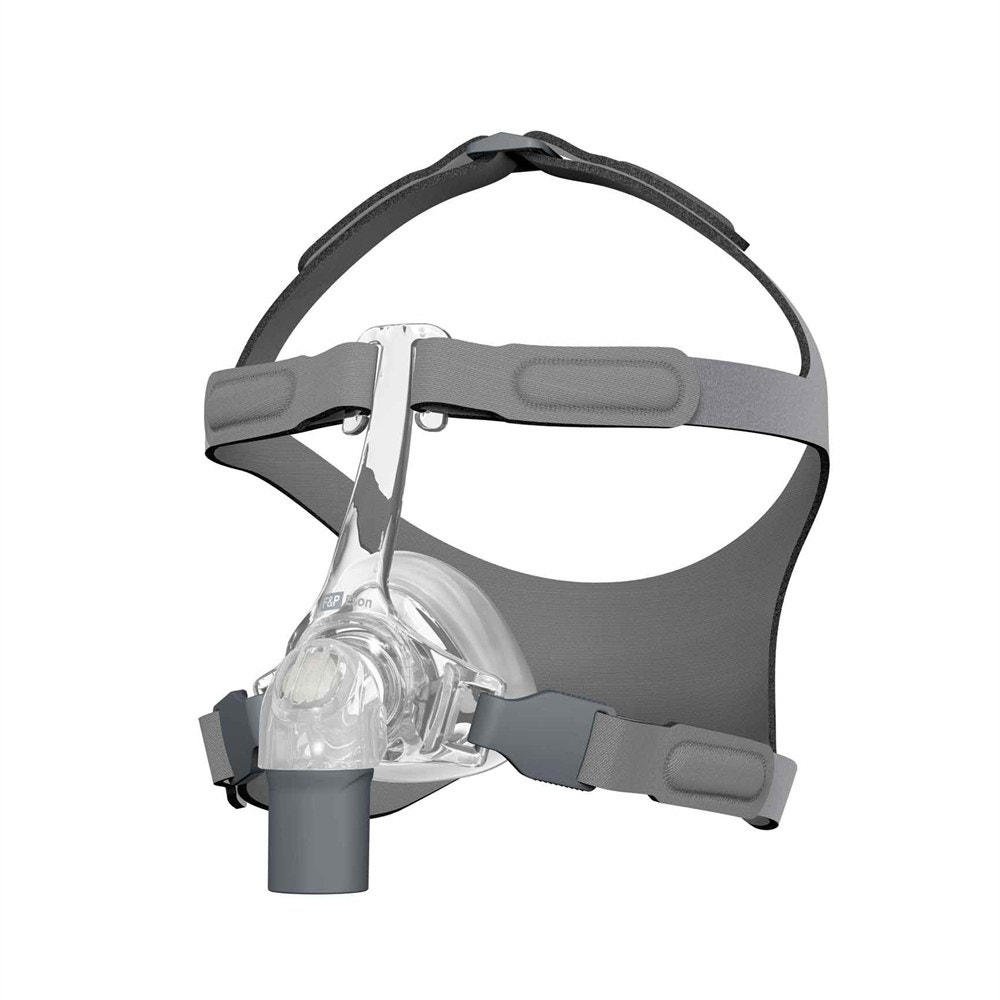

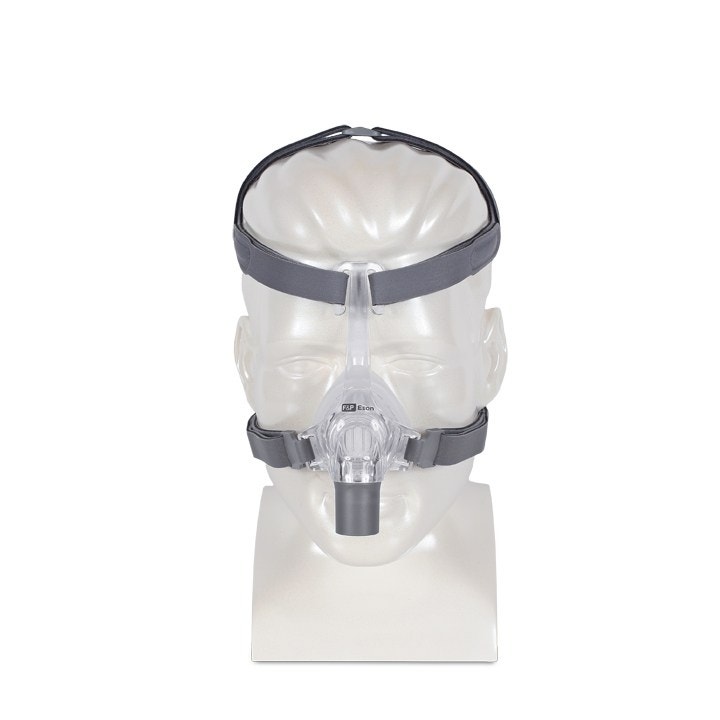

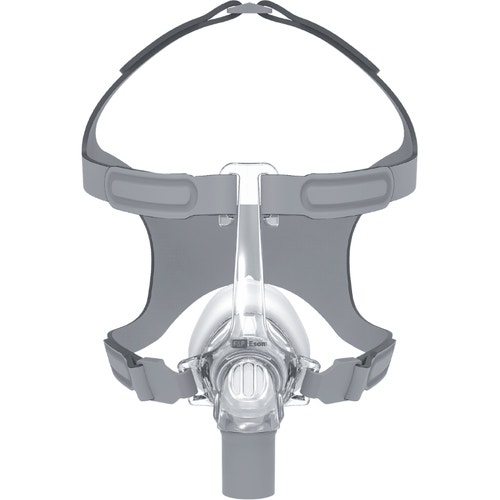

Fisher & Paykel Eson™ Nasal CPAP Mask
$58.00

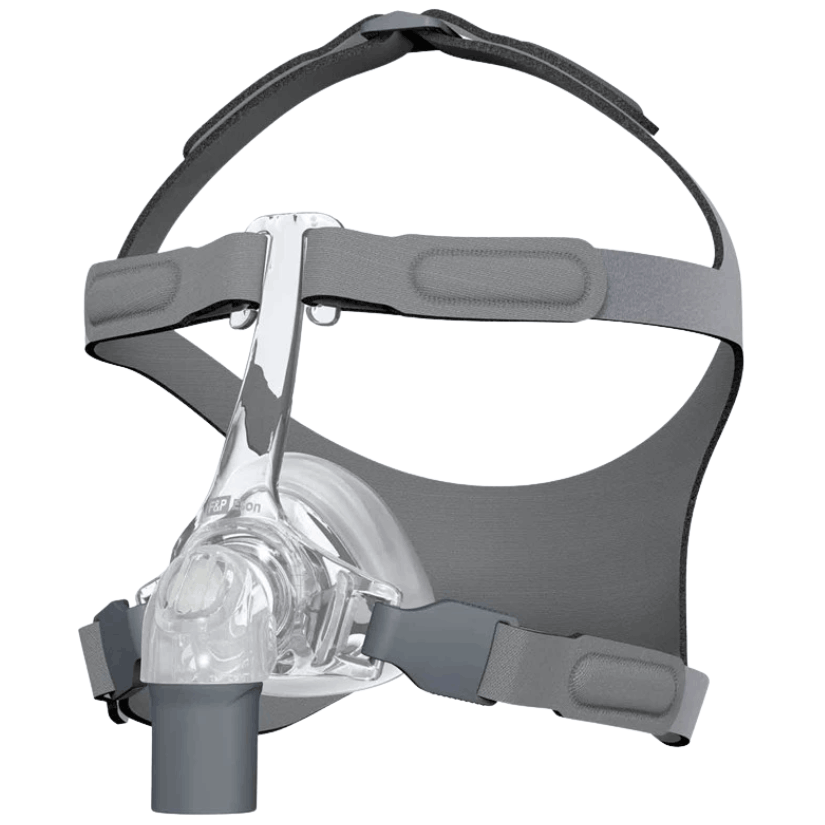

The minimalist F&P Eson™ Nasal Mask has unique RollFit™ Nasal Cushions that roll and flex during sleep to reduce pressure and improve seal. Its low-profile frame is durable and lightweight, providing a clear line of sight, and the ErgoFit™ Headgear fits naturally to improve comfort for active sleepers.
Fisher & Paykel Eson™ Nasal CPAP Mask Overview

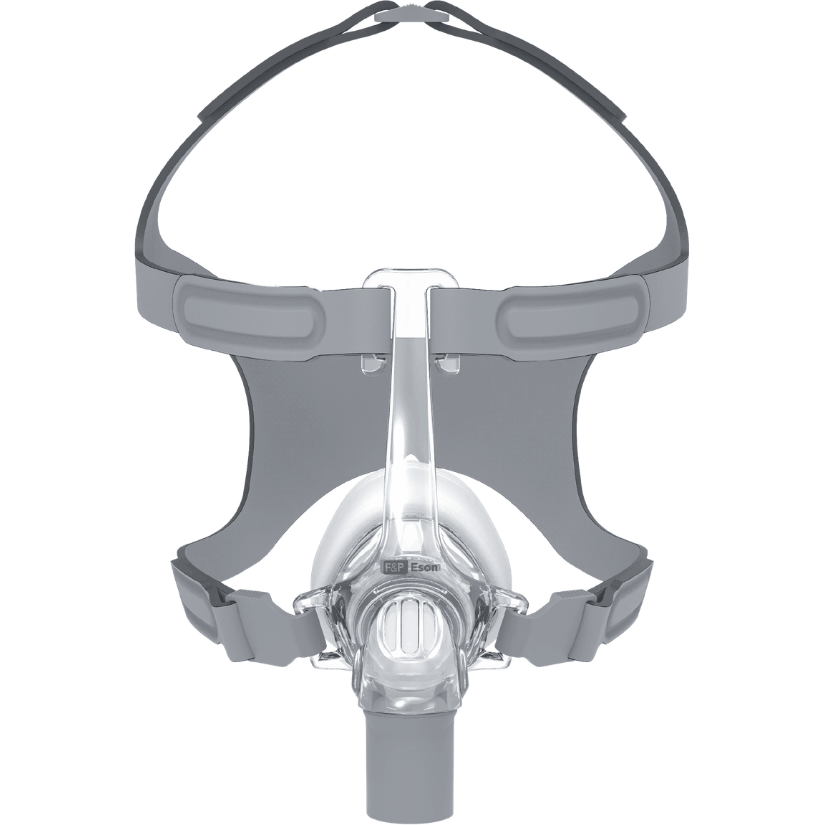

The Fisher & Paykel Eson™ Nasal Mask is designed to perform in tune with the patients' needs. Eson™'s three key components, the RollFit™ Seal, ErgoFit™ Headgear, and EasyFrame have been designed to deliver the comfort, seal, and easy use that Fisher & Paykel masks are known for.
Please note: Headgear is available as an option but not included automatically. It is also not required. However, if you'd like your order to include headgear, please select your preferred option above.
-

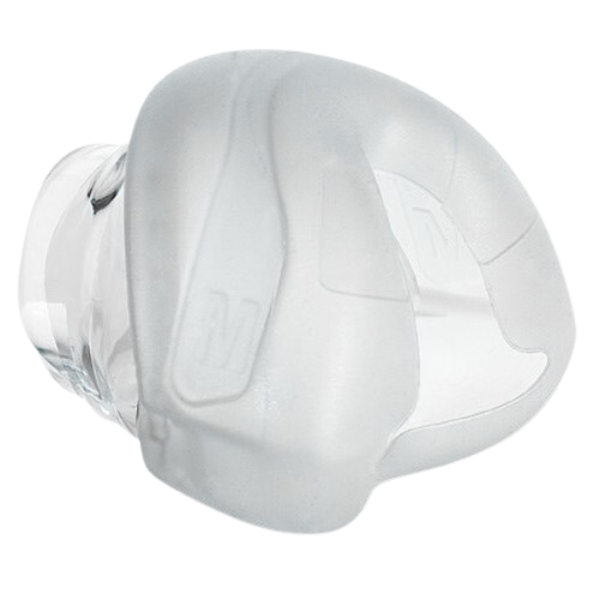

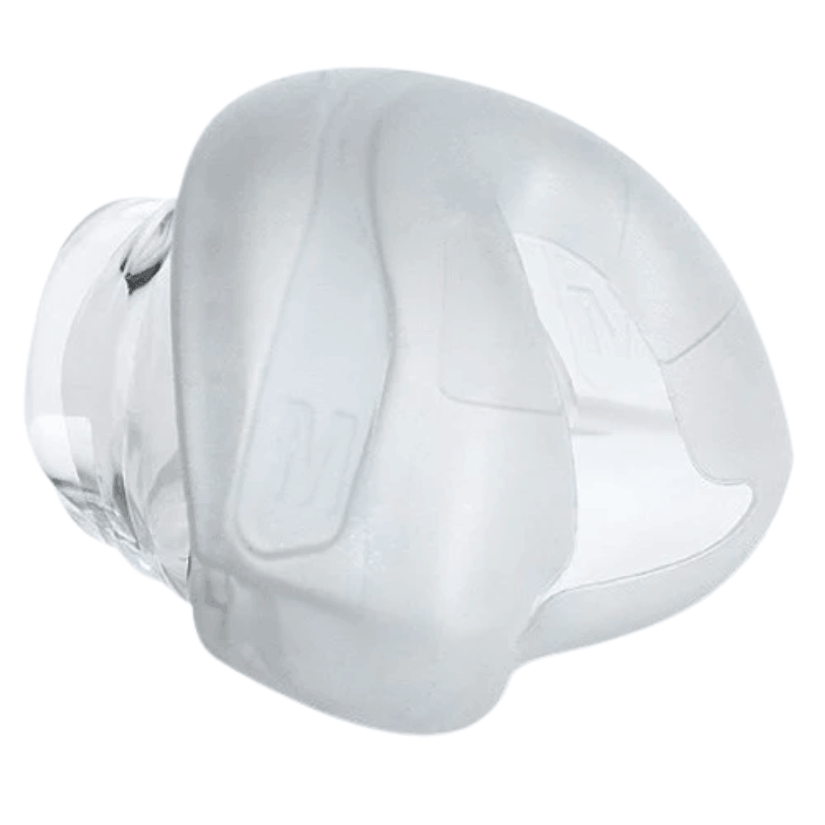

RollFit™ Seal: Auto-adjusting fit that optimizes an effective and comfortable seal. The one-piece seal ‘rolls’ back and forth on the bridge of the nose to minimize nose bridge pressure.
-

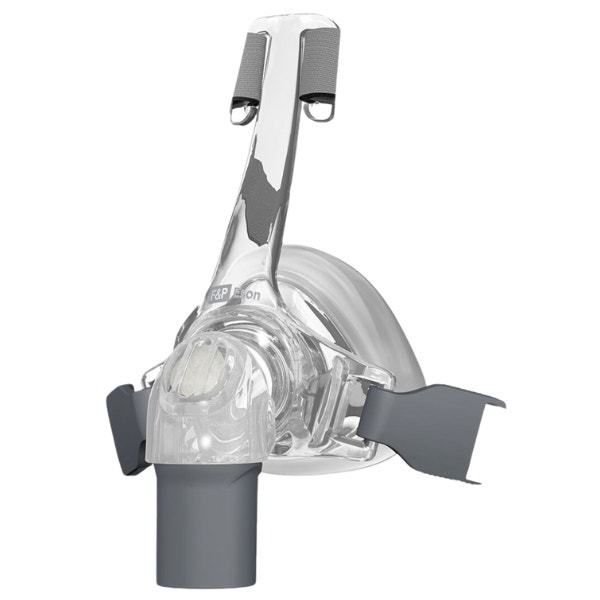

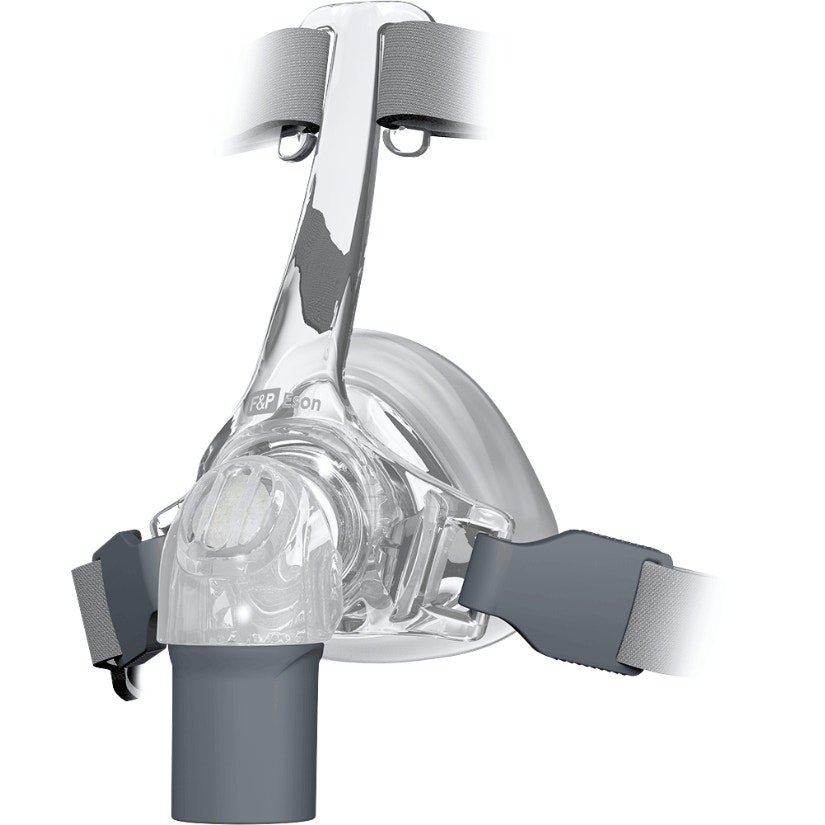

EasyFrame: This low-profile frame is stable, durable, small and ensures a clear line of sight. The Easy Frame comes with a Q-Cover for super-quiet use and minimal partner draft.
-

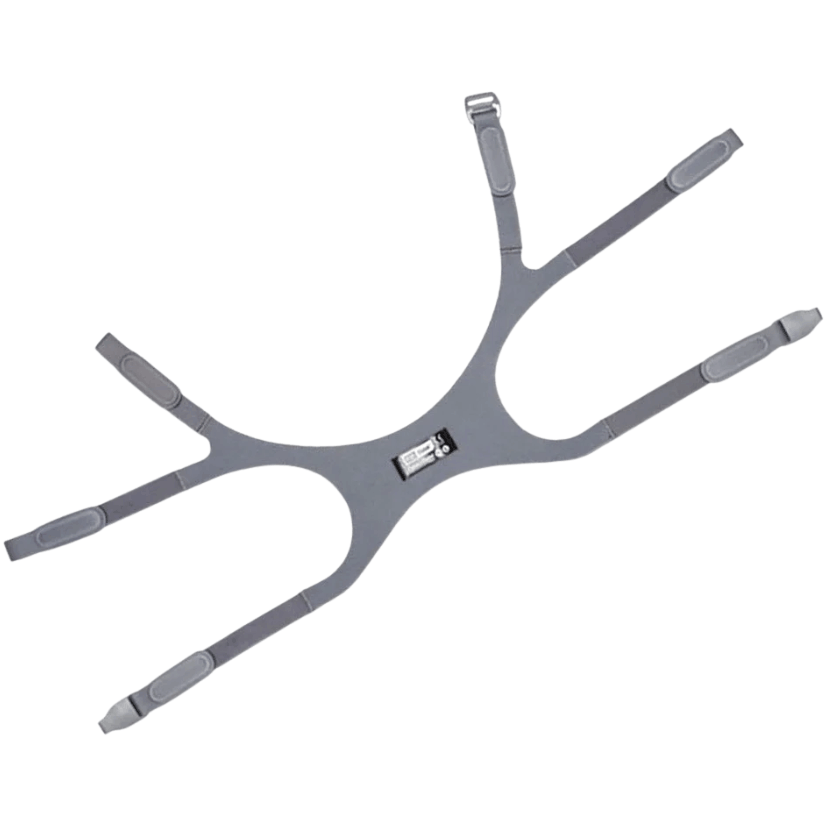

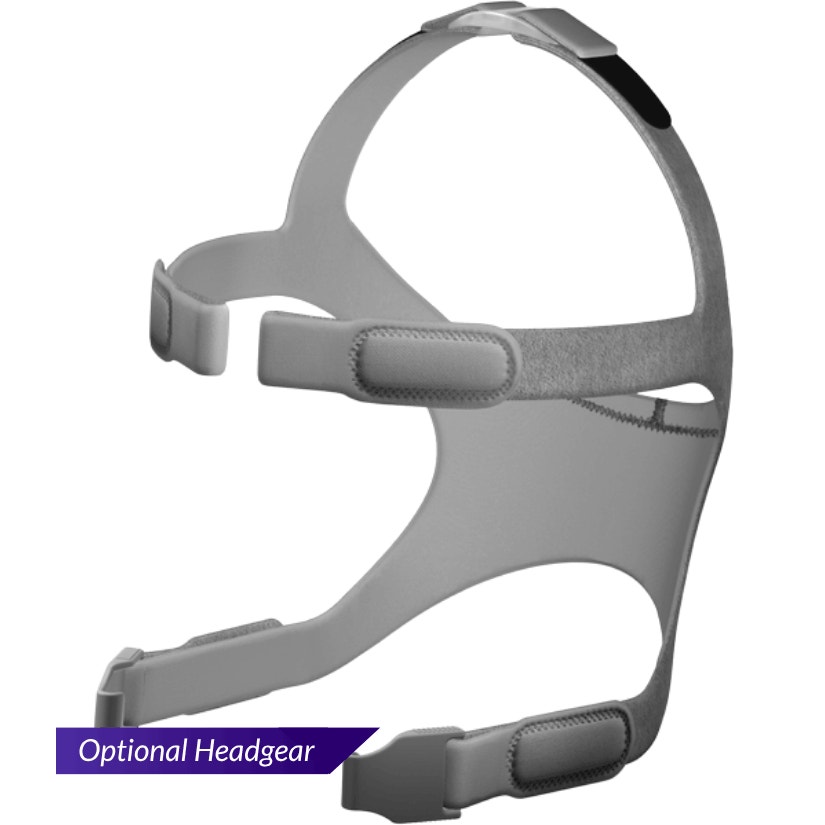

ErgoFit™ Headgear: This breathable headgear self-locates high on the rear of the head allowing for maximum head movement (side-to-side, up, and down) without mask dislodgement.
-

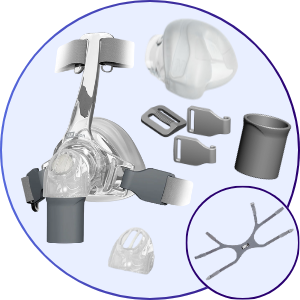

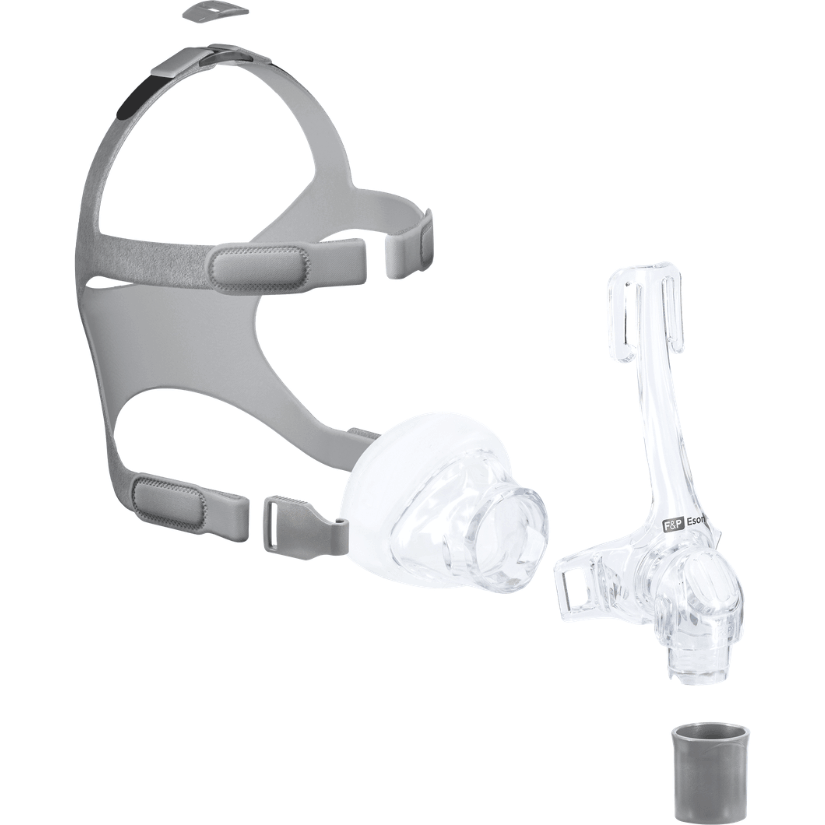

1 — Eson™ Mask Frame and Cushion (of selected size option)
-
1 — Elbow & Swivel
-
1 — Diffuser & Vent Cover
Please note: Headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 — Headgear
-
2 — Headgear Clips
-
1 — Headgear Buckle
Mask Frame Size Options:
-
Small - Eson™ Mask System - without Headgear - 400HC571
-
Medium - Eson™ Mask System - without Headgear - 400HC572
-
Large - Eson™ Mask System - without Headgear - 400HC573

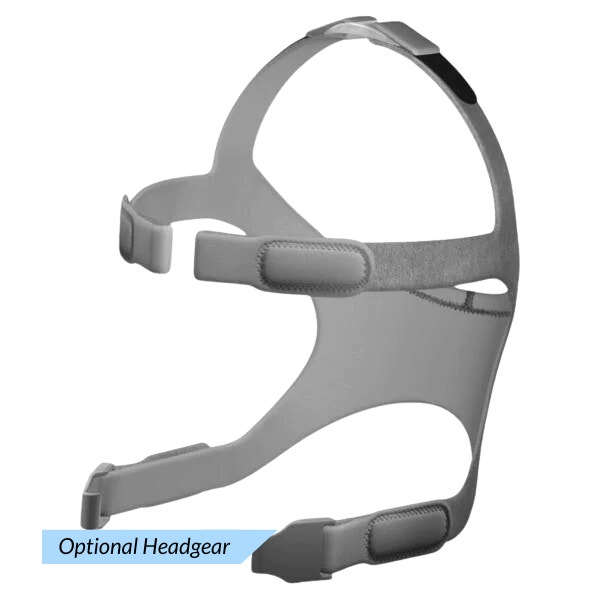

Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
-
Small - Eson™ Headgear - 400HC567
-
Medium/Large - Eson™ Headgear - 400HC568
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep

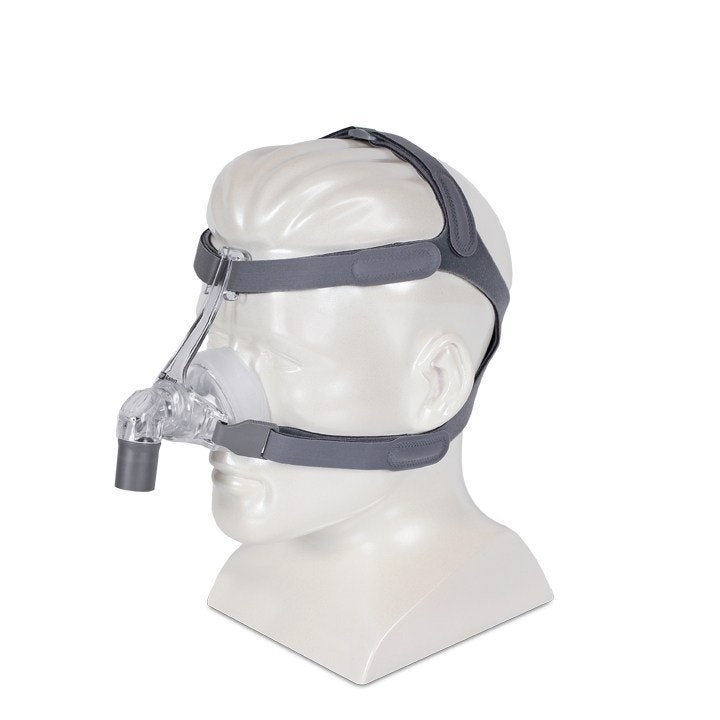

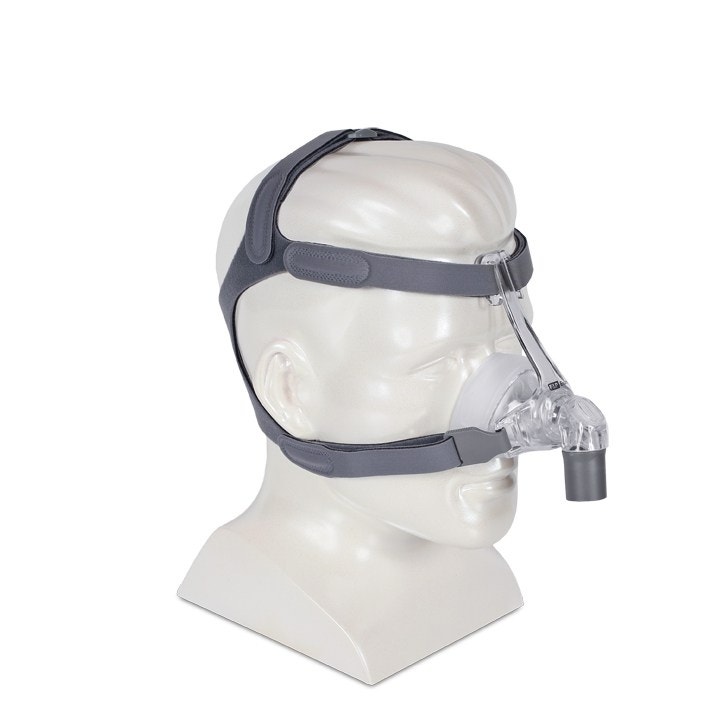

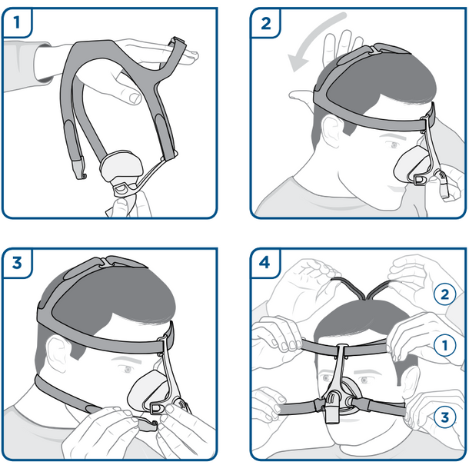

Fitting Your Mask:
Refer to the fitting images of these instructions.
- Remove all packaging before using the mask.
- Remove the plastic cover from the Silicone Seal.
- Hold the Frame with one hand and the Headgear in the other, One of the Headgear Clips should be hooked onto the Frame.
- Place the Seal on the nose and guide the Headgear over your head.
- Hook the unattached Headgear Clip onto the Frame.
- Gently tighten the Headgear Straps in order.
Fitting Tips
- Do not over-tighten any of the Headgear Straps.
- Forehead Straps should rest horizontally on the forehead, just above the ears.

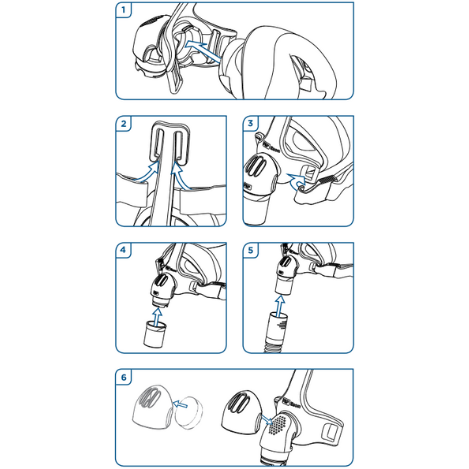

Assembling and Disassembling Your Mask:
Refer to the assembly and disassembly diagrams in these instructions.
-
Push the Silicone Seal onto the Mask Frame in the orientation shown until a confirmation click is heard.
-
Slide the Forehead Loops of the Headgear into the slots of the Mask Frame. This can be done without undoing the VELCRO brand tabs.
-
Hook the Headgear Clips onto Mask Frame.
-
Push the Swivel onto the Elbow.
-
Attach the assembled mask to the CPAP tube. Ensure that the Swivel is removed from the CPAP tube when disassembling.
-
To assemble the Diffuser System, place the Diffuser in Cover, then attach to the Elbow.
| Operating Therapy Pressure Range |
| 4 to 25 cmH²O |

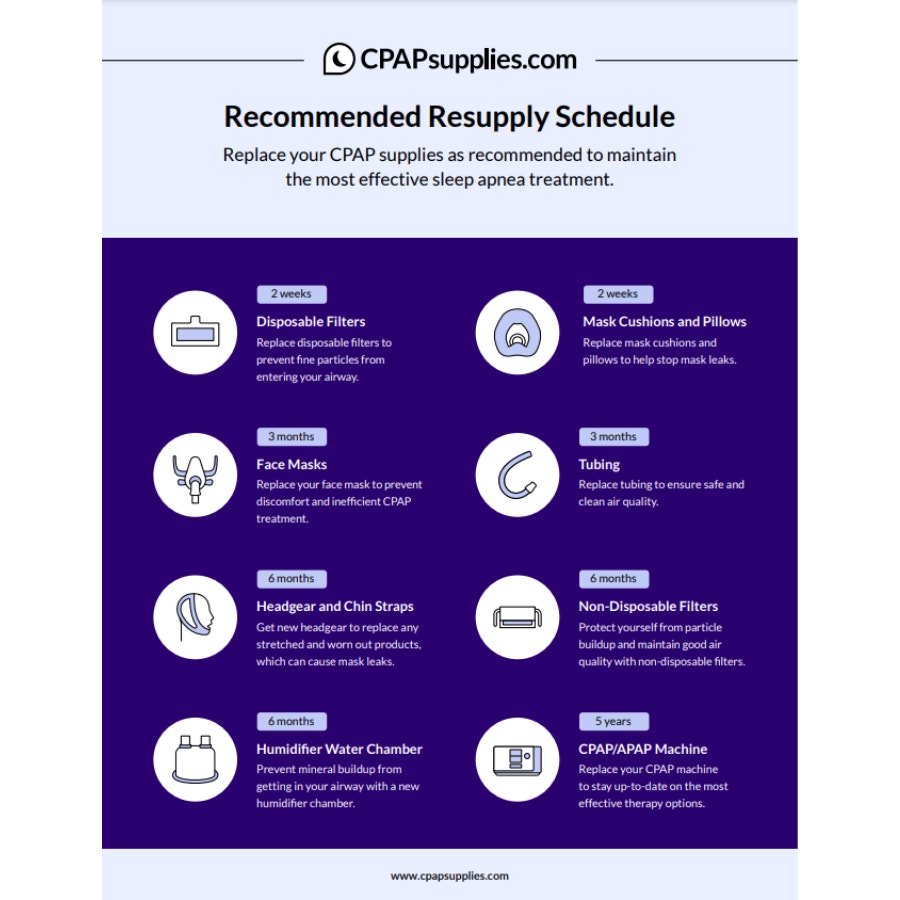

CPAPsupplies.com: CPAP Supplies Replacement Schedule
Eson™: Introduction
Eson™: Fitting Guide
Eson™: Cleaning & Assembly Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months

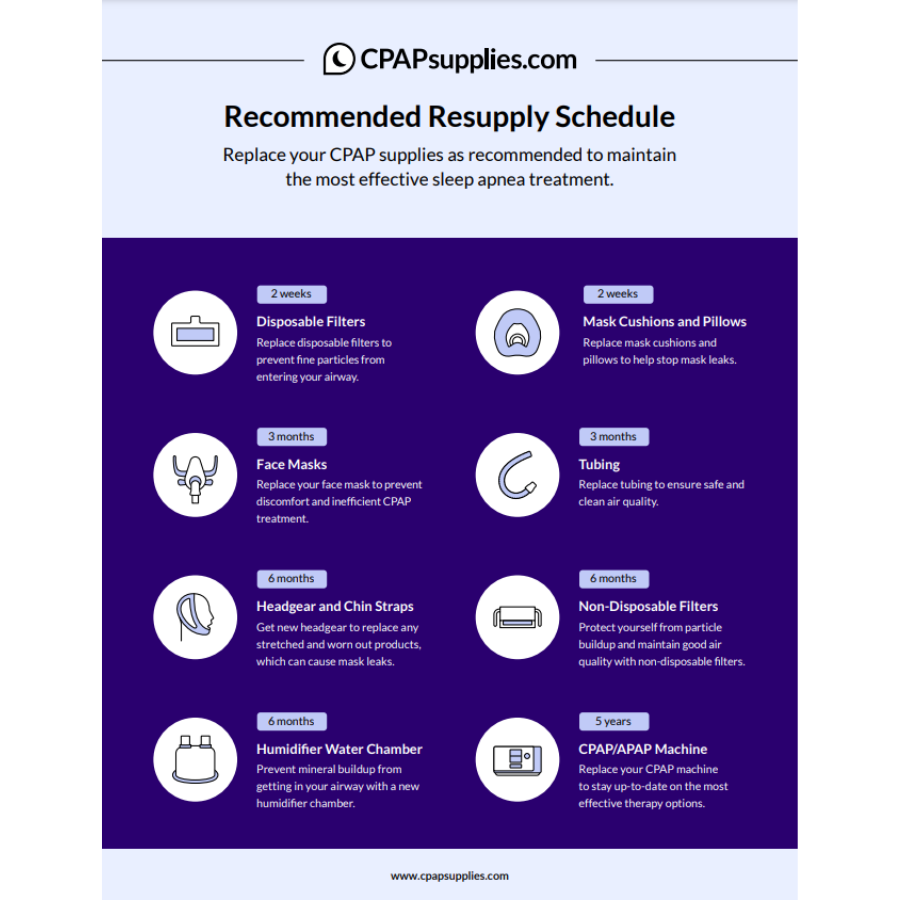

CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Fisher & Paykel |
|---|---|
| SKU | pb_Eson-NM |
| Model | pb_Eson-NM |
| UPC | 680034170087, 680034170063, 680034170070, 9420012425898, 9420012425959, 9420012425966, 9420012425997, 9420012426000, 9420012426017 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Mask: 2.5" (L) x 1" (W) x 4.5" (H); Mask Elbow: 5/8" (Inner Diameter) x 1.5" (H); Mask Swivel: 3/4" (Inner Diameter) x 1" (H); Headgear (not included unless added to purchase): 6" (L) × 4" (W) × 4" (H) |
| Included | 400HC571, 400HC572, 400HC573, 400HC567, 400HC568 |
