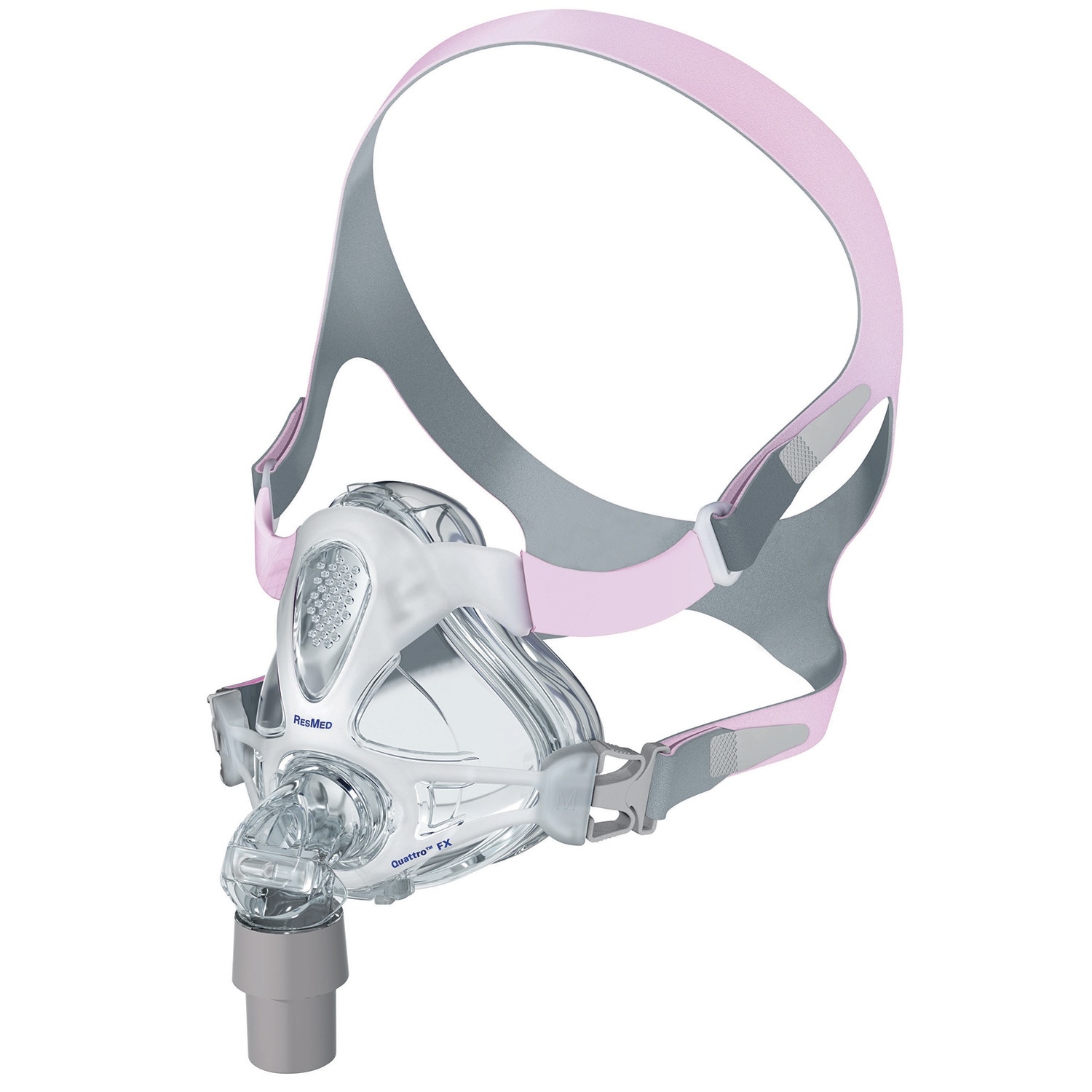

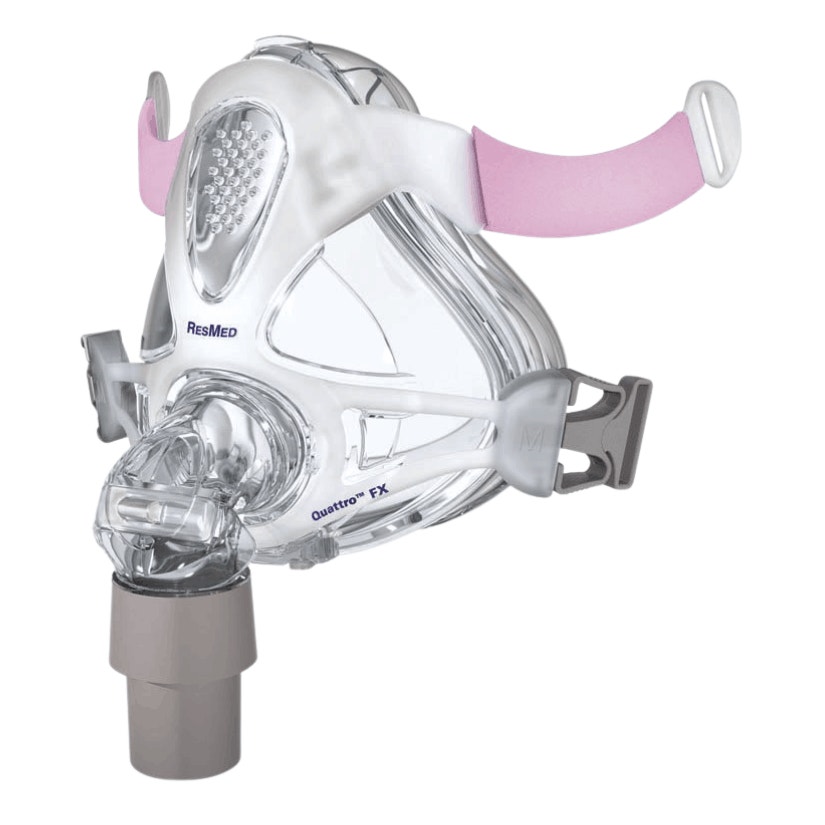

ResMed Quattro™ FX For Her Full Face CPAP Mask
$94.00

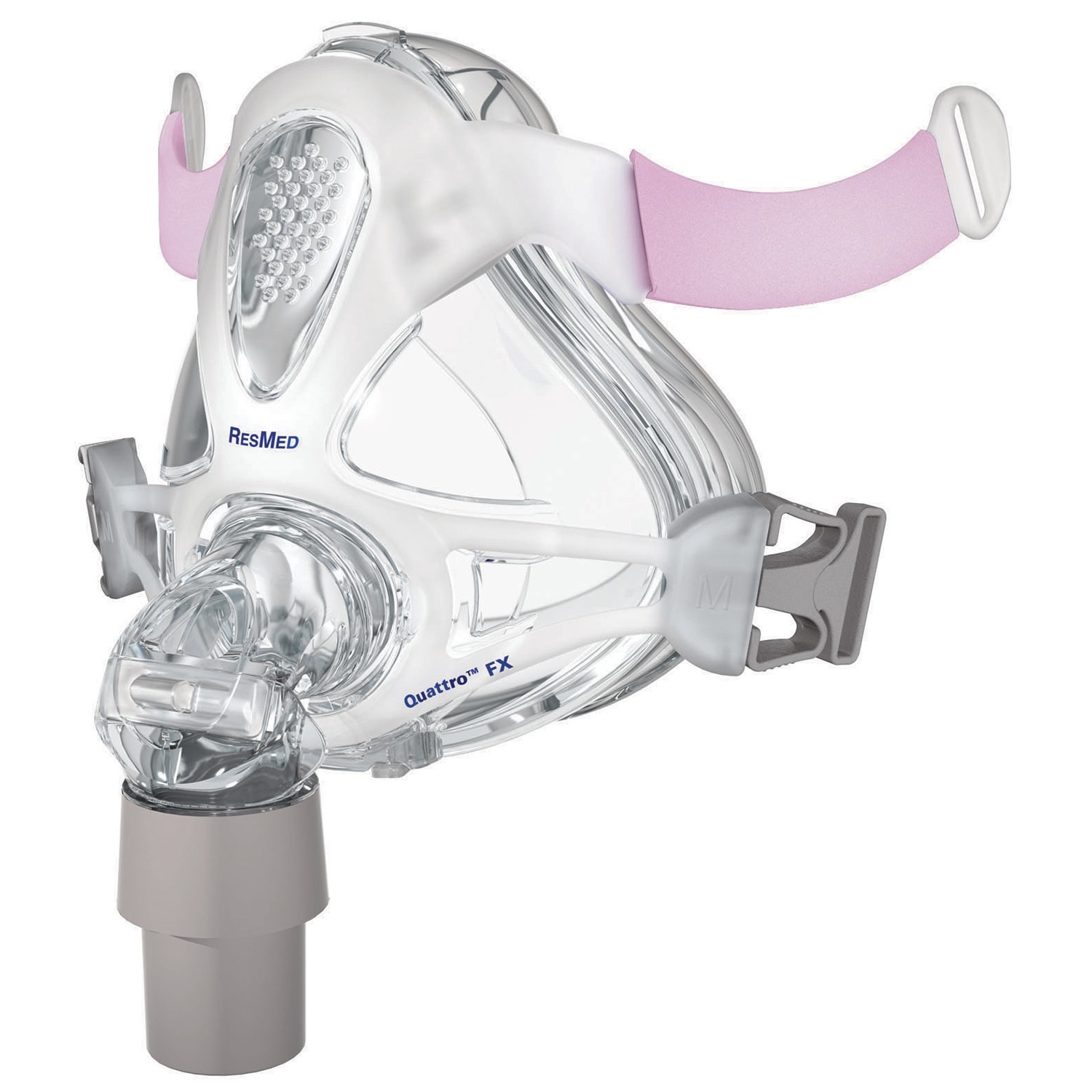

The ResMed Quattro™ FX for Her full face mask provides a clear field of vision and is designed specifically for women. Featuring ResMed's SpringFit™ mask frame technology, the Quattro™ FX eliminates the need for forehead support, providing stability without the extra facial pressure.
ResMed Quattro™ FX For Her Full Face CPAP Mask Overview

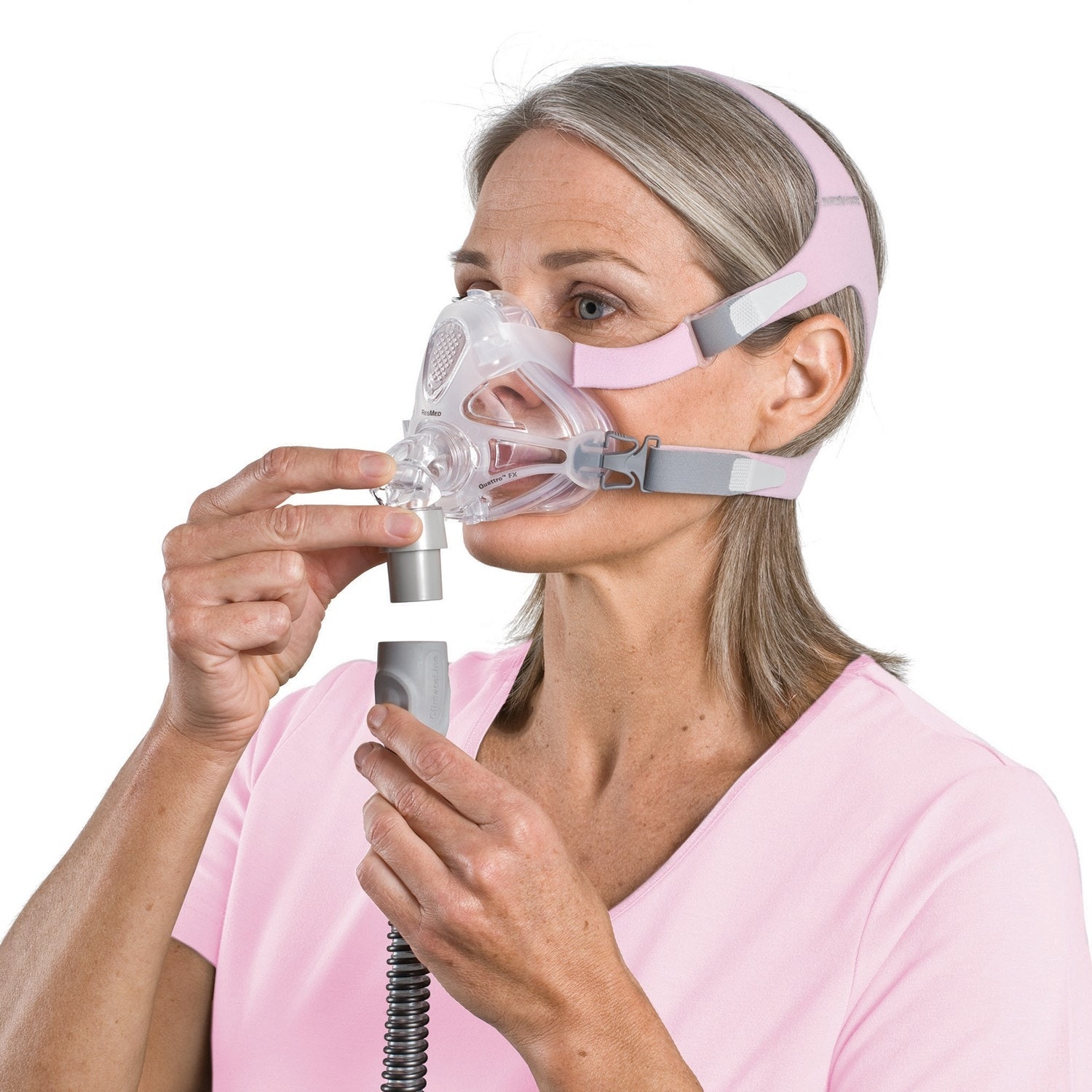

The Quattro™ FX for Her full face mask has headgear designed specifically for women. It allows women to wear their hair up or down and eliminates the need for forehead support. The headgear also avoids sensitive areas around the back of the neck. The mask provides the coverage and stability of a traditional full face mask but with a clear field of vision for reading, watching TV or wearing glasses. The rotating elbow adjusts for movement to ensure a constant mask seal.
Please note: headgear is not included in your order unless selected above.
-
Unique headgear and frame design provide an unobstructed view
-
Compact lightweight and quiet
-
Soft Spring Air™ cushion distributes pressure evenly and maintains seal during movement
-
Built-in vents gently direct air out and away from the user and their partner for a less noisy night of sleep.
-
Without forehead support, this mask decreases contact with the skin
-

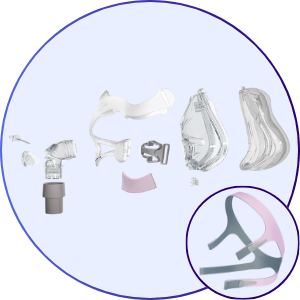

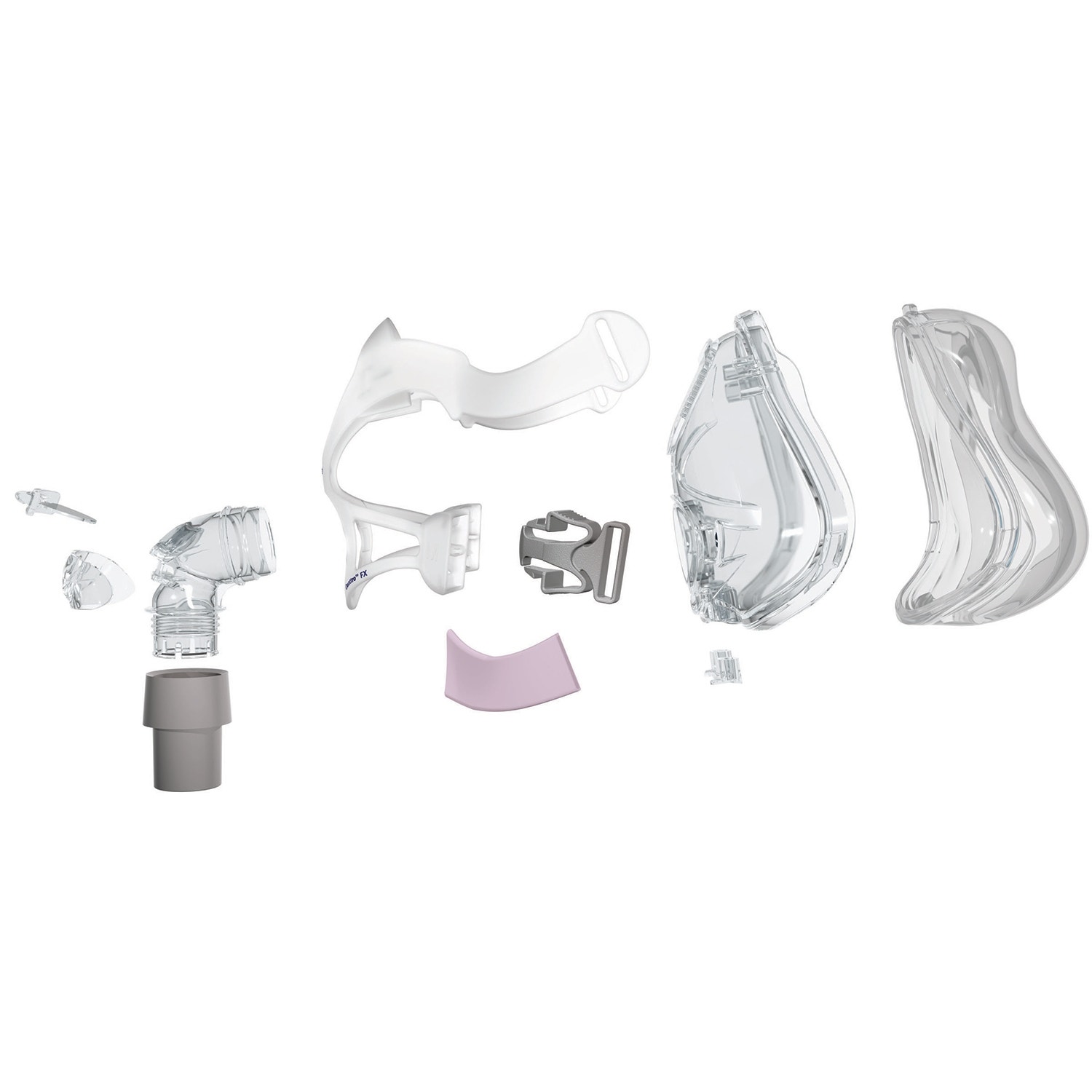

1 - Quattro™ FX Spring Frame and Mask Frame
-

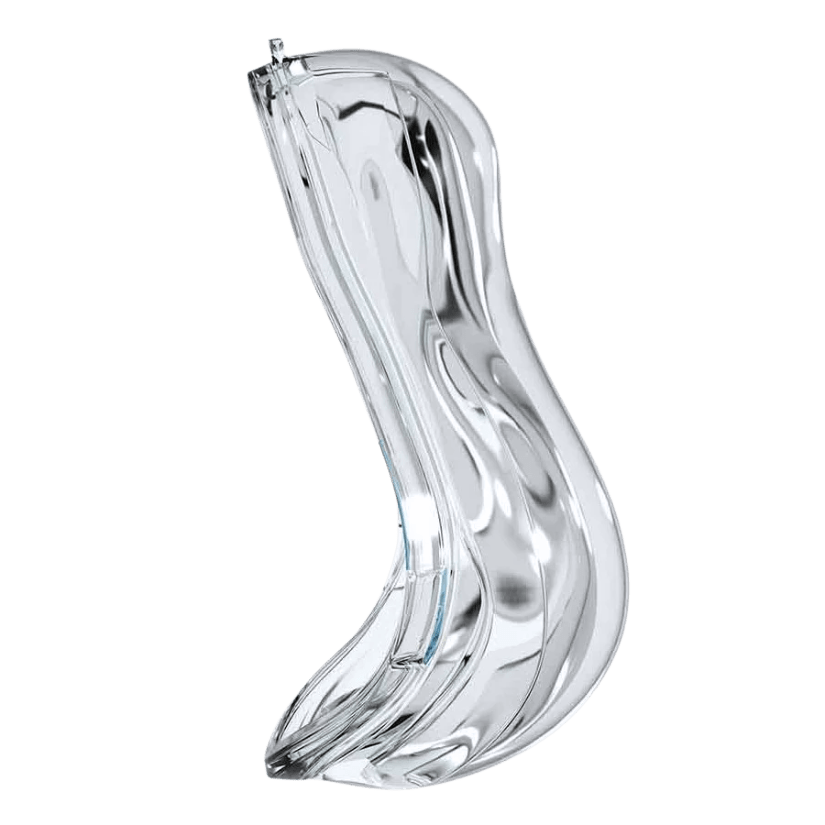

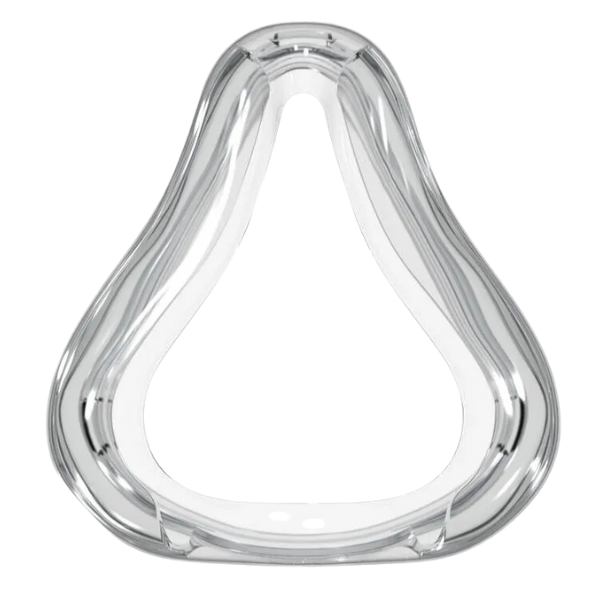

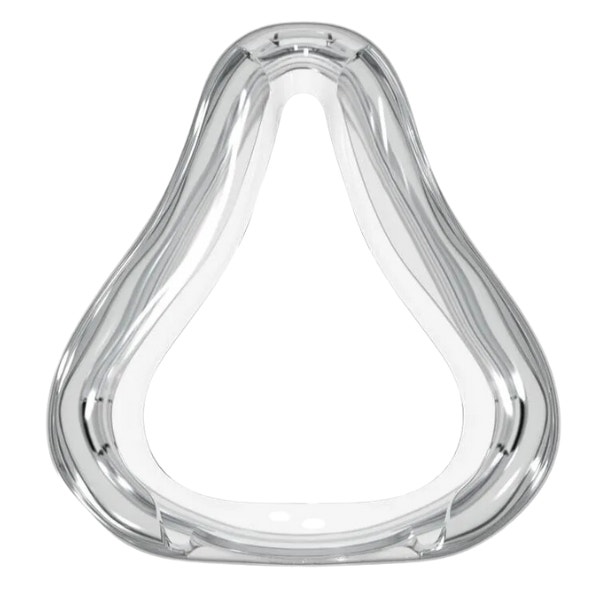

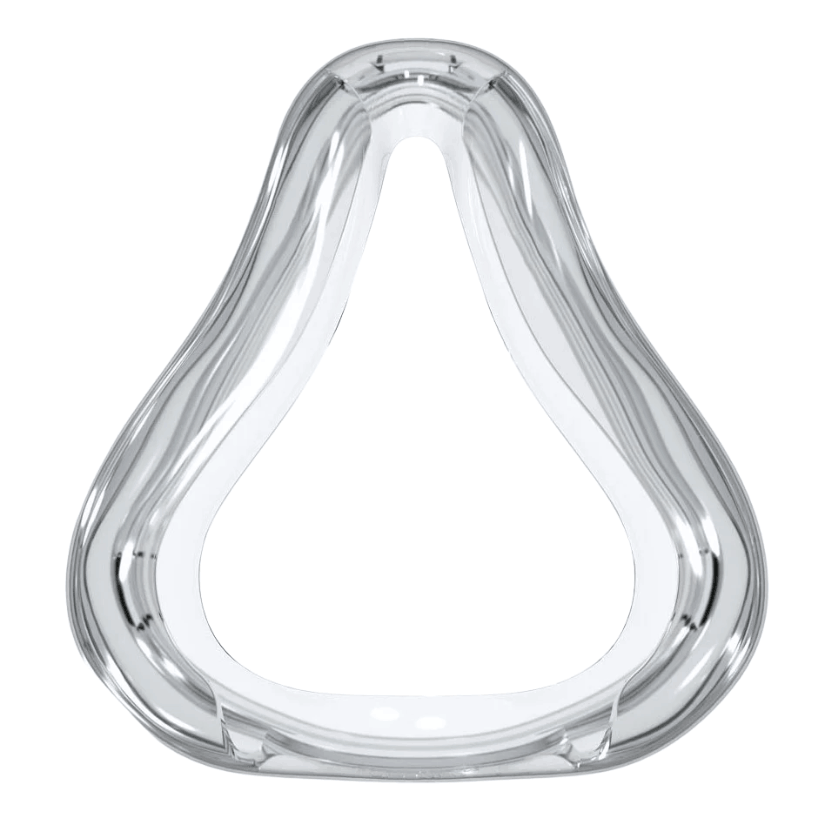

1 - Quattro™ FX Mask Cushion
-
1 - Swivel
-
1 - Elbow
-
1 - Valve & Valve Clip
-
1 - Ports Cap
-
1 - Spring Frame Support

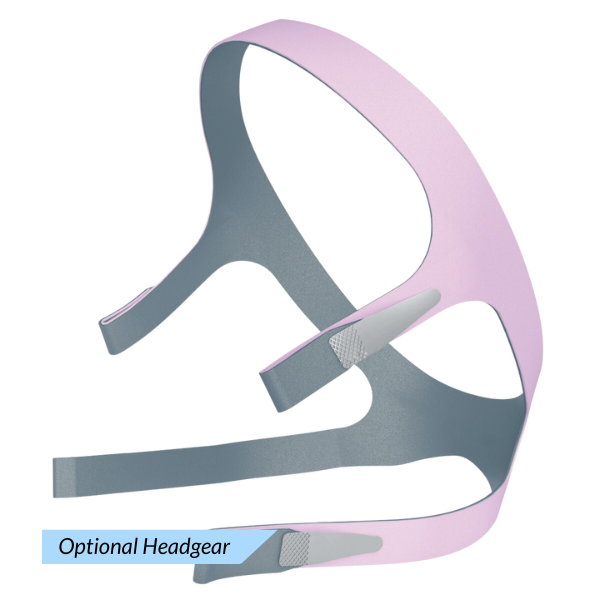

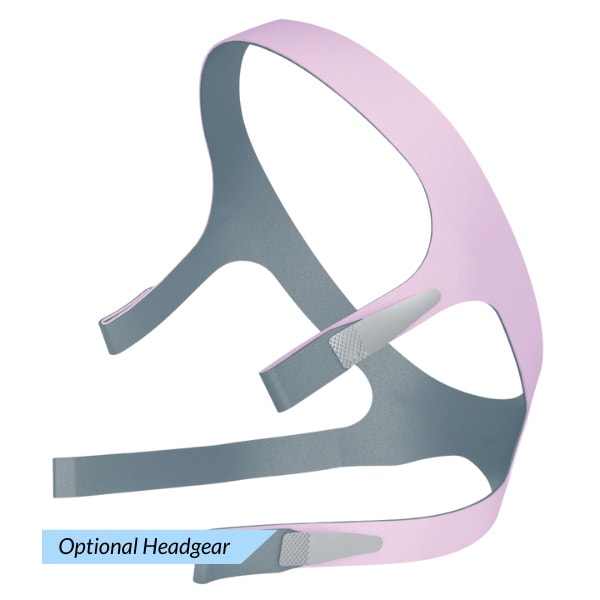

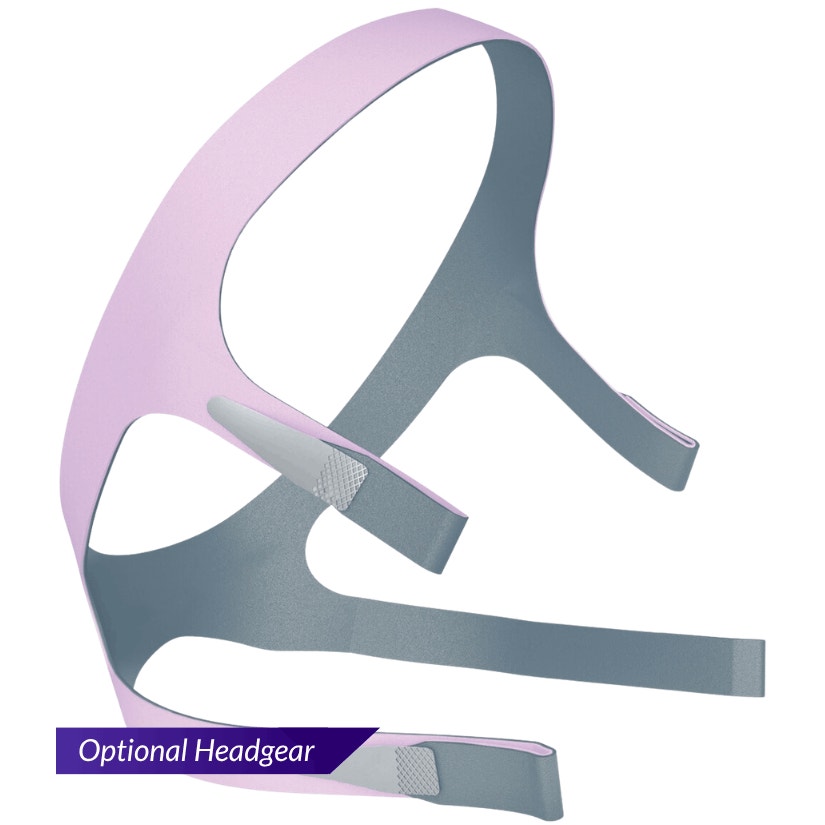

Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-
1 - Quattro™ FX for Her Headgear
-
2 - Headgear Clips
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion

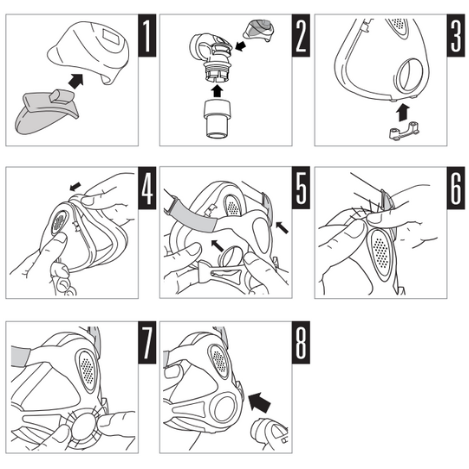

Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Insert the valve into the clip.
- Push the valve clip onto the elbow and insert the swivel into the end of the elbow.
- Replace the ports cap.
- Fit the cushion into the channel of the frame. Fit the top section first, then work your way around, pushing the cushion into the frame. Ensure that the cushion is not twisted or distorted around the frame.
- Replace the soft sleeves onto the spring frame and align the spring frame with the frame.
- Starting at the top, gently push and click the spring frame into the frame.
- Gently push and click each side of the lower spring frame into the frame.
- Replace the elbow into the mask assembly.

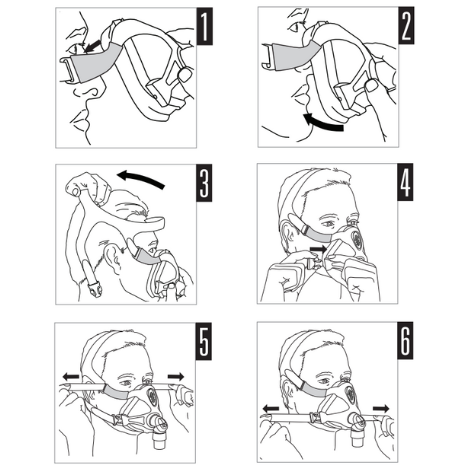

Fitting Your Mask:
Prior to fitting your mask, remove the spring frame support from the rear of your mask and retain for future use. The Fitting illustrations section in this guide show the sequence for obtaining the best fit and comfort in using your mask.
- With both lower headgear clips released, position your mask at an angle against your face, ensuring that the top of the cushion contacts your nasal bridge first.
- Keeping the upper position of the mask in place, swing the lower half of the mask down against your face so that it rests halfway between your bottom lip and chin.
- Hold the mask firmly against your face and pull the headgear over your head.
- Bringing the lower straps below your ears, clip the headgear into the lower part of the spring frame.
- Unfasten the Velcro®, pull the upper headgear straps evenly until they are comfortable and firm, and reattach the Velcro.
- Repeat step 5 with the lower headgear straps.

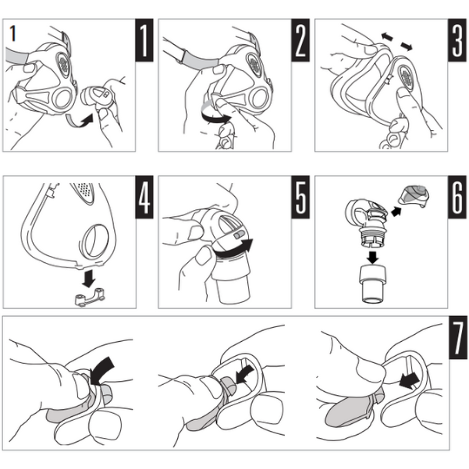

Disassembling Your Mask:
Before disassembling your mask, detach the air tubing and unclip the lower
headgear clips from the spring frame. Refer to the disassembly illustrations in
this guide.
- Remove the elbow assembly from the mask.
- Gently pull the spring frame away from the frame. Remove the soft sleeves from the spring frame.
- Gently separate the cushion from the frame.
- Remove the ports cap.
- Remove the valve clip and detach the swivel from the elbow.
- Peel the valve away from the valve clip. Do not pull on the membrane to remove the valve.
| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |

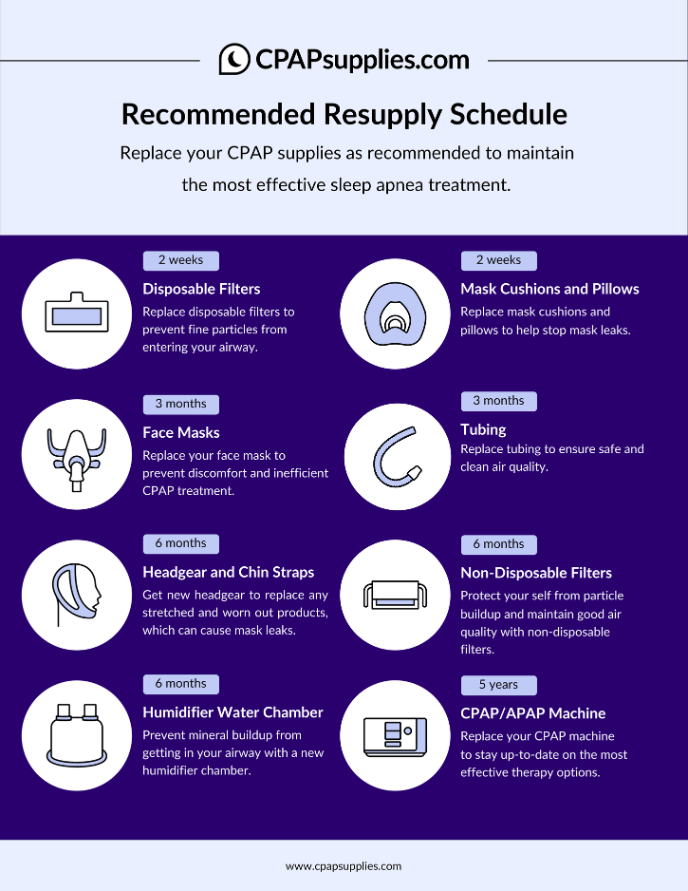

CPAPsupplies: CPAP Supplies Replacement Schedule
Quattro™ FX: Sizing and Fitting Guide
Quattro™ FX: Cleaning Guide
Quattro™ FX: Assembly Guide

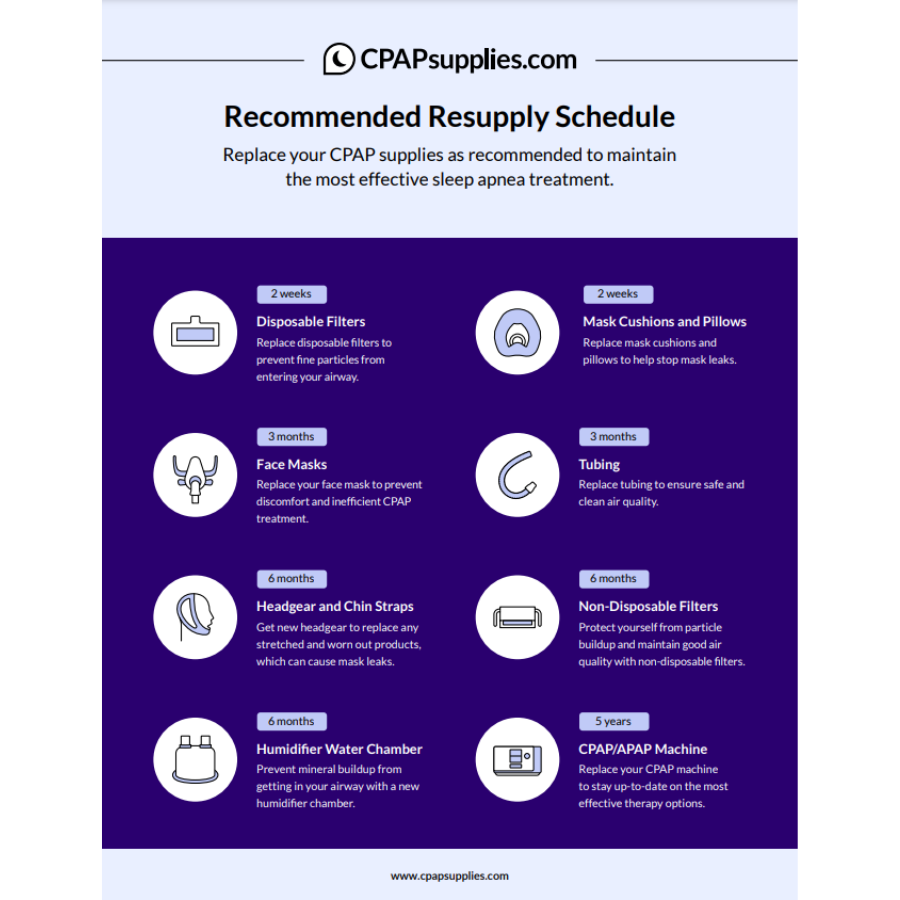

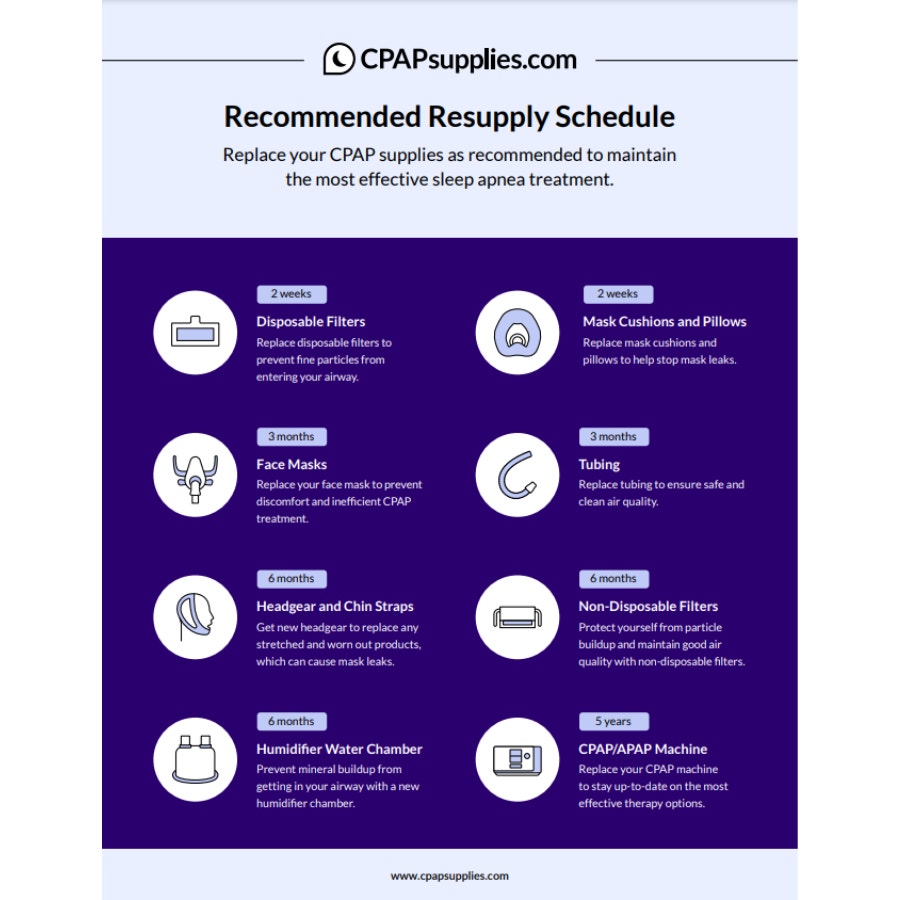

- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
| Brand | ResMed |
|---|---|
| SKU | pb_fx_her |
| Model | pb_fx_her |
| UPC | 00619498625130, 00619498625147 |
| Prescription Required | No |
| Manufacturer's Warranty | 90-day manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Dimensions | Small: 4.76“ (H) x 6.93“ (W) x 5.67“ (D); Medium: 5.12“ (H) x 6.93“ (W) x 5.67“ (D); Large: 5.51“ (H) x 6.93“ (W) x 5.67“ (D) |
| Included | 62513, 62514, 62506, 62507 |
