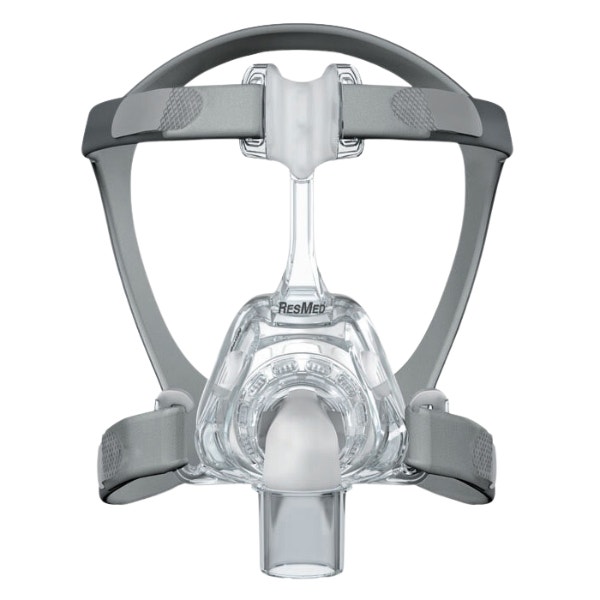

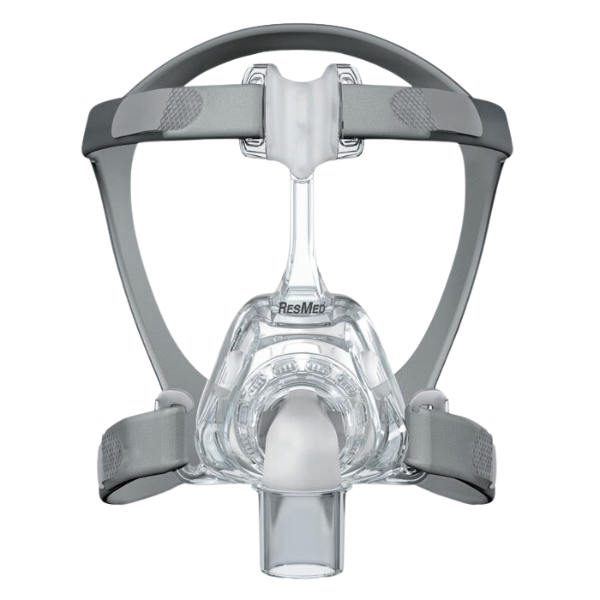

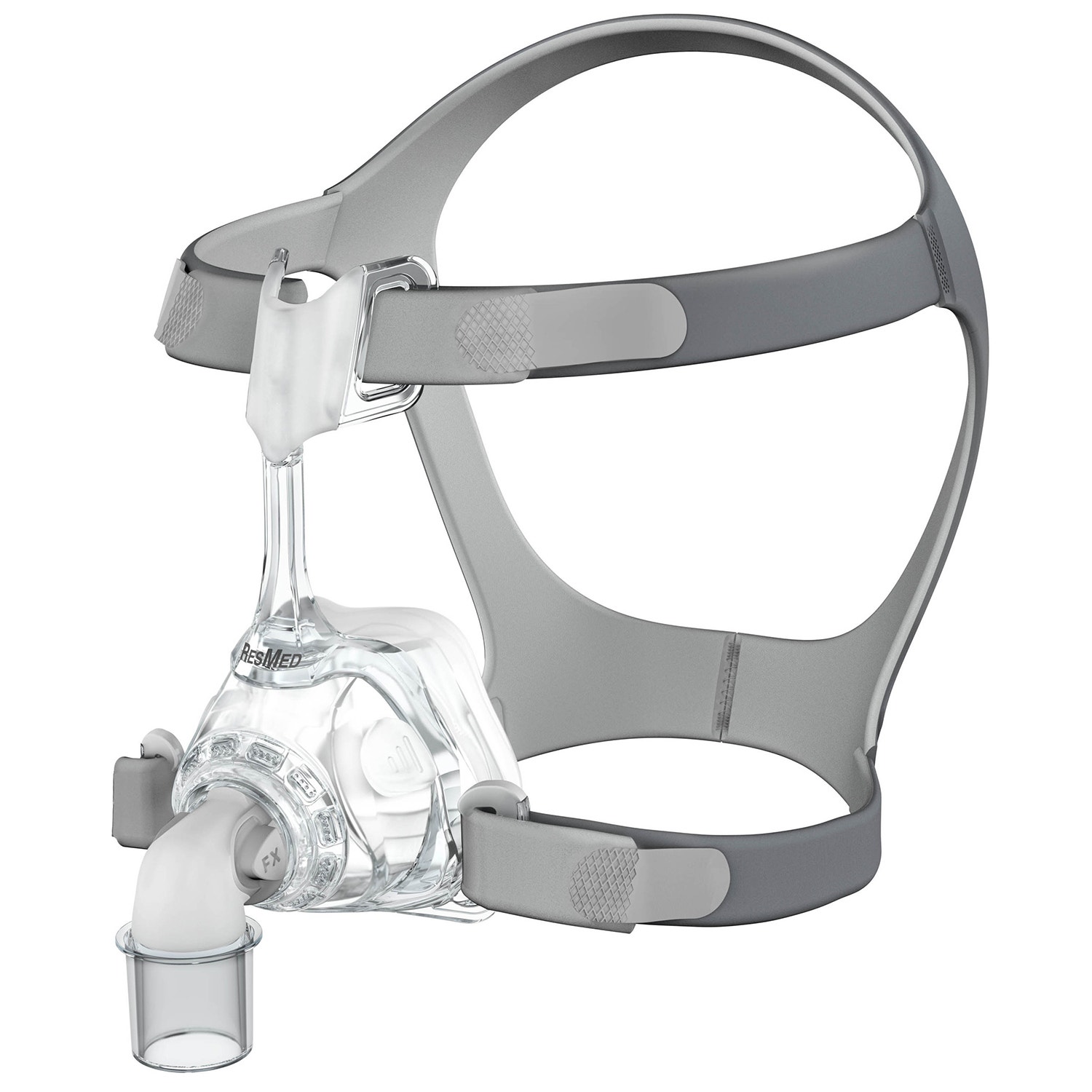

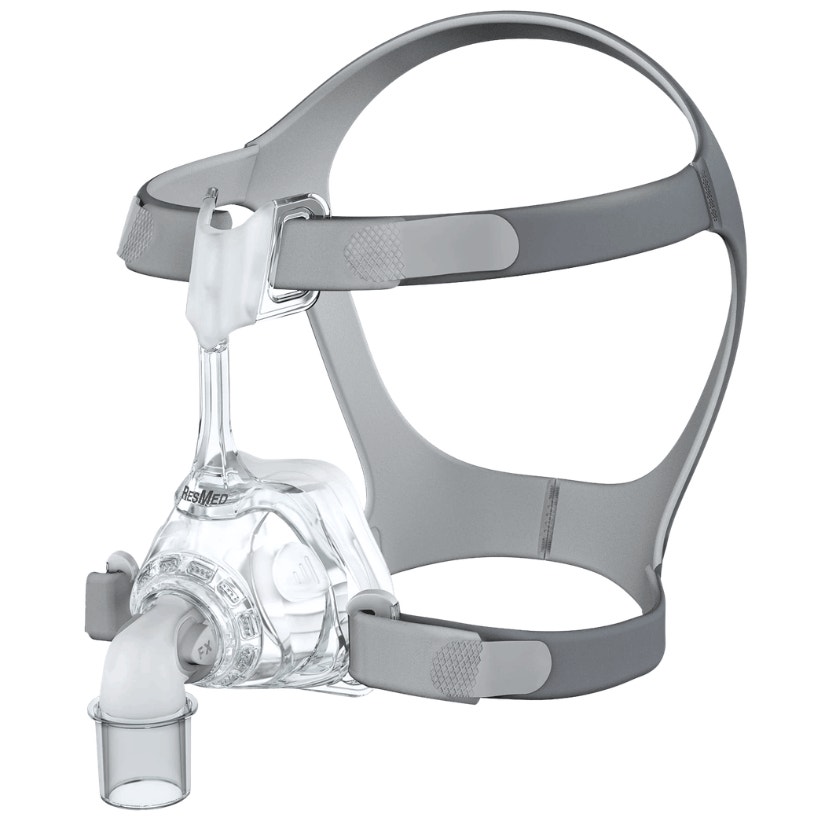

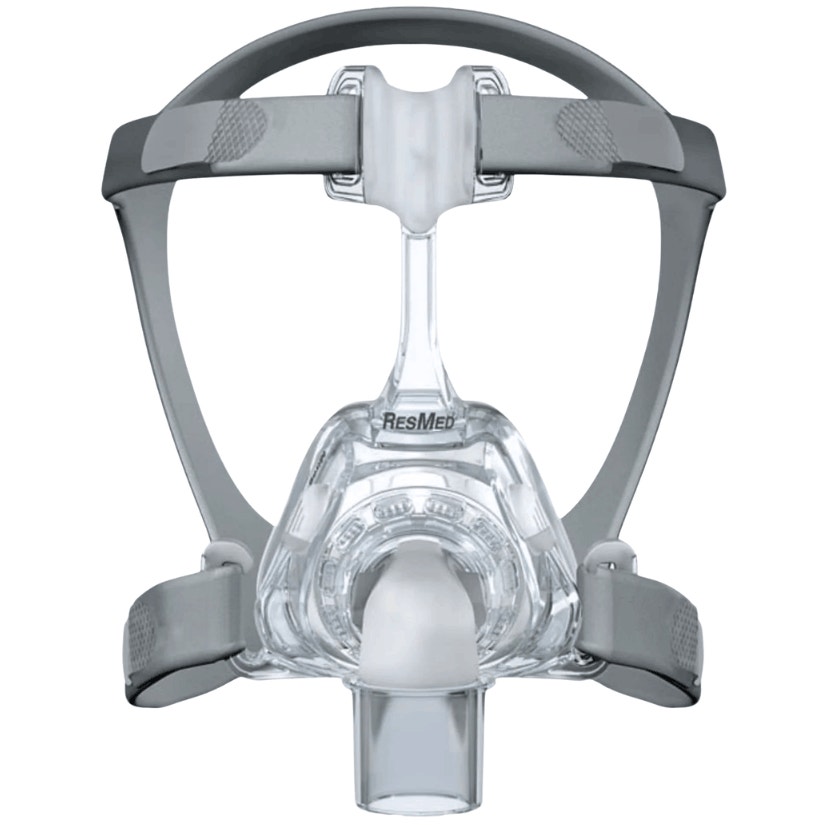

Resmed Mirage™ FX Nasal CPAP Mask with Headgear
The Resmed Mirage™ FX is a nasal CPAP mask that utilizes lightweight design and simplicity to make CPAP treatment comfortable and manageable.
Resmed Mirage™ FX Nasal CPAP Mask with Headgear Overview
The Mirage™ FX has a compact, ultra light frame and ultra soft headgear. This mask system only has four parts, making assembly, cleaning and use extremely easy. Sleeping while using the Mirage™ FX is effortless due to the soft cushion and flexible forehead support. Getting in and out of bed doesn't involve the hassle of most CPAP masks. The Mirage™ FX uses a quick-release elbow to easily detach from the tubing without having to adjust your mask or headgear.
-
Quick-release elbow allows the user to detach from the CPAP machine and tubing without having to remove the mask
-
The frame provides and unobstructed view for the user to read, watch tv or wear glasses comfortably
-
SoftEdge™ headgear is not only flexible, but breathable
-

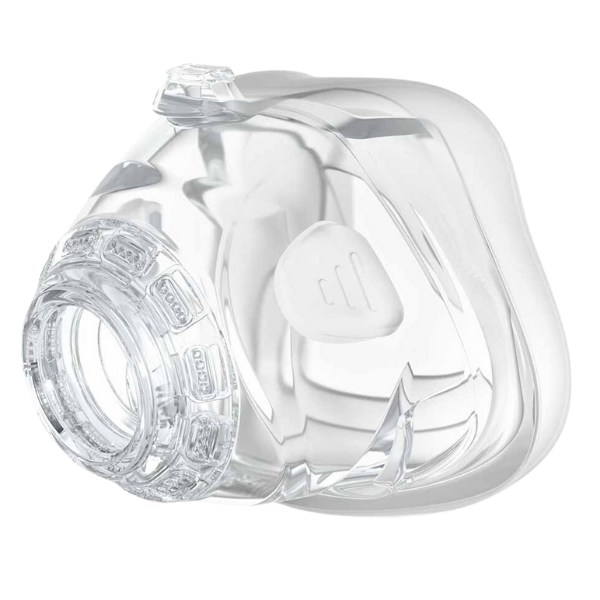

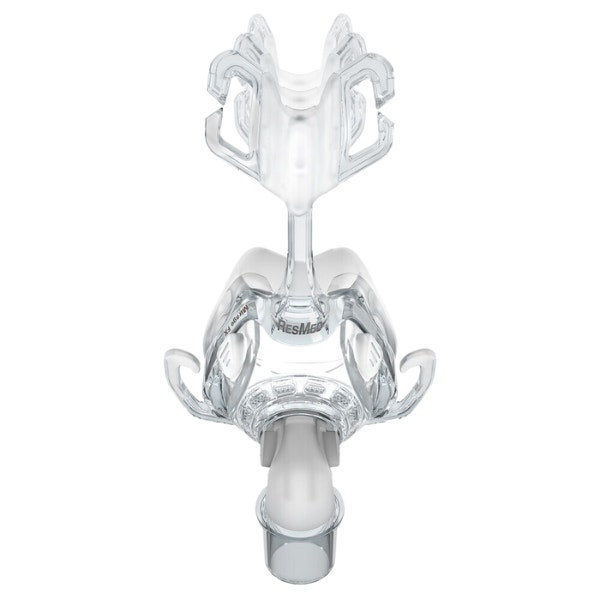

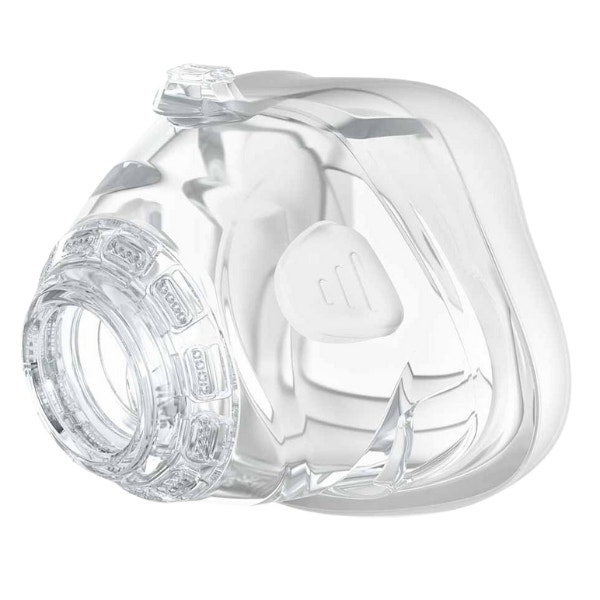

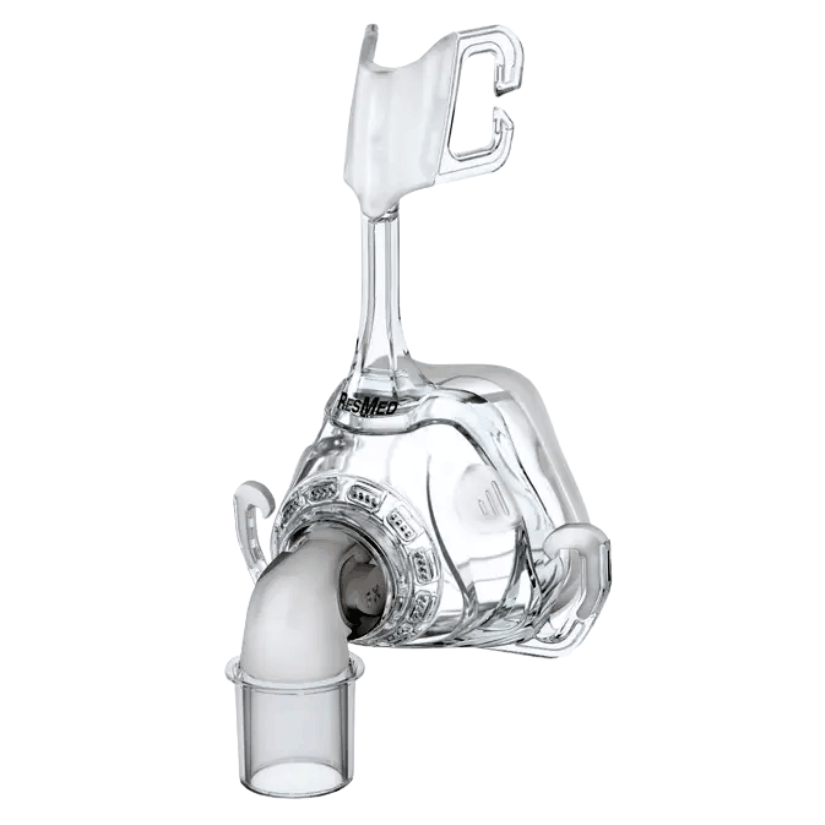

1 — Mirage™ FX Frame and Cushion (of selected size option)
-
1 — Quick-release elbow
-

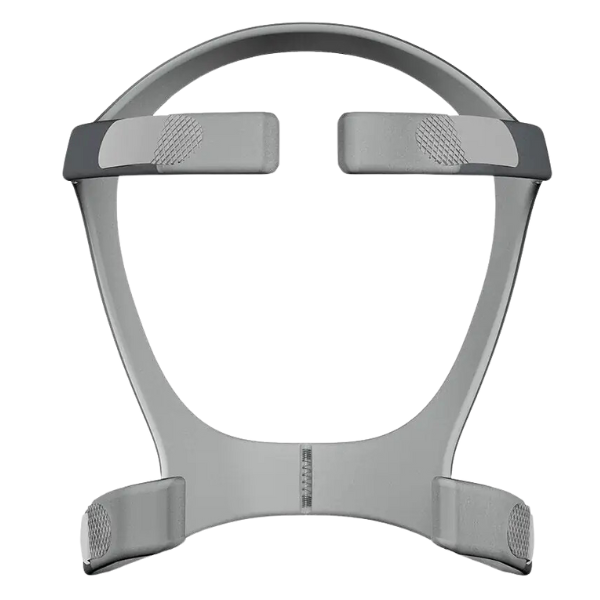

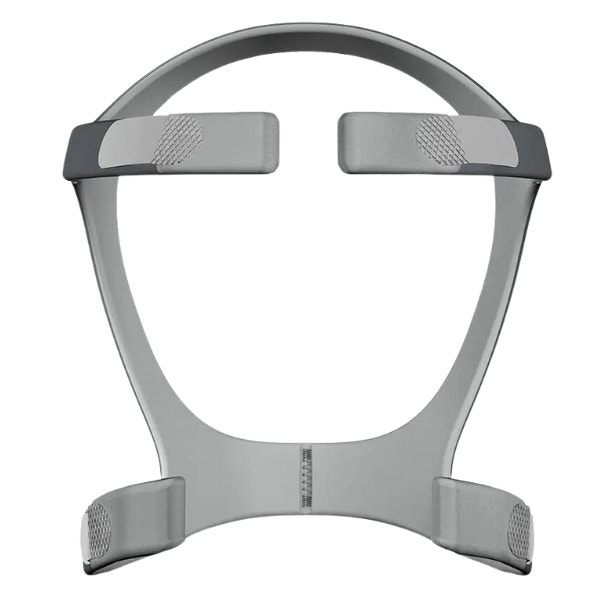

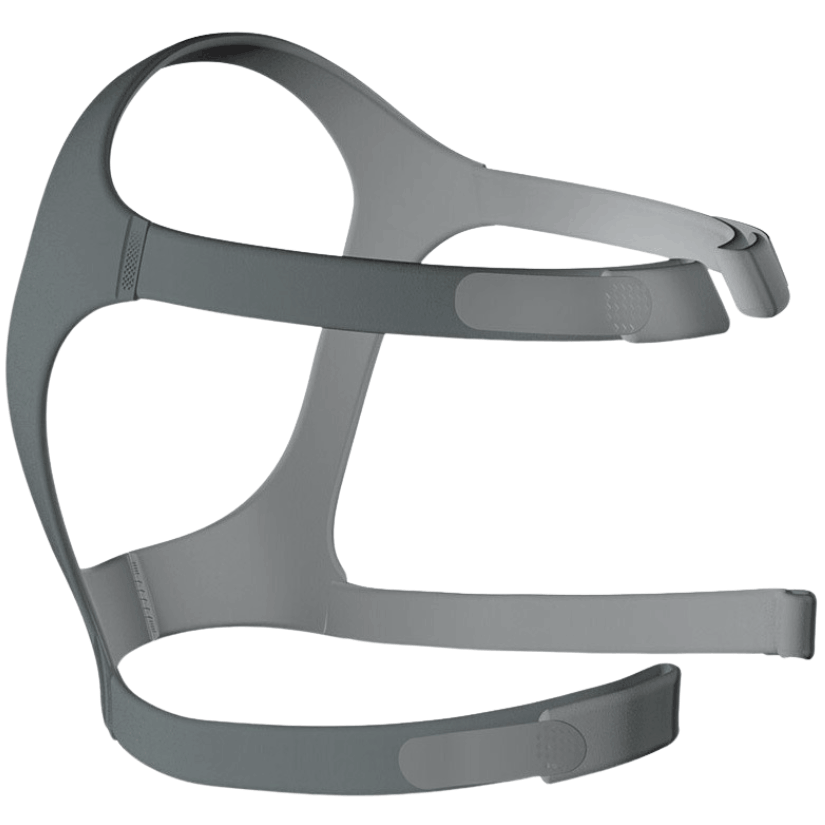

1 — Mirage™ FX Headgear
If you're looking to purchase the Resmed Mirage™ FX Nasal CPAP Mask components without a prescription, you can find them here.
-
Standard - Mirage™ FX Mask with Headgear - 62103
-
Wide - Mirage™ FX Mask with Headgear - 62118
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.

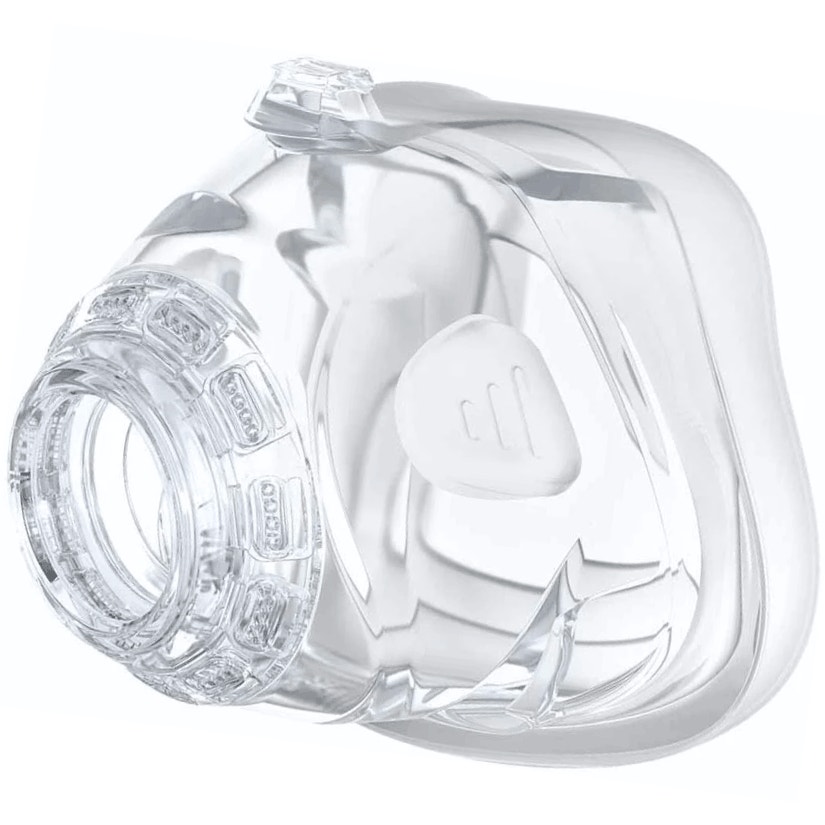

- Ensure the cushion is oriented correctly by aligning the top cushion tab with the recess in the top of the mask.
- Gently pull the cushion through the front of the mask frame until the cushion locks securely into the mask frame. The tabs on either side of the cushion should be sitting against the mask frame. Ensure the cushion is not twisted or distorted.
- Attach the top headgear straps to the mask frame by looping onto each of the upper headgear hooks.
- Replace the elbow assembly into the air tubing and attach the combined elbow assembly and air tubing to the mask by pressing the side-tabs and pushing into the mask.
Fitting Your Mask:
Prior to fitting your mask, remove the elbow from the mask by pressing the side tabs. Connect the elbow to your device air tubing.
- With both lower headgear straps released, hold the mask against your face and pull the headgear over your head.
- Bringing the lower straps below your ears, loop the headgear into the lower hooks on the mask frame.
- Unfasten the Velcro®, pull the upper headgear straps evenly until they are comfortable and reattach the Velcro. Do not overtighten.
- Repeat step 3 with the lower headgear straps.
- Attach the combined elbow assembly and air tubing to the mask by pressing the side-tabs and pushing into mask frame.

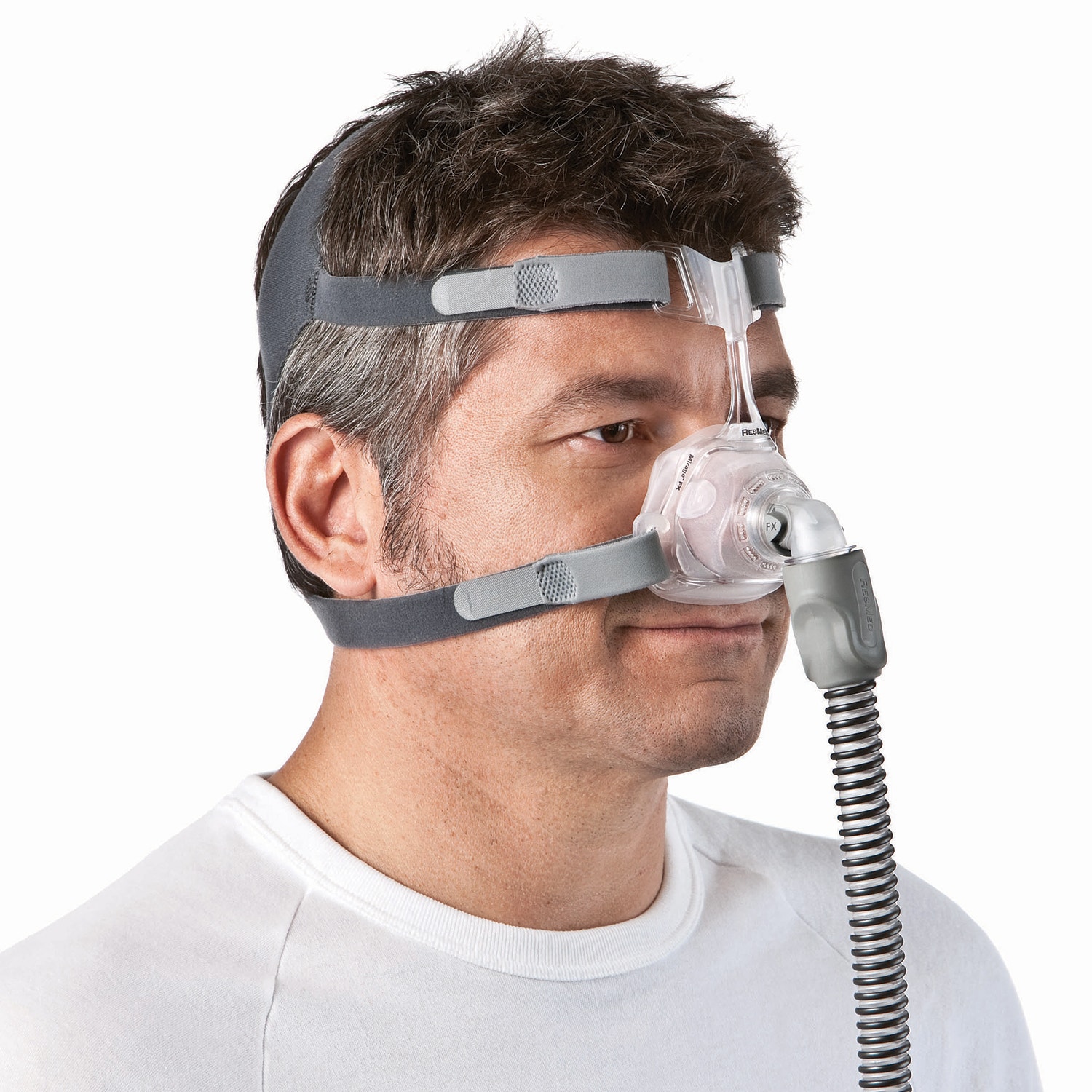

- Your mask and headgear should be positioned as shown. Ensure the headgear label is facing outwards.
Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
- Unhook the upper headgear straps from the mask frame, there is no need to undo the Velcro.
- Remove the combined elbow assembly and air tubing from the mask by pressing the side-tabs and pulling away from the mask frame. Remove the elbow assembly from the air tubing.
- Gently separate the cushion from the mask frame.
| Operating Therapy Pressure Range |
| 4 - 20 cm H²O |

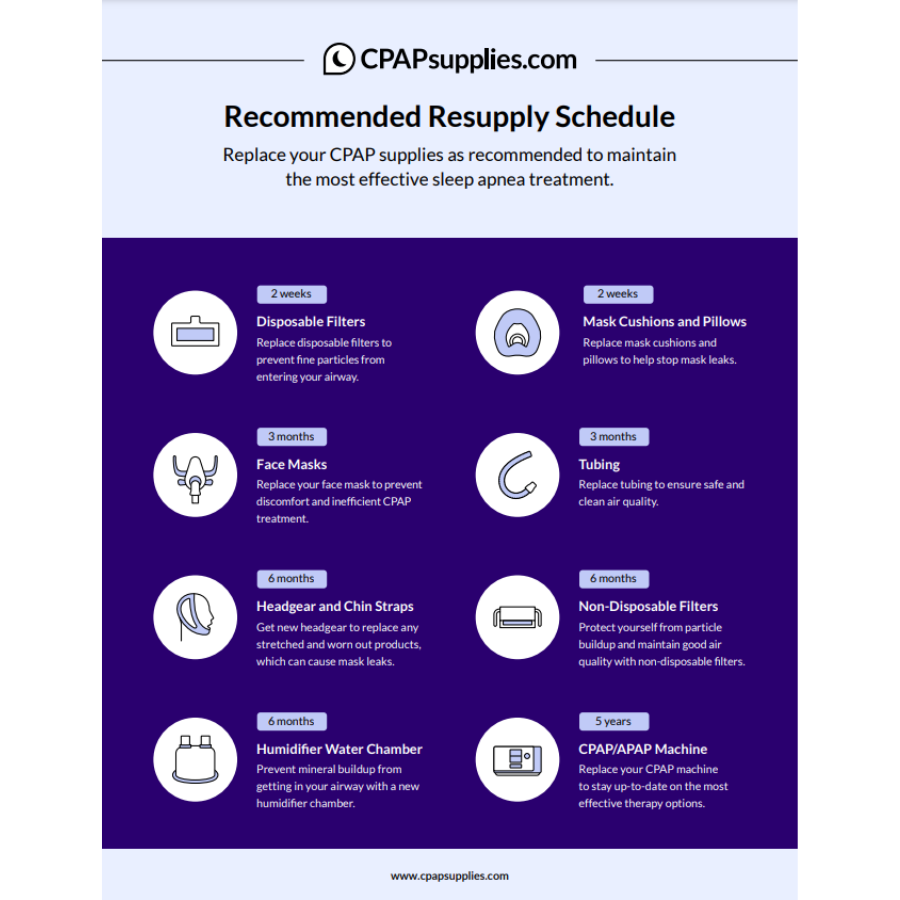

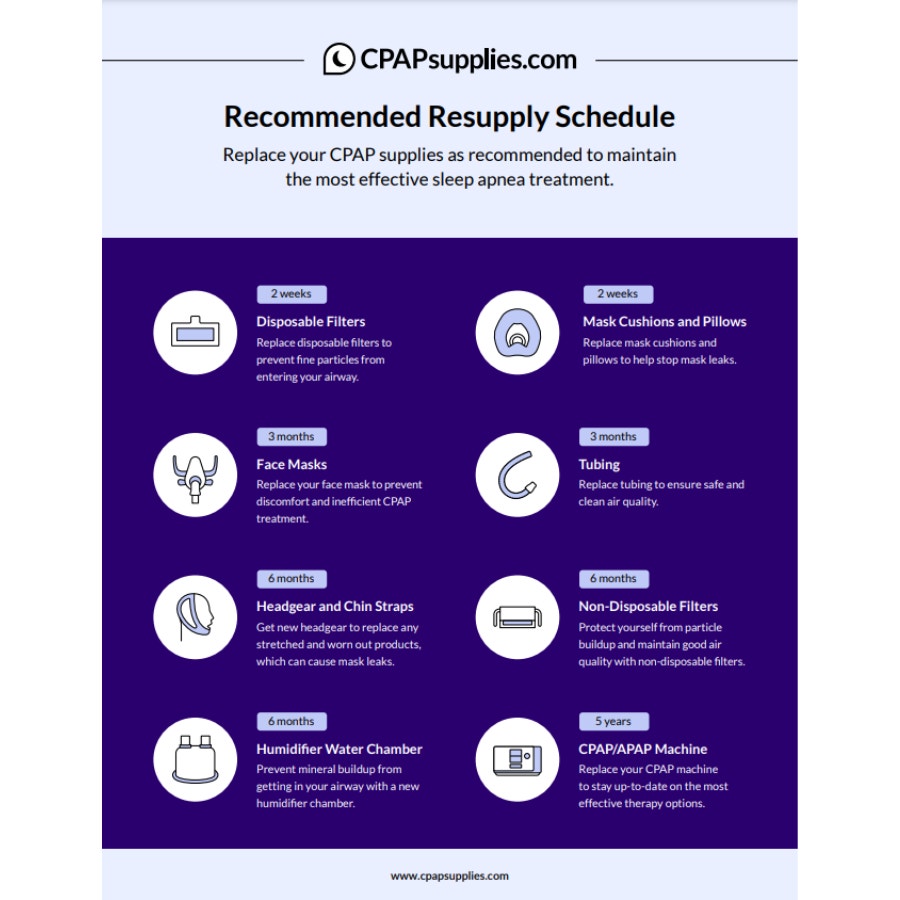

CPAPsupplies.com: CPAP Supplies Replacement Schedule
Mirage™ FX: Fitting Guide
Mirage™ FX: Cleaning Guide
Mirage™ FX: Assembly Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | p_mirage_fx_complete |
| Model | p_mirage_fx_complete |
| UPC | 619498621033, 619498621187 |
| Prescription Required | Yes |
| Weight | 1.00 lbs |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 62103, 62118 |
