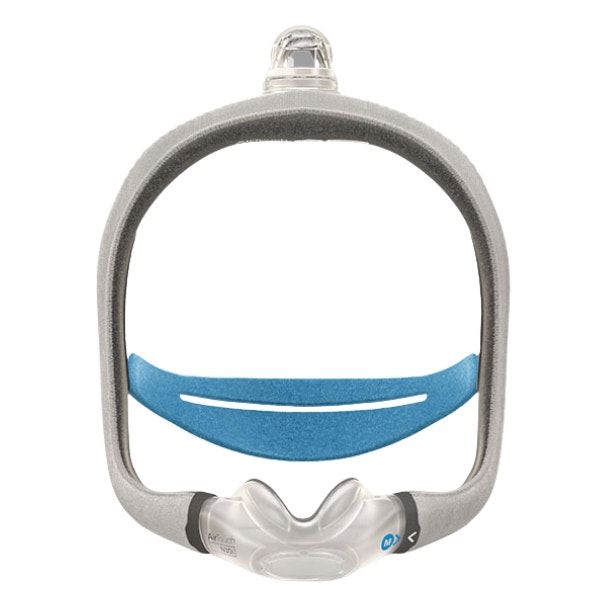

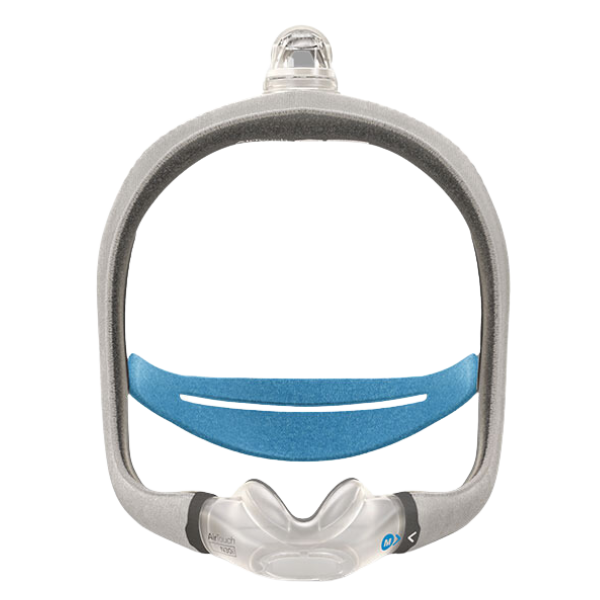

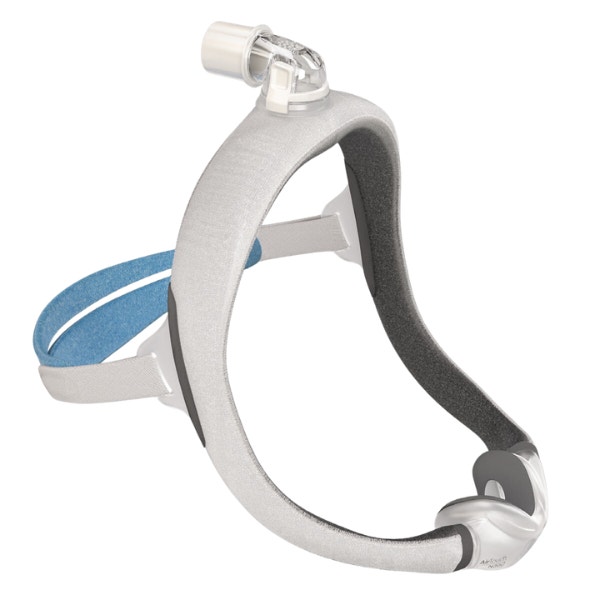

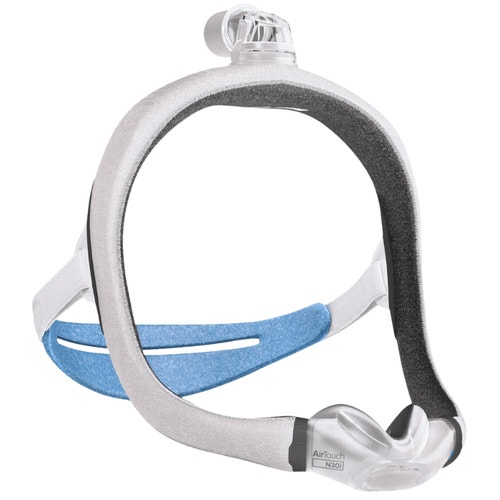

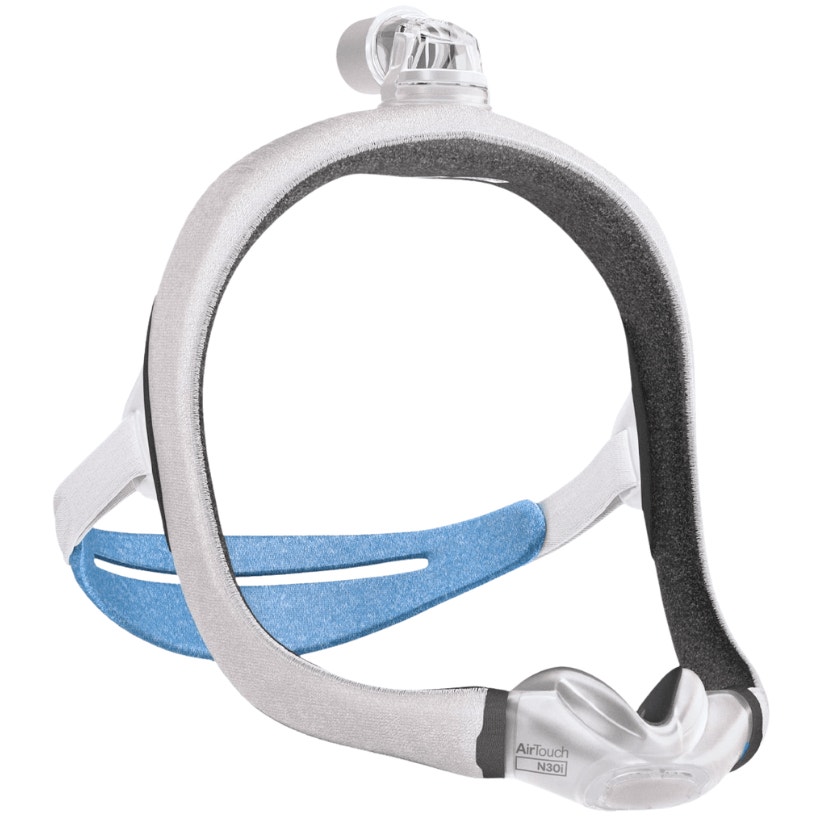

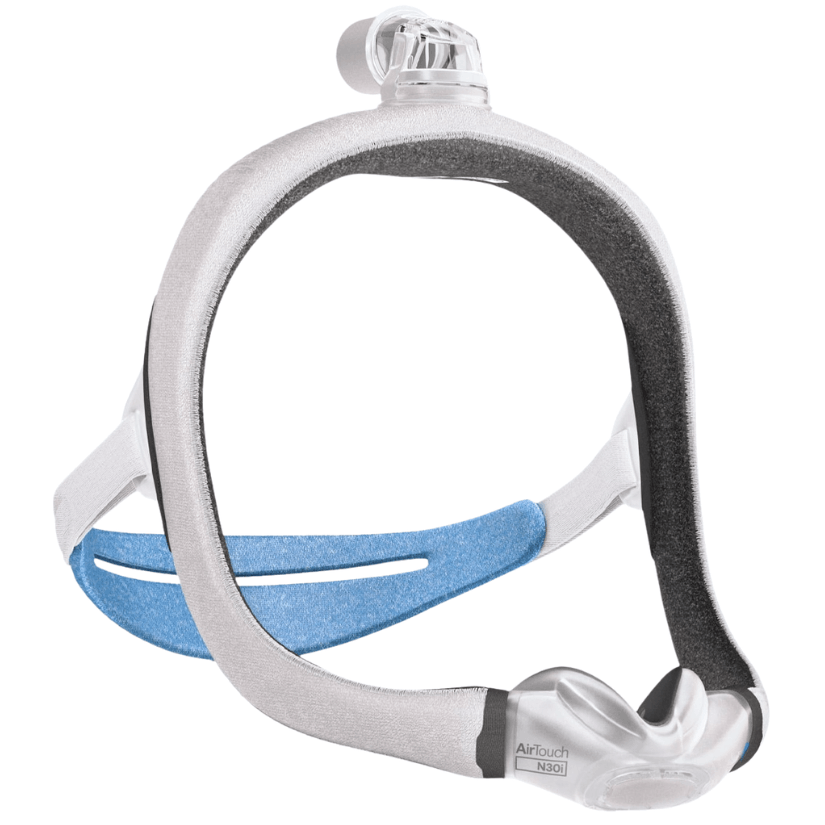

Resmed AirTouch™ N30i Nasal CPAP Mask with Headgear
The AirTouch™ N30i by Resmed combines a tube-up design with their innovative SpringFit™ silicone frame, fully wrapped in soft fabric. The AirTouch™ N30i features Resmed's ComfiSoft™ nasal cushions, made of a silicone-coated fabric that provides a comfortable, yet secure seal, while providing moisture-wicking to keep your skin feeling cool.
Resmed AirTouch™ N30i Nasal CPAP Mask with Headgear Overview

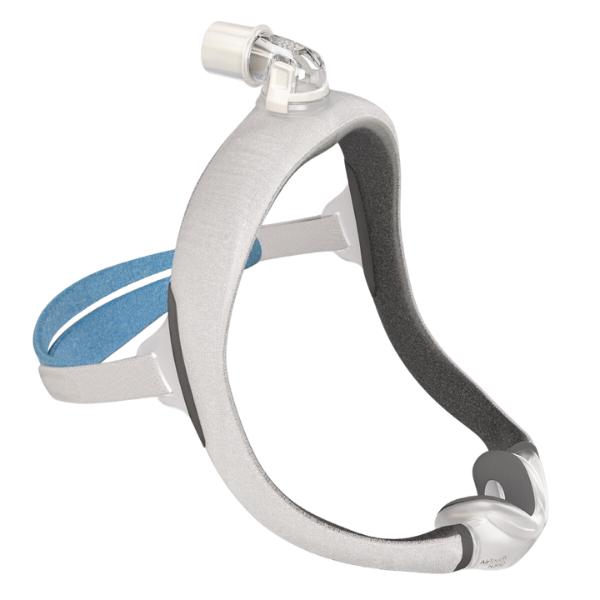

The Resmed AirTouch™ N30i is a nasal CPAP mask designed with a silicone frame that is completely wrapped in a soft, flexible fabric. Resmed's ComfiSoft™ nasal cushions feature a fabric fused with silicone to provide a naturally soft texture for enhanced comfort.
-

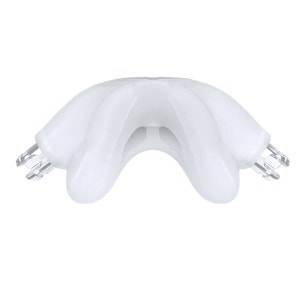

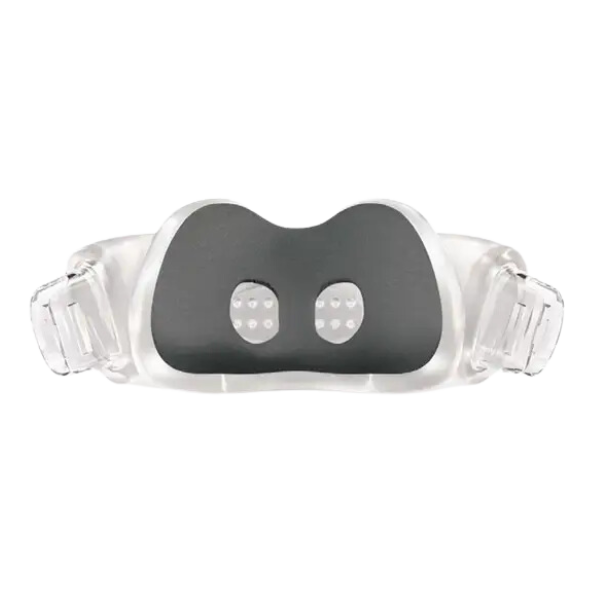

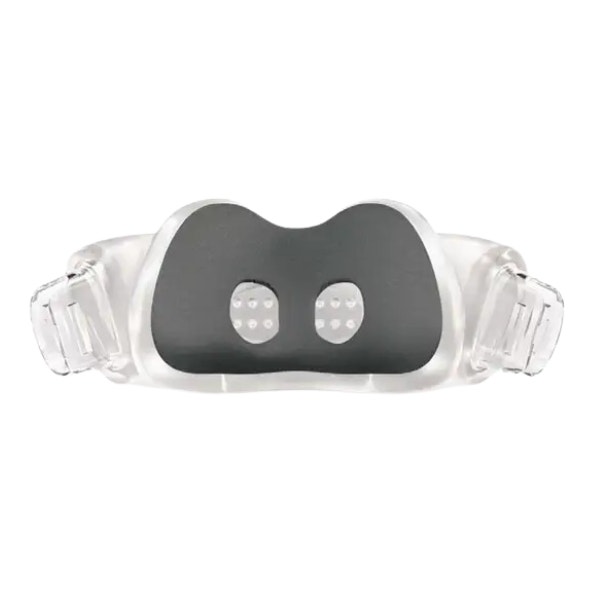

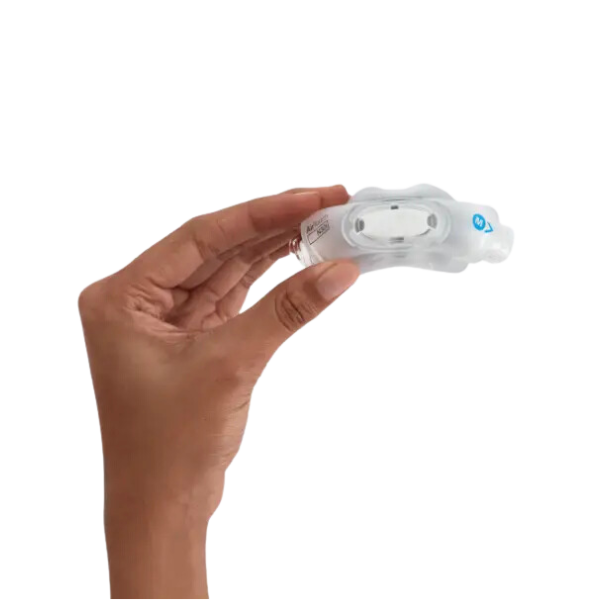

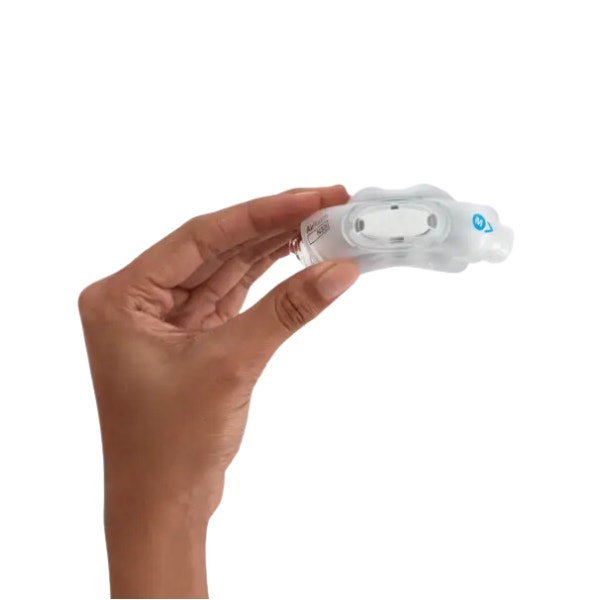

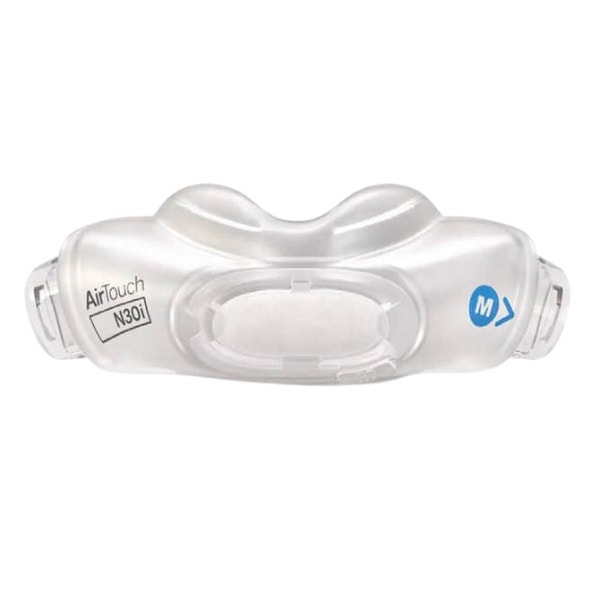

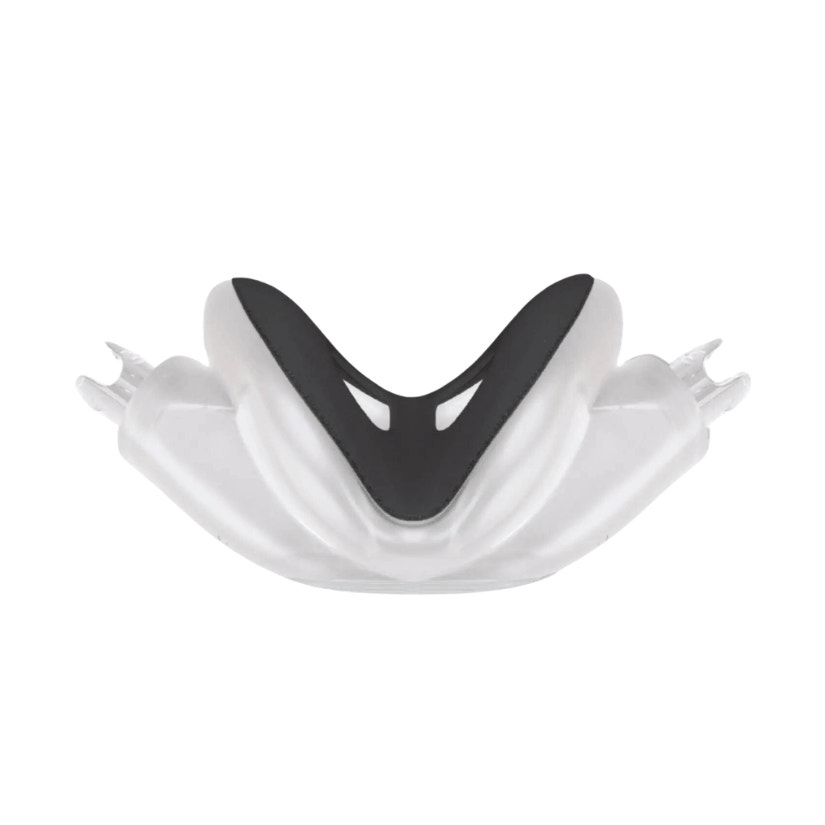

ComfiSoft™ Nasal Cushions - ResMed's innovative ComfiSoft™ nasal cushions are designed with a fabric padding fused with silicone that provides a secure seal for more effective, comfortable CPAP therapy.
-
Flexibility - The tube-up design of the AirTouch™ N30i helps to prevent tubing pull and drag, providing you with improved freedom of movement during your sleep therapy.
-
Quick-Release Elbow - The Quick-release short tube elbow makes connecting and disconnecting your tubing easy, and provides additional range of movement with it's swivel design.
-

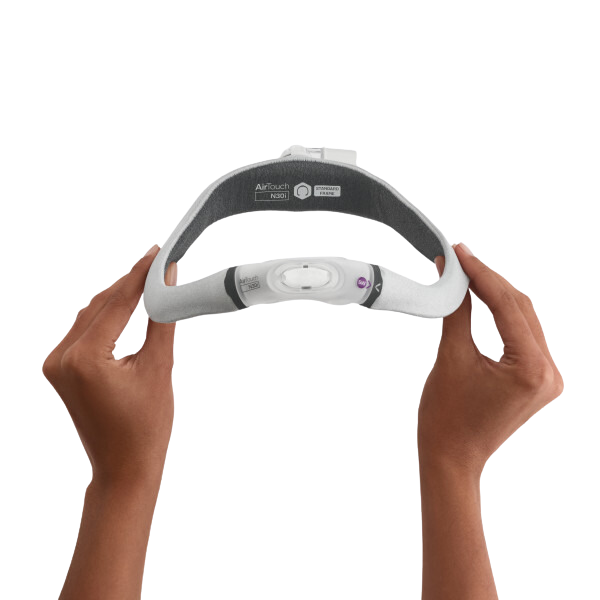

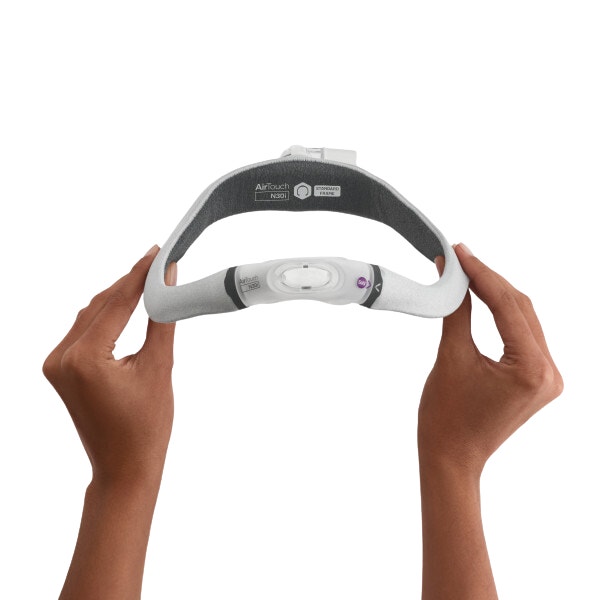

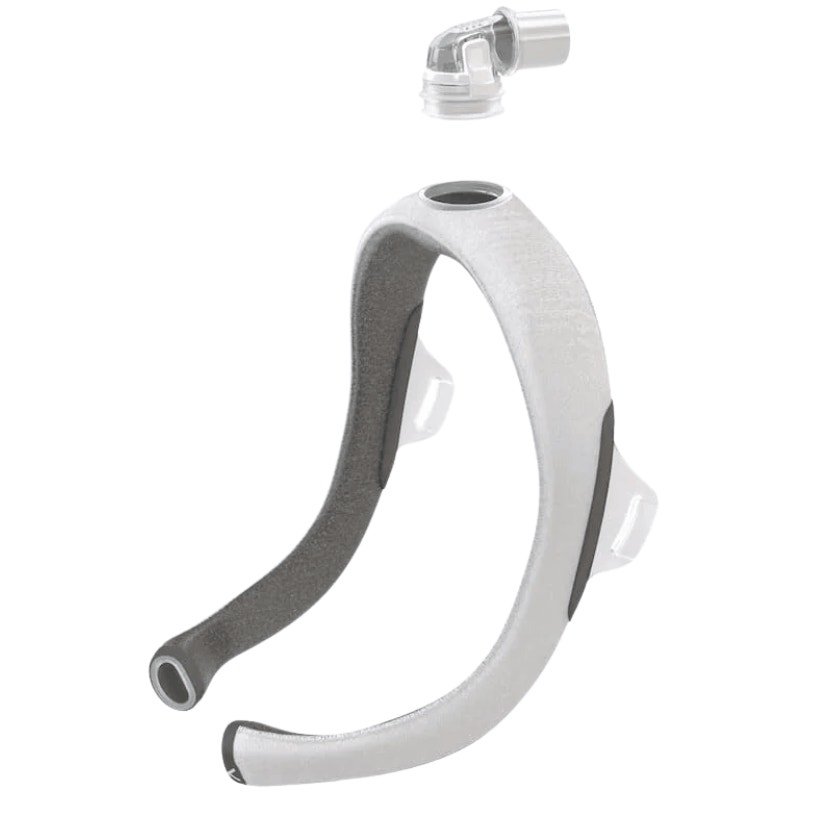

SpringFit™ Mask Frame - The SpringFit™ frame is completely wrapped in a soft, flexible fabric that's designed to adjust to your facial contours and head shape for an easy fit.
-
QuietAir™ - The diffused QuietAir™ venting design helps to reduce the noise created during sleep apnea therapy, helping to create a more peaceful environment while you rest.
-

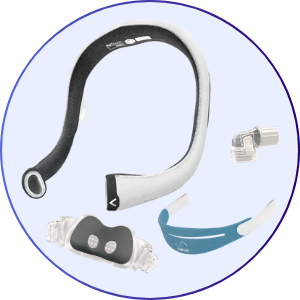

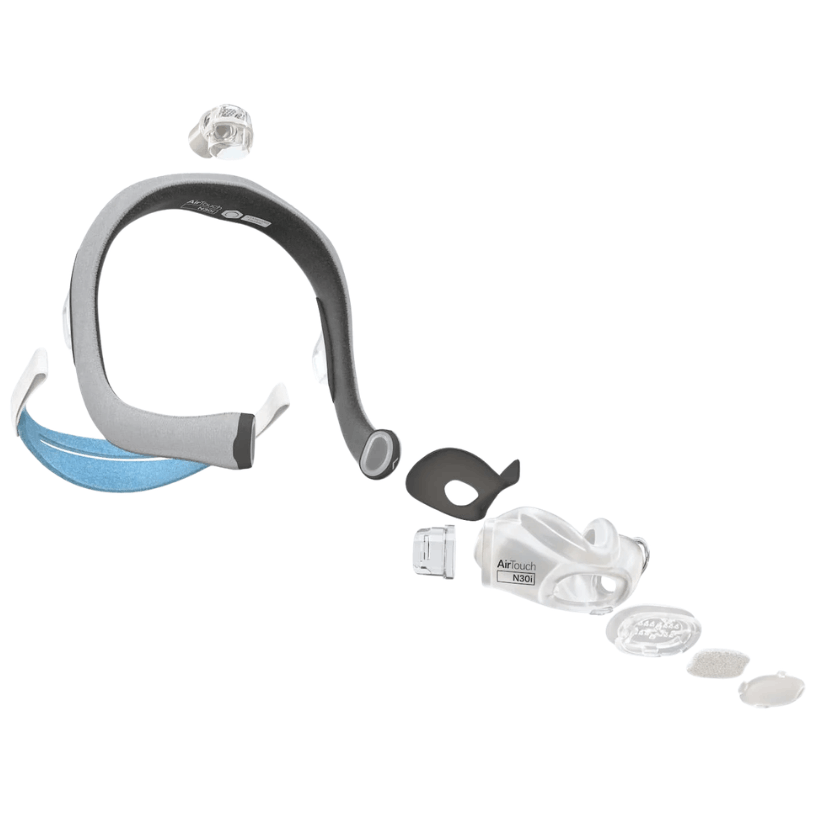

1 — AirTouch™ N30i Mask Frame and Cushion (of selected size)
-
1 — Elbow
-
1 — Frame Sleeve
-
1 — QuietAir™ Vent
-

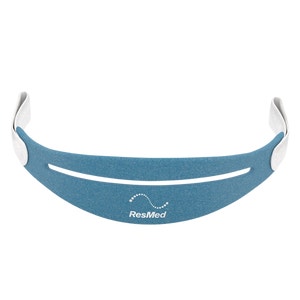

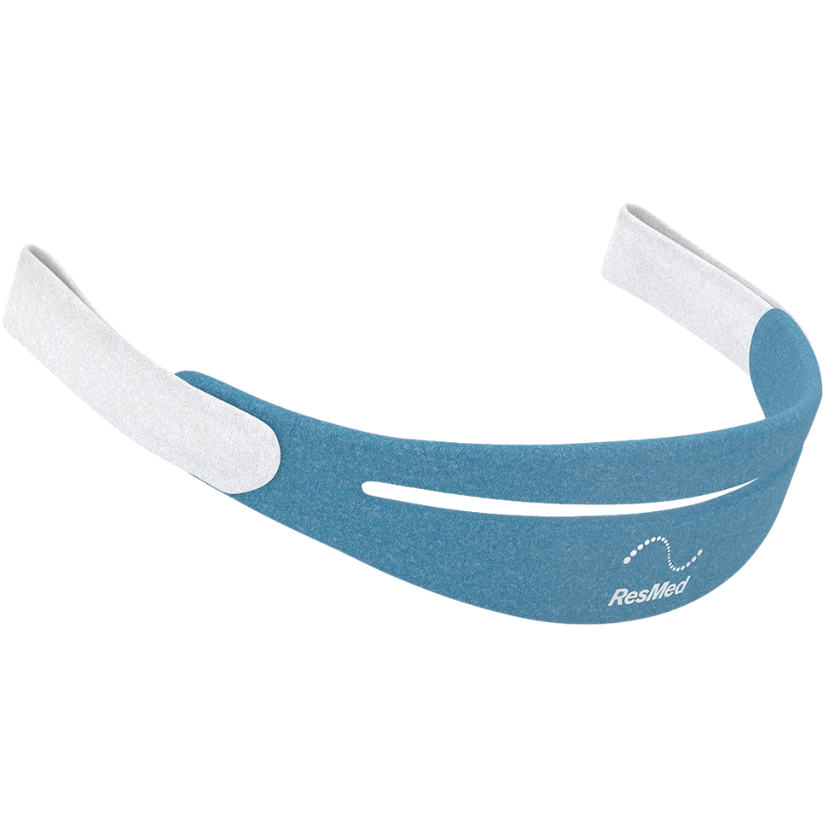

1 — AirTouch™ N30i Headgear
If you're looking to purchase the Resmed AirTouch™ N30i Nasal CPAP Mask components without a prescription, you can find them here.
-
Small Frame / Small Wide Cushion - AirTouch™ N30i Nasal CPAP Mask with Headgear - 62313
-
Small Frame / Medium Cushion - AirTouch™ N30i Nasal CPAP Mask with Headgear - 62314
-
Small Frame / Large Cushion - AirTouch™ N30i Nasal CPAP Mask with Headgear - 62315
-
Standard Frame / Small Wide Cushion - AirTouch™ N30i Nasal CPAP Mask with Headgear - 62310
-
Standard Frame / Medium Cushion - AirTouch™ N30i Nasal CPAP Mask with Headgear - 62311
-
Standard Frame / Large Cushion - AirTouch™ N30i Nasal CPAP Mask with Headgear - 62312
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Connect the elbow into the top of the frame until it clicks.
- Insert each end of the headgear strap into the frame and fold the
fastening tabs backwards. Ensure that the Resmed logo is facing
outwards and is upright. - Align the tab (a) on the cushion with the notch (b) on the vent, and
then gently pull the cushion over the vent. - Insert the ends of the frame into the cushion, ensuring that the arrows
on the cushion and frame are aligned.
- Note: If the elbow ring detaches, re-insert into the top of the frame.
Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- Pull the frame and headgear over your head until the elbow is
positioned on top and the headgear is behind your head. - Place the cushion under your nose. For the AirFit P30i mask, align the pillows into your nostrils.
- Tighten or loosen the headgear until the cushion fits comfortably
under your nose. - Squeeze the side buttons on the elbow and detach from the frame.
Connect the air tubing from your device to the elbow, then reattach to
the frame.
Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
- Pull the cushion from the frame.
- Gently peel the cushion away and slide the vent out.
- Undo the fastening tabs on the headgear strap and pull it from the
frame. - Squeeze the side buttons on the elbow and detach from the frame.
Note:
- The QuietAir or multi-hole vent can be removed to allow inspection of
the vent holes. - After detaching the headgear, close the fastening tabs to prevent it
from damaging the fabric sleeves when handling.
| Operating Therapy Pressure Range |
| 4 to 25 cm H²O |

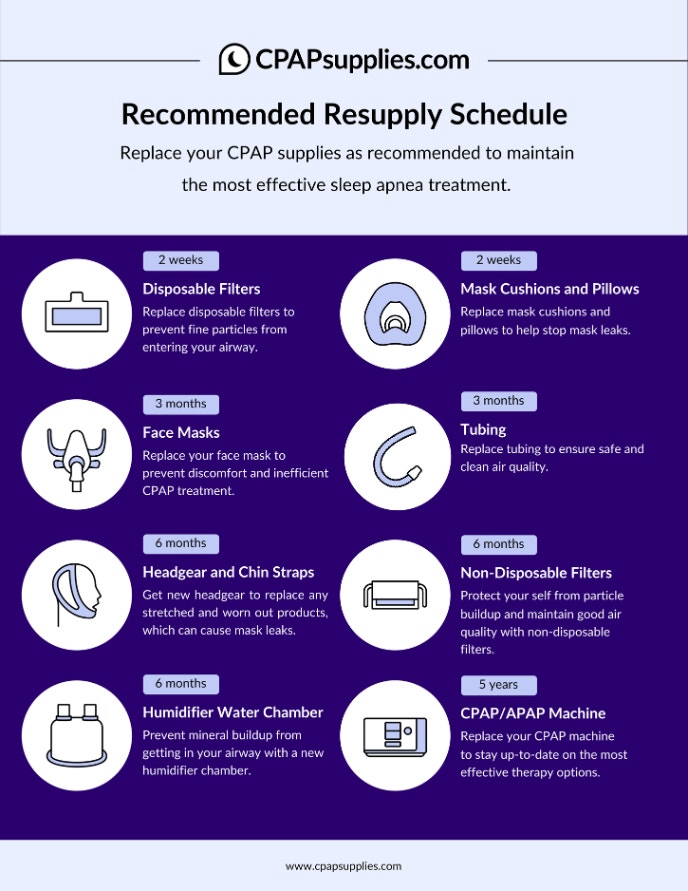

CPAPsupplies.com: CPAP Supplies Replacement Schedule
AirTouch™ N30i: Sizing Guide
AirTouch™ N30i: Mask Fitting Guide
AirTouch™ N30i: Cleaning and Care
AirTouch™ N30i: Mask Seal and Comfort
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | p_AT-N30i-wHG |
| Model | p_AT-N30i-wHG |
| UPC | 619498623105, 619498623112, 619498623129, 619498623136, 619498623150 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 62315, 62314, 62313, 62310, 62311, 62312 |
