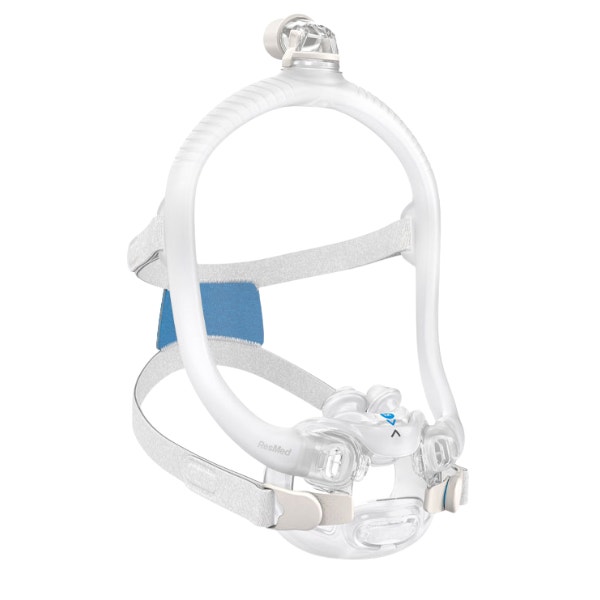

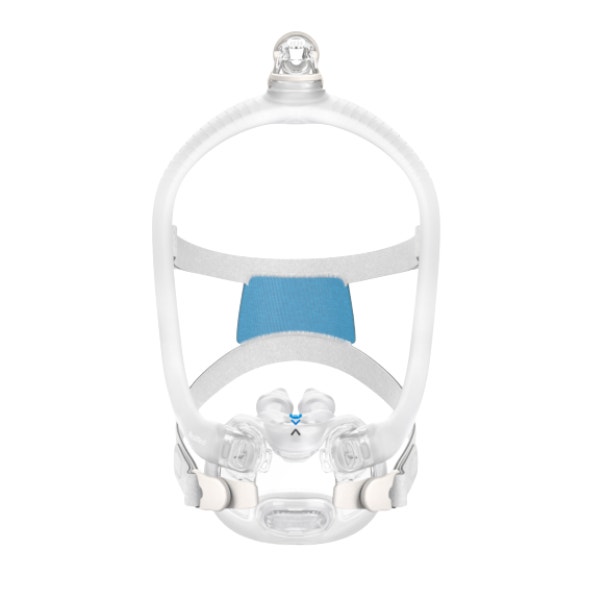

ResMed AirFit™ X30i Oral Nasal CPAP Mask
$193.00

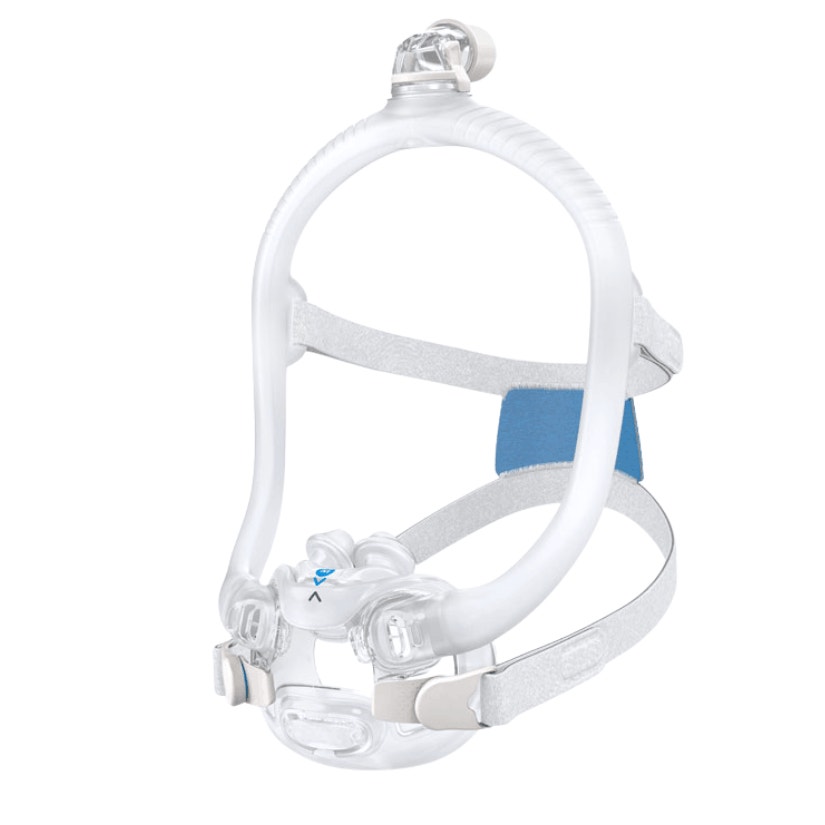

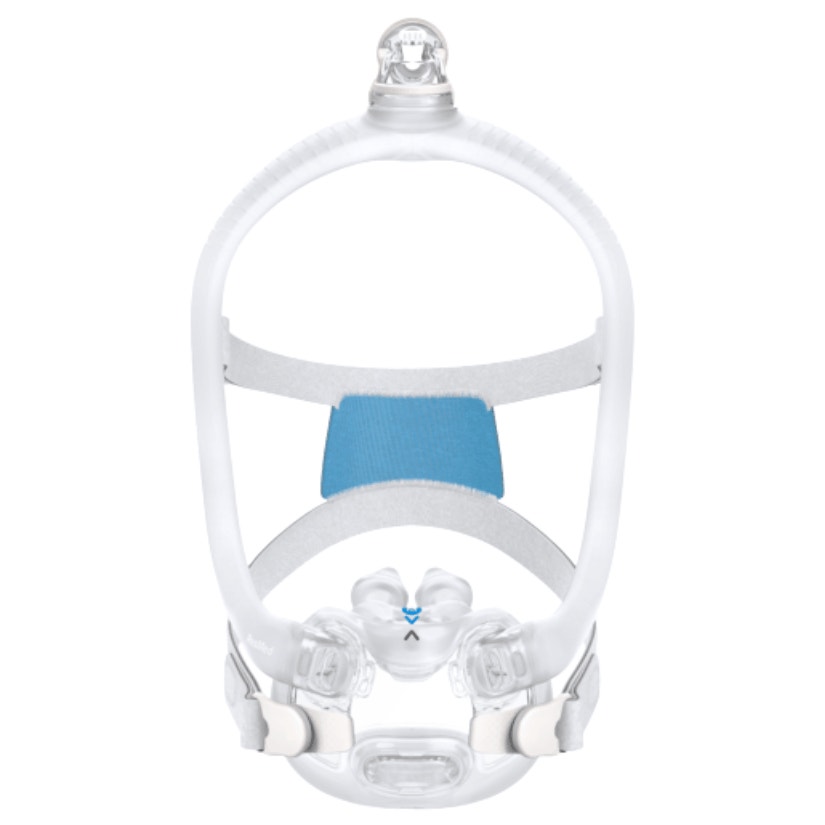

The AirFit™ X30i is an oral nasal mask that is designed by ResMed to provide the coverage of a full face mask with the enhanced stability, and minimal facial contact of a nasal pillow cushion – all while offering added freedom of movement and field of vision with its top-of-the-head tubing connection.
ResMed AirFit™ X30i Oral Nasal CPAP Mask Overview
The AirFit™ X30i is an ideal mask option for CPAP users who breathe through their mouth but want the freedom of movement and clear line of sight provided by a tube-up mask design, and the stability and minimal facial contact of a nasal pillow cushion.
Per ResMed, please note the following about this mask’s magnetic contraindications:
Update to Contraindication
In an update to the previously contraindicated metallic aneurysm hemostatic clips in the head and metallic splinters in one or both eyes following a penetrating eye injury, ResMed is further contraindicating the use of its masks with magnets for patients where they, or anyone in close physical contact while using the mask (e.g., bed partner), have the following:
- Active medical implants that interact with magnets (i.e., pacemakers, implantable cardioverter defibrillators (ICD), neurostimulators, cerebrospinal fluid (CSF) shunts, insulin/infusion pumps)
- Metallic implants/objects containing ferromagnetic material (i.e., aneurysm clips/flow disruption devices, embolic coils, stents, valves, electrodes, implants to restore hearing or balance with implanted magnets, ocular implants, metallic splinters in the eye)
Update to Warning
The safe distance to the magnets has been increased from 2 inches (50 mm), and patients are now warned to keep the mask magnets at a safe distance of 6 inches (150 mm) away from implants or medical devices that may be adversely impacted by magnetic interference. This applies to patients, or anyone in close physical contact with the mask magnets.
Note, not all models or manufactured variants of medical devices listed in the contraindications are affected by external magnetic fields. Only those that interact with magnets or contain ferromagnetic materials present the potential for magnetic interference.
For more information: please reach out to ResMed directly; CPAPsupplies.com does not have any additional details on this update. Visit www.resmed.com/magnetupdate for more details and the appropriate contact information.
- Full face mask coverage with the stability and secure seal of a nasal pillow cushion.
- Tube-up design provides enhanced field of vision and freedom of movement during CPAP therapy.
- QuietAir™ venting helps to minimize noise by gently dispersing exhaled air which means less sleep disruption for your sleep companion.
- Interchangeable with the AirFit™ F30i cushion, allowing new and existing CPAP users to make the best determination for their needs.
- No forehead strap or support means enhanced comfort, especially for glasses wearers.
- SpringFit™ frame features flexible conduit that allows for pressurized airflow to pass through the mask elbow and into the frame and cushion.
-

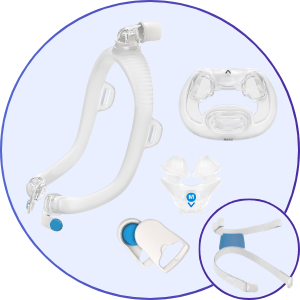

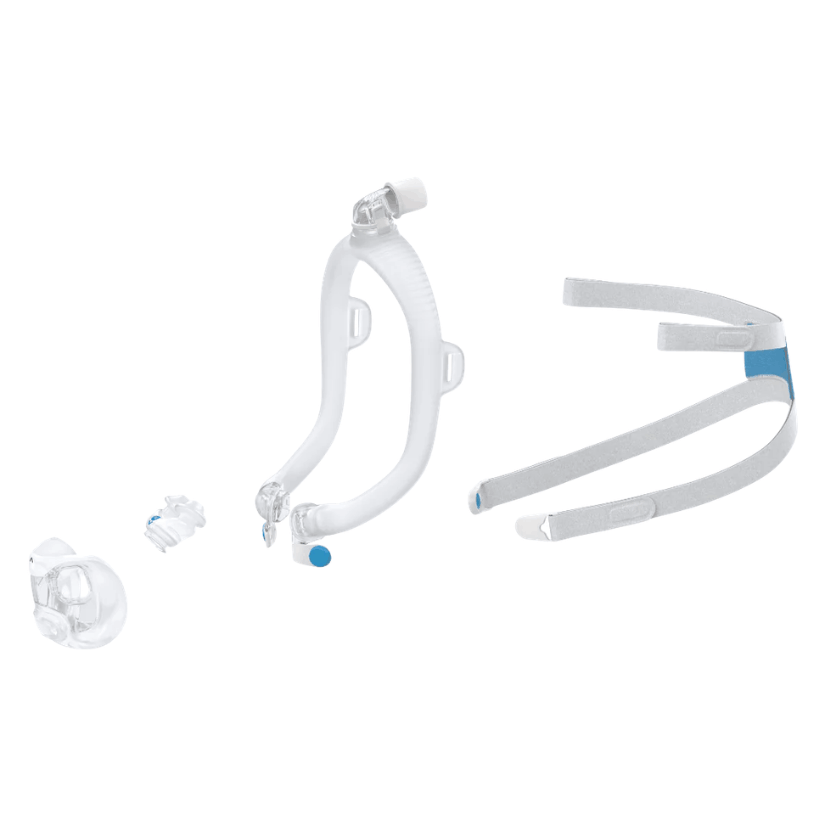

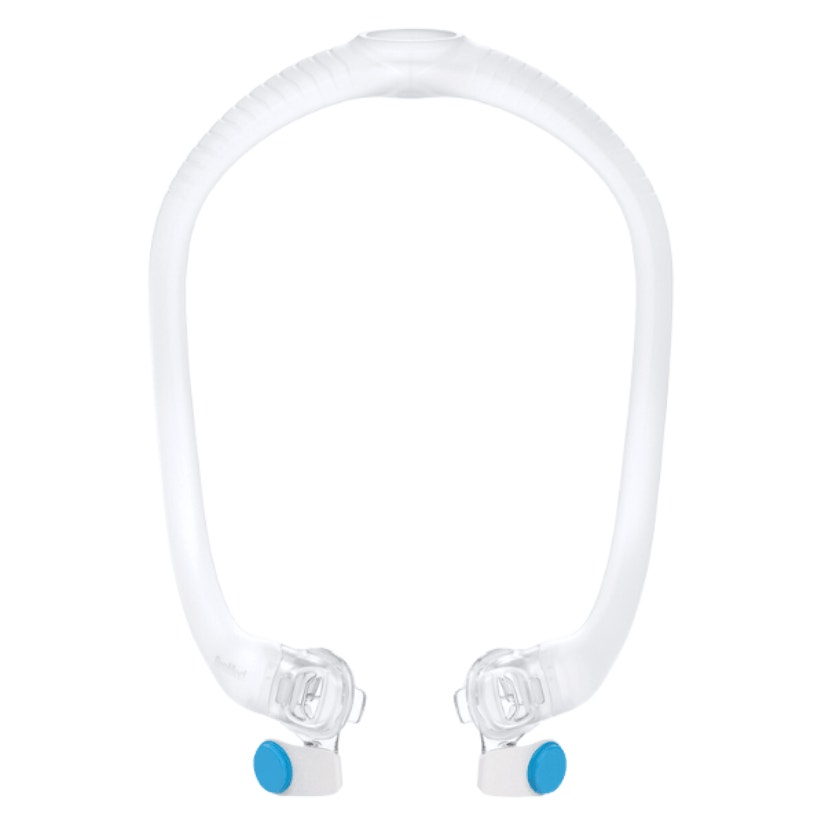

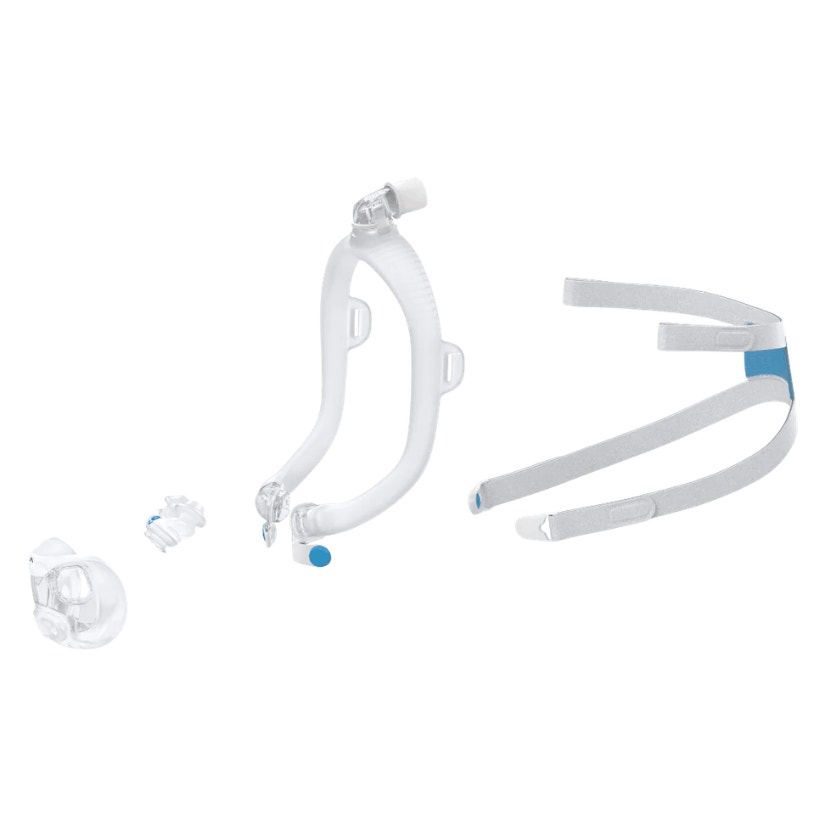

1 — AirFit™ X30i Mask Frame (of selected size option)
-

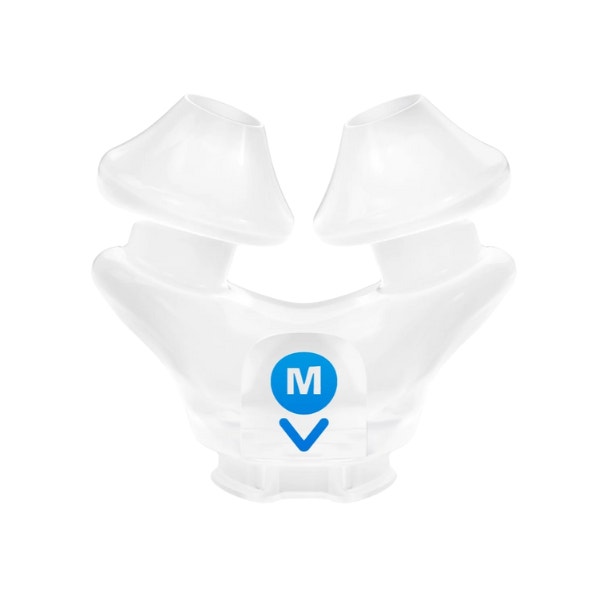

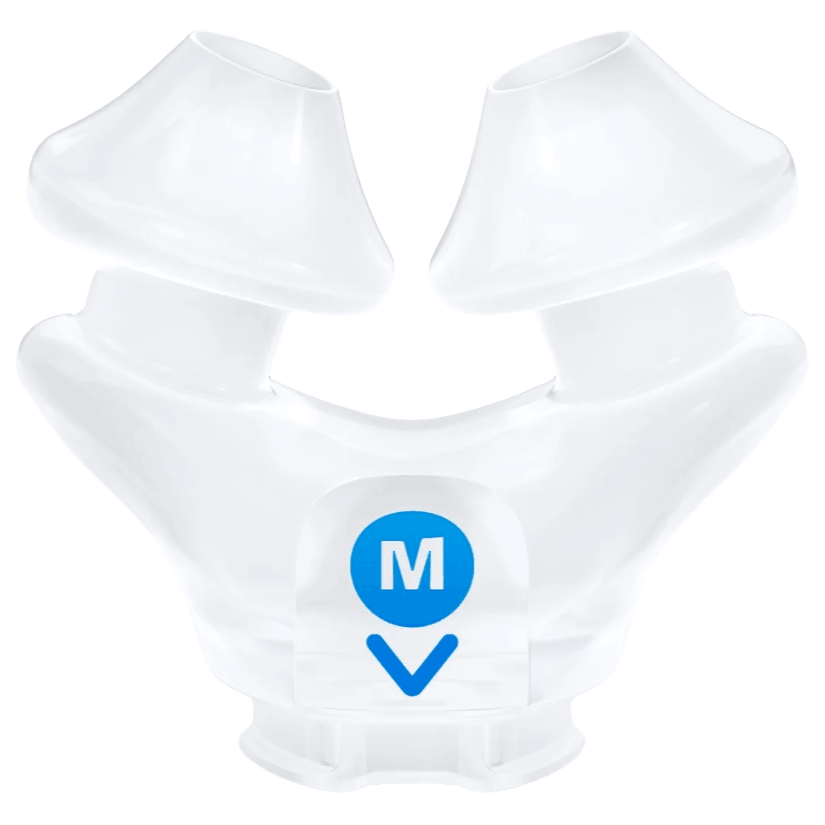

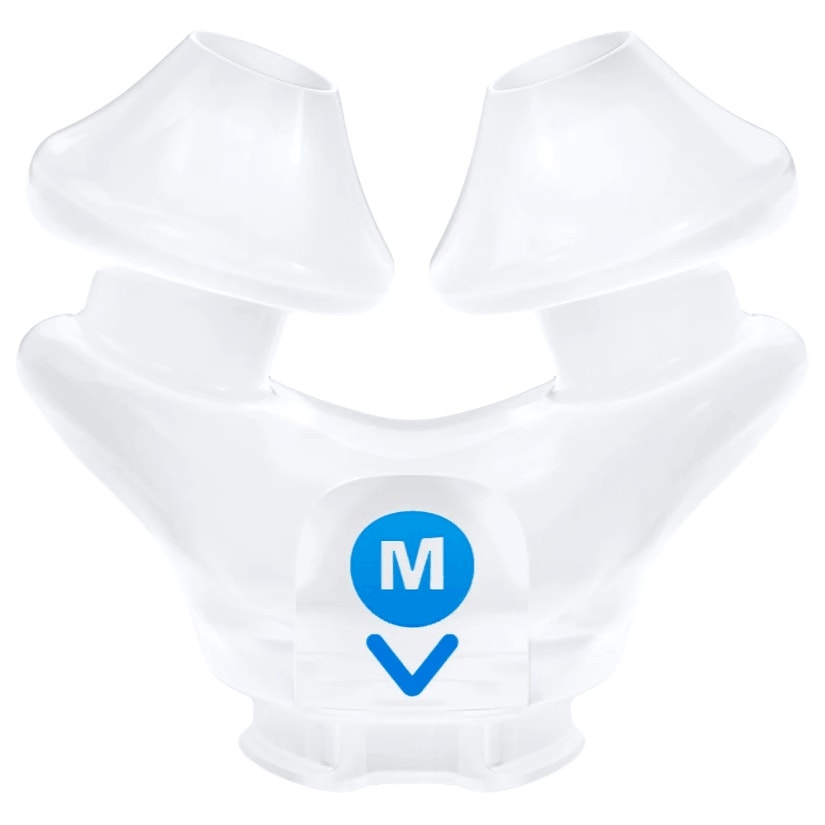

1 — AirFit™ X30i Nasal Pillow (of selected size option)
-

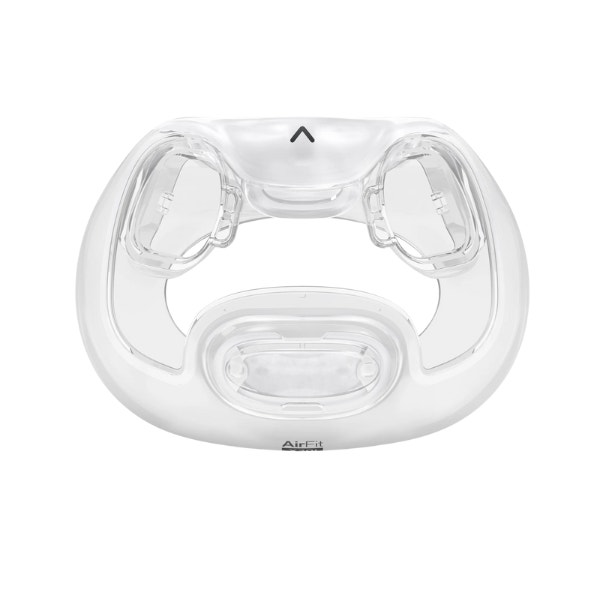

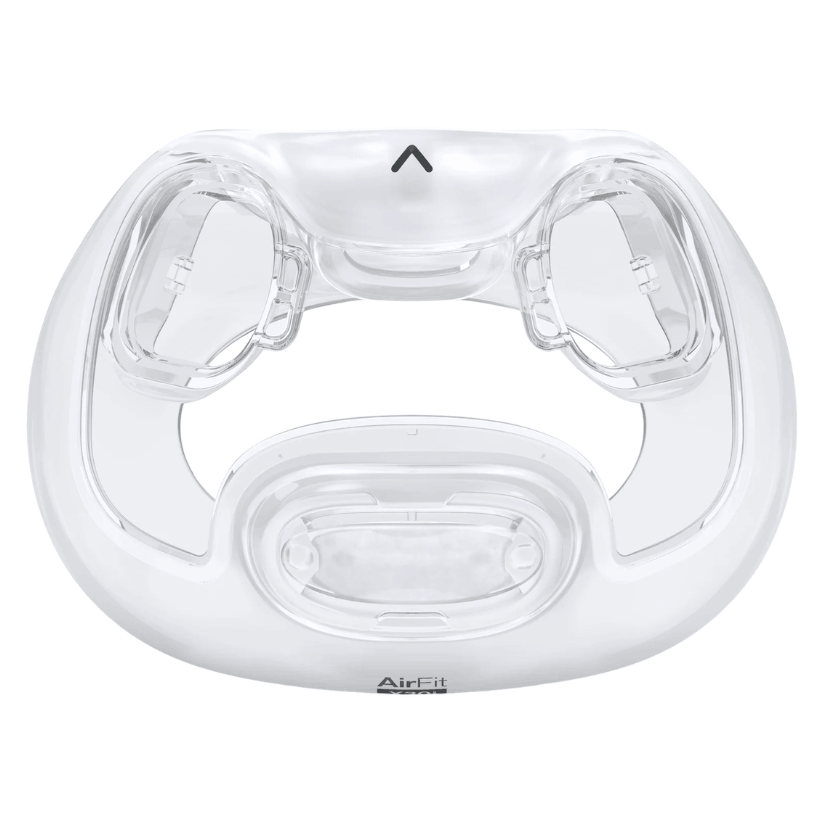

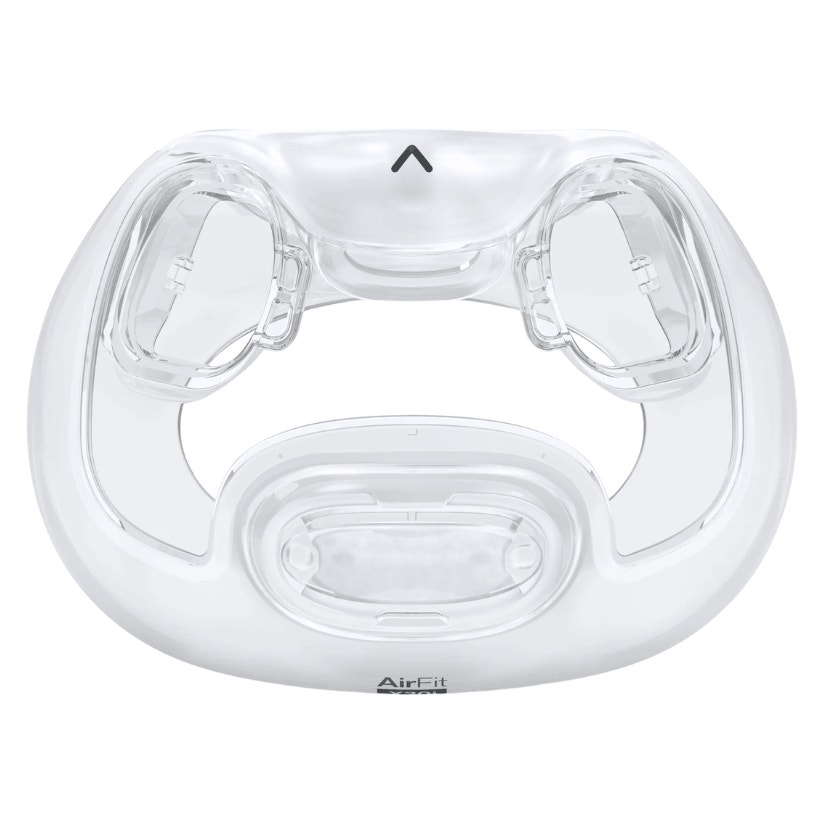

1 — AirFit™ X30i Oral Cushion (Standard Size) – Model # 64308
-
1 — Elbow
Please note: headgear does not automatically come with the order. If you'd like your purchase to include headgear, please select your headgear option above. If you select a headgear option, the following will be included:
-

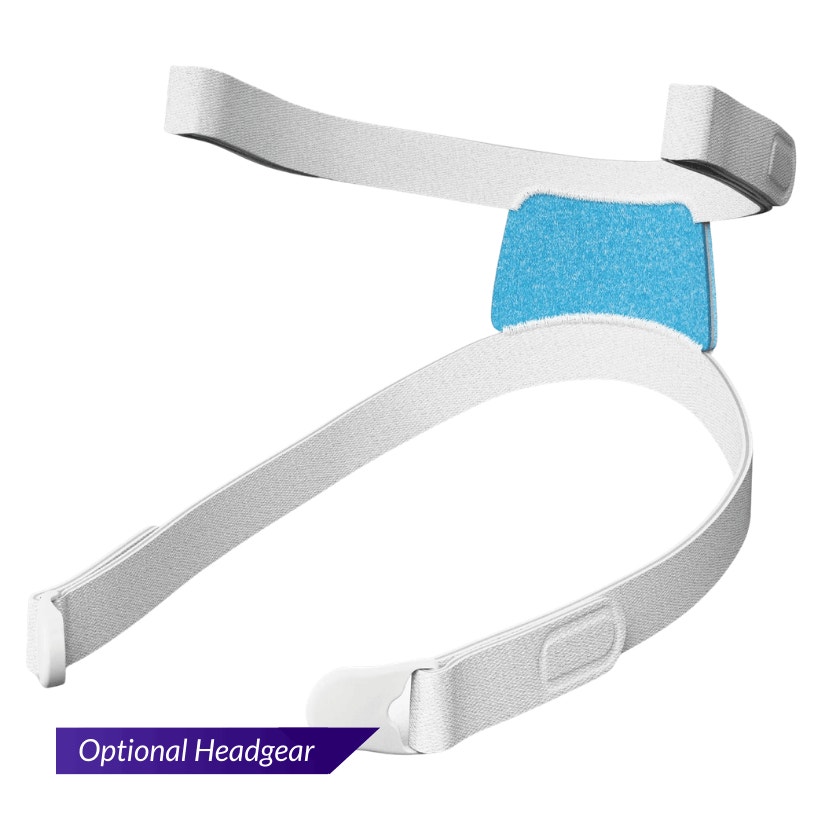

1 — AirFit™ X30i / F30i Headgear (Standard Size) - Model # 63372
Frame System & Nasal Pillow Size Options:
-
AirFit™ X30i Mask System - without Headgear - Small Frame / Small Pillow - 64302
-
AirFit™ X30i Mask System - without Headgear - Small Frame / Medium Pillow - 64303
-
AirFit™ X30i Mask System - without Headgear - Small Frame / Large Pillow - 64304
-
AirFit™ X30i Mask System - without Headgear - Standard Frame / Small Pillow - 64305
-
AirFit™ X30i Mask System - without Headgear - Standard Frame / Medium Pillow - 64306
-
AirFit™ X30i Mask System - without Headgear - Standard Frame / Large Pillow - 64307
-
AirFit™ X30i Mask System - without Headgear - Large Frame / Small Pillow - 64351
-
AirFit™ X30i Mask System - without Headgear - Large Frame / Medium Pillow - 64352
-
AirFit™ X30i Mask System - without Headgear - Large Frame / Large Pillow - 64353
Optional Headgear Sizes (please note headgear is not automatically included, you must select a headgear option to add it to this order):
-
AirFit™ F30i / X30i Headgear (One-size-fits all adjustable headgear) - 63372
Breathing Style:
-
Nasal Breathers (when paired with the X30i Nasal Pillows)
- Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
-
Stomach Sleepers
Additional Considerations:
-
Low to Mid Pressure Settings
- High Pressure Settings
- Frequent Nasal Congestion or Allergies
-
Minimal Contact
-
Glasses Wearers
-
Claustrophobia
-
Facial Hair
-
Full Field of Vision for Readers or TV Watchers
- Tossing and Turning During Sleep
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Align and insert the frame connector tab (a) into the cushion slot (b) and press down until it clicks. Repeat on the other side.
- Attach the elbow to the top of the frame until it clicks.
- With the ResMed logo facing outwards and up, insert the upper headgear straps into the frame from the inside.
- Fold the fastening tabs over to secure.

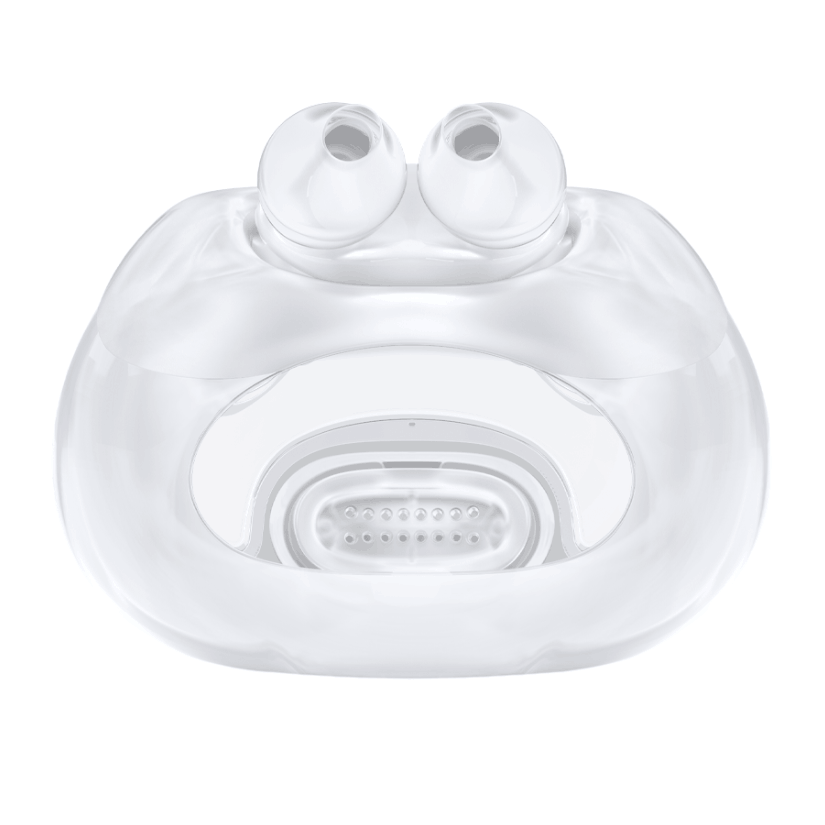

Note: If the elbow ring detaches, re-insert into the top of the frame. - Place the pillows above the oral cushion, ensuring that the pillows tab (a) is aligned to the oral cushion slot (b).
- Rotate the pillows forward and press into the oral cushion until it
clicks. - Ensure that the arrow on the pillows is aligned to the arrow on the oral
cushion.
Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting images of these instructions.
- With one hand holding the bottom of the cushion and the other on the frame, position the mask in front of your face.
- Place the oral cushion over your mouth. Ensure both pillows and oral cushion sits comfortably against your face. Align the pillows under your nose so that it sits securely inside your nostrils. With the ResMed logo on the headgear facing up, pull the headgear and frame over your head.
- Bring the lower headgear bands under your ears and attach the magnetic clips to the frame connectors.
- Undo the fastening tabs on the upper headgear bands and pull evenly.
- Repeat step 4 with the lower headgear bands.
- Connect the air tubing from the device to the mask elbow.
Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
If your mask is connected to a device, disconnect the device air tubing
from the mask elbow.
- Undo the fastening tabs on the upper headgear straps and pull from the frame. Keep the magnetic clips attached to the lower headgear straps.
- Squeeze the side buttons on the elbow and detach from the frame.
- Grip the frame connector and lift to unclip from the cushion. Repeat on the other side.
- Pull the pillows from the oral cushion.
| Operating Therapy Pressure Range |
| 4 to 30 cm H²O |

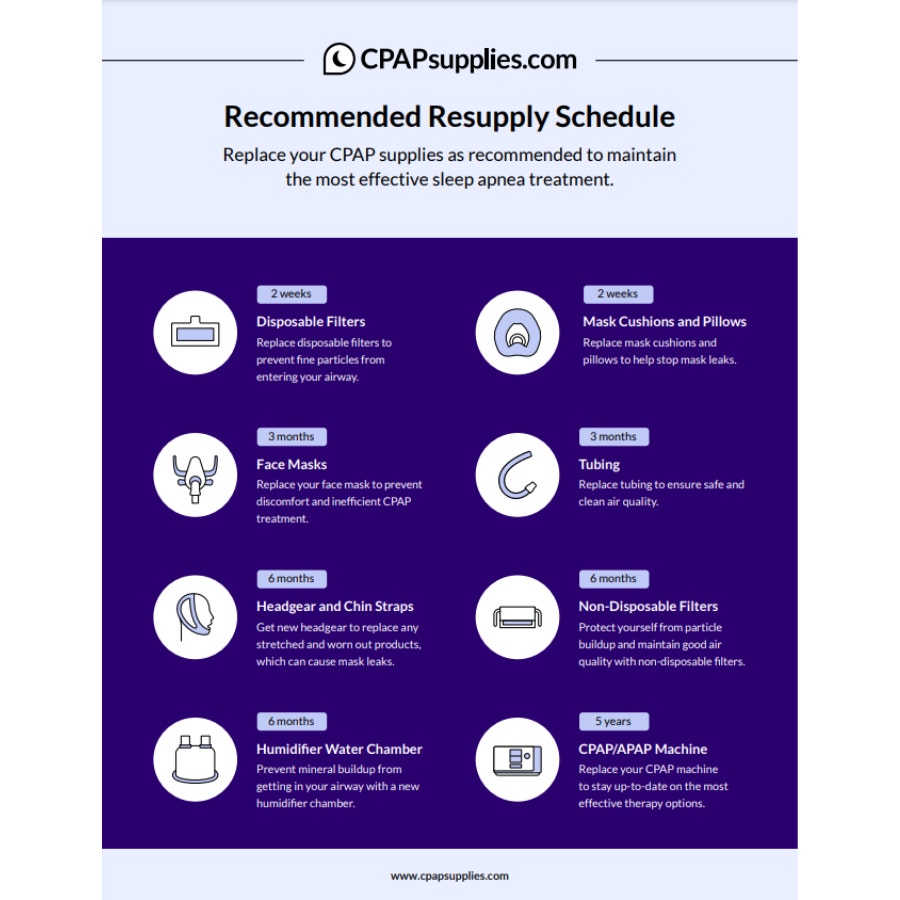

CPAPsupplies.com: CPAP Supplies Replacement Schedule
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
| SKU | pb_AF-X30i |
|---|---|
| Model | pb_AF-X30i |
| UPC | 619498643530, 619498643523, 619498643516, 619498643080, 619498633722, 619498643110, 619498643103, 619498643097, 619498643073, 619498643066, 619498643059, 619498643042, 619498643035, 619498643028 |
| Prescription Required | No |
| FSA/HSA Eligible | Yes |
| Dimensions | Mask Frame: All Sizes - 16” (L) x 10.5” (W) x 3” (H) | Oral Cushion: 13” x 9” x 1” | Nasal Pillows: 6” x 6” x 1” | Headgear: 13” x 8.25” x 2” |
| Included | 64302, 64303, 64304, 64305, 64306, 64307, 64351, 64352, 64353, 63372 |
