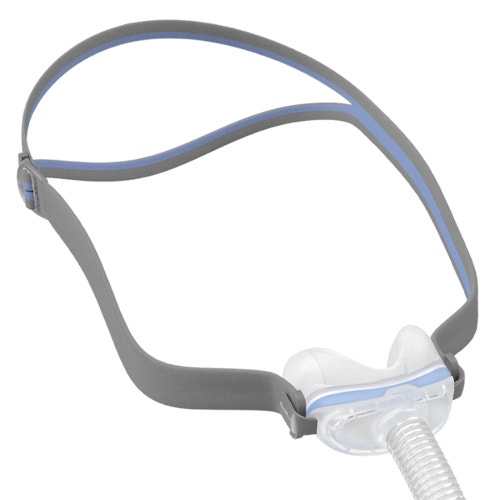

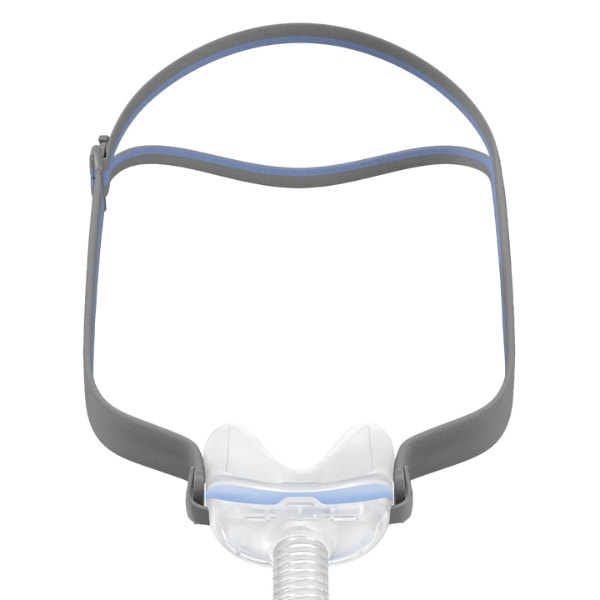

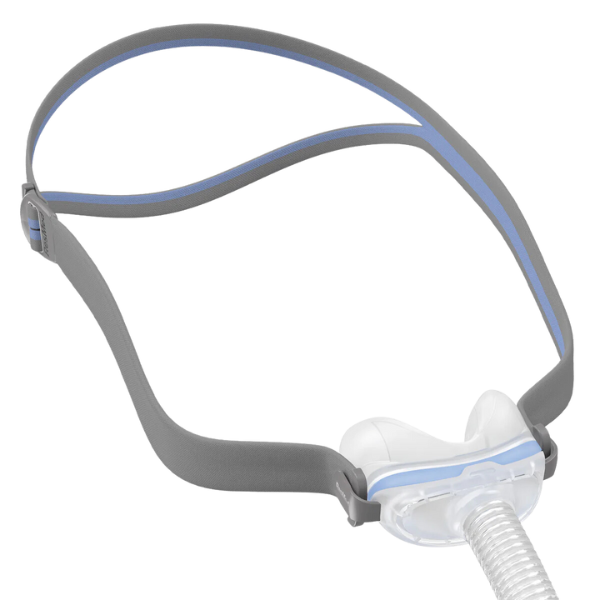

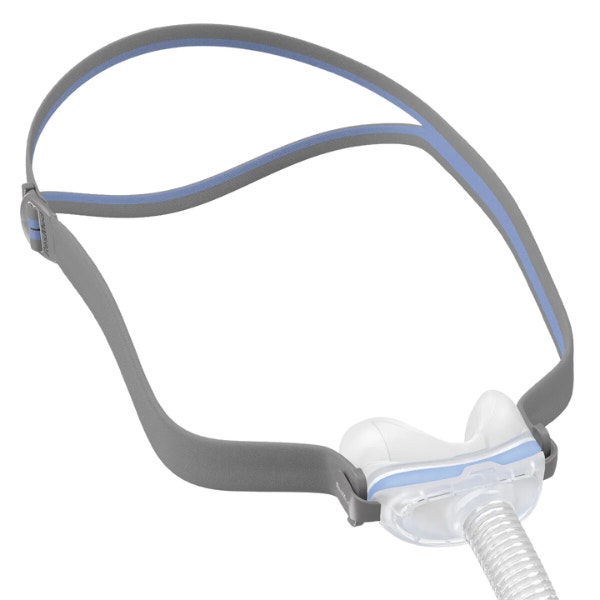

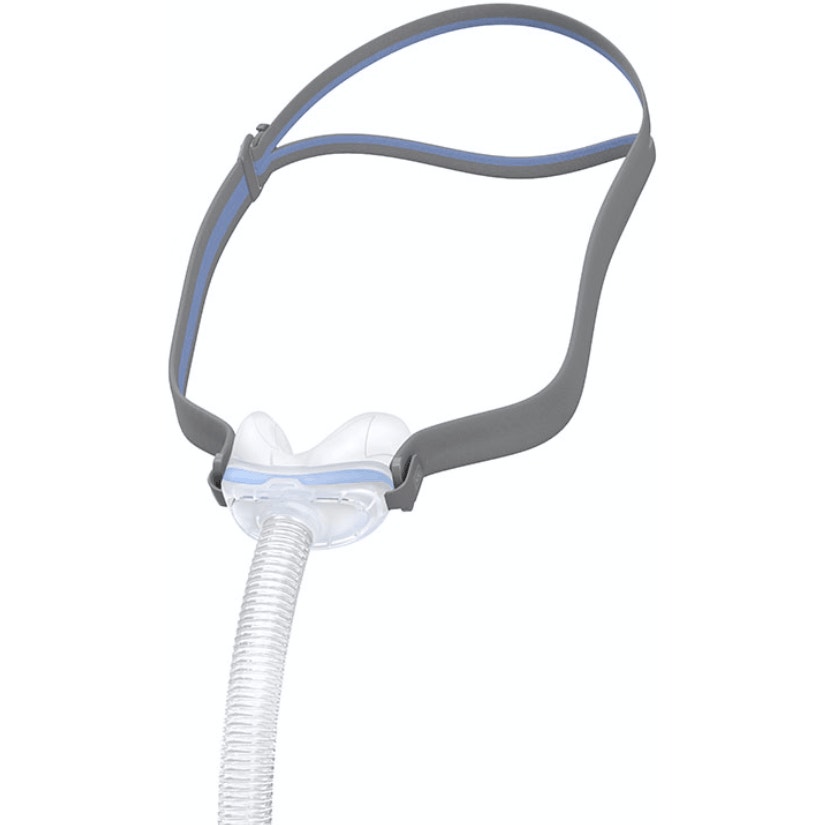

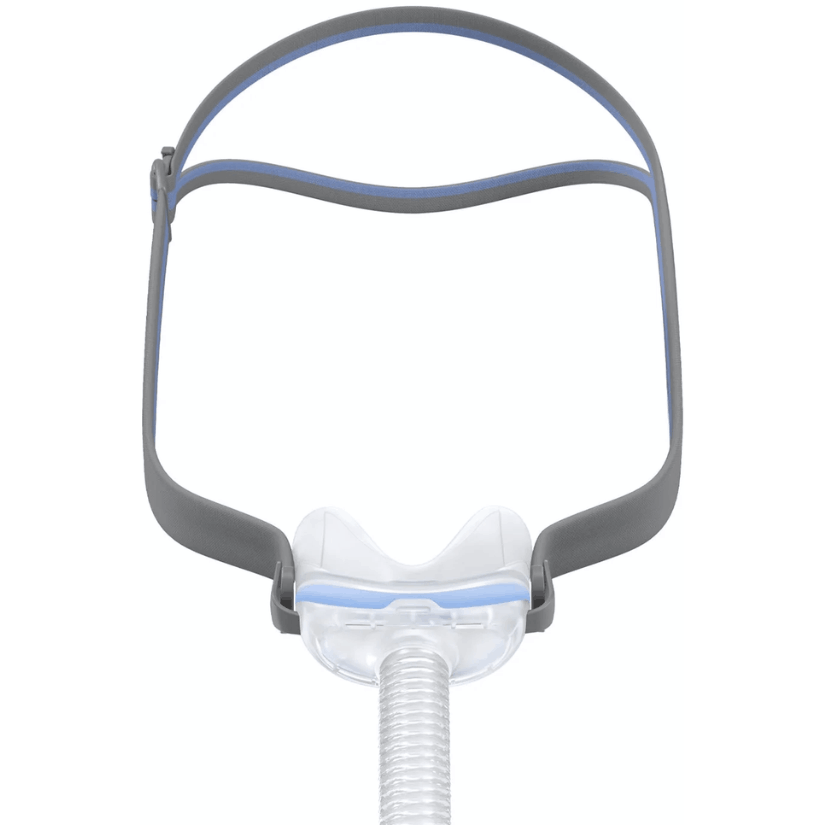

Resmed AirFit™ N30 Nasal CPAP Mask with Headgear
With its diffused venting and nasal cradle cushions, the AirFit™ N30 is one of the most quiet, compact and comfortable CPAP masks on the market. Designed with Resmed's QuickFit™ adjustable headgear to provide you with natural freedom of movement during your sleep while maintaining a secure fit for effective sleep therapy.
Resmed AirFit™ N30 Nasal CPAP Mask with Headgear Overview
The Resmed AirFit™ N30 features a dual-wall nasal cradle cushion that naturally adapts to your movement during sleep therapy while maintaining a secure, comfortable fit. The adjustable headgear allows you to easily slip your mask on and off and features split bands to allow for added adjustability. The AirFit™ N30 is equipped with Resmed's QuietAir™ diffused venting designed to spread out your exhaled air to minimize sleep disruptions throughout the night.
-

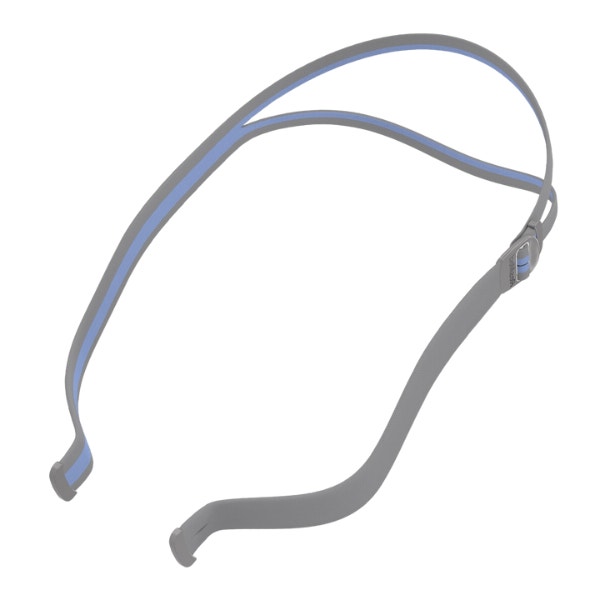

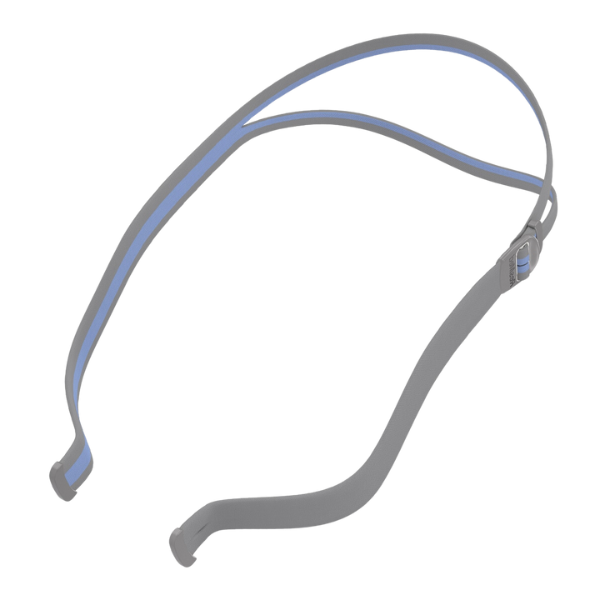

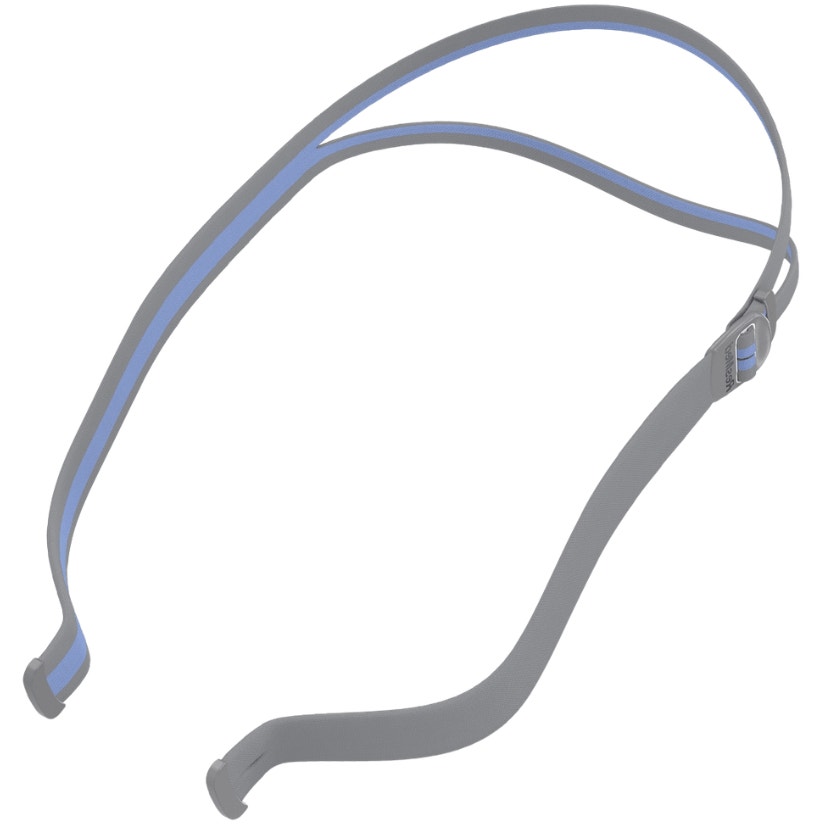

QuickFit™ Adjustable Headgear - designed to make the AirFit™ N30 easy to fit right out of the package. Slip it on and off like a pair of swim goggles. Split bands allow you to loosen or tighten the headgear if needed. Also featuring a single side-clip to provide extra adjustability.
-

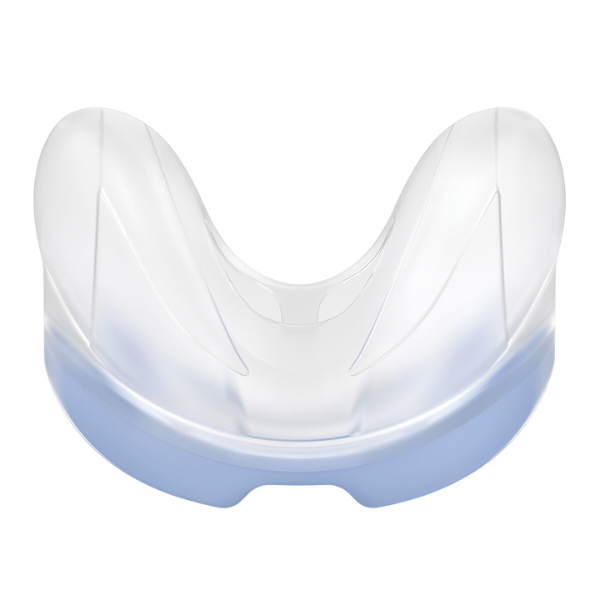

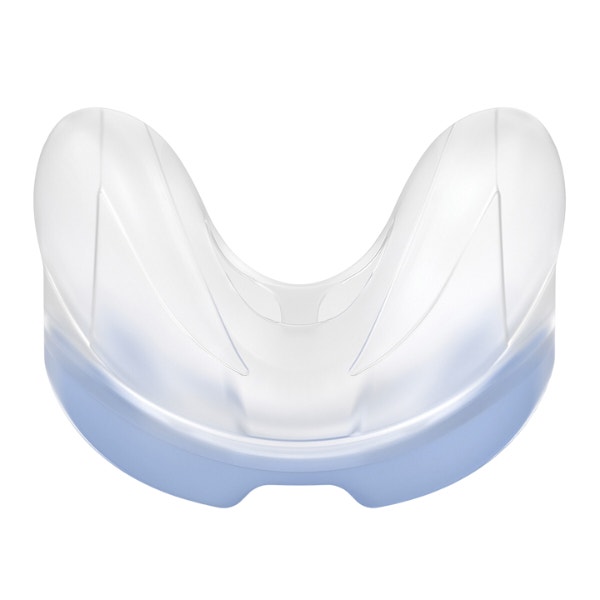

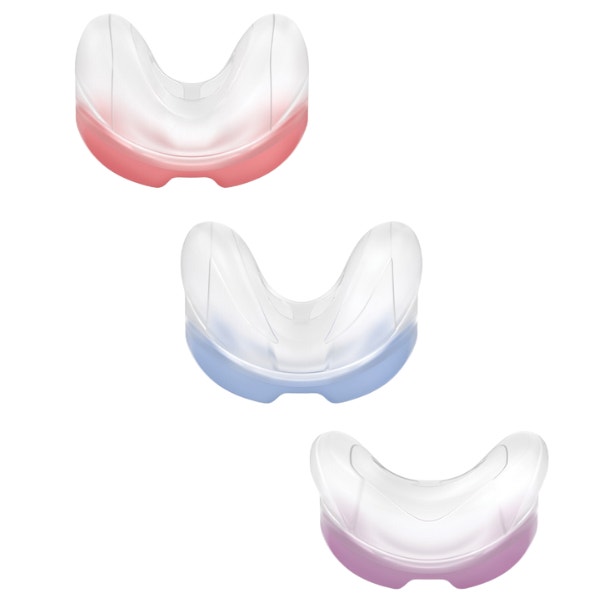

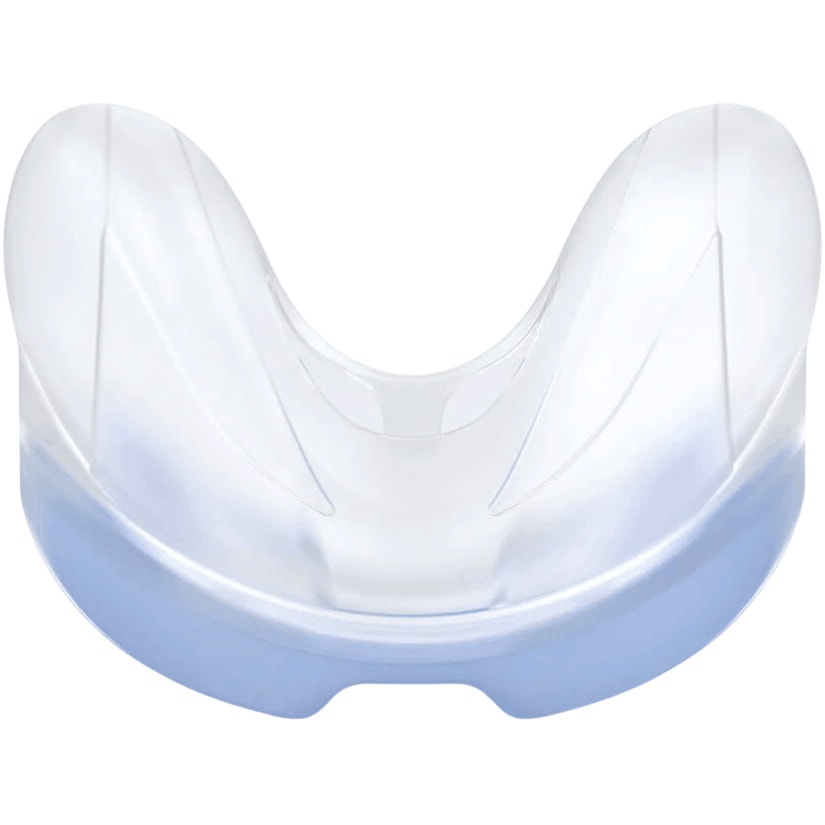

Nasal Cradle Cushions - The AirFit™ N30 nasal cushion rests discreetly under your nose, curved for comfort while providing a secure seal. Designed using soft, lightweight silicone that conforms to the shape of the nose.
-
QuietAir™ - ResMed's QuietAir™ technology makes the AirFit™ N30 quieter than many competitor's nasal masks. Its diffused venting is designed to break up exhaled air so it's spread out lightly, minimizing sleep disruptions.
-

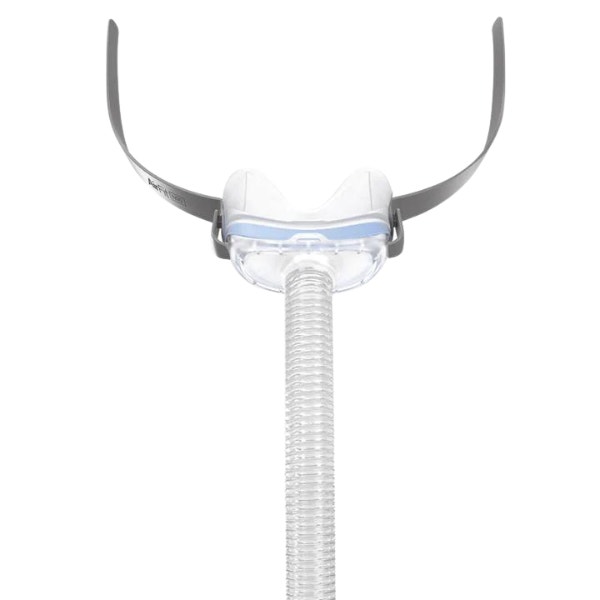

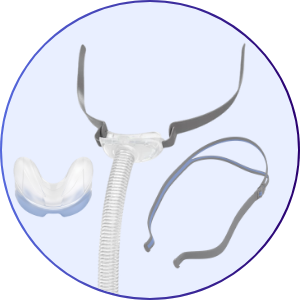

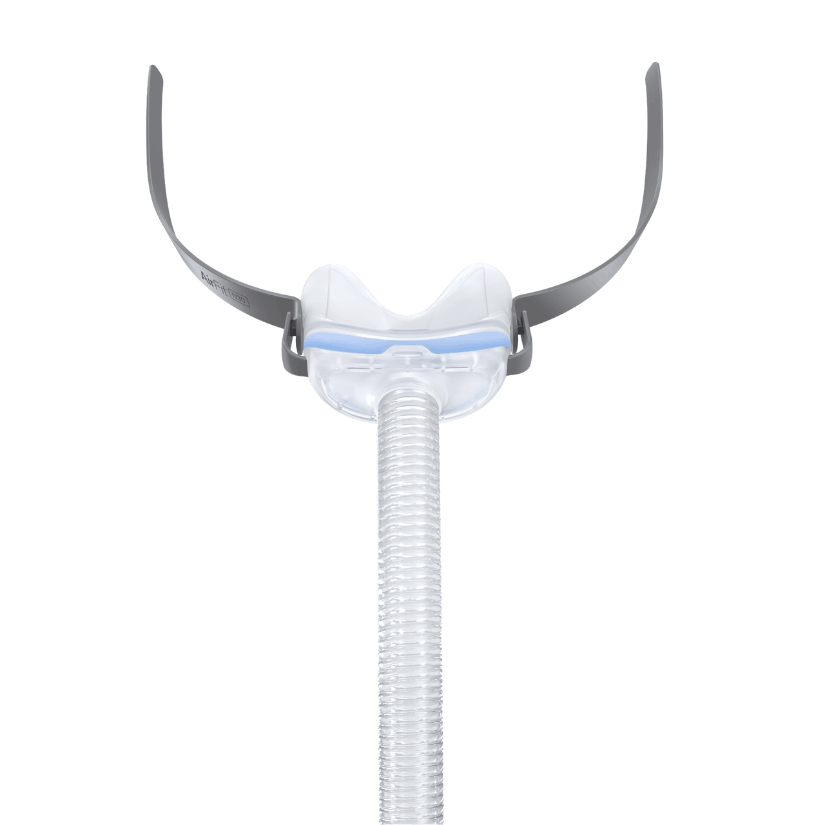

1 — AirFit™ N30 QuietAir Mask Frame & Stabilizer
-
1 — AirFit™ N30 Mask Cushion (of selected size)
-
1 — AirFit™ N30 Headgear
-
1 — Short Tube
If you're looking to purchase the Resmed AirFit™ N30 Nasal CPAP Mask components without a prescription, you can find them here.
-

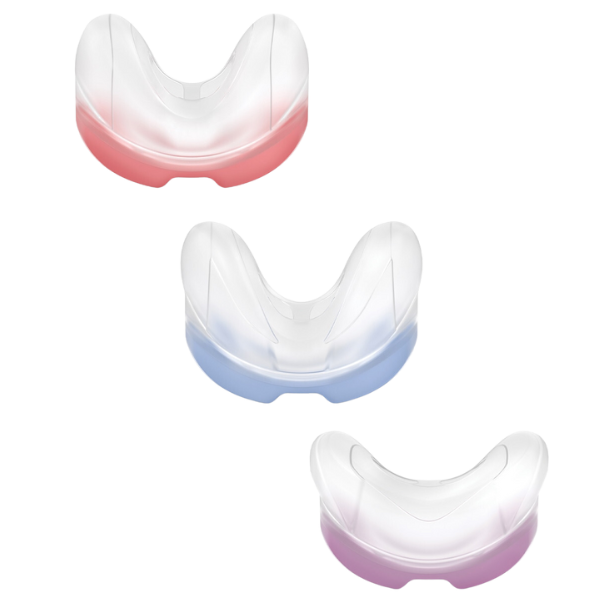

Small - AirFit™ N30 - with Headgear - 64222
-
Medium - AirFit™ N30 - with Headgear - 64223
-
Small Wide - AirFit™ N30 - with Headgear - 64224
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- With the gray side of the headgear facing out, insert each end of the headgear band over the stabilizers through the buttonholes.
- Secure the headgear by pulling the buttonholes over the ends of the stabilizers.
- Holding the mask frame, stretch the headgear lightly to ensure it is securely attached. Ensure that the headgear band is not twisted.
- Align the notch in the cushion to the tab on the mask frame. Firmly push one side of the cushion onto the frame, then repeat on the other side. Push down all the edges of the cushion onto the frame to ensure that the edges are completely flat.
Fitting Your Mask:
Refer to the fitting diagrams in these instructions.
- While holding the cushion away from your nose, make sure that the cushion size, left (L) and right (R) indicators are facing towards you. Place the cushion under your nose.
- Pull the headgear bands over your head by holding the bottom band and stretching it around the back of your head. The top band should sit comfortably on the crown of your head.
- Briefly pull your mask away from your nose and place it back to ensure that the cushion fits comfortably.
Disassembling Your Mask:
If the mask is connected to your device, disconnect the air tubing
from the short tube.
- Firmly pinch one side of the cushion and pull away from the frame.
- Unhook the headgear from the stabilizer by pulling on the end cap to reveal the buttonhole.
- Slide the headgear off the end of the stabilizer.
| Operating Therapy Pressure Range |
| 4 - 25 cm H2O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
AirFit™ N30: Fitting Guide
AirFit™ N30: Cushion Sizing Guide
AirFit™ N30: Cleaning Guide
AirFit™ N30: Assembly Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | p_AF-N30-wHG |
| Model | p_AF-N30-wHG |
| UPC | 619498642229, 619498642236, 619498642243 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 64222, 64223, 64224 |
