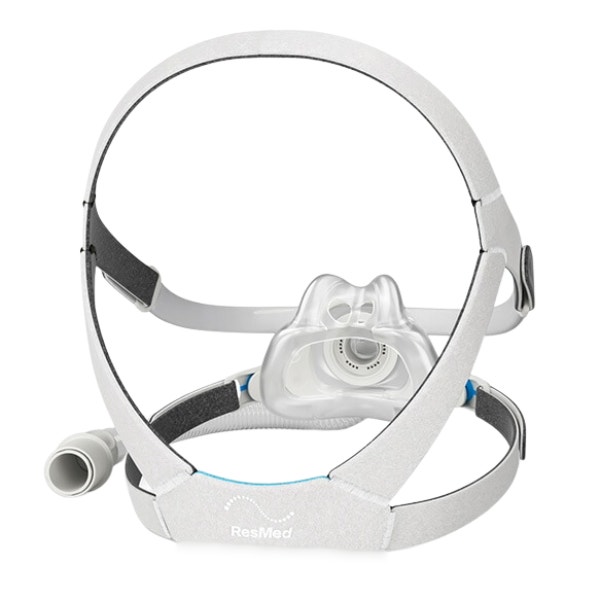

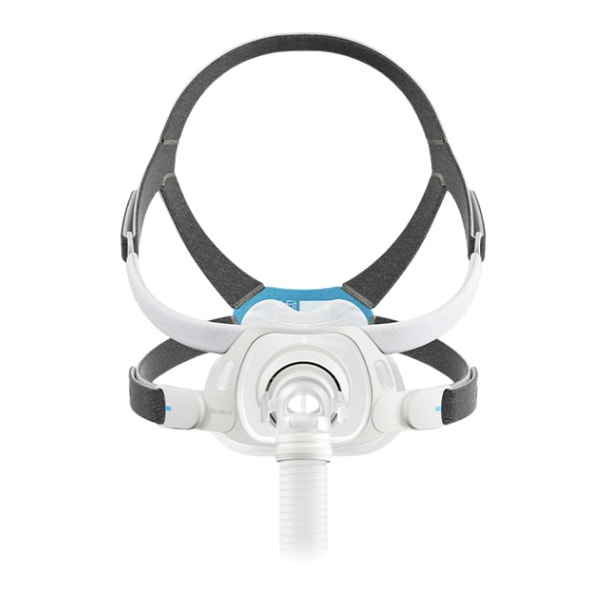

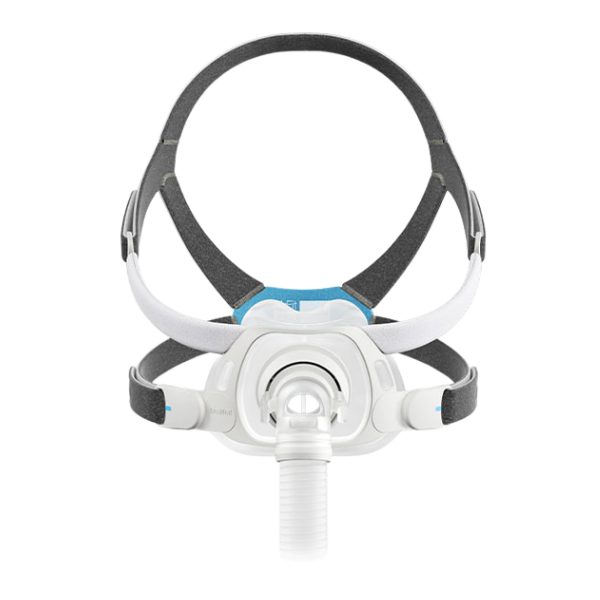

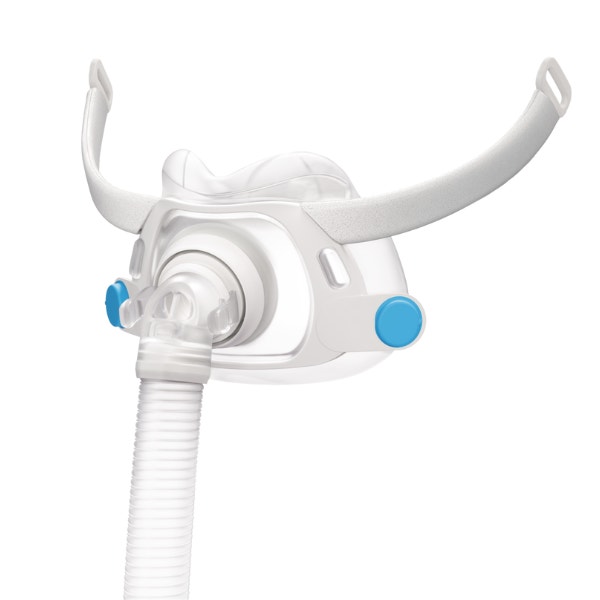

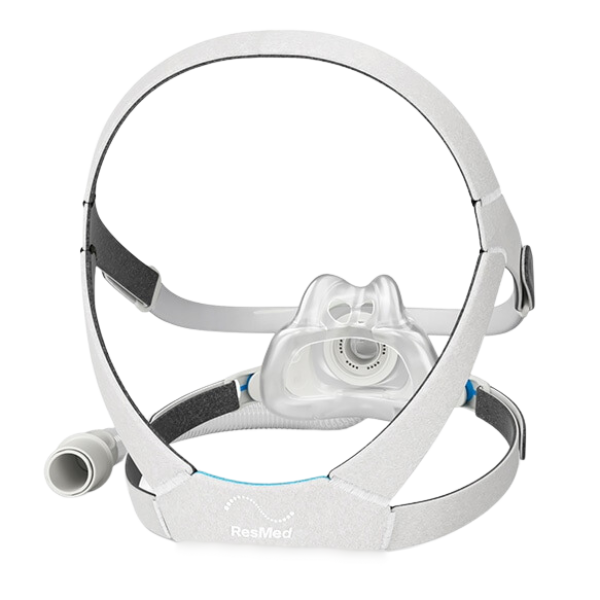

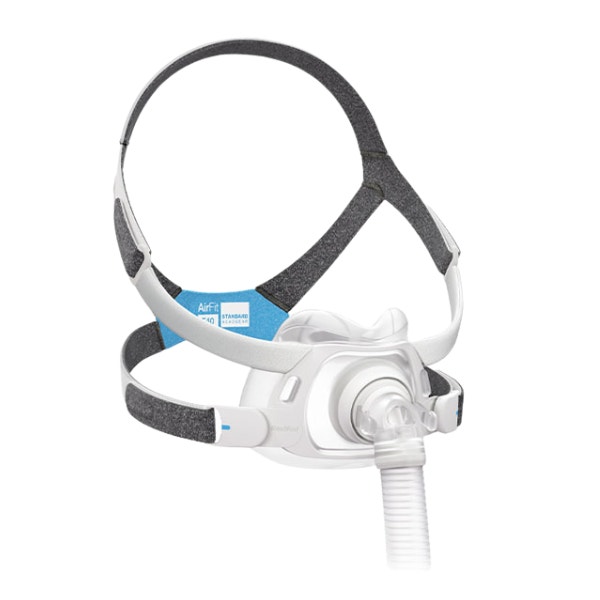

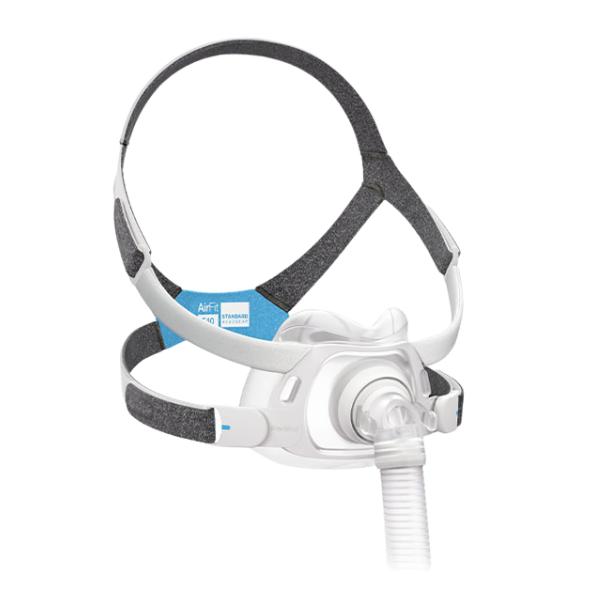

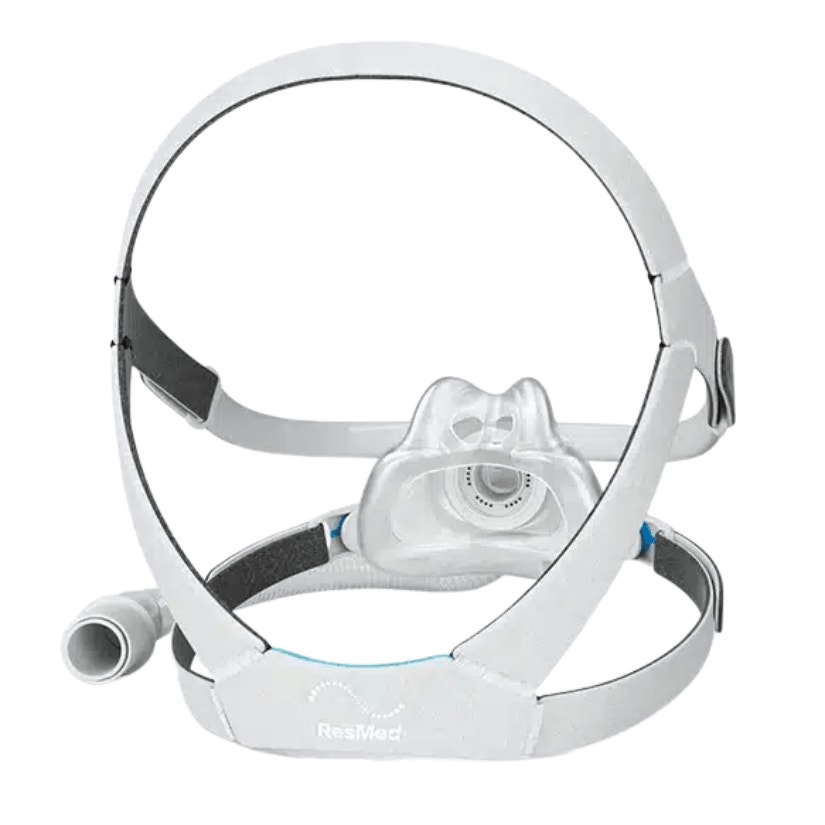

Resmed AirFit™ F40 Full Face CPAP Mask with Headgear
The AirFit™ F40 is Resmed's smallest tube-down full face CPAP mask, featuring a minimal-contact design that comfortably rests under your nose, allowing you the flexibility to sleep in any position. The AdaptiSeal™ silicone cushions adapt to your unique facial contours to maintain a comfortable, yet secure seal.
Resmed AirFit™ F40 Full Face CPAP Mask with Headgear Overview

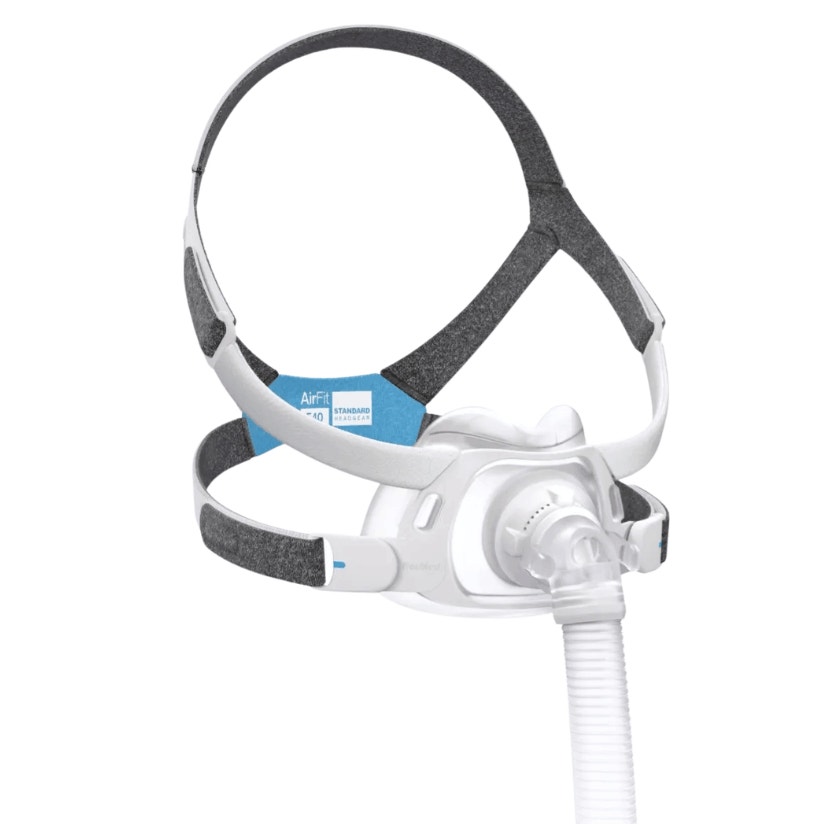

Combining performance and comfort, the AirFit™ F40 by Resmed features a flexible under-the-nose, tube-down design that provides more freedom of movement during CPAP therapy, allowing you to freely sleep in your preferred position.
Per Resmed, please note the following about this mask’s magnetic contraindications:
Update to Contraindication
In an update to the previously contraindicated metallic aneurysm hemostatic clips in the head and metallic splinters in one or both eyes following a penetrating eye injury, Resmed is further contraindicating the use of its masks with magnets for patients where they, or anyone in close physical contact while using the mask (e.g., bed partner), have the following:
- Active medical implants that interact with magnets (i.e., pacemakers, implantable cardioverter defibrillators (ICD), neurostimulators, cerebrospinal fluid (CSF) shunts, insulin/infusion pumps)
- Metallic implants/objects containing ferromagnetic material (i.e., aneurysm clips/flow disruption devices, embolic coils, stents, valves, electrodes, implants to restore hearing or balance with implanted magnets, ocular implants, metallic splinters in the eye)
Update to Warning
The safe distance to the magnets has been increased from 2 inches (50 mm), and patients are now warned to keep the mask magnets at a safe distance of 6 inches (150 mm) away from implants or medical devices that may be adversely impacted by magnetic interference. This applies to patients, or anyone in close physical contact with the mask magnets.
Note, not all models or manufactured variants of medical devices listed in the contraindications are affected by external magnetic fields. Only those that interact with magnets or contain ferromagnetic materials present the potential for magnetic interference.
For more information: please reach out to Resmed directly; CPAPsupplies.com does not have any additional details on this update. Visit www.resmed.com/magnetupdate for more details and the appropriate contact information.
-

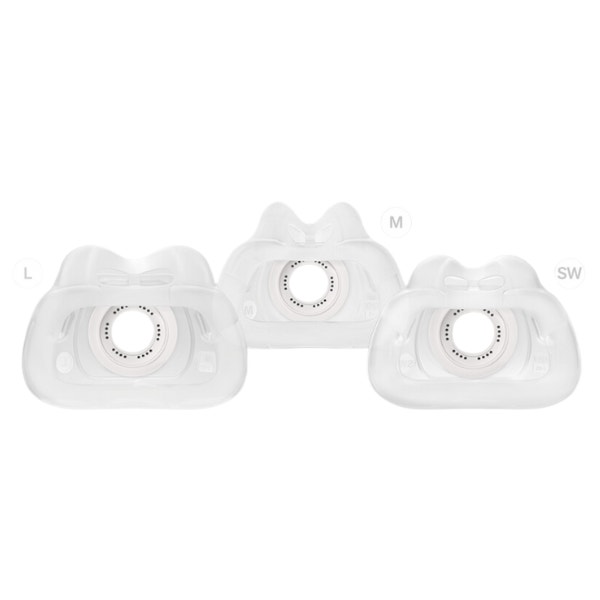

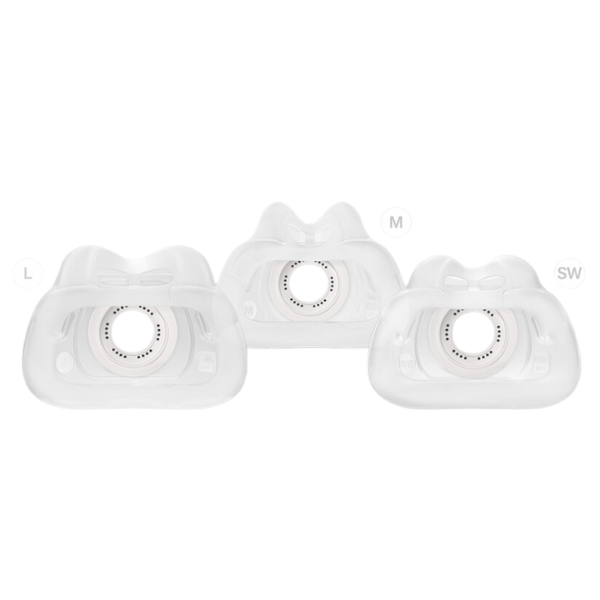

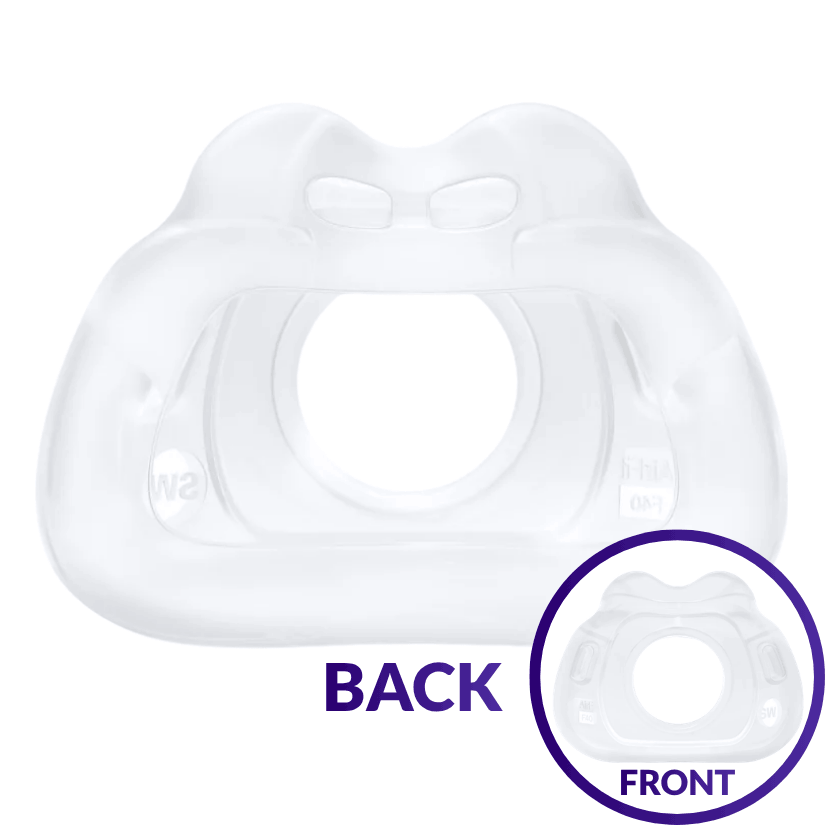

AdaptiSeal™ - Resmed's AdaptiSeal™ silicone cushions adapt to your face to maintain a secure yet comfortable seal.
-
Magnetic Clips - The AirFit™ F40 features magnetic clips so you can connect your mask frame with ease, allowing for quick application and removal.
-
Tube-Down Design - The under-the-nose tube-down design of the short tube provides the flexibility to sleep in a wide range of positions.
-
Quick-Release Elbow - Allows you to attach and detach your mask elbow quickly.
-
QuietAir™ - The AirFit™ F40 short tube also features Resmed's QuietAir™ diffused ventilation, which significantly reduces the noise of air dispersion, creating a quieter sleep therapy experience.
-

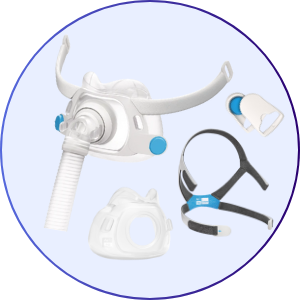

1 — AirFit™ F40 Mask Frame and Cushion (of selected size option)
-
1 — Elbow and short tube
-

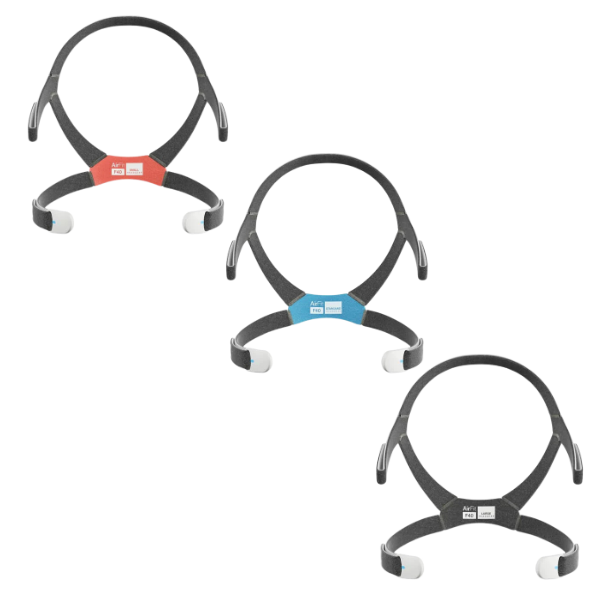

1 — AirFit™ F40 Headgear
-
2 — Magnetic Clips
If you're looking to purchase the Resmed AirFit™ F40 Full Face CPAP Mask components without a prescription, you can find them here.
AirFit™ F40 Mask Materials:
| Component: | Material: |
|---|---|
| Headgear | Nylon (PA)/Spandex |
| Cushion | Silicone |
| Frame | Nylon (PA) |
-

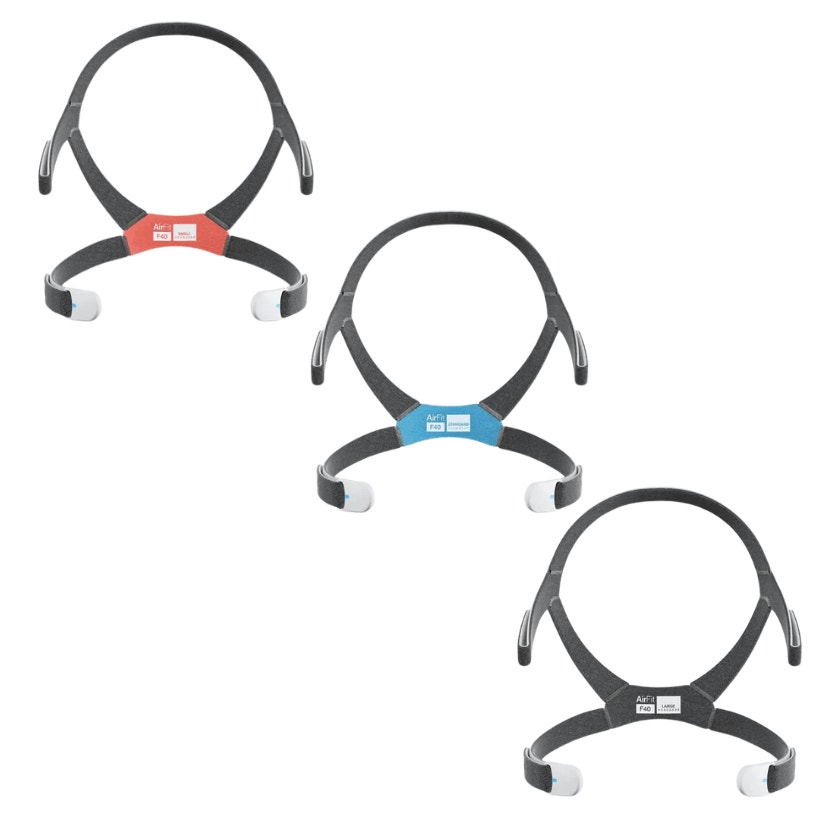

Small Headgear, Medium Cushion - AirFit™ F40 Mask with Headgear - 64603
-
Standard Headgear, Small Wide Cushion - AirFit™ F40 Mask with Headgear - 64600
-
Standard Headgear, Medium Cushion - AirFit™ F40 Mask with Headgear - 64601
-
Standard Headgear, Large Cushion - AirFit™ F40 Mask with Headgear - 64602
-
Large Headgear, Medium Cushion - AirFit™ F40 Mask with Headgear - 64604
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Insert the cushion stud into the frame stud hole. Repeat on the other
side. - Align the vent ring groove against the cushion opening. Press firmly to
secure in place and ensure that the cushion opening sits into the vent
ring groove. - Connect the elbow to the vent ring.
- With dark grey fabric side facing inwards, insert both upper headgear
straps into the frame from the inside and fold the fastening tabs over
to secure.
Fitting Your Mask:
Remove all packaging before using the mask.
- Twist and pull both magnetic clips away from the frame magnets.
- Place the cushion under your nose and ensure it sits comfortably
against your face. With the Resmed logo on the headgear facing out,
pull the headgear over your head. The top headgear strap should sit on
top of your head and not too far forward or back. - Bring the lower headgear straps under your ears and attach the
magnetic clips to the frame. - If the mask needs adjusting, undo the fastening tabs on the upper
headgear straps and pull evenly. Repeat with the lower headgear
straps
Disassembling Your Mask:
Refer to the disassembly diagrams in these instructions.
If your mask is connected to a device, disconnect the device air tubing
from the short tube.
- Undo the fastening tabs on the upper headgear straps and pull from
the frame.
Tip: Keep the magnetic clips attached to the lower headgear straps to
easily distinguish the upper and lower straps when reassembling. - Squeeze the side buttons on the elbow and detach from the vent ring.
- Pull the cushion stud out of the frame stud hole, repeat on the other
side. - Pull the vent ring from the cushion.
| Operating Therapy Pressure Range |
| 4 to 30 cmH²O |

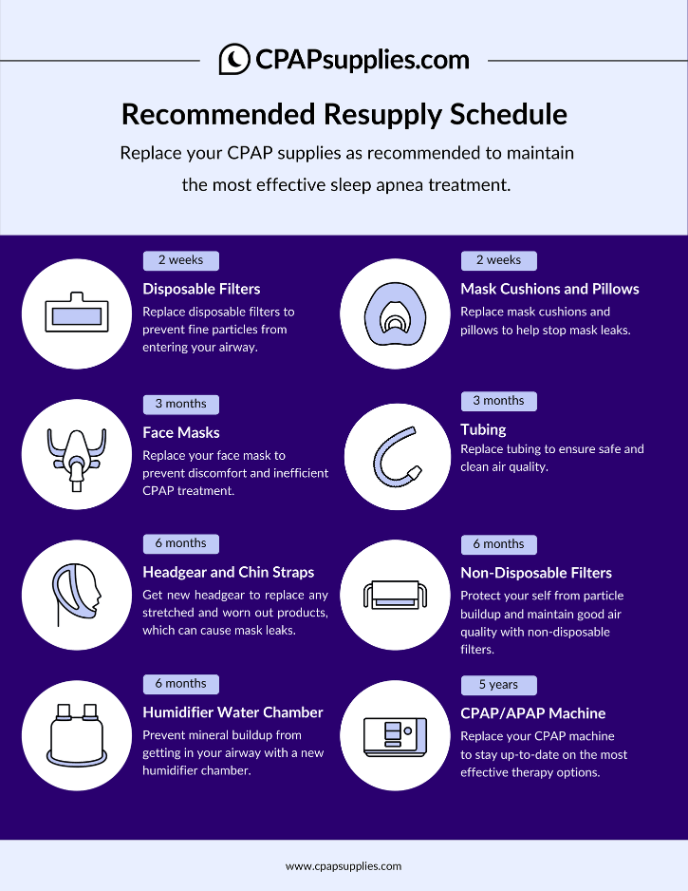

CPAPsupplies.com: CPAP Supplies Replacement Schedule
AirFit™ F40: Fitting Guide
AirFit™ F40: Find Your Mask Size
AirFit™ F40: Essential Cleaning Tips
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Mask Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Resmed |
|---|---|
| SKU | p_AF-F40-wHG |
| Model | p_AF-F40-wHG |
| UPC | 619498646005, 619498646012, 619498646036, 619498646043, 619498646029 |
| Prescription Required | Yes |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 64600, 64601, 64602, 64603, 64604 |
