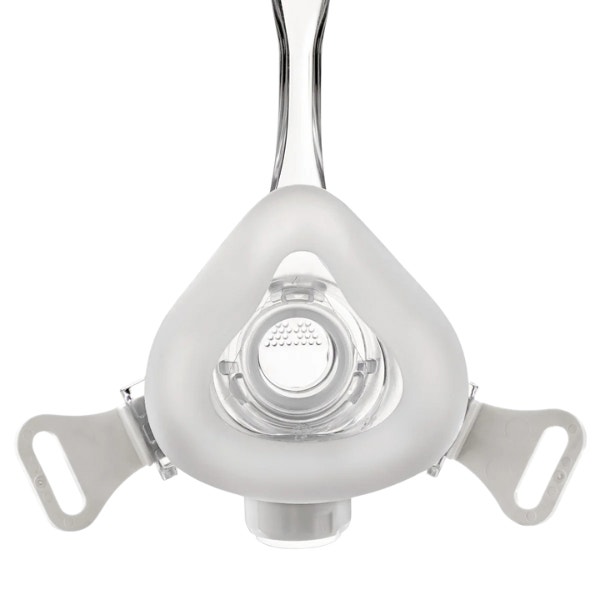

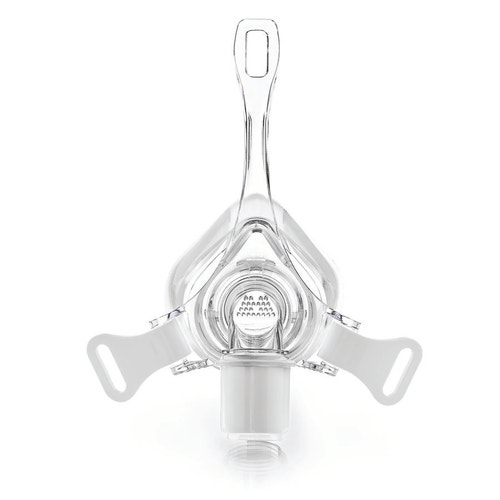

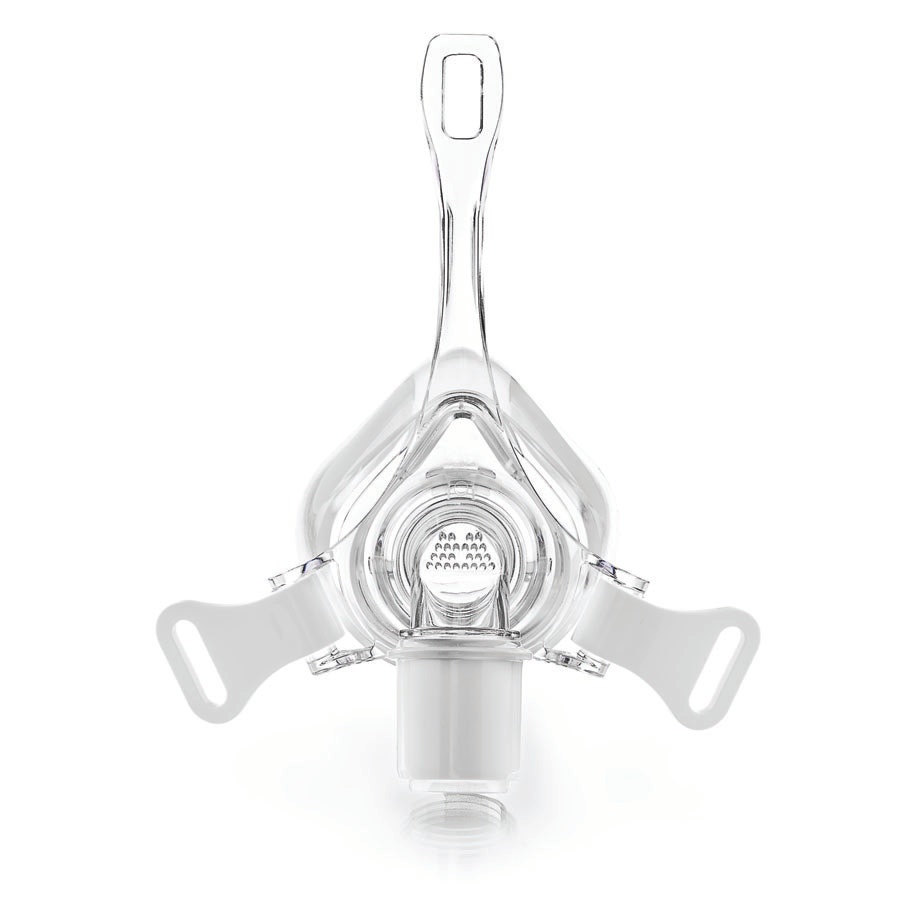

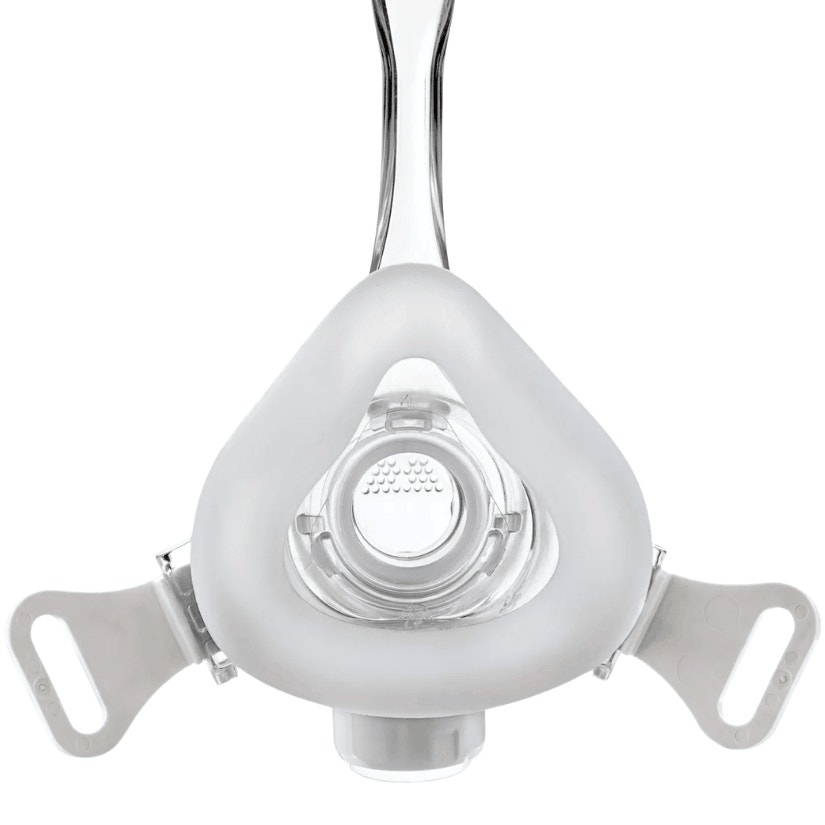

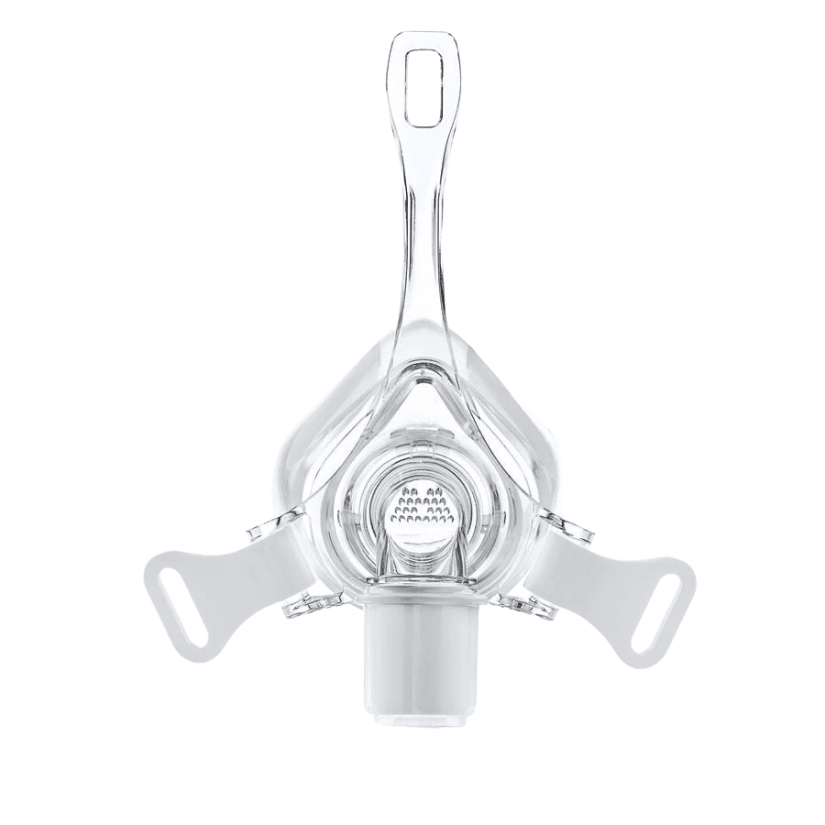

Philips Respironics Pico Nasal CPAP Mask Frame without Headgear
The Philips Respironics Pico Nasal CPAP Mask Frame offers a small, lightweight option for CPAP users looking for a minimal contact nasal mask. The low-profile frame reduces facial contact while creating an effective seal with its soft, comfortable nasal cushion design.
Philips Respironics Pico Nasal CPAP Mask Frame without Headgear Overview
The minimalist design of the Philips Respironics Pico Nasal CPAP Mask frame offers the combination of comfort and performance. The Pico features a soft, flexible nasal cushion that reduces facial contact while creating a secure seal for effective CPAP therapy.
Please note: headgear is not included in this order but can be purcahsed separately here.
-
1 — Pico Mask Frame
-

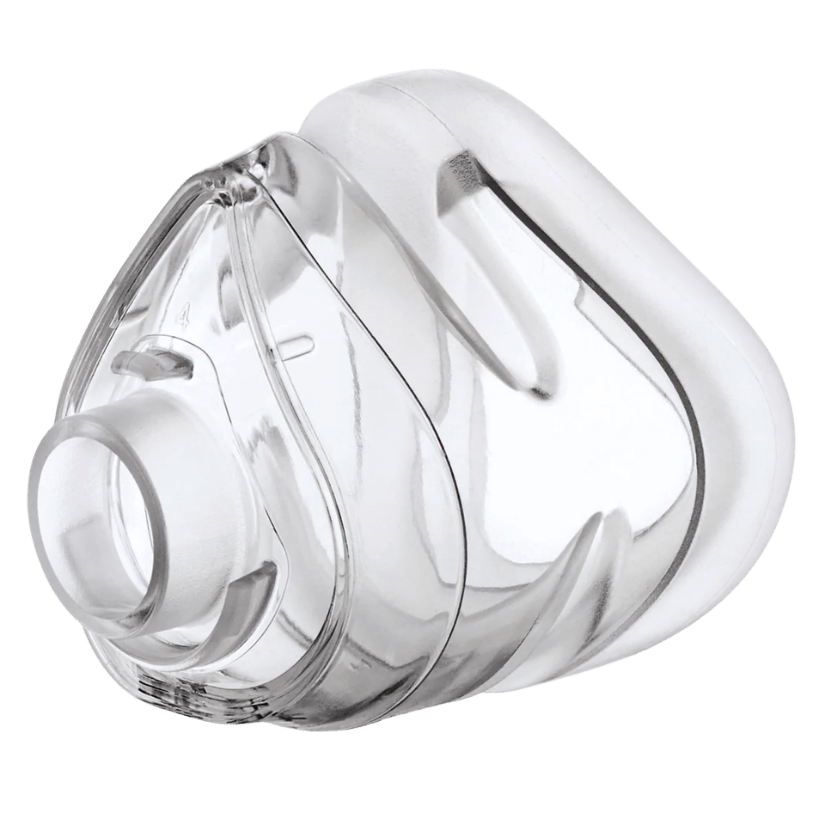

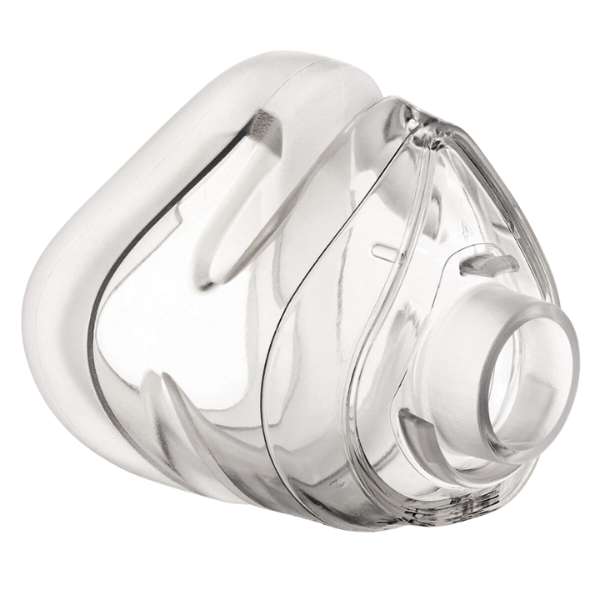

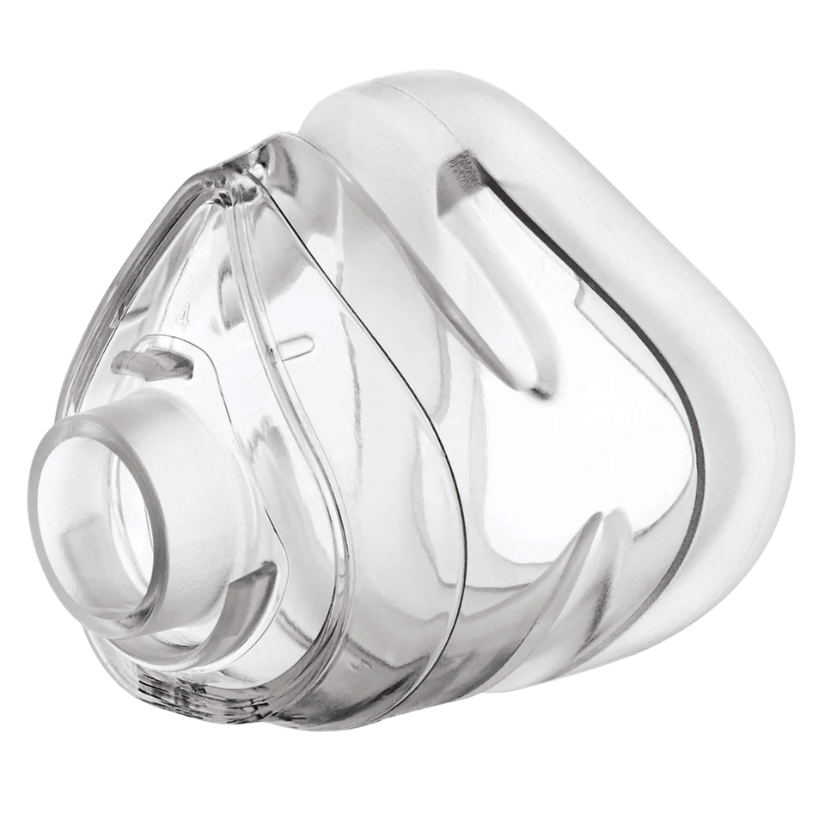

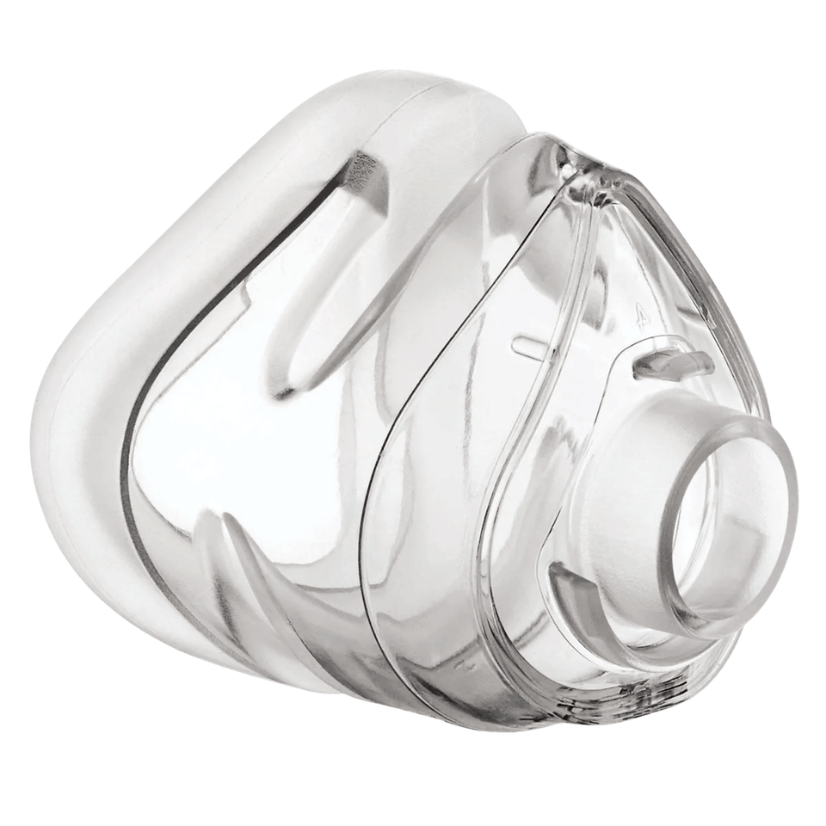

1 — Pico Nasal Cushion (of selected size)
-
1 — Elbow
-
1 — Tubing Quick Release
Please note: headgear is not included in this order but can be purcahsed separately here.
-
Small/Medium - Pico Mask Frame - without Headgear - 1104918
-
Large - Pico Mask Frame - without Headgear - 1104919
-
Extra Large - Pico Mask Frame - without Headgear - 1104920
Breathing Style:
-
Nasal Breathers
- Mouth Breathers (when paired with a CPAP mask chinstrap)
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
-
Active Sleepers
Additional Considerations:
-
High Pressure Settings
- Glasses Wearers
- Claustrophobia
- Facial Hair
-
Full Field of View for Reading or Watching TV Before Bed
-
Tossing and Turning During Sleep
Fitting Your Mask:
Remove all packaging before using the mask.
Before Putting on the Mask
- Sizing: The cushion should fit the width of your nose without blocking your nostrils. The top of the cushion may sit between the bridge and tip of your nose.
Putting on the Mask
- Clip: To disconnect turn like a key.
- Headgear tab: To undo peel away from the headgear strap.
- Headgear: Pull the headgear on over your head.
- Cushion: Place the cushion over your nose.
- Clip: To connect, press onto the mask frame.
- Headgear tab: Press tab against the headgear strap to reattach.
Adjusting the Mask
- Headgear: Adjust the top straps evenly.
- Headgear: Adjust the bottom straps evenly.
Note: Do not overtighten the headgear. The location of the headgear crown strap may vary depending on head size. Position the strap so the mask sits comfortably.
Using the Mask
- Connect the flexible tubing (included with CPAP or bi-level device) to the quick release swivel.
- Turn the therapy device on. Lie down. Breathe normally.
- Assume different sleeping positions. Move around until comfortable. If there are any excessive air leaks, make final adjustments. Some air leaking is normal.
Tubing Quick Release
The elbow is equipped with a tubing quick release for the CPAP tubing. Pull on the tubing quick release and it will disengage from the elbow and come loose with the tubing .
Comfort Tips
- The most common mistake is overtightening the headgear. The headgear should fit loose and comfortable. If your skin bulges around the mask or if red marks appear on your face, loosen the headgear.
- Re-seat the mask by pulling it directly away from your face and gently setting it back into place.
Assembling/Disassembling Your Mask:
Refer to the assembly/disassembly diagrams in these instructions.
Removing the Headgear
- Peel away the tabs and pull through the slots in the mask frame or clip.
Removing the Cushion
- Pull cushion away from the frame.
Attaching the Cushion
- Align the cushion size (S/M, L, XL) mark on the bottom of the cushion to the bottom edge of the frame.
- Press cushion onto frame until it clicks into place.
Attaching the Headgear
- With the crown strap upward hold the top straps together.
Note: The Philips Respironics logo is on the outside back of the headgear when correctly assembled. - Thread the top straps through the top slot in the mask frame.
- Thread the bottom straps through the bottom slots in the mask frame or clips.
- Fold the ends back and press the tabs onto the straps.
| Operating Therapy Pressure Range |
| 4 to 30 cmH²O |

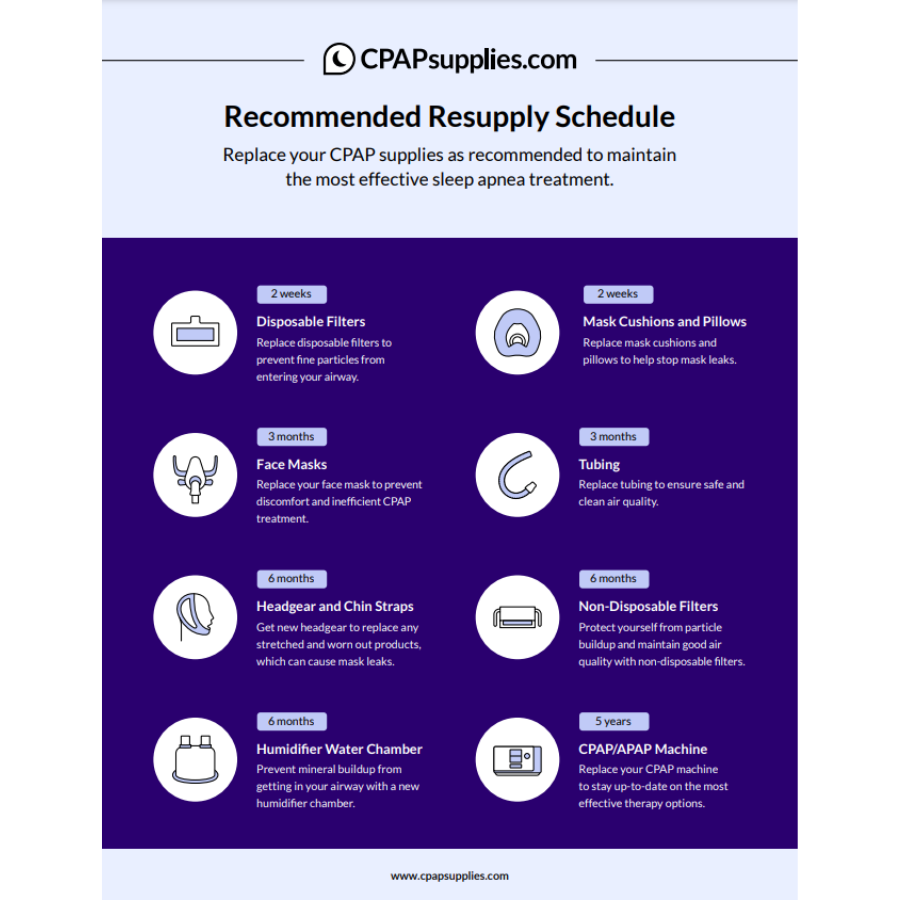

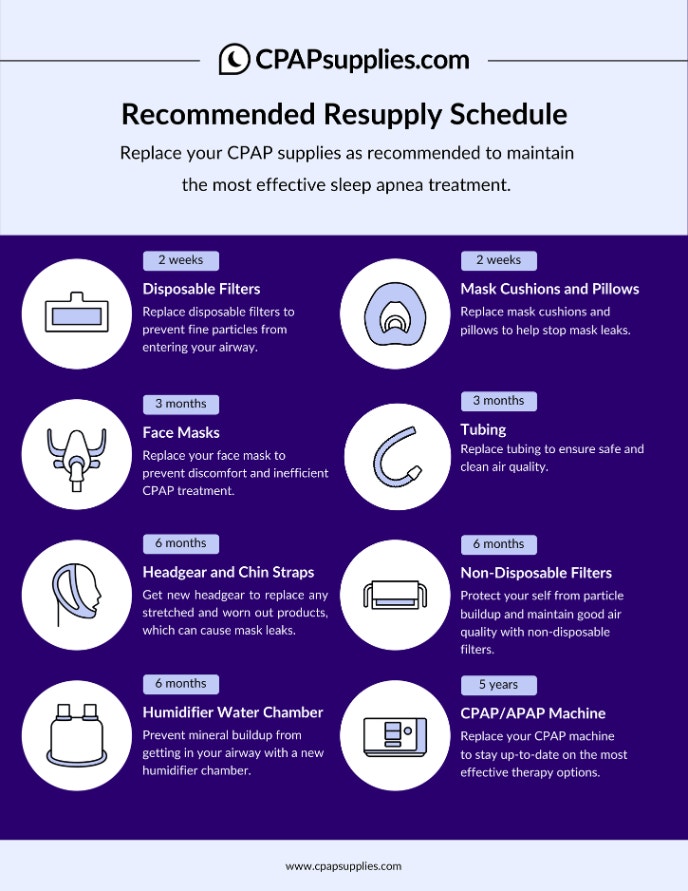

CPAPsupplies.com: CPAP Supplies Replacement Schedule
Pico: Fitting Guide
Pico: Cleaning Guide
Pico: Controlling Mask Leaks
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks

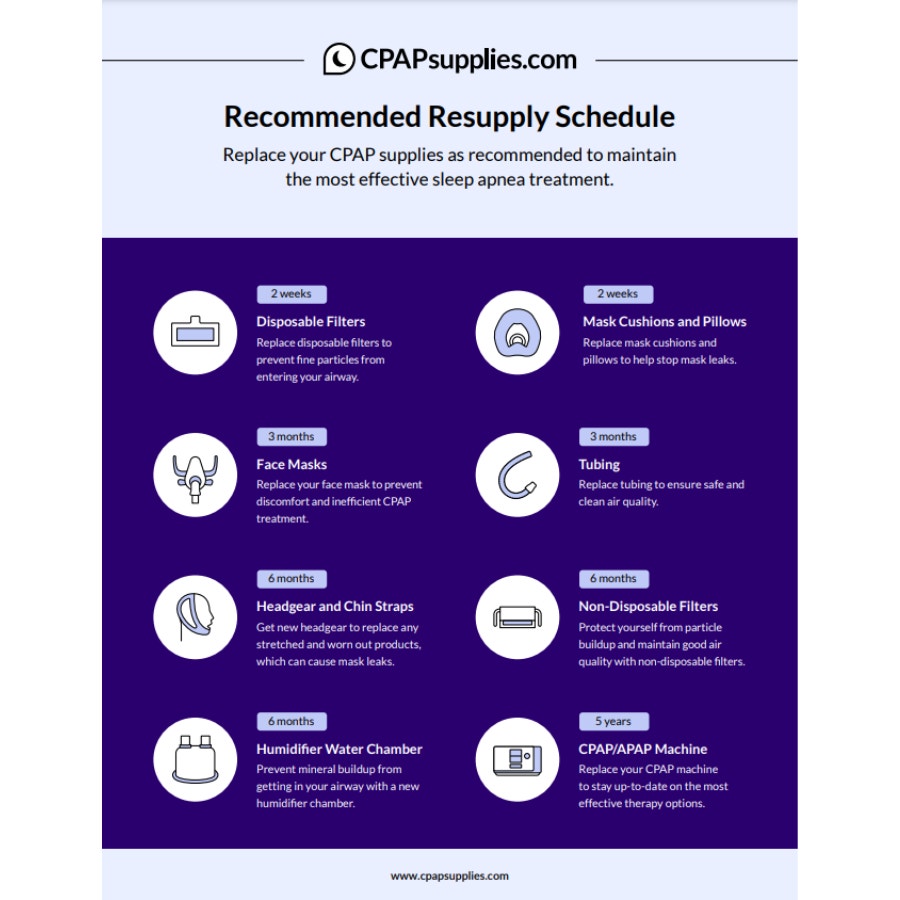

CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (nasal cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Nasal Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Philips Respironics |
|---|---|
| SKU | p_1104919 |
| Model | p_1104919 |
| Prescription Required | No |
| Weight | 1.00 lbs |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| FSA/HSA Eligible | Yes |
| Included | 1104919, 1104920, 1104918 |
