Fisher & Paykel FlexiFit™ 432 Full Face CPAP Mask without Headgear
Softer, Smaller, the FlexiFit™ 432 takes comfort to the next level in a very real way. The FlexiFit™ 432 incorporates a cleverly designed Soft Foam Cushion that combines with a contoured Silicone Seal to provide a better seal and more comfortable fit than ever before.
Fisher & Paykel FlexiFit™ 432 Full Face CPAP Mask without Headgear Overview

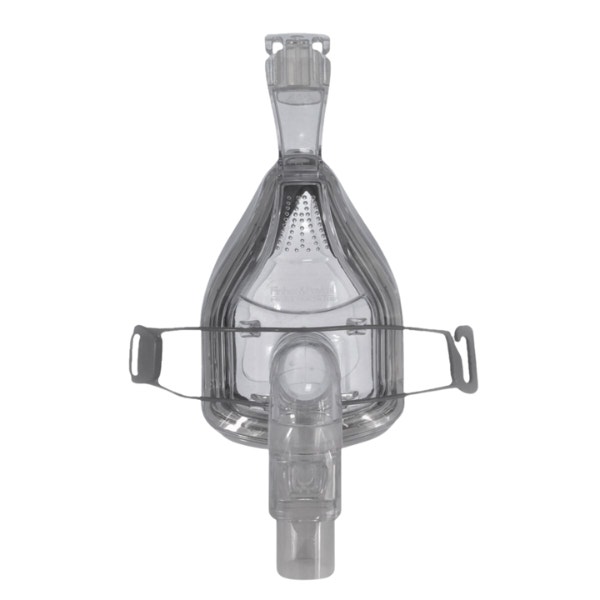

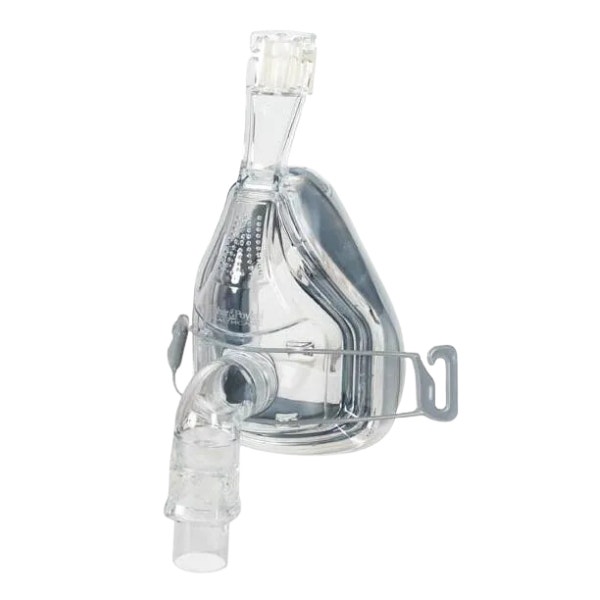

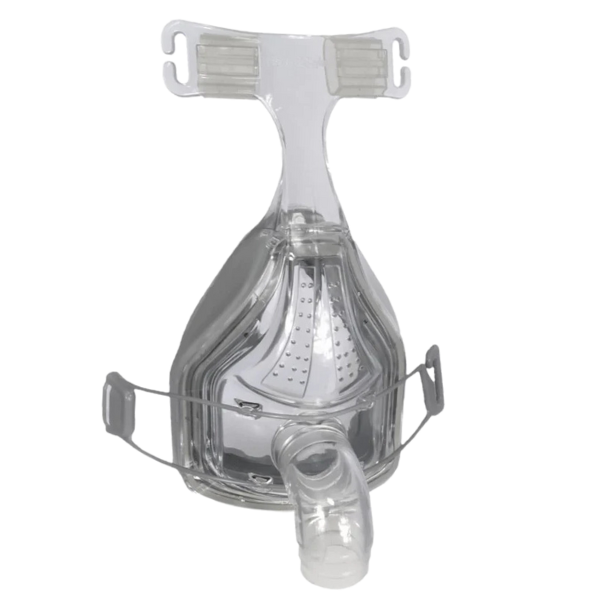

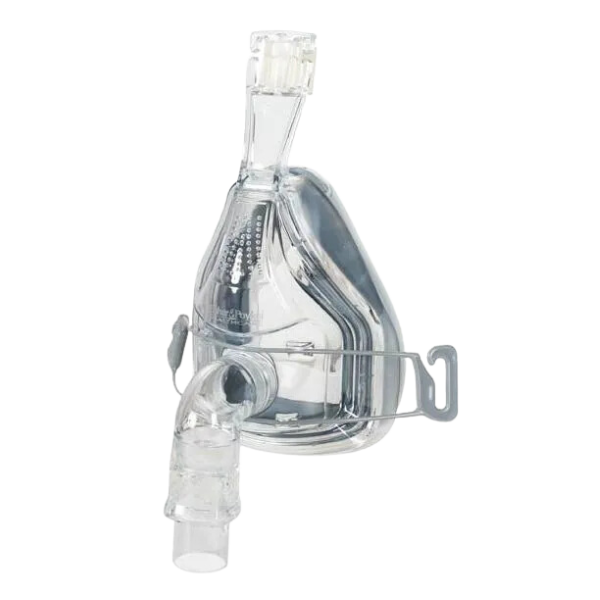

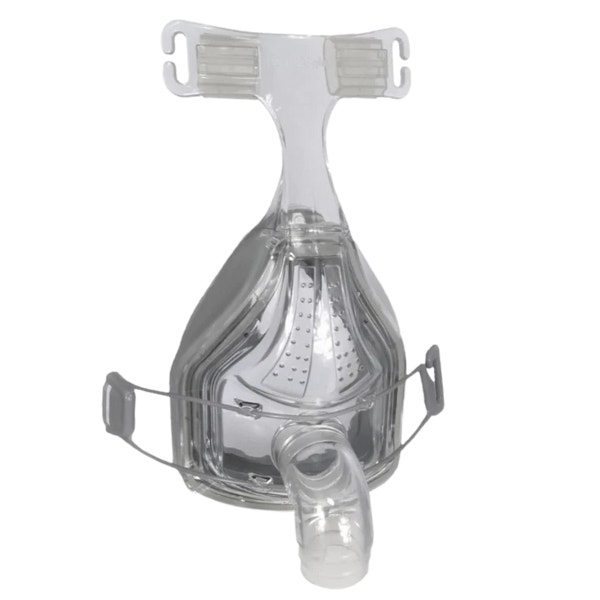

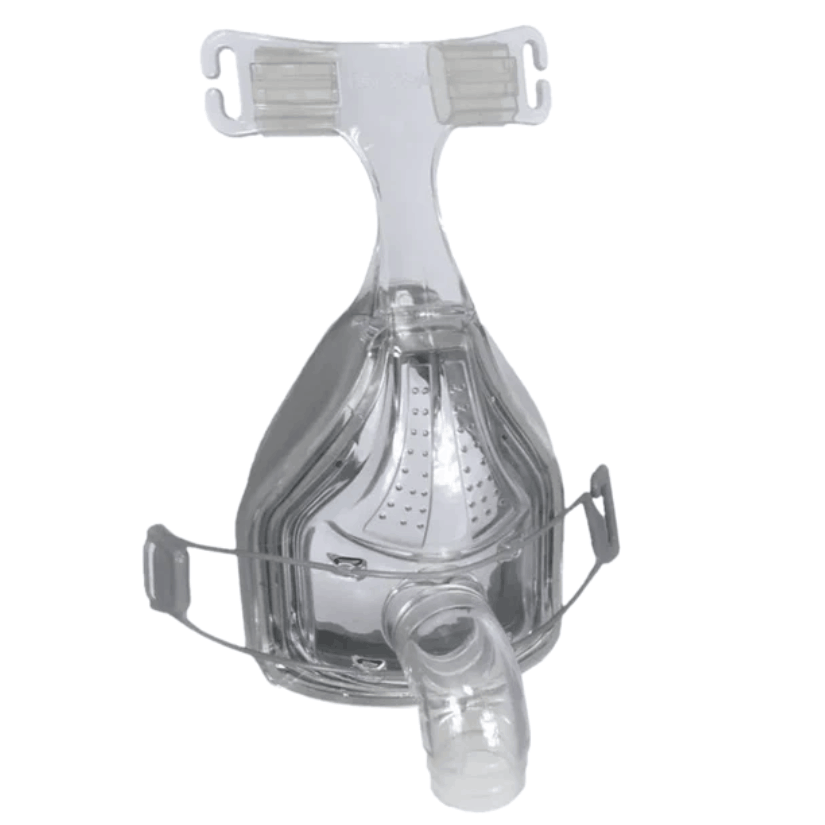

This is the frame system for the Fisher & Paykel FlexiFit™ 432 Full Face Mask and includes the mask frame and the cushion.
-
FlexiFit™ Technology automatically adjusts to a wide range of facial contours to ensure easy fitting
-
Premium Silicone Seal has a soft surface, frosted texture optimizes mask seal
-
Efficient Bias Diffuser offers an advanced air diffuser system that prevents air from blowing out of the mask, decreasing noise levels
-

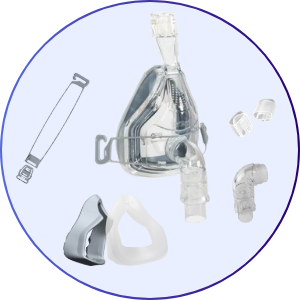

1 — FlexiFit™ 432 Mask Frame
-

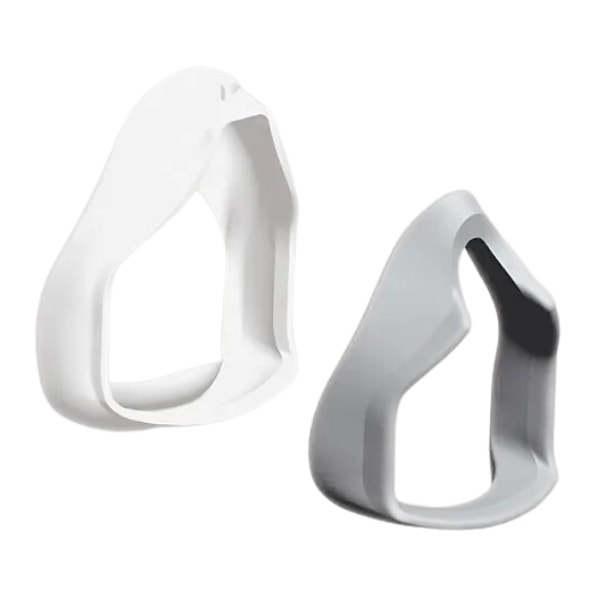

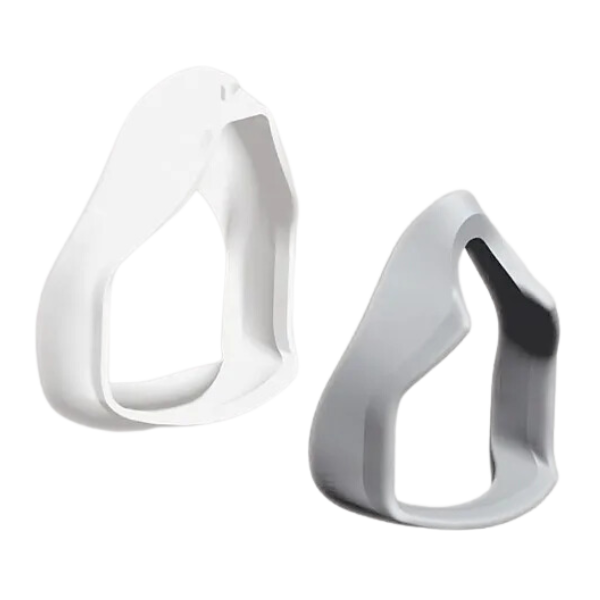

1 — Cushion and Seal (of selected size)
-
1 — Glider™ Strap
-
1 — Elbow & Valve
Please note: headgear is not included in this order.
-
Small - FlexiFit™ 432 Mask System - without Headgear - 400HC519
-
Medium - FlexiFit™ 432 Mask System - without Headgear - 400HC521
-
Large - FlexiFit™ 432 Mask System - without Headgear - 400HC522
-
Extra Large - FlexiFit™ 432 Mask System - without Headgear - 400HC541
Breathing Style:
-
Mouth Breathers
Sleeping Style:
-
Back Sleepers
-
Side Sleepers
Additional Considerations:
-
High Pressure Settings
-
Chronic Allergies or Nasal Congestion
Assembling Your Mask:
Refer to the assembly diagrams in these instructions.
- Place Silicone Seal (C) face down on a flat surface. With the thick side of the Foam Cushion (D) facing down, place onto Silicone Seal.
- Place Silicone Seal (C) and Foam Cushion (D) into the Mask Base (A).
- Push the Non-Rebreathing Valve (J) onto the Elbow (B), and attach to Mask Base.
- Lay the Headgear (K) flat with the label side down. Position the assembled mask over the Headgear and attach the four straps into the corresponding slots in the Mask Base and the Glider™ Strap (E). This can be done without undoing the Velcro® Tabs by sliding the Headgear into the slots.
Fitting Your Mask:
Remove all packaging before using the mask.
Refer to the fitting diagram and assembly diagram above.
- Remove plastic cover from Silicone Seal.
- Unclip the Headgear (K) from the Glider™ Strap (E) by pulling the Release Cord (I) down. Holding your Mask Base (A) in one hand, spread the Headgear with your free hand, just enough to fit comfortably over your head.
- Lightly hold the mask against your face, with the bottom of the Silicone Seal under your chin, and spread the Headgear over your head with your free hand.
- Reattach the Headgear Clip (H) to the Glider™ Strap.
- Gently adjust the top horizontal straps, then the lower horizontal straps, then the top crown straps. Ensure the top of the Silicone Seal remains stable on the bridge of your nose, and the bottom remains fixed under your chin. Ensure that the Glider™ Strap is centered.
- Connect the CPAP/Bi-Level machine hose running at the prescribed pressure to the mask.
Fitting Tips:
- If necessary, pull the mask slightly away from your face while the straps are still attached. This allows the Silicone Seal to inflate. Put the mask back on your face.
- If leaks occur around the upper half of the mask, gently tighten the top horizontal straps. It is not necessary for the Forehead Cushion to touch your forehead.
- If leaks occur around the lower half of the mask, gently tighten the lower horizontal straps. (Avoid over-tightening the straps.)
- When you need to remove your mask, unclip the Headgear from the Glider™ Strap by pulling the Release Cord forward or down.
| Operating Therapy Pressure Range |
| 3 to 25 cm H²O |
CPAPsupplies.com: CPAP Supplies Replacement Schedule
FlexiFit™: Introduction
FlexiFit™: Fitting Guide
- CPAP Mask Frame Replacement Frequency: Resupply Every 3 Months
- CPAP Mask Cushions/Pillows Replacement Frequency: Resupply Every 2 Weeks
- CPAP Mask Headgear Replacement Frequency: Resupply Every 6 Months
CPAPsupplies.com: CPAP Supplies Replacement Schedule
Cleaning Guide
Regularly cleaning your CPAP mask parts and components is crucial for avoiding the accumulation of bacteria, debris, oils, and other contaminants. This will help prevent the buildup of germs that may cause skin irritation and other unwanted side effects.
Before following the instructions below, first make sure your CPAP machine is unplugged from the power source, disconnect your mask and air tubing from your CPAP machine, and disassemble your mask components into 3 parts (mask cushions, headgear, and frame):
| Part | Cleaning Frequency | Instructions |
|
Mask Cushions |
Daily |
|
|
Mask Frame |
Weekly |
|
|
Headgear |
Weekly |
|
|
Chinstrap |
Weekly |
|
*Avoid using strong detergents or soaps, especially those that contain harsh chemicals, perfumes, dyes, moisturizers, or alcohol.
You can find more useful information regarding CPAP cleaning with this blog:
| Brand | Fisher & Paykel |
|---|---|
| SKU | p_432 _without_ headgear |
| Model | p_432 _without_ headgear |
| HCPCS | A7030 |
| UPC | 705968374483, 705968374520, 705968374544, 705968374551 |
| Prescription Required | No |
| Weight | 0.25 lbs |
| Manufacturer's Warranty | 90-day limited manufacturer's warranty |
| Color | Clear |
| FSA/HSA Eligible | Yes |
| Included | 400HC541, 400HC522, 400HC519, 400HC521 |
